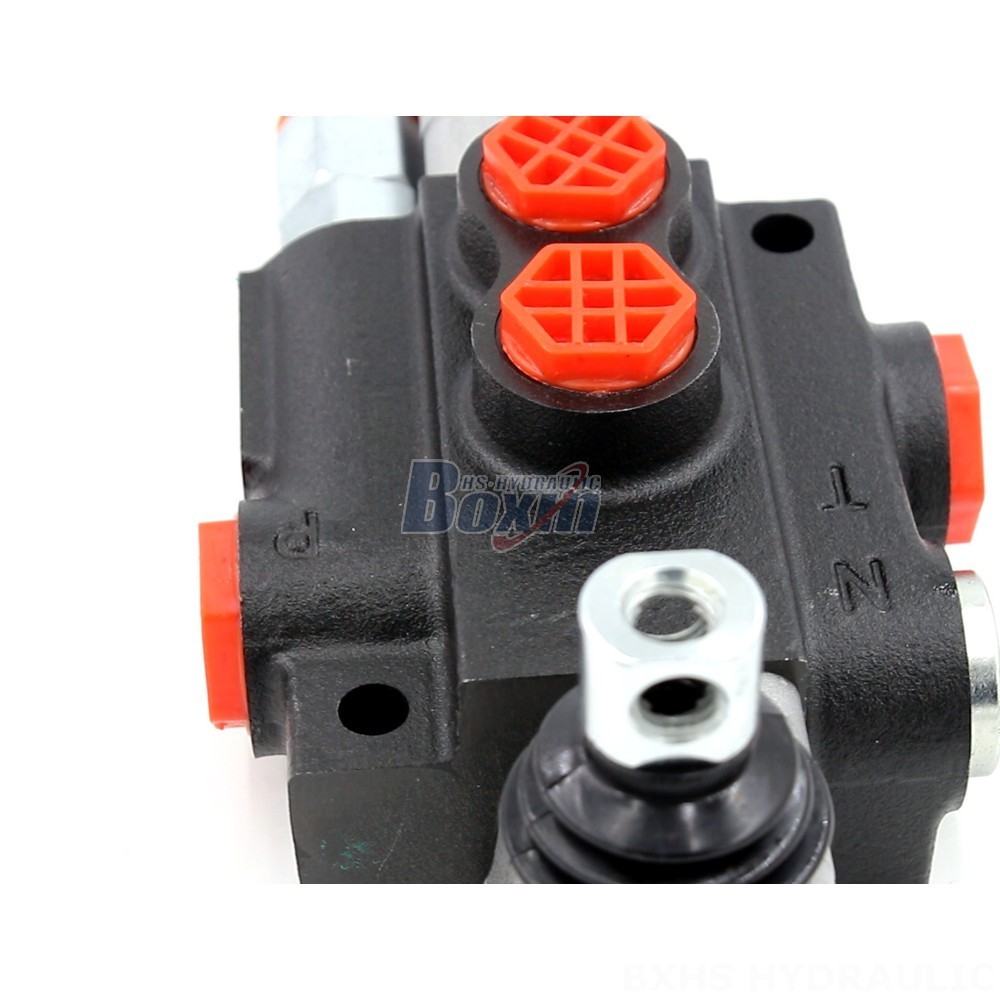

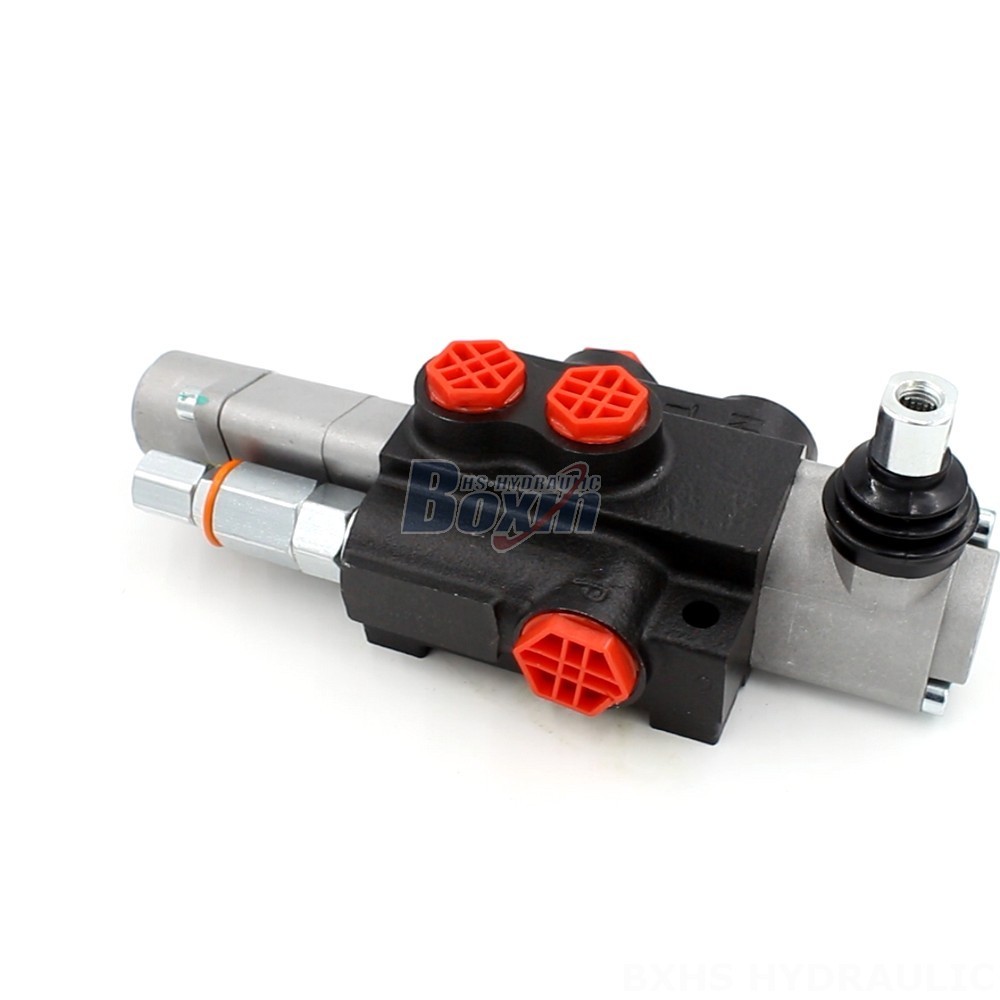

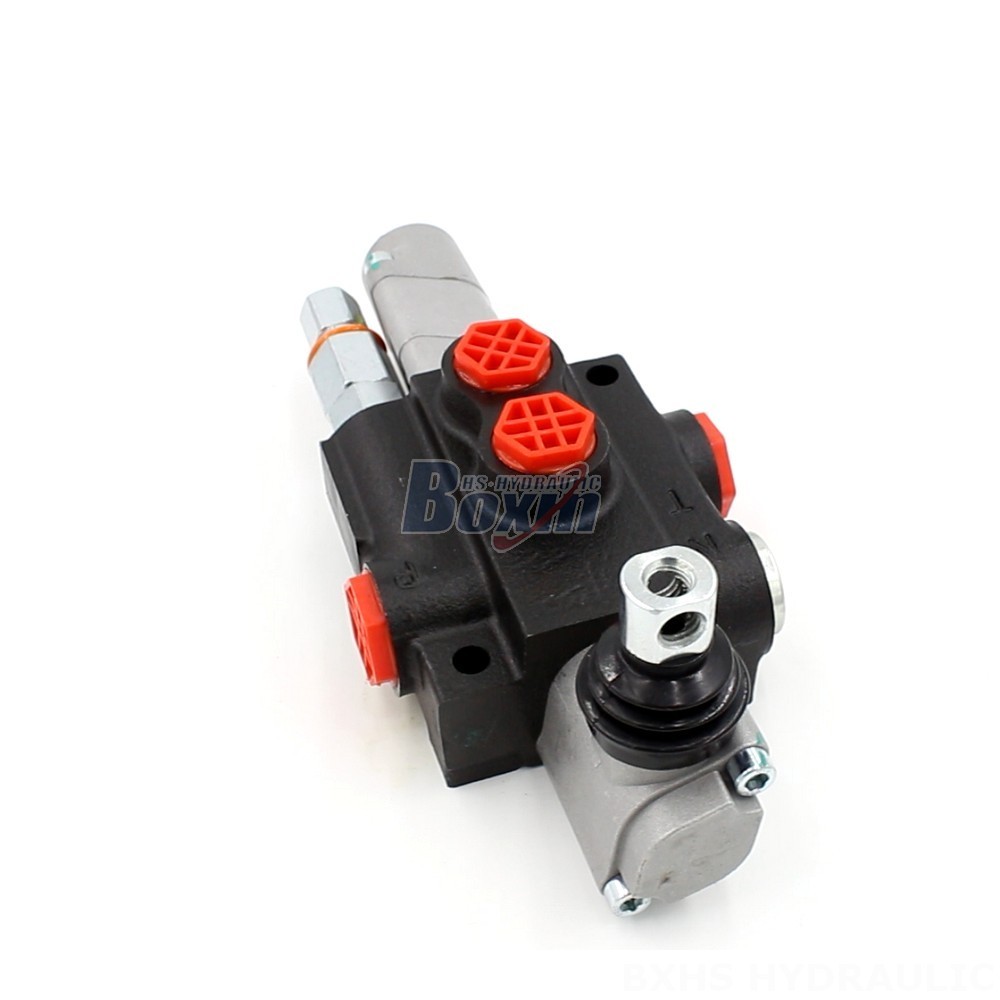

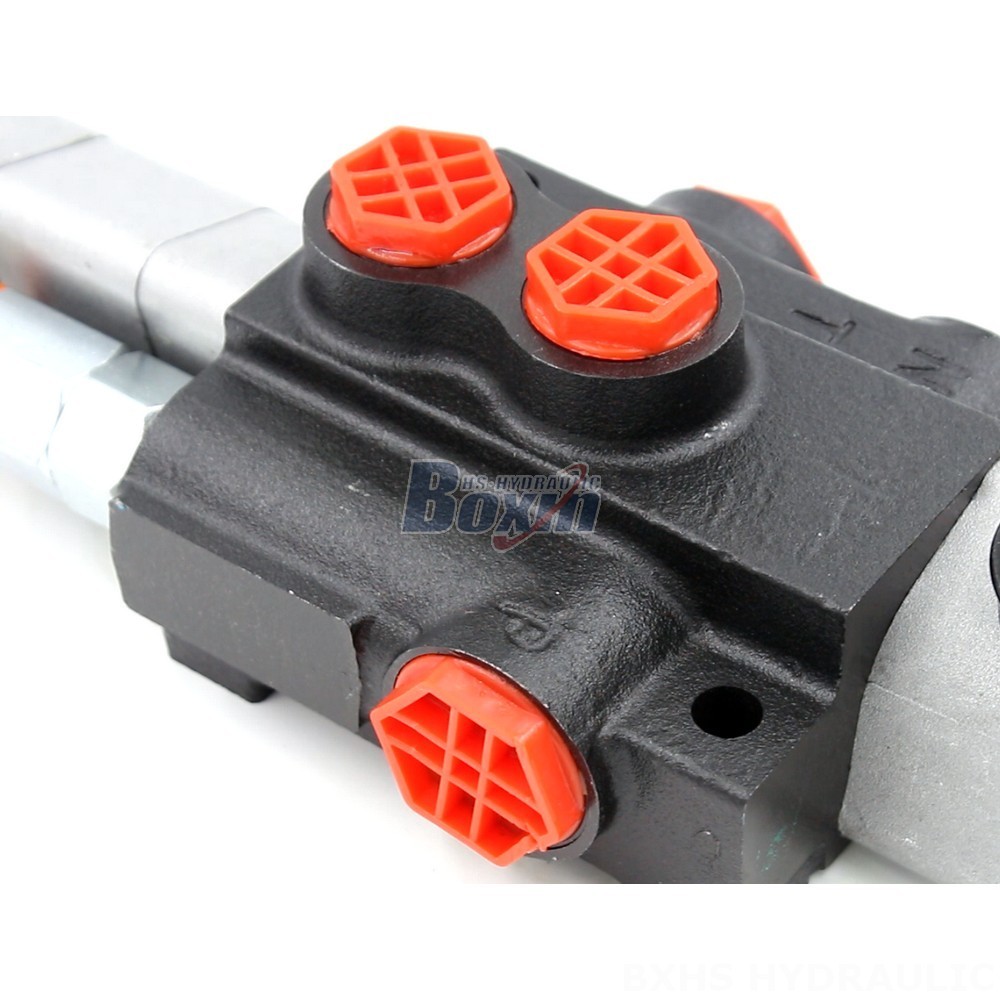

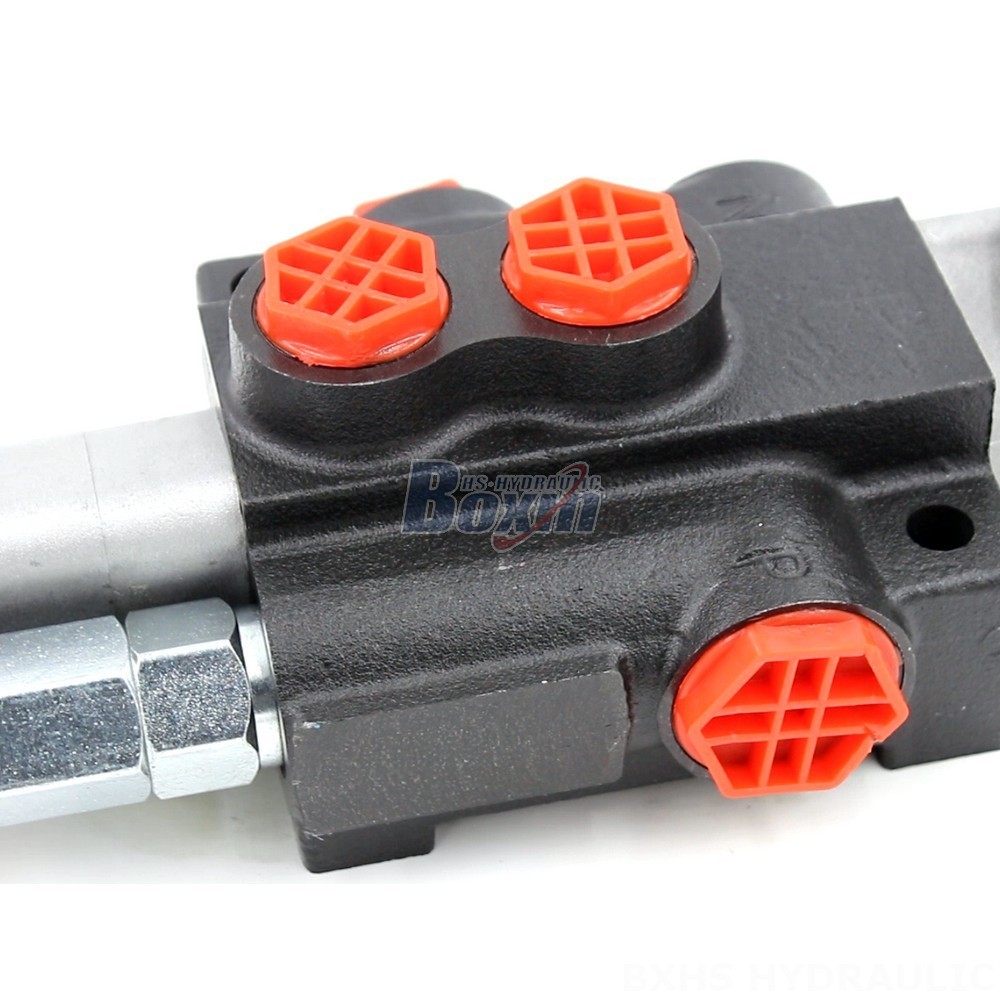

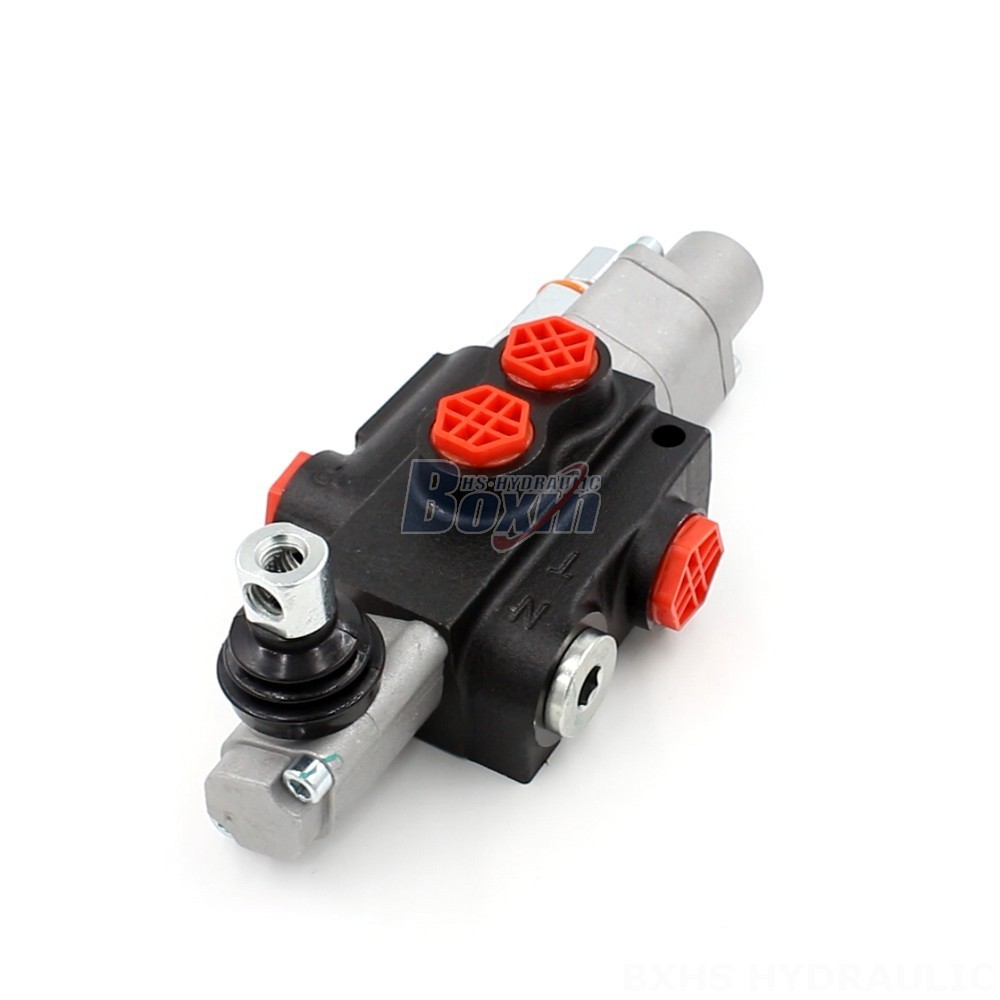

This Electro Pneumatic Control 1-Spool Hydraulic Directional Valve is a reliable and efficient solution for controlling hydraulic systems in various applications, including material handling, construction, agriculture, and industrial vehicles. It features manual control, a monoblock valve structure, and a rated flow of 40 L/min. The valve is customizable and available directly from the factory.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Electro Pneumatic Control 1-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding applications. It offers a compact and robust design, with a single spool and a rated flow of 40 L/min. The valve can withstand a maximum pressure of 250 bar and operates within a viscosity range of 15 - 75 mm²/s. It features manual control for precise operation. The valve is suitable for a wide range of applications, including telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders. Its versatility and reliability make it an ideal choice for various industries. The valve is available directly from the factory and can be customized to meet specific requirements.
