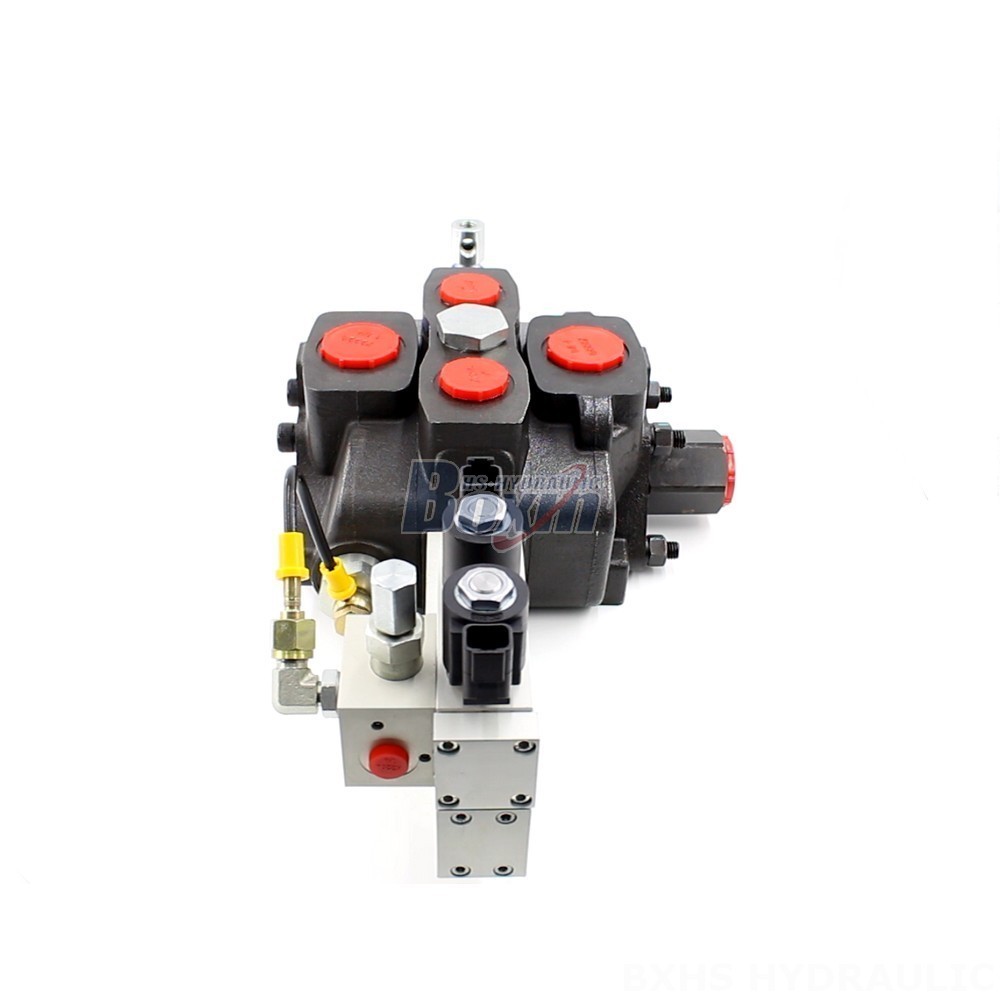

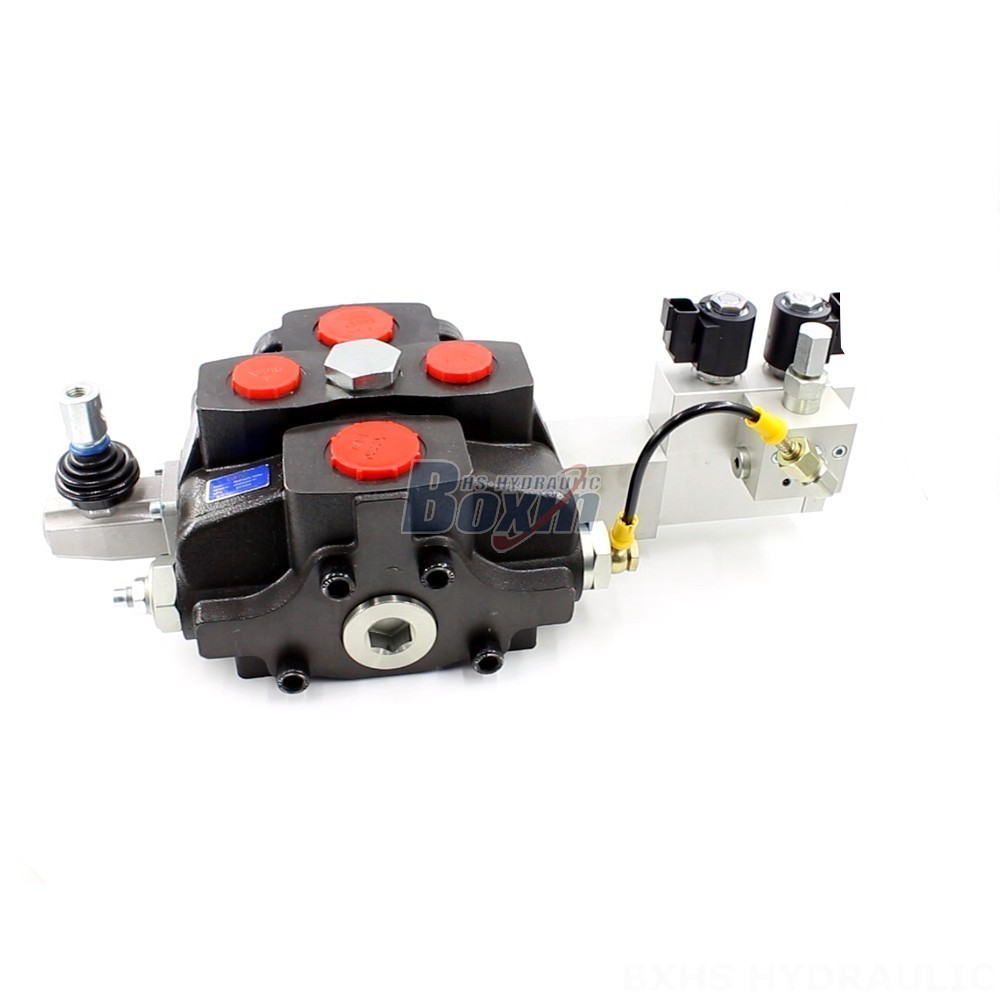

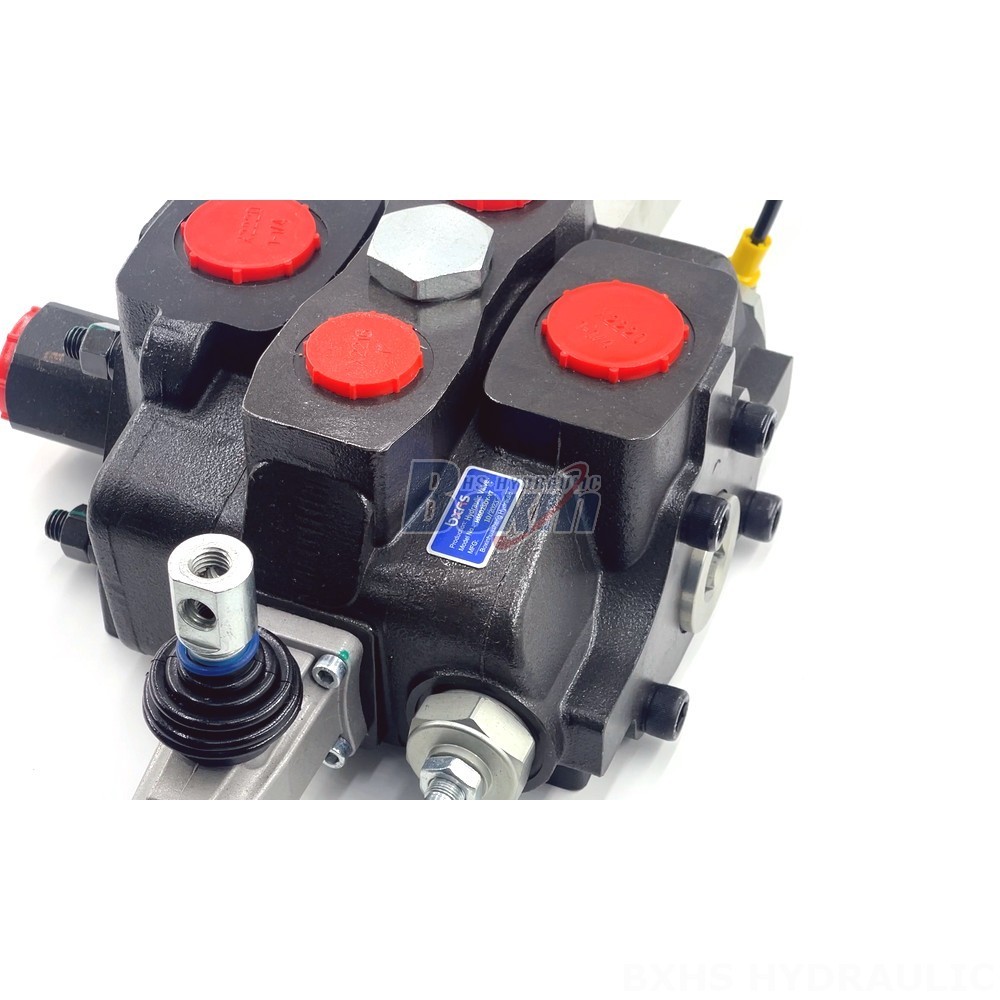

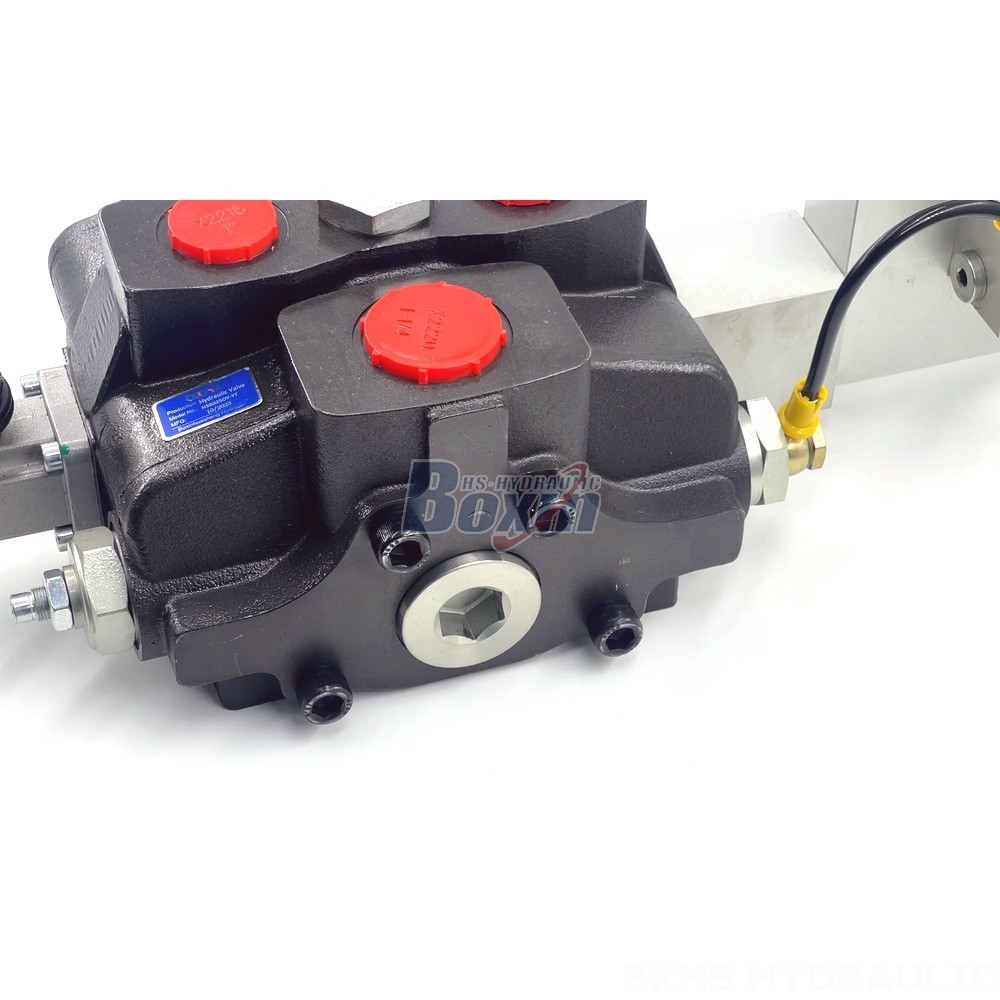

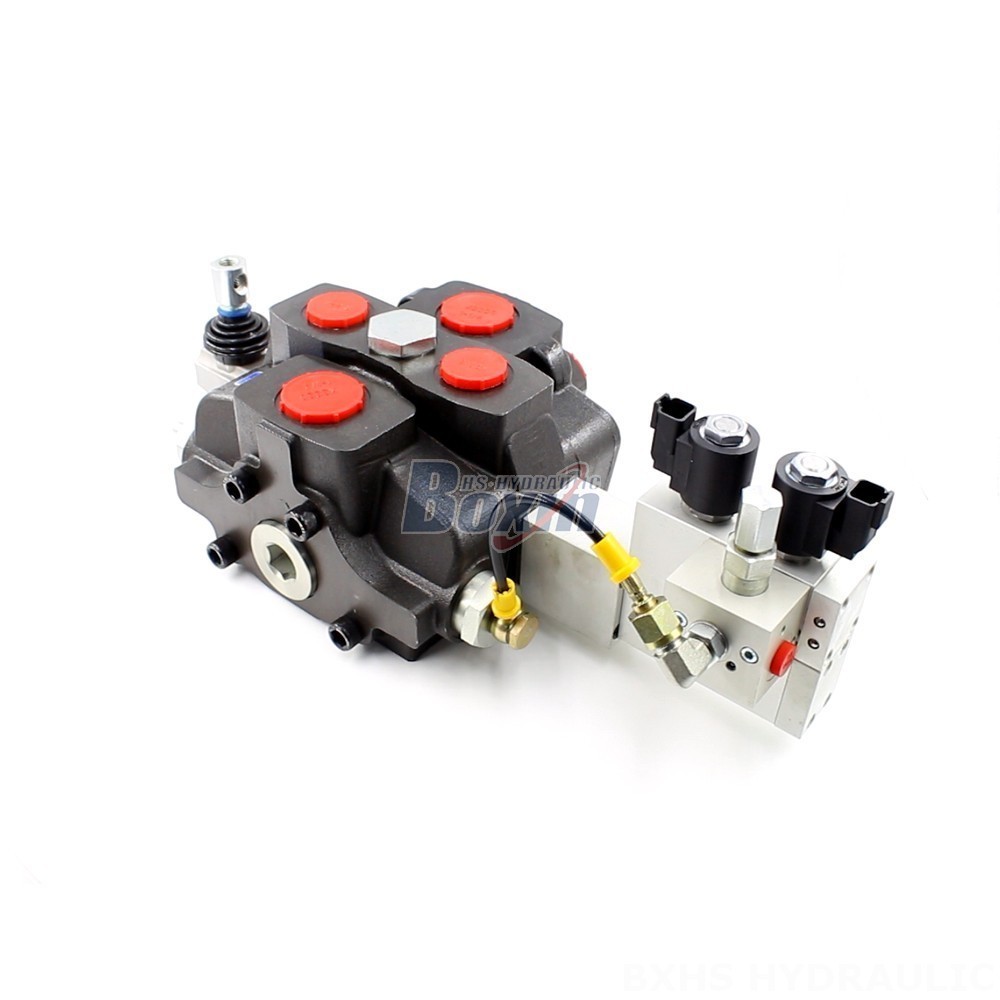

The SD25 Series 1 Spool Sectional Directional Valve is an electro-hydraulically controlled valve designed for use in a wide range of industrial applications. It features a compact monoblock design with a rated flow of 240 L/min (63.4 US gpm) and a maximum pressure of 315 bar (4600 psi).
| SD25-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Elektrohydraulisk, Hydraulisk |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 240 l/min (63,4 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1, SAE 16 |
| Utloppsport | G1-1/4, SAE 16 |
| Portstorlek | G1, G1-1/4, SAE 12 |
The SD25 Series 1 Spool Sectional Directional Valve is available in a variety of configurations to meet the specific requirements of any application. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicle applications. Some typical applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
