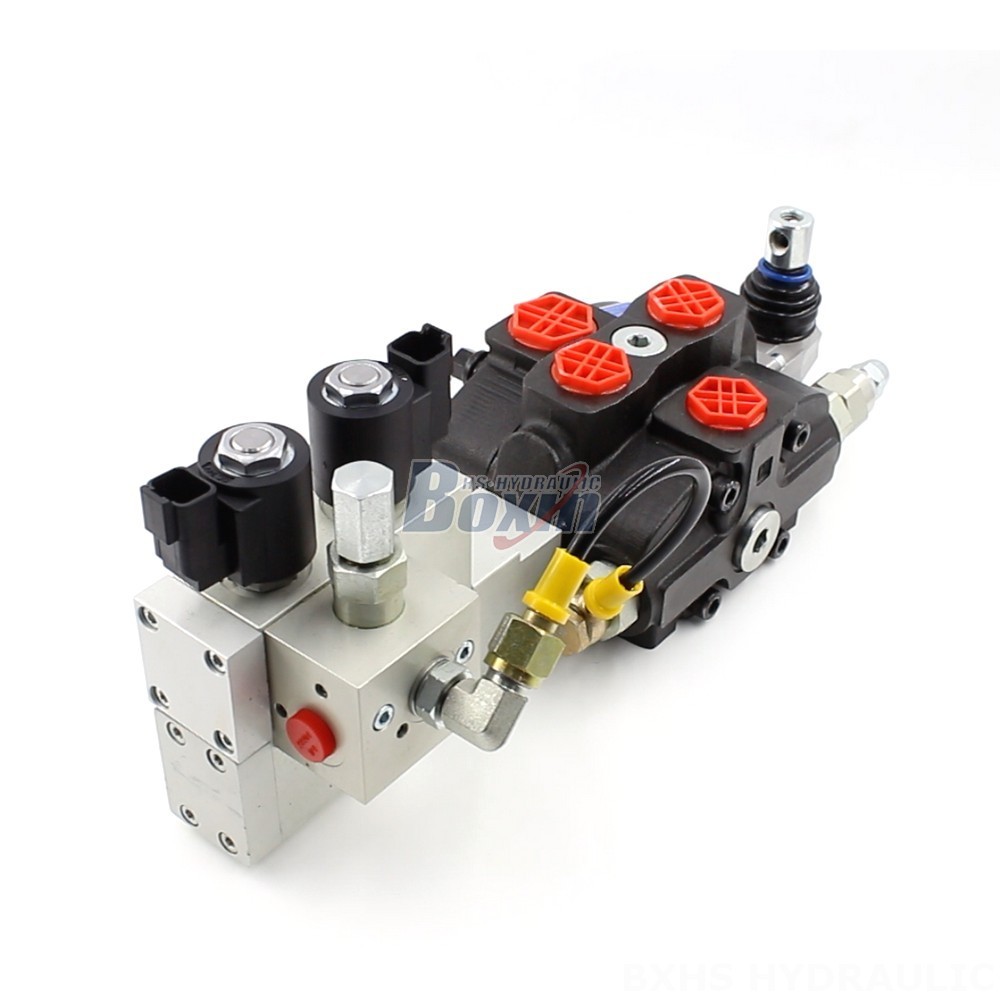

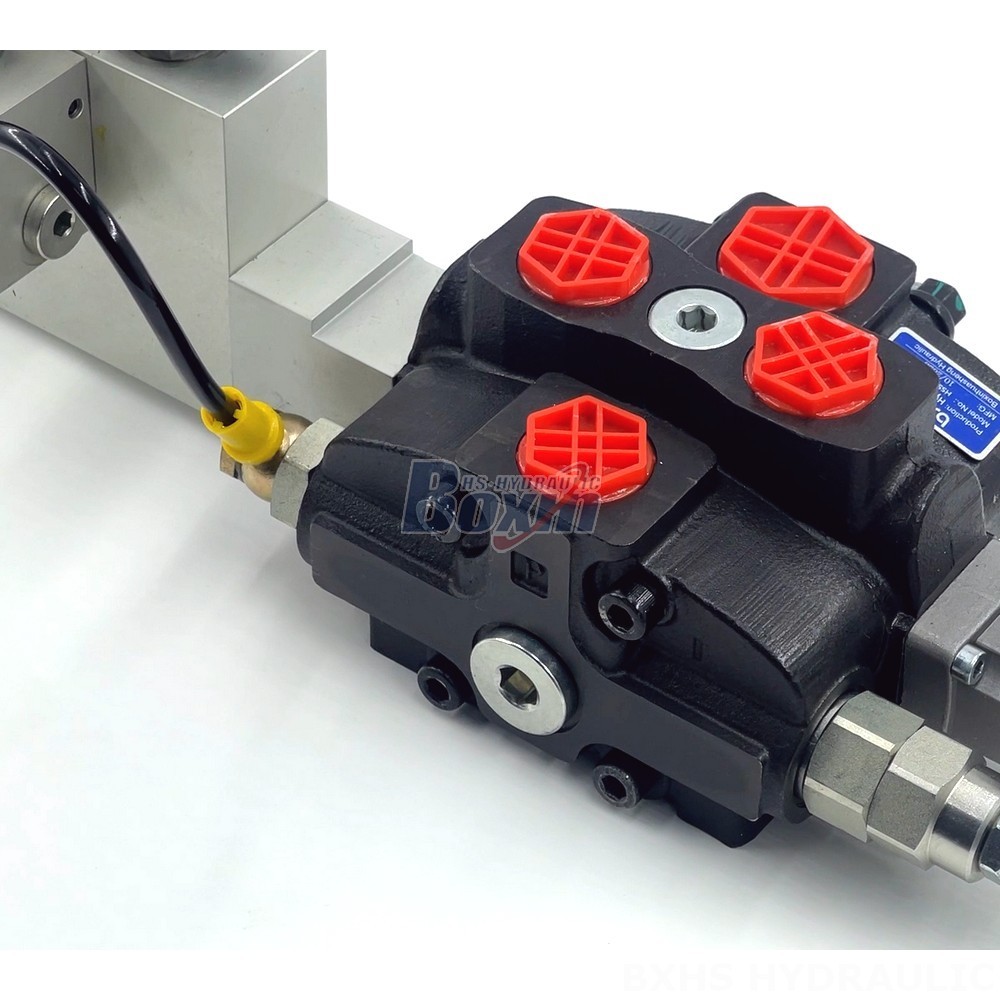

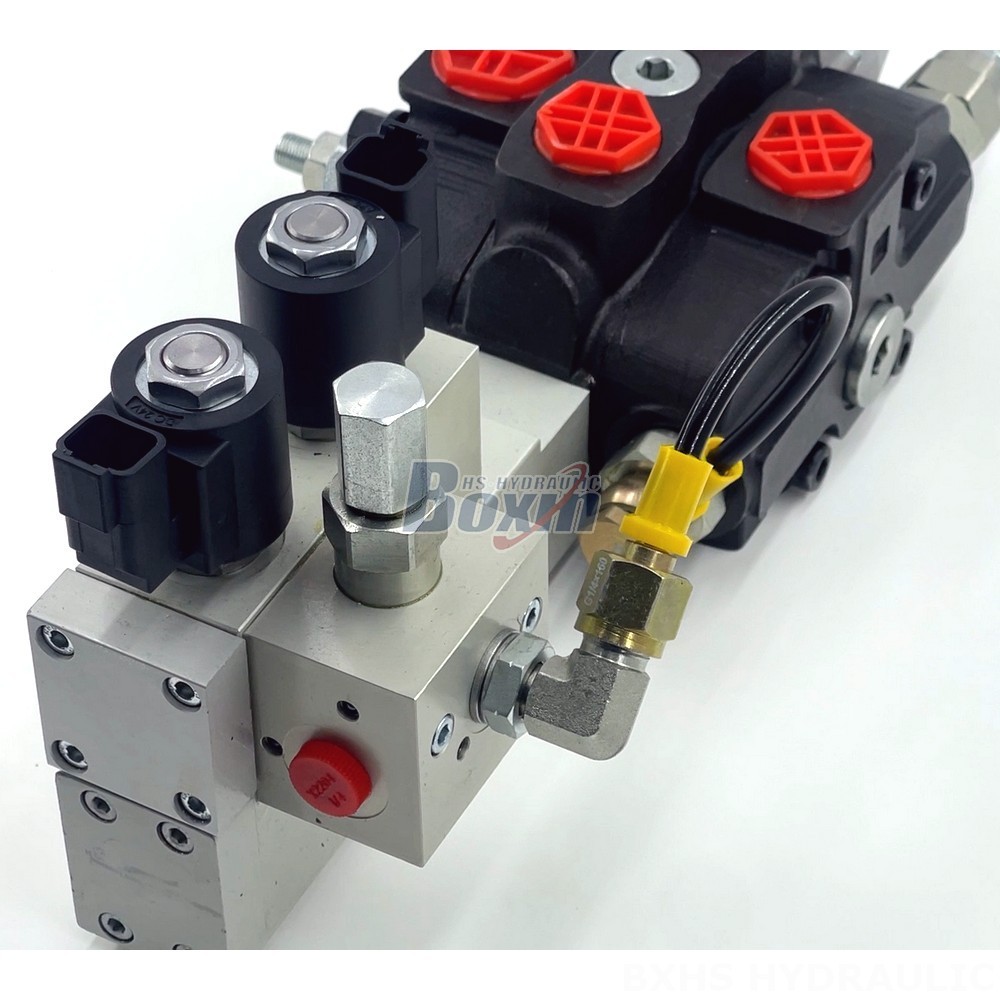

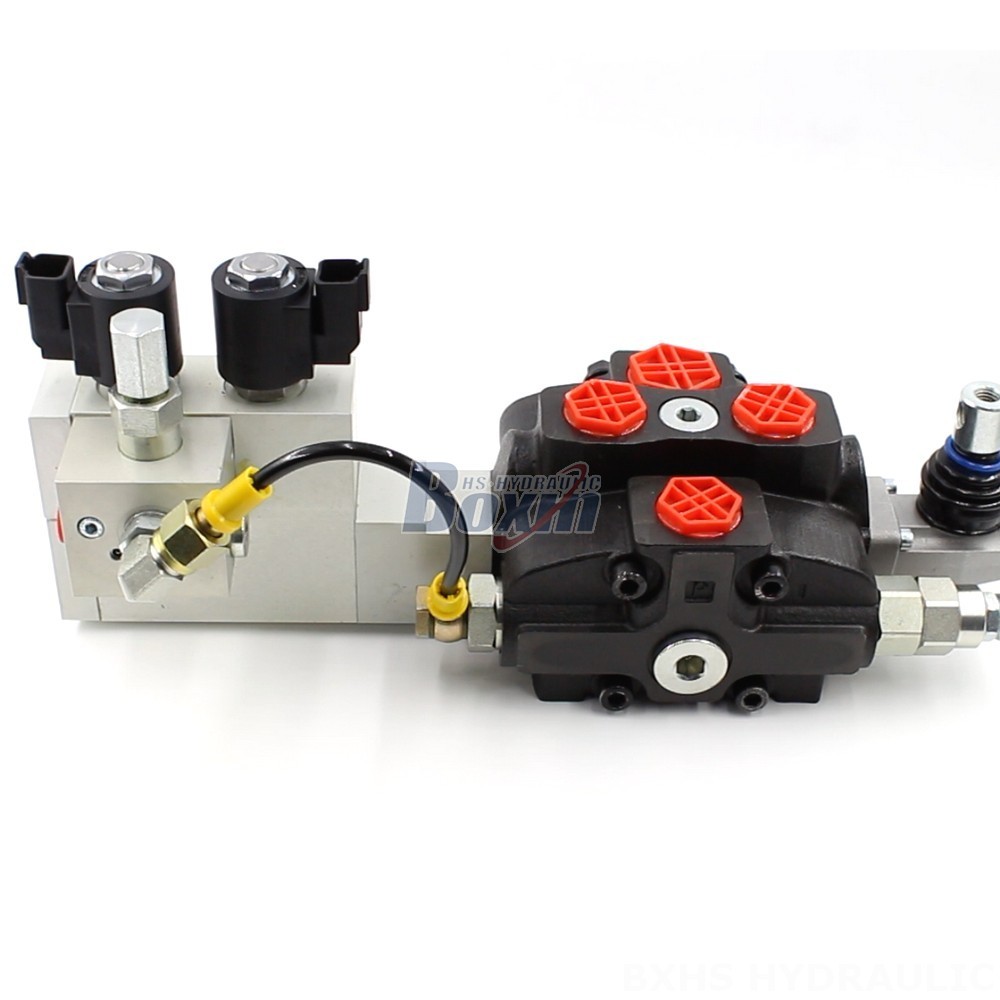

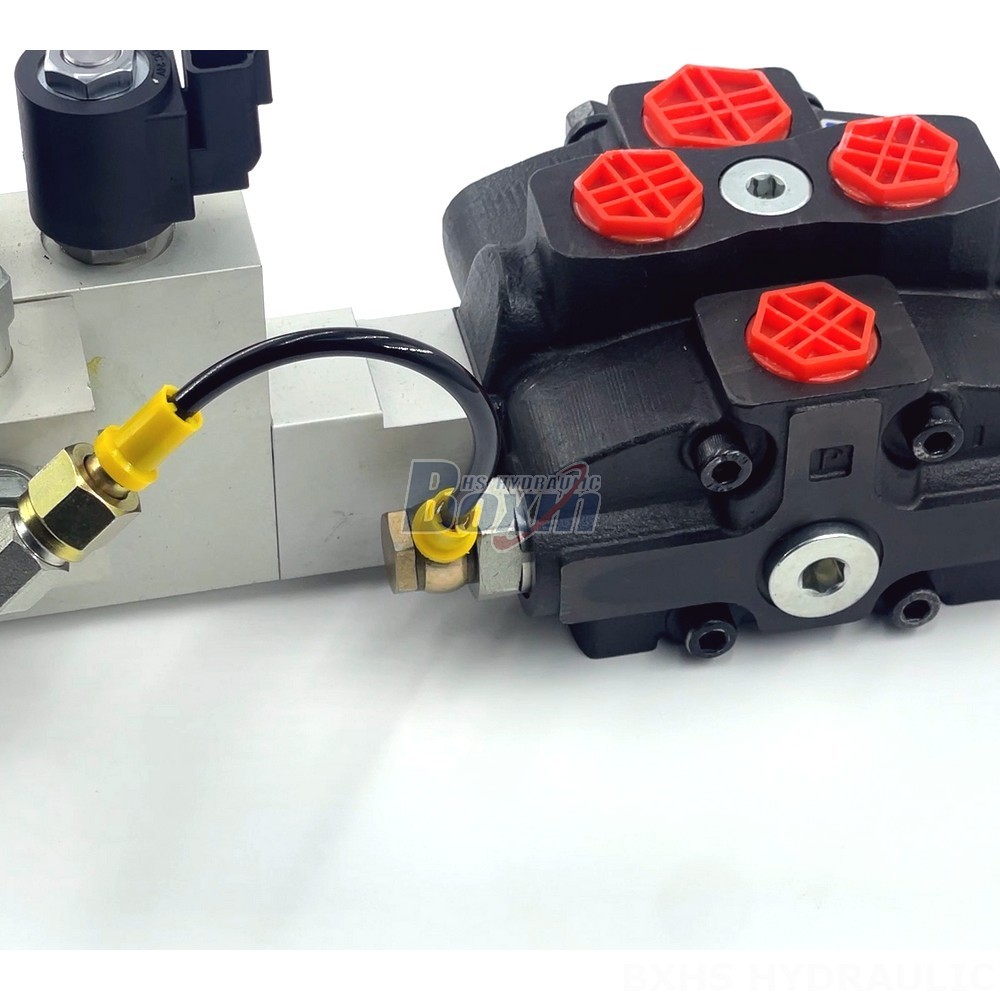

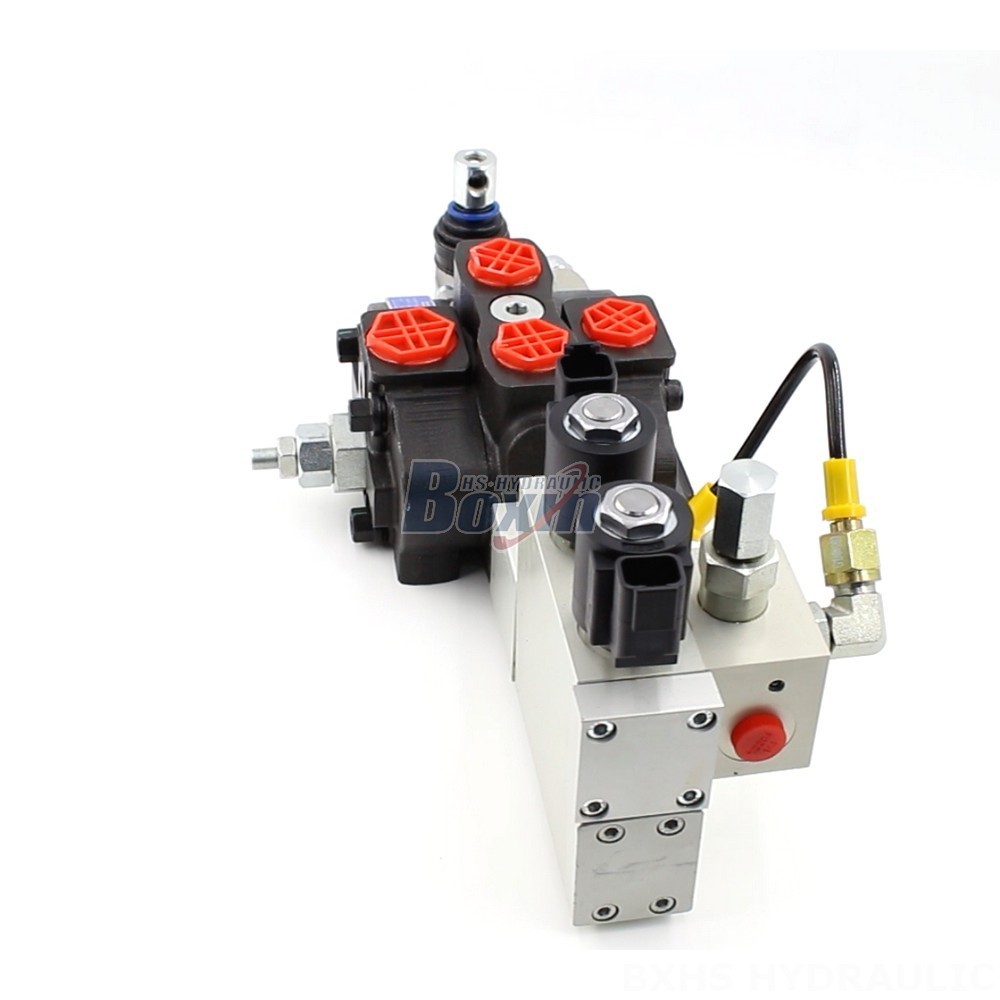

The SD8 Series 1-Spool Sectional Directional Valve is a reliable and efficient hydraulic flow control valve designed for material handling, construction, and industrial applications. It features electro-hydraulic control and offers a rated flow of 90 L/min (23.8 US gpm) with a maximum pressure of 350 bar (5100 psi).
| SD8-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 90 l/min (23,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, SAE 10 |
| Utloppsport | G1/2, G3/4, SAE 10, 3/4 NPT |
| Portstorlek | G1/2, SAE 10 |
This 1-section sectional valve is engineered for demanding applications, boasting a wide operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). It is specifically suited for a variety of machinery, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The SD8 Series valve is available for wholesale and OEM (Original Equipment Manufacturer) needs, offering customizability and flexibility for your specific hydraulic system requirements.
