What is the primary application of the 10 cc/rev Hydraulic Gear Pump: Manufacturer, Supplier, and Customization?

The 10 cc/rev Hydraulic Gear Pump: Manufacturer, Supplier, and Customization is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

10 cc/rev Hydraulic Gear Pump: Manufacturer, Supplier, and Customization

Name: 10 cc/rev Hydraulic Gear Pump: Manufacturer, Supplier, and Customization
Brand: Boxinhuasheng
SKU: BXHS-52327
Availability: InStock

Deplacement:10 cc/varv

Nominellt tryck:16 MPa (2320 psi)

Maximalt tryck:20 MPa (2900 psi)

Maximal hastighet:3000 varv/min

Rotationsriktning:Höger (medsols)

Märke:BXHS

Produkttyp:Hydraulisk kugghjulspump

Produktserie:NSH-serien Hydraulisk kugghjulspump

Förpackningsstorlek:20*15*13

Bruttovikt:2.60 kg

Tillgänglighet: I lager

Beskrivning

10 cc/rev Hydraulic Gear Pump: Manufacturer, Supplier, and Customization

10 cc/rev Hydraulic Gear Pump: Manufacturer, Supplier, and Customization drawing image

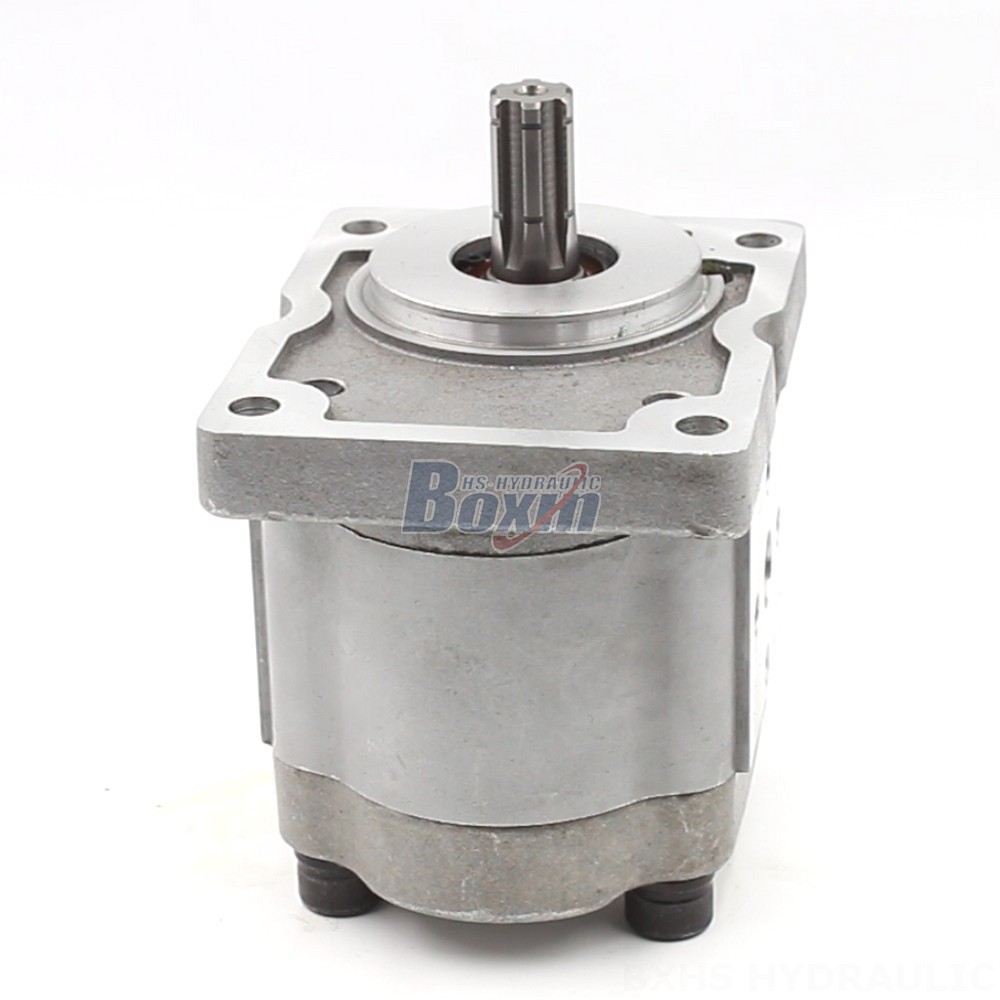

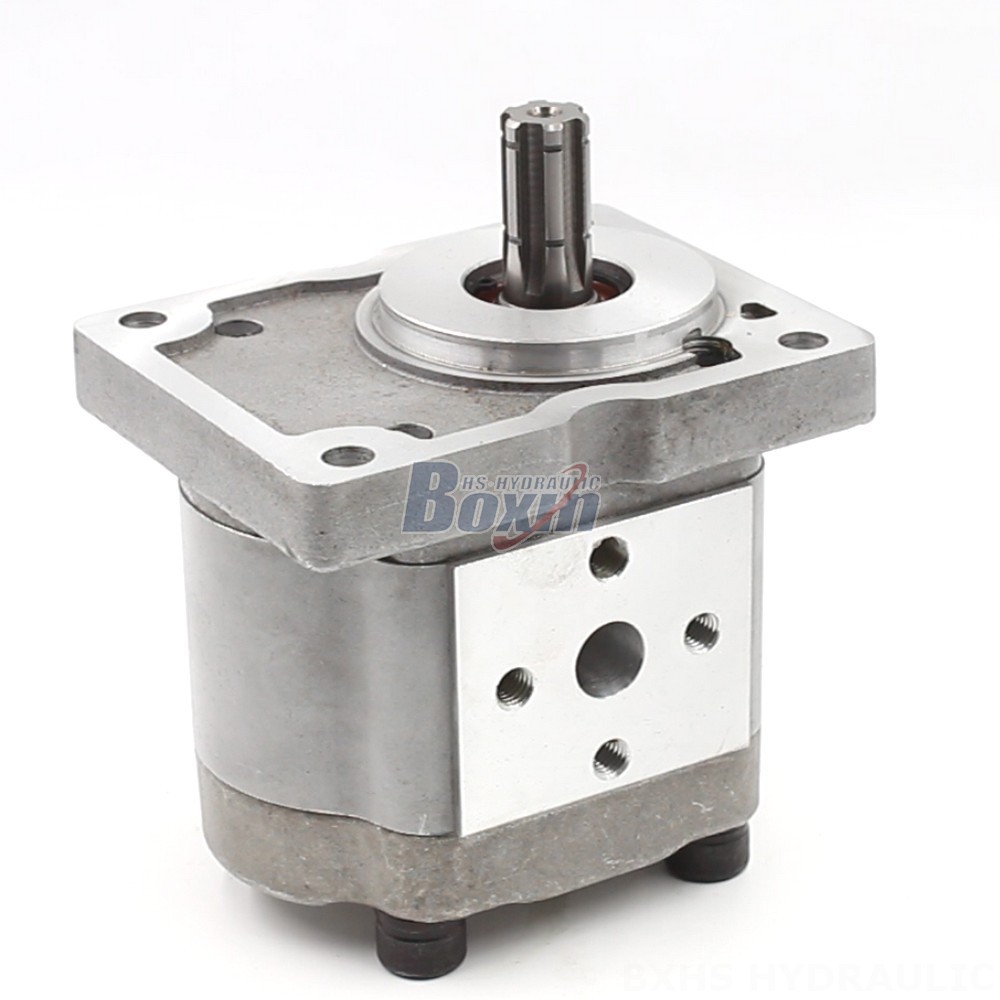

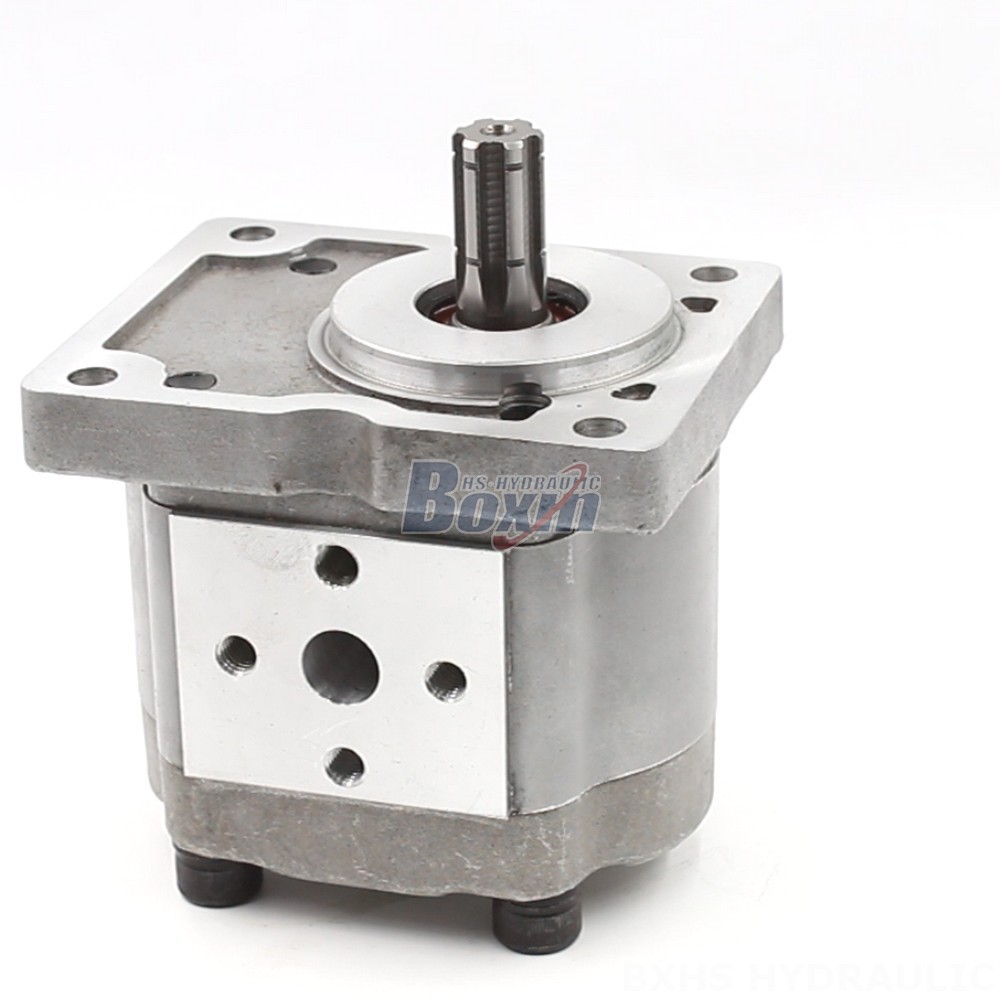

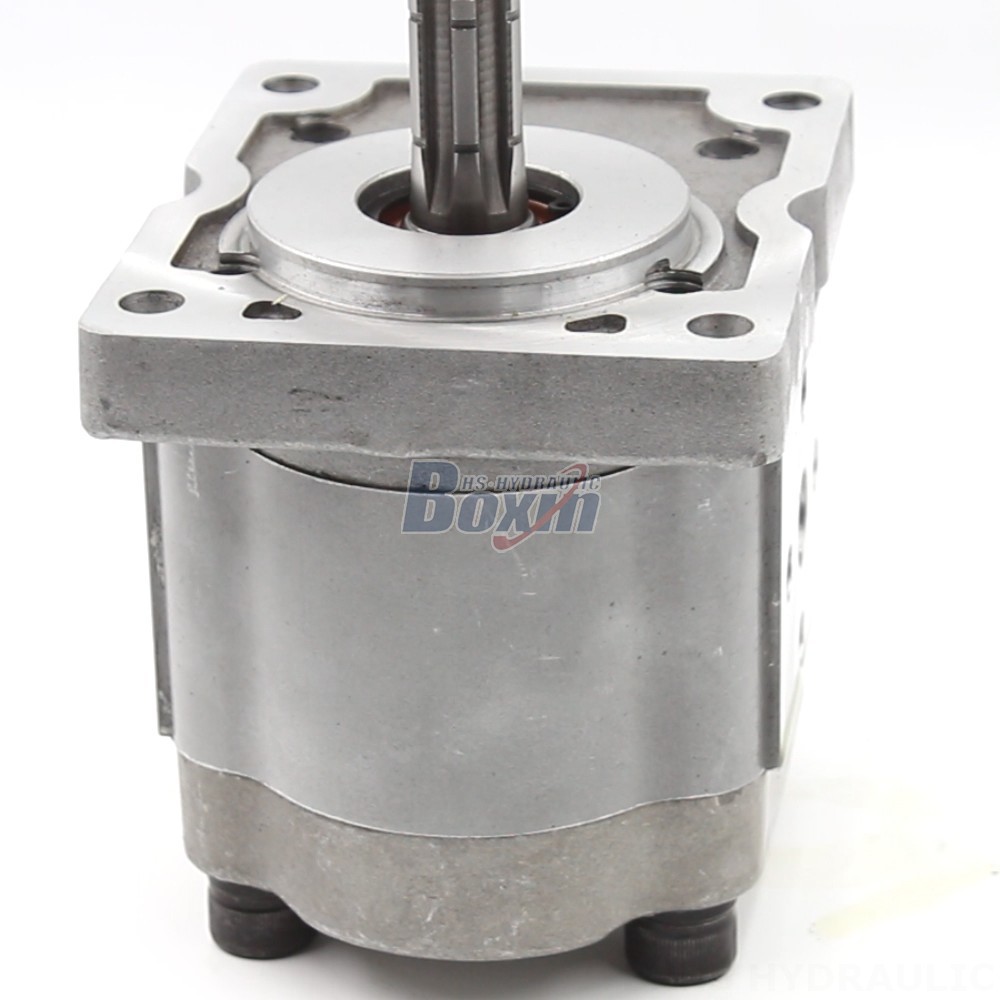

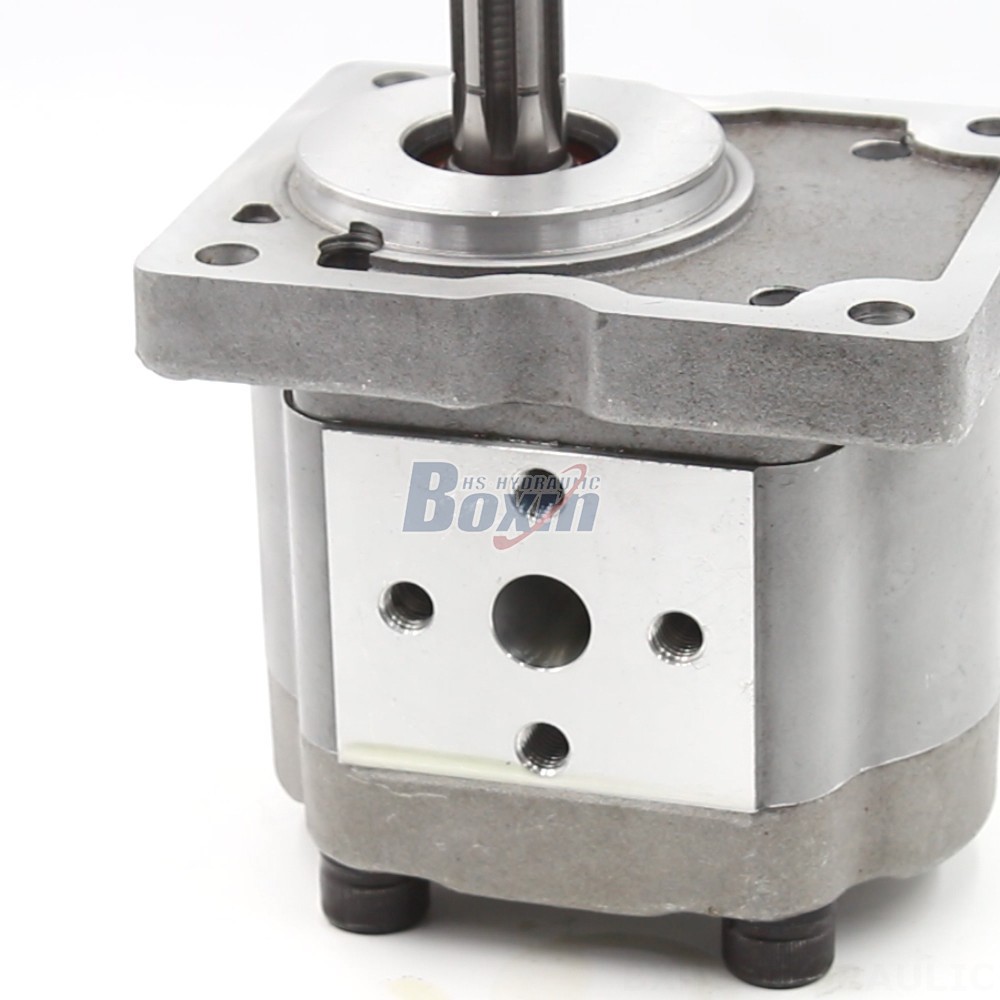

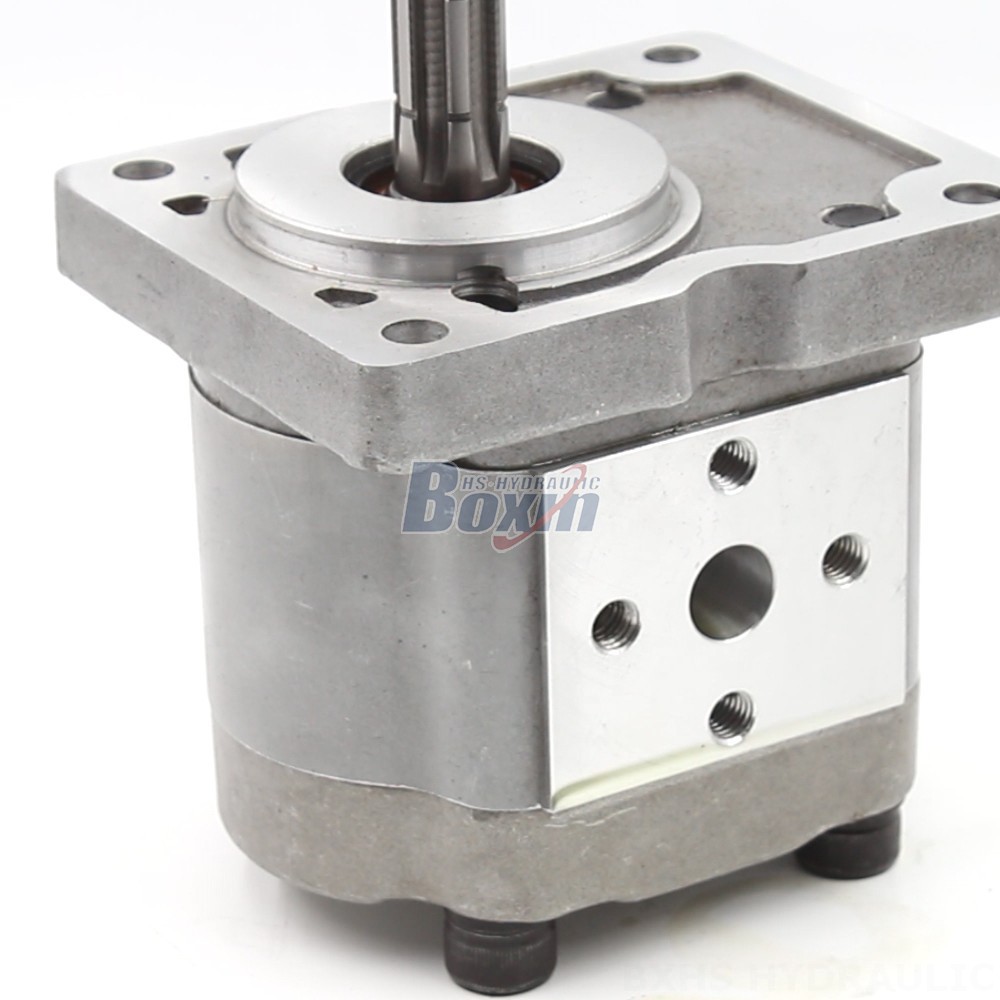

A high-quality 10 cc/rev hydraulic gear pump, designed for use in a wide range of industrial applications. With a rated pressure of 18 MPa and a rated speed of 2000 r/min, this pump is capable of delivering reliable performance in even the most demanding conditions. It is constructed from durable aluminium and features a B-Square flange and an involute spline shaft. It is part of the NSH series and is commonly used in material handling, construction, earth moving, agriculture, and industrial vehicle applications.

NSH-serien Hydraulisk kugghjulspump Parametrar
Deplacement	10 cc/varv, 32 cc/varv, 40 cc/varv, 50 cc/varv, 100 cc/varv
Nominellt tryck	18 MPa (2610 psi)
Maximalt tryck	20 MPa (2900 psi)
Nominell hastighet	2000 varv/min
Maximal hastighet	4200 varv/min
Rotationsriktning	Vänster (motsols)
Material	Aluminium
Struktur	Externt kugghjulspump
Flanschversion	B-Kvadratisk fläns
Axeltyp	X: Evolventsplines

**10 cc/rev Hydraulic Gear Pump**

**Product Specifications:**

* Displacement: 10 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Rotation: Left (counter-clockwise)
* Structure: External Gear Pump
* Material: Aluminium
* Flange Version: B-Square Flange
* Shaft Type: Involute Spline
* Series: NSH Series

**Applications:**

* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles

**Applicable Models:**

* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
