This 16 cc/rev Hydraulic Gear Pump is engineered for precision and power, offering reliable performance in a wide range of applications including material handling, construction, agriculture, and industrial vehicles.
| CBHS-FL3-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 10 cc/varv, 4 cc/varv, 20 cc/varv, 16 cc/varv, 14 cc/varv, 6 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 3000 varv/min |
| Rotationsriktning | Vänster (motsols), Höger (medsols) |
| Material | Aluminium |
| Struktur | Externt kugghjulspump |
| Flanschversion | A-Oval fläns |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel |

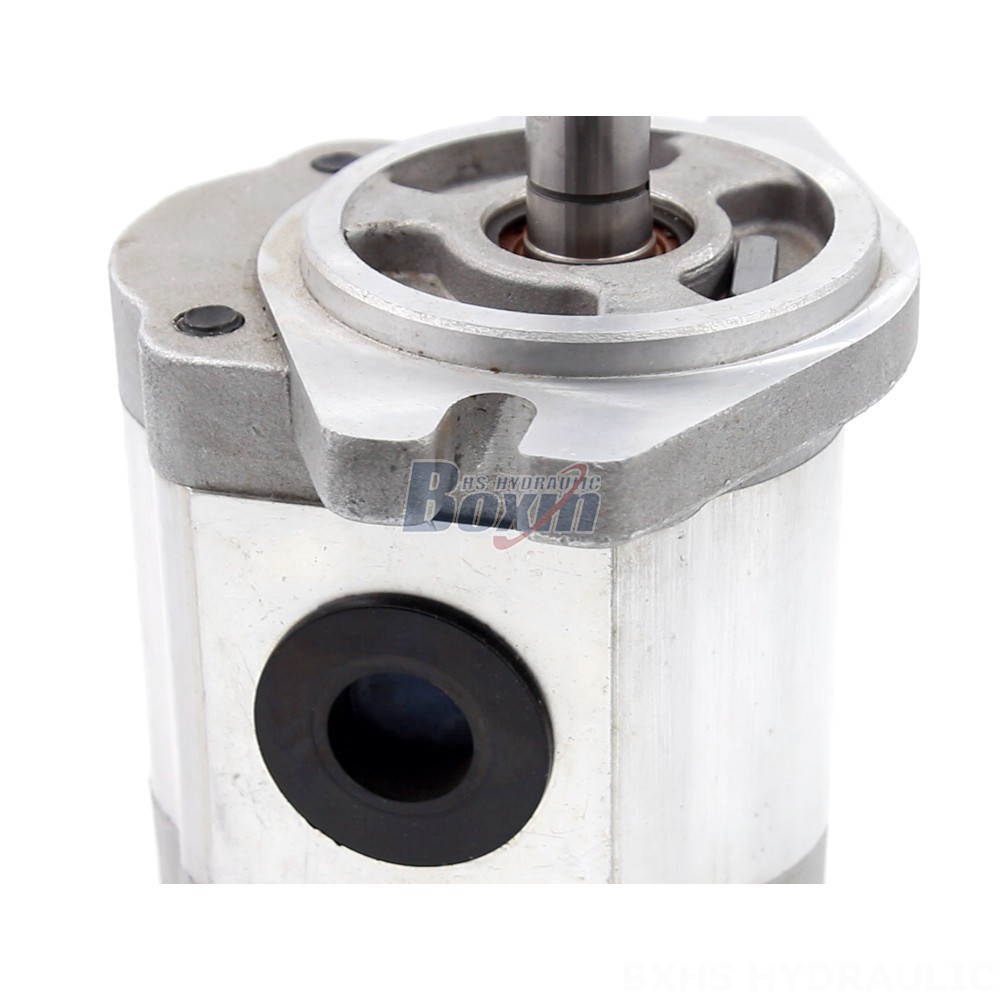

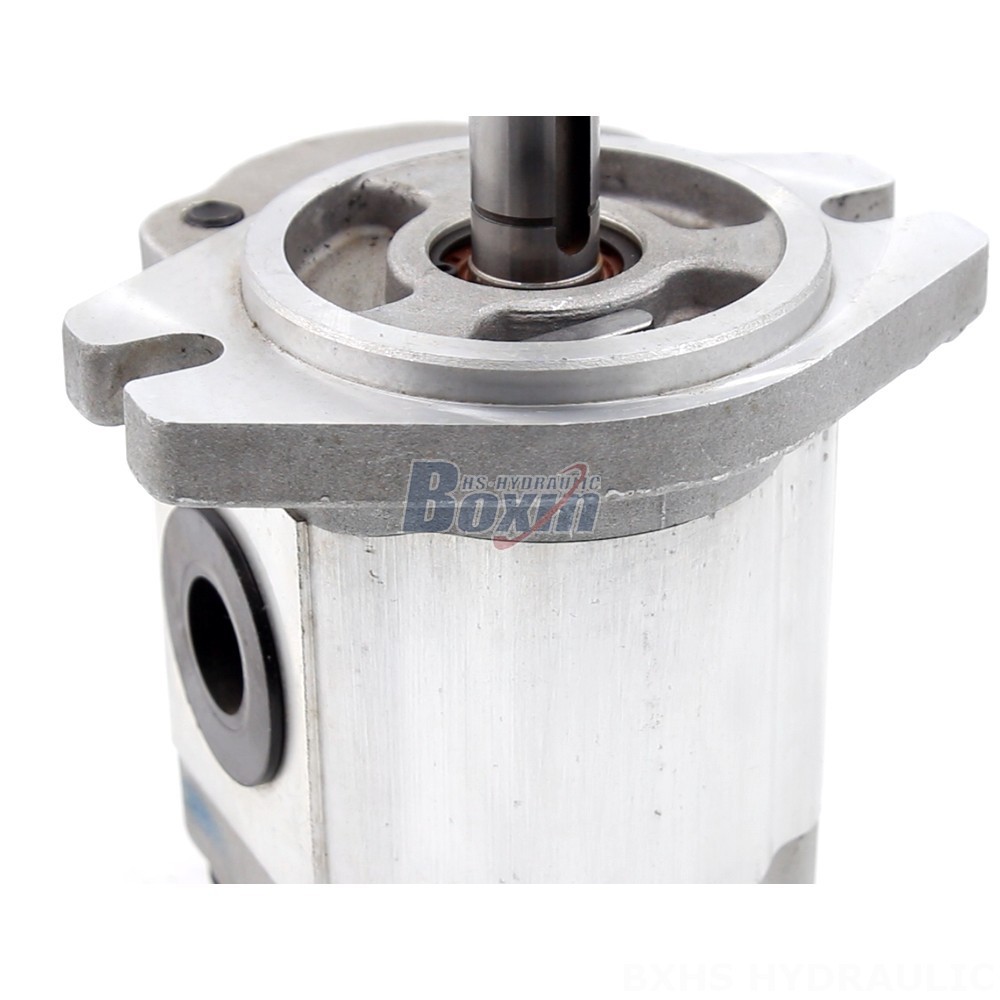

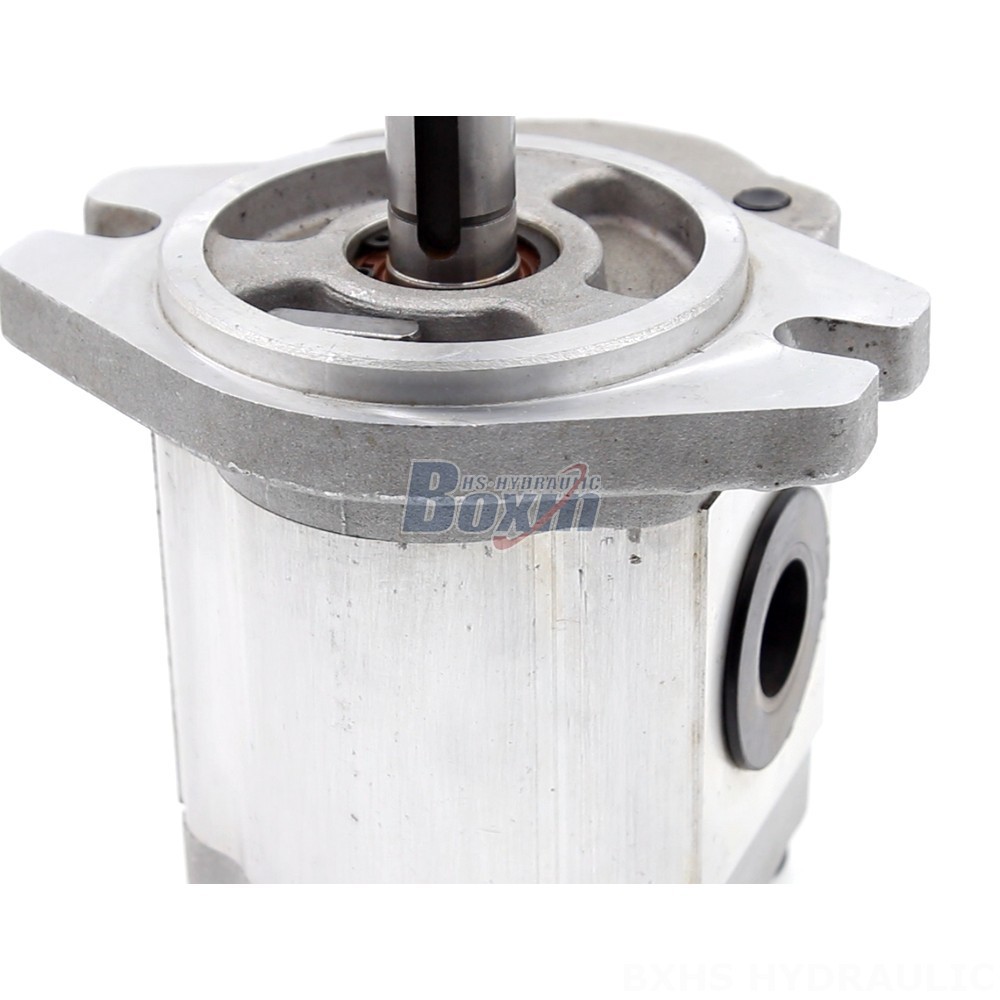

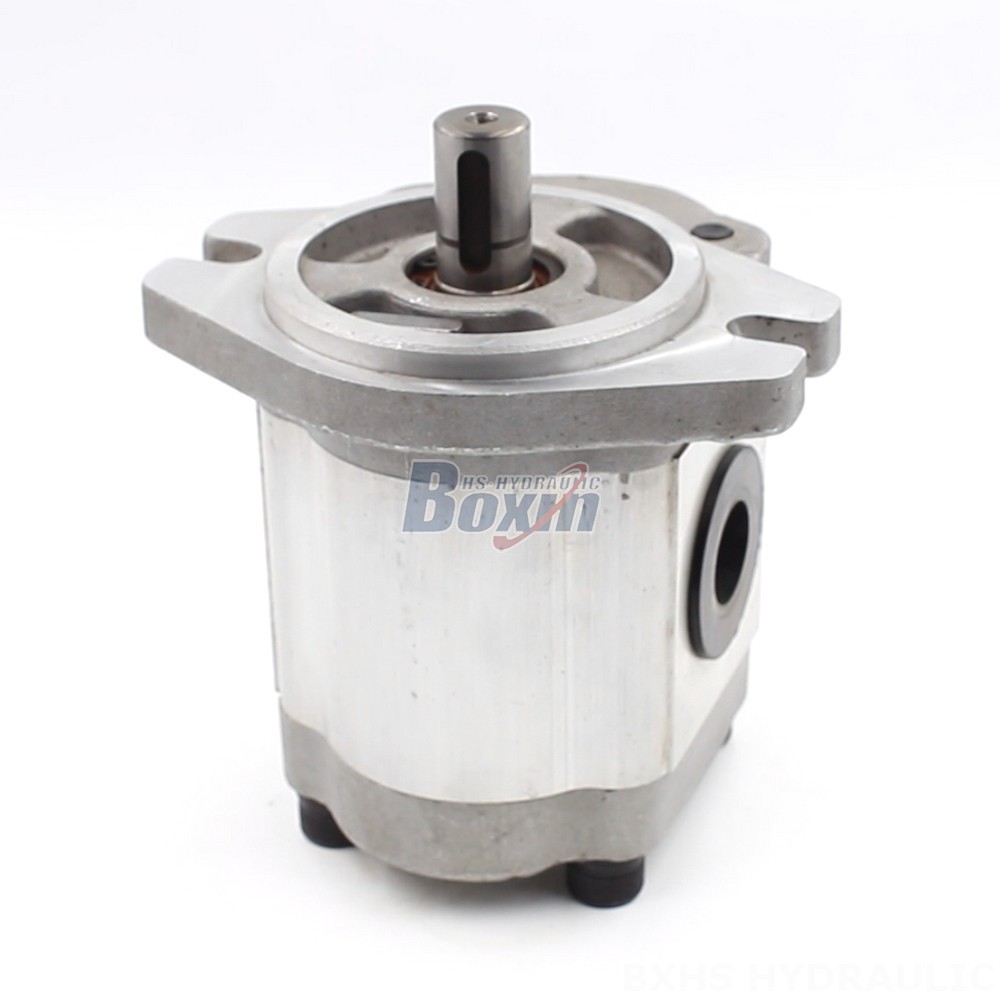

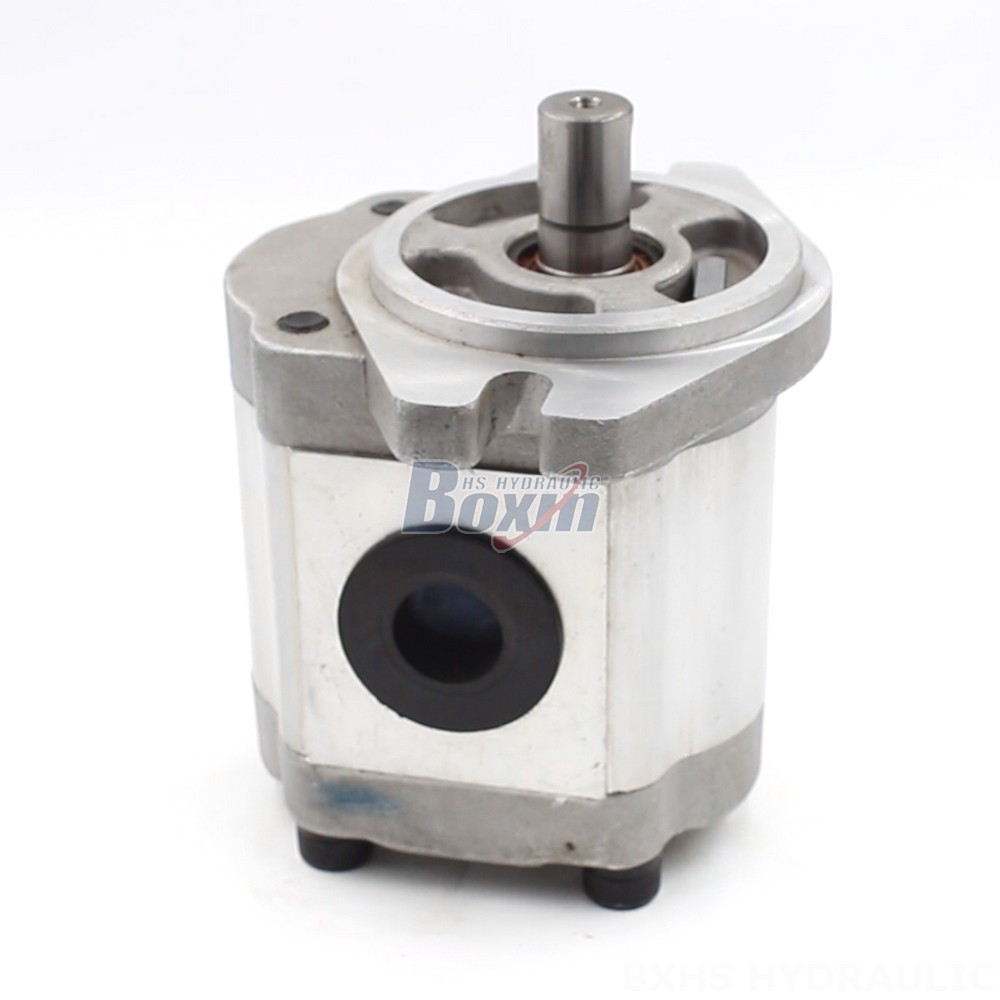

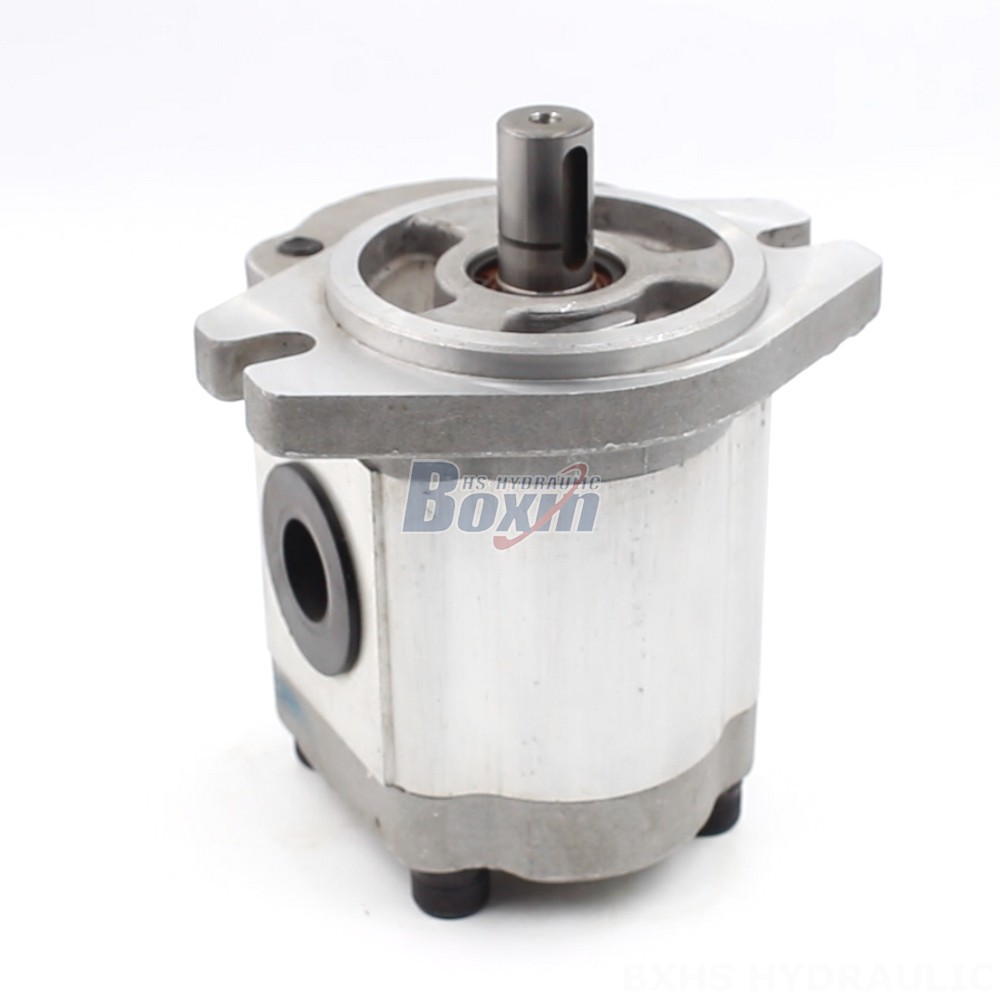

The CBHS-FL3 Series 16 cc/rev Hydraulic Gear Pump features a robust internal gear design, constructed from aluminum with an A-Oval flange and plain key shaft. It delivers a rated pressure of 20 MPa (2900 psi) at a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is suitable for various applications, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers.
