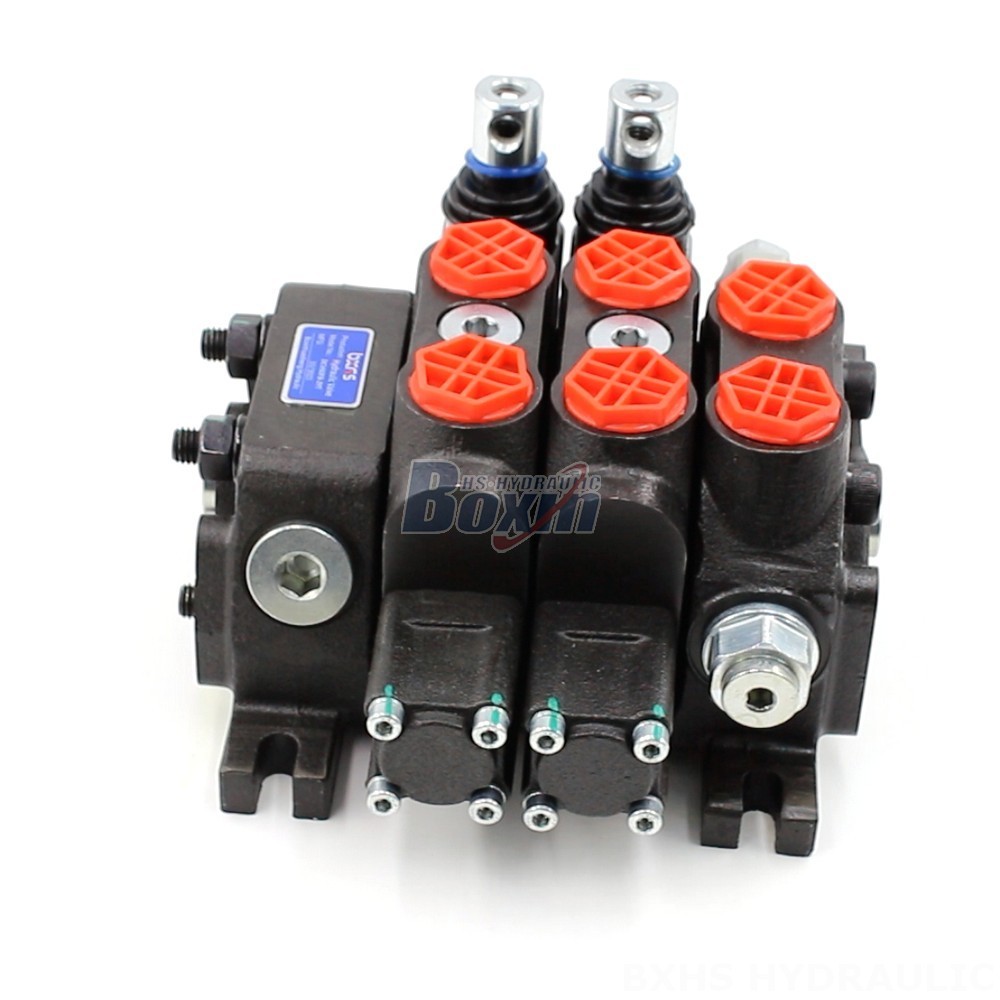

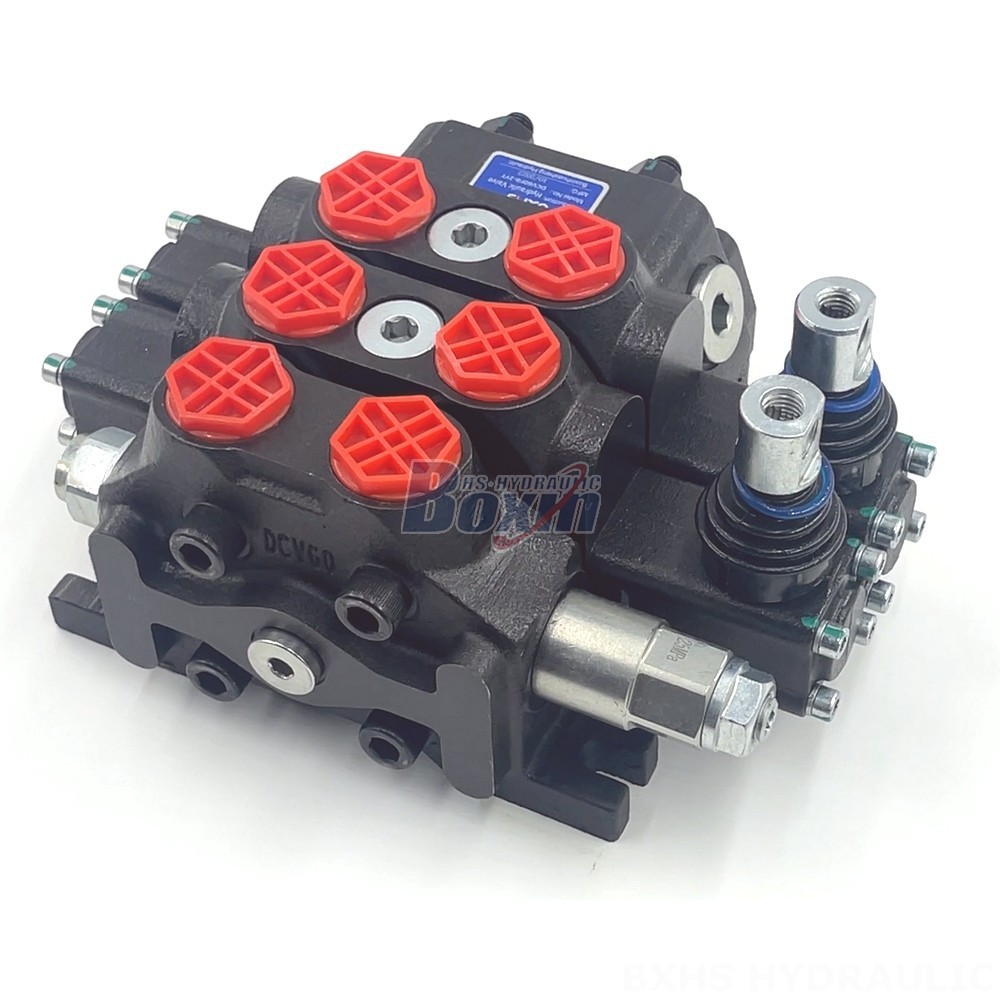

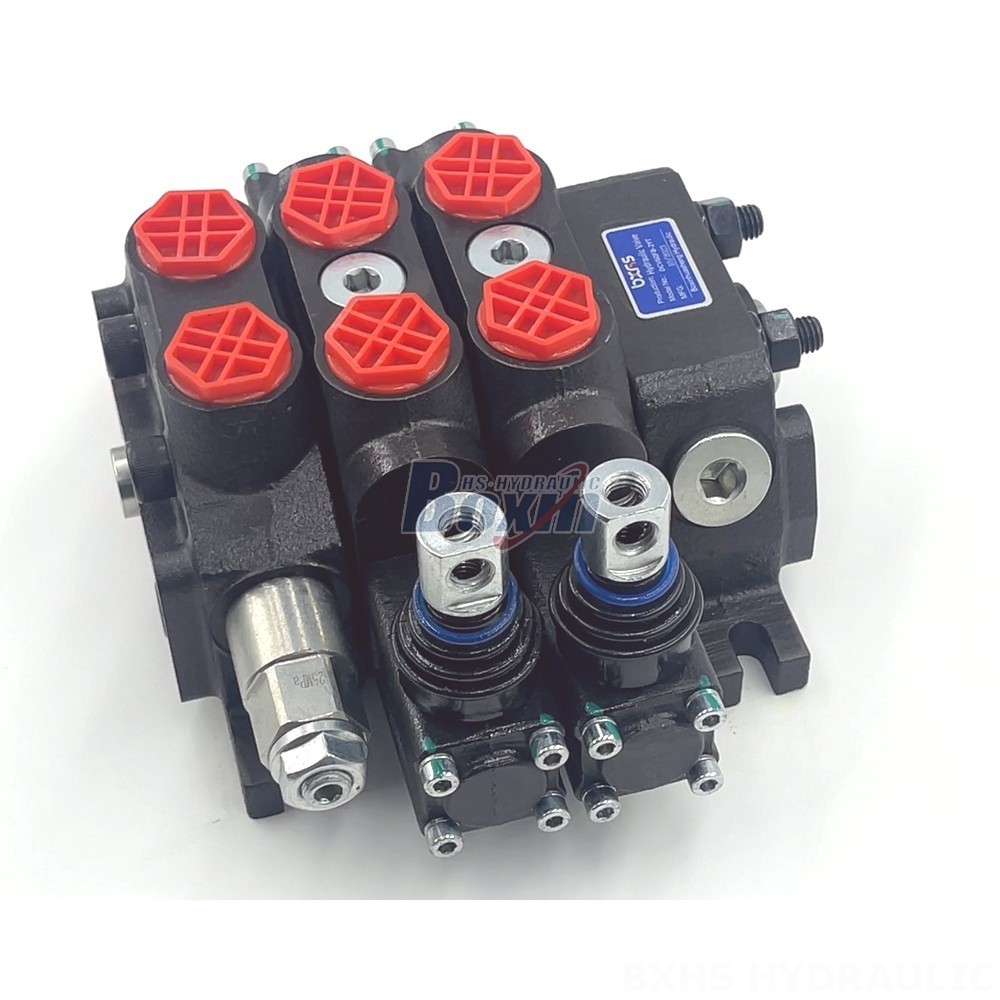

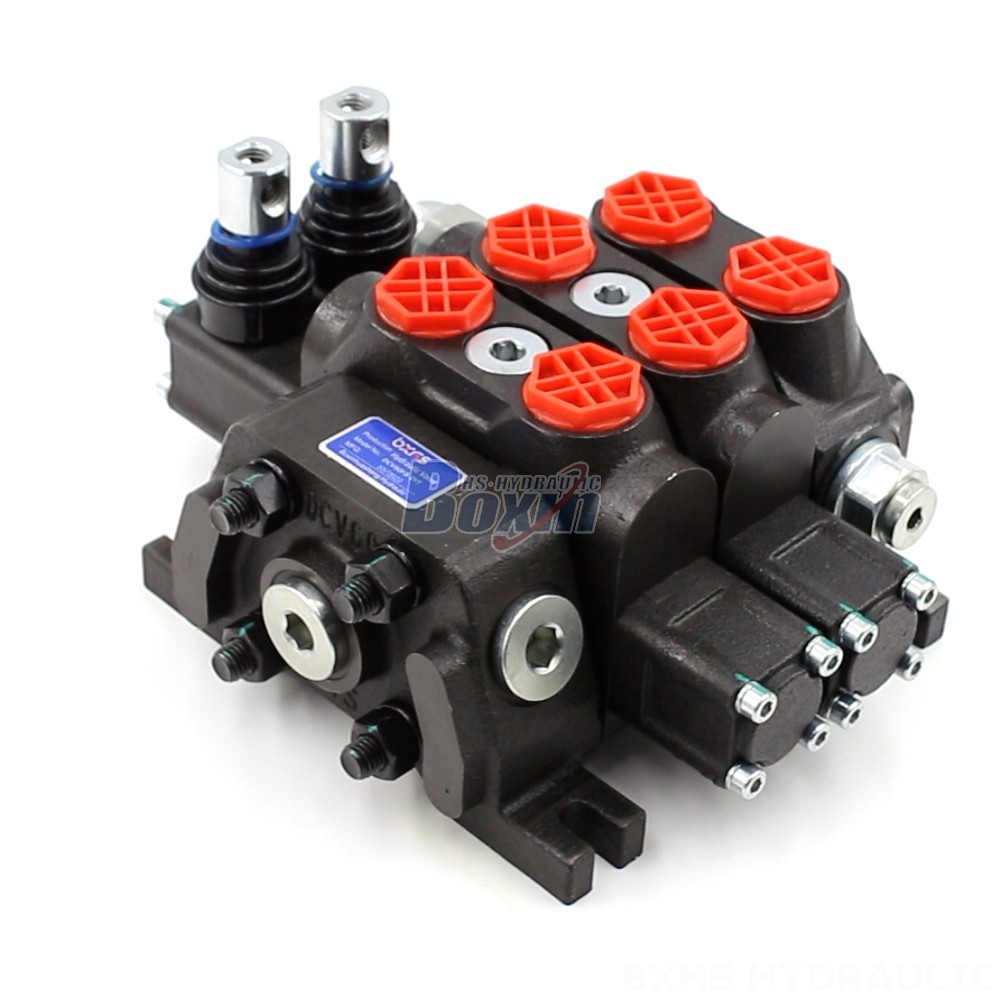

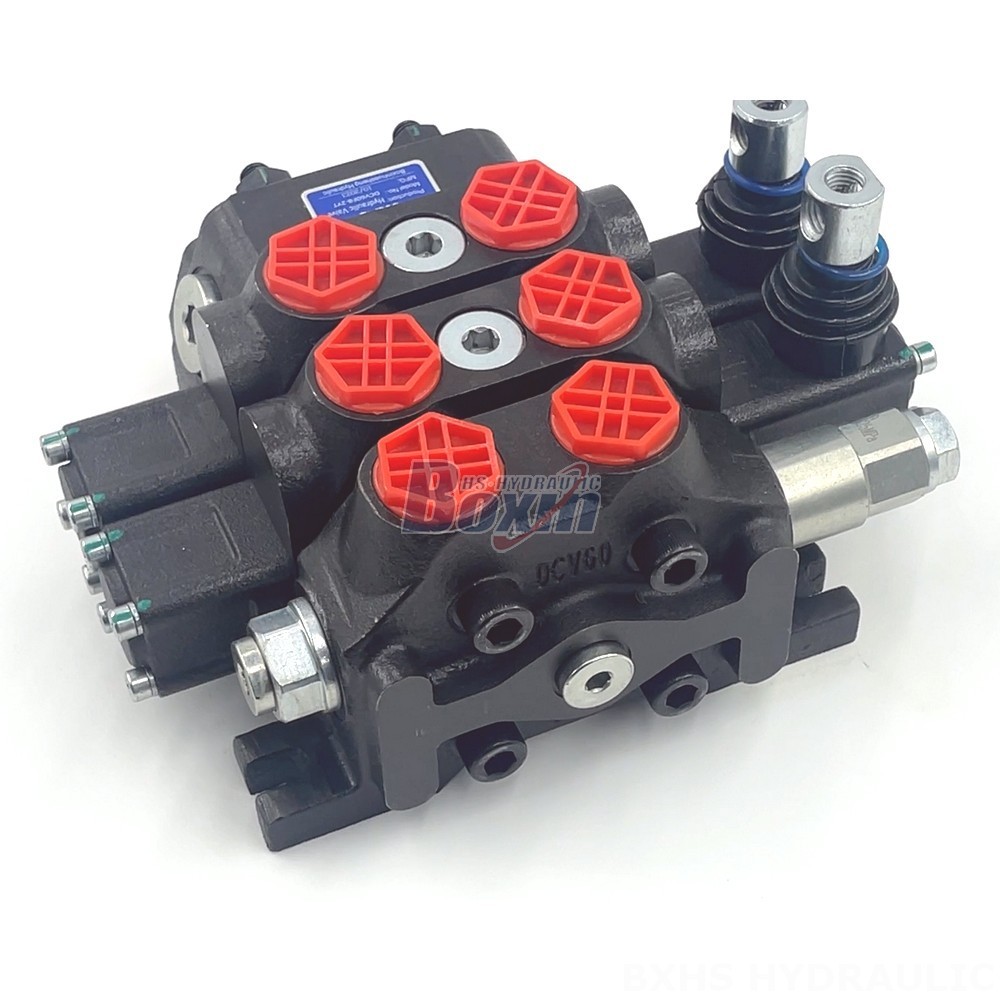

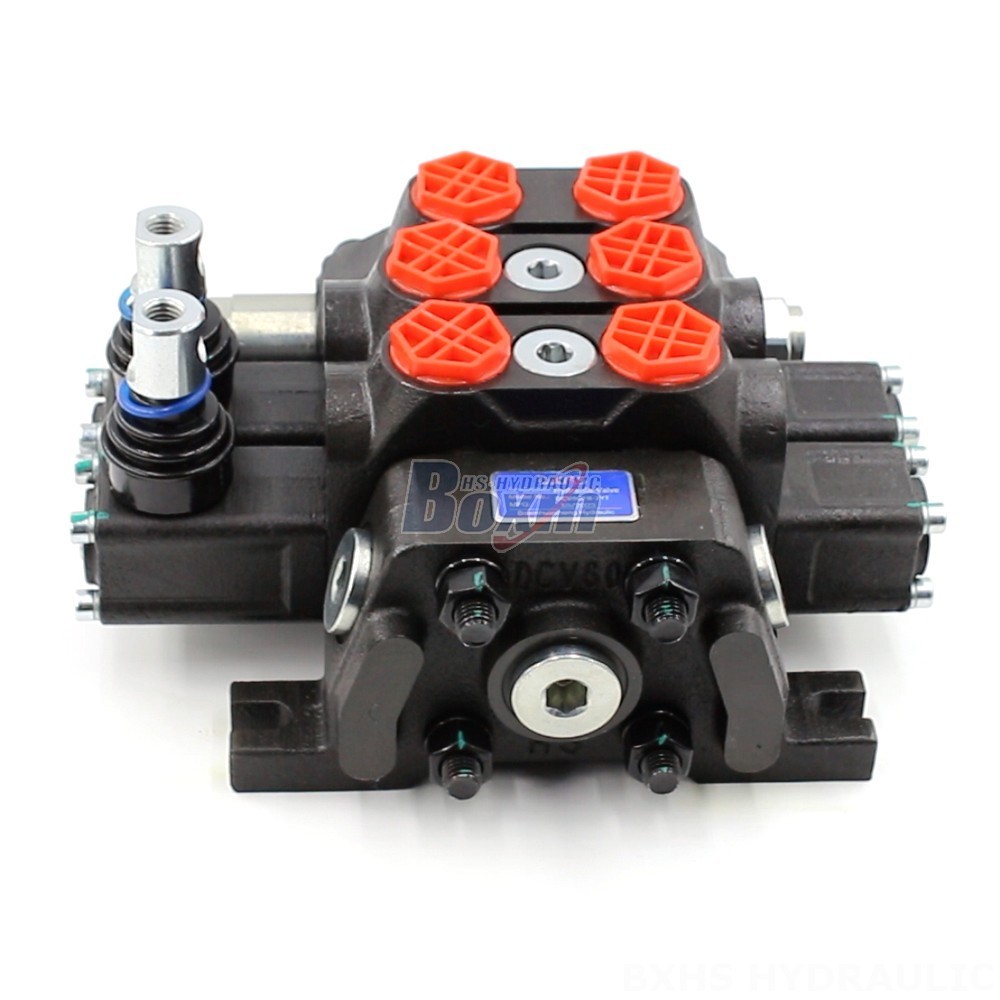

The DCV60 Series Hydraulic Control Banks are high-performance 2-spool manual control valves designed for use in a variety of material handling, construction, agricultural, and industrial applications. These valves offer a rated flow of 60 L/min and a maximum pressure of 350 bar, making them suitable for demanding applications.
| DCV60-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och manuell, Solenoid och Joystick, Manuell och Joystick, Elmotor |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 60 l/min (15,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi), 350 bar (5100 psi) |
| Inloppsport | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The DCV60 Series Hydraulic Control Banks are factory direct and customizable, offering a wide range of options to meet specific application needs. These sectional valves feature a 2-spool design with manual control for precise operation. The valves are rated for a flow rate of 60 L/min (15.8 US gpm) and a maximum pressure of 350 bar (5100 psi). The DCV60 series is designed for use in a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
