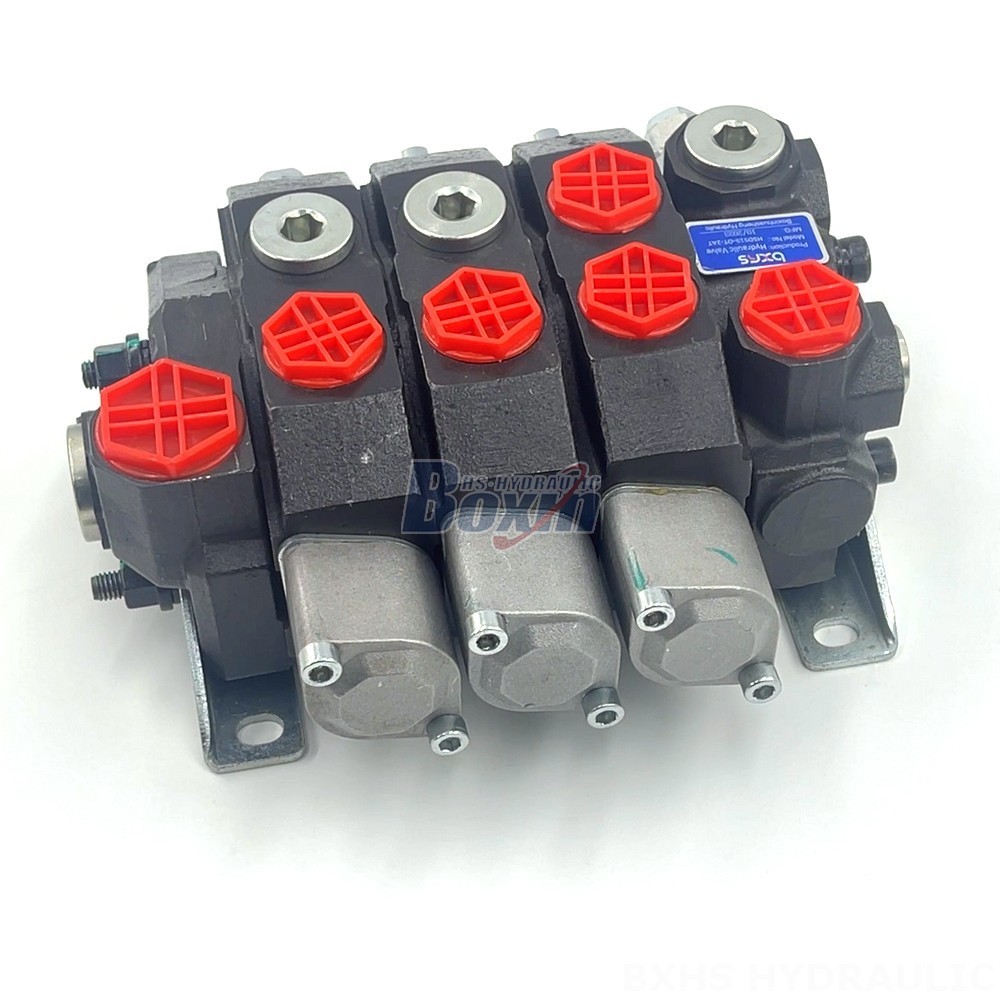

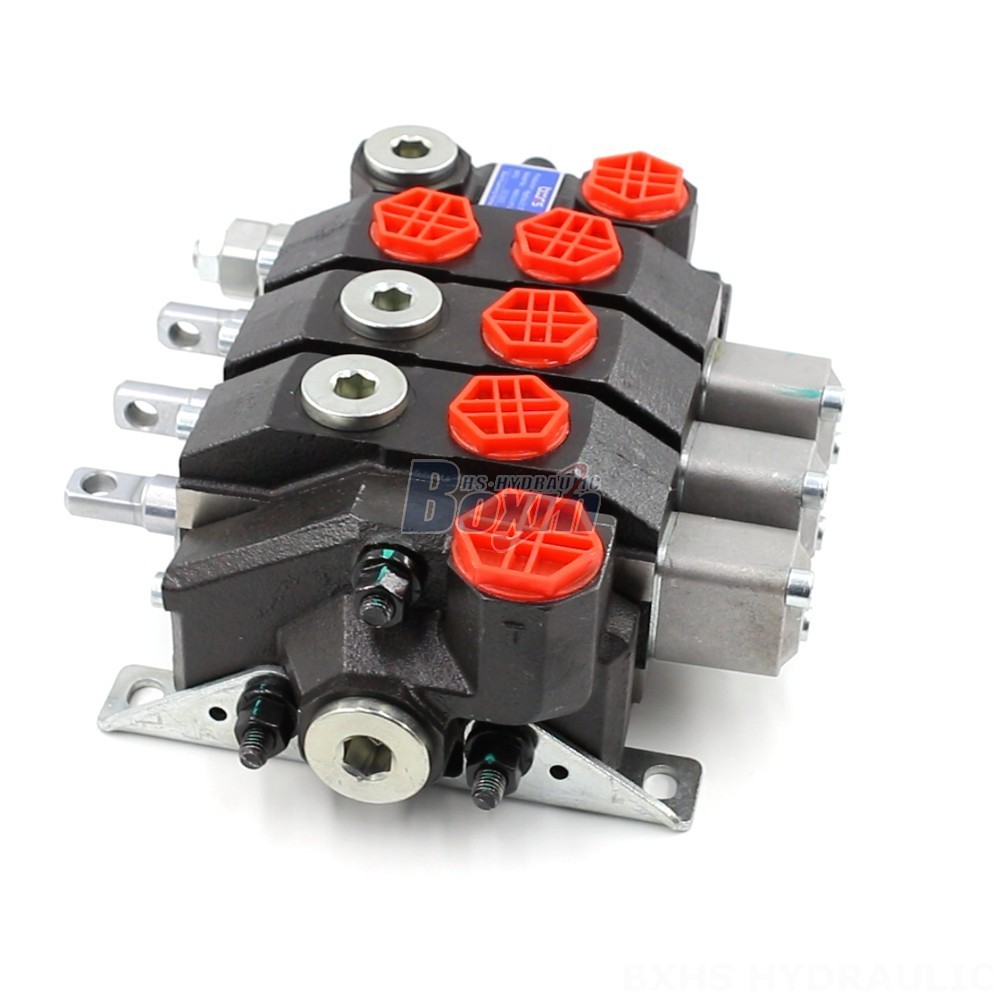

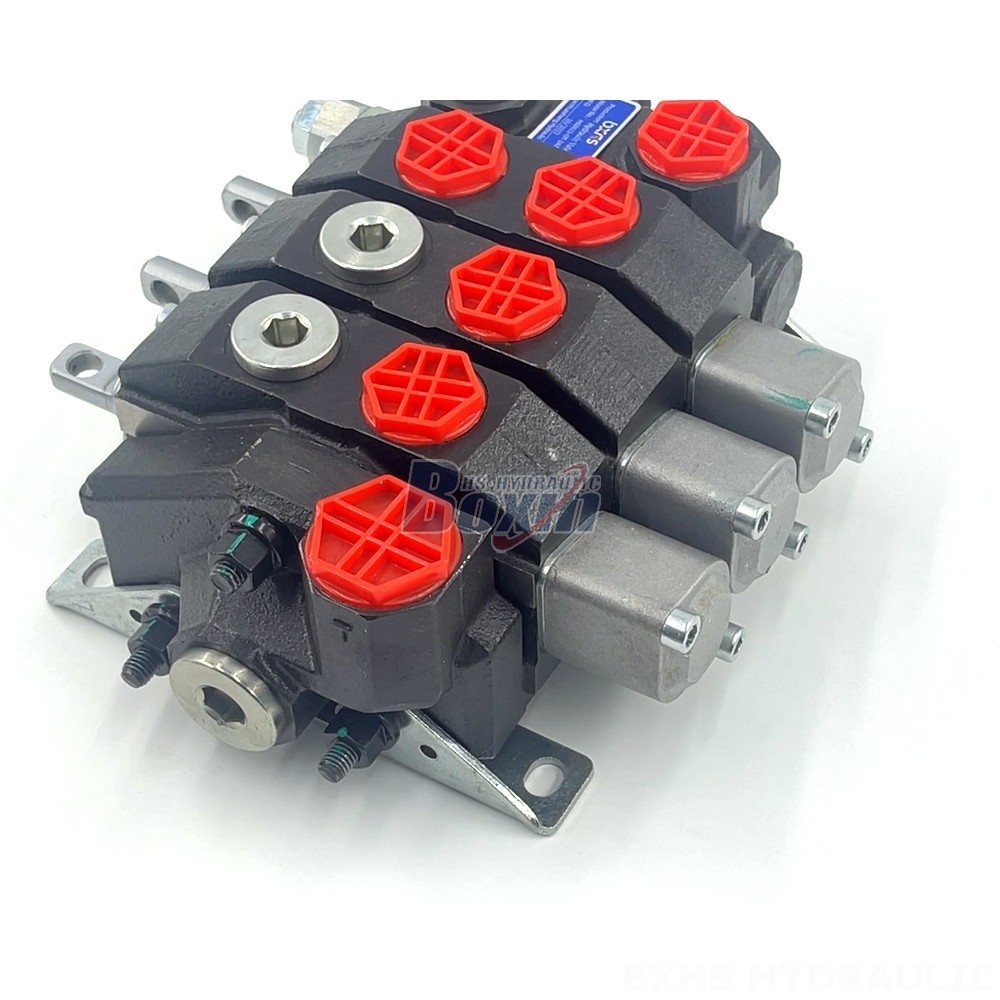

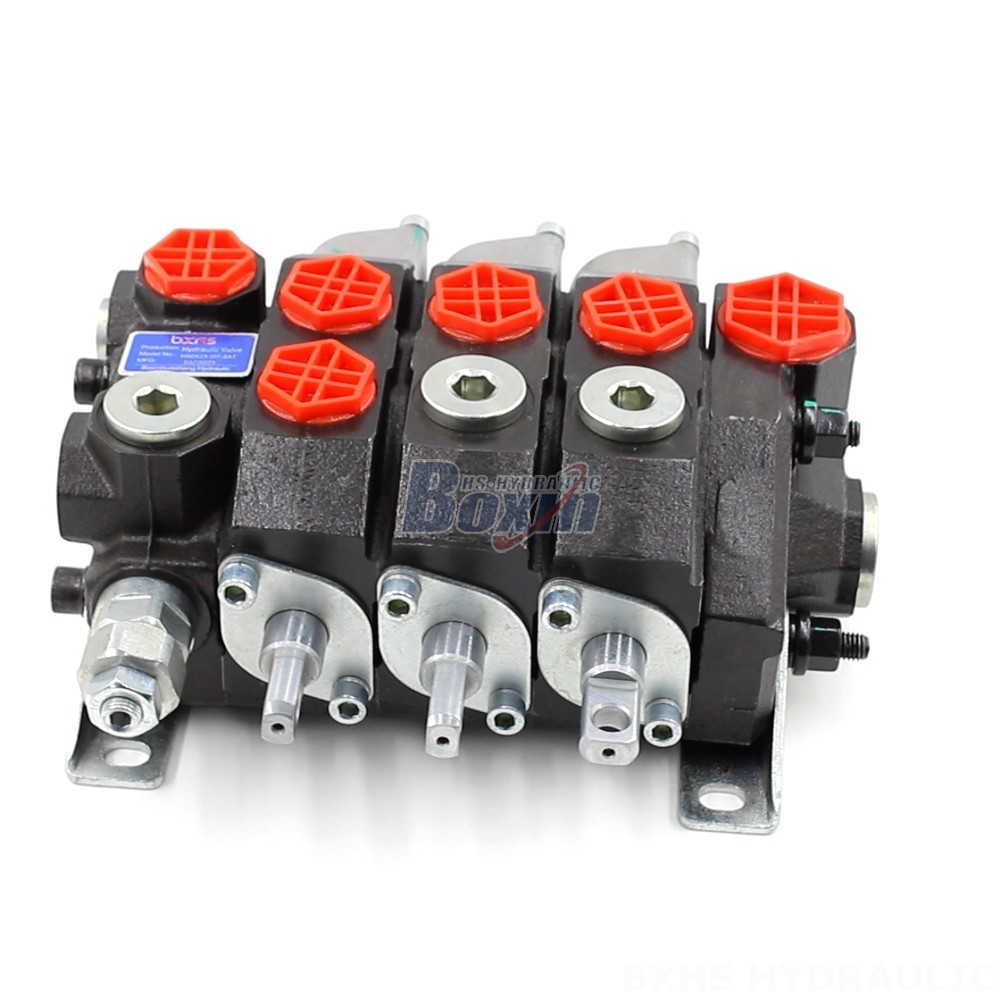

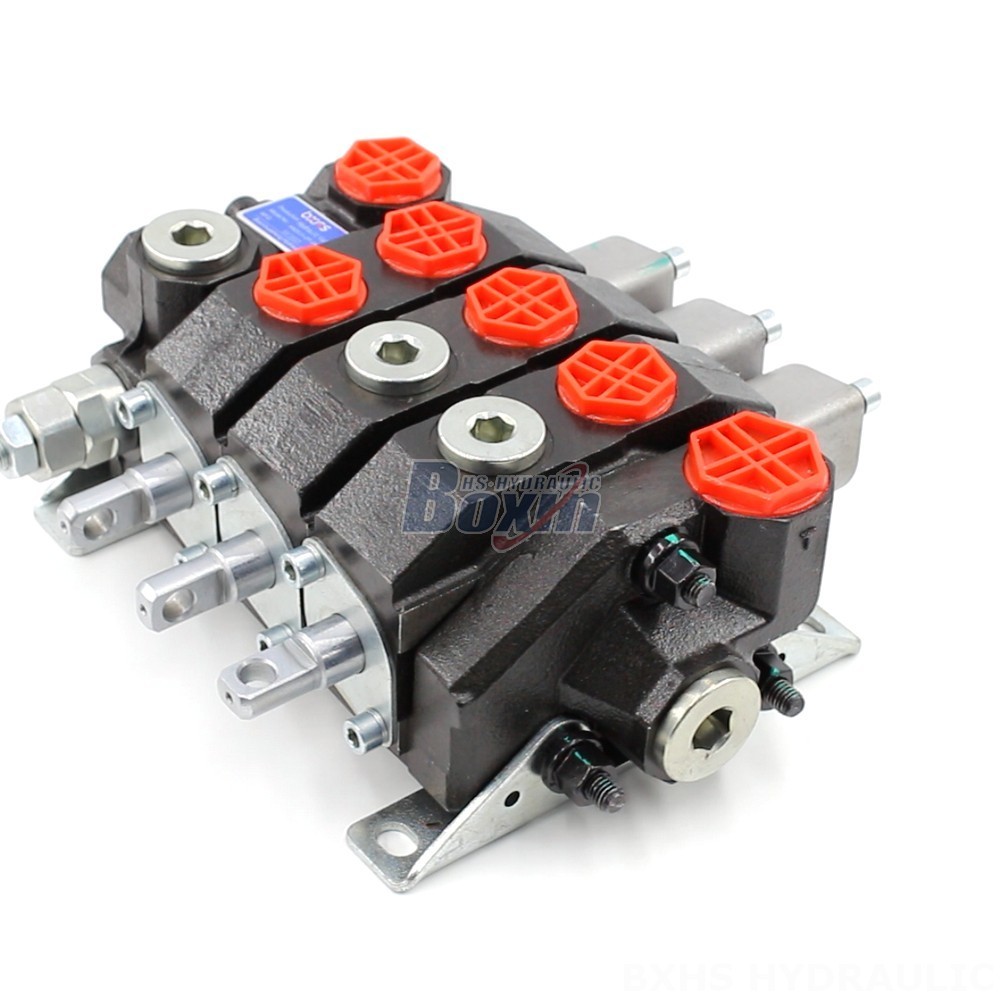

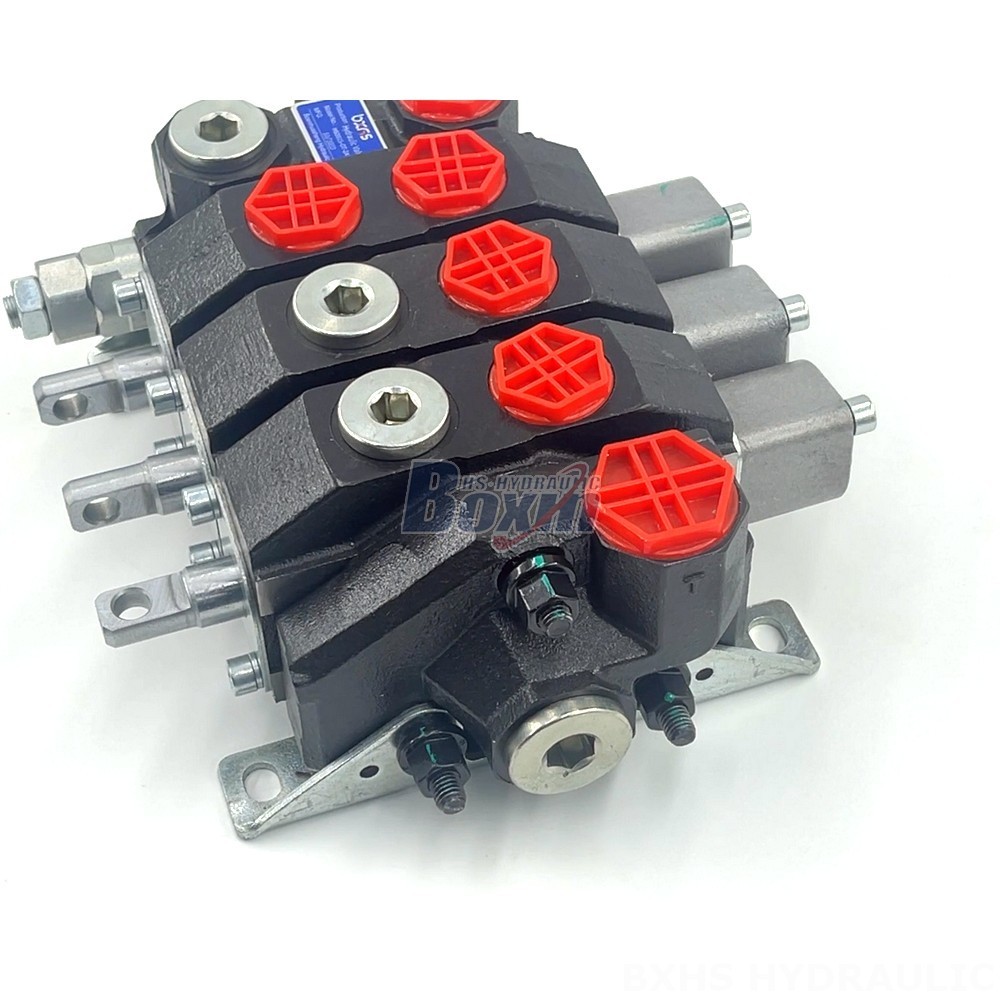

The HSDS15 Series 3-Spool Monoblock Directional Valve is a high-performance hydraulic control valve designed for use in a variety of construction and material handling applications. It features a robust design, high flow rate, and reliable operation, making it ideal for demanding environments.
| HSDS15-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Nominellt flöde | 60 l/min (15,8 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G1/2, SAE 8 |
| Utloppsport | G1/2, G3/4, SAE 8 |
| Portstorlek | G1/2, SAE 8 |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Strukturtyp | Sektionsventil |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
This 3-section, manual control hydraulic solenoid valve is a reliable and efficient solution for your hydraulic systems. With a rated flow of 60 L/min (15.8 US gpm) and a maximum pressure of 315 bar (4600 psi), it is suitable for a wide range of applications, including forklifts, telehandlers, mini excavators, skid steer loaders, compact wheel loaders, tractors, harvesters, balers, backhoes, and sprayers. The valve's robust design and high-quality materials ensure long-term durability and reliable performance in demanding environments.
