4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

Deplacement:4 cc/varv

Nominellt tryck:20 MPa (2900 psi)

Maximalt tryck:25 MPa (3625 psi)

Maximal hastighet:3000 varv/min

Rotationsriktning:Höger (medsols)

Märke:BXHS

Produkttyp:Hydraulisk kugghjulspump

Produktserie:CBHS-FL3-serien Hydraulisk kugghjulspump

Förpackningsstorlek:20*30*20

Bruttovikt:9.00 kg

Tillgänglighet: I lager

1722 Vyer letar efter den här produkten

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable drawing image

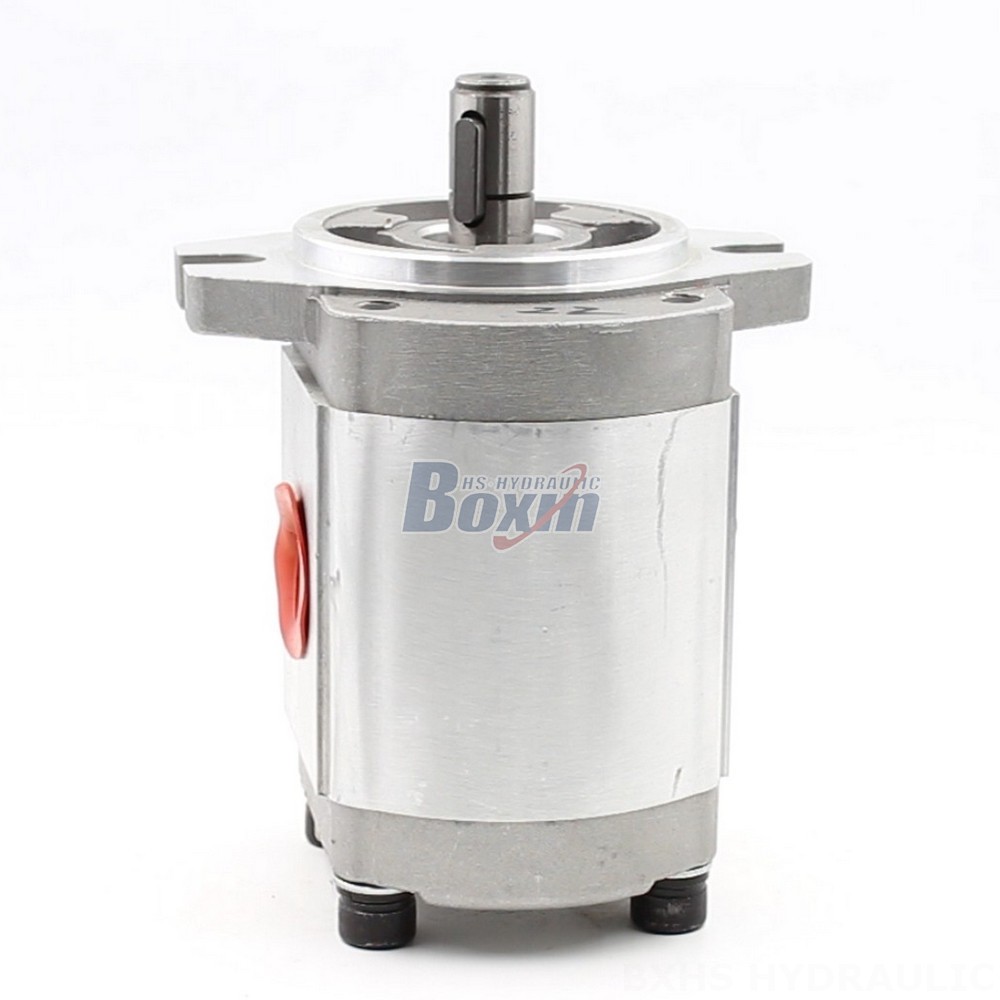

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance, durable pump designed for use in a wide range of applications, including construction, agriculture, industrial vehicles, and material handling. It is available in various configurations and is customizable to meet specific requirements.

CBHS-FL3-serien Hydraulisk kugghjulspump Parametrar
Deplacement 10 cc/varv, 4 cc/varv, 20 cc/varv, 16 cc/varv, 14 cc/varv, 6 cc/varv
Nominellt tryck 20 MPa (2900 psi)
Maximalt tryck 25 MPa (3625 psi)
Nominell hastighet 2000 varv/min
Maximal hastighet 3000 varv/min
Rotationsriktning Vänster (motsols), Höger (medsols)
Material Aluminium
Struktur Externt kugghjulspump
Flanschversion A-Oval fläns
Axeltyp H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel

This CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a robust and reliable component for various machinery. It is a factory direct product, meaning you are getting it straight from the manufacturer, ensuring competitive pricing and direct communication. Furthermore, the pump is customizable, allowing you to tailor it to your specific needs and application. The pump boasts a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), making it suitable for demanding applications. Its rated speed is 2000 r/min with a maximum speed of 3000 r/min. The pump is available in both left and right rotation options. Constructed with an internal gear pump design using high-quality aluminium, it is durable and built to withstand demanding environments. The pump comes with an A-Oval Flange and Plain Key shaft for easy integration and compatibility with various machinery. The CBHS-FL304 pump is designed to be utilized in a wide array of machinery, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. This versatile pump ensures its suitability across different applications within the construction, agriculture, industrial vehicles, and material handling sectors.
