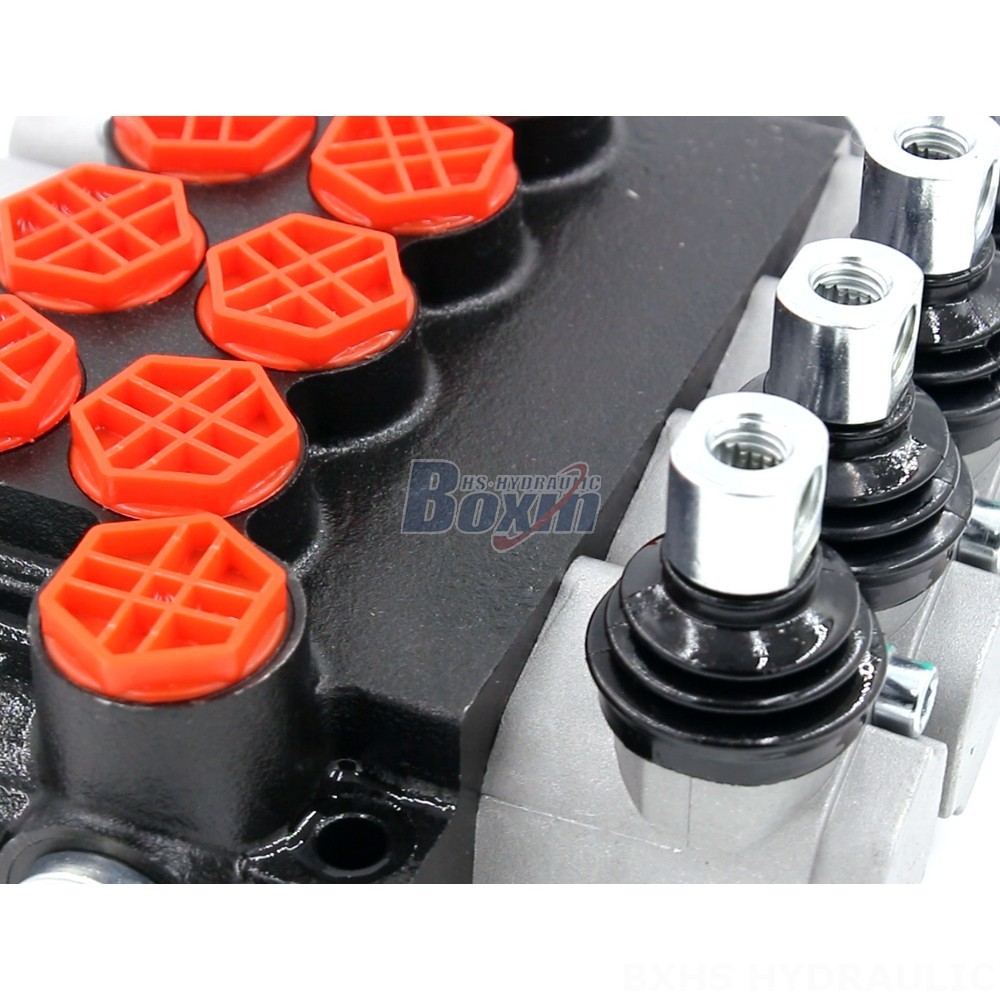

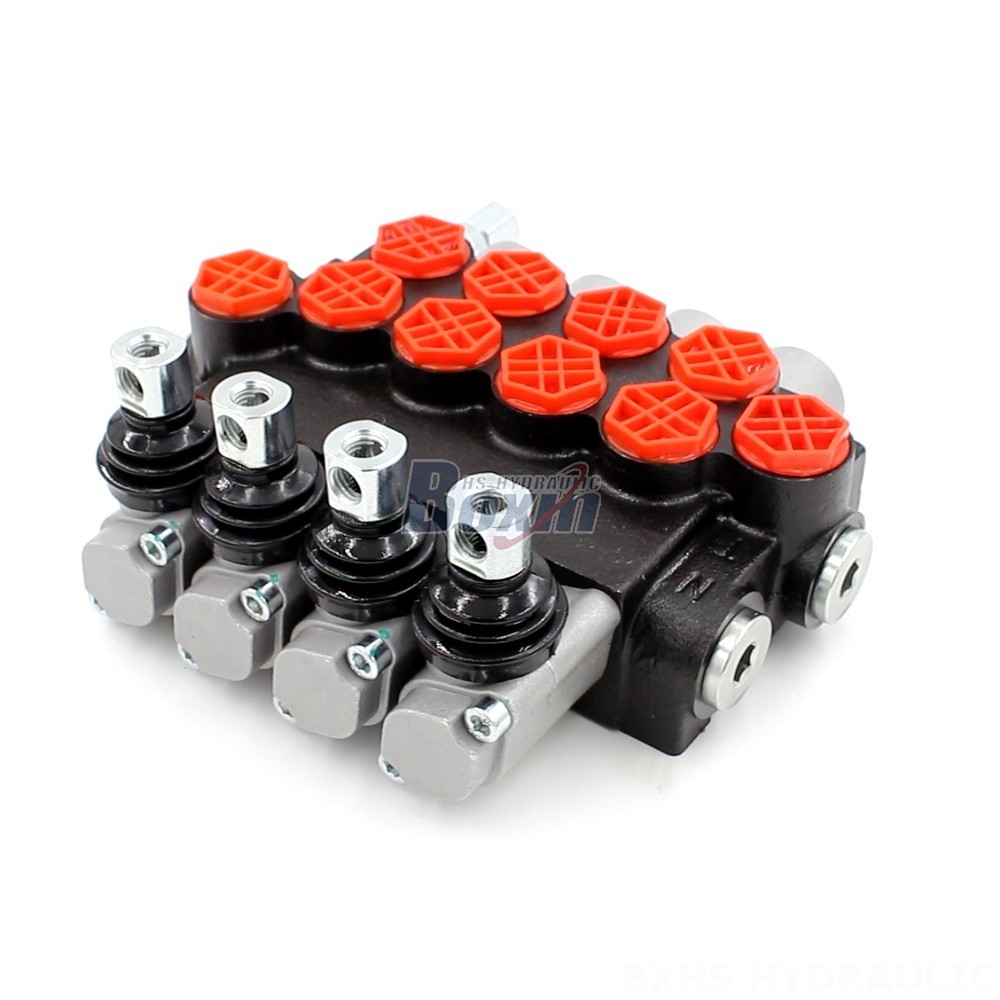

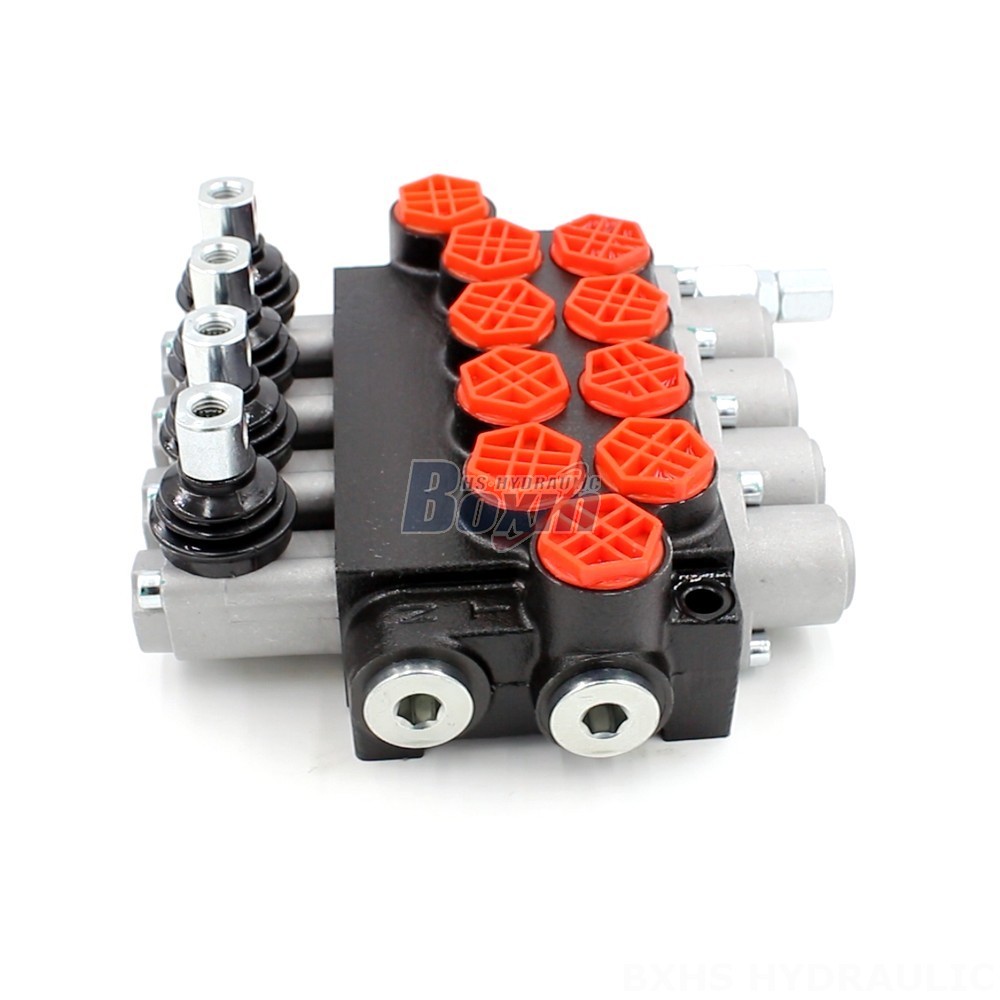

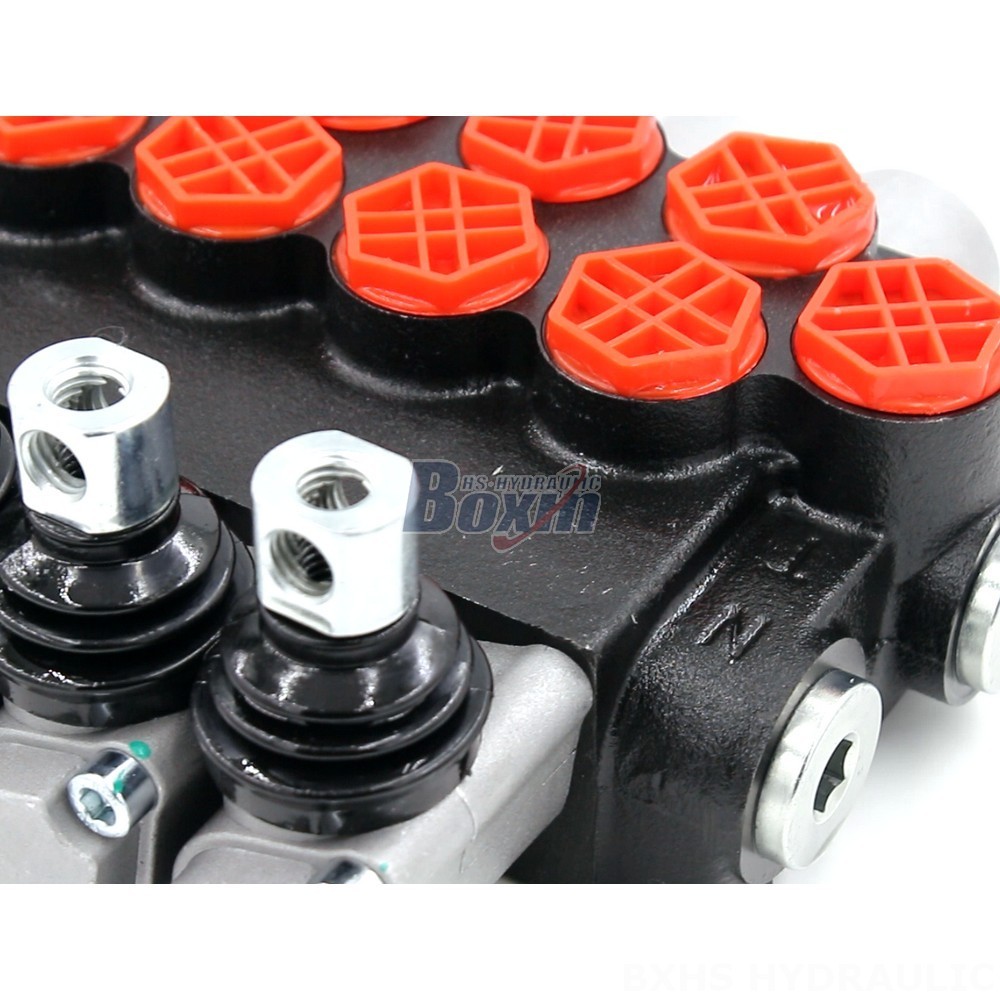

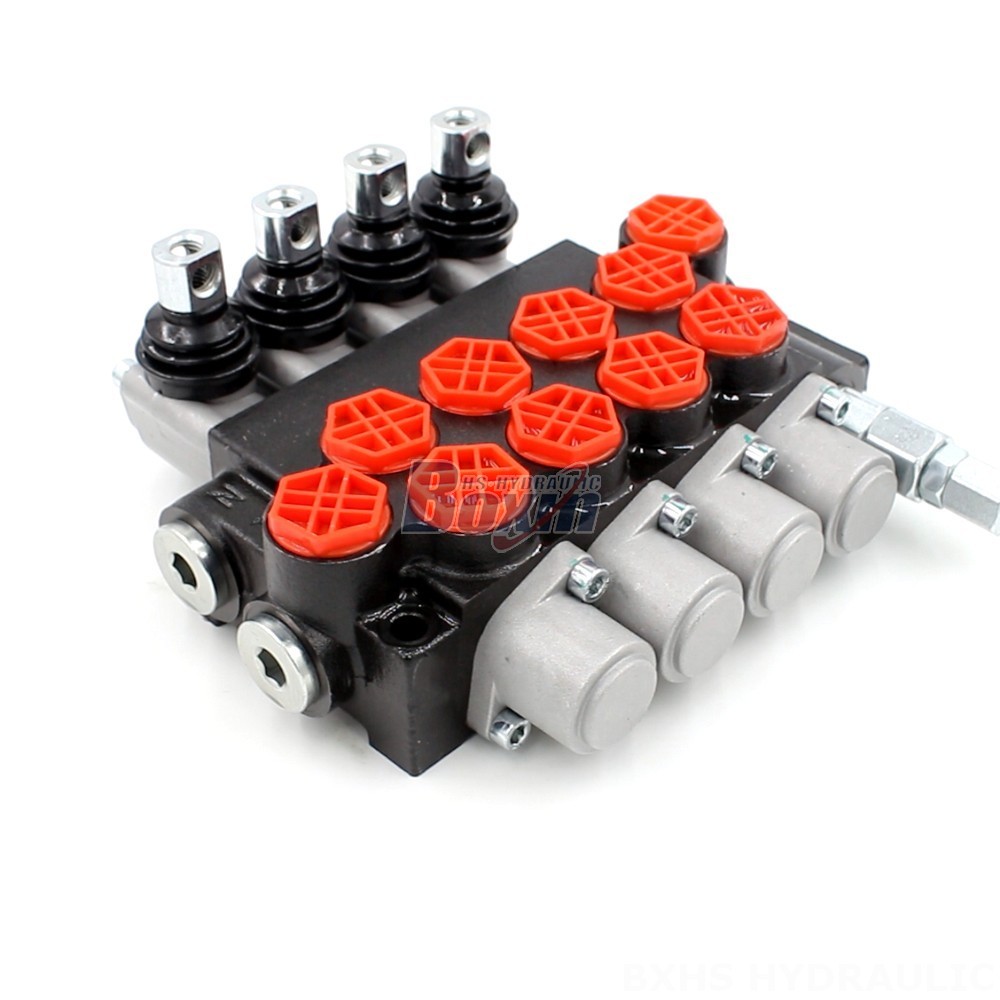

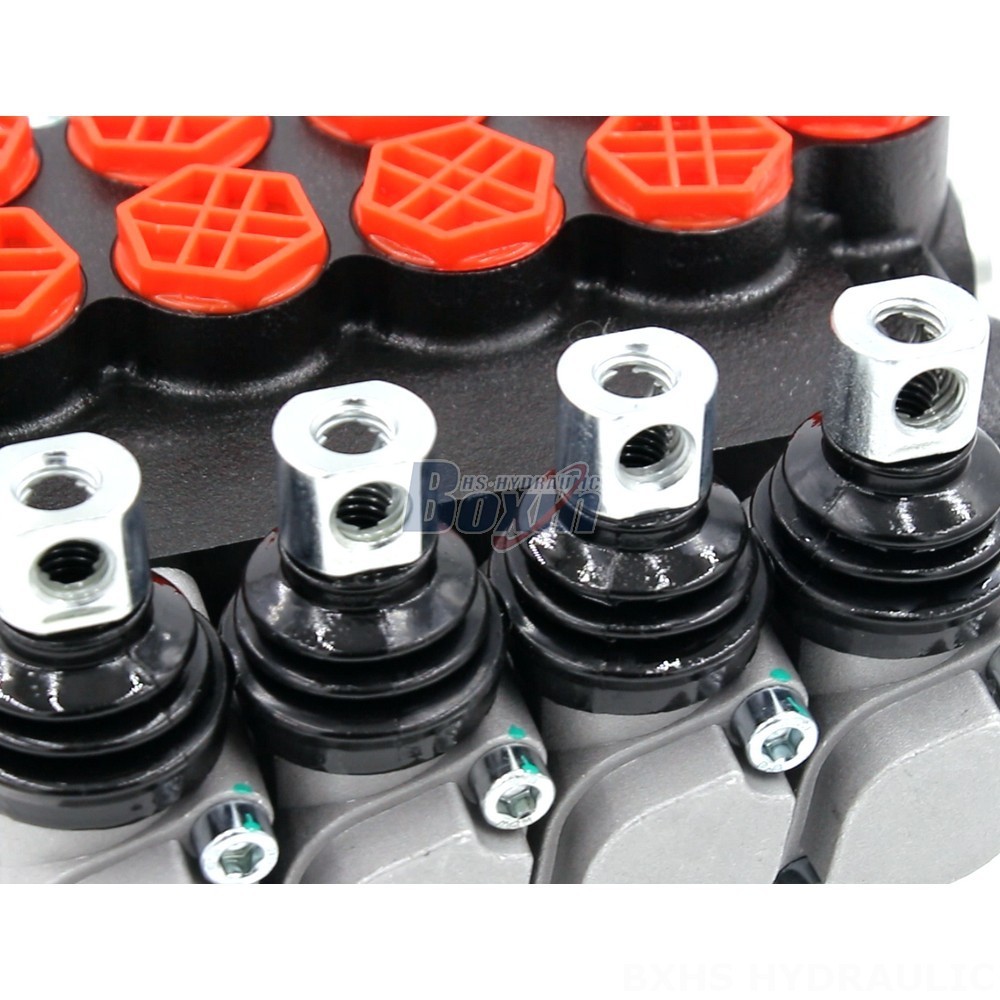

The P40-G12-G38-4OT Series is a 4 Spool Monoblock Directional Valve designed for use in a wide range of industrial and mobile hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for controlling the flow of hydraulic fluid in systems such as material handling equipment, construction machinery, agricultural machinery, and industrial vehicles.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-4OT Series valve features a compact and robust monoblock design, ensuring high durability and reliability. It is manually controlled, allowing for precise and responsive operation. The valve has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, making it suitable for a variety of operating conditions. The valve is also available in a range of configurations to meet specific application requirements.
