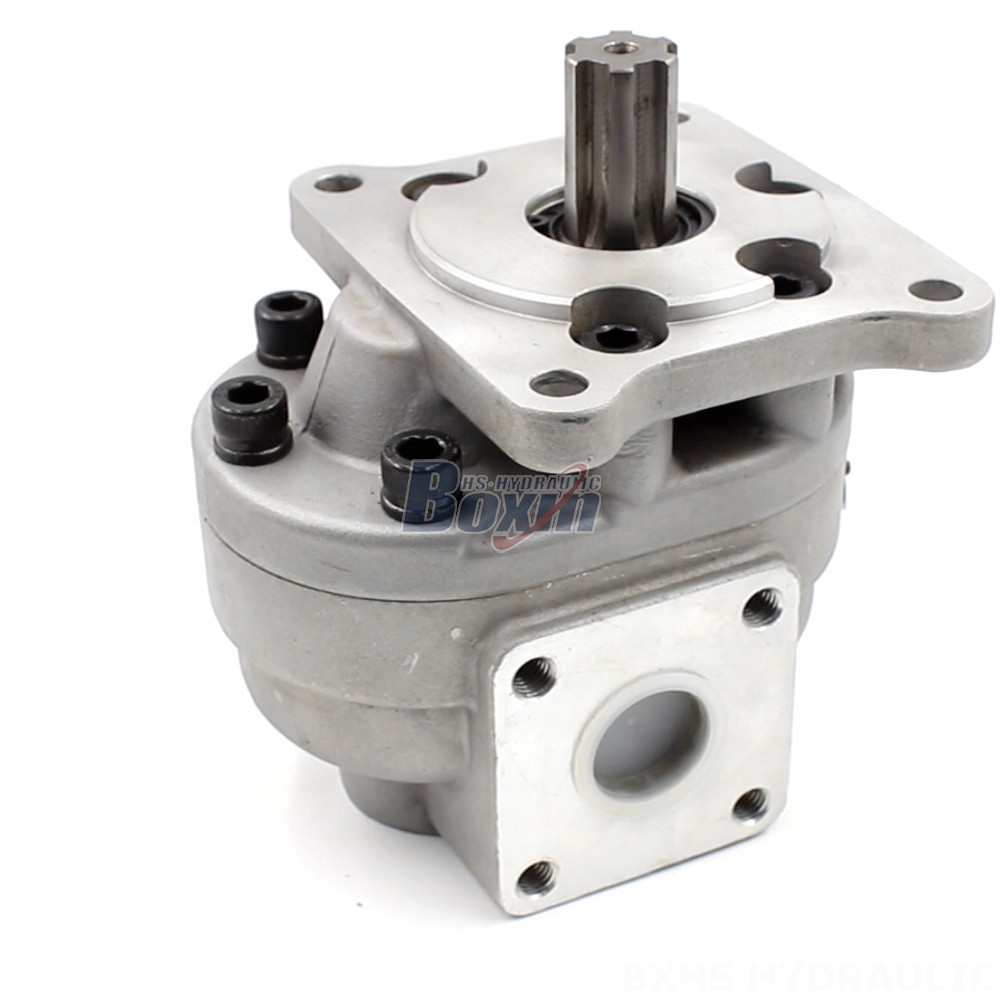

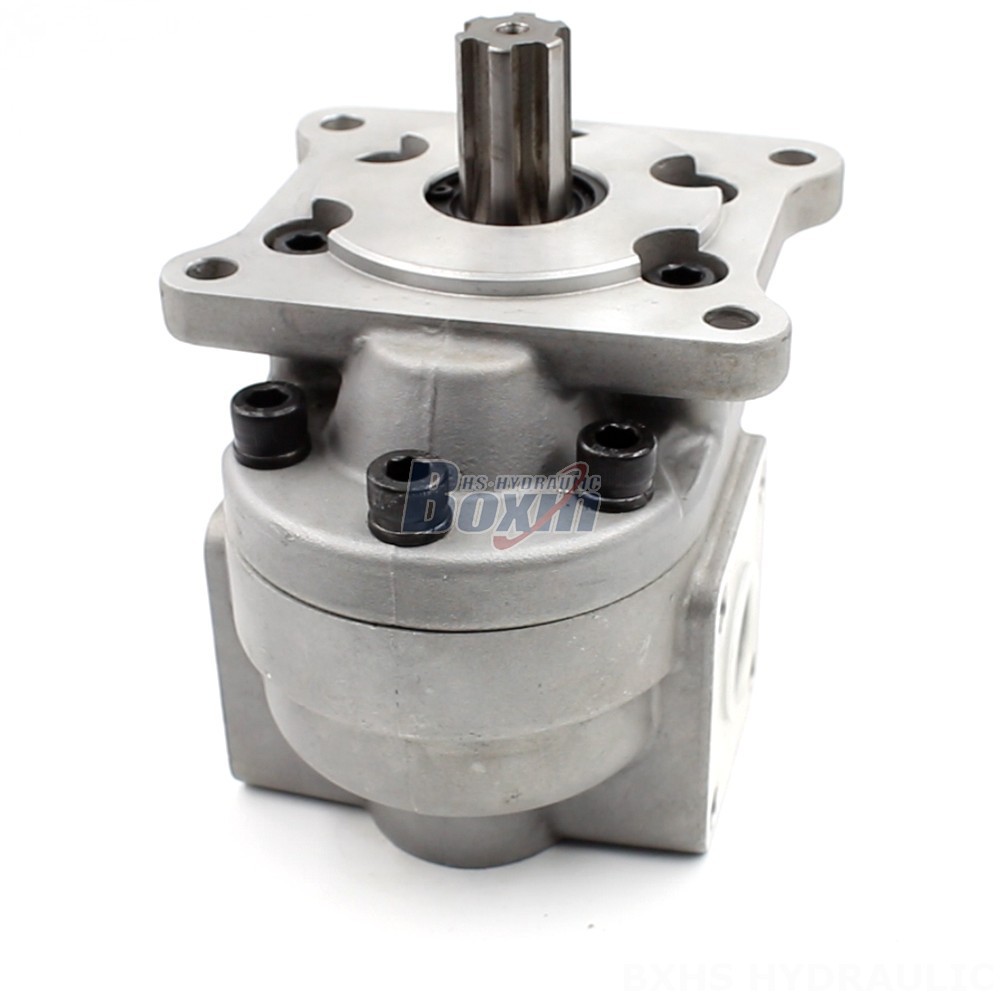

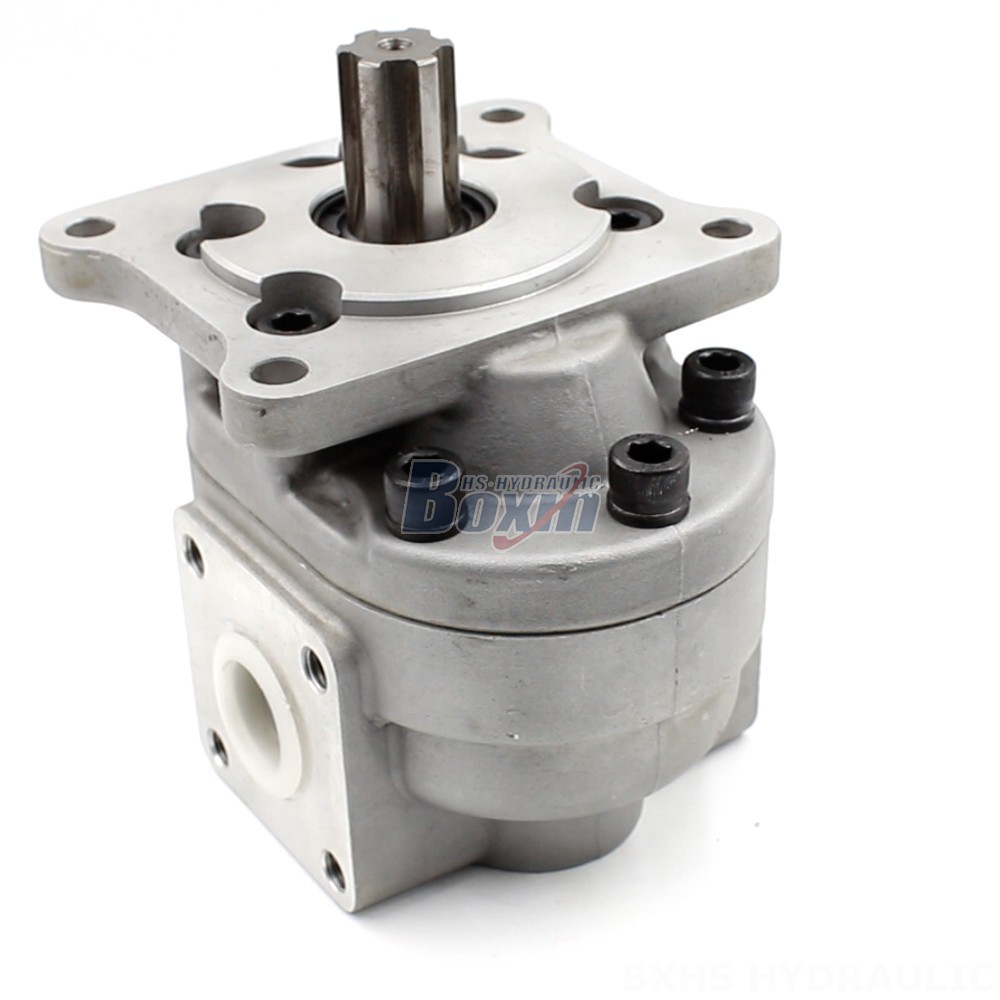

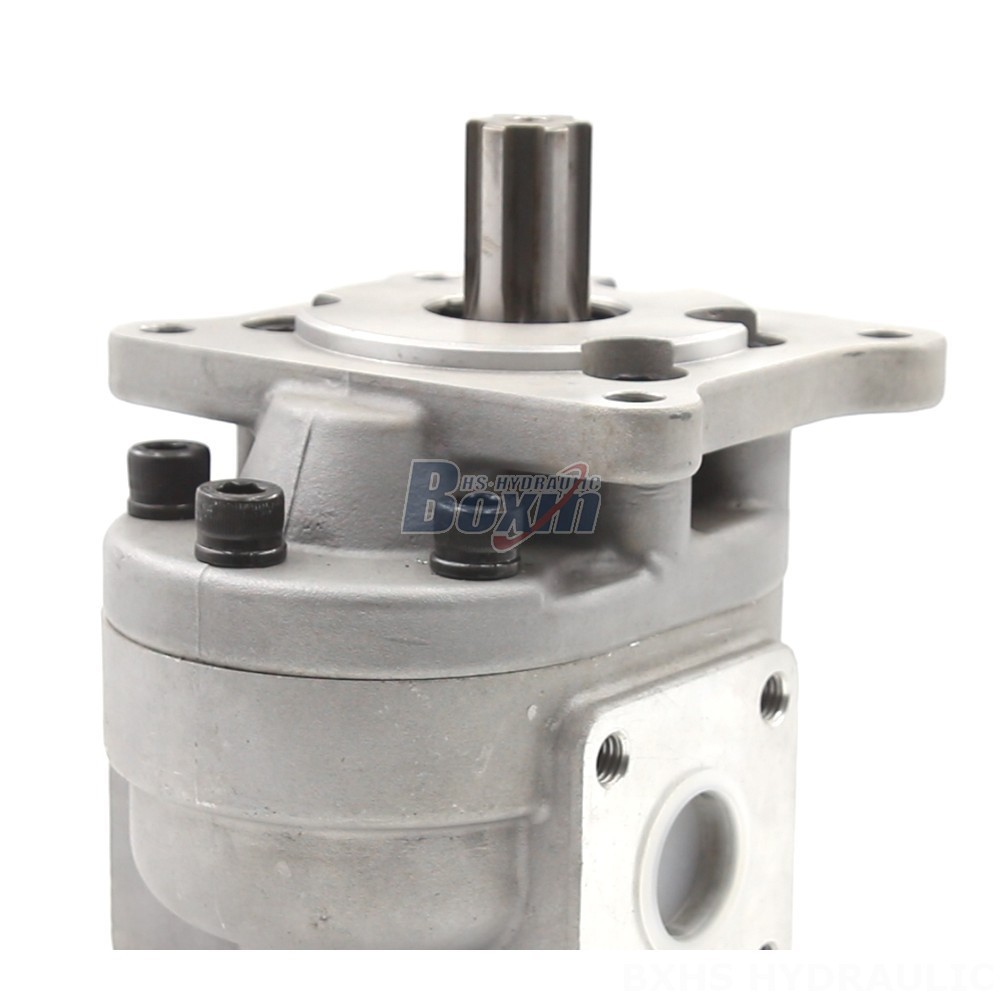

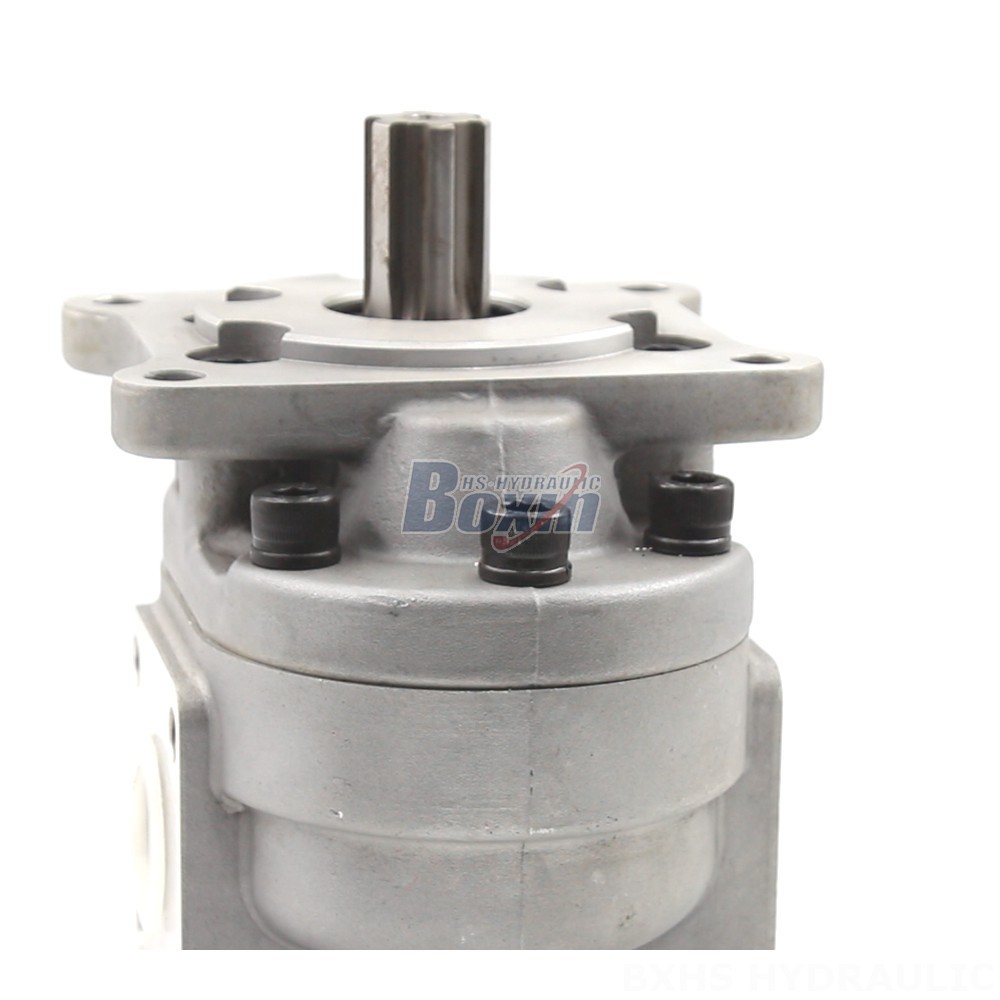

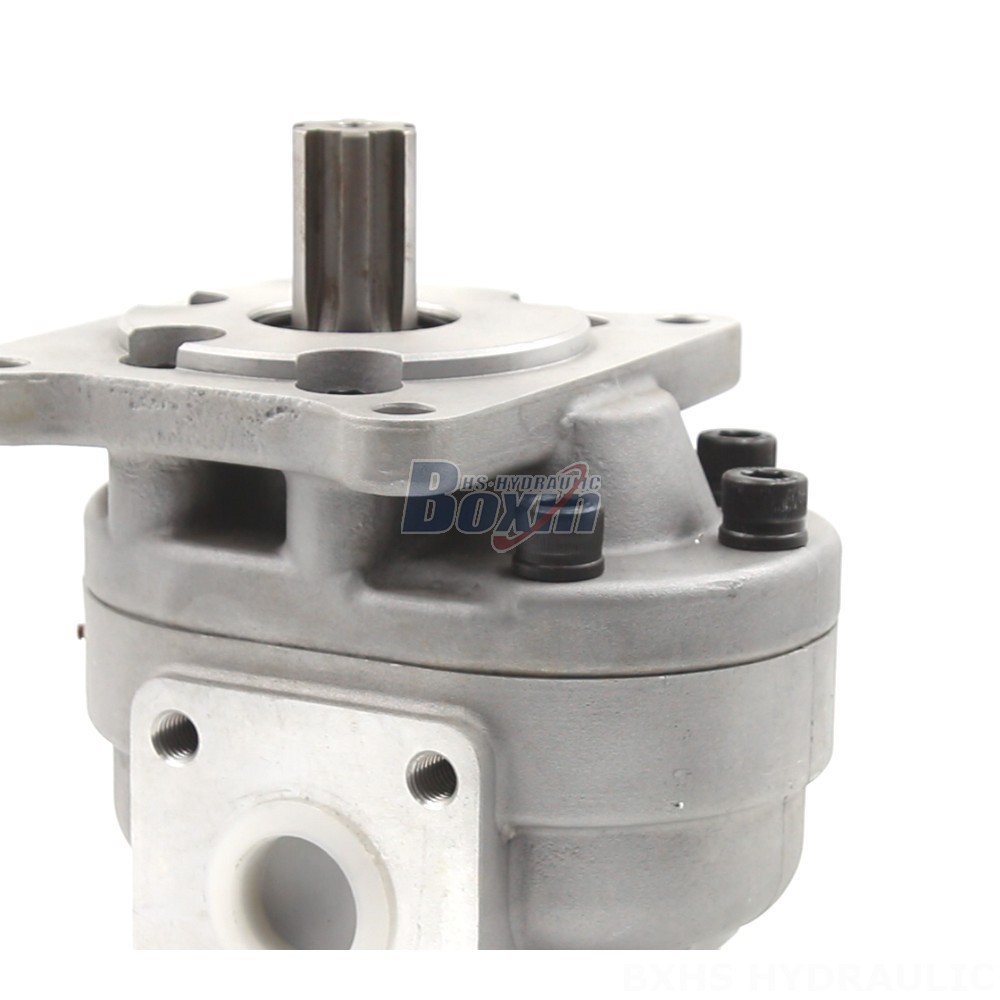

The CBHS-F550 Gear Pump is a high-performance hydraulic pump designed for demanding applications in various industries. With a displacement of 50 cc/rev and a rated pressure of 20 MPa, it delivers exceptional power and efficiency.
| CBHS-F5-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 32 cc/varv, 50 cc/varv, 63 cc/varv, 20 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 2500 varv/min |
| Rotationsriktning | Vänster (motsols), Höger (medsols) |
| Material | Gjutjärn |
| Struktur | Externt kugghjulspump |
| Flanschversion | B-Kvadratisk fläns |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel |
**CBHS-F550 Gear Pump: Technical Specifications**
- Displacement: 50 cc/rev
- Rated Pressure: 20 MPa
- Rated Speed: 2000 r/min
- Max Speed: 2200 r/min
- Rotation: Left (counter-clockwise) or Right (clockwise)
- Structure: Internal Gear Pump
- Material: Cast Iron
- Flange Version: B-Square Flange
- Shaft Type: Plain Key, Rectangle Spline, or Involute Spline
**Applications:**
- Material Handling Equipment
- Construction and Earth Moving Machinery
- Agricultural Equipment
- Industrial Vehicles
**Applicable Models:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
