Produktion & Leverans
15-30 dagars produktionsledtid



This high-quality hydraulic gear pump offers a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. It is available in various configurations and is ideal for use in a wide range of applications including construction, agriculture, and industrial vehicles.
| CBHS-FL3-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 10 cc/varv, 4 cc/varv, 20 cc/varv, 16 cc/varv, 14 cc/varv, 6 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 3000 varv/min |
| Rotationsriktning | Vänster (motsols), Höger (medsols) |
| Material | Aluminium |
| Struktur | Externt kugghjulspump |
| Flanschversion | A-Oval fläns |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel |

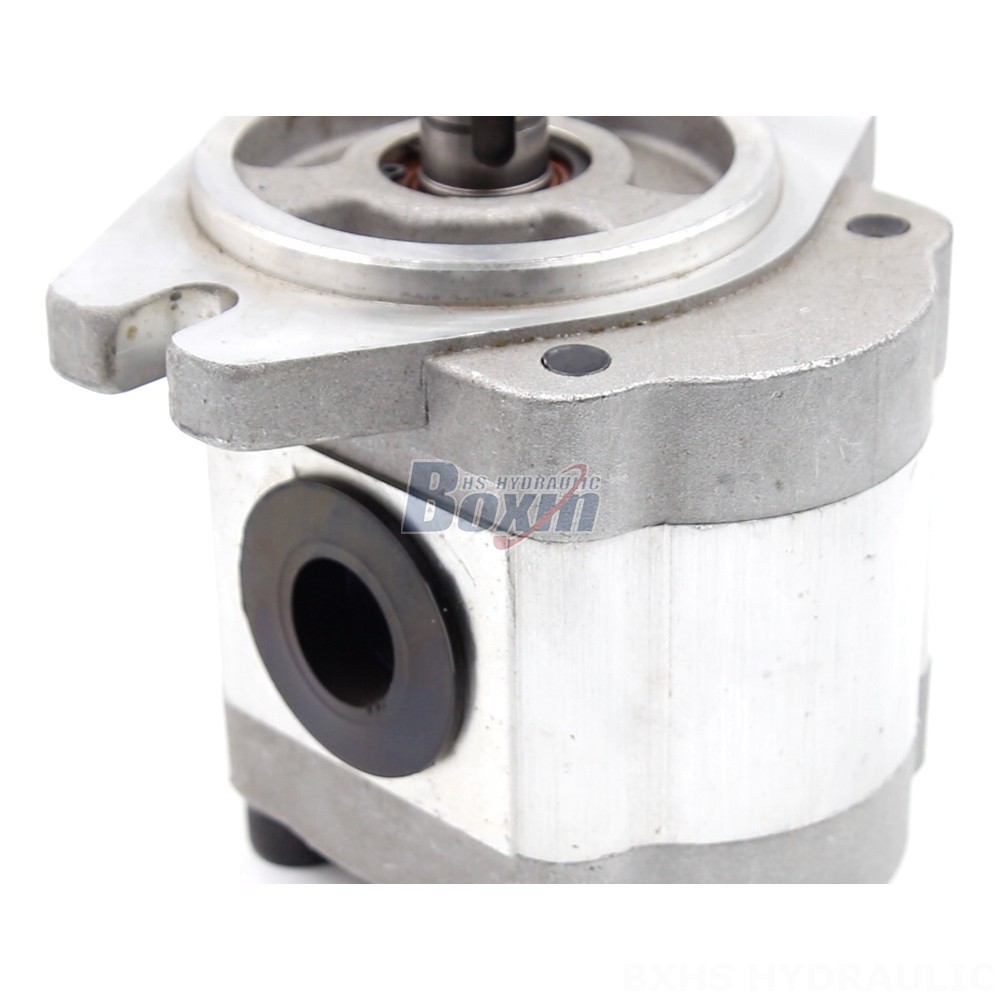

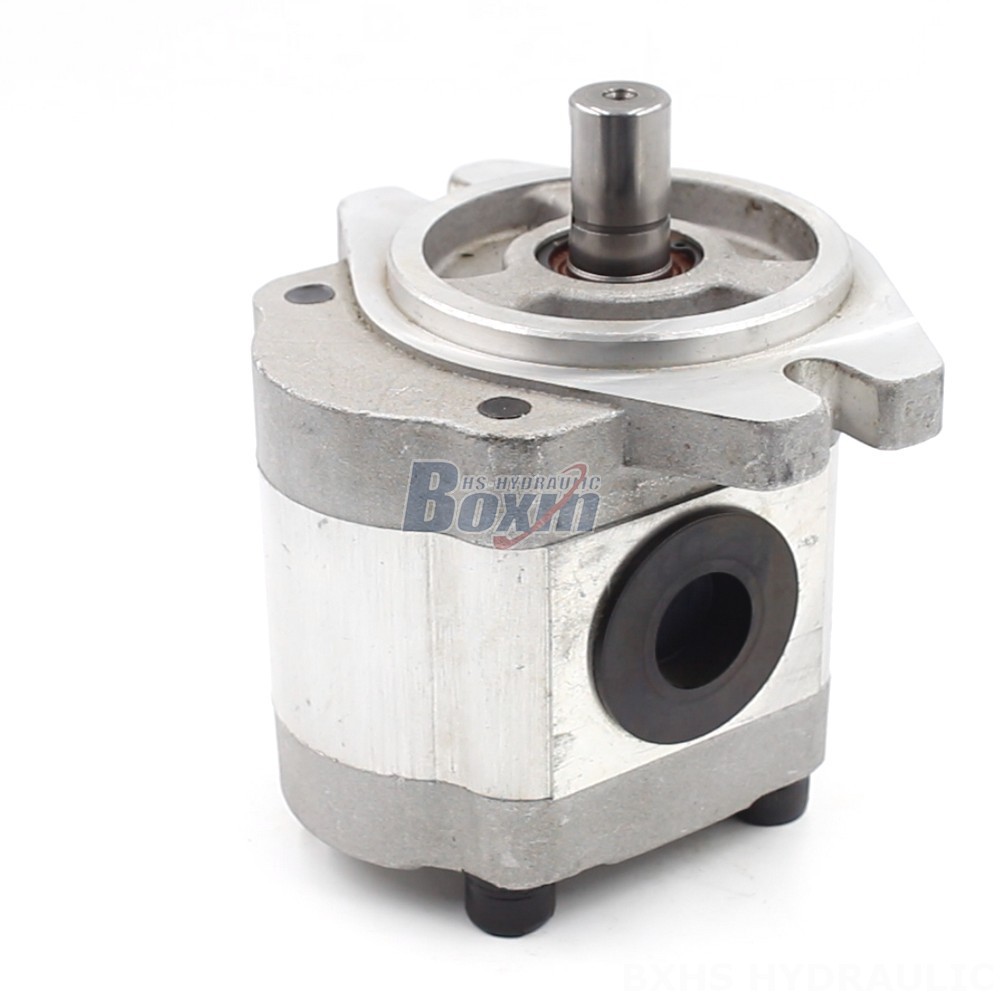

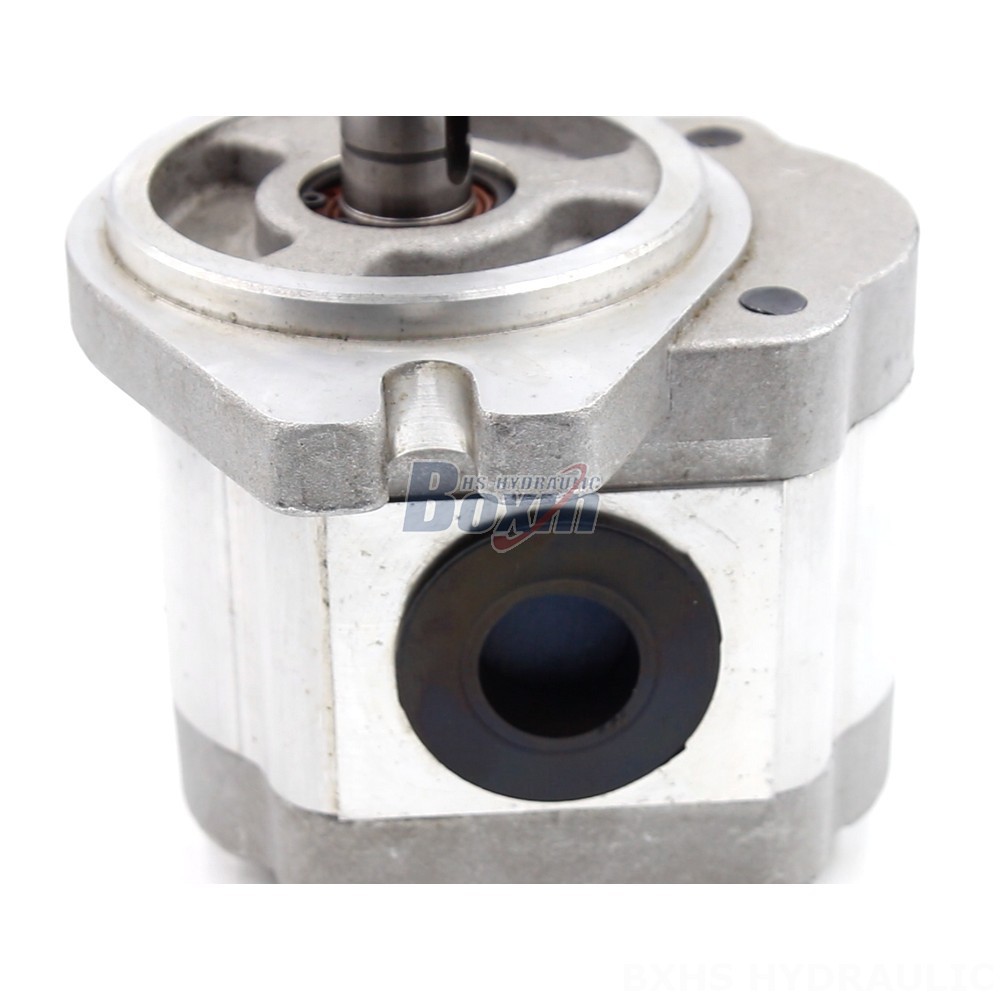

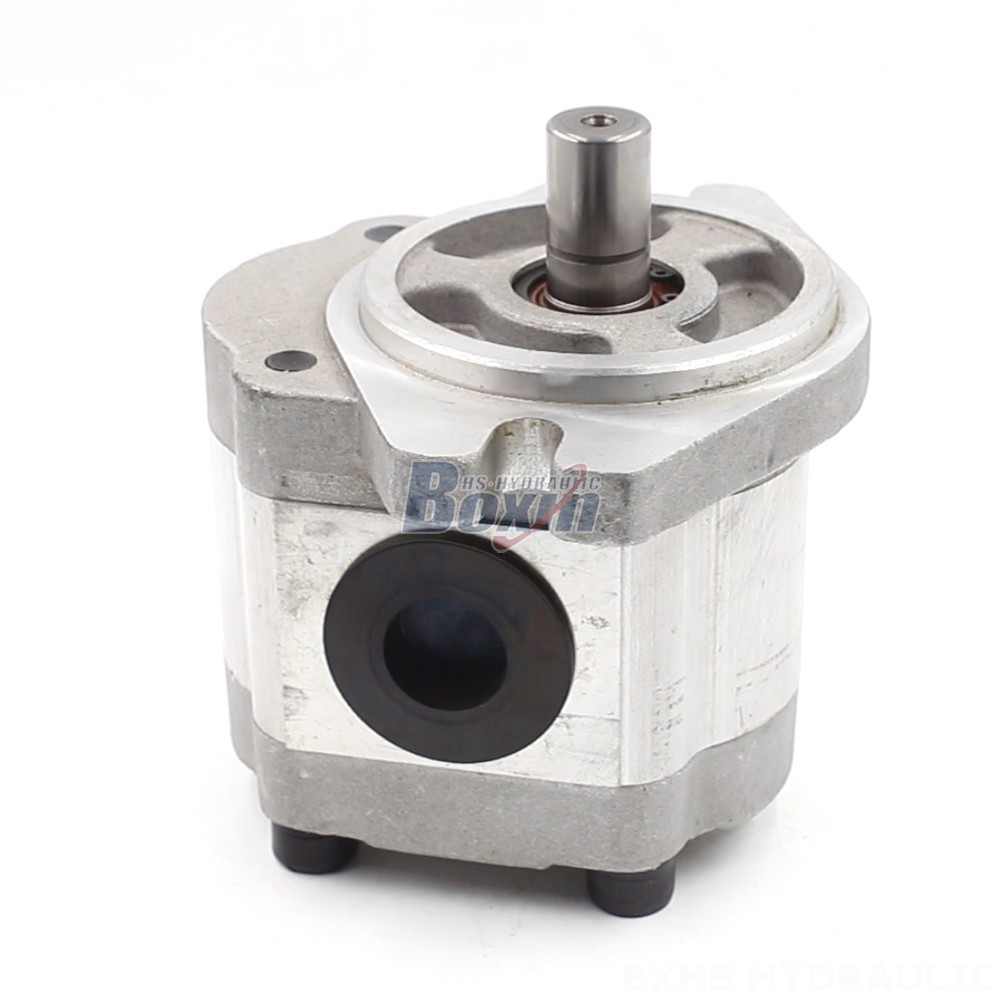

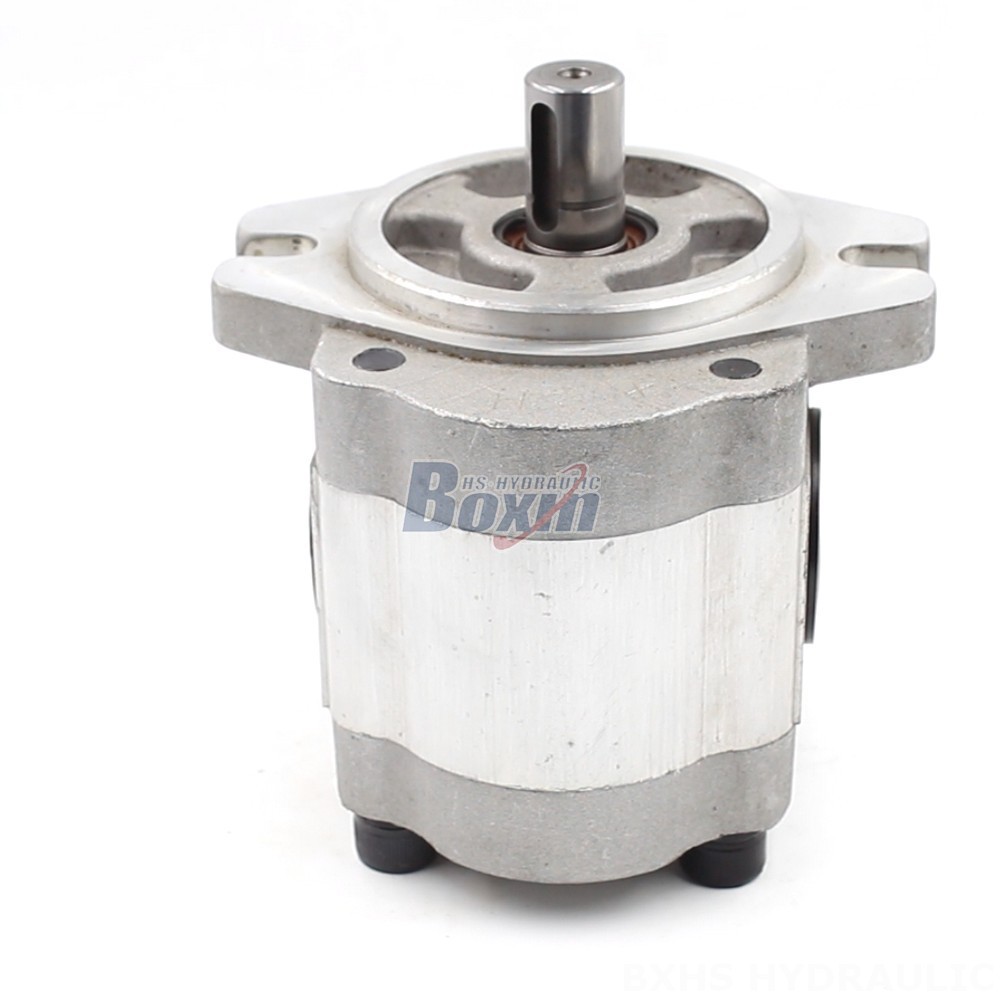

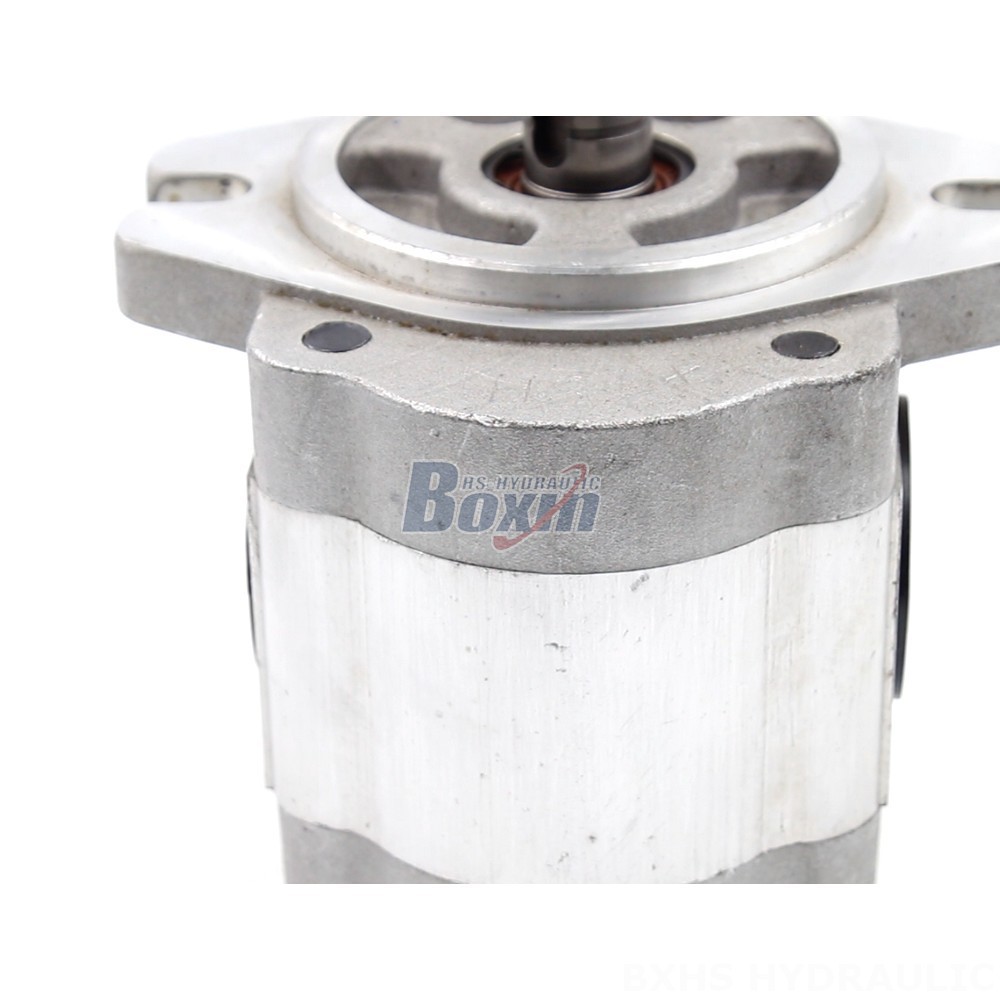

This 6 cc/rev Hydraulic Gear Pump is manufactured with high-quality materials and is designed for durability and reliability. It features an A-Oval flange and a Plain Key shaft, making it compatible with a variety of applications. The pump offers a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. It is also customizable to meet specific requirements. This pump is ideal for use in construction equipment, agricultural machinery, and industrial vehicles. It is particularly well-suited for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, balers, and sprayers. As a manufacturer, we offer factory direct pricing, OEM, ODM, and private label services. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
