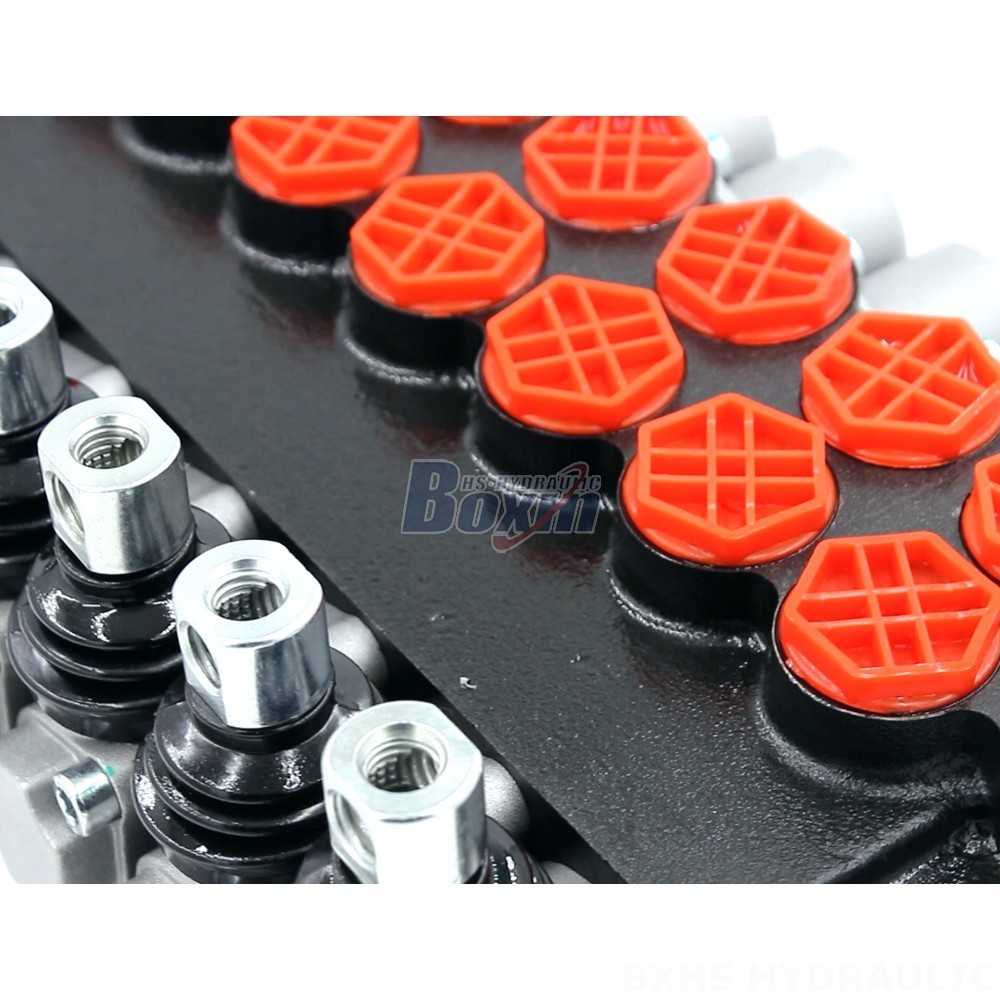

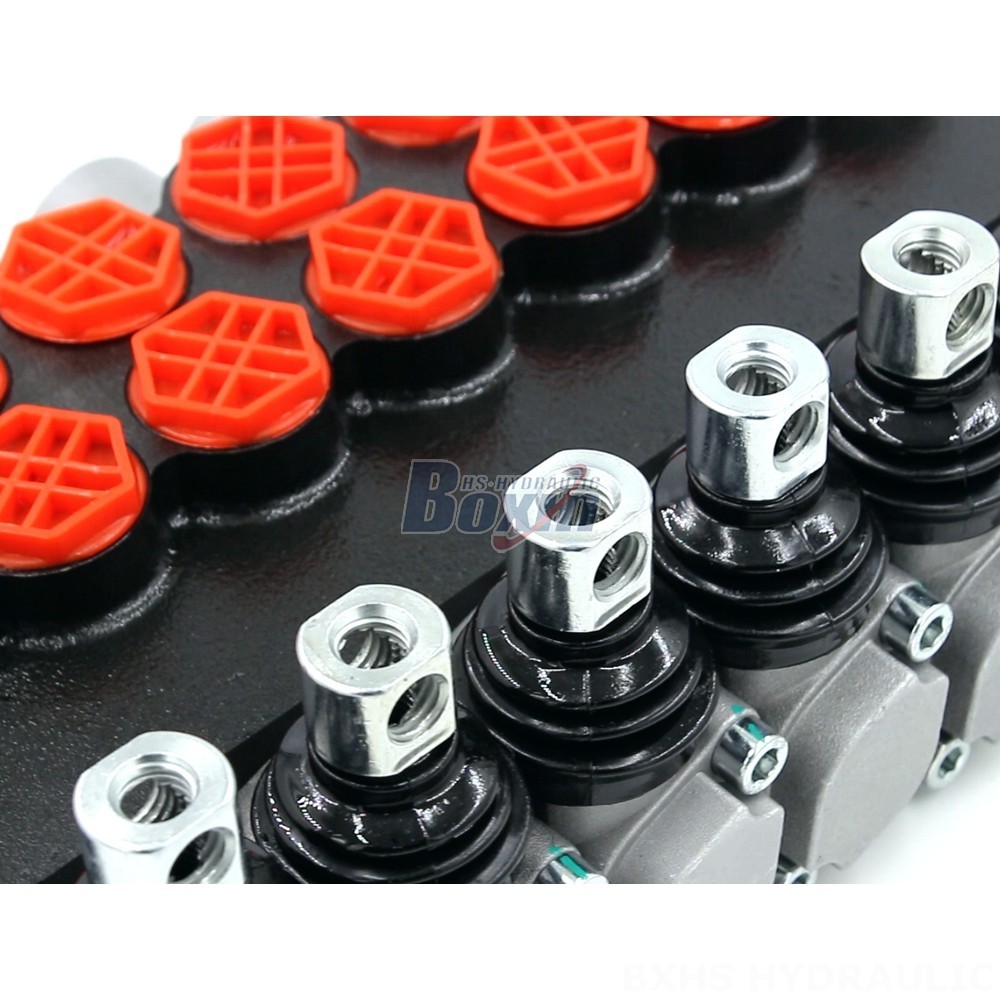

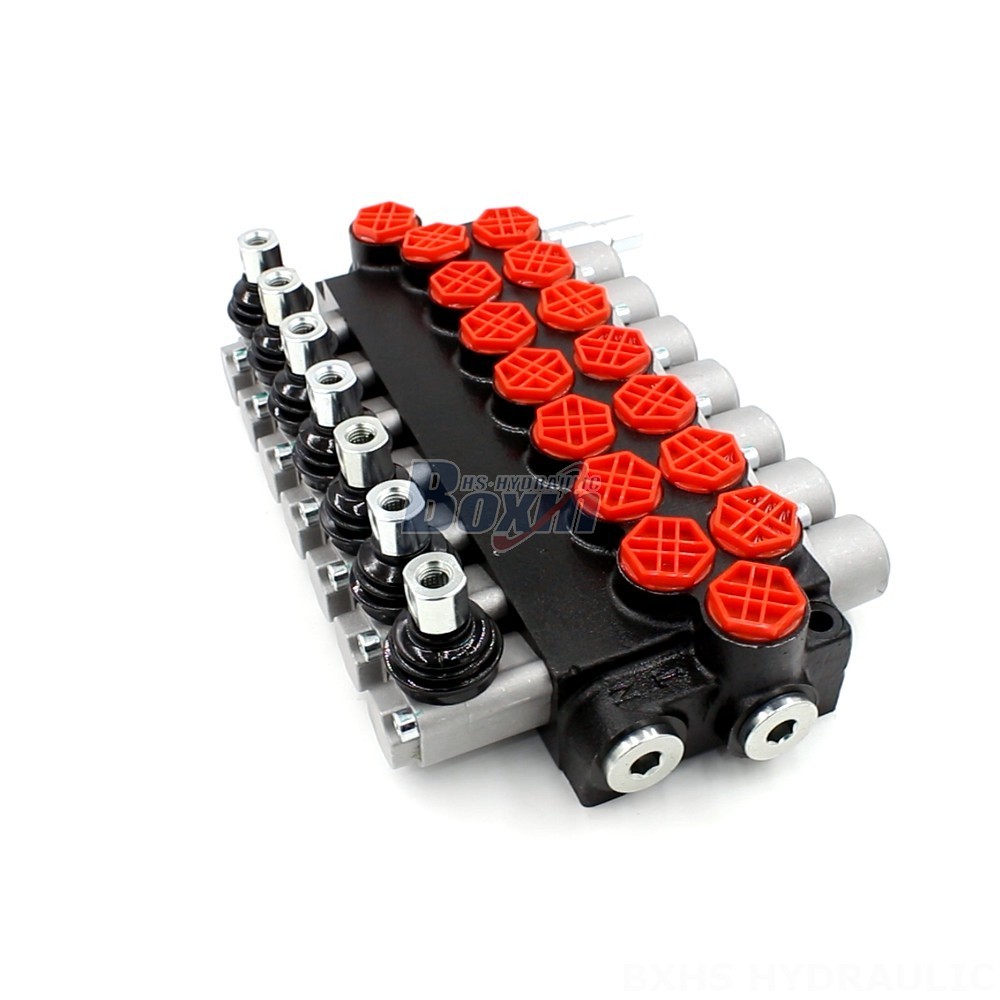

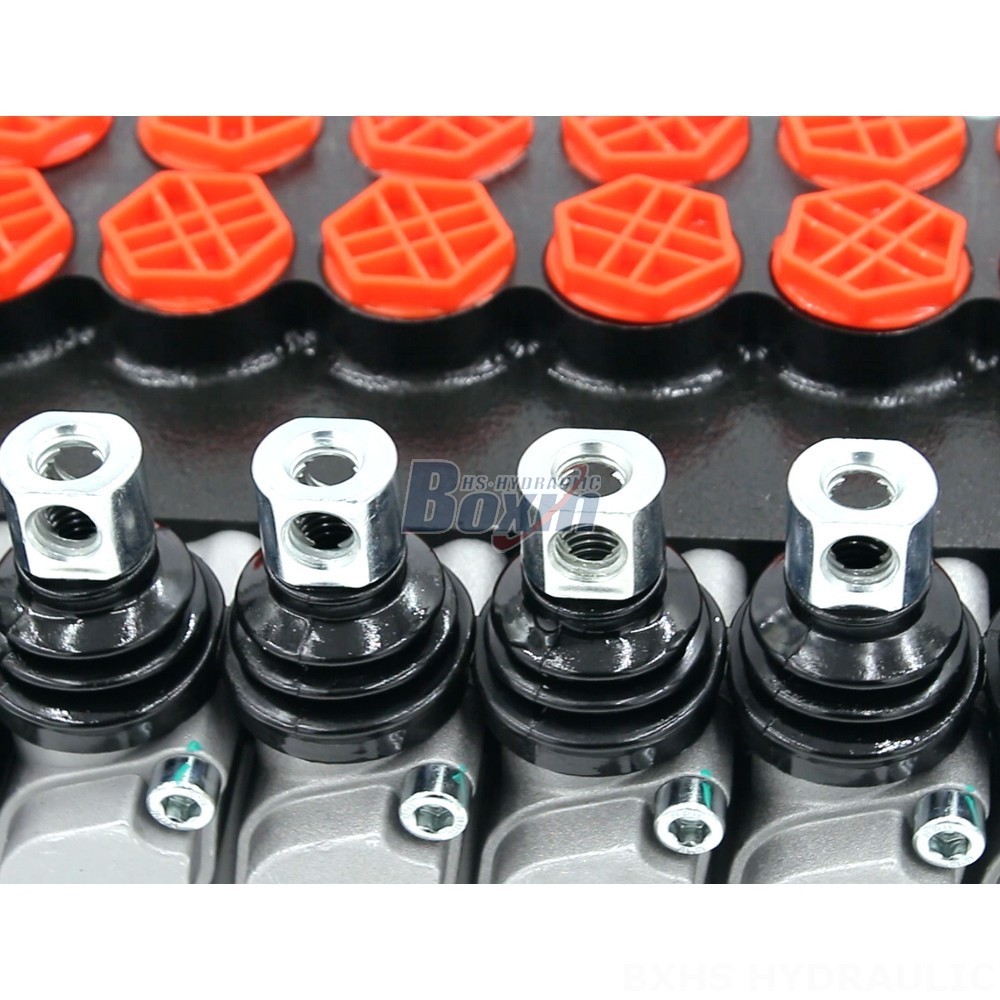

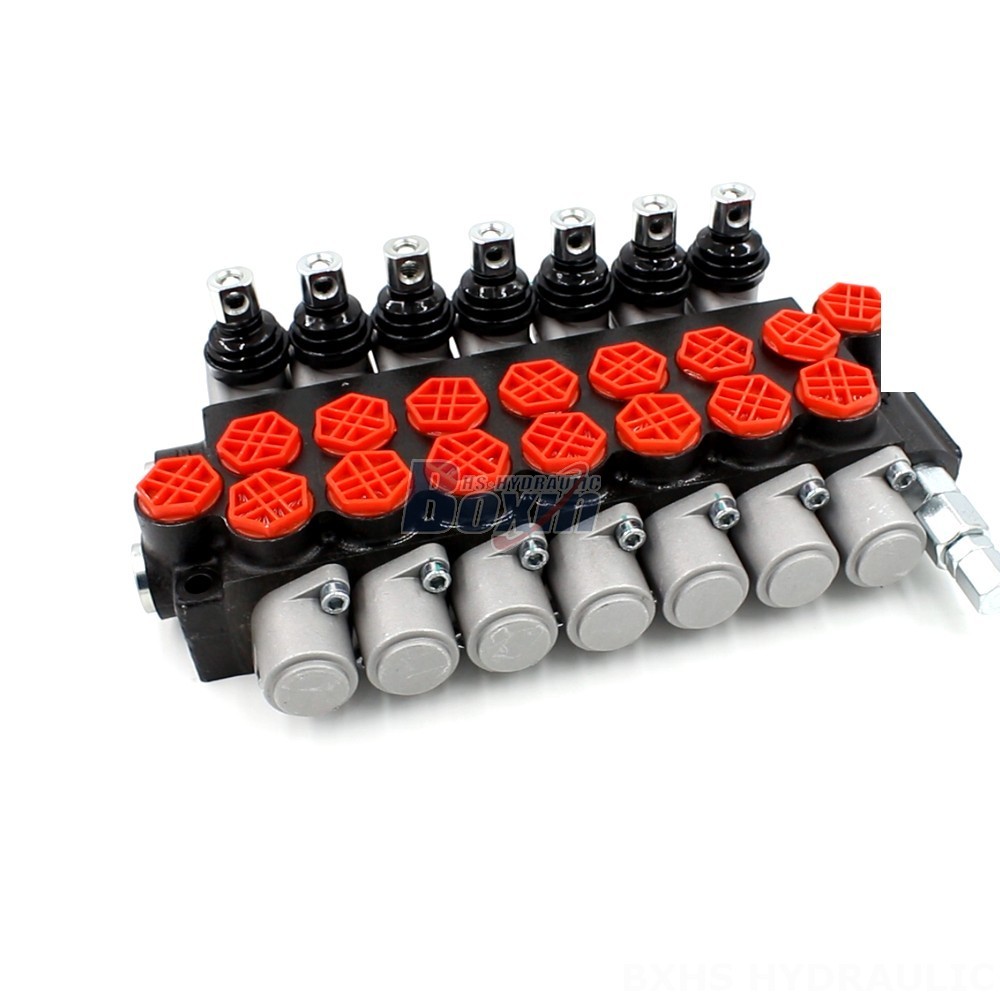

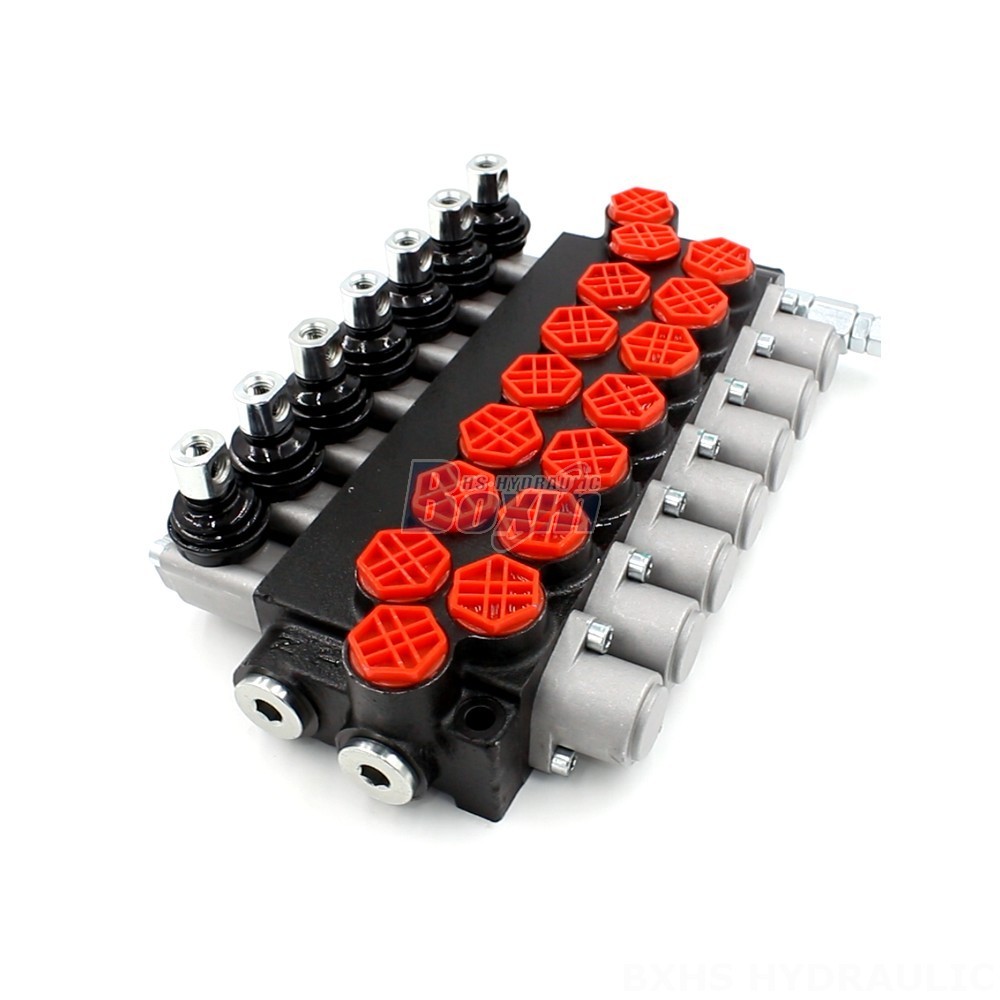

This high-performance 7-spool manual hydraulic directional valve is designed for demanding applications in material handling, construction, and agriculture. Featuring a monoblock structure and rated for 700 Bar (10,000 psi), this valve delivers precision control and exceptional efficiency. It's ideal for applications such as telehandlers, forklifts, and all-terrain cranes.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This robust 7-section manual hydraulic valve provides precise and reliable directional control for demanding applications. With a 40 L/min flow rate, 250 bar pressure rating, and wide operating temperature range, this valve is a reliable solution for various hydraulic systems. Designed for use in material handling, construction, and agricultural equipment, this P40 Series valve is ideal for applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders.
