Produktion & Leverans
15-30 dagars produktionsledtid
Innovation driver utvecklingen Tekniken formar framtiden
1234 Vyer letar efter den här produkten

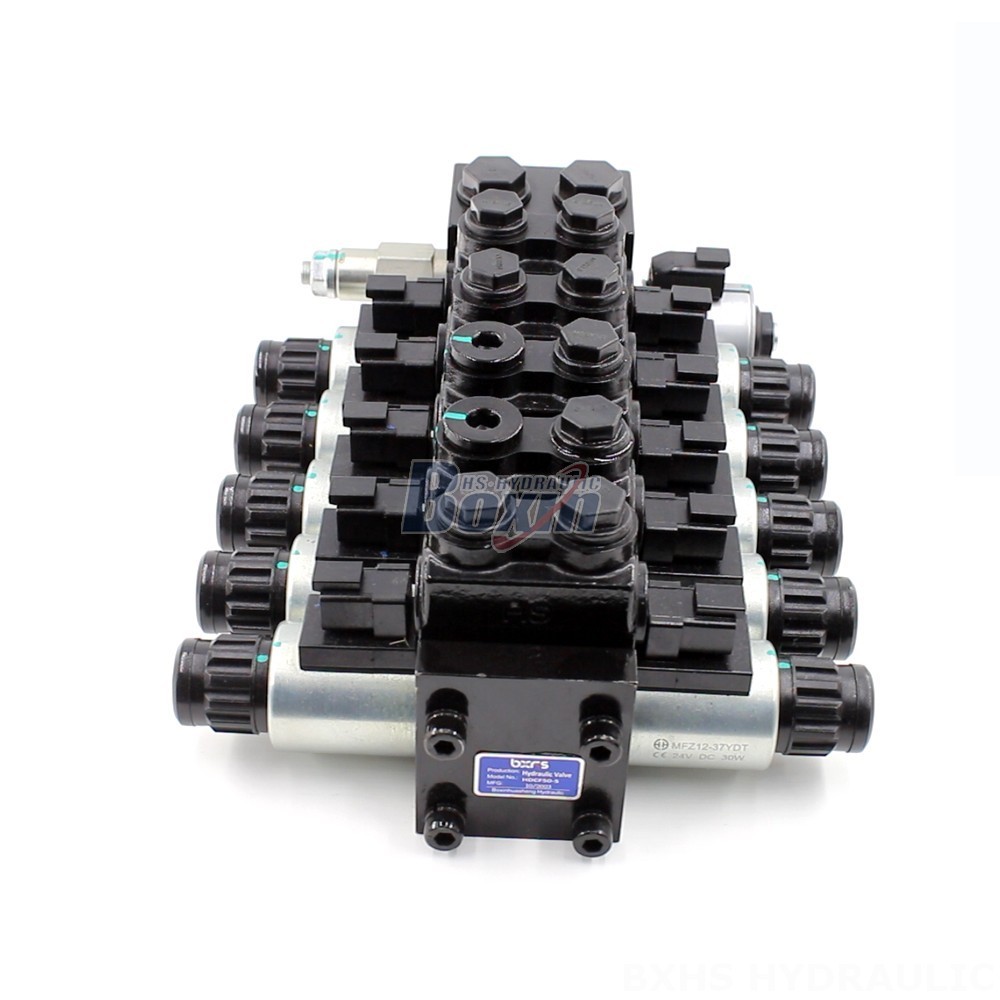

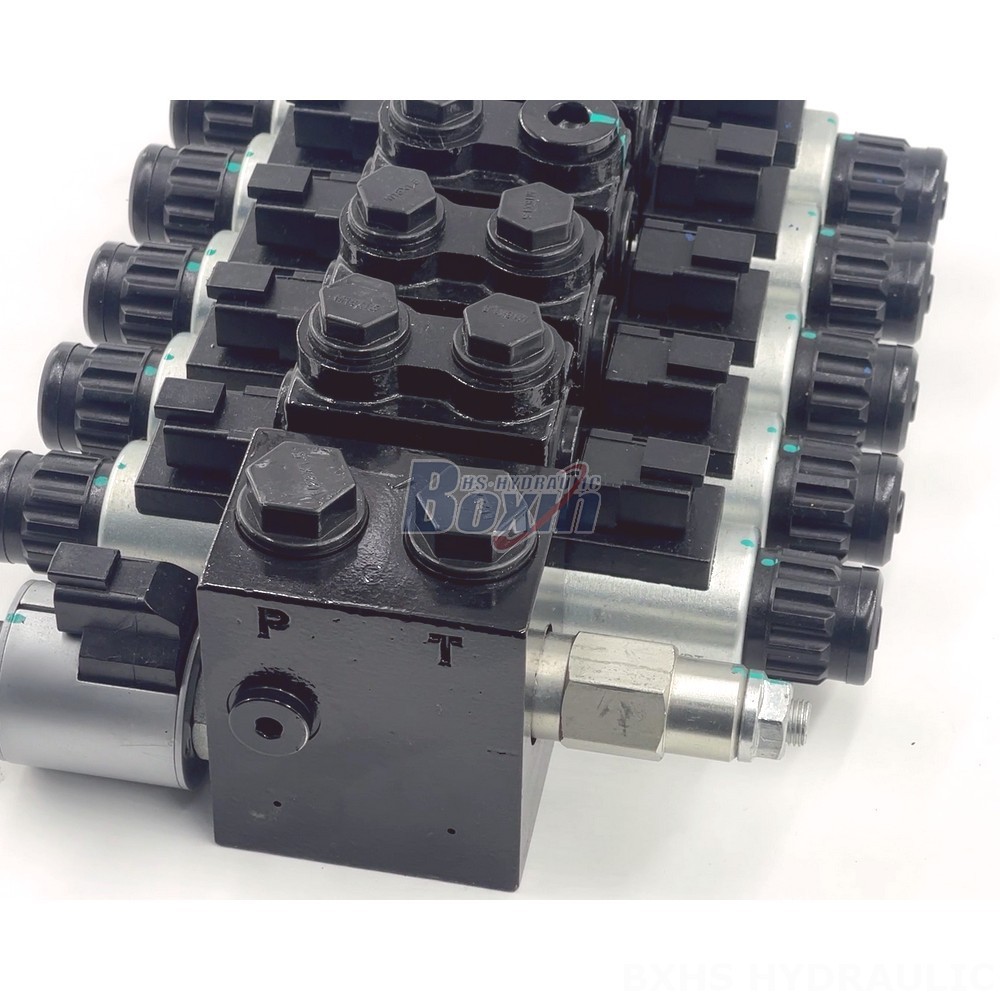

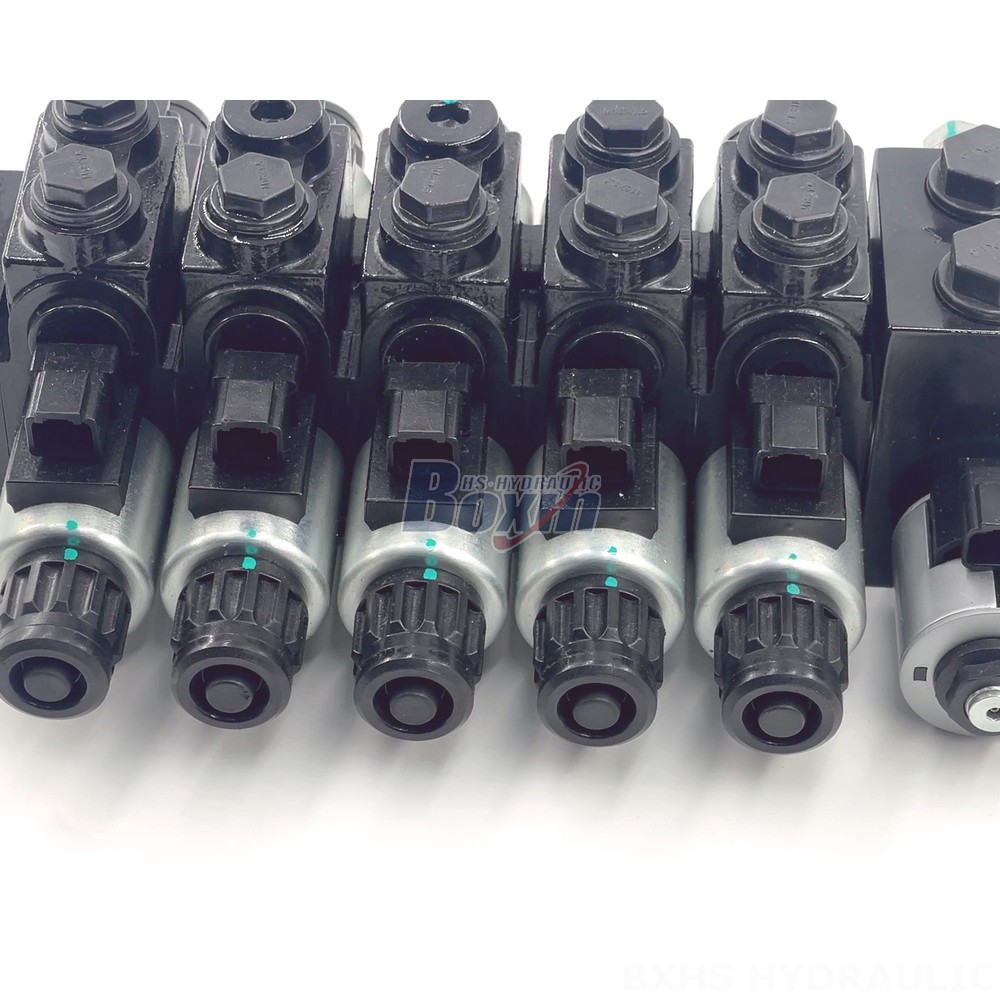

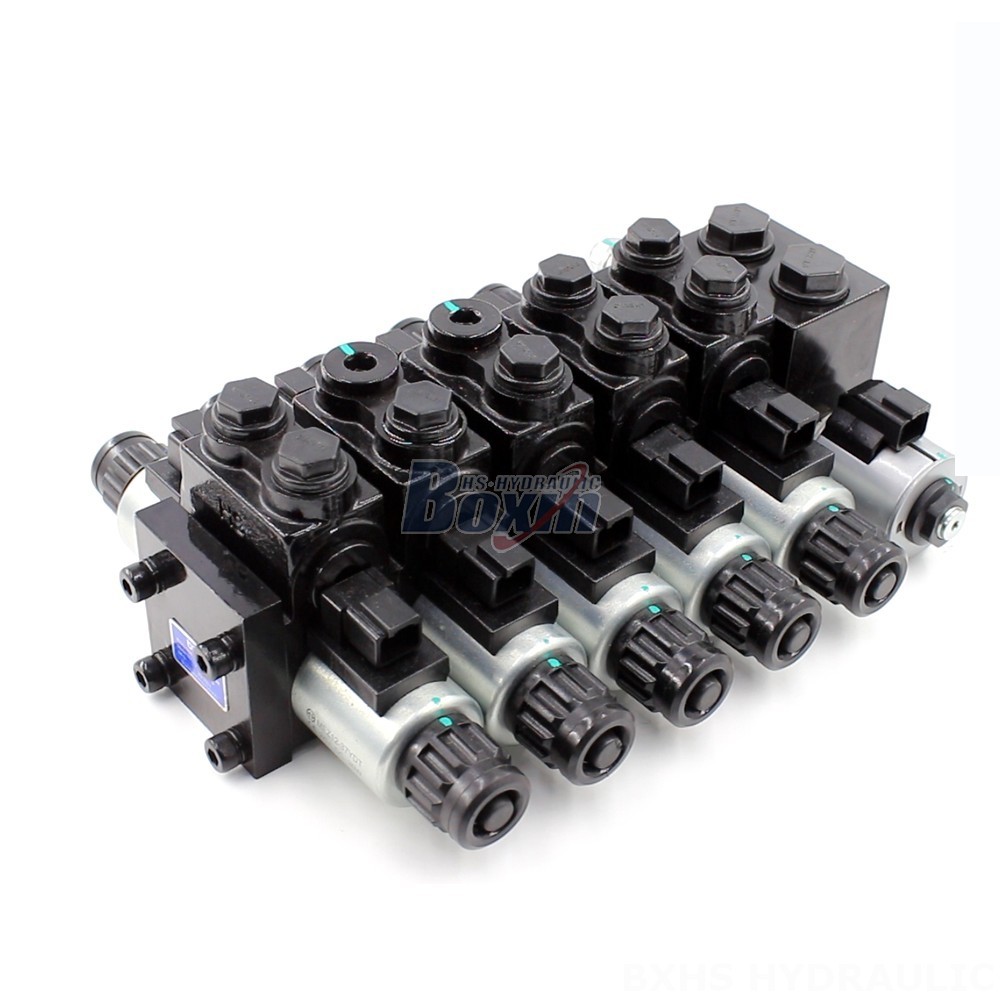

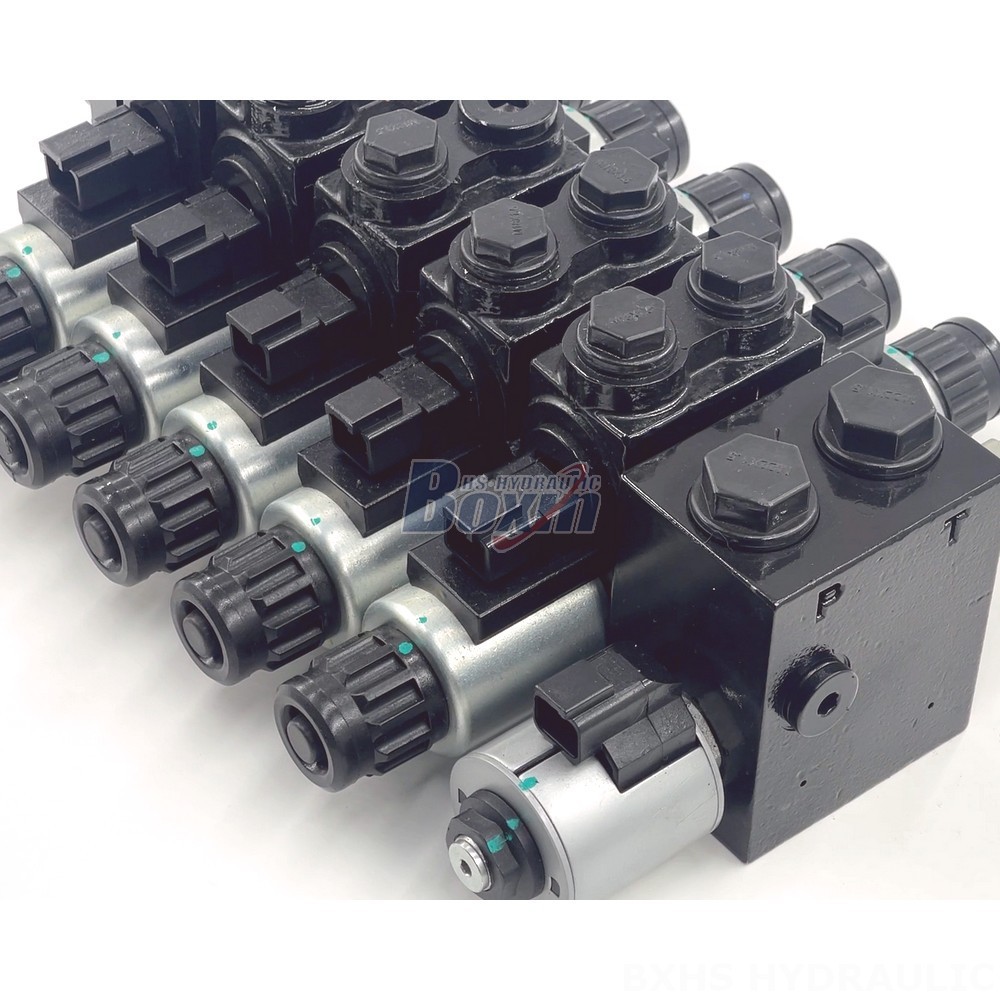

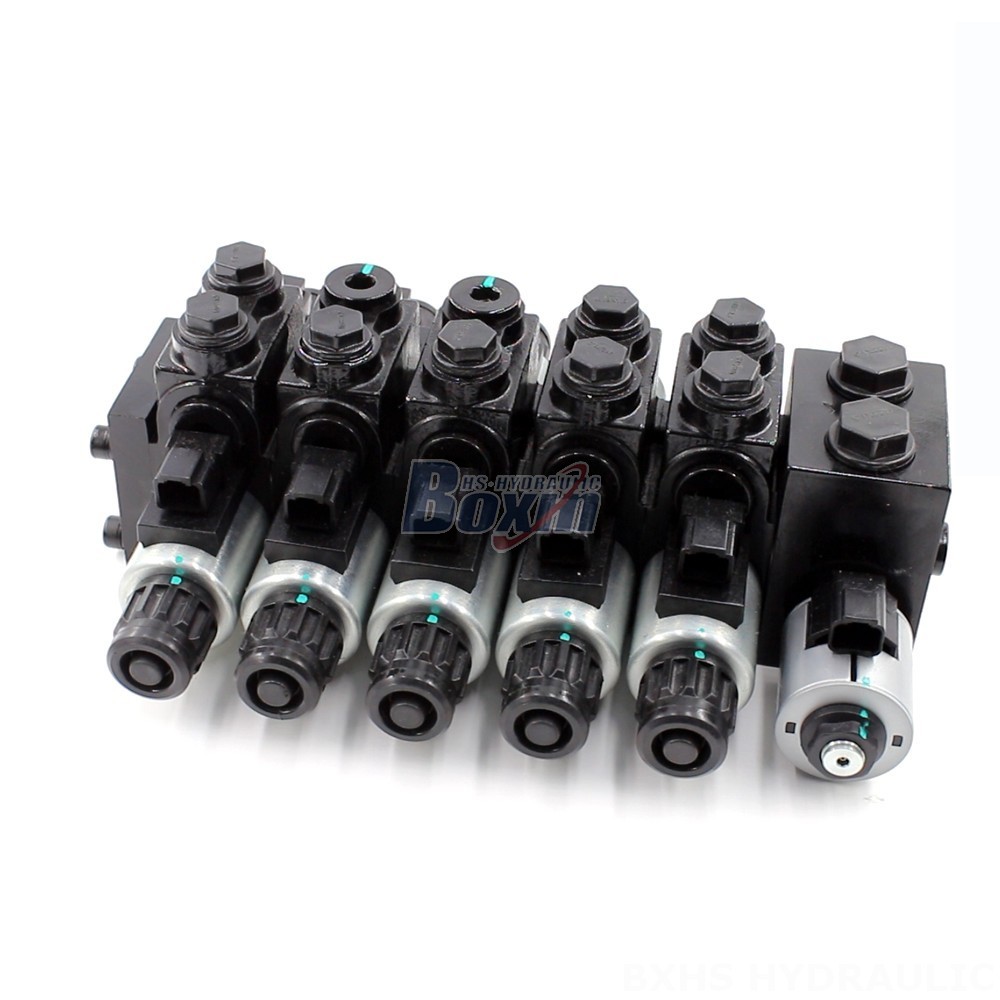

The Advanced HDCF50 Solenoid Control Valve is a high-performance hydraulic valve designed for demanding applications across various industries. With its robust sectional structure, 50 L/min flow capacity, and 160 bar pressure rating, this valve offers exceptional control and reliability.
| HDCF50-serien Solenoidstyrventil Parametrar | |
|---|---|
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner |
| Kontrollmetod | Solenoid |
| Portstorlek | M22×1.5, SAE 8 |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Omgivningstemperaturintervall | -20 °C till +80 °C (-4 °F till +176 °F) |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Utloppsport | M18×1.5, M22×1.5, SAE 8 |
| Maximalt tryck | 160 bar (2300 psi) |
| Nominellt flöde | 50 l/min (13,2 US gpm) |
| Strukturtyp | Sektionsventil |
| Inloppsport | M18×1.5, M22×1.5, SAE 8 |
**Product Name:** Advanced HDCF50 Solenoid Control Valve
**Control Method:** Solenoid
**Section:** 5 Section
**Structure Type:** Sectional Valve
**Rated Flow:** 50 L/min (13.2 US gpm)
**Max Pressure:** 160 bar (2300 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -20°C to +80°C (-4°F to +176°F)
**Spool:** 5 Spool
**Voltage:** 12V 24V
**Series:** HDCF50 Series
**Application Area:** Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
**Applicable Model:** Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Mini-Excavator, Skid Steer Loader, Compact Wheel Loader, Wheel Loader
**Key Features:**
- Advanced design for demanding hydraulic applications
- Sectional valve construction allows for customization and flexibility
- High flow capacity of 50 L/min ensures efficient operation
- Maximum pressure rating of 160 bar for heavy-duty applications
- Wide operating viscosity range from 15 to 75 cSt
- Robust construction with high durability and reliability
- Available in various spool configurations and voltage options
- Suitable for a wide range of hydraulic systems and equipment
- Backed by global manufacturing and support
