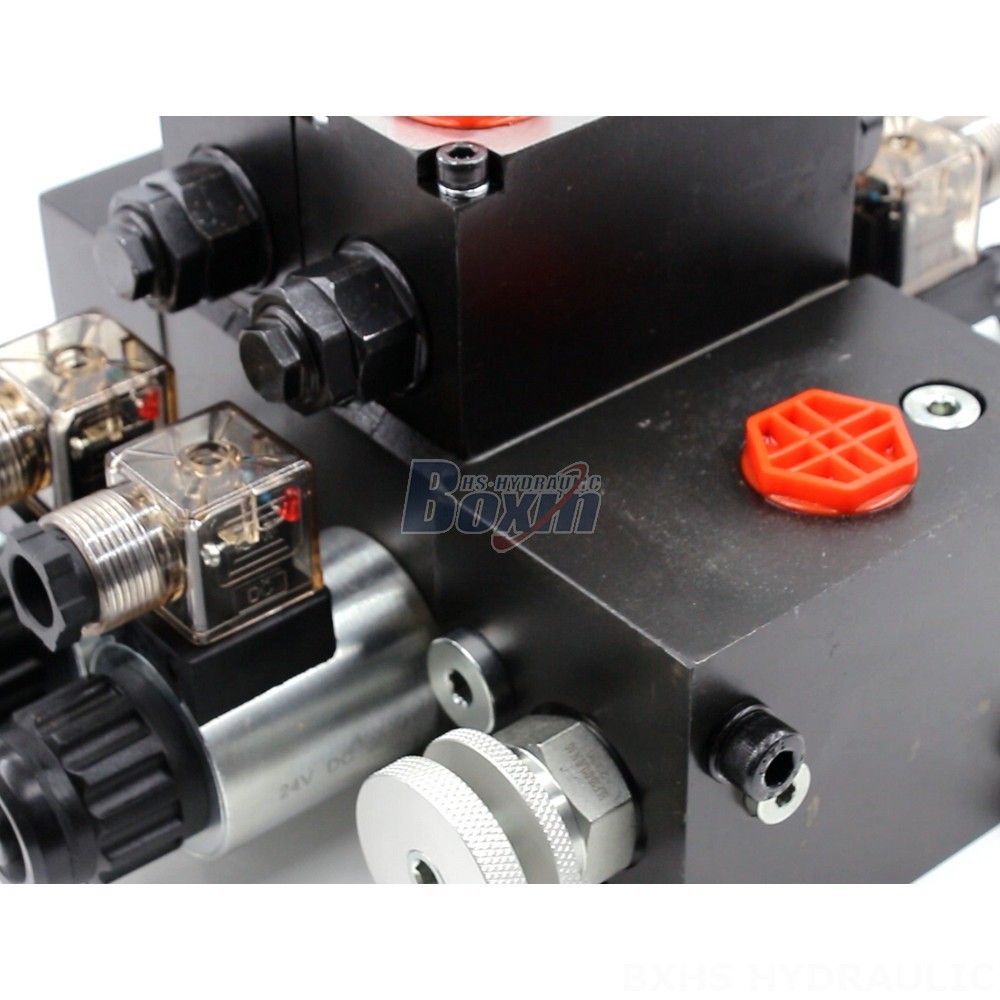

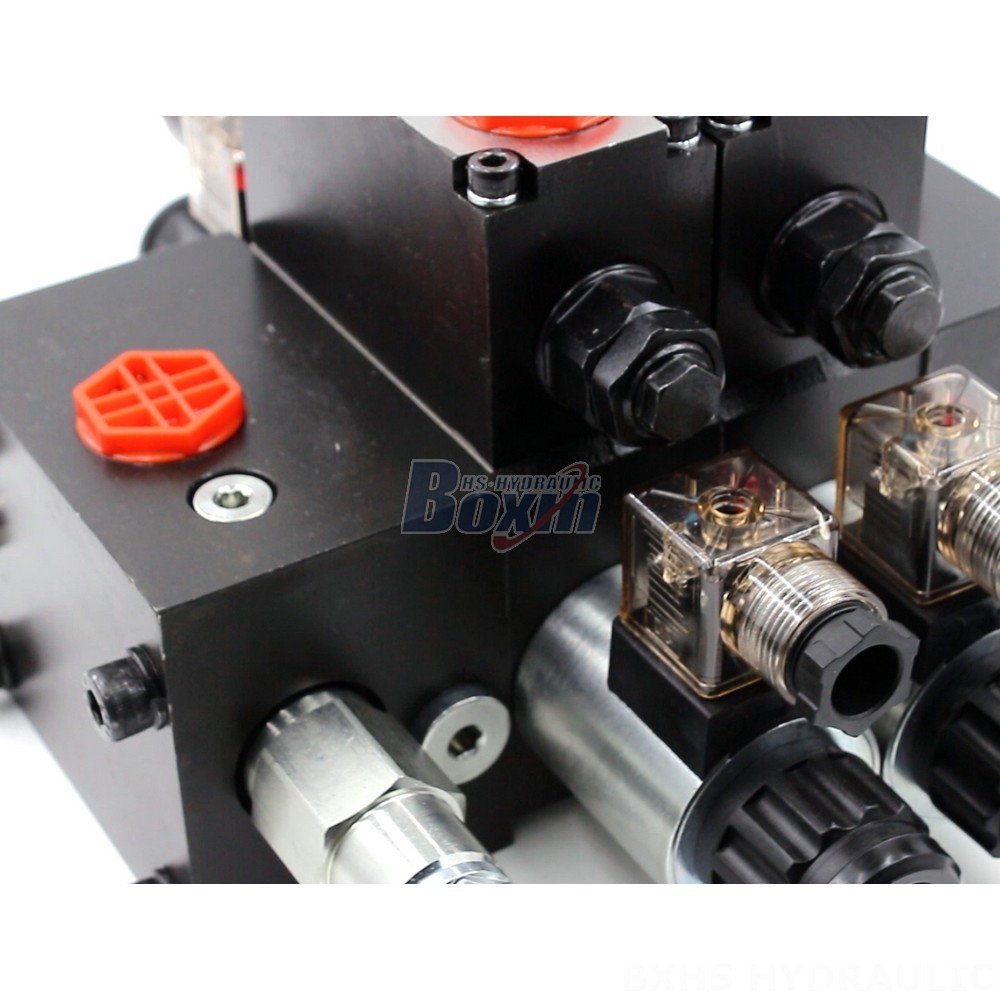

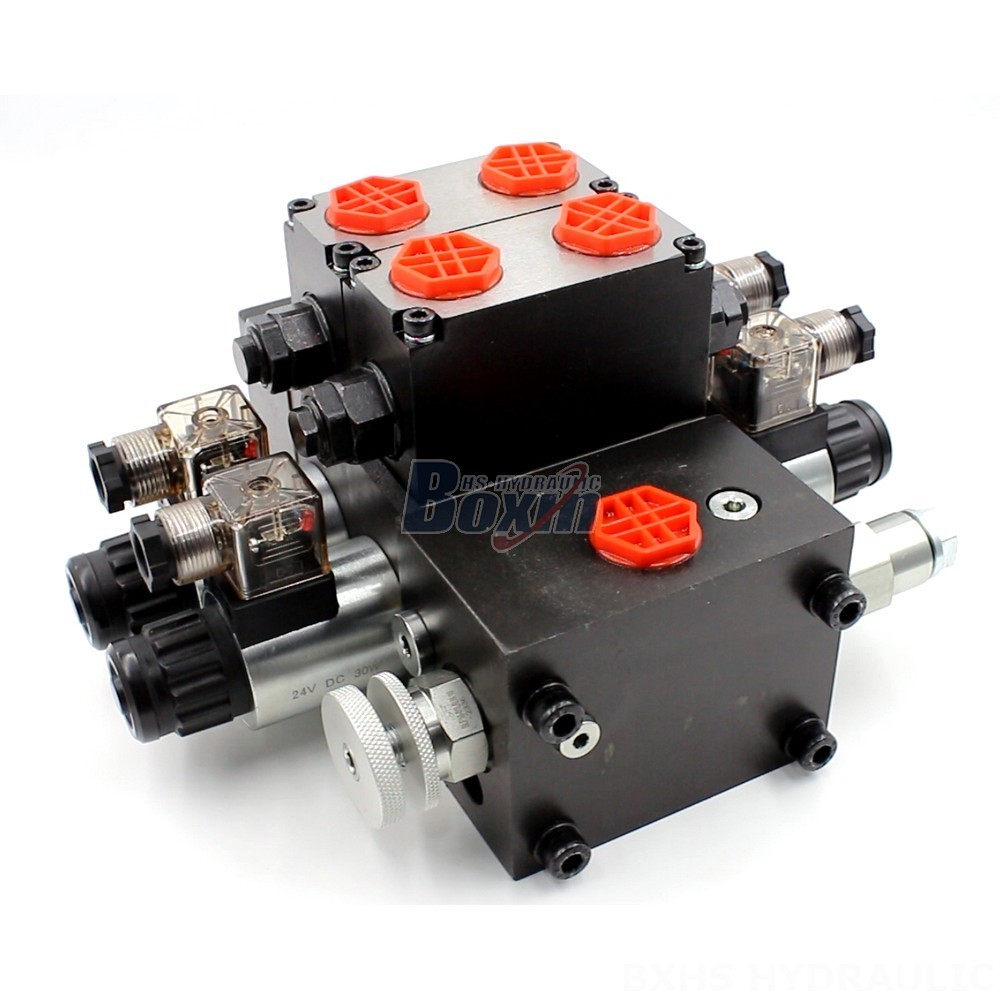

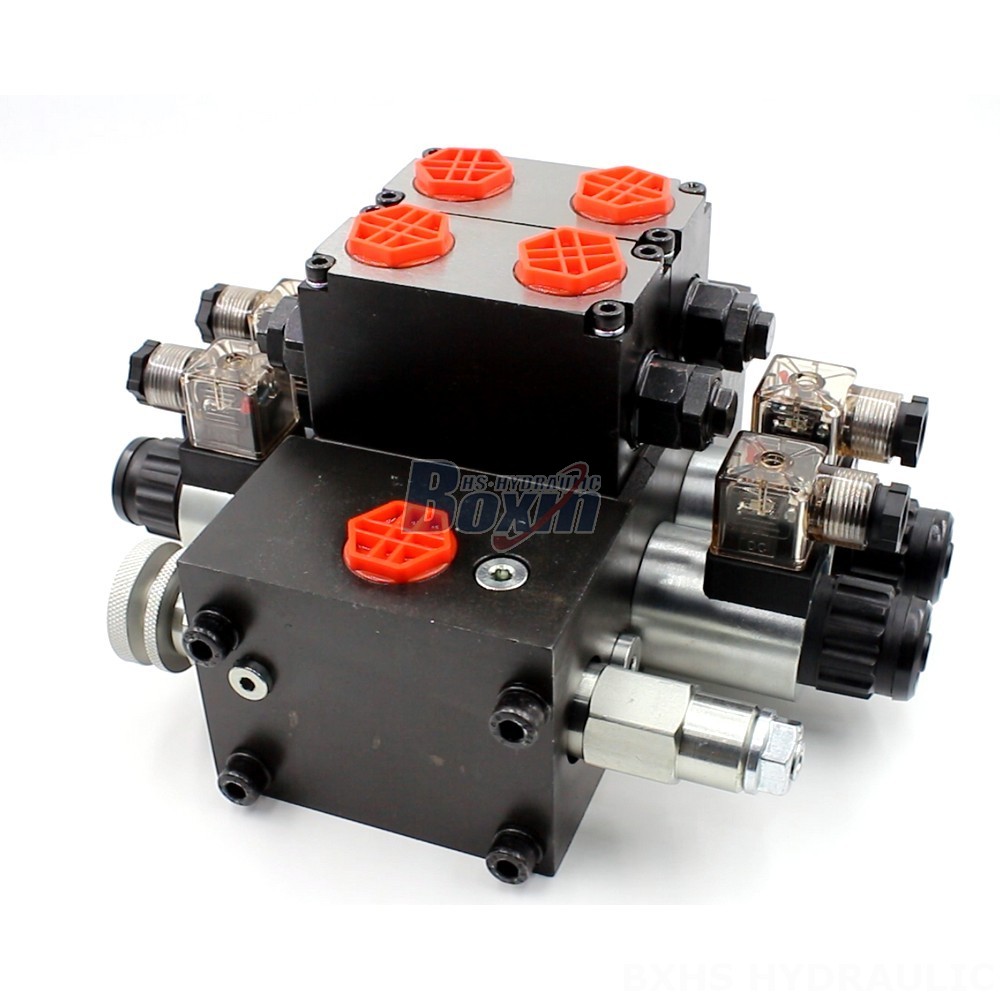

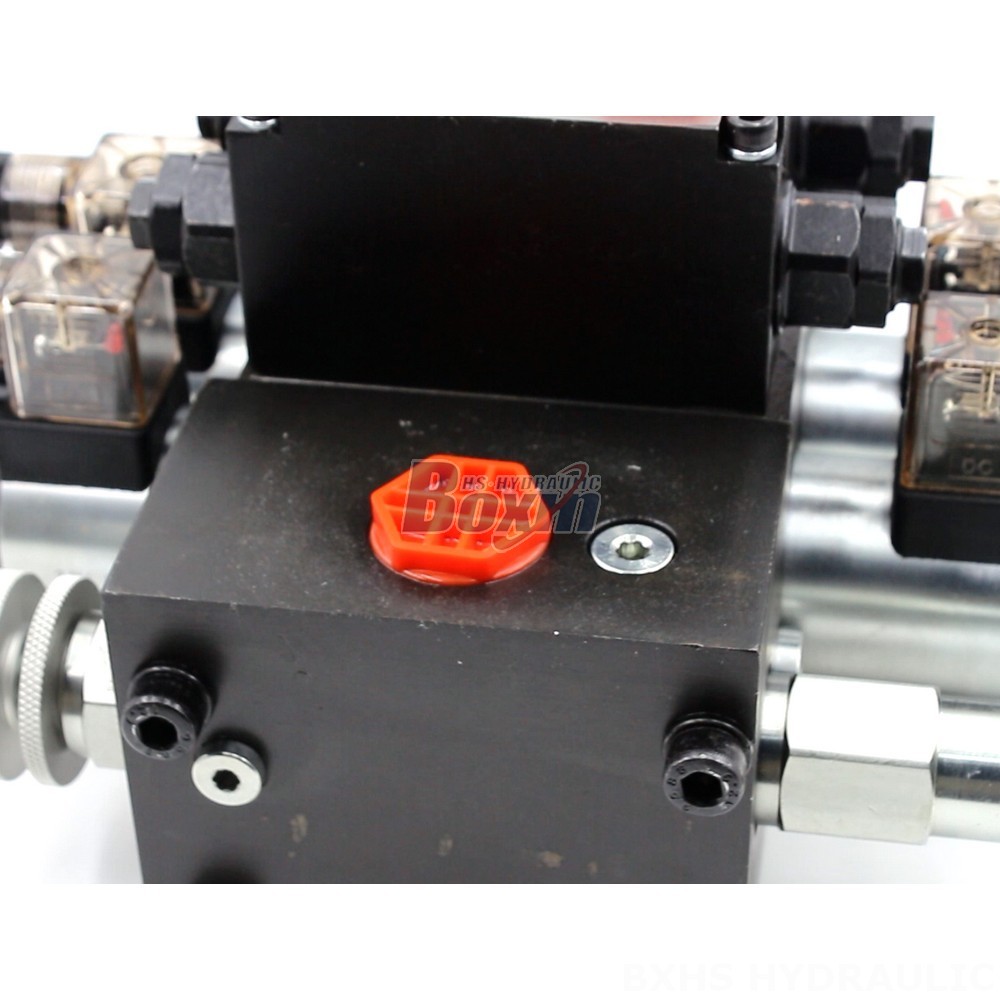

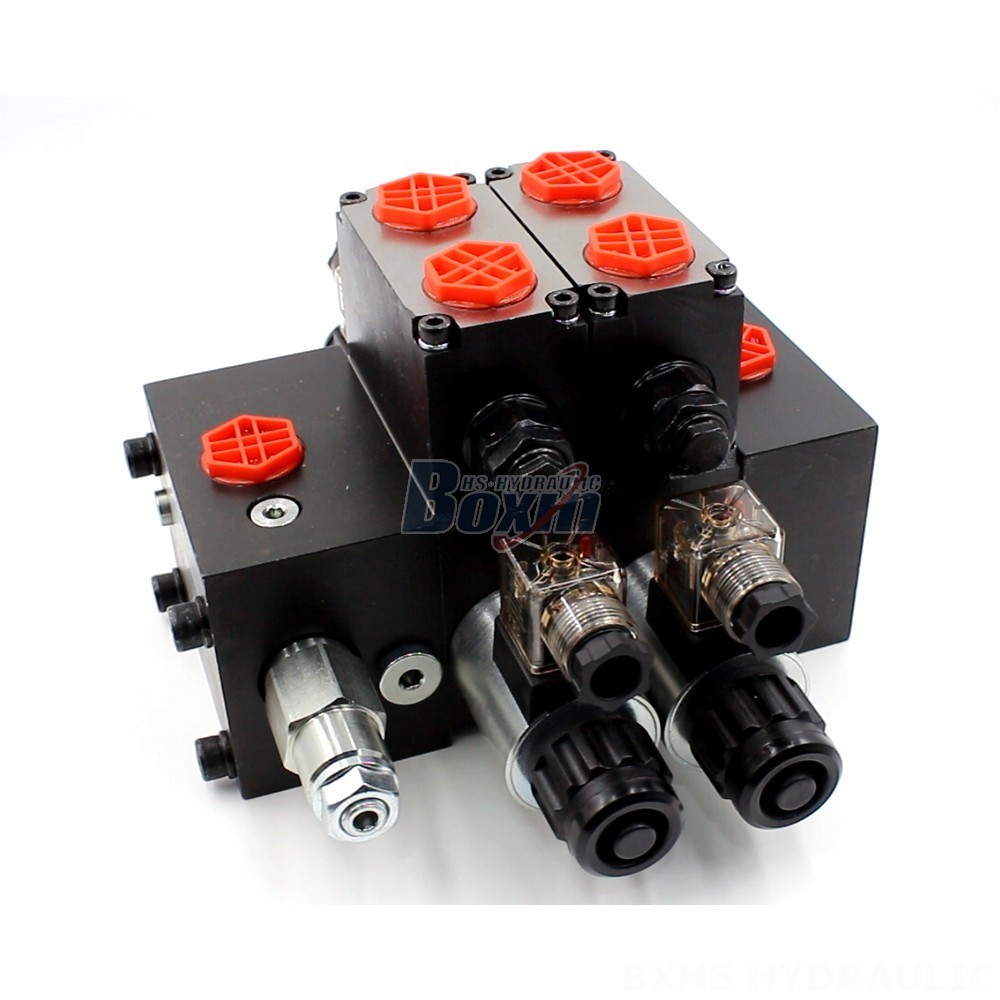

Bespoke Hydraulic Solutions offers customizable DCV58F directional control valves designed to meet specific hydraulic system requirements. These valves feature solenoid control, a 2-section sectional valve design, and a rated flow of 60 L/min (15.8 US gpm) at a maximum pressure of 350 bar (5100 psi).
| DCV58F-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Solenoid, Solenoid och manuell |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Nominellt flöde | 60 l/min (15,8 US gpm) |
| Maximalt tryck | 350 bar (5100 psi) |
| Inloppsport | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Utloppsport | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Portstorlek | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Strukturtyp | Sektionsventil |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
The DCV58F series is suitable for various applications in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini excavators, and skid steer loaders. With an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), these valves ensure reliable performance in diverse operating conditions.
