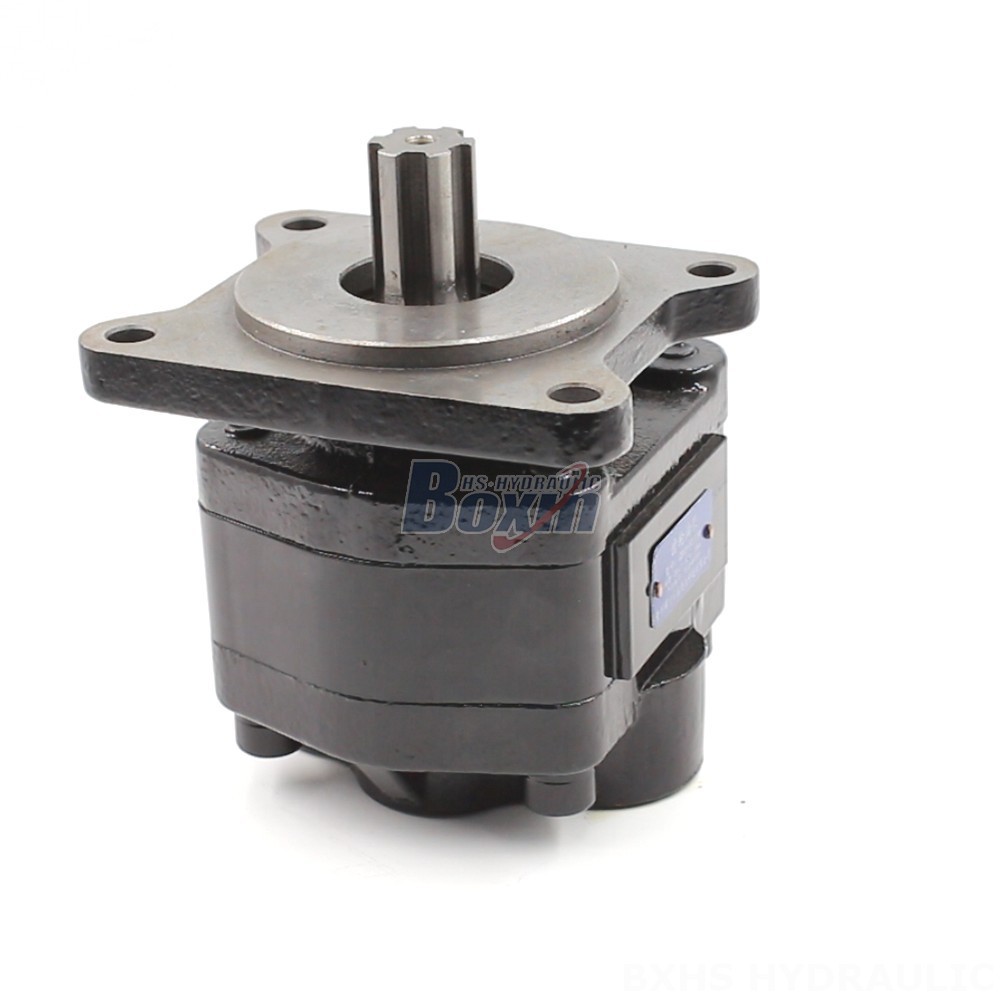

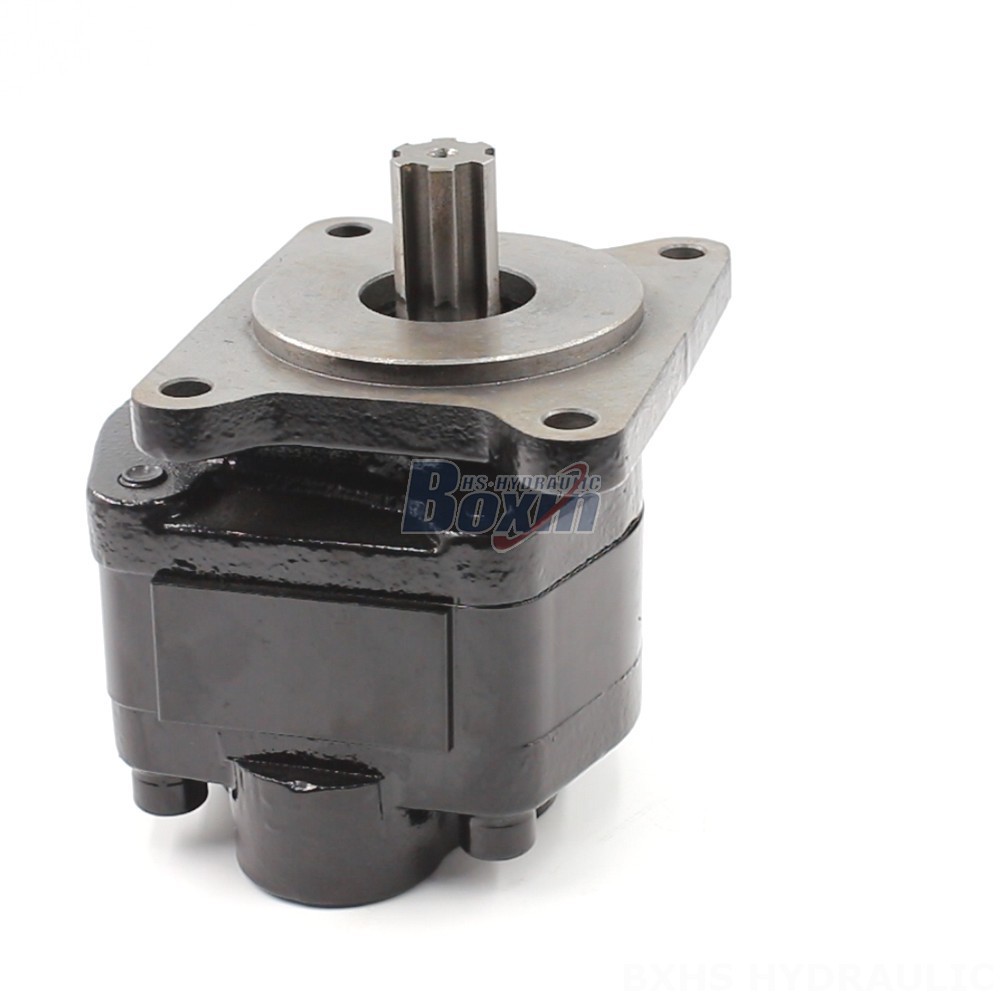

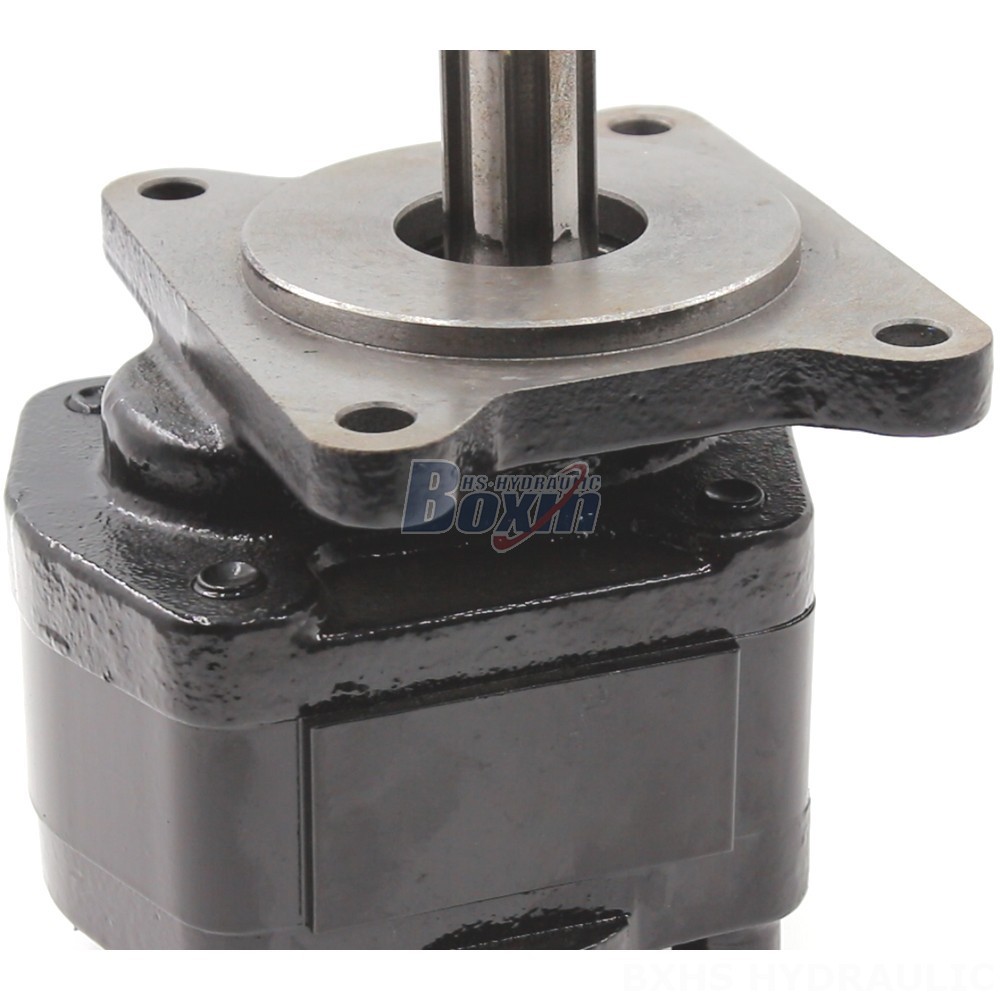

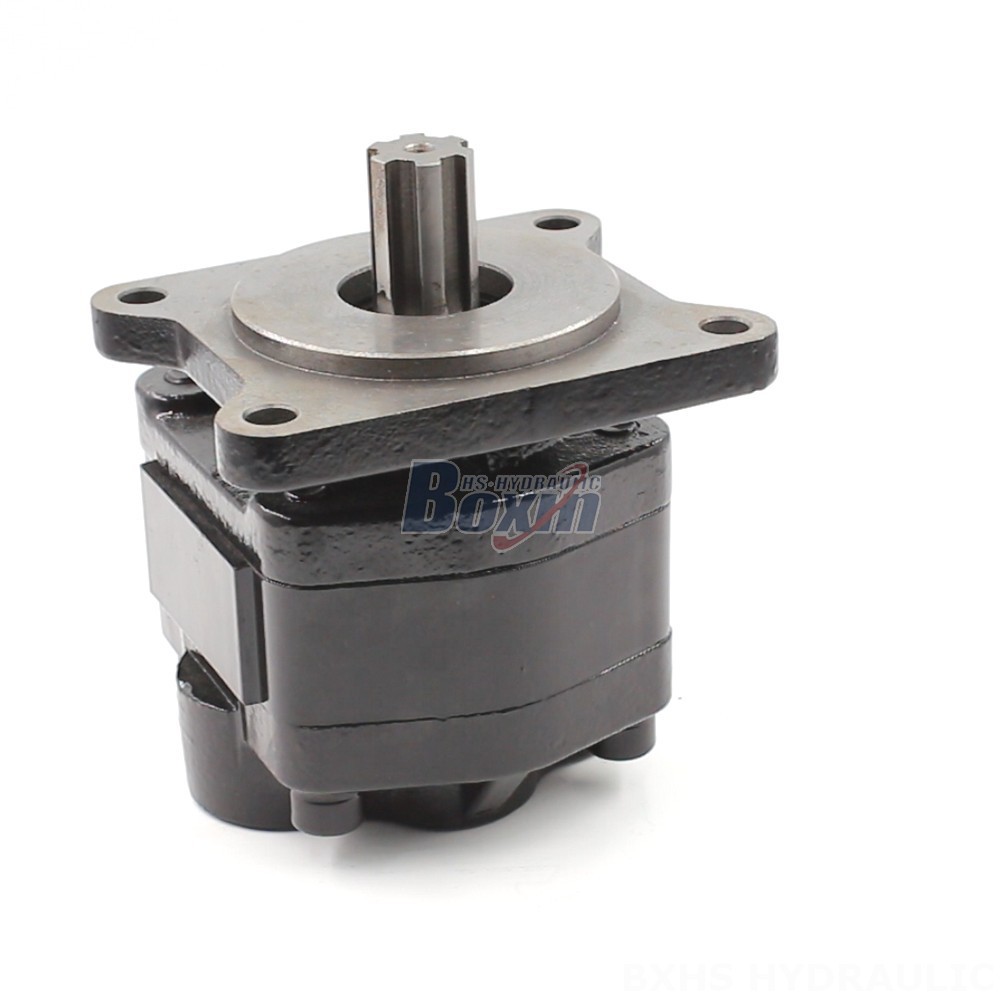

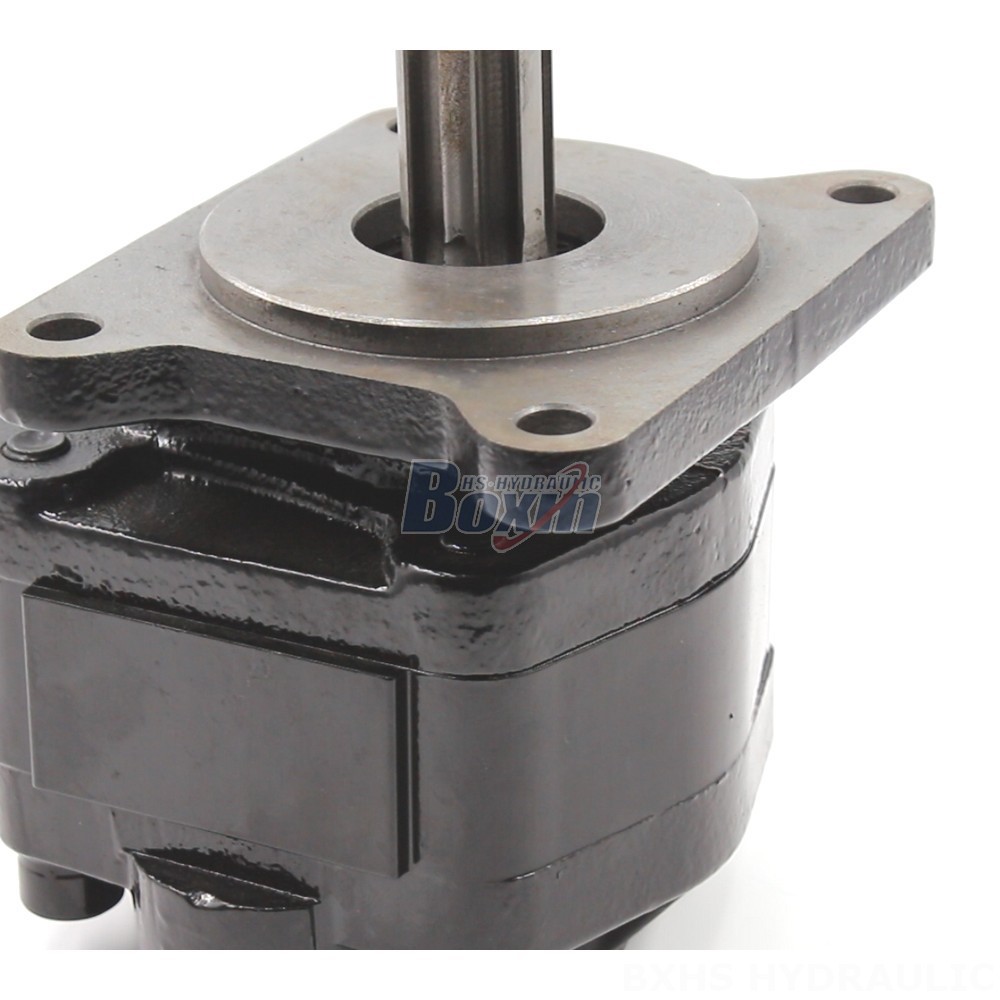

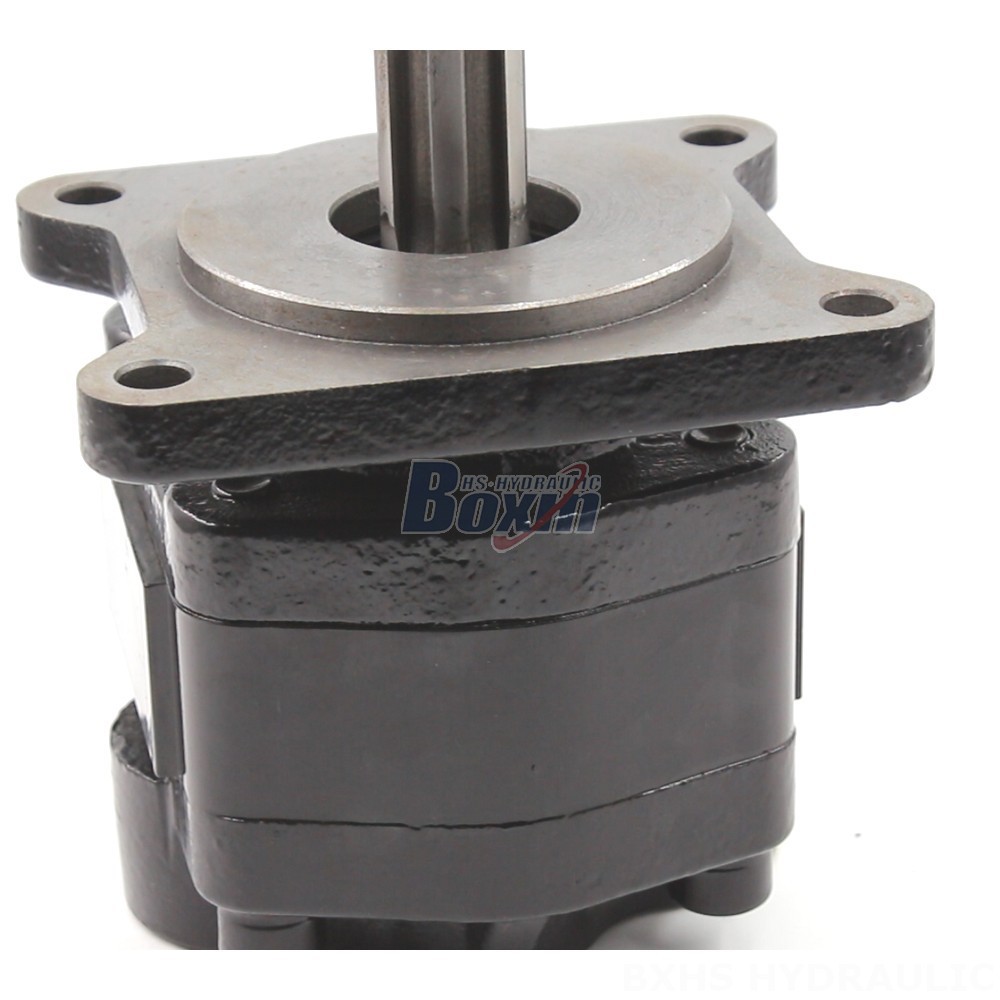

This product is a 20 cc/rev hydraulic gear pump, available in various displacements (32 cc/rev, 50 cc/rev, 63 cc/rev) and shaft types (Plain Key, Rectangle Spline, Involute Spline). It's designed for heavy-duty applications in various industries like material handling, construction, agriculture, and industrial vehicles.
| CBHS-F5-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 32 cc/varv, 50 cc/varv, 63 cc/varv, 20 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 2500 varv/min |
| Rotationsriktning | Vänster (motsols), Höger (medsols) |
| Material | Gjutjärn |
| Struktur | Externt kugghjulspump |
| Flanschversion | B-Kvadratisk fläns |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel |
The CBHS-F5 Series 20 cc/rev hydraulic gear pump is a robust and reliable power source for various machinery. Featuring a cast iron construction, B-Square flange, and a rated pressure of 20 MPa (2900 psi), this pump delivers high performance and durability. It is available in three displacement options (32 cc/rev, 50 cc/rev, 63 cc/rev) to suit diverse application requirements. Choose from different shaft types (Plain Key, Rectangle Spline, Involute Spline) for compatibility with your existing system. This pump is ideal for use in material handling equipment like forklifts and telehandlers, construction and earth moving machines such as mini-excavators, midi-excavators, skid steer loaders, and compact wheel loaders, as well as agricultural machinery like tractors and harvesters.
