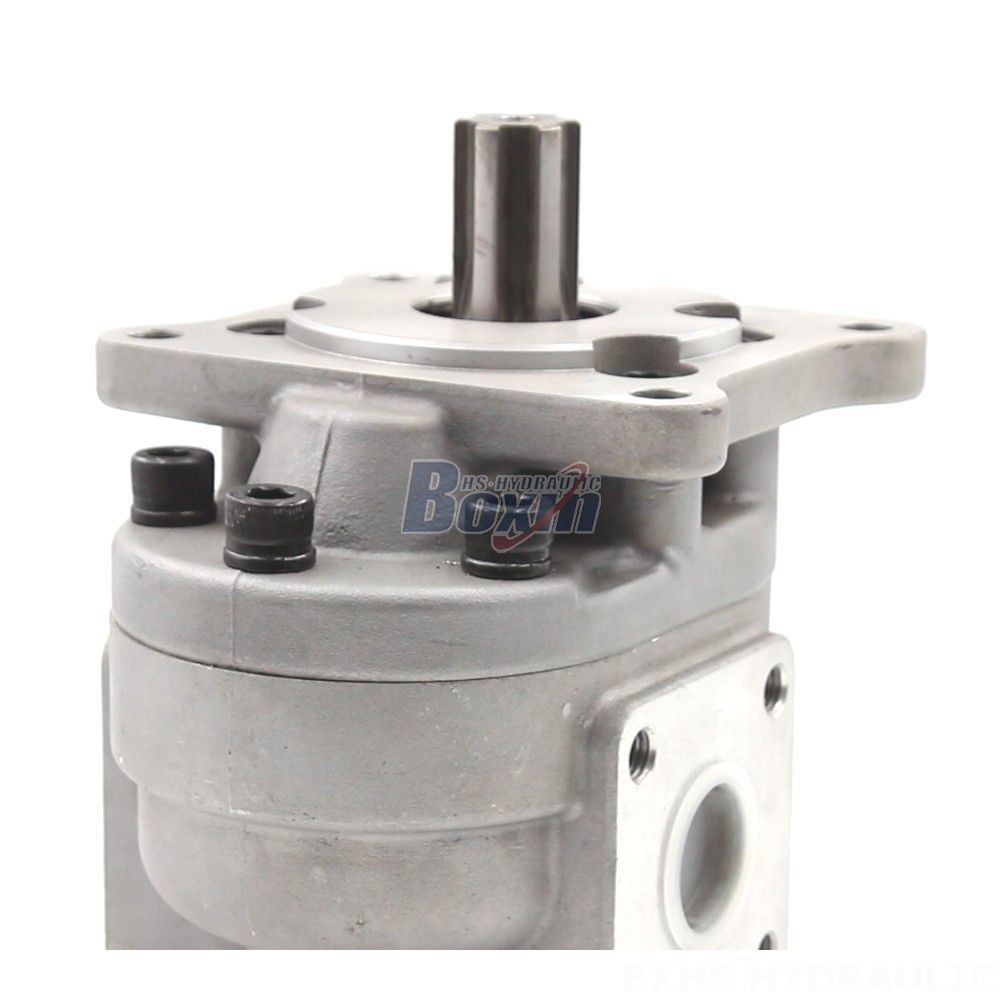

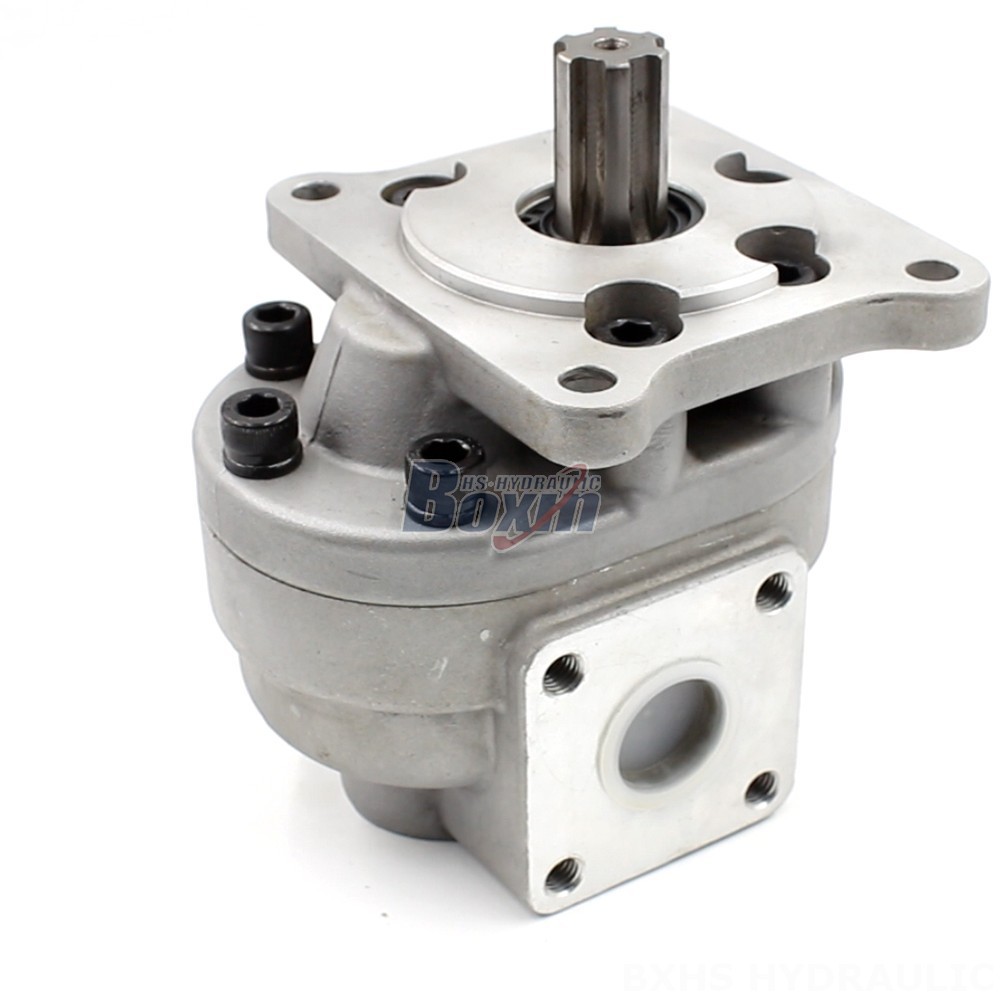

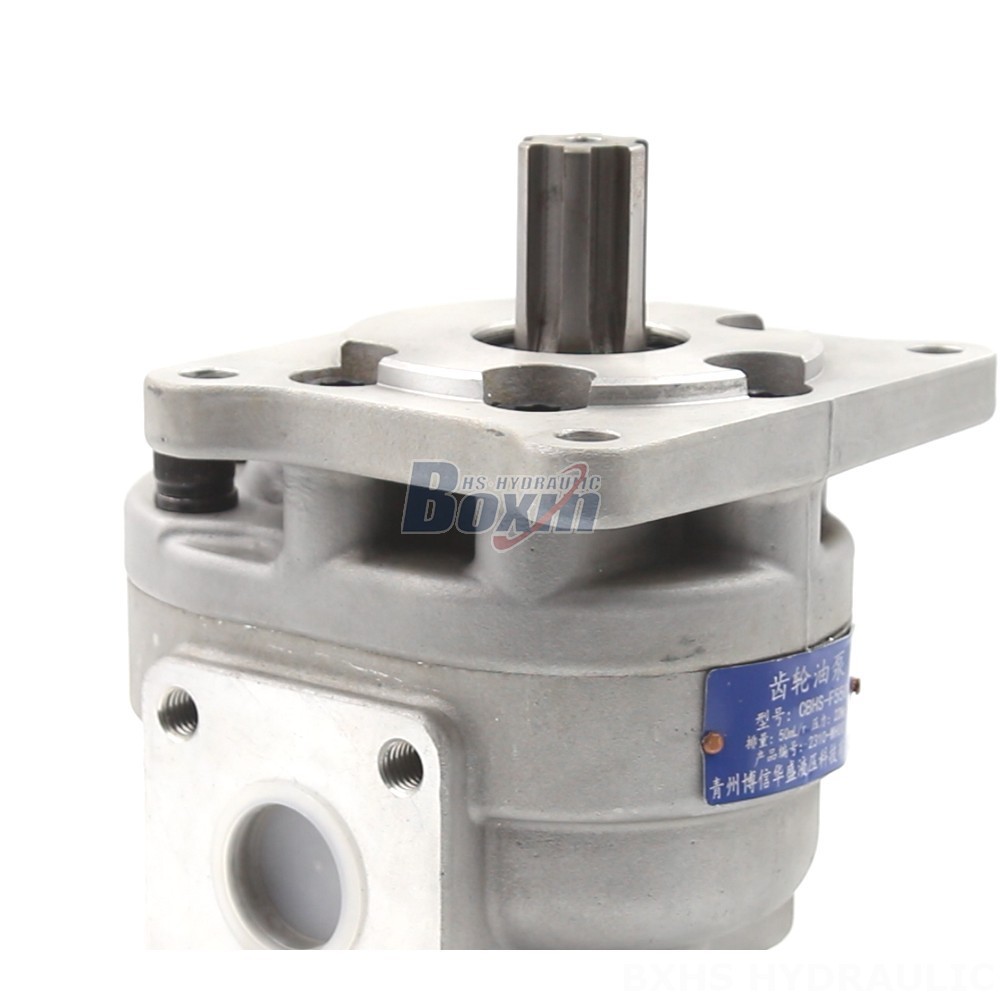

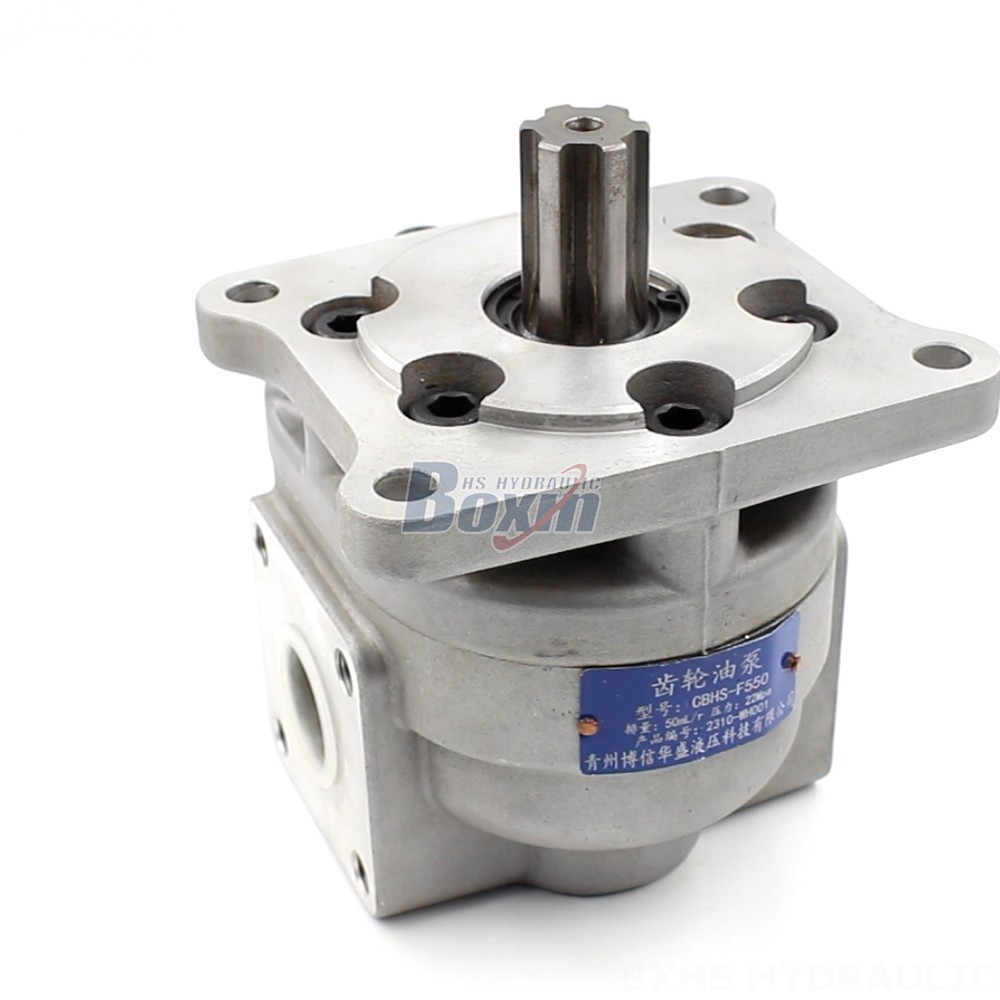

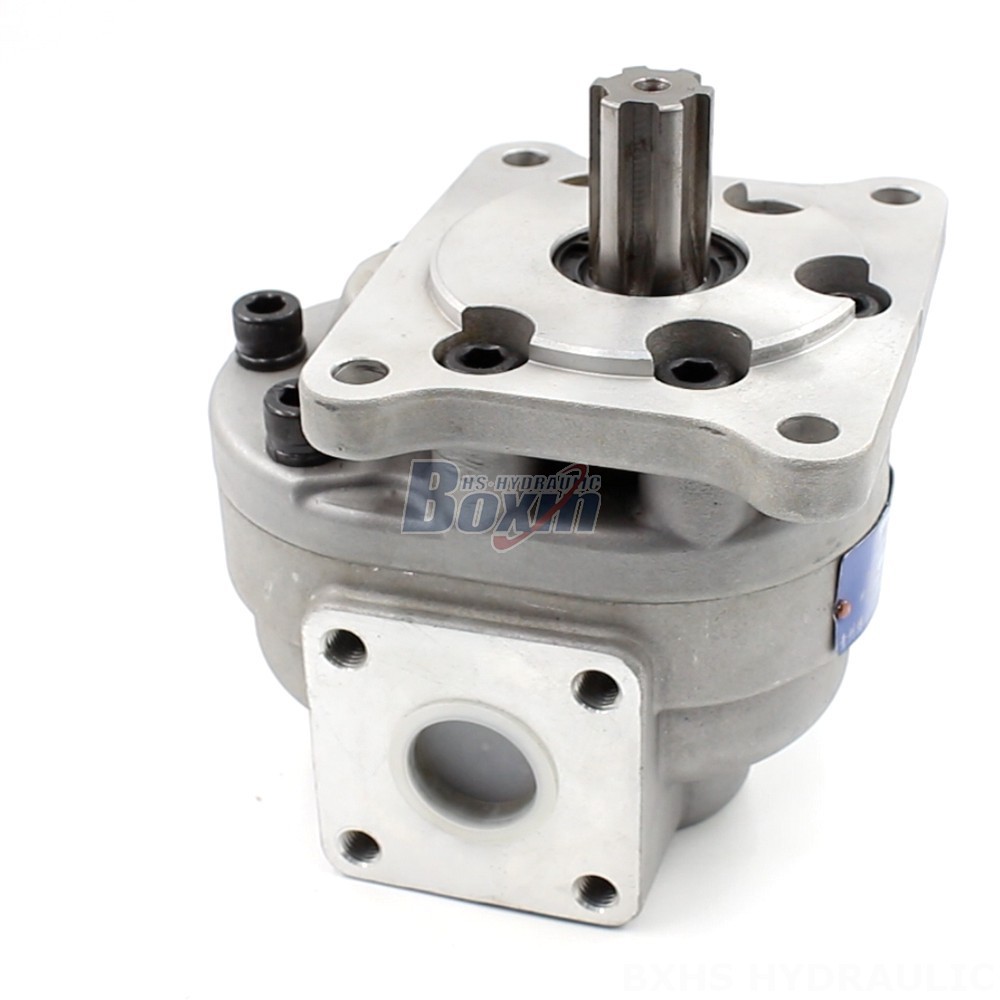

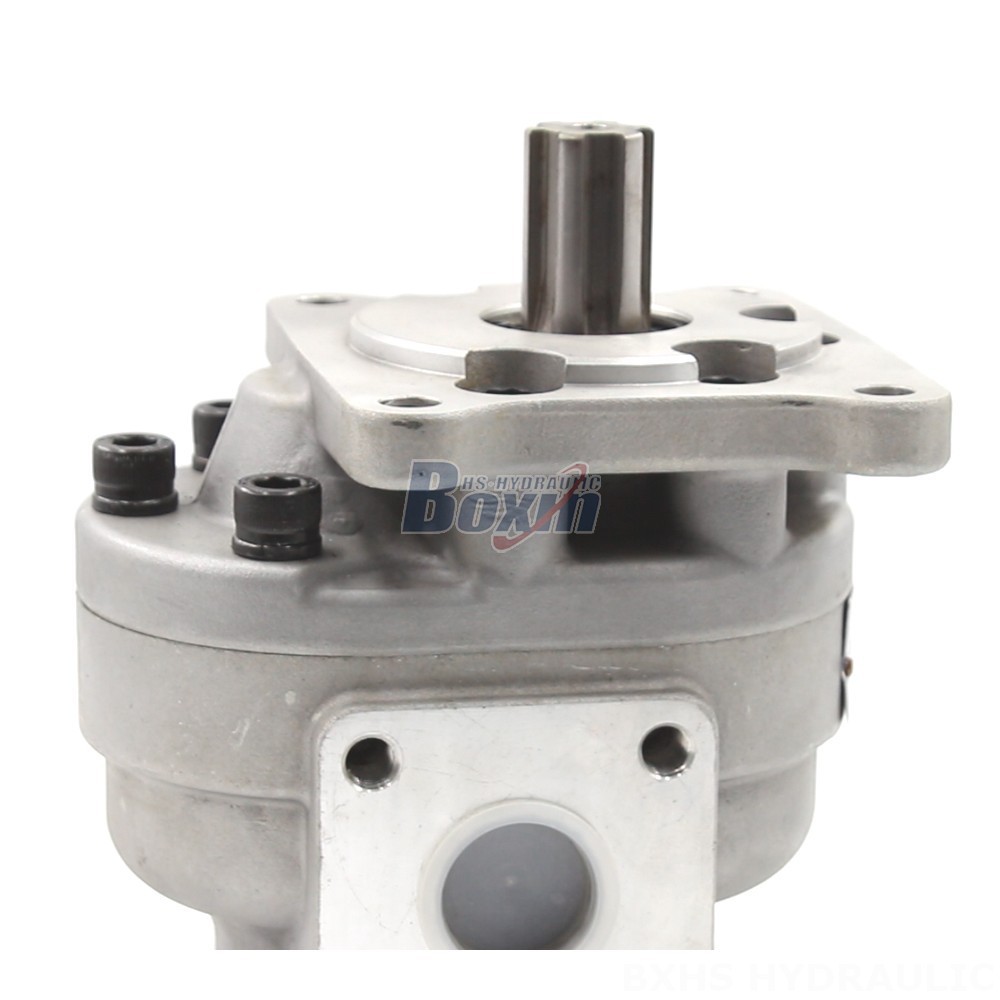

The CBHS-F550 50 cc/rev Gear Pump is an innovative hydraulic solution for a wide range of applications. With a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, this pump delivers reliable performance in demanding operating conditions. Its cast iron construction ensures durability, while the B-Square flange provides secure and easy mounting.
| CBHS-F5-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 32 cc/varv, 50 cc/varv, 63 cc/varv, 20 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 2500 varv/min |
| Rotationsriktning | Vänster (motsols), Höger (medsols) |
| Material | Gjutjärn |
| Struktur | Externt kugghjulspump |
| Flanschversion | B-Kvadratisk fläns |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel |
**CBHS-F550 50 cc/rev Gear Pump: Innovative Hydraulic Solutions**
**Key Features:**
- Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev
- Rated Pressure: 20 MPa (2900 psi)
- Rated Speed: 2000 r/min
- Max Speed: 2200 r/min
- Rotation: L: Left (counter-clockwise), R: Right (clockwise)
- Structure: Internal Gear Pump
- Material: Cast Iron
- Flange Version: B-Square Flange
- Shaft Type: P: Plain Key, H: Rectangle Spline, X: Involute Spline
- Series: CBHS-F5 Series
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Midi-Excavator
- Mini-Excavator
- Skid Steer Loader
- Compact Wheel Loader
