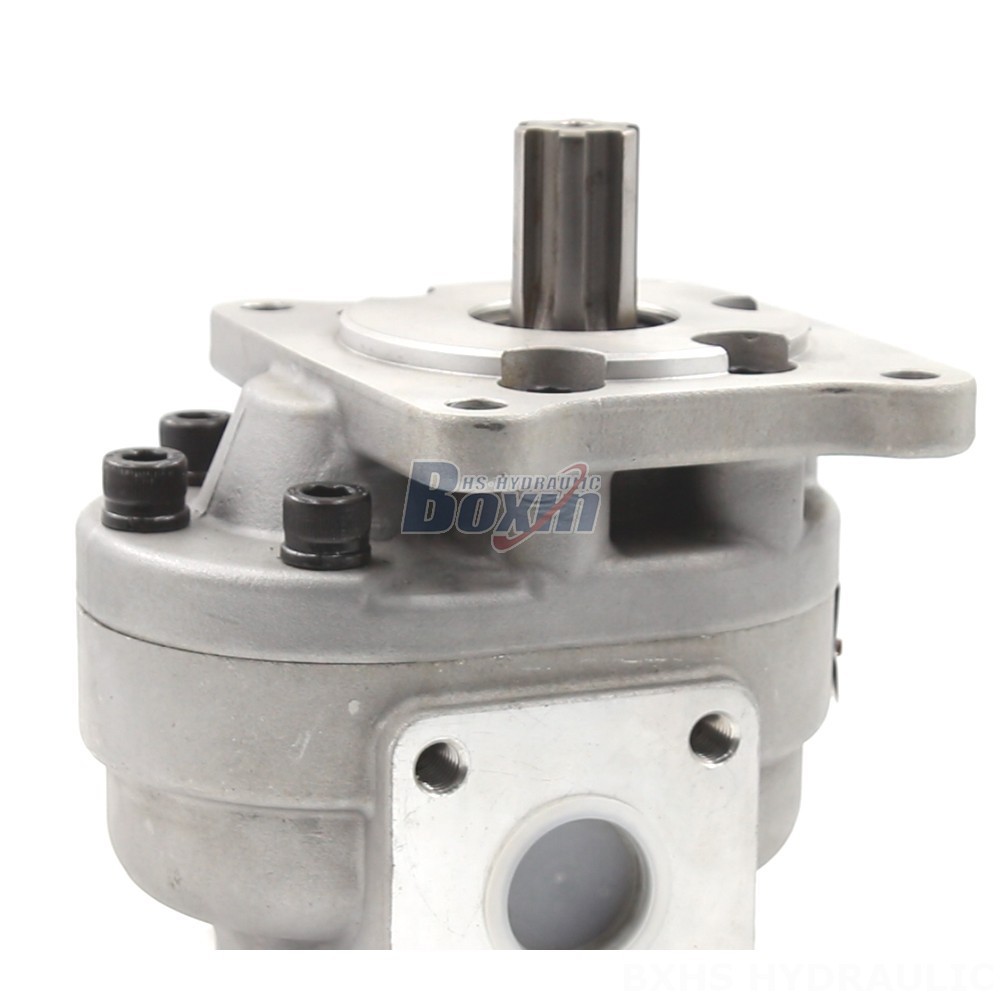

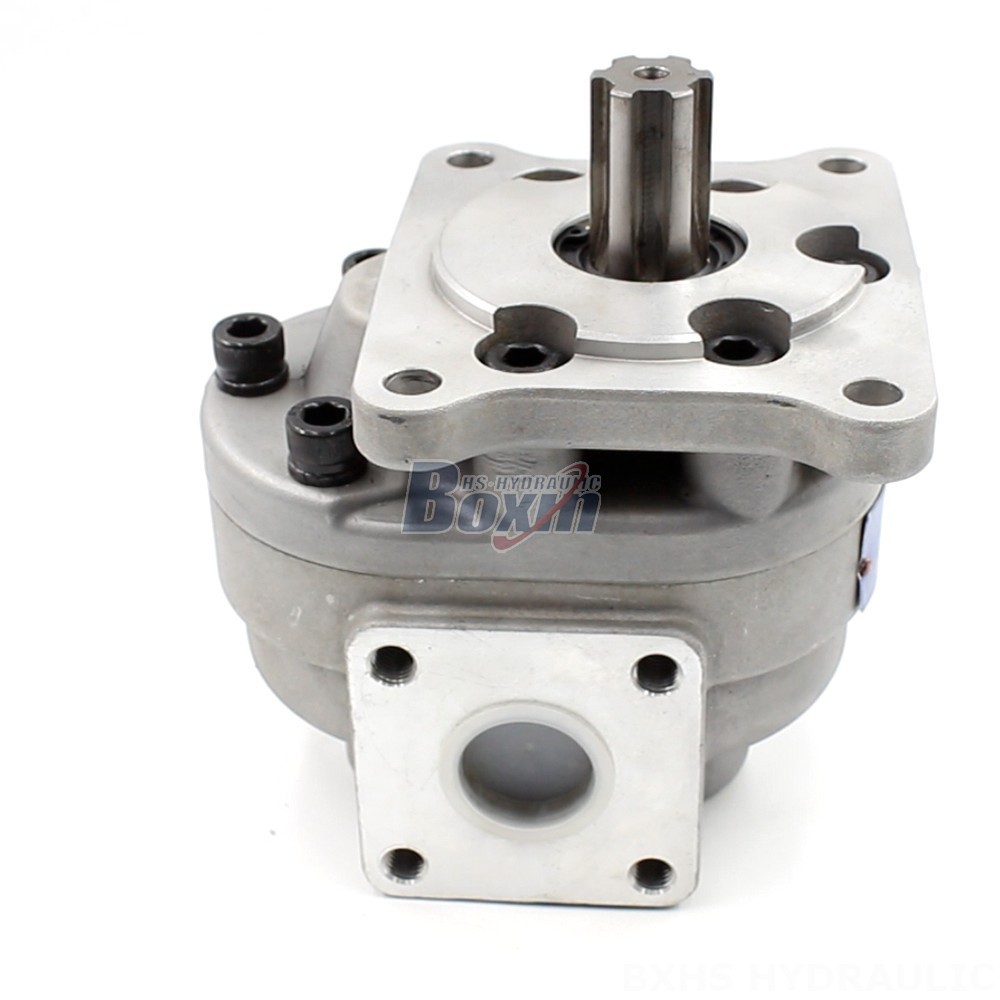

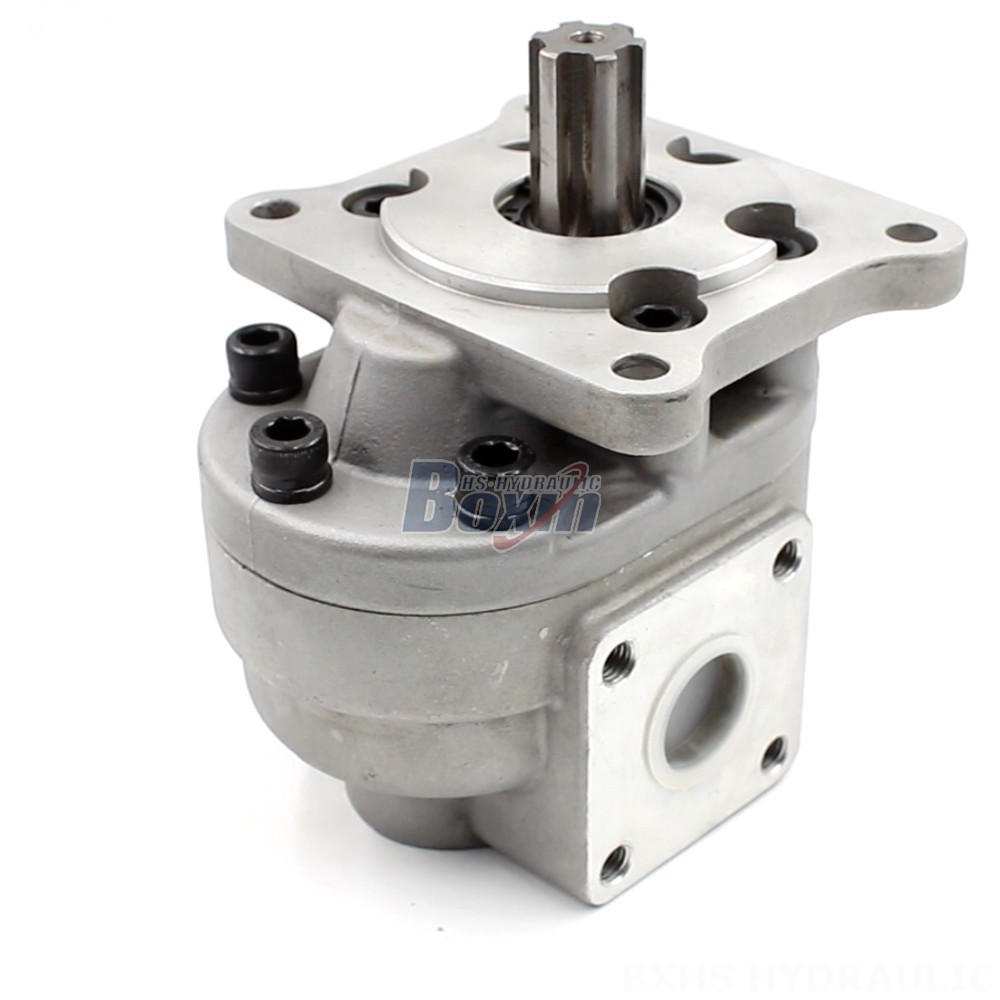

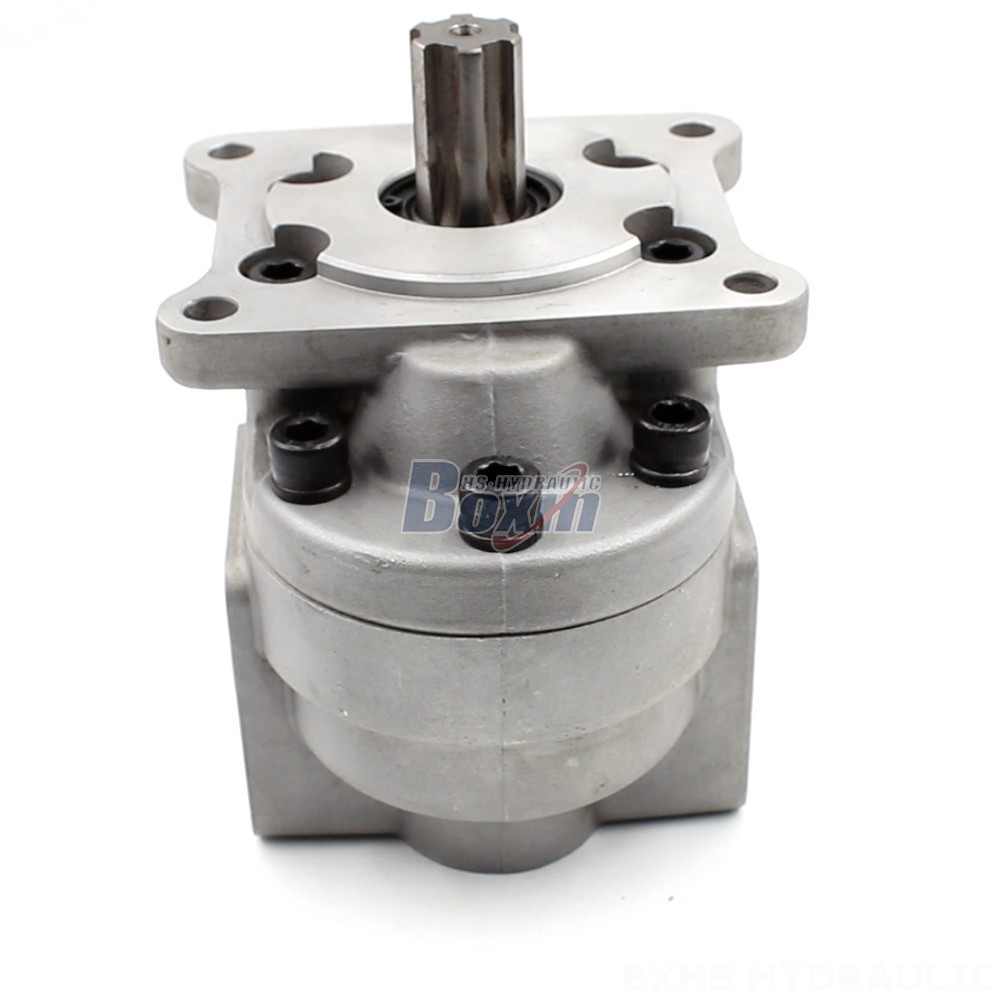

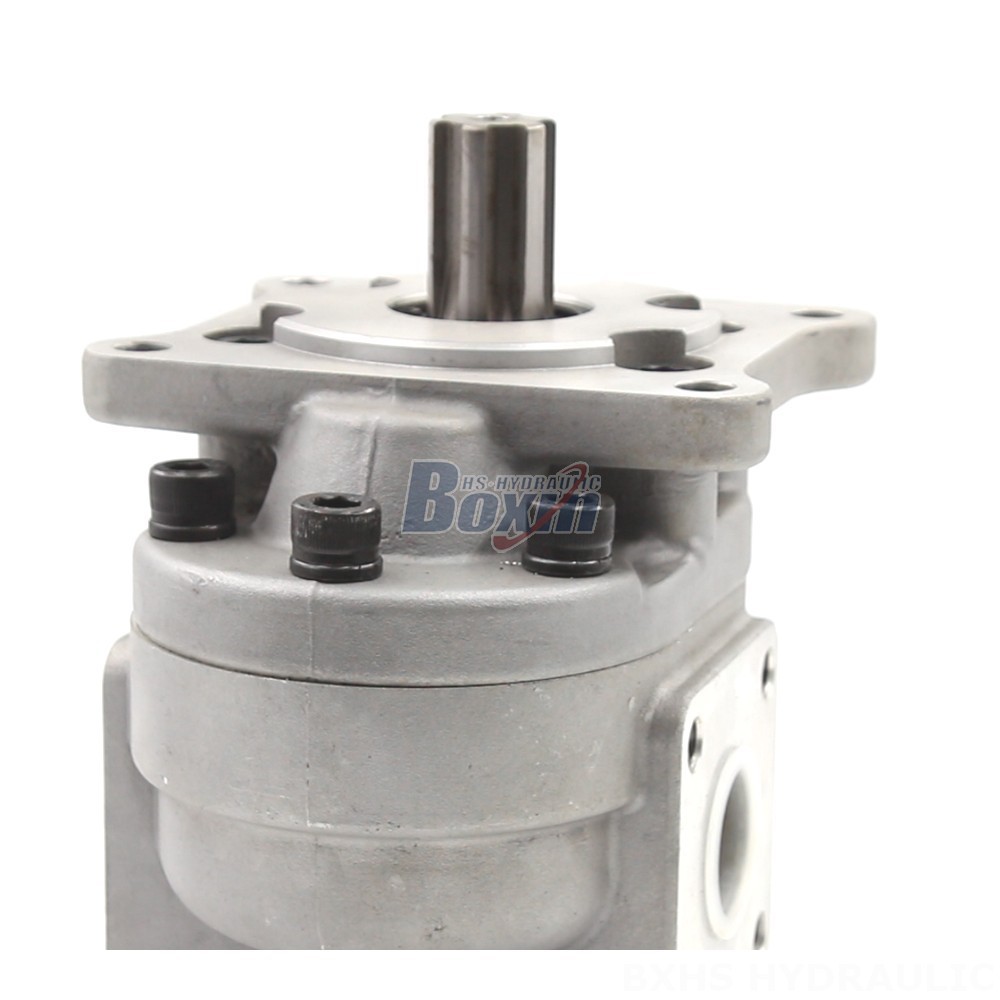

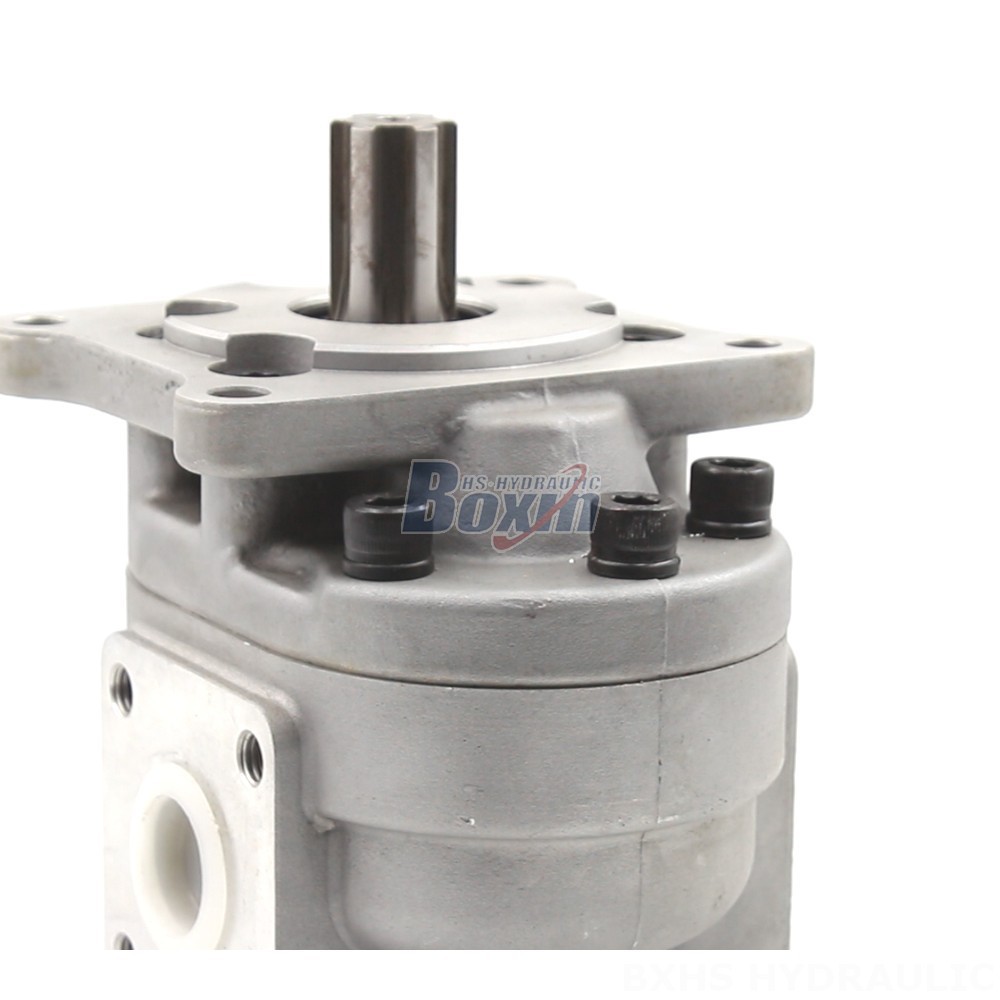

The CBHS-F550 Hydraulic Gear Pump, part of the CBHS-F5 Series, is a highly adaptable and efficient component designed for a wide range of applications in industries such as material handling, construction and earth moving, agriculture, and industrial vehicles. With a displacement of 32 cc/rev, 50 cc/rev, or 63 cc/rev, a rated pressure of 20 MPa (2900 psi), a rated speed of 2000 r/min, and a maximum speed of 2200 r/min, this pump delivers exceptional performance under various operating conditions.
| CBHS-F5-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 32 cc/varv, 50 cc/varv, 63 cc/varv, 20 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 2500 varv/min |
| Rotationsriktning | Vänster (motsols), Höger (medsols) |
| Material | Gjutjärn |
| Struktur | Externt kugghjulspump |
| Flanschversion | B-Kvadratisk fläns |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel |
**Product Details of the CBHS-F550 Hydraulic Gear Pump:**
* **Displacement:** 32 cc/rev, 50 cc/rev, 63 cc/rev
* **Rated Pressure:** 20 MPa (2900 psi)
* **Rated Speed:** 2000 r/min
* **Max Speed:** 2200 r/min
* **Rotation:** Left (counter-clockwise), Right (clockwise)
* **Structure:** Internal Gear Pump
* **Material:** Cast Iron
* **Flange Version:** B-Square Flange
* **Shaft Type:** Plain Key (P), Rectangle Spline (H), Involute Spline (X)
* **Product Series:** CBHS-F5 Series
* **Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* **Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
