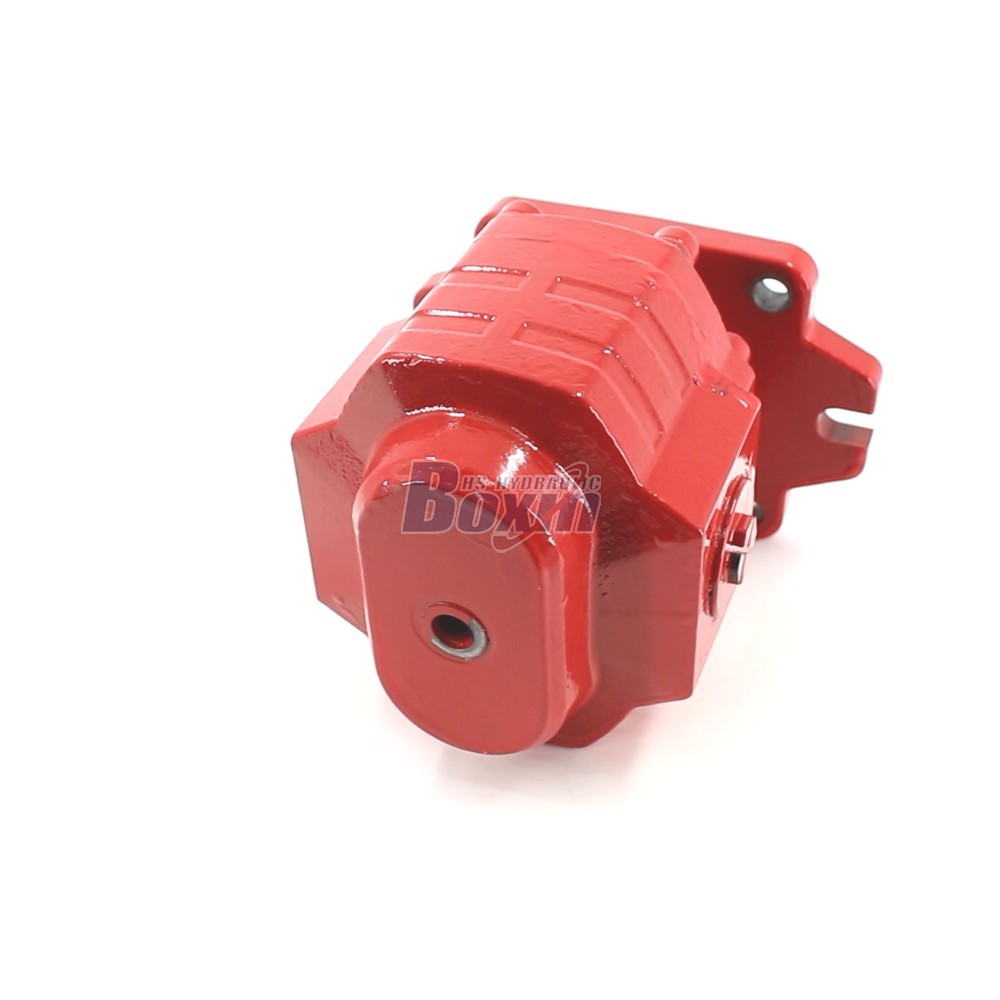

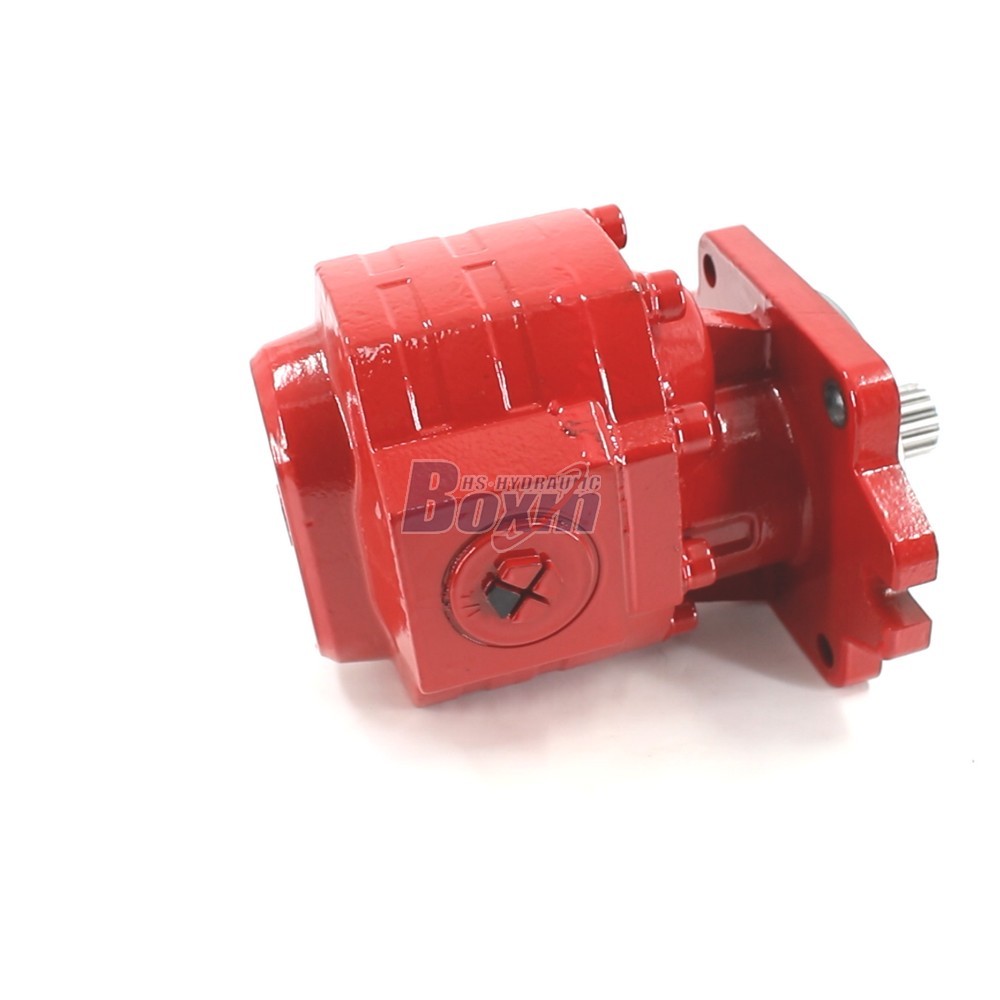

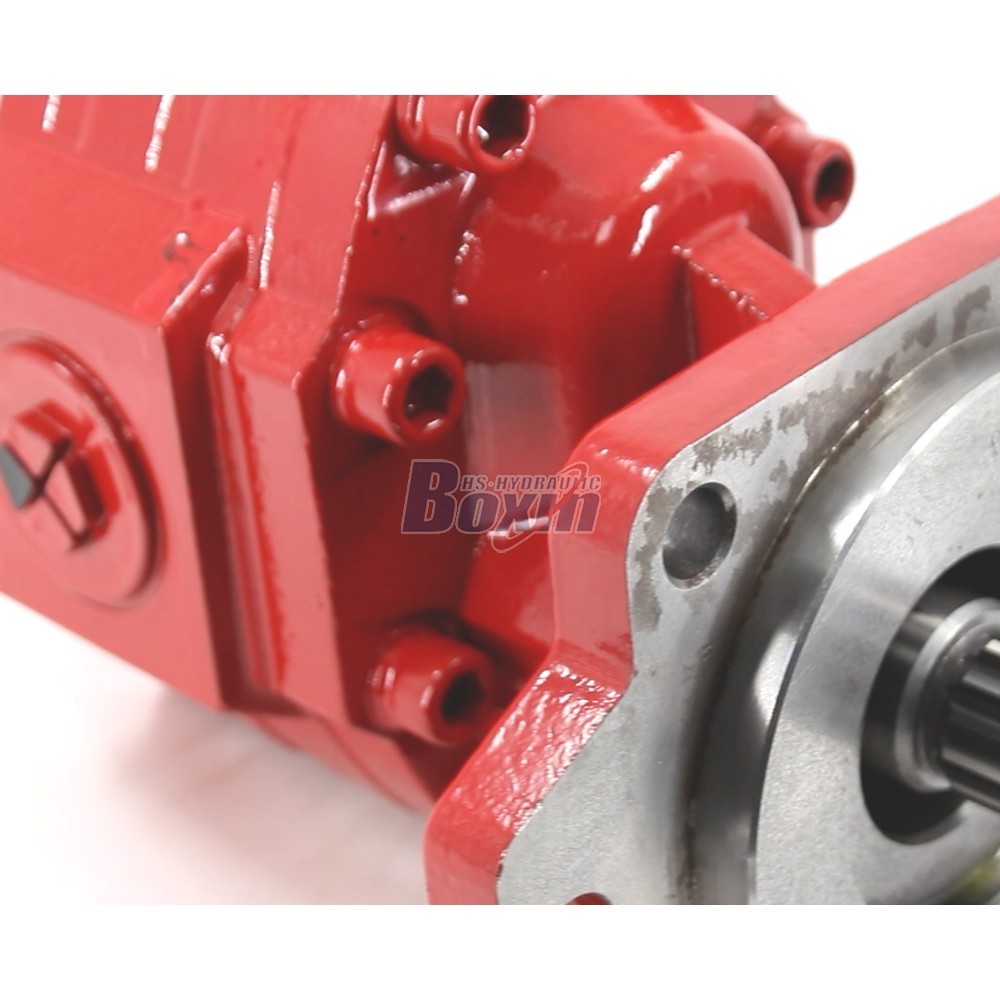

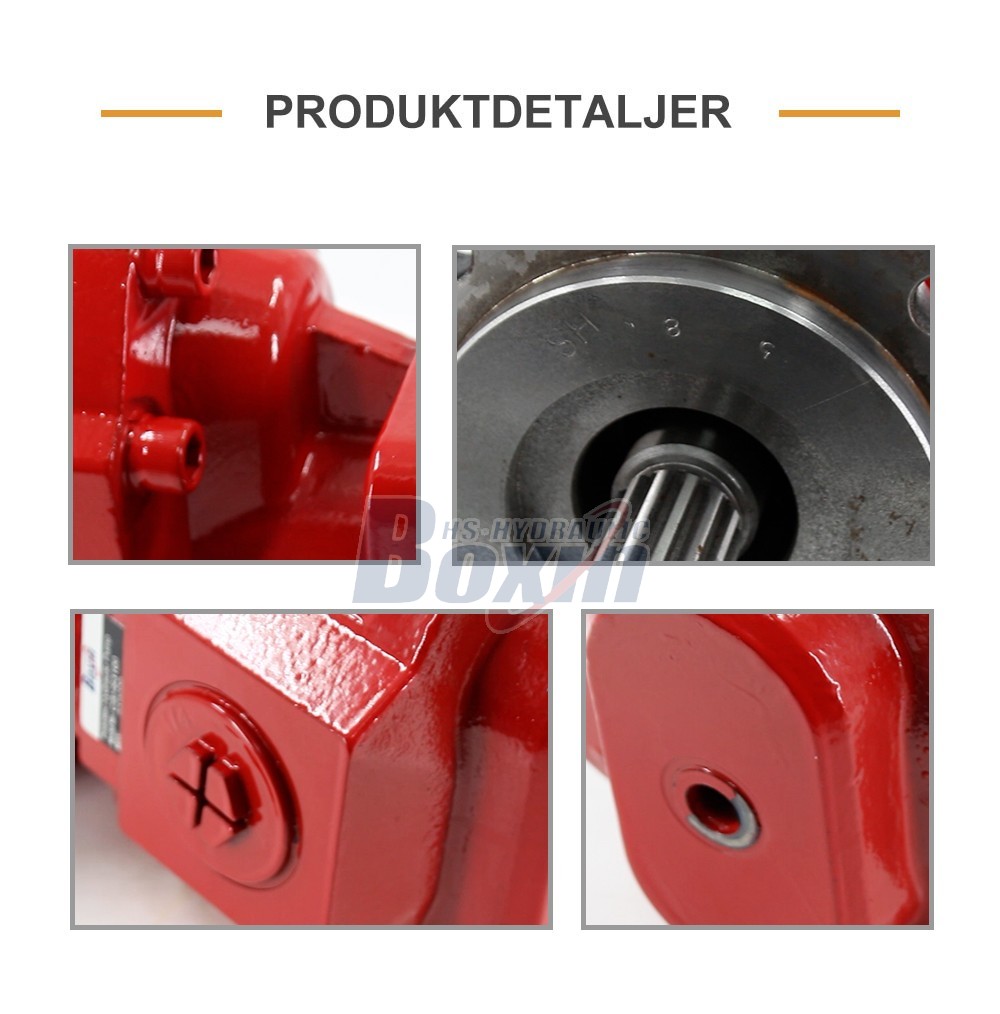

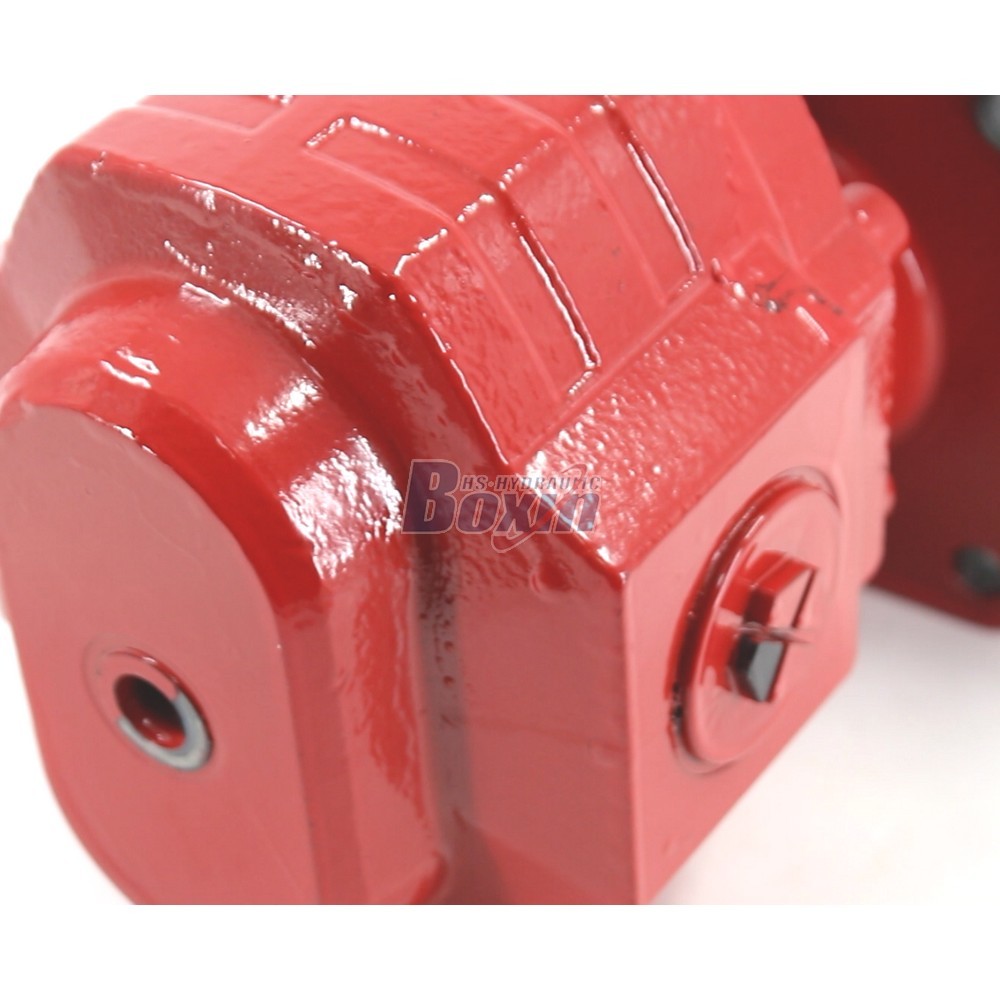

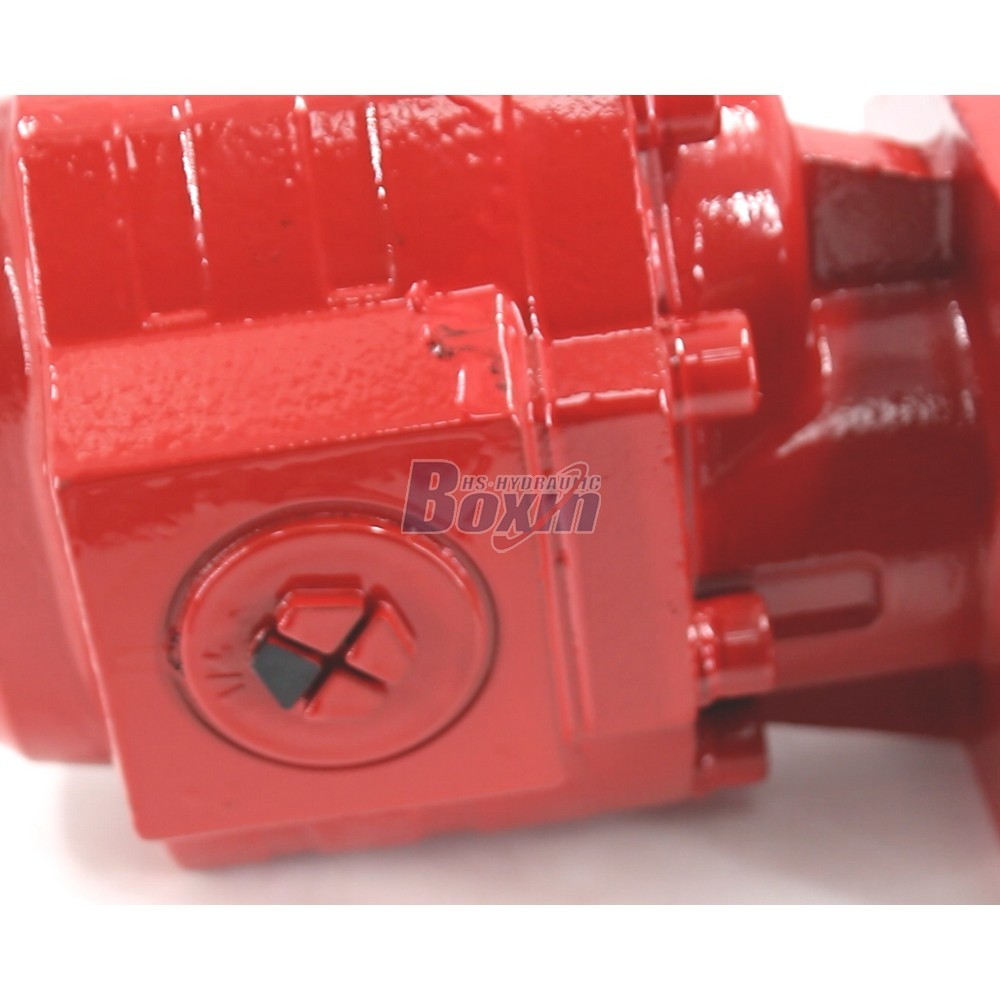

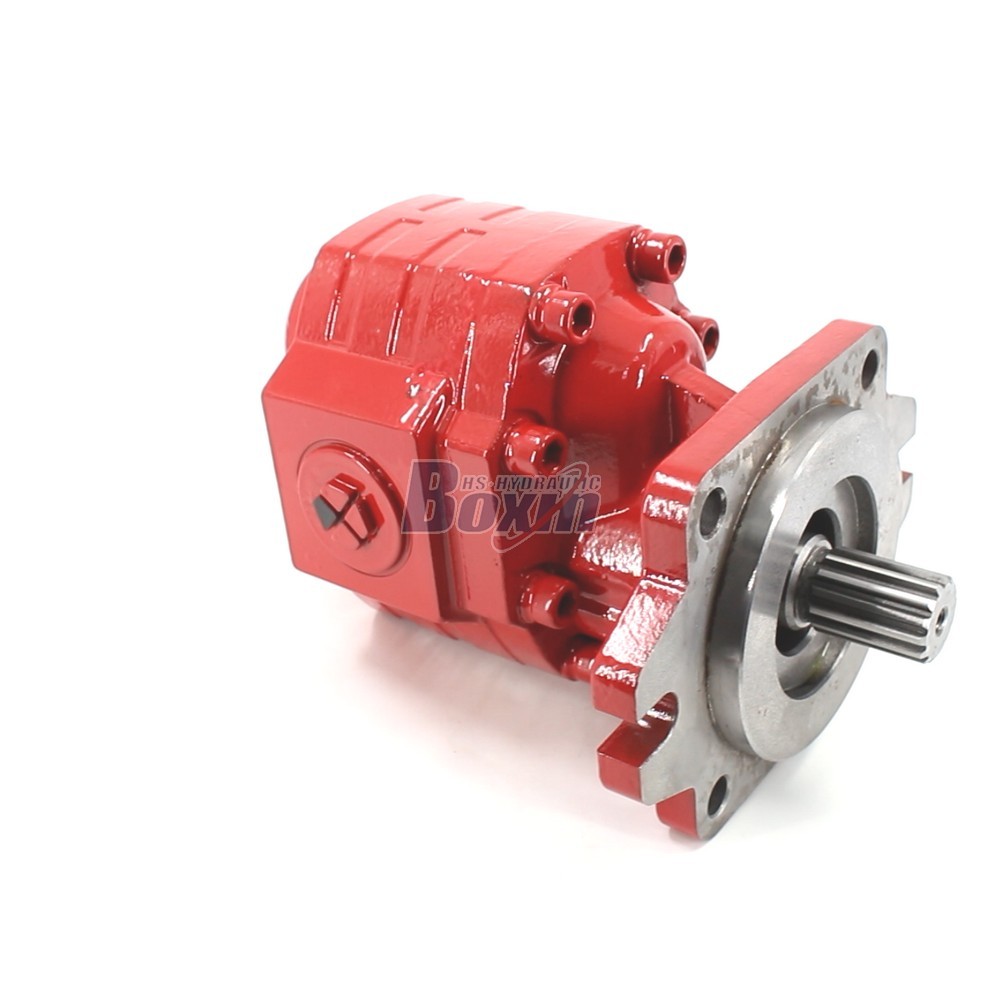

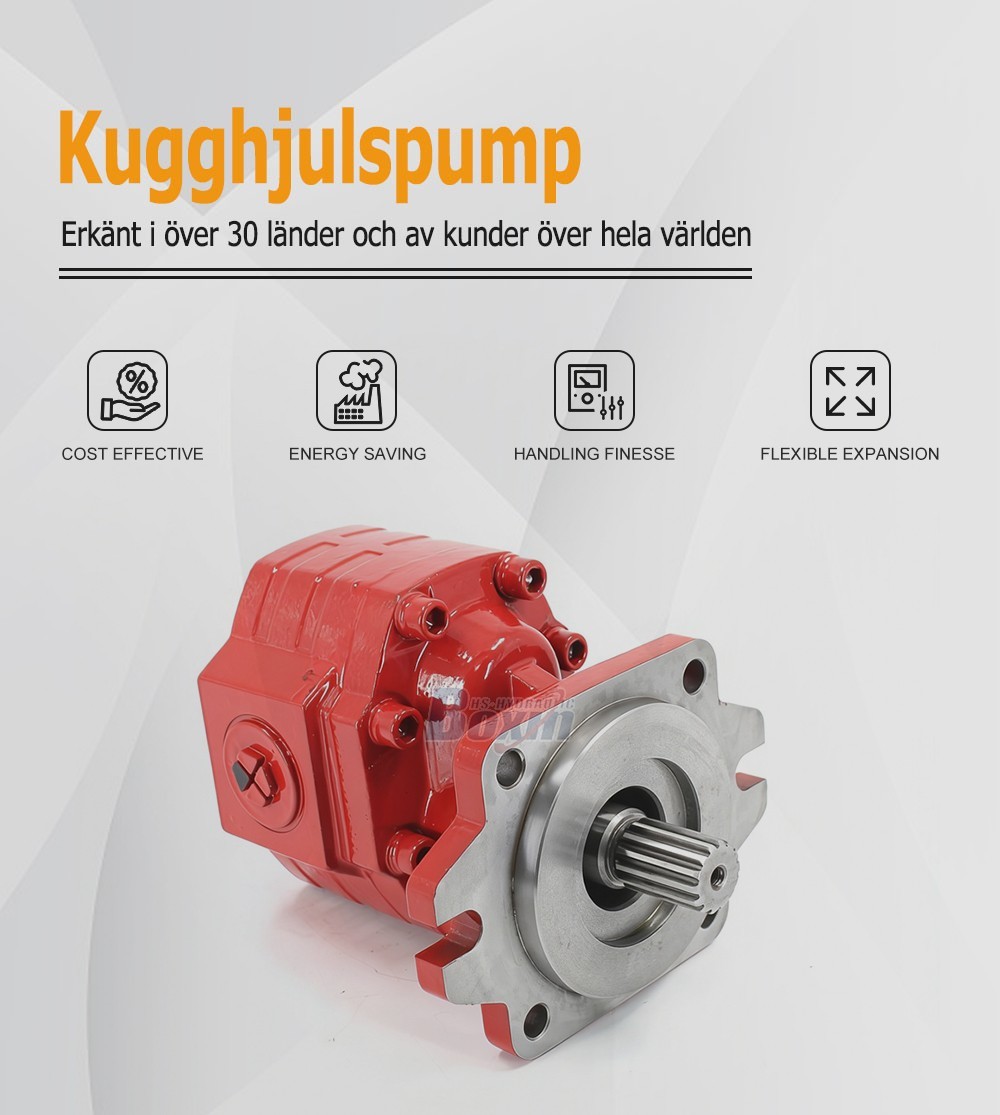

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification

Deplacement:100 cc/varv

Nominellt tryck:20 MPa (2900 psi)

Maximalt tryck:25 MPa (3625 psi)

Maximal hastighet:2500 varv/min

Rotationsriktning:Höger (medsols)

Märke:BXHS

Produkttyp:Hydraulisk kugghjulspump

Produktserie:CBHS-T3-serien Hydraulisk kugghjulspump

Förpackningsstorlek:31*23*25

Bruttovikt:17.60 kg

Tillgänglighet: I lager

171 Vyer letar efter den här produkten

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification

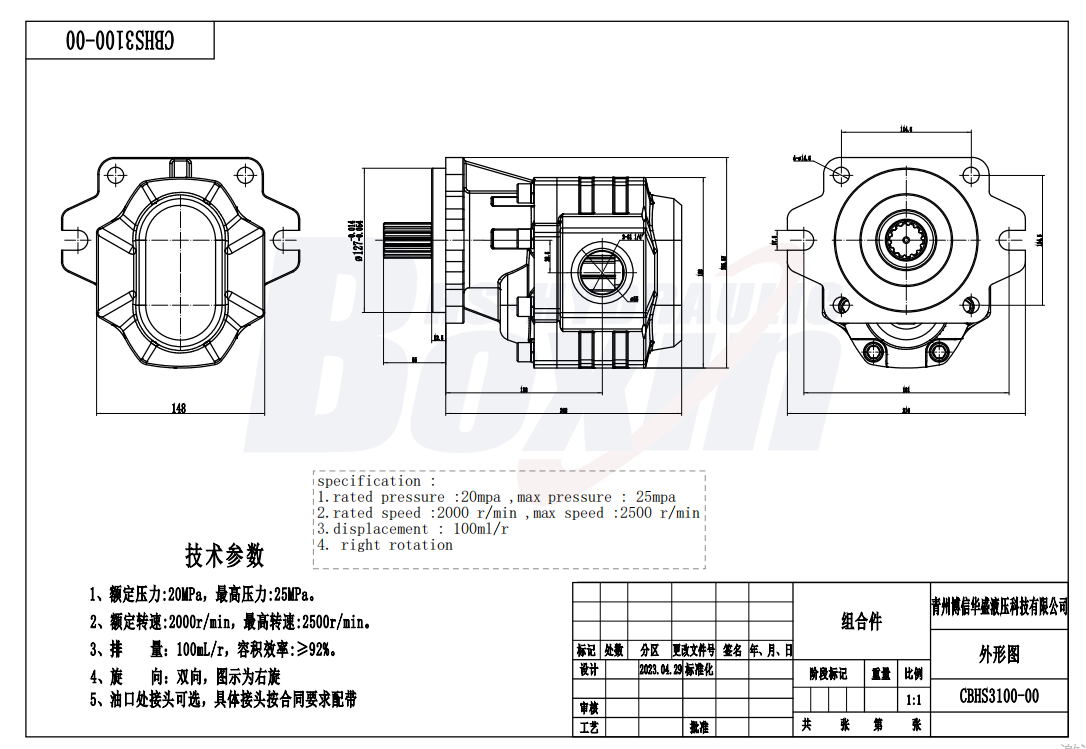

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification drawing image

The CBHS3100 hydraulic gear pump is a high-performance, 100 cc/rev unit engineered for demanding applications in construction, agriculture, and material handling, offering reliable power density and robust pressure ratings for diverse machinery.

CBHS-T3-serien Hydraulisk kugghjulspump Parametrar
Deplacement 100 cc/varv
Nominellt tryck 20 MPa (2900 psi)
Maximalt tryck 25 MPa (3625 psi)
Nominell hastighet 2000 varv/min
Maximal hastighet 3000 varv/min
Rotationsriktning Vänster (motsols), Höger (medsols)
Struktur Externt kugghjulspump
Material Gjutjärn
Flanschversion B-Kvadratisk fläns
Axeltyp H: Rektangulär splines, X: Evolventsplines

As a prominent hydraulic component manufacturer, we specialize in the production of the CBHS3100 hydraulic gear pump, featuring a 100 cc/rev displacement and a maximum pressure capacity of 25 MPa. This unit is designed for durability in heavy-duty machinery including forklifts, wheel loaders, tractors, and excavators. We provide comprehensive manufacturing services, including OEM, ODM, and private labeling, tailored to meet specific project requirements. Our facility is equipped to handle large-scale production, offering competitive factory-direct wholesale pricing to support your business. We are actively seeking long-term partnerships with global distributors, wholesalers, procurement agents, and international traders. By choosing our factory-direct supply, you gain access to high-quality hydraulic solutions, flexible customization options, and reliable technical support. Contact us to discuss bulk orders or custom design requirements for your hydraulic systems.
