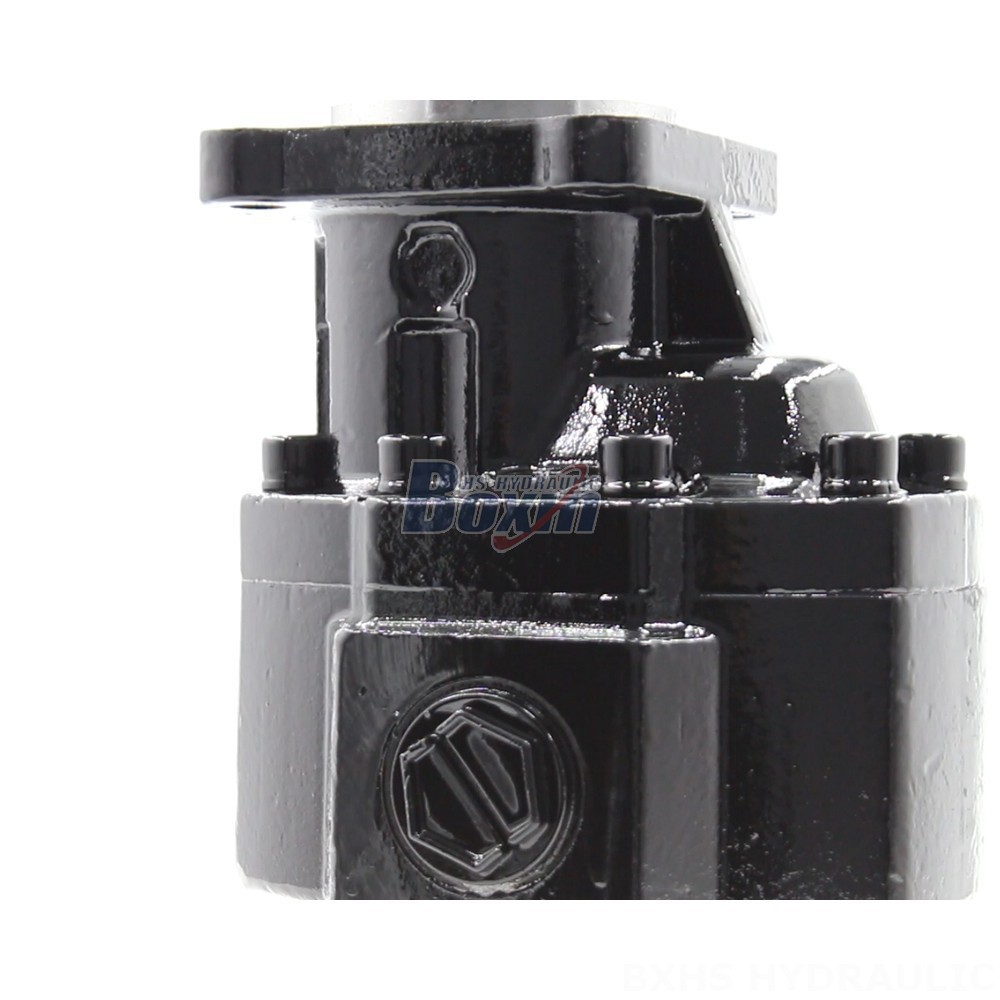

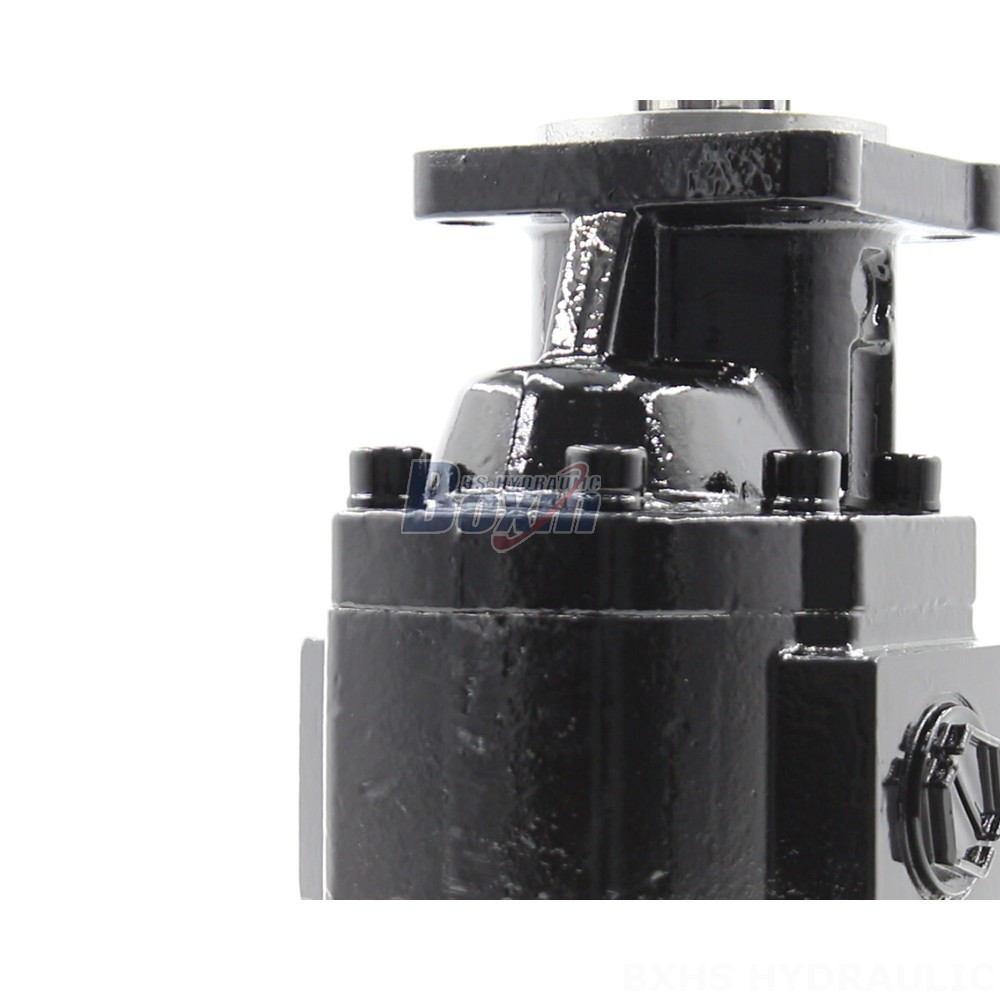

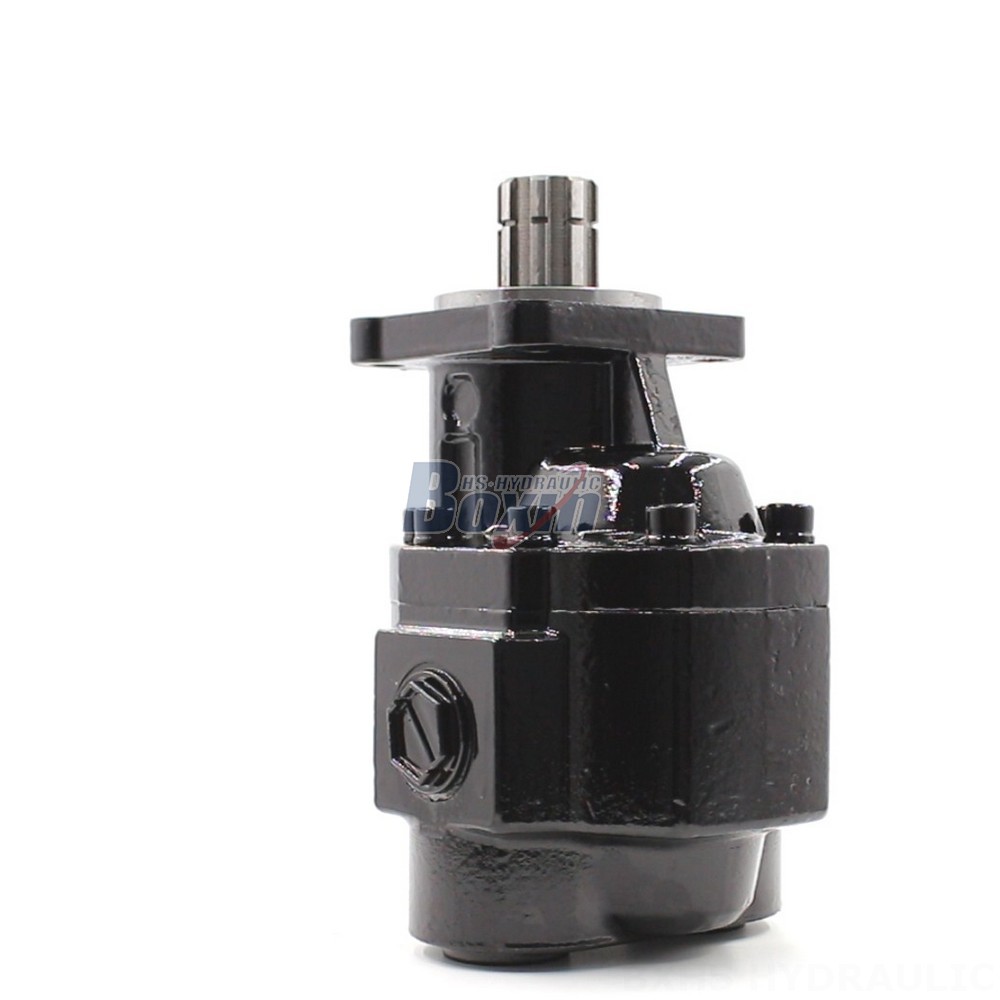

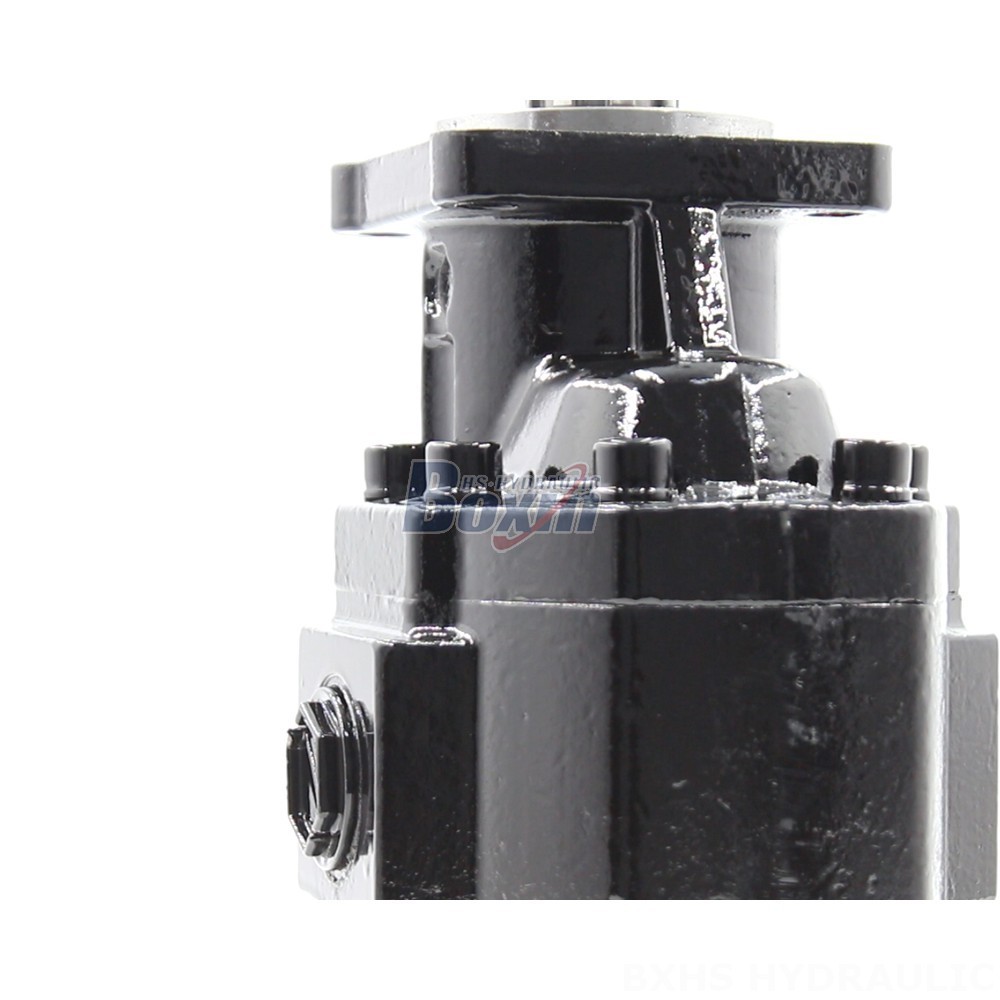

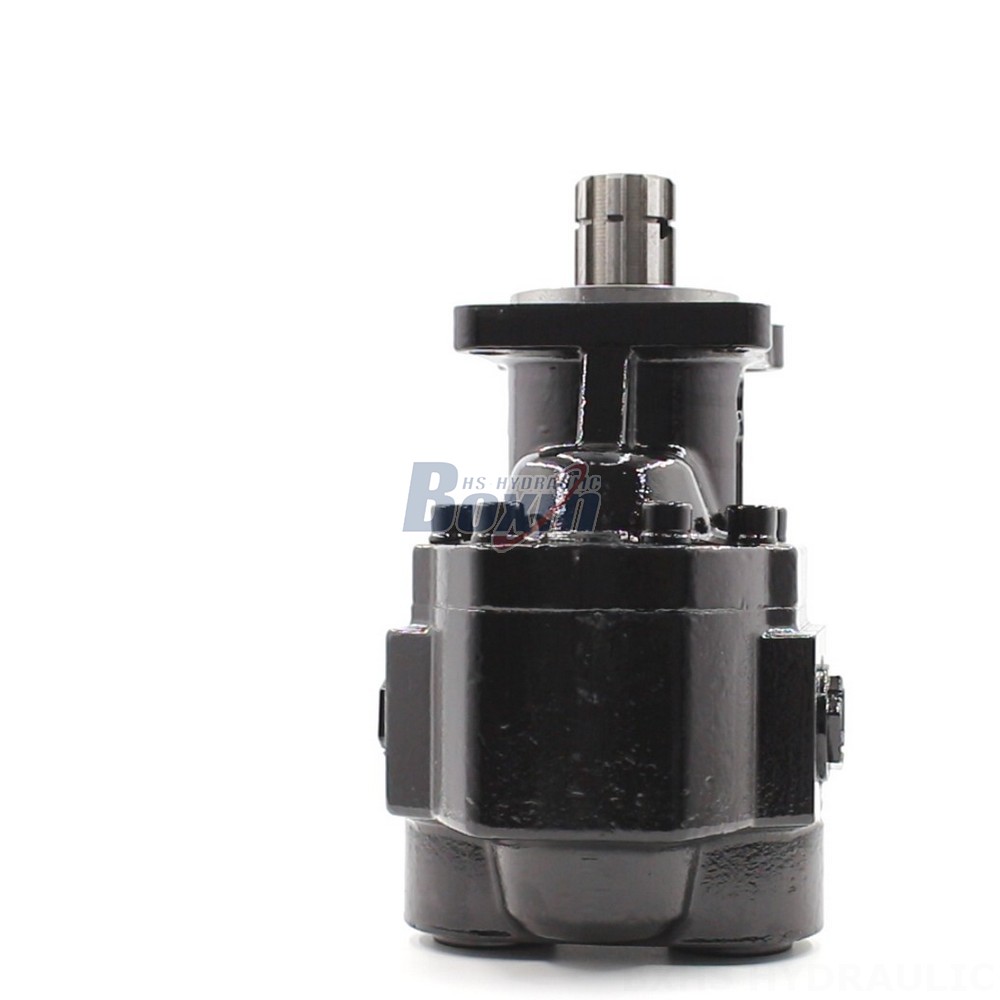

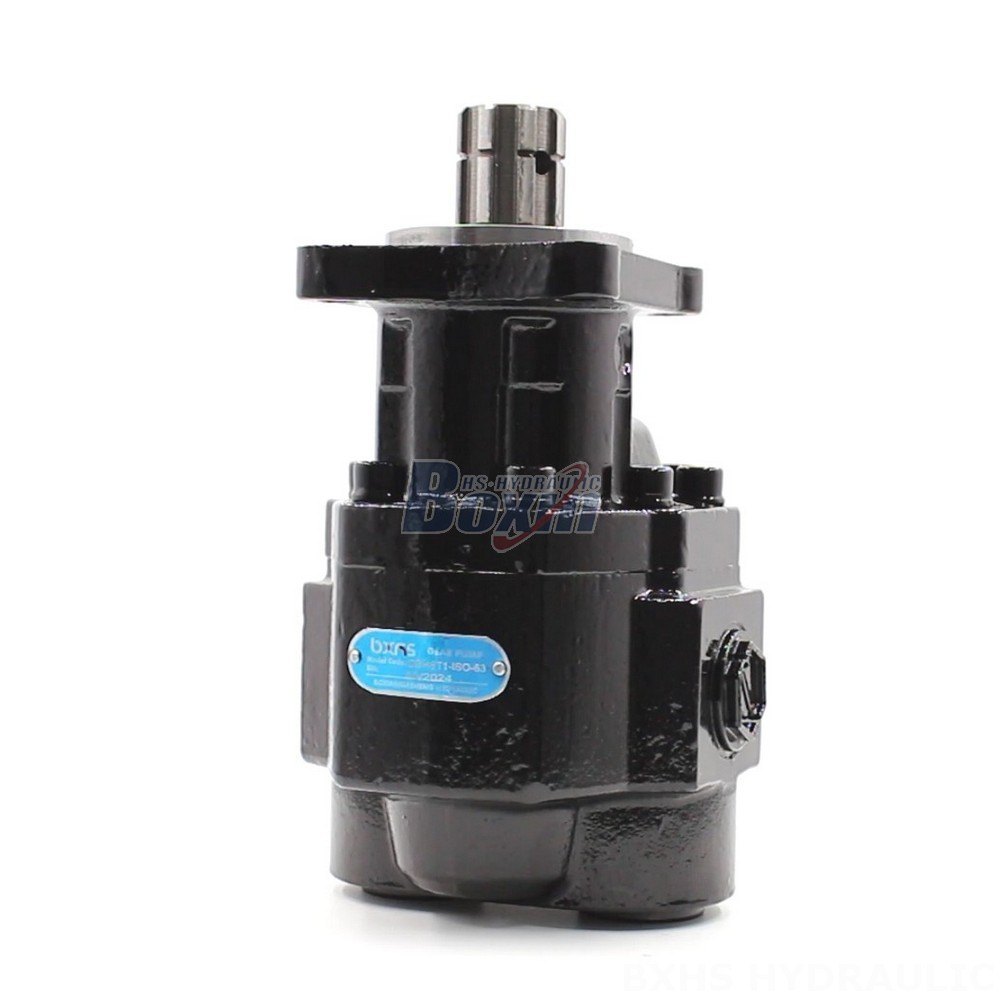

The CBHST1-ISO-63 Hydraulic Gear Pump is an advanced and globally renowned product designed for exceptional performance in various applications. With customizable displacement options ranging from 32 to 110 cc/rev, this pump delivers optimal flow rates for diverse hydraulic systems. Engineered with a robust cast iron construction, it withstands high pressures up to 23 MPa (3335 psi) and operates efficiently at speeds of up to 2500 r/min.
| CBHST1-ISO-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 50 cc/varv, 63 cc/varv, 80 cc/varv, 100 cc/varv, 110 cc/varv, 34 cc/varv, 43 cc/varv, 90 cc/varv, 120 cc/varv, 82 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| Maximalt tryck | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 2500 varv/min |
| Rotationsriktning | Dubbelriktad |
| Material | Gjutjärn |
| Struktur | Externt kugghjulspump |
| Flanschversion | ISO-4 monteringshål |
| Axeltyp | H: Rektangulär splines |
The CBHST1-ISO-63 Hydraulic Gear Pump boasts a bidirectional rotation, allowing for versatility in system design. Its swashplate structure ensures smooth and reliable operation, while the ISO-4 mounting flange and rectangle spline shaft type provide compatibility with a wide range of applications. This pump finds its applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
