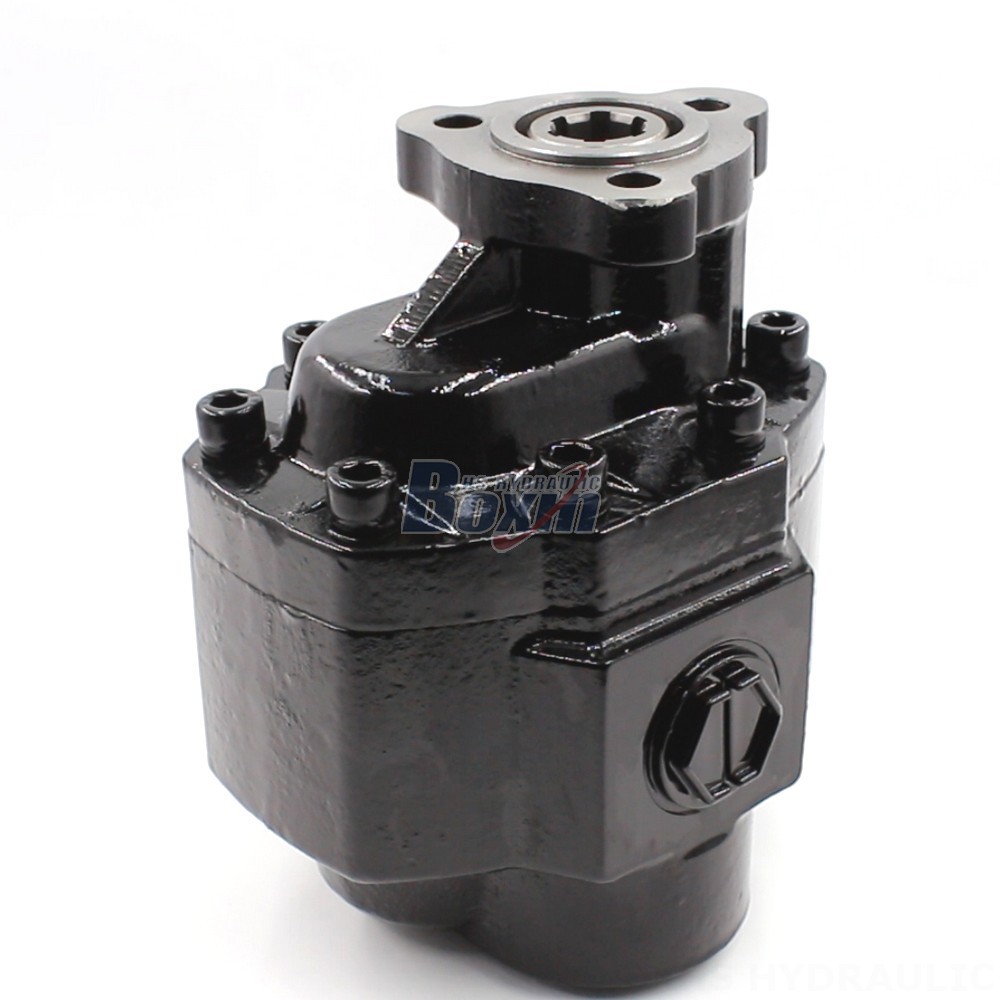

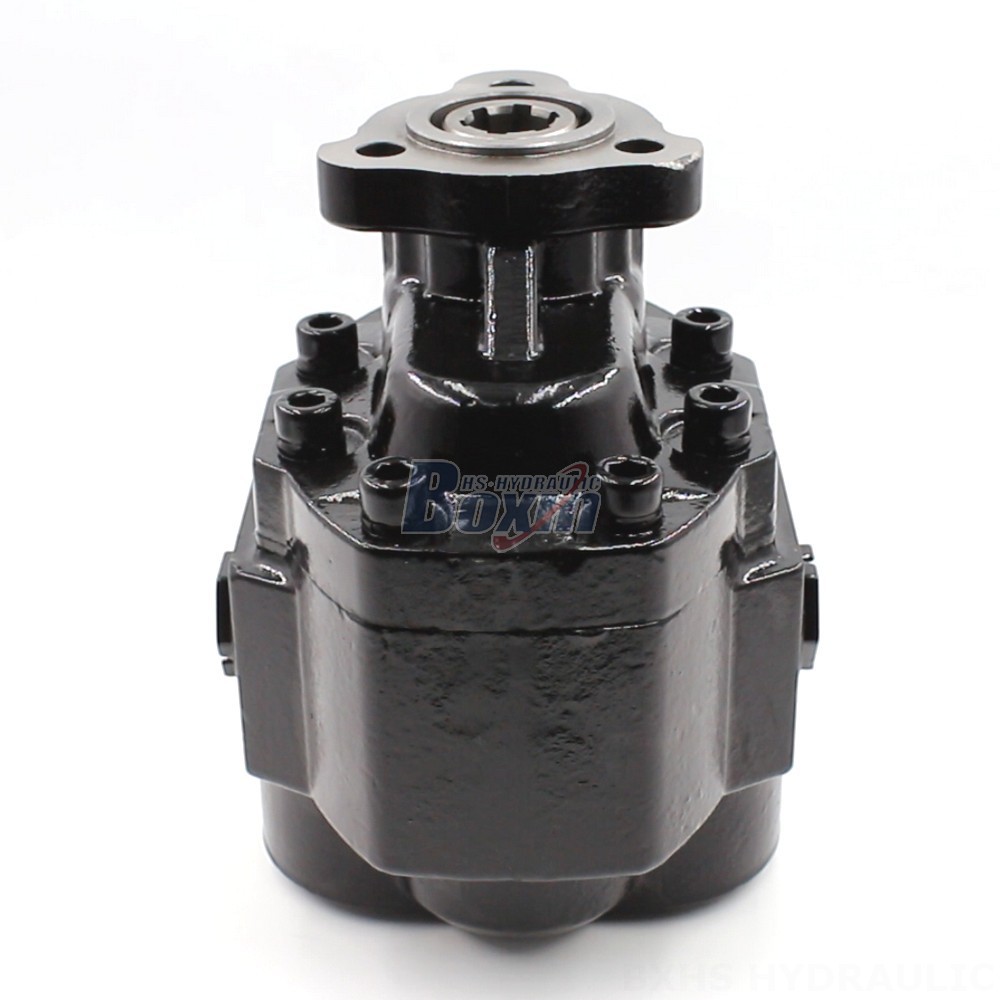

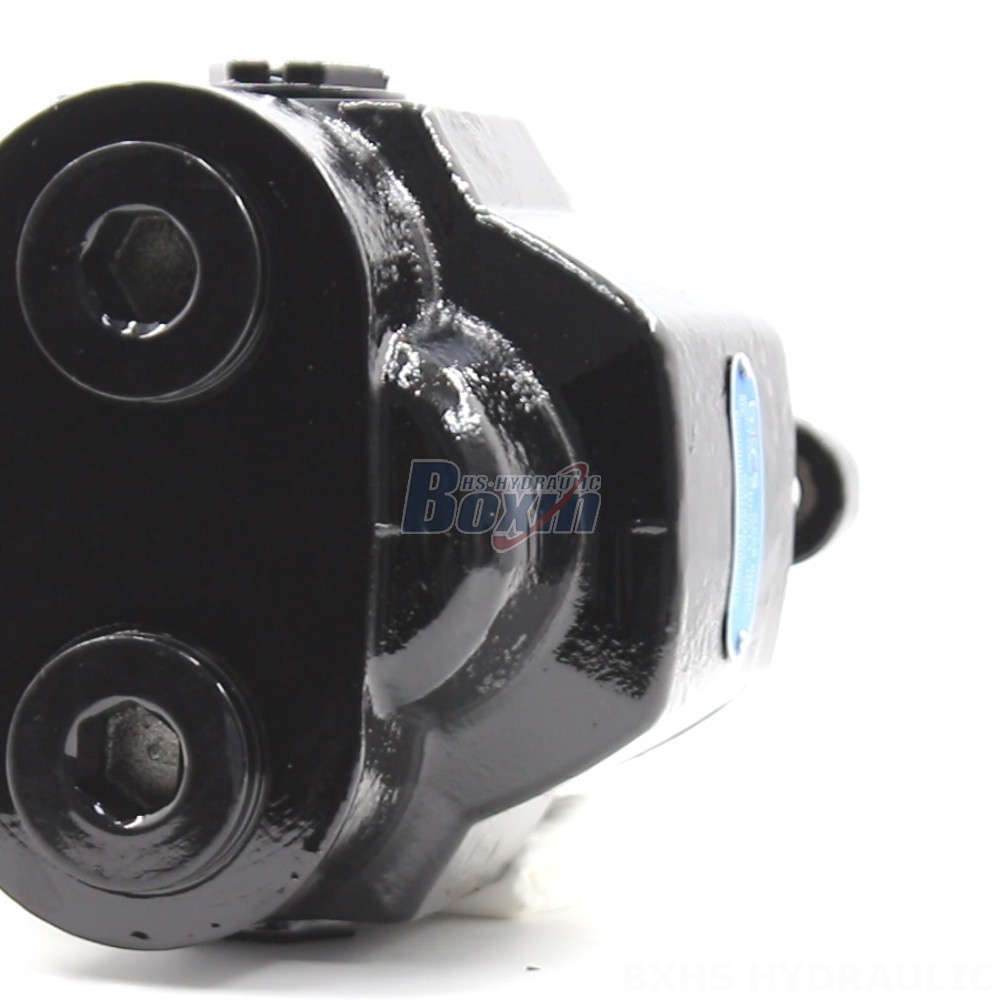

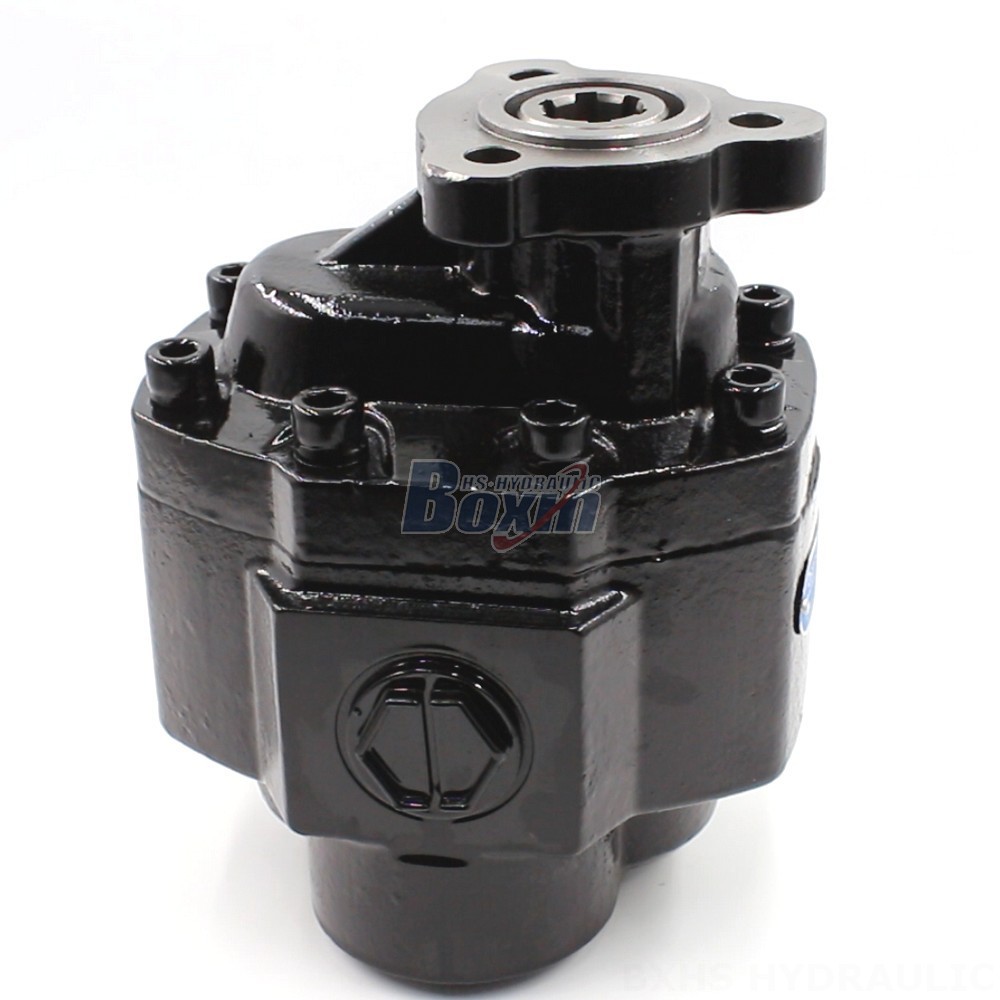

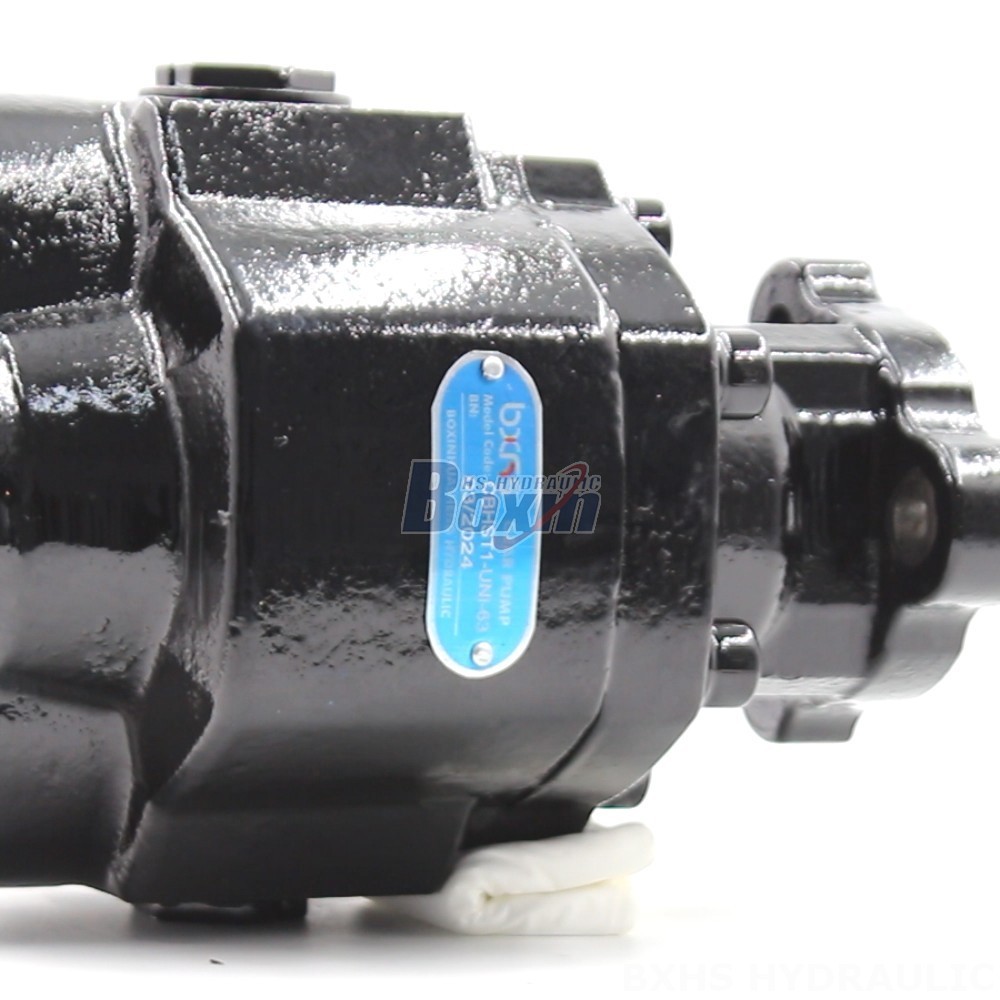

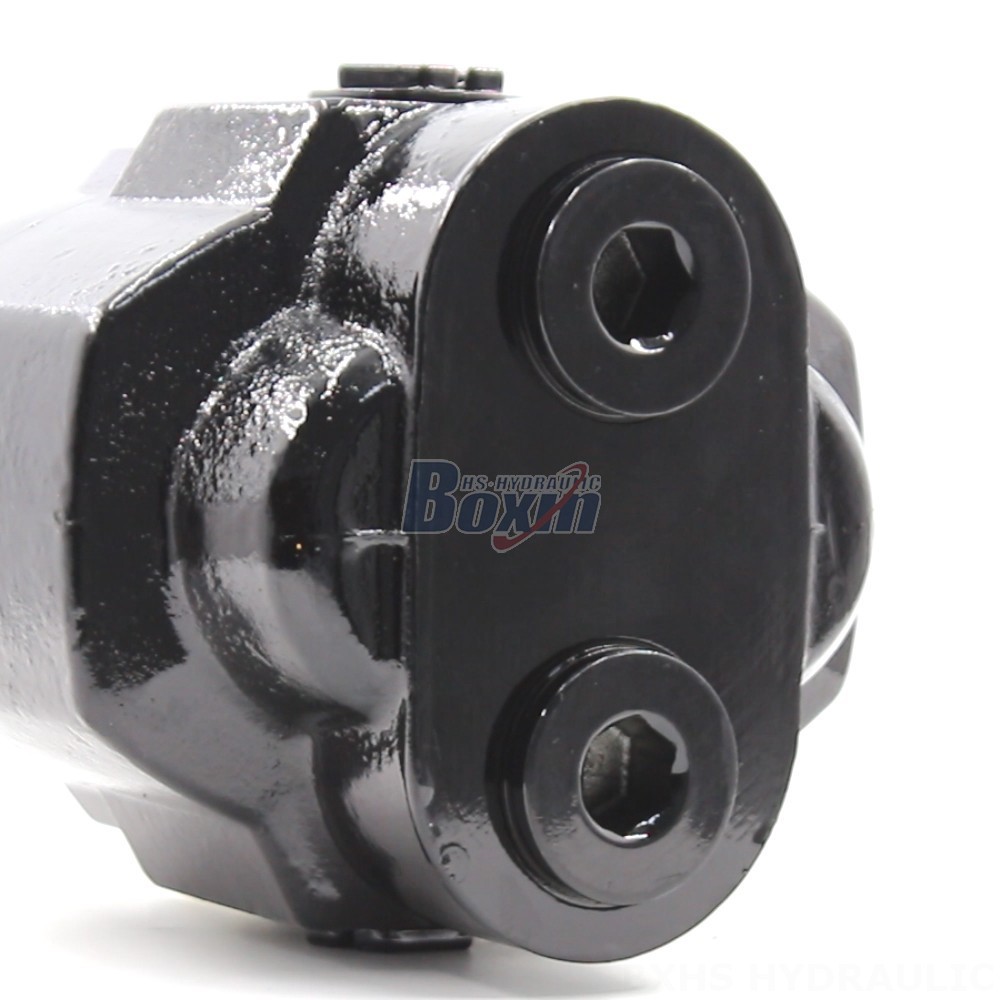

High-quality CBHST1-UNI-63 Hydraulic Gear Pump for global markets. Factory direct supply and support for distributors, wholesalers, agents, and traders. Customize and OEM services available.
| CBHST1-UNI-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 32 cc/varv, 40 cc/varv, 50 cc/varv, 63 cc/varv, 80 cc/varv, 100 cc/varv, 34 cc/varv, 43 cc/varv |
| Nominellt tryck | 23 MPa (3335 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 2500 varv/min |
| Rotationsriktning | Dubbelriktad |
| Struktur | Externt kugghjulspump |
| Material | Gjutjärn |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines |
| Flanschversion | UNI-3 monteringshål |
CBHST1-UNI-63 Hydraulic Gear Pump with customizable displacement (32 cc/rev to 100 cc/rev), rated pressure (23 MPa), and max speed (2000 r/min to 2500 r/min). Bidirectional rotation, swashplate structure, cast iron material, UNI-3 mounting holes, and options for rectangle spline and involute spline shaft types. Ideal for applications in material handling, construction, agriculture, and industrial vehicles. Trusted by manufacturers of telehandlers, forklifts, and other heavy machinery.
