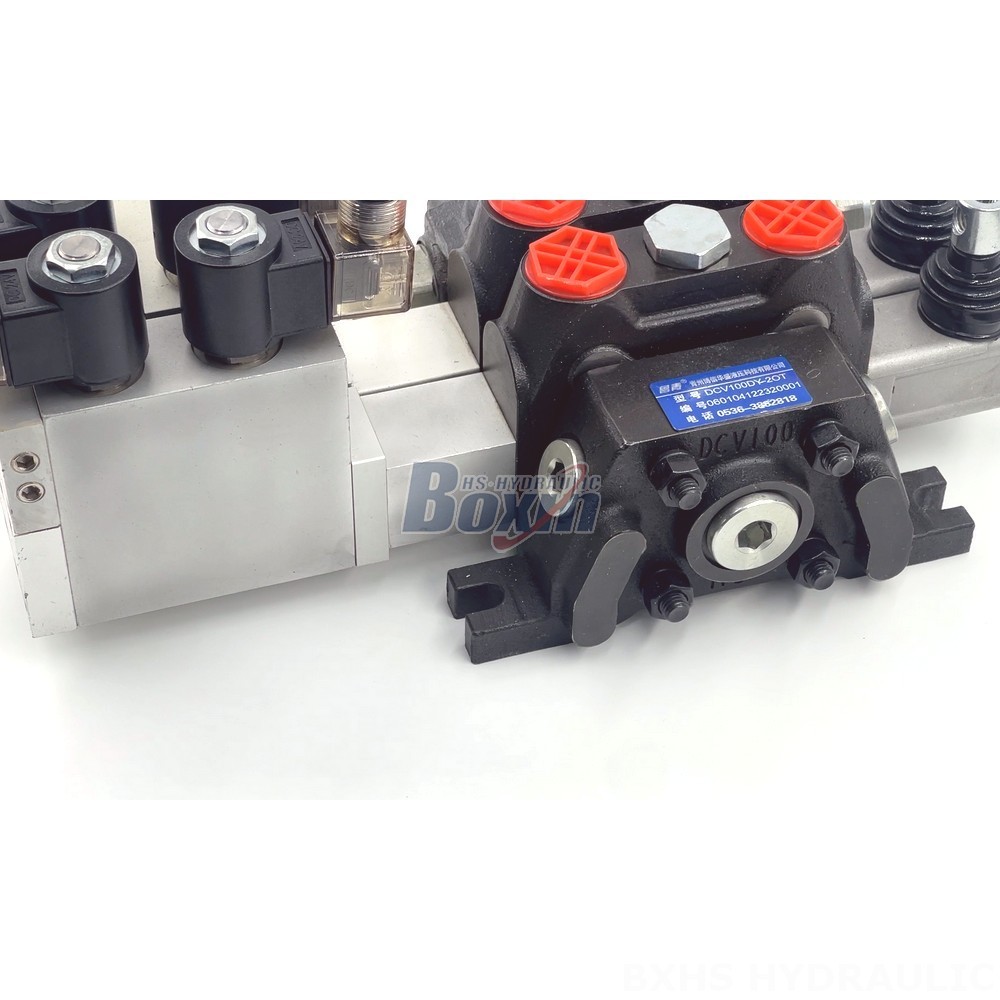

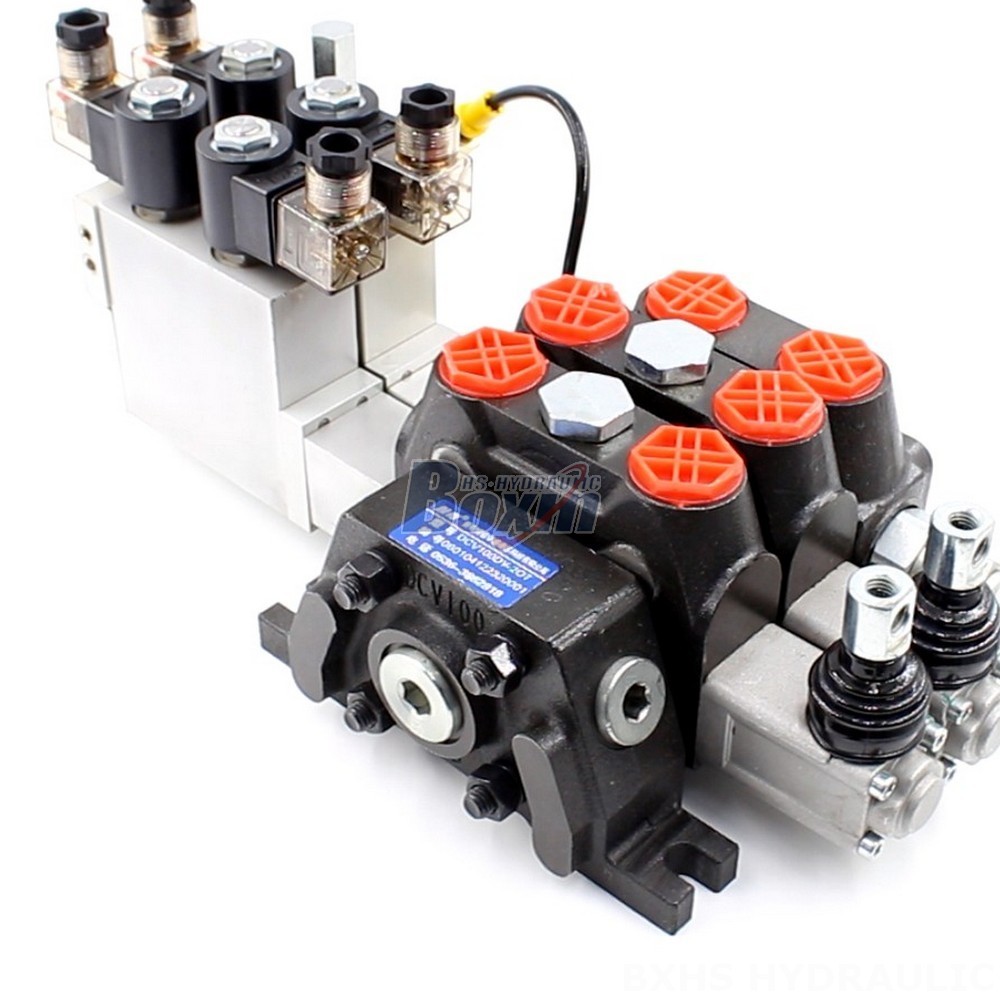

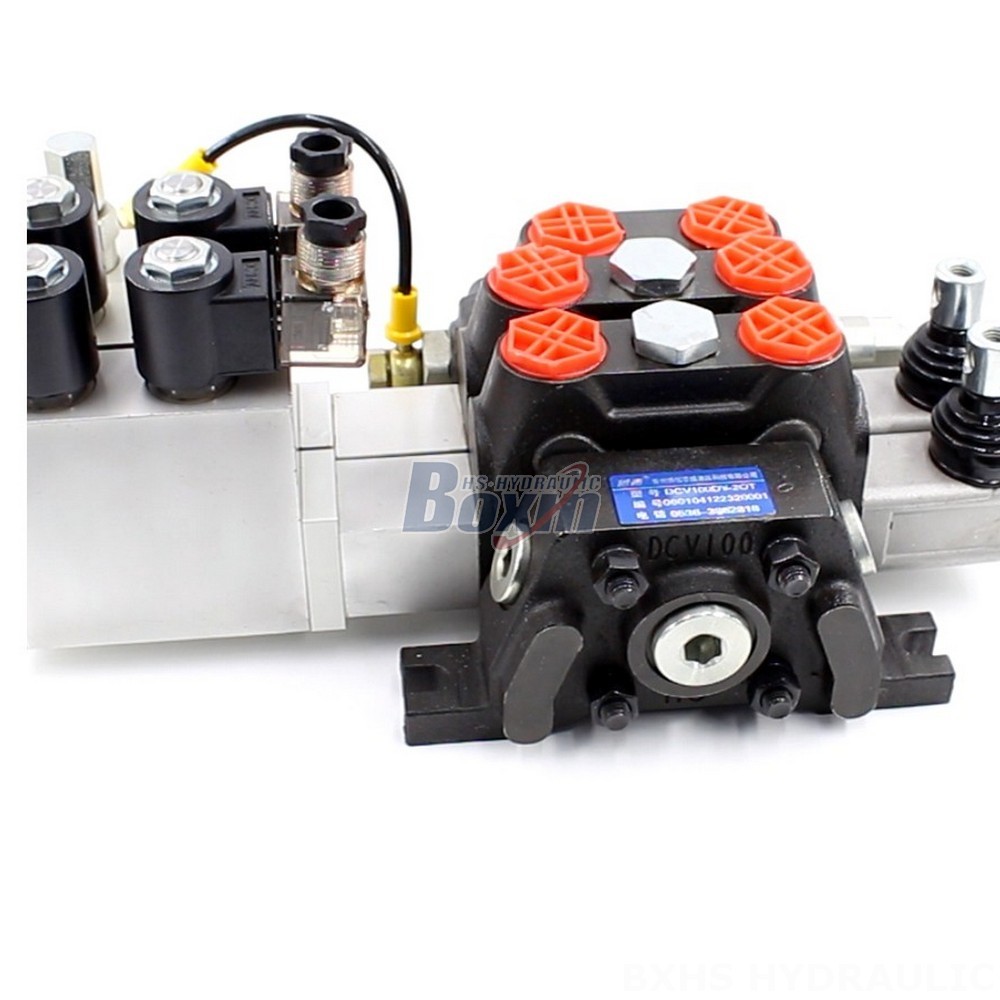

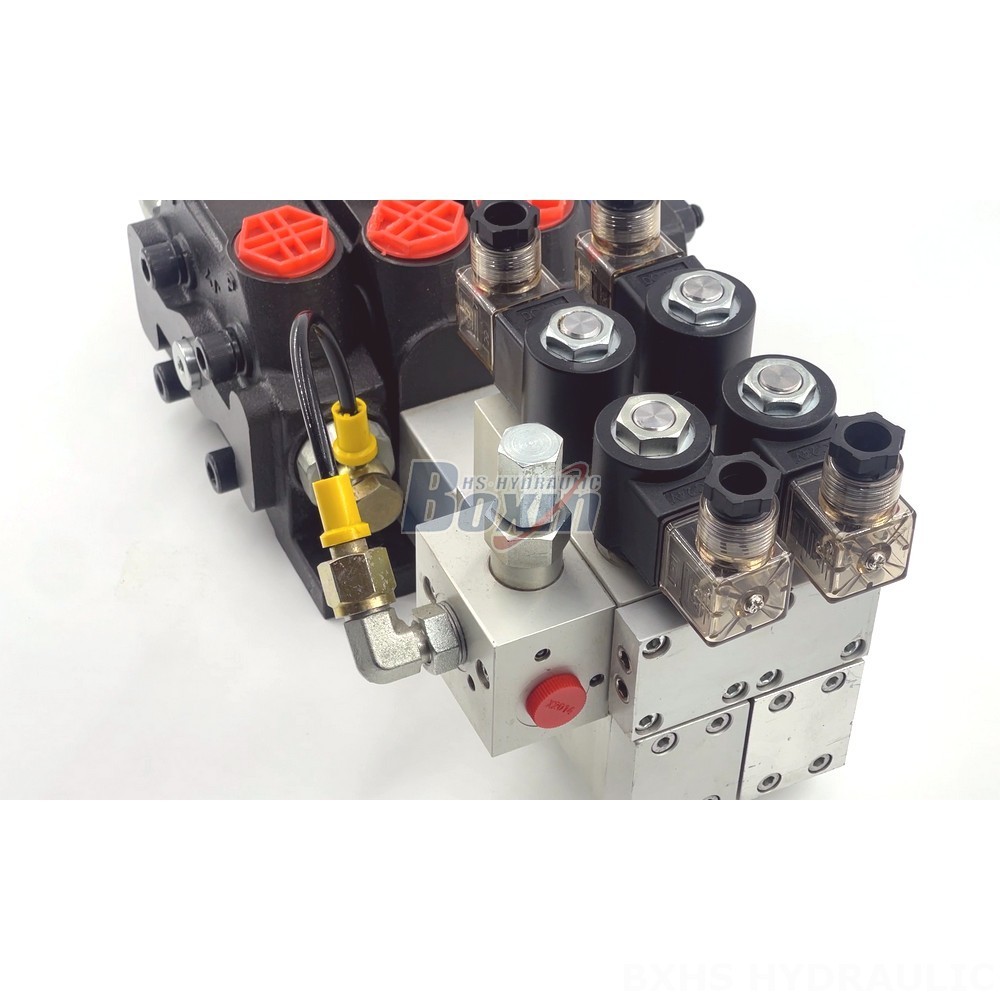

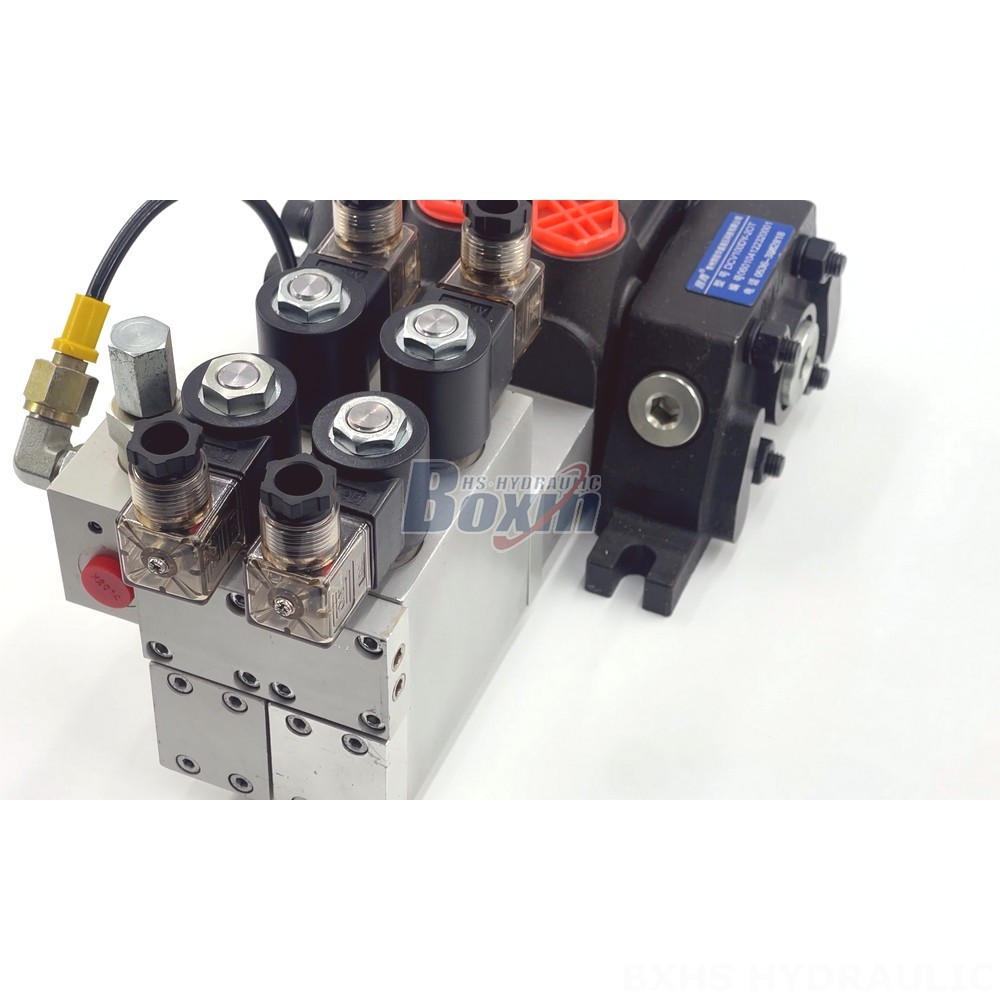

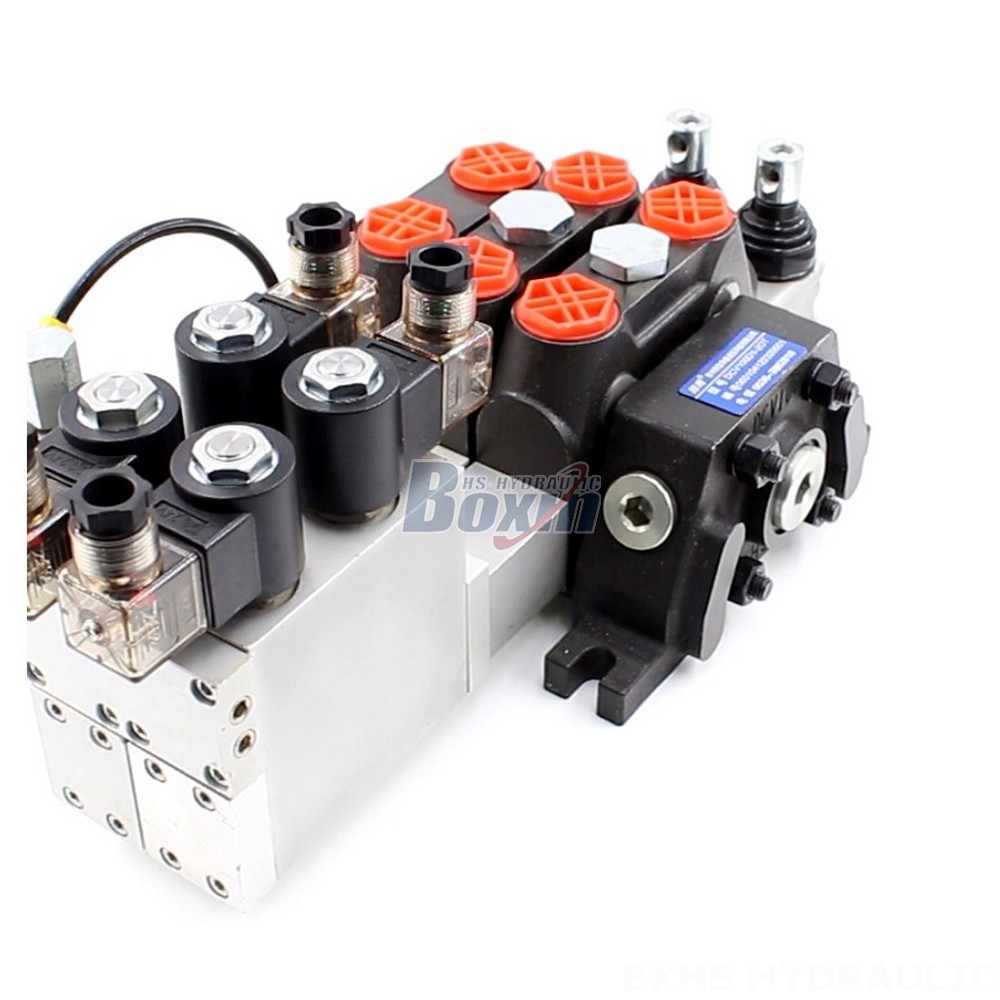

This is a high-performance, customizable electro-hydraulic 2-spool sectional directional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 100 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of heavy-duty machinery.
| DCV100-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Kabel, Joystick, Manuell och Joystick, Manuell och elektrohydraulisk, Elmotor, Elektrohydraulisk och magnetventil |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 100 l/min (26,5 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Utloppsport | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Portstorlek | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
This 2-section sectional valve features a robust design and reliable performance. Its electro-hydraulic control method ensures precise and responsive operation. The valve is rated for a maximum flow rate of 100 L/min (26.5 US gpm) and a maximum pressure of 350 bar (5100 psi), making it suitable for a variety of heavy-duty applications. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable operation in a wide range of temperature conditions. The valve is designed for use in a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, and skid steer loaders. Its compact size and modular design make it easy to install and integrate into existing systems.
