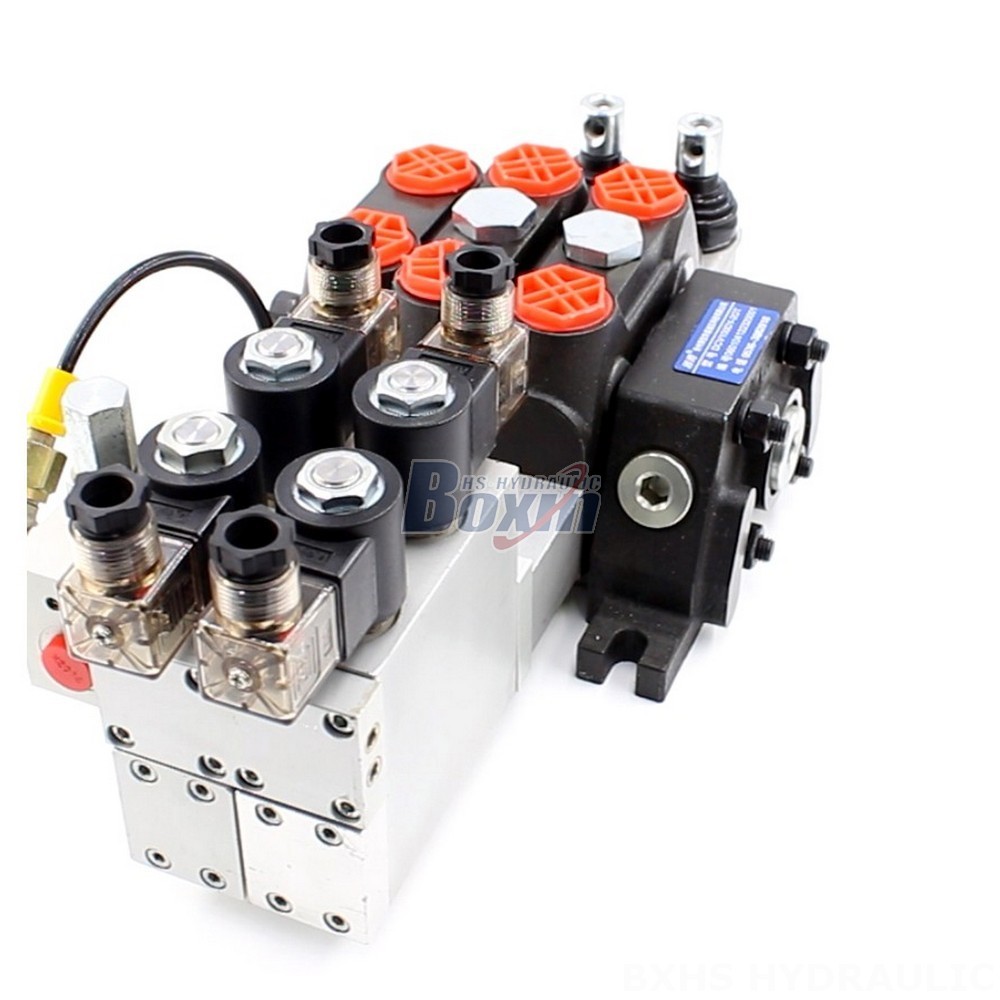

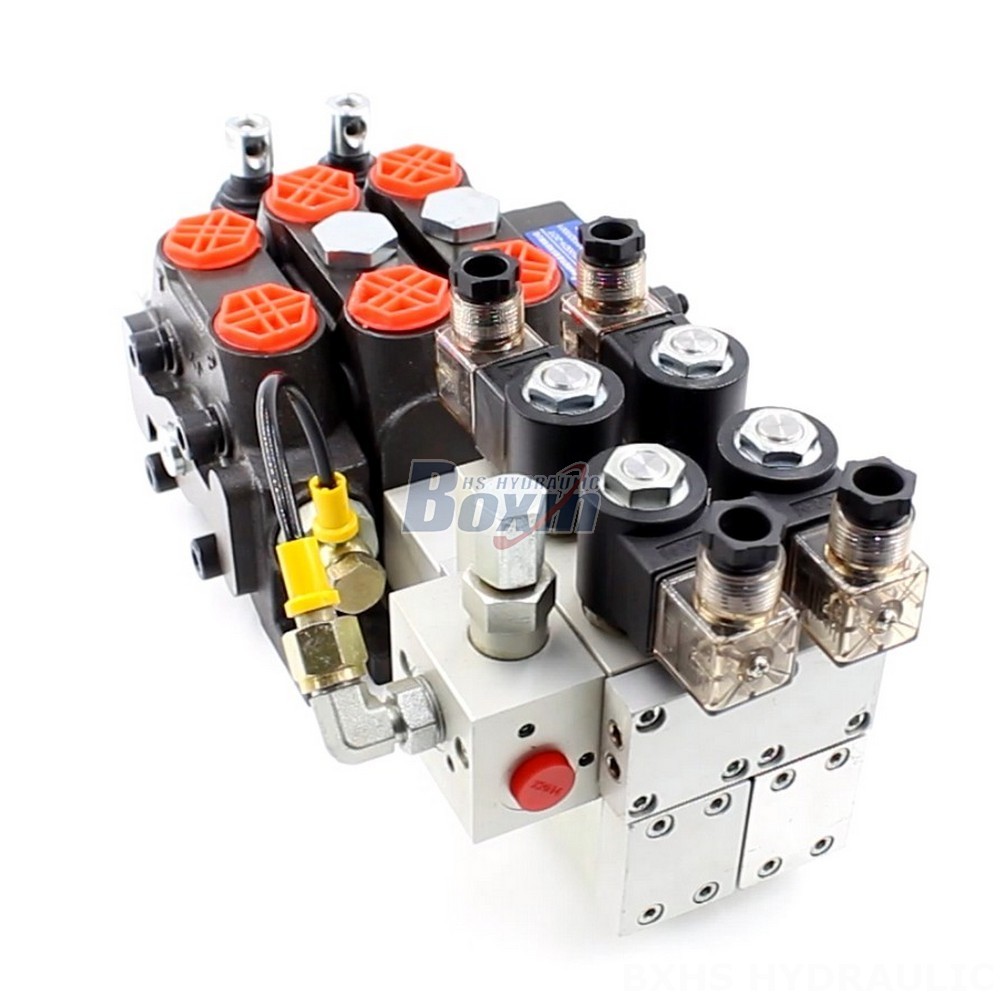

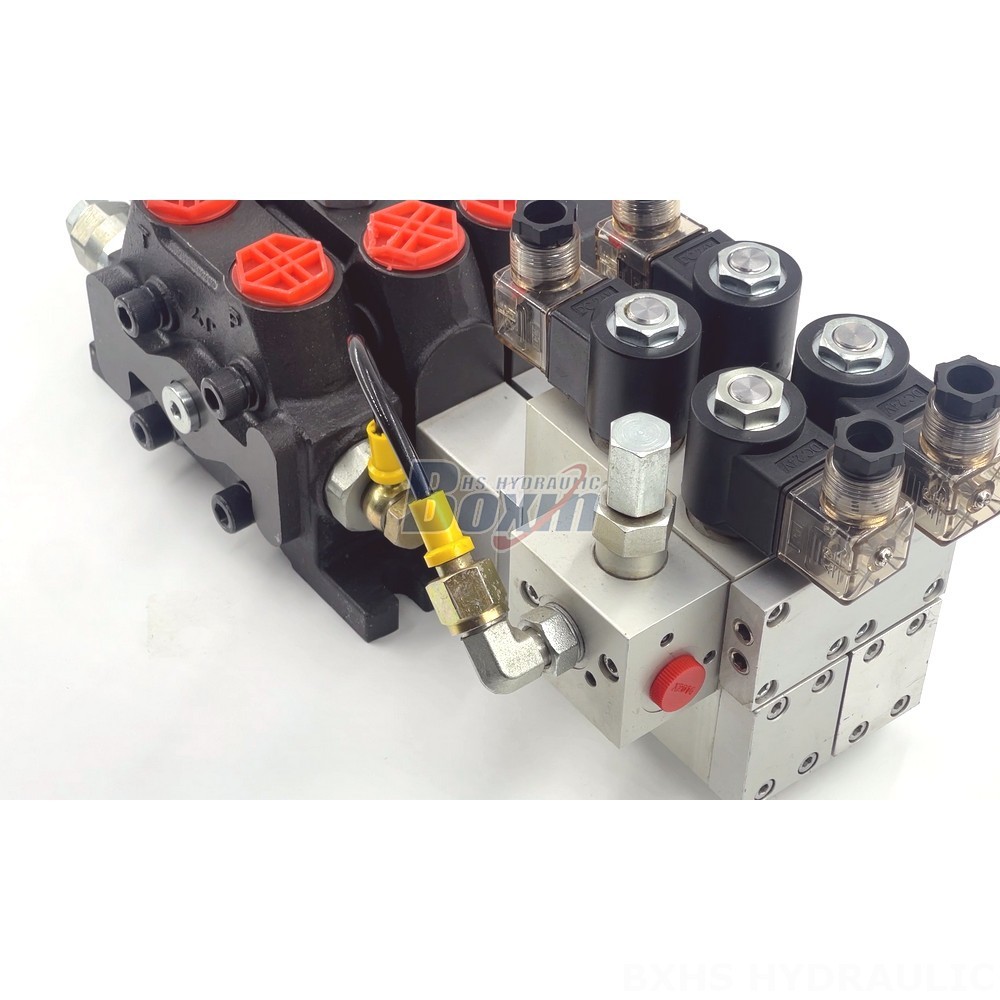

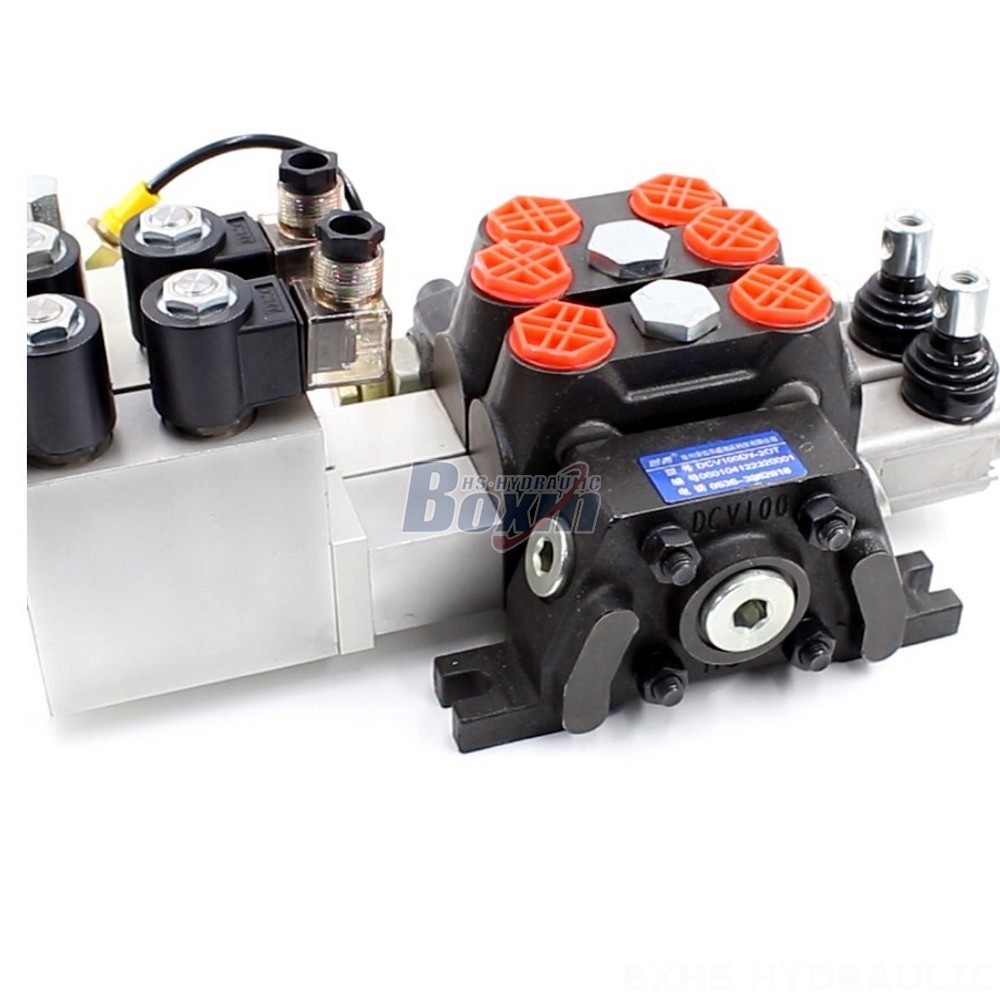

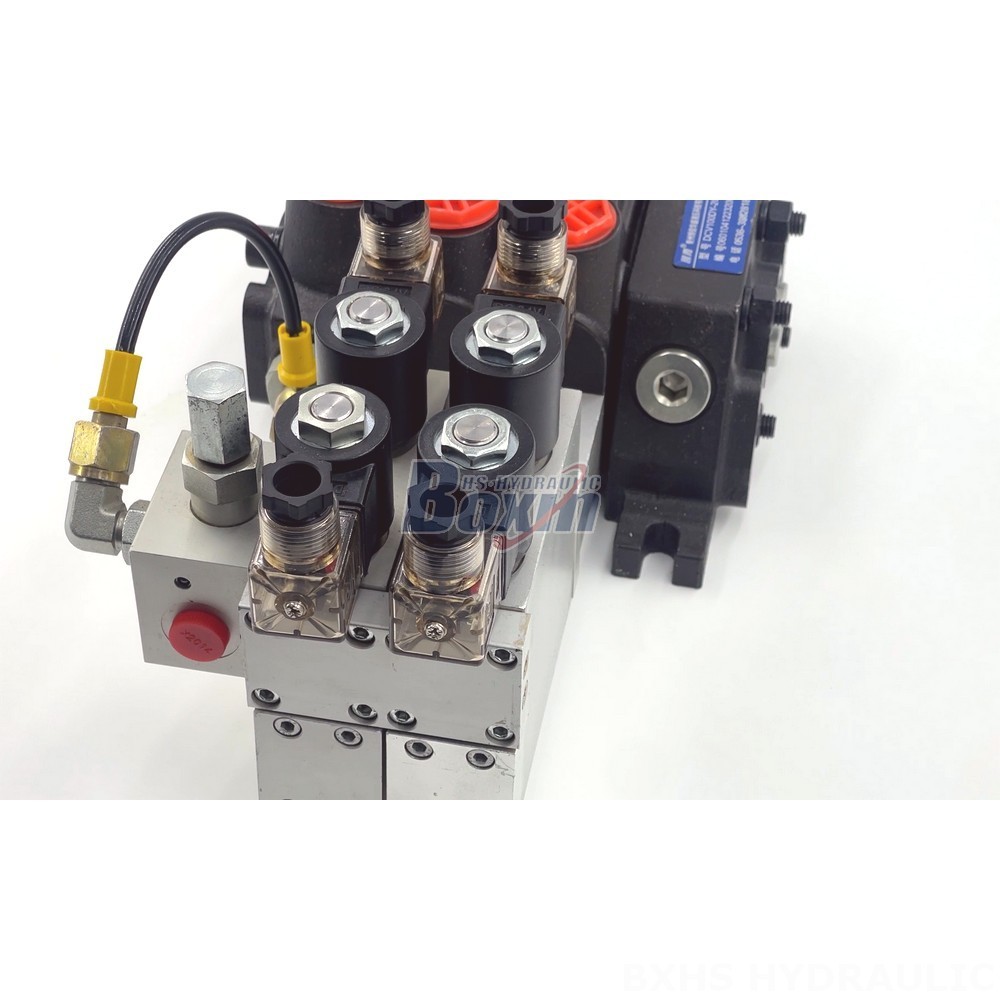

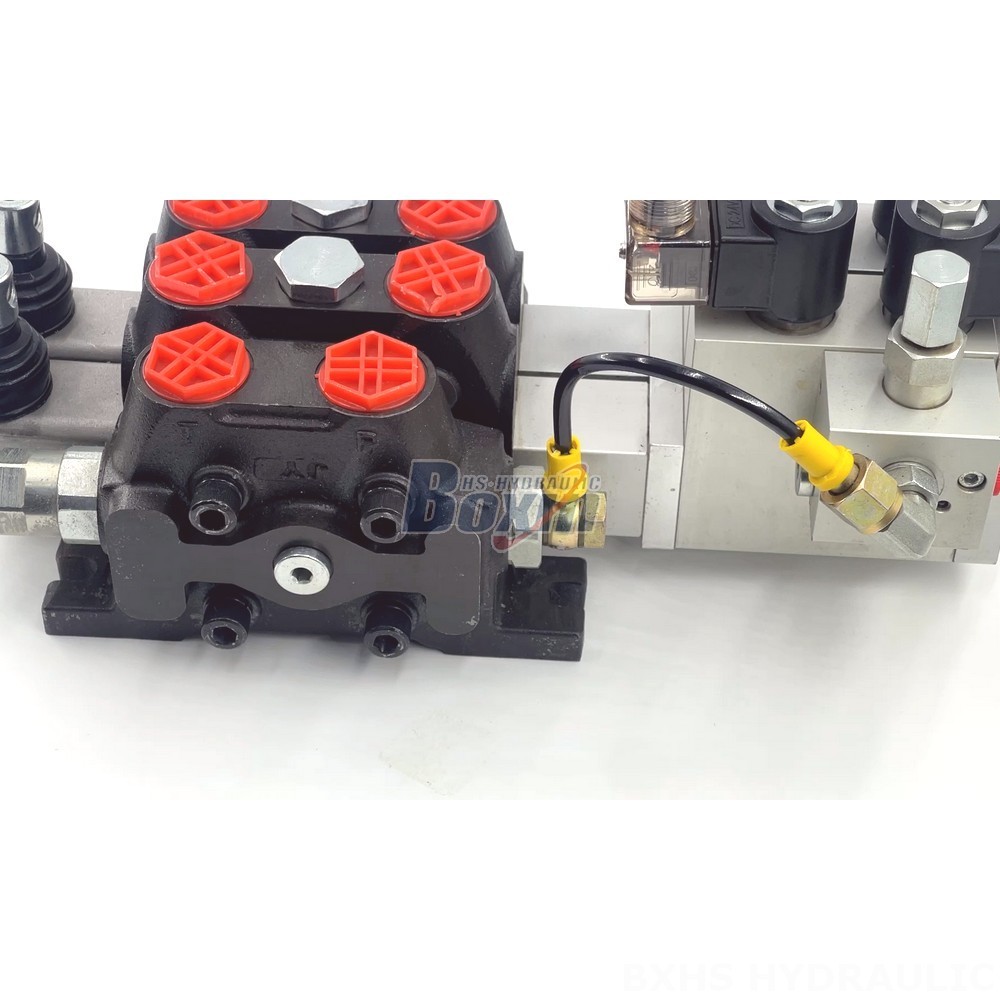

The DCV100 Electro-hydraulic 2 Spool Sectional Directional Valve is a versatile and high-performing valve designed for demanding hydraulic applications in various industries. With its robust construction, electro-hydraulic control, and high flow and pressure capabilities, this valve offers precise and reliable operation in challenging conditions.
| DCV100-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Kabel, Joystick, Manuell och Joystick, Manuell och elektrohydraulisk, Elmotor, Elektrohydraulisk och magnetventil |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 100 l/min (26,5 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Utloppsport | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Portstorlek | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- Sectional design allows for easy customization and integration
- 2 spool configuration for versatile flow control
- High flow rate of 100 L/min (26.5 US gpm) for efficient operation
- Maximum pressure of 350 bar (5100 psi) for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for adaptability to various fluids
- Ambient temperature range of -40°C to +60°C (-40°F to +140°F) for operation in harsh environments
**Applications:**
The DCV100 Electro-hydraulic 2 Spool Sectional Directional Valve finds application in a wide range of industries, including:
- Material Handling: Telehandlers, Forklifts, Stackers, Aerial Platforms
- Construction and Earth Moving: Excavators, Skid Steer Loaders, Motor Graders
- Agriculture: Tractors, Harvesters, Sprayers
- Industrial Vehicles: Cranes, Loaders, Sweepers
