The DCV200 Electro-hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With its compact size and lightweight design, the DCV200 is easy to install and maintain.
| DCV200-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick, Manuell och elektrohydraulisk, Elmotor |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 200 L/min (52 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
| Utloppsport | G1, M33×2.0, SAE 16, 1 NPT |
| Portstorlek | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |

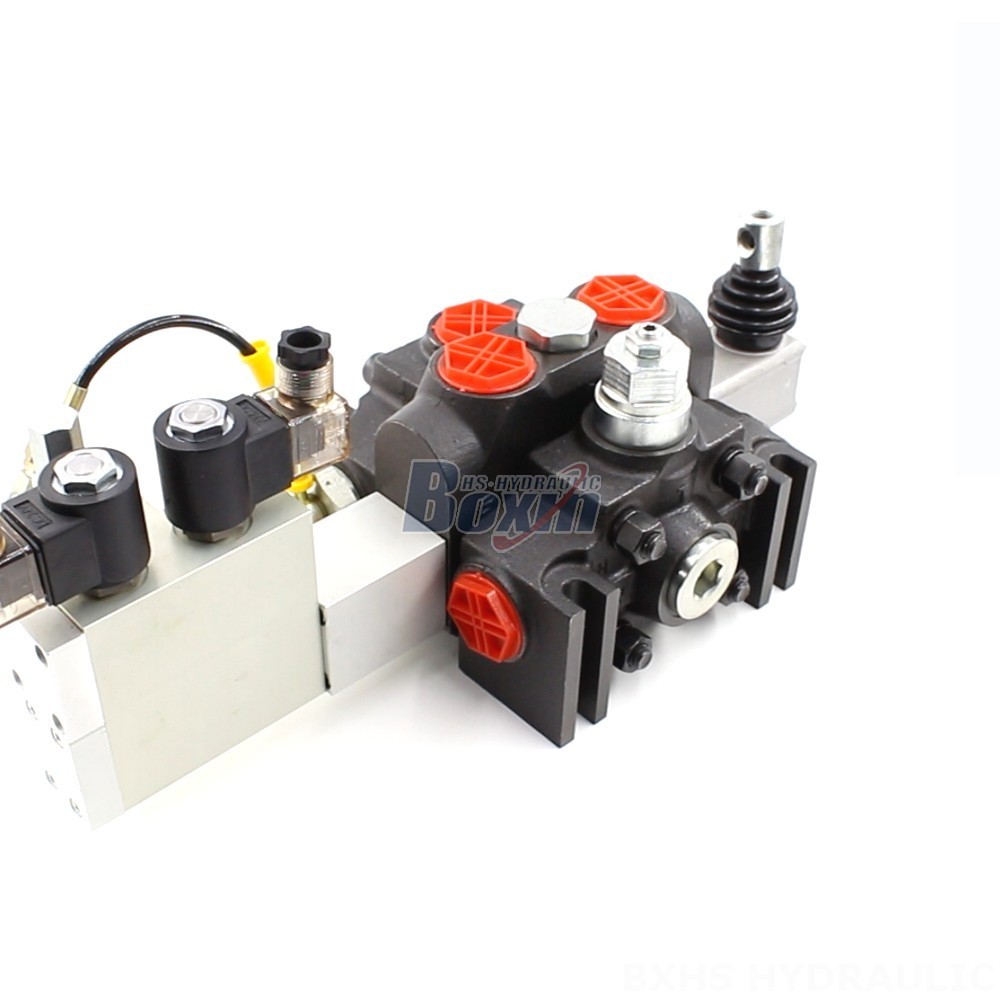

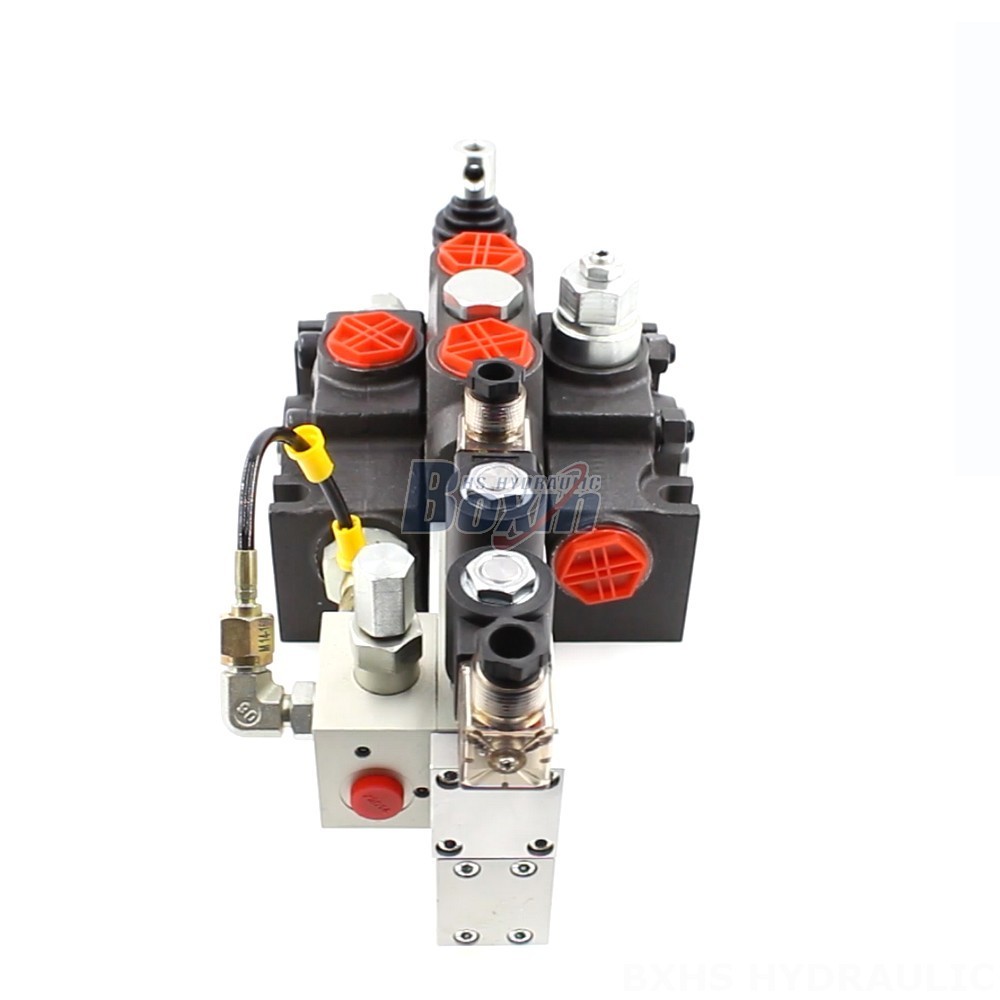

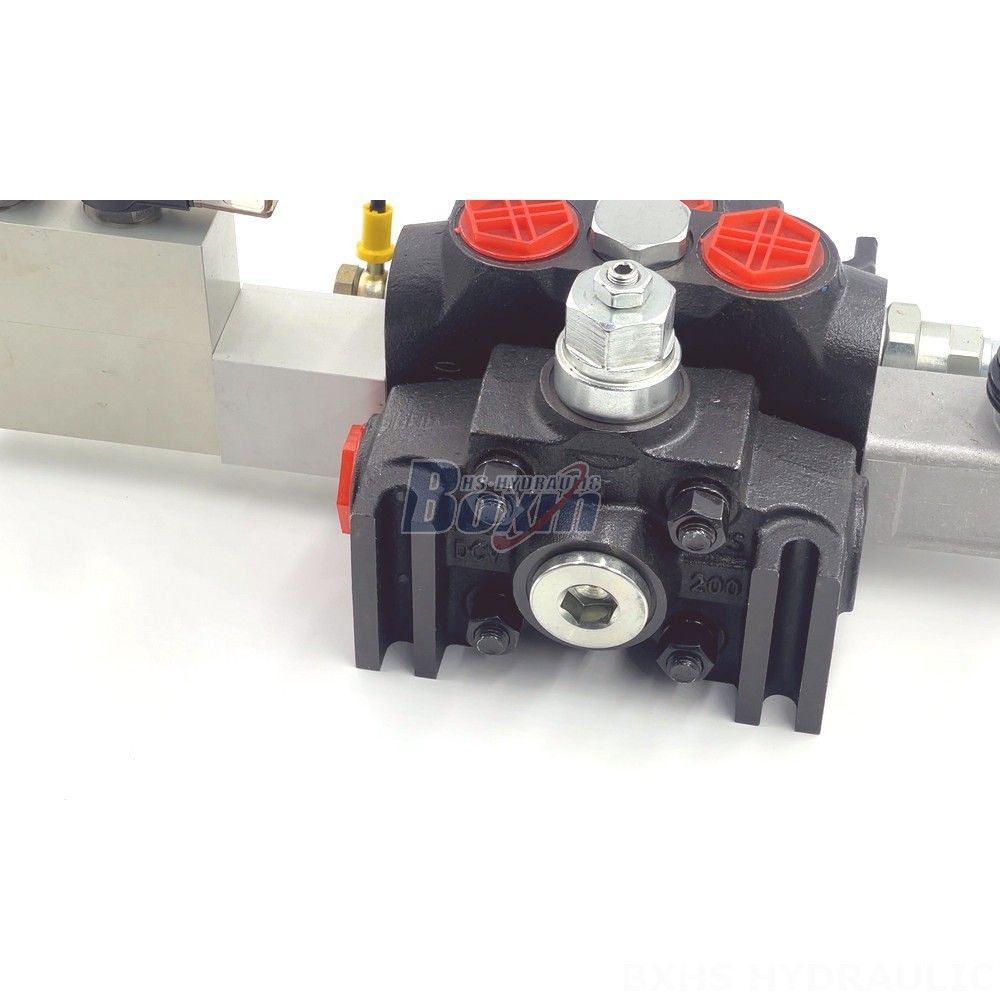

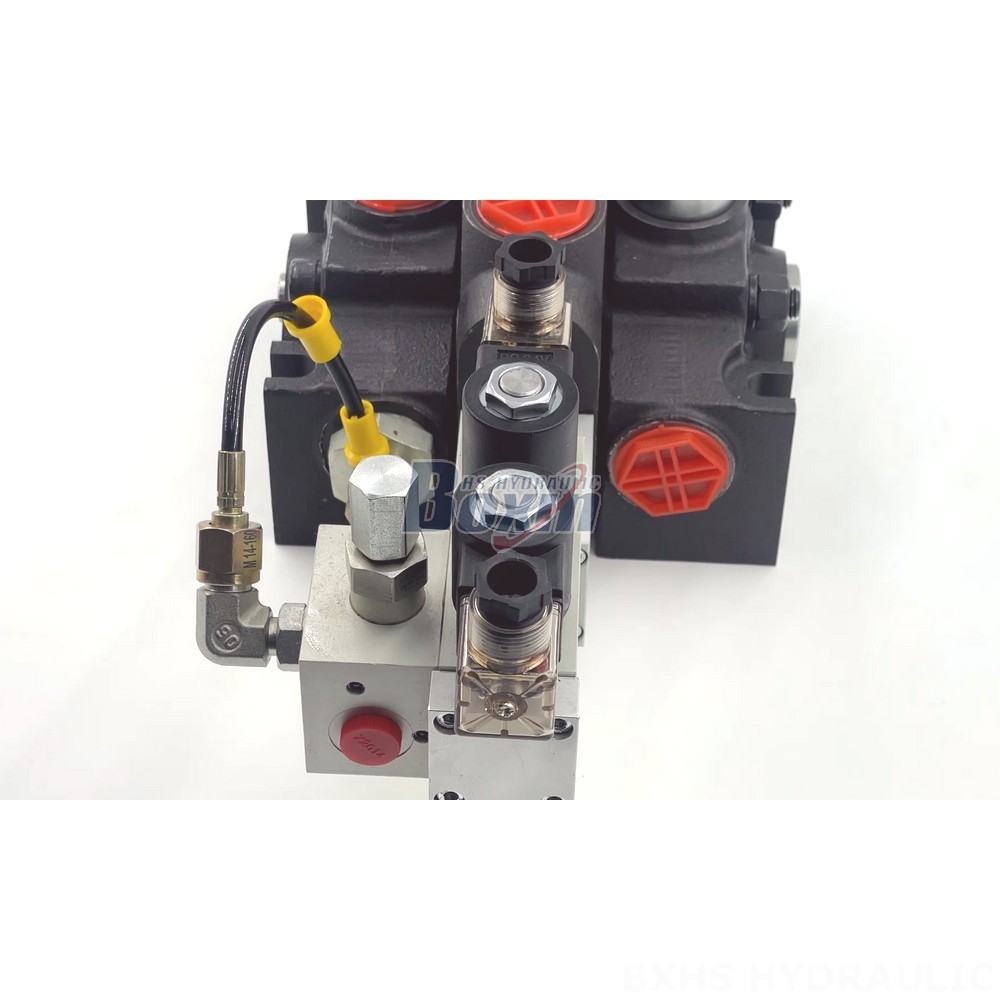

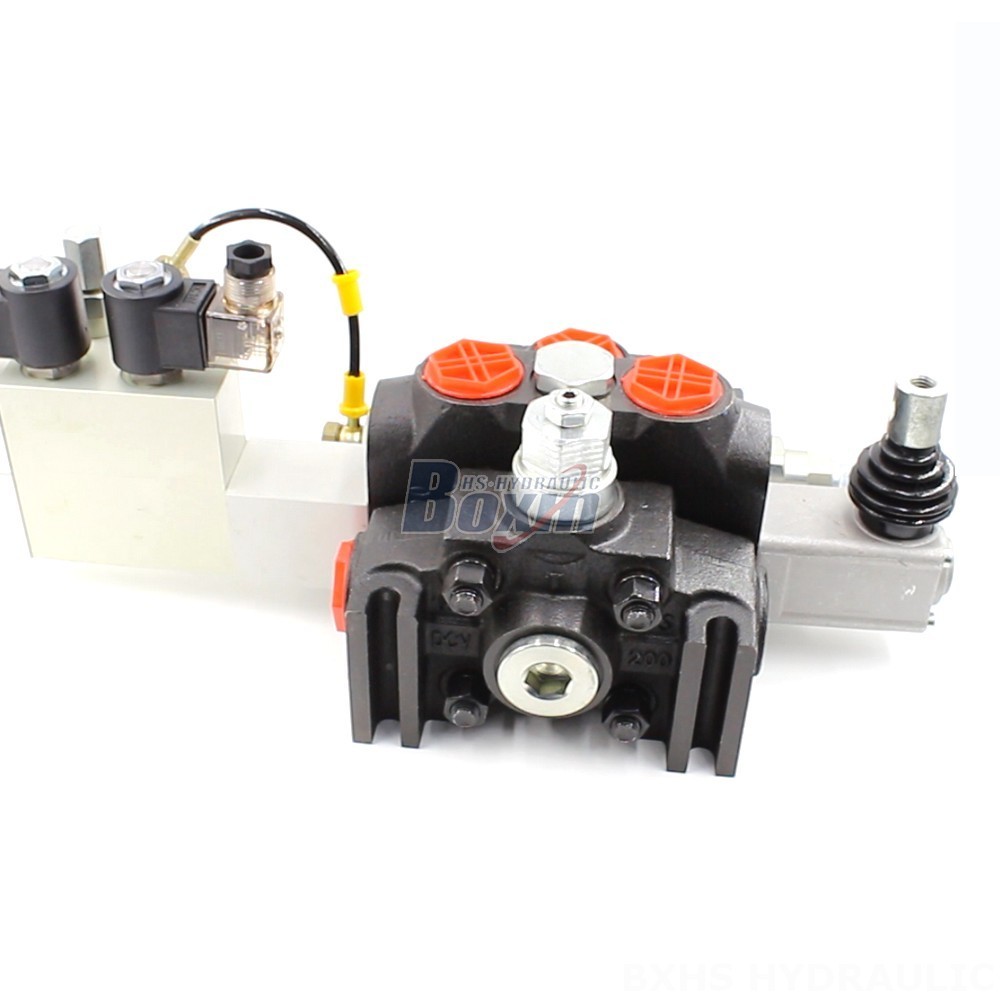

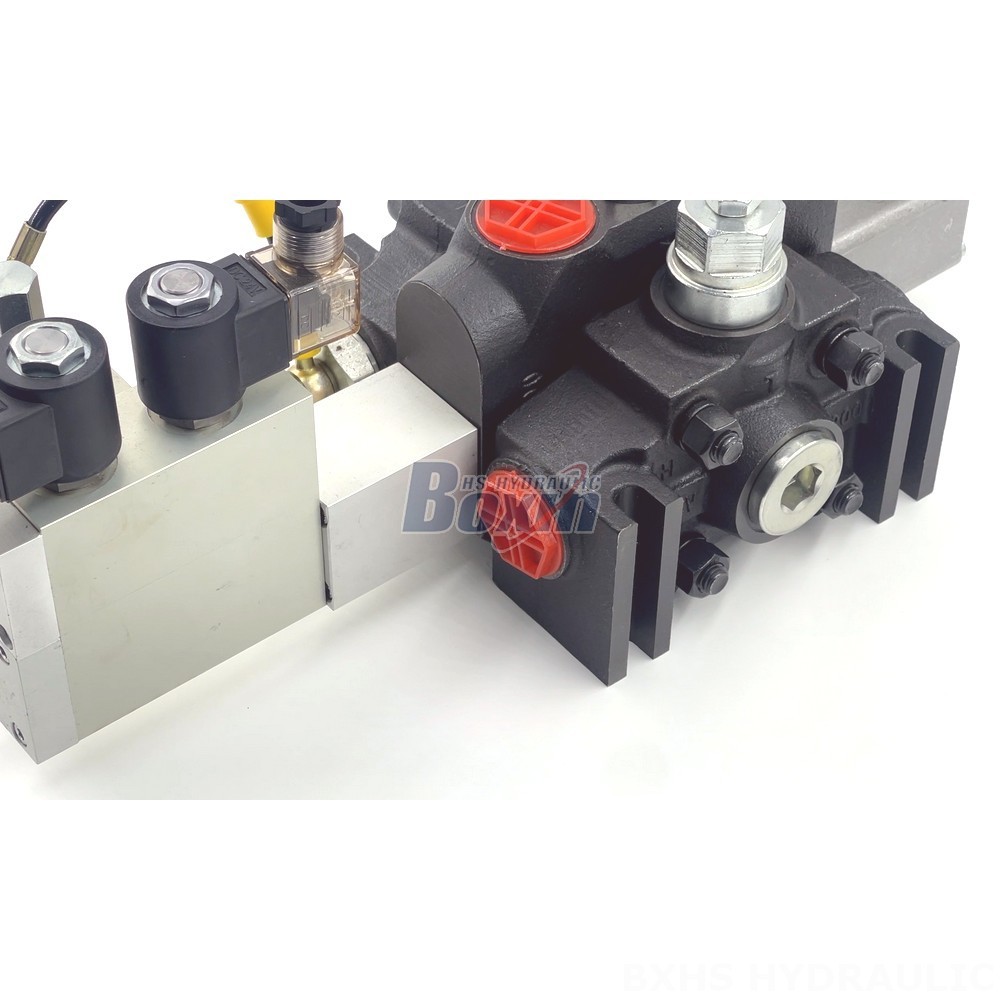

**DCV200 Electro-hydraulic Directional Control Valve**
The DCV200 Electro-hydraulic Directional Control Valve is a 1 section valve with a maximum pressure of 350 bar (5100 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It has an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and is available with 1 spool. The DCV200 is designed for use in a wide range of applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
The DCV200 is also available in a variety of configurations to meet the specific needs of your application. Please contact us for more information.
