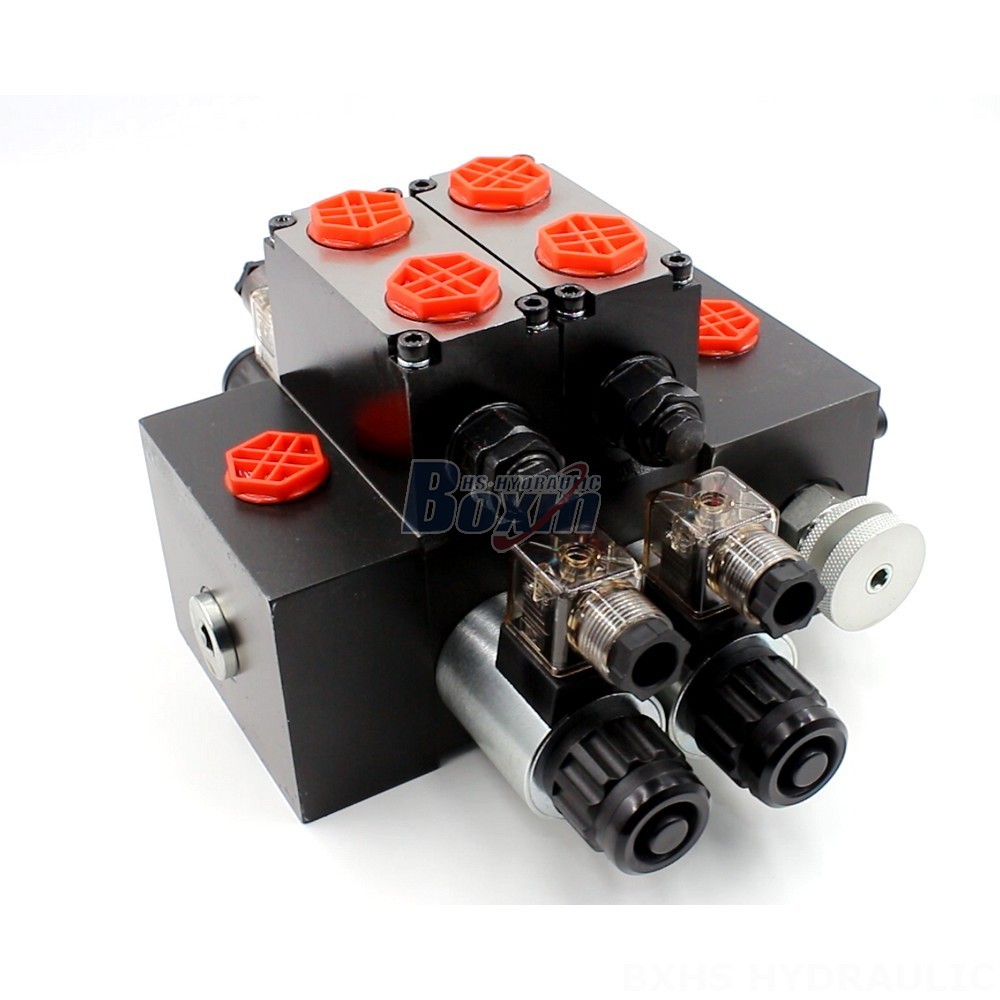

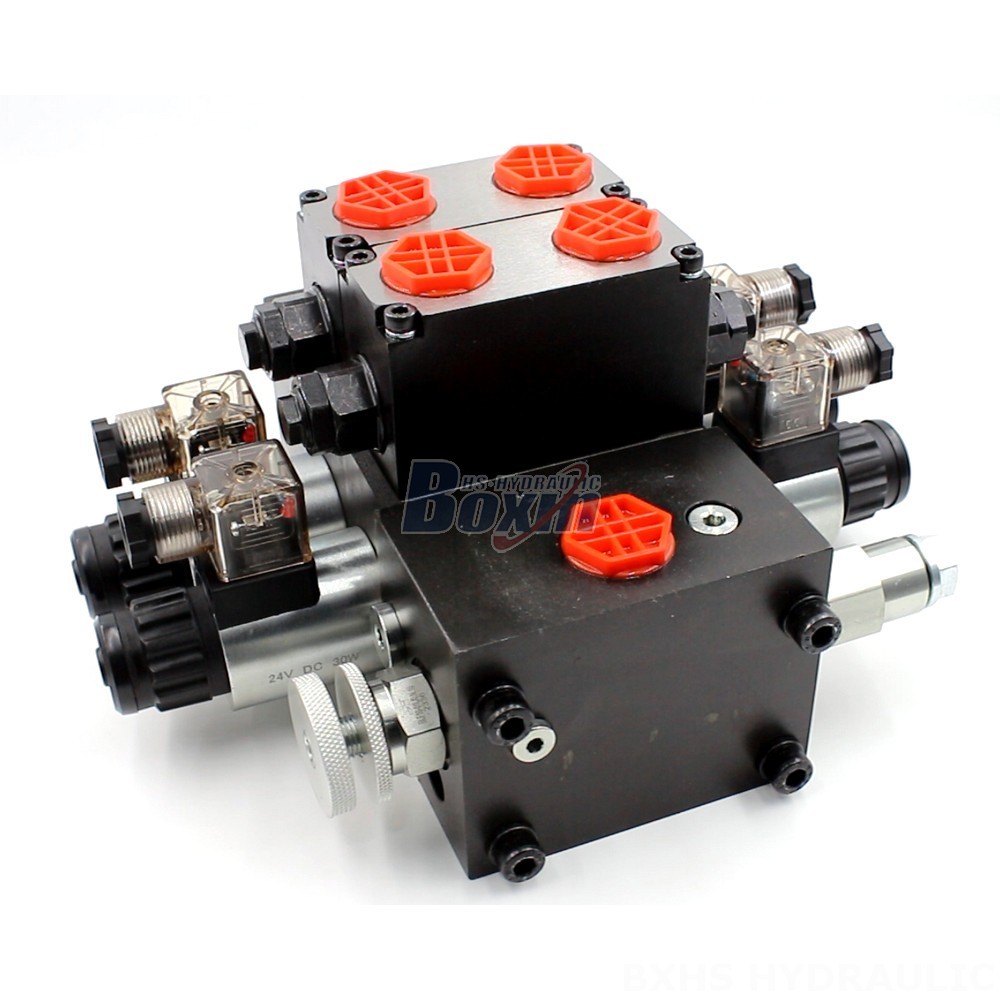

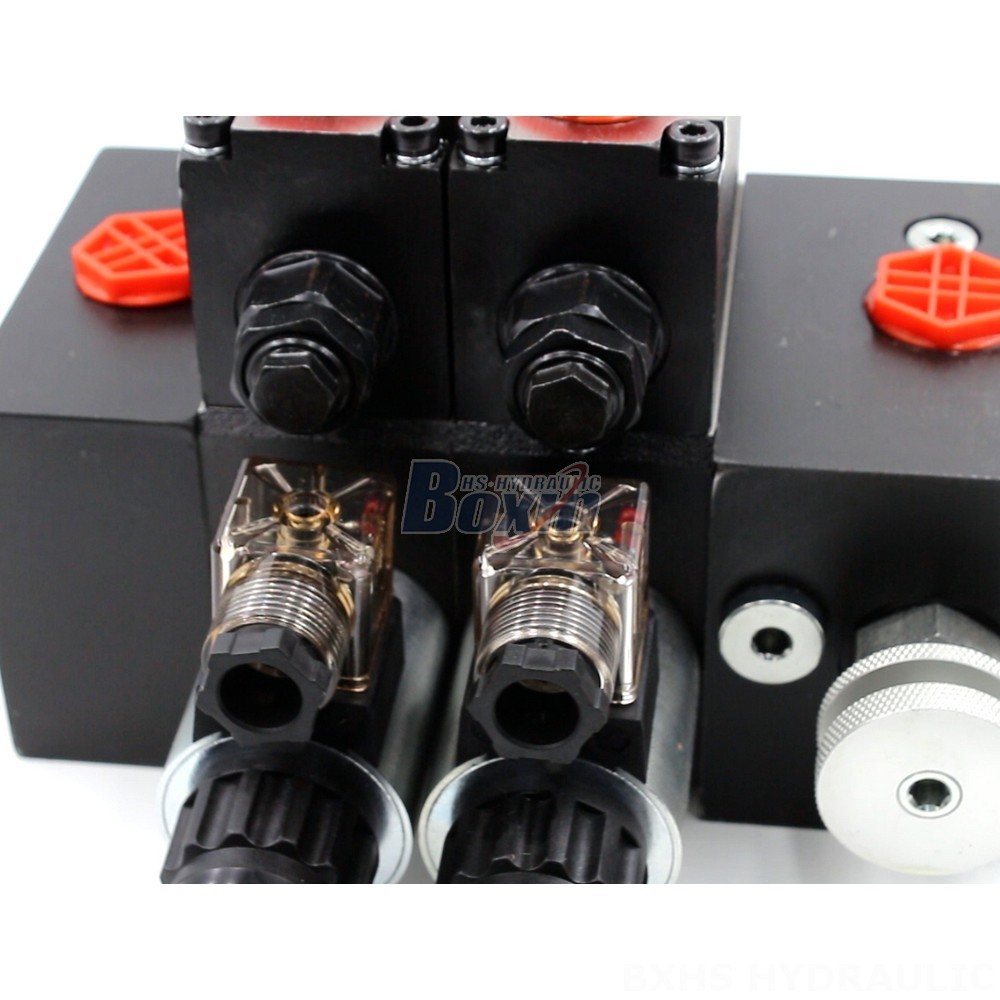

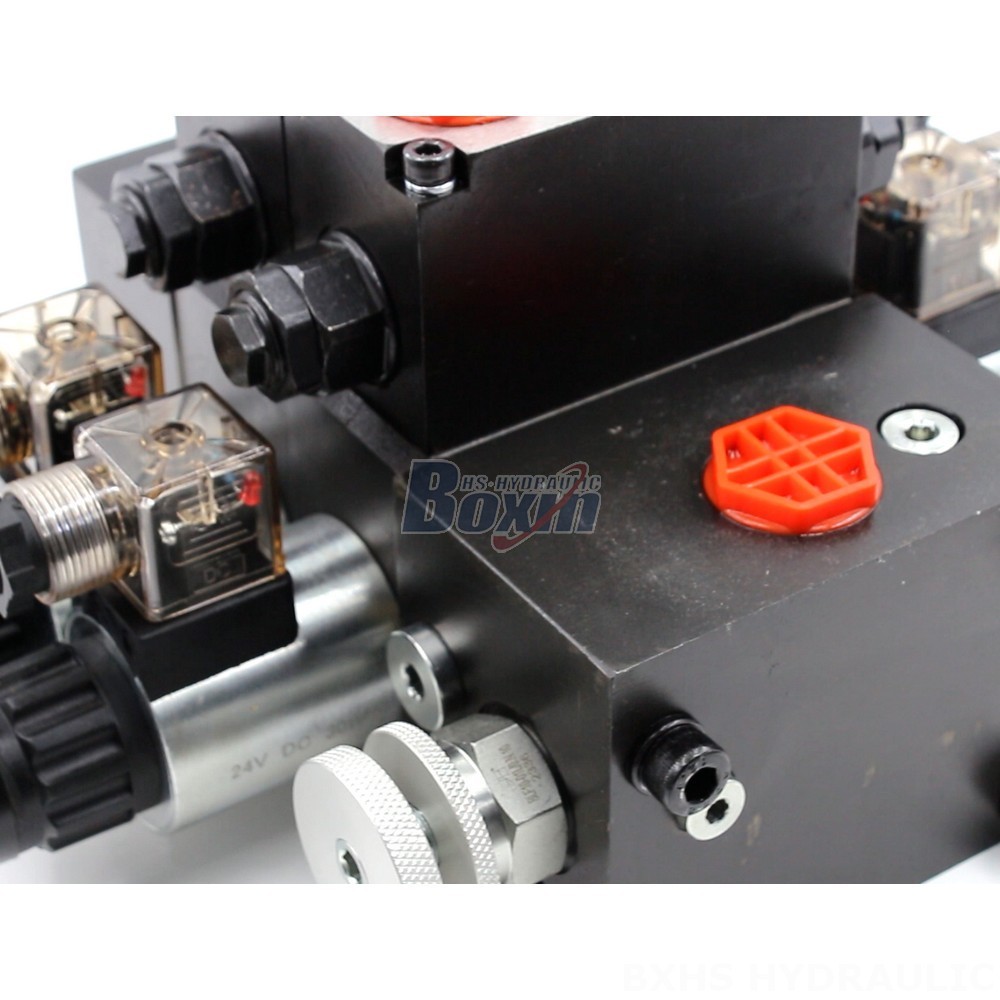

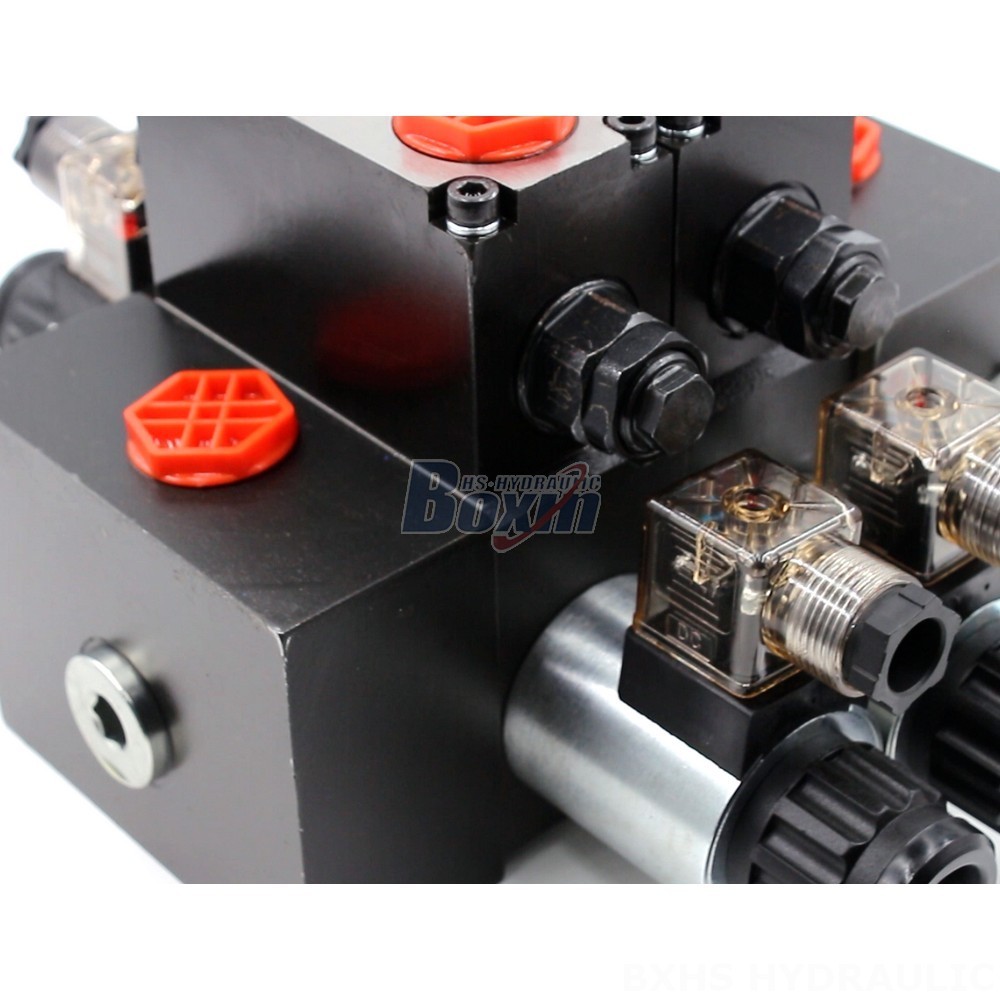

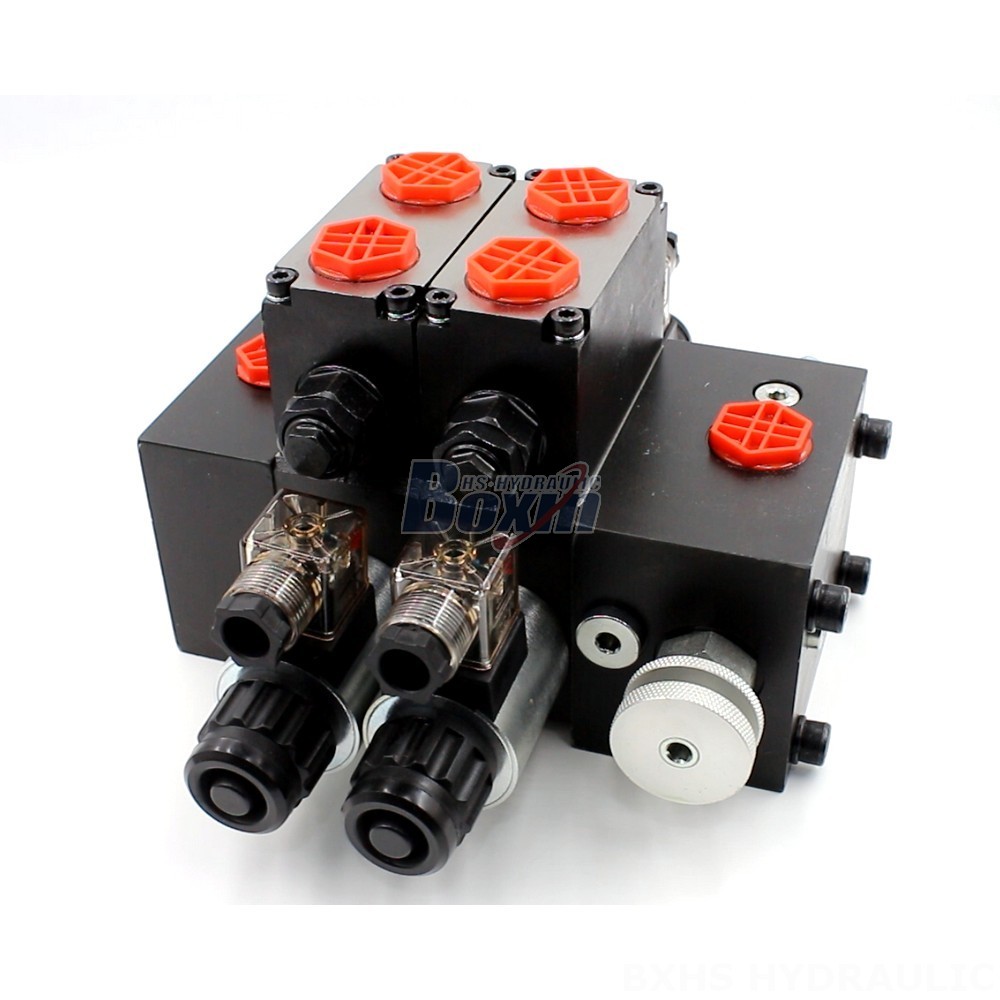

The DCV58F 2-Spool Hydraulic Directional Valve is a high-performance valve designed for use in a wide range of hydraulic systems. It features solenoid control, 2 sections, a rated flow of 60 L/min, and a maximum pressure of 350 bar. The valve is suitable for use in various applications, including material handling, construction, agriculture, and industrial vehicles.
| DCV58F-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Solenoid, Solenoid och manuell |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Nominellt flöde | 60 l/min (15,8 US gpm) |
| Maximalt tryck | 350 bar (5100 psi) |
| Inloppsport | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Utloppsport | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Portstorlek | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Strukturtyp | Sektionsventil |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
**Product Name:** DCV58F 2-Spool Hydraulic Directional Valve
**Control Method:** Solenoid
**Section:** 2 Section
**Structure Type:** Sectional valve
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** DCV58F Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
