The DCV60 2-Spool Electro-hydraulic Directional Valve is a high-performance valve designed for various industrial applications. With a rated flow of 60 L/min and a maximum pressure of 350 bar, it ensures efficient and precise control of hydraulic systems in demanding conditions.
| DCV60-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och manuell, Solenoid och Joystick, Manuell och Joystick, Elmotor |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 60 l/min (15,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi), 350 bar (5100 psi) |
| Inloppsport | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |

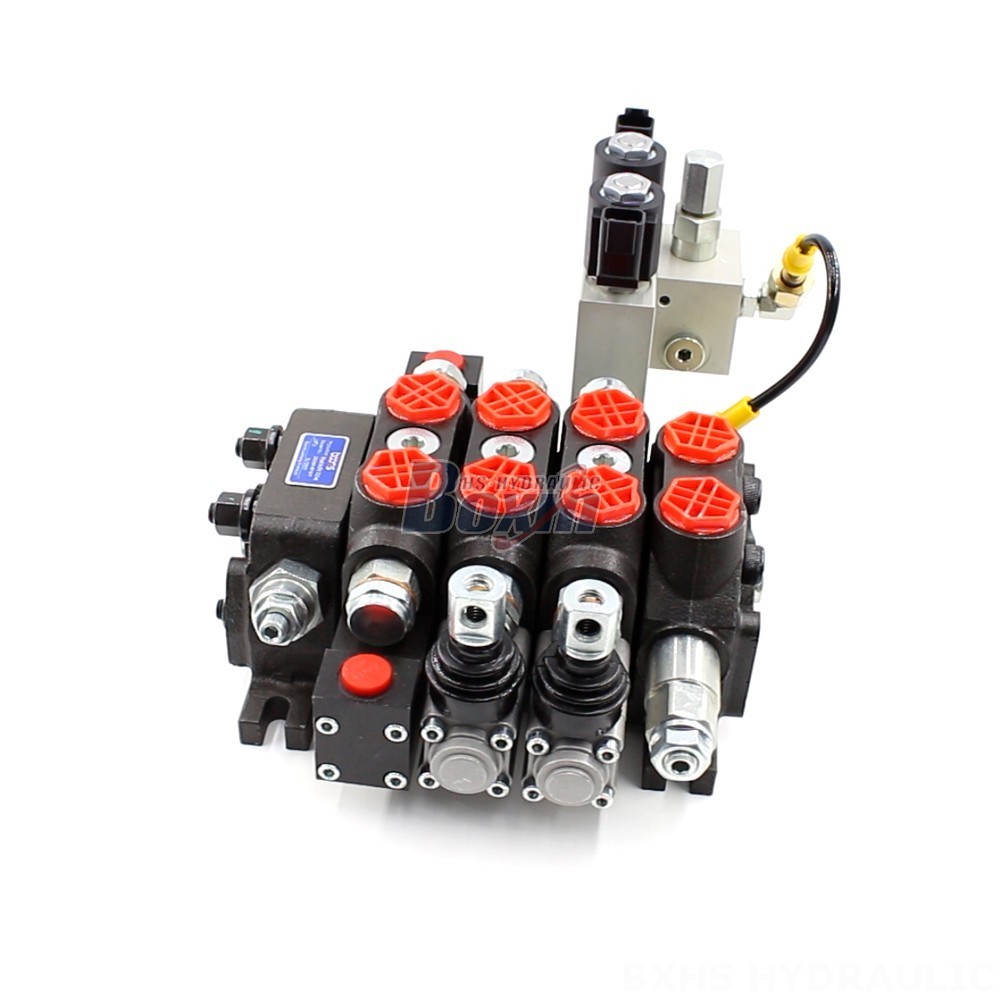

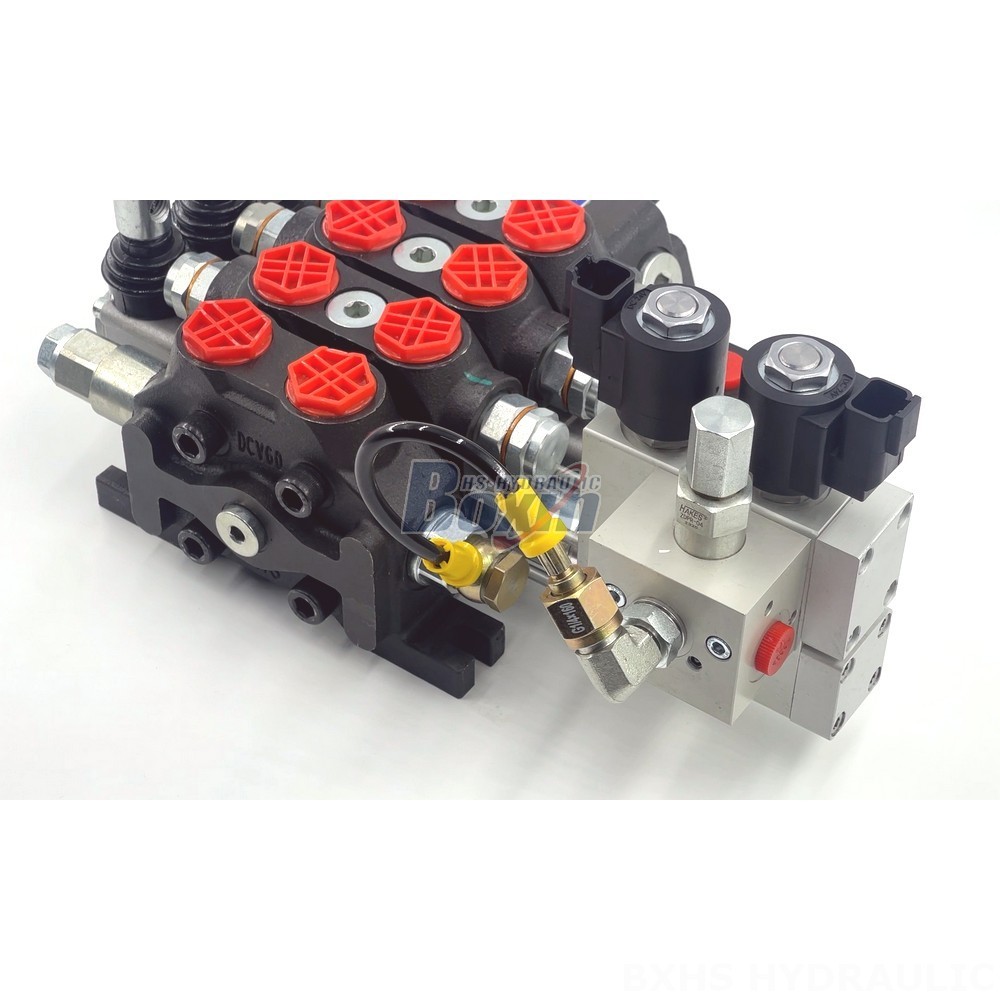

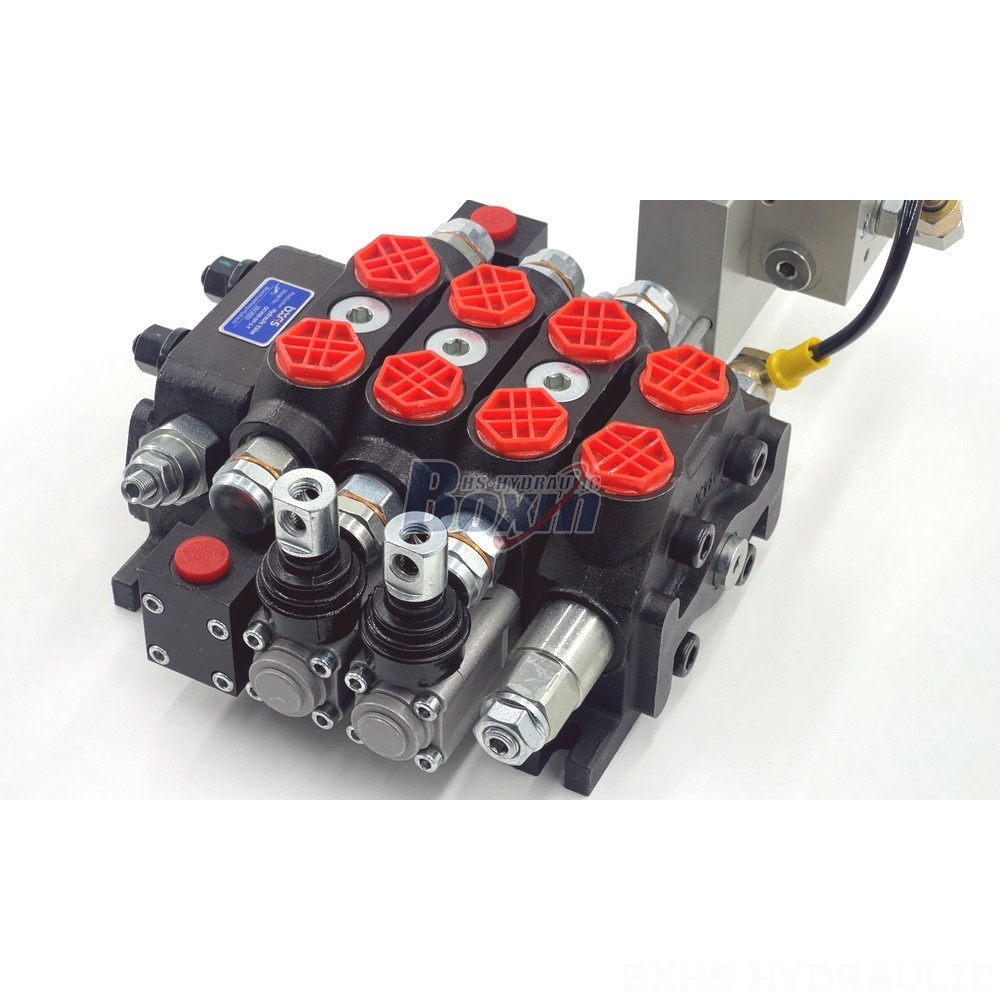

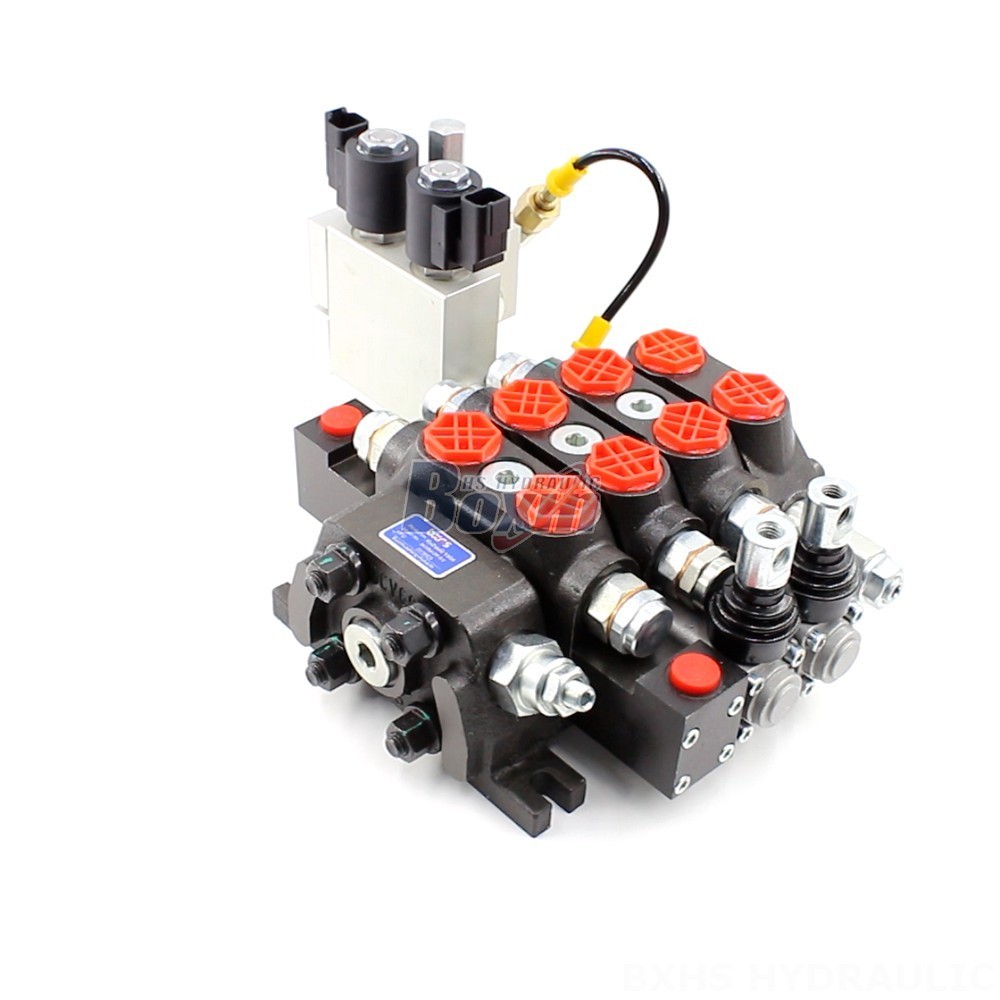

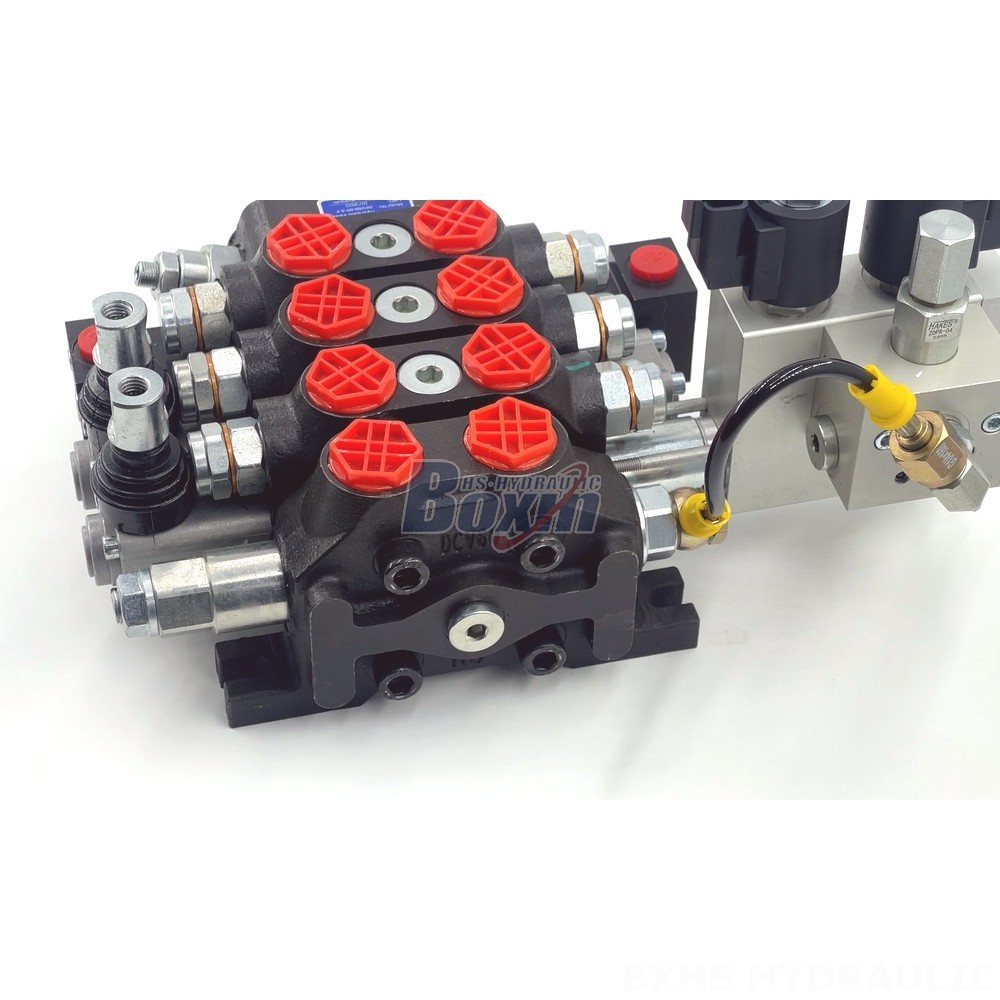

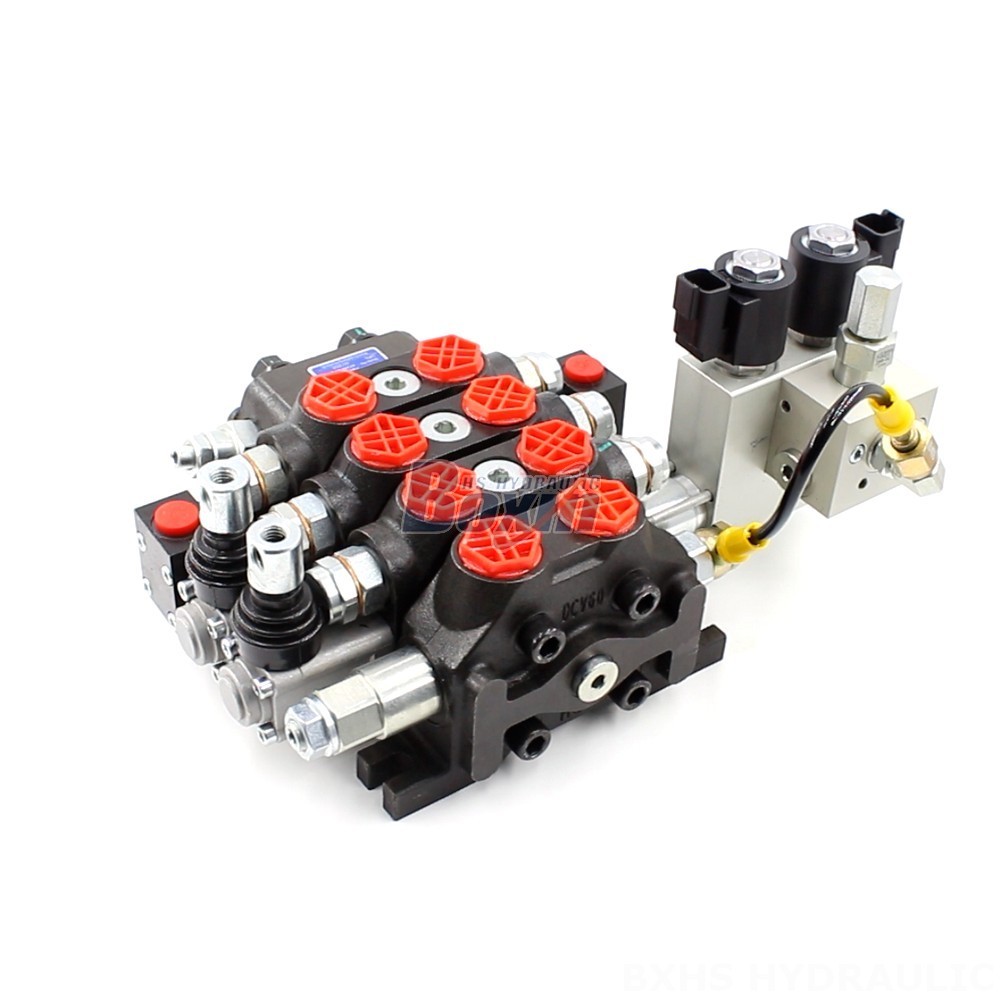

**DCV60 2-Spool Electro-hydraulic Directional Valve**
**Product Description:**
The DCV60 2-Spool Electro-hydraulic Directional Valve is a compact and reliable valve that offers precise control of hydraulic systems. It features a sectional valve structure, allowing for easy customization and integration into various applications. The valve is designed to operate within a wide viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C), ensuring optimal performance in diverse operating conditions.
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- 2-spool design for versatile flow control
- Sectional valve structure for easy customization
- Rated flow of 60 L/min for efficient system operation
- Maximum pressure of 350 bar for demanding applications
- Wide operating viscosity and temperature ranges for adaptability
- Compact design for space optimization
- Suitable for various industrial applications, including material handling, construction, agriculture, and industrial vehicles
**Applications:**
The DCV60 2-Spool Electro-hydraulic Directional Valve is widely used in hydraulic systems of:
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
