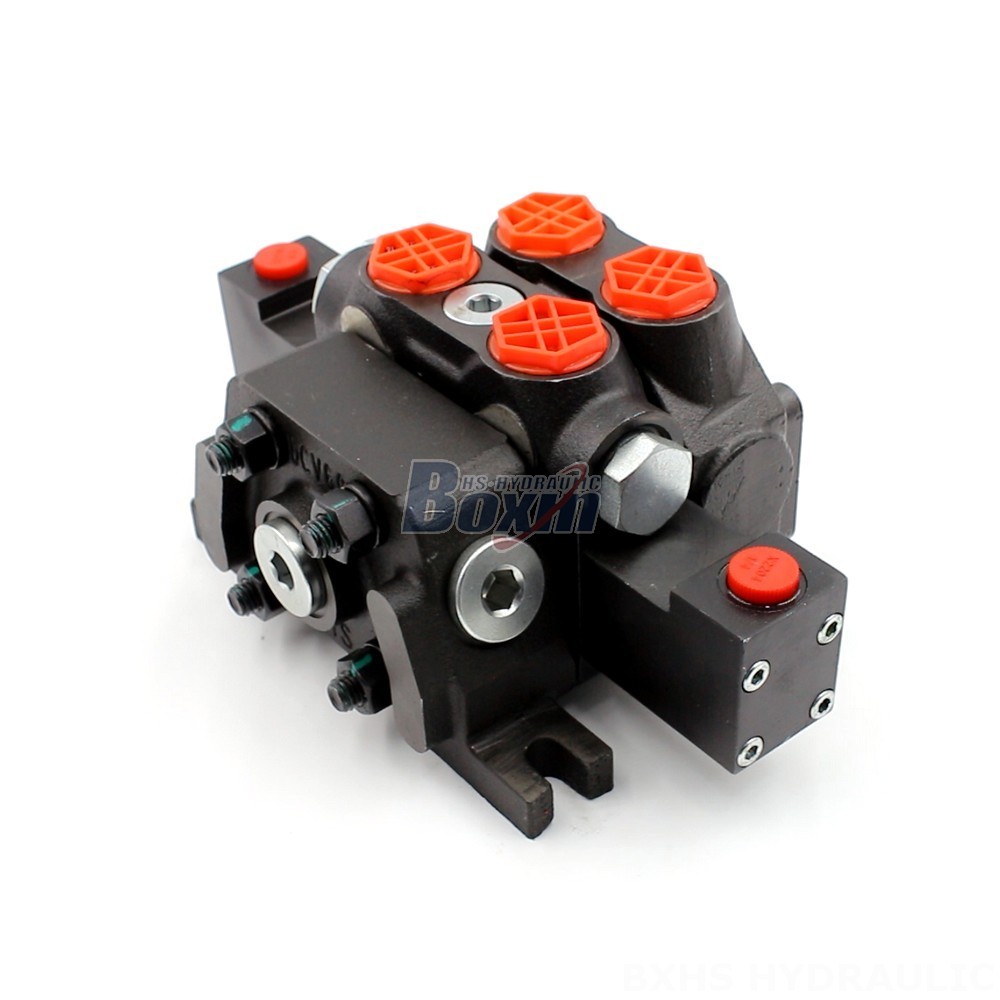

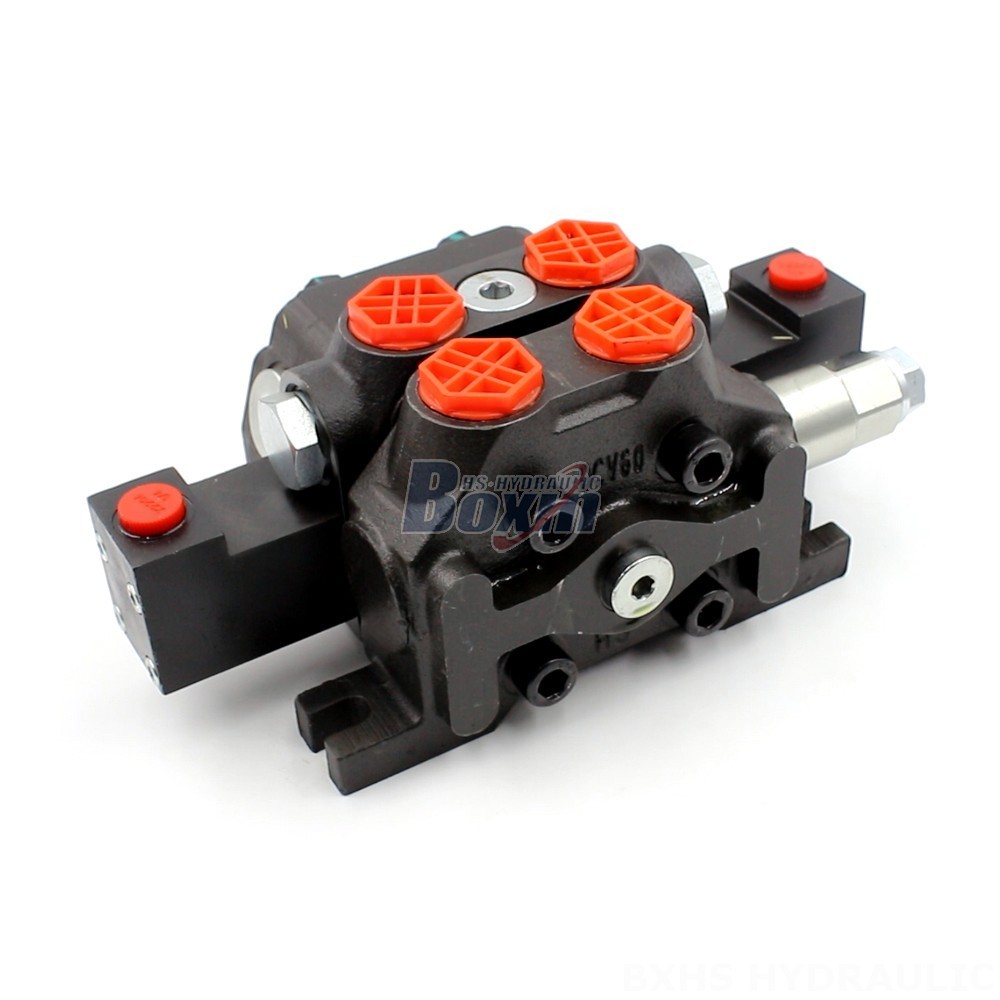

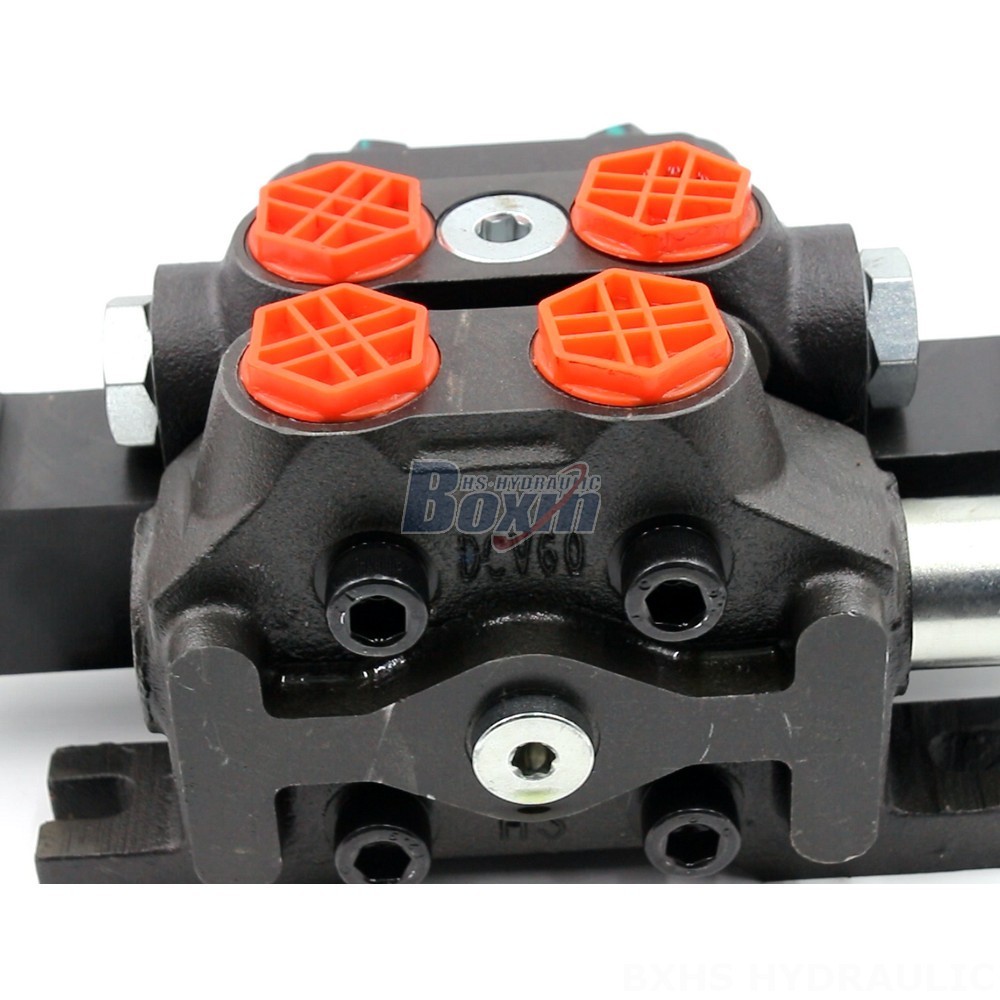

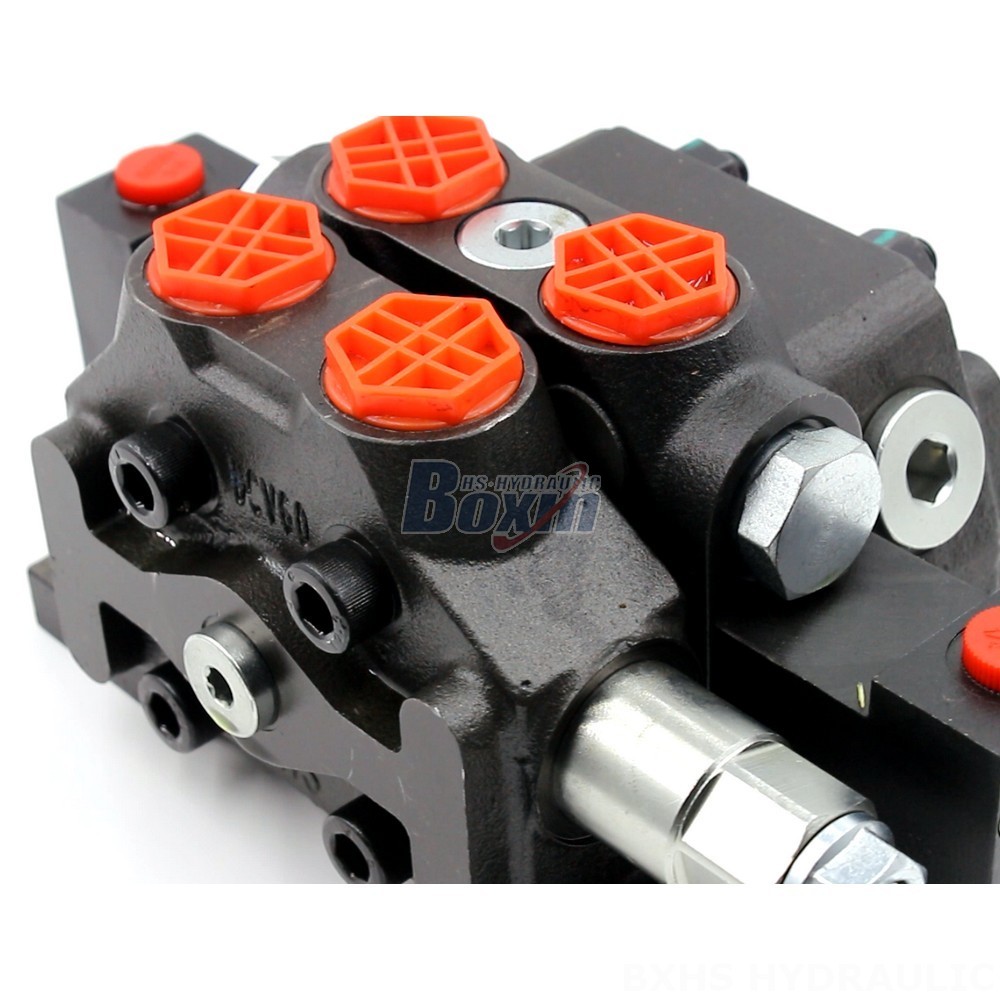

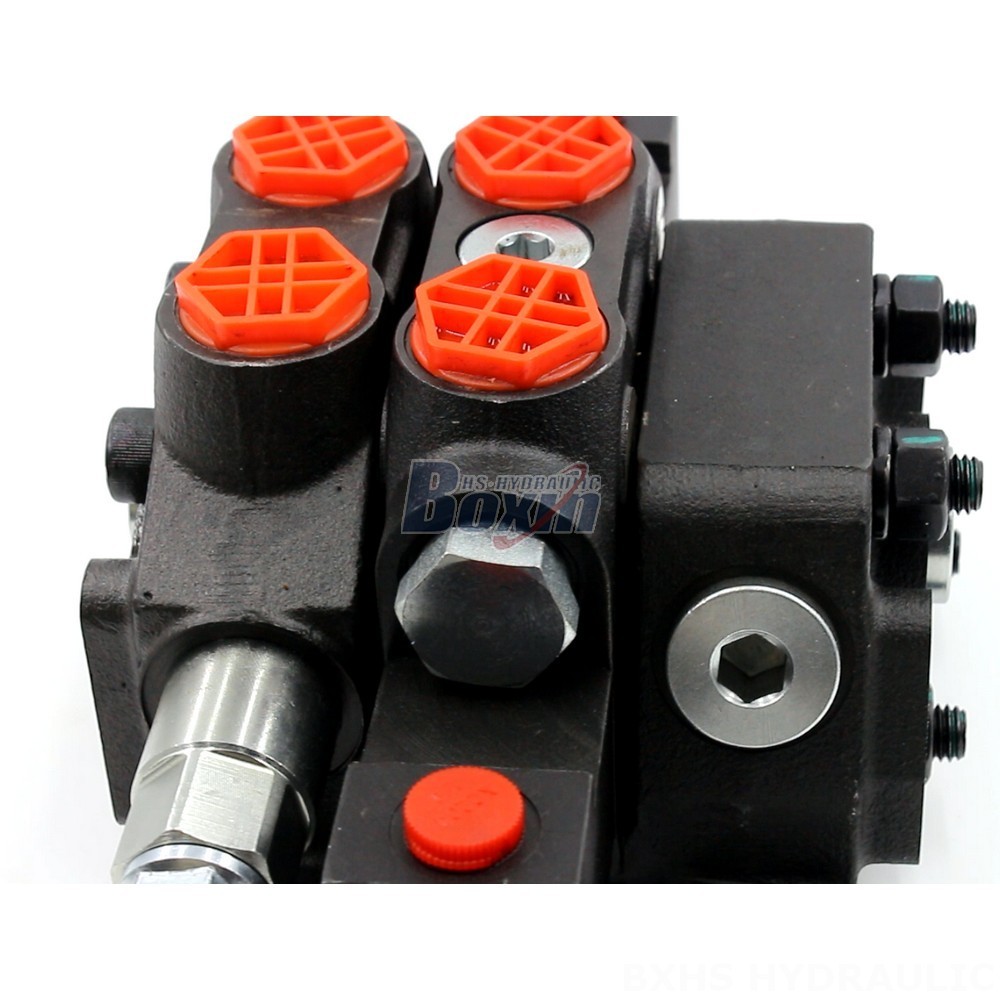

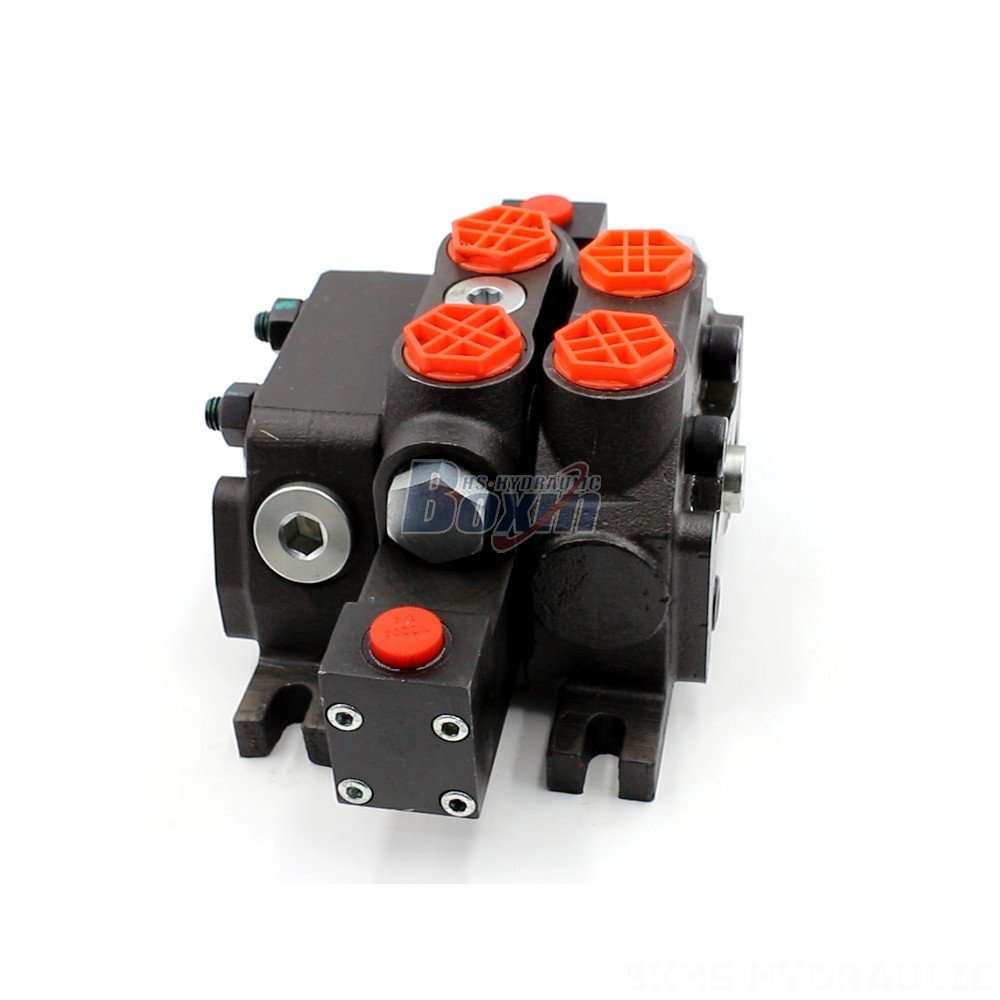

The DCV60-G34 is a high-performance hydraulic directional control valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. This 1-section sectional valve features a rated flow of 60 L/min, a maximum pressure of 350 bar, and an operating viscosity range of 15-75 mm²/s. It is suitable for use in telehandlers, forklifts, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, harvesters, seeding machines, forestry trailers, and balers.
| DCV60-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och manuell, Solenoid och Joystick, Manuell och Joystick, Elmotor |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 60 l/min (15,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi), 350 bar (5100 psi) |
| Inloppsport | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The DCV60-G34 is a robust and reliable hydraulic directional control valve designed for demanding applications. It features a compact design and a high flow rate, making it ideal for use in heavy-duty equipment. The valve's sectional construction allows for easy maintenance and repair. It is designed to operate in a wide range of ambient temperatures and is compatible with a variety of hydraulic fluids. The DCV60-G34 is available in a variety of configurations to meet the specific needs of your application.
