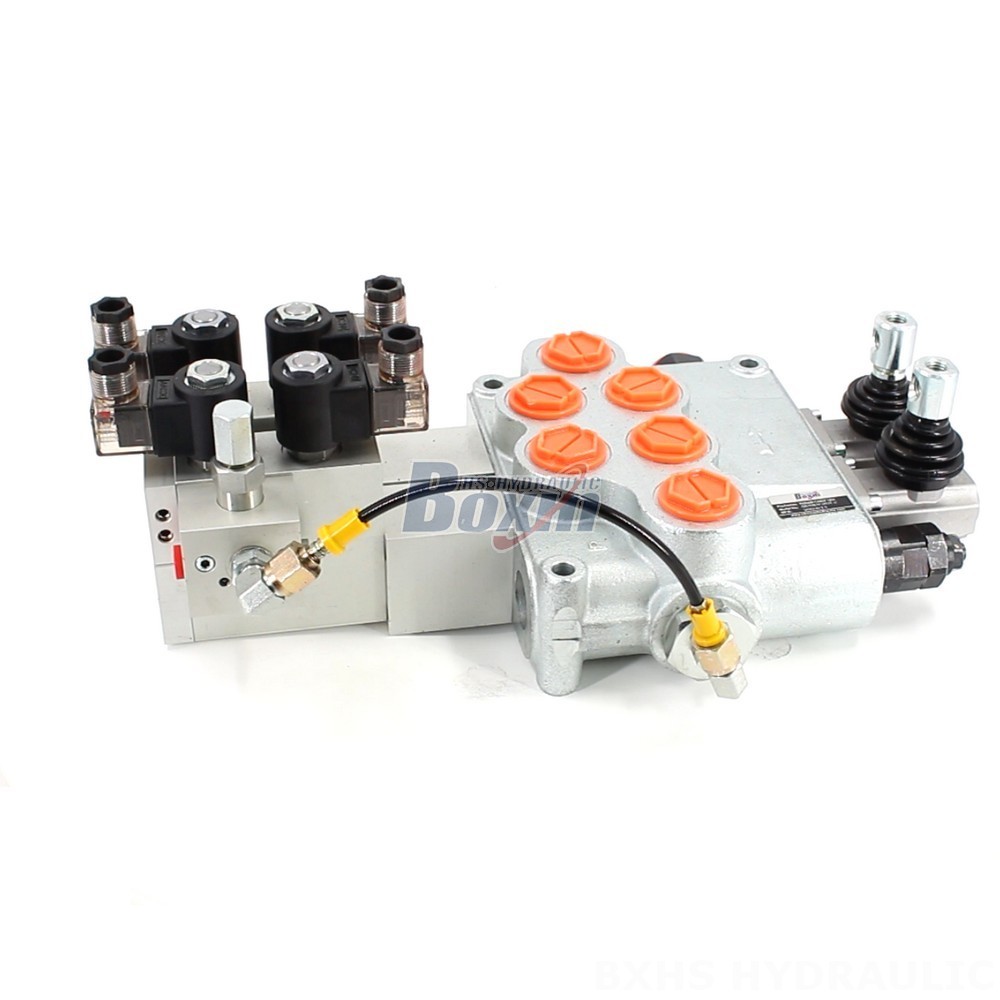

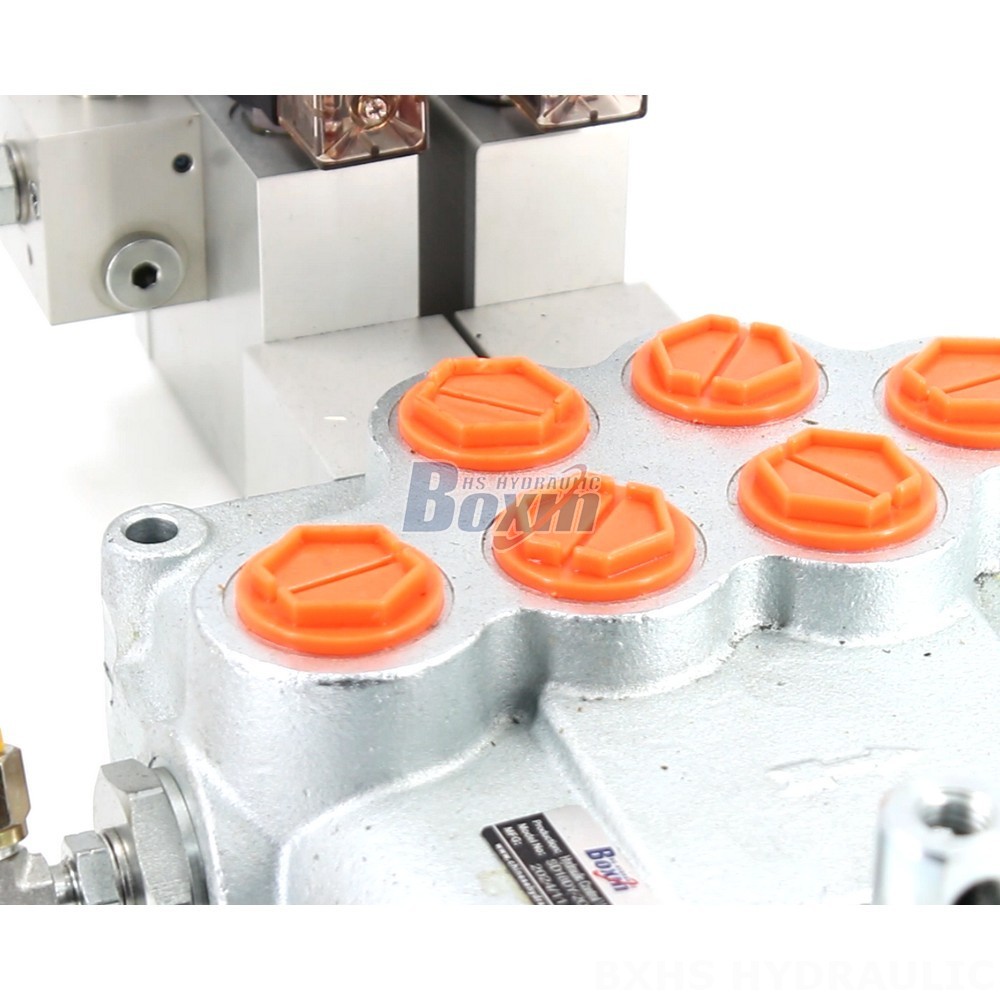

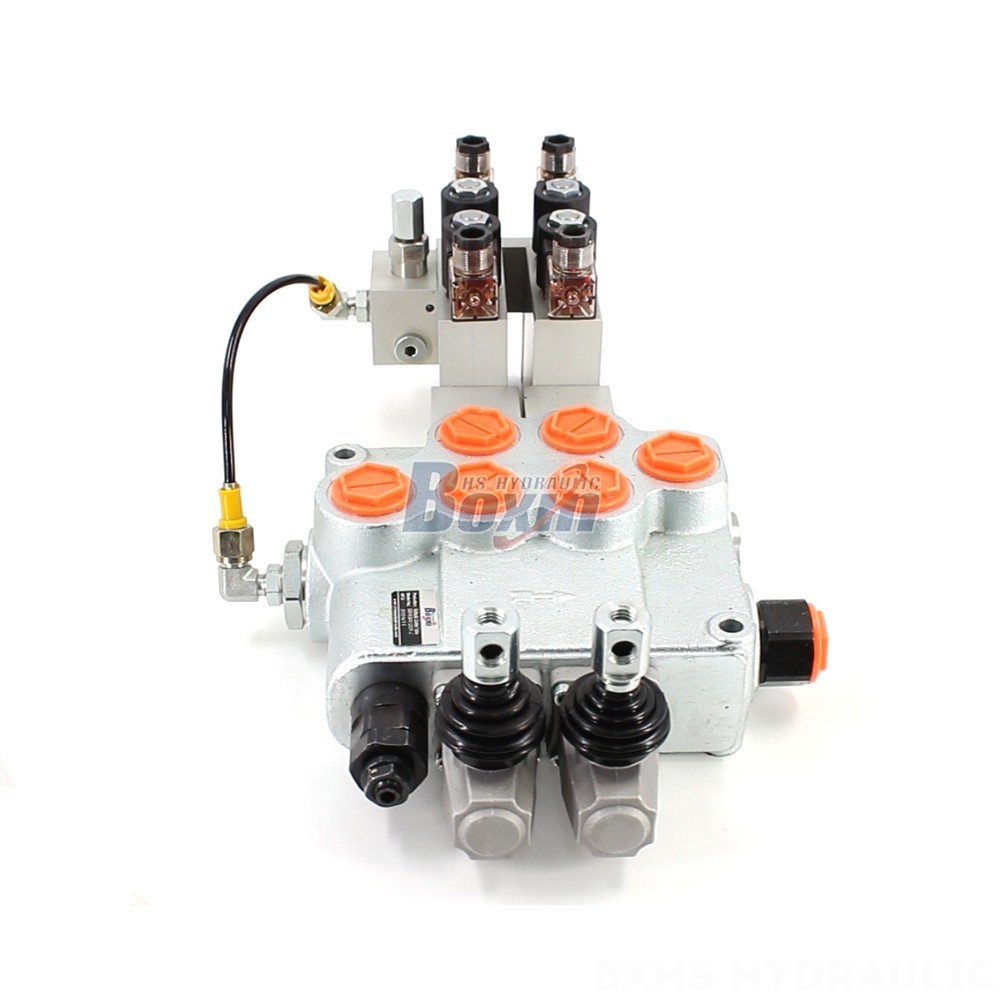

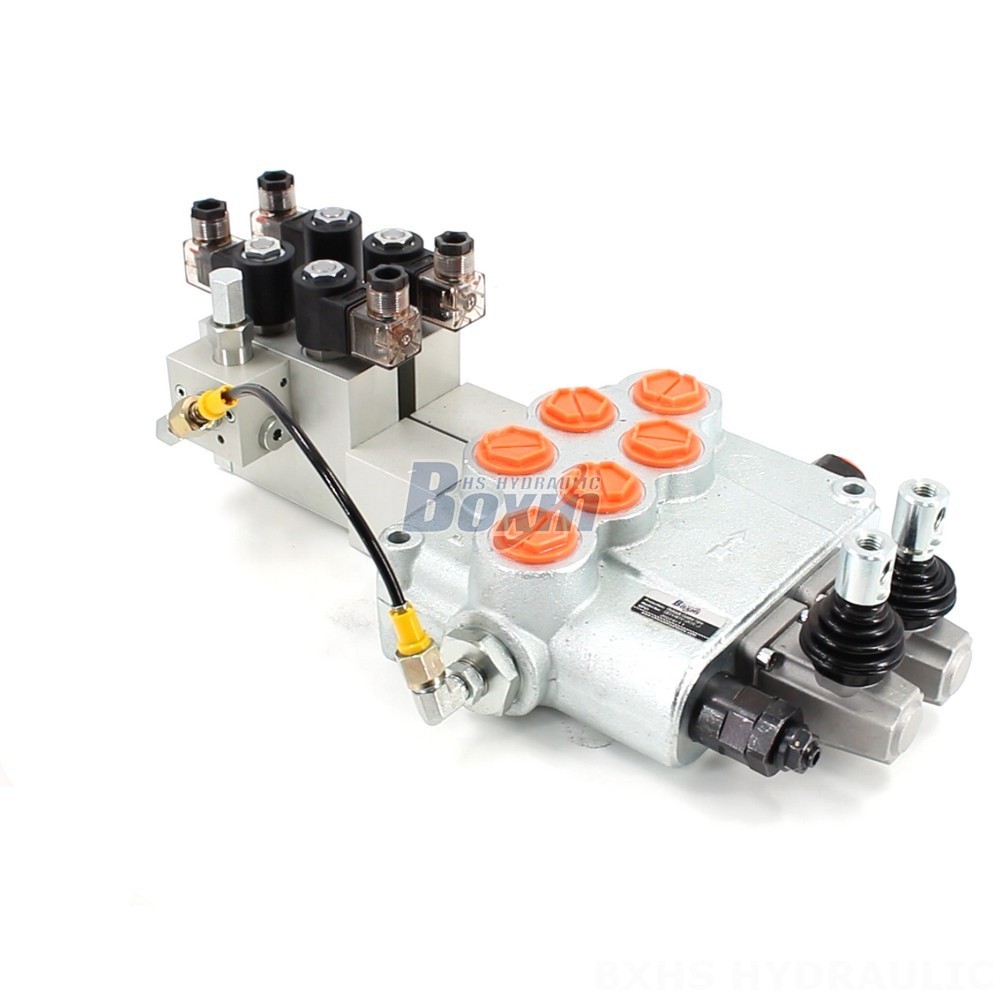

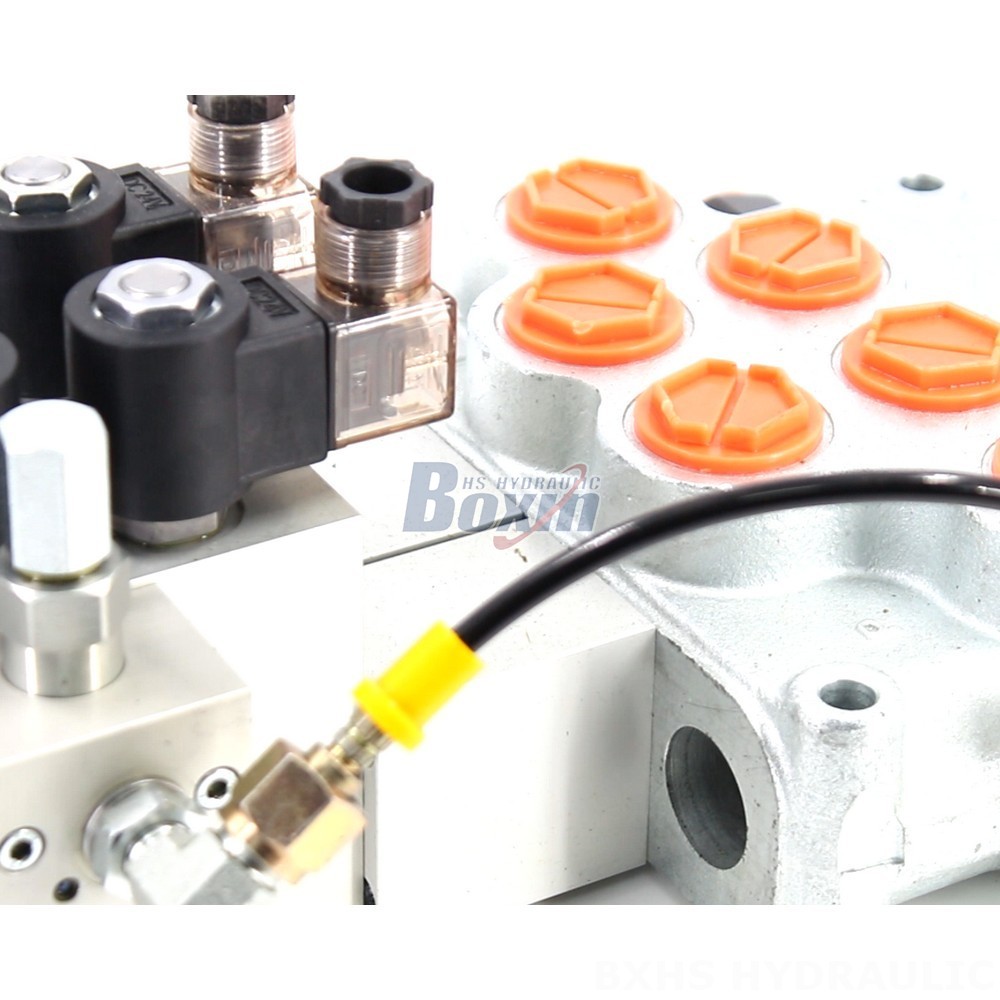

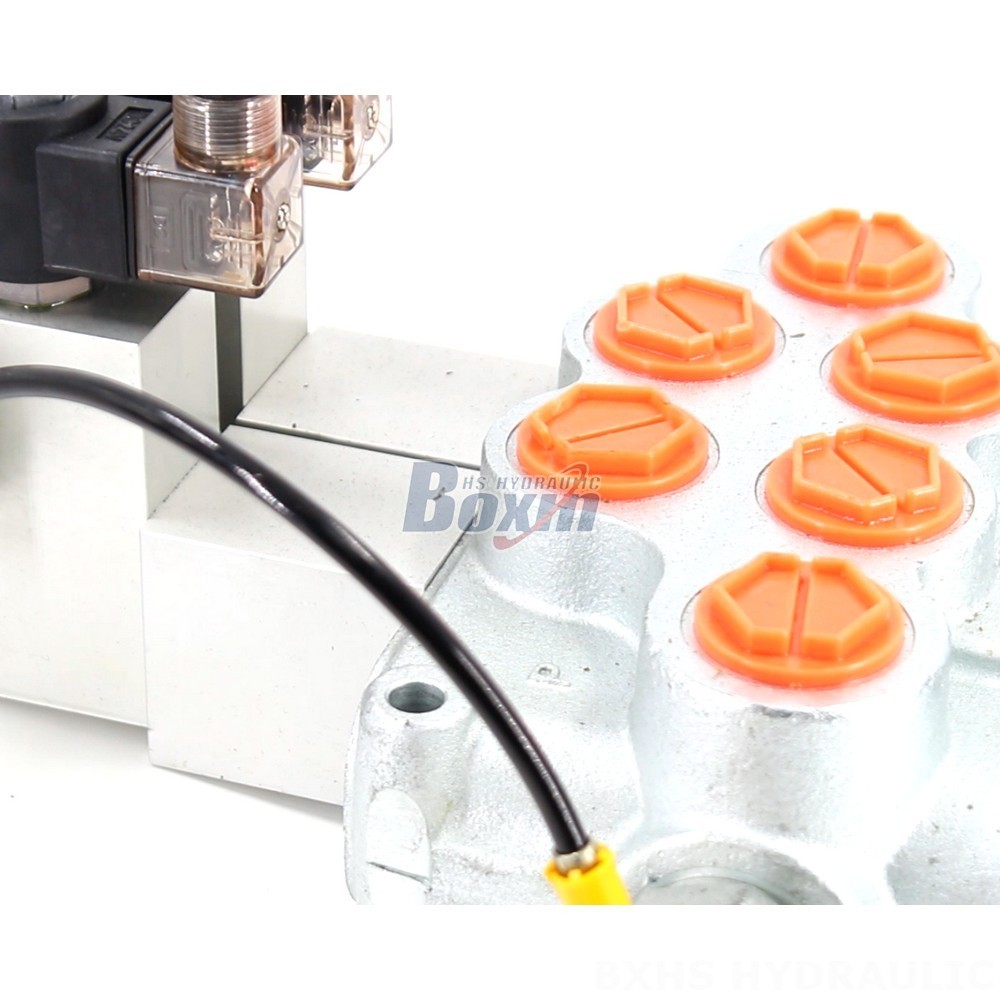

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Kontrollmetod:Elektrohydraulisk

Spole:2 ventilsektioner

Nominellt flöde:160 l/min (42,2 US gpm)

Maximalt tryck:315 bar (4600 psi)

Inloppsport:G1

Utloppsport:G1

Portstorlek:G1

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:SD18-serien Monoblockriktningsventil

Förpackningsstorlek:21*47*32

Bruttovikt:22.50 kg

Tillgänglighet: I lager

498 Vyer letar efter den här produkten

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves drawing image

Direct from factory, the SD18 electric 2-spool monoblock directional valve offers high performance (160 L/min, 315 bar) and wide operating temperature range (-40°C to +80°C). Ideal for construction, industrial vehicles, and agriculture applications.

SD18-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner
Nominellt flöde 160 l/min (42,2 US gpm)
Maximalt tryck 305 bar (4400 psi)
Inloppsport G1/2, G1, SAE 16
Utloppsport G1, SAE 16
Portstorlek G1, SAE 16
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner
Strukturtyp Monoblockventil
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Driftsviskositetsintervall 12 - 400 mm²/s (12 cSt till 400 cSt)

We are a leading manufacturer of high-quality hydraulic products, supplying globally. Our SD18 Series Electric 2-Spool Monoblock Directional Valves are designed for demanding applications in construction and earthmoving, industrial vehicles, and agriculture. These robust valves boast a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 315 bar (4600 psi), ensuring reliable performance even under extreme conditions.

**Key Features:**
* **Electric Control:** Precise and efficient operation.
* **Monoblock Structure:** Compact design and high durability.
* **High Flow Rate:** 160 L/min (42.2 US gpm).
* **High Pressure Capability:** 315 bar (4600 psi).
* **Wide Operating Temperature Range:** -40°C to +80°C (-40°F to +176°F).
* **Suitable for:** Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders, Wheel Loaders, Backhoe Loaders, Tractors, Front-End Loaders, Harvesters, and Telehandlers.

**Our Services:**
We offer comprehensive services including manufacturing, OEM (Original Equipment Manufacturing), private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us and expand our global reach. As a **manufacturer**, we provide **factory direct** pricing and superior quality. Benefit from our **factory wholesale** options and competitive pricing. Contact us today to explore collaboration opportunities and discuss your specific needs. Experience the advantage of working directly with the **factory supplier**.
