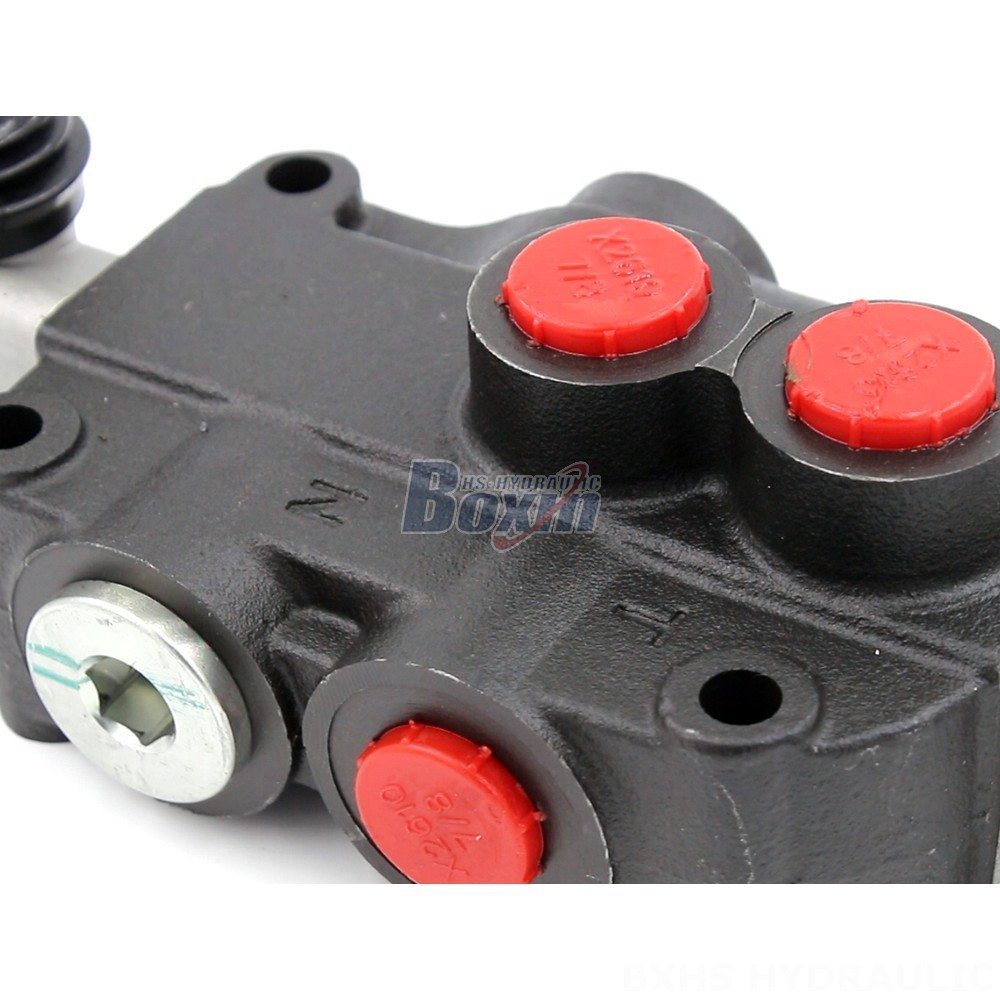

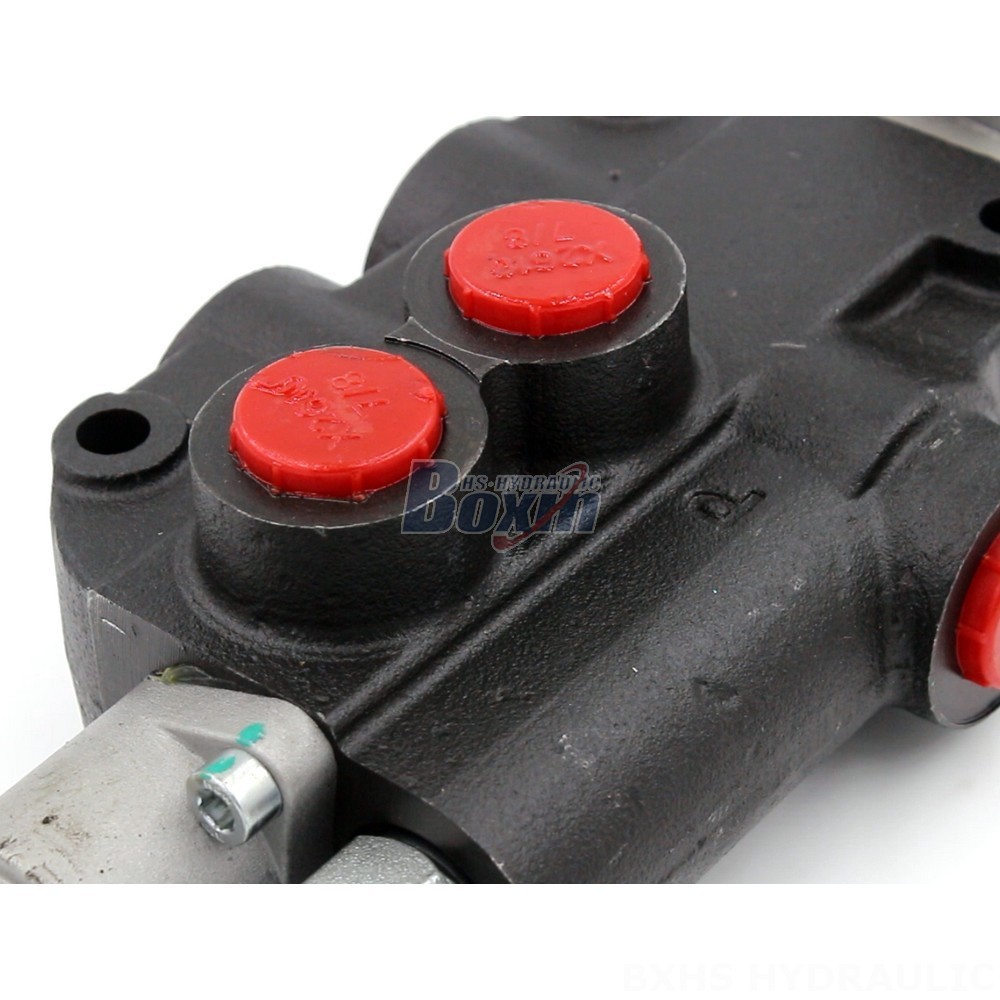

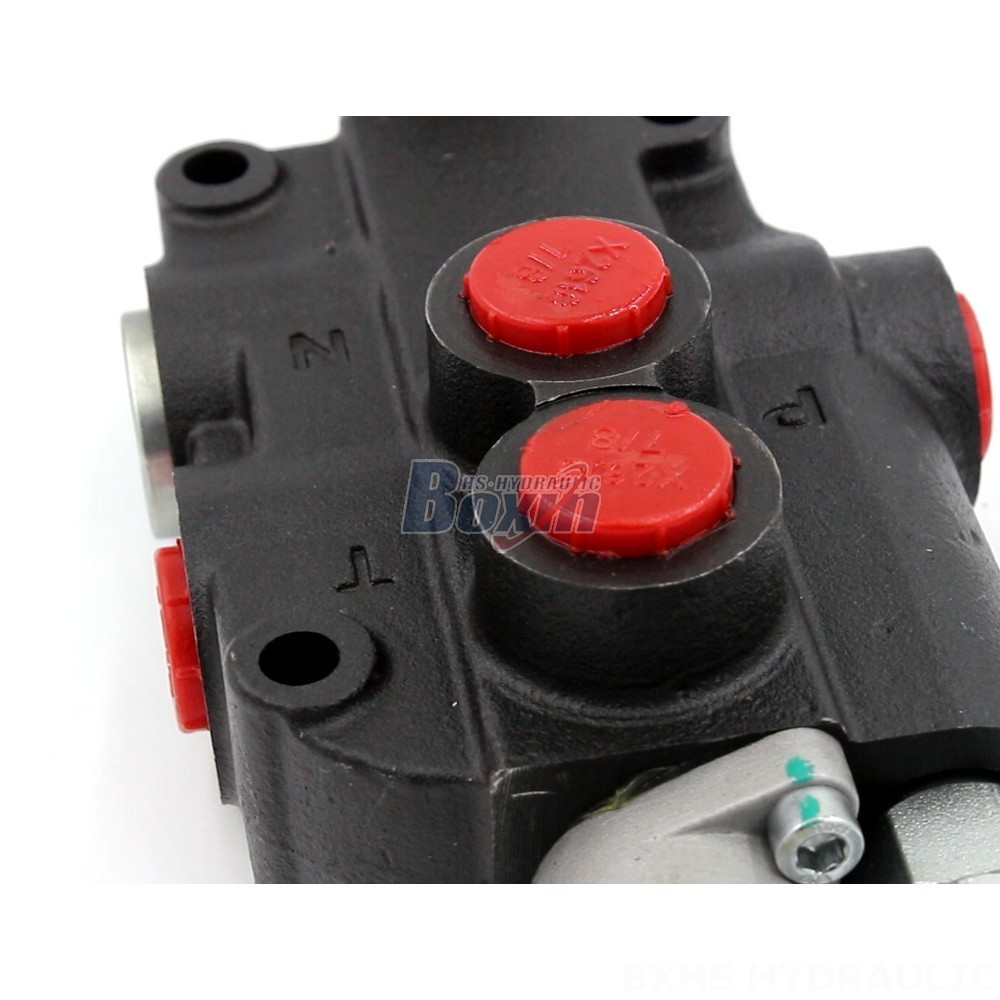

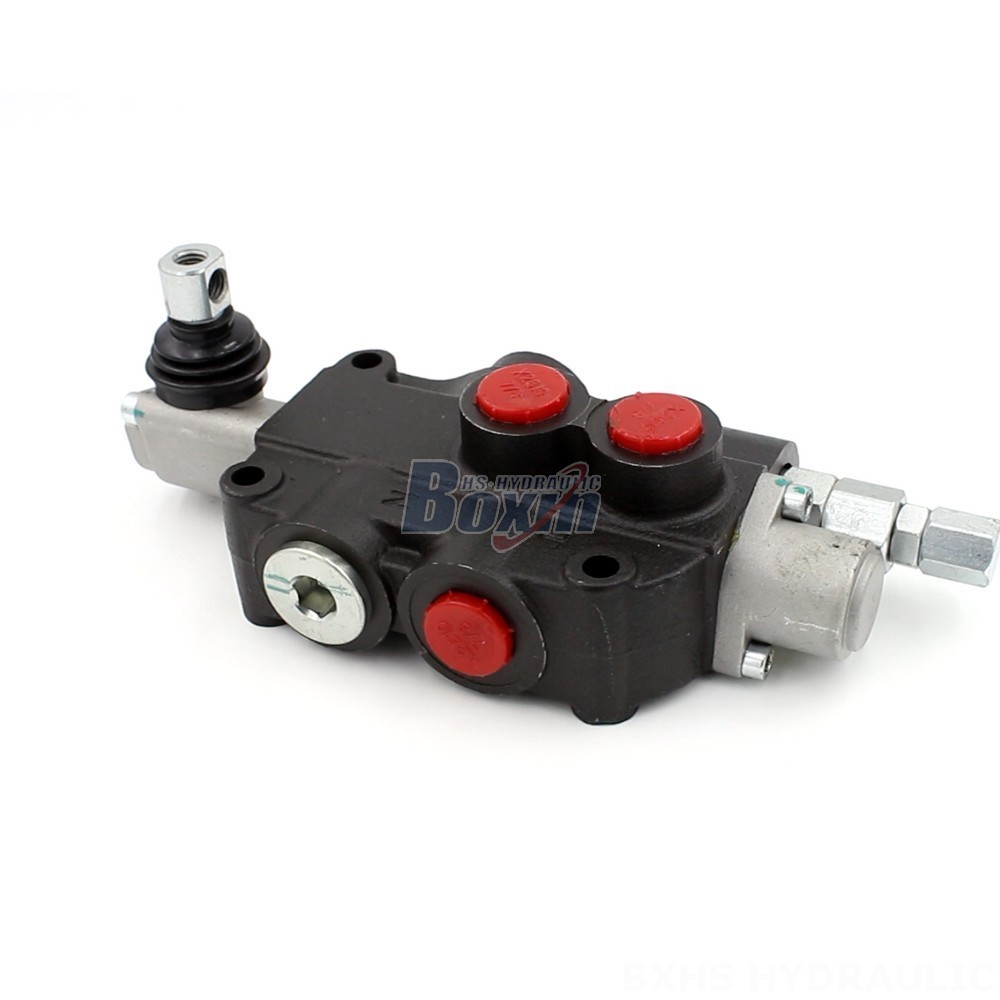

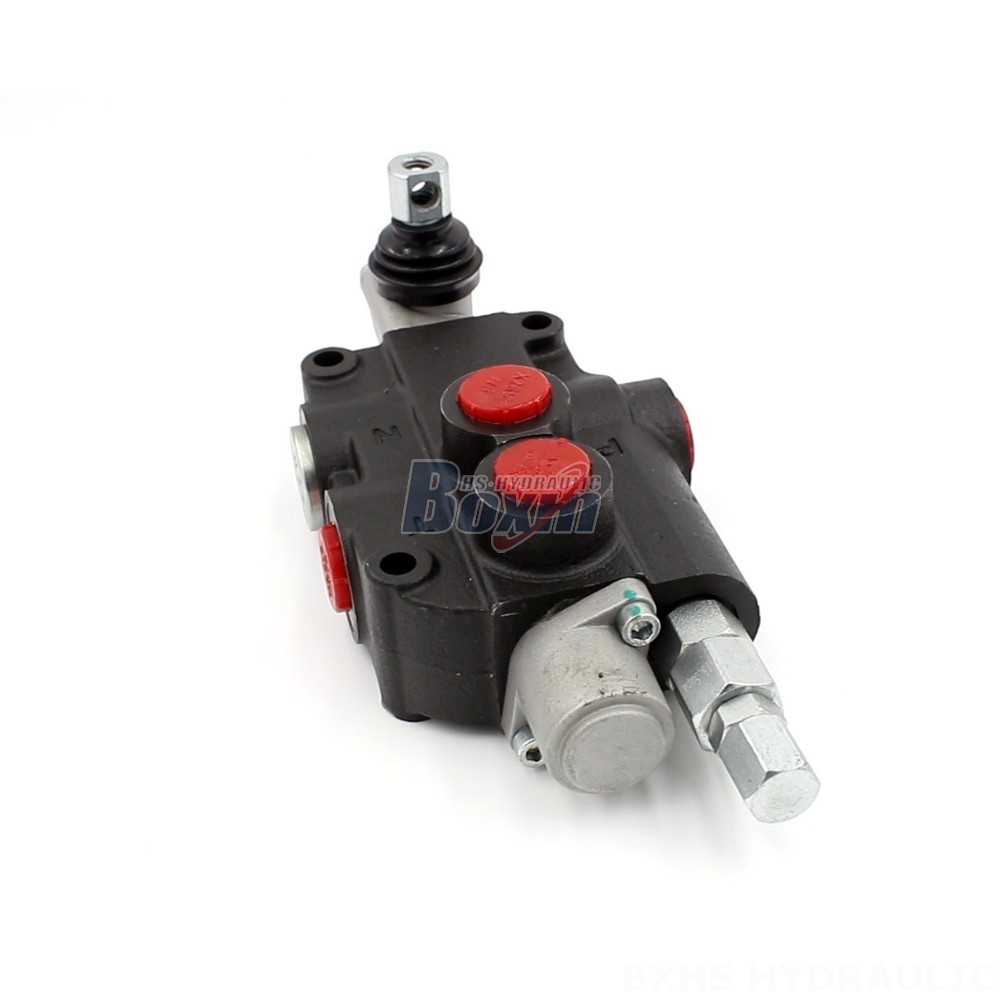

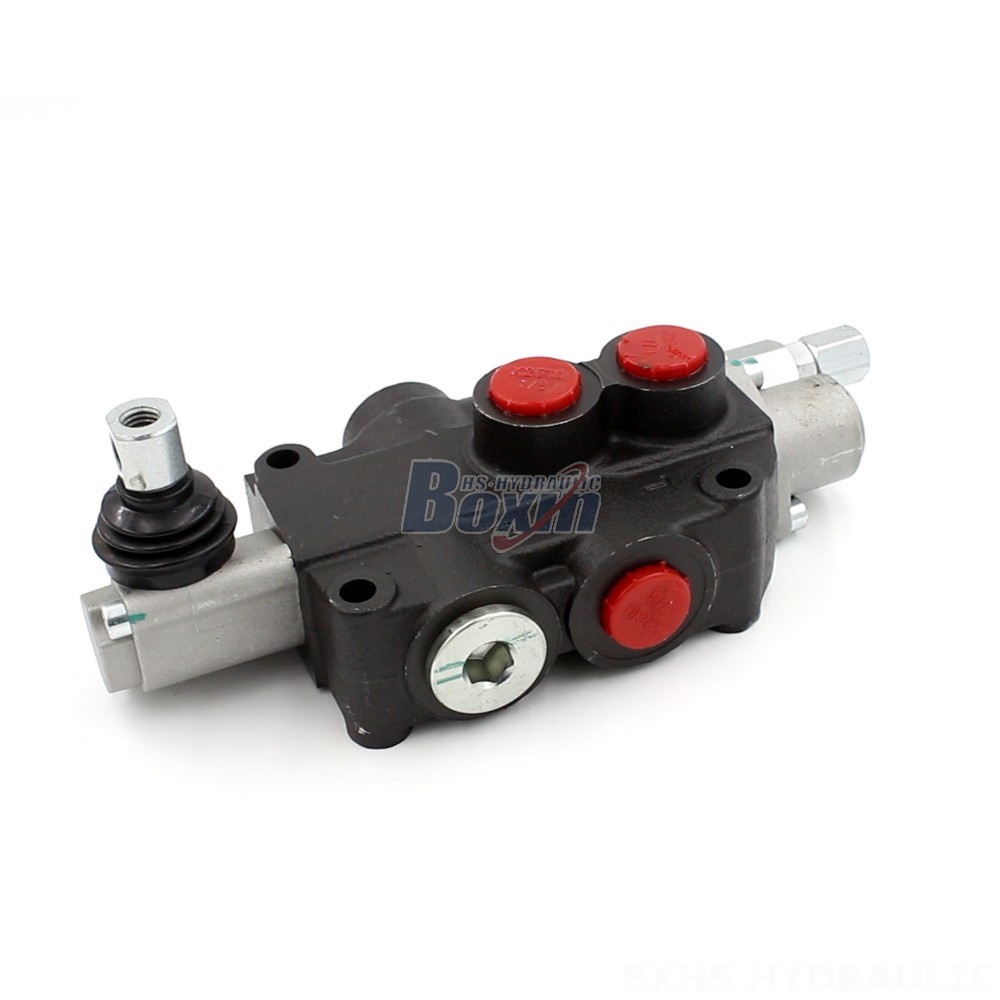

The P80-U78 Hydraulic Valve is a high-performance, monoblock valve designed for use in a wide range of industrial applications. It features a manual control method, a rated flow of 80 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. The valve is also designed to operate in a wide ambient temperature range of -40°C to +80°C.
| P80-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 80 l/min (21,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U78 Hydraulic Valve is manufactured to the highest quality standards and is backed by our comprehensive warranty. It is the perfect choice for OEMs and end-users looking for a reliable and cost-effective hydraulic valve. We offer a variety of customization options to meet your specific needs, including different port sizes, mounting options, and spool configurations. Contact us today to learn more about the P80-U78 Hydraulic Valve and how it can benefit your application.
