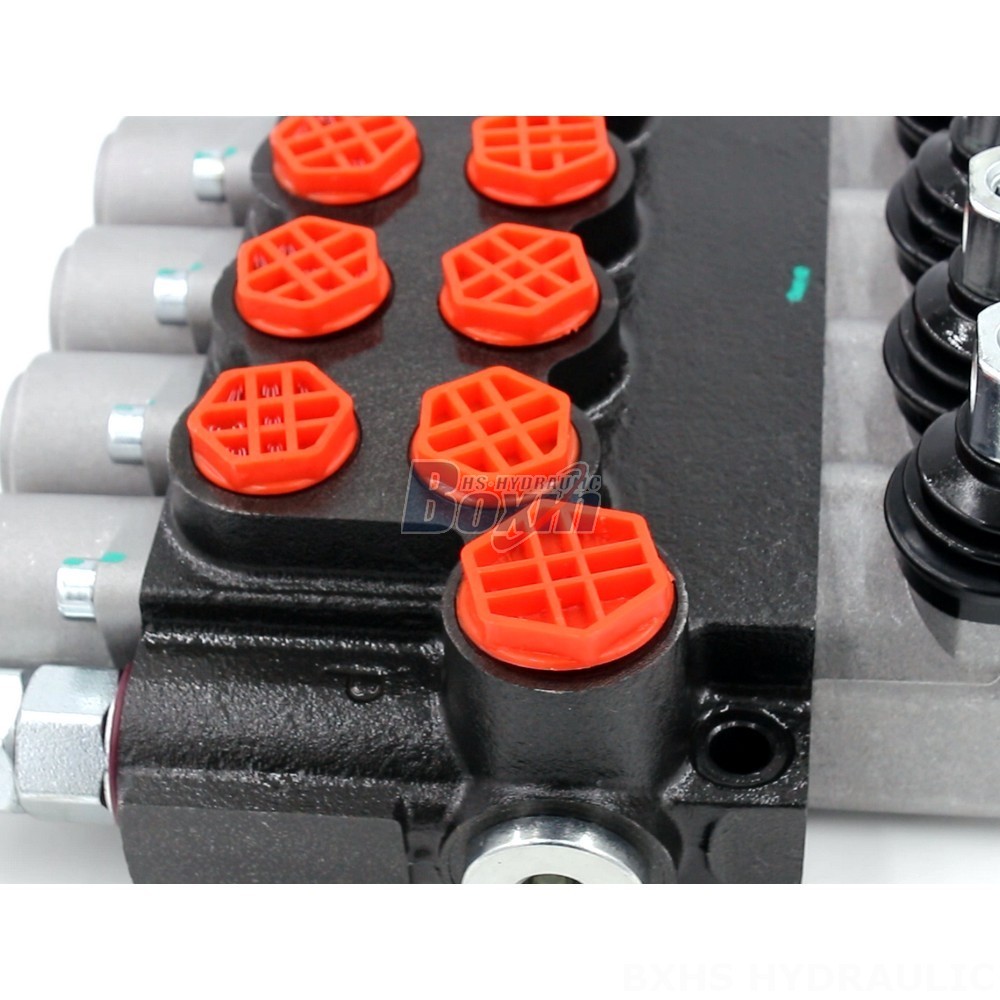

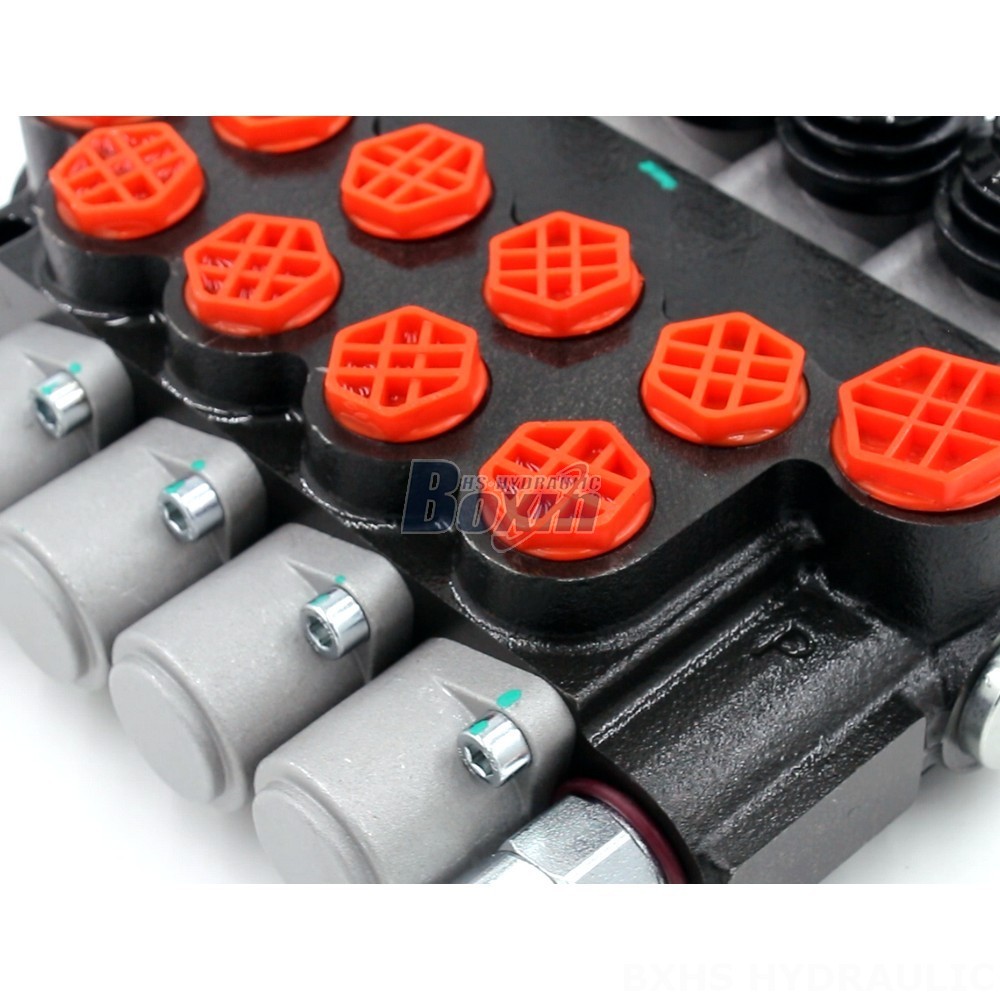

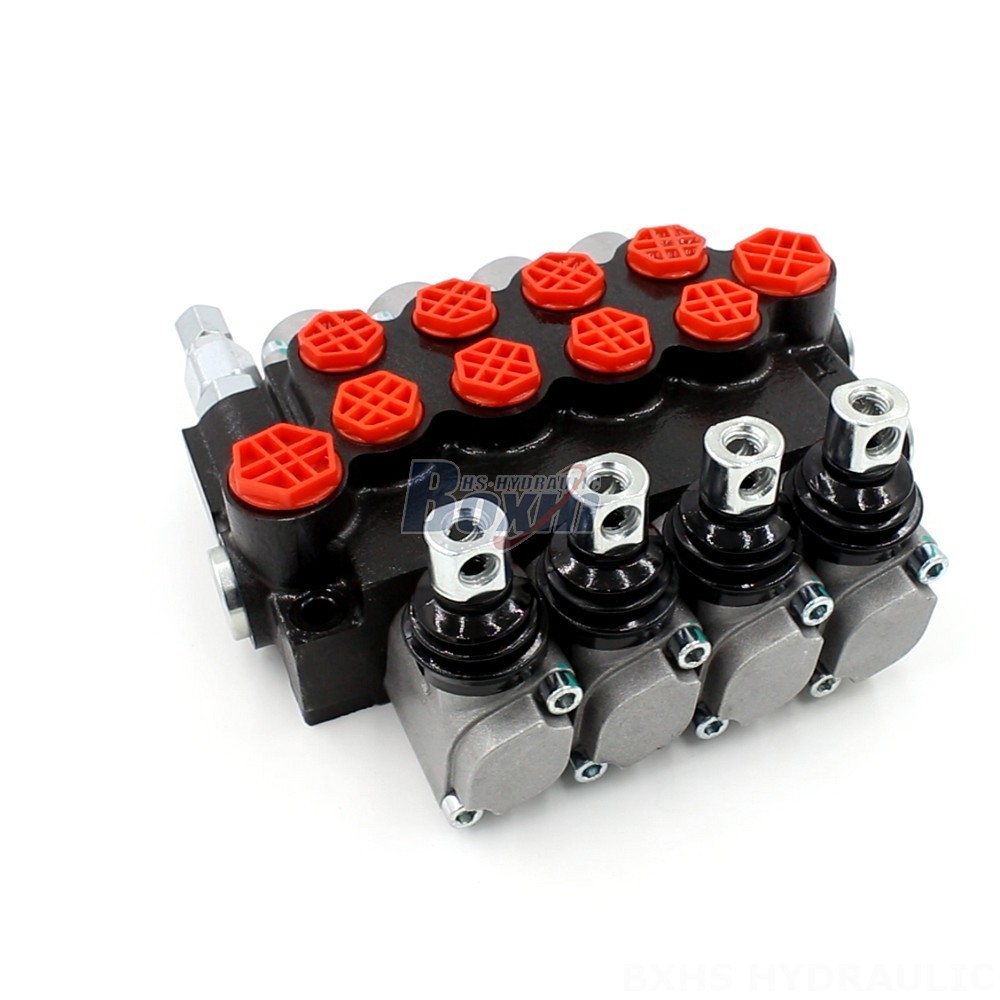

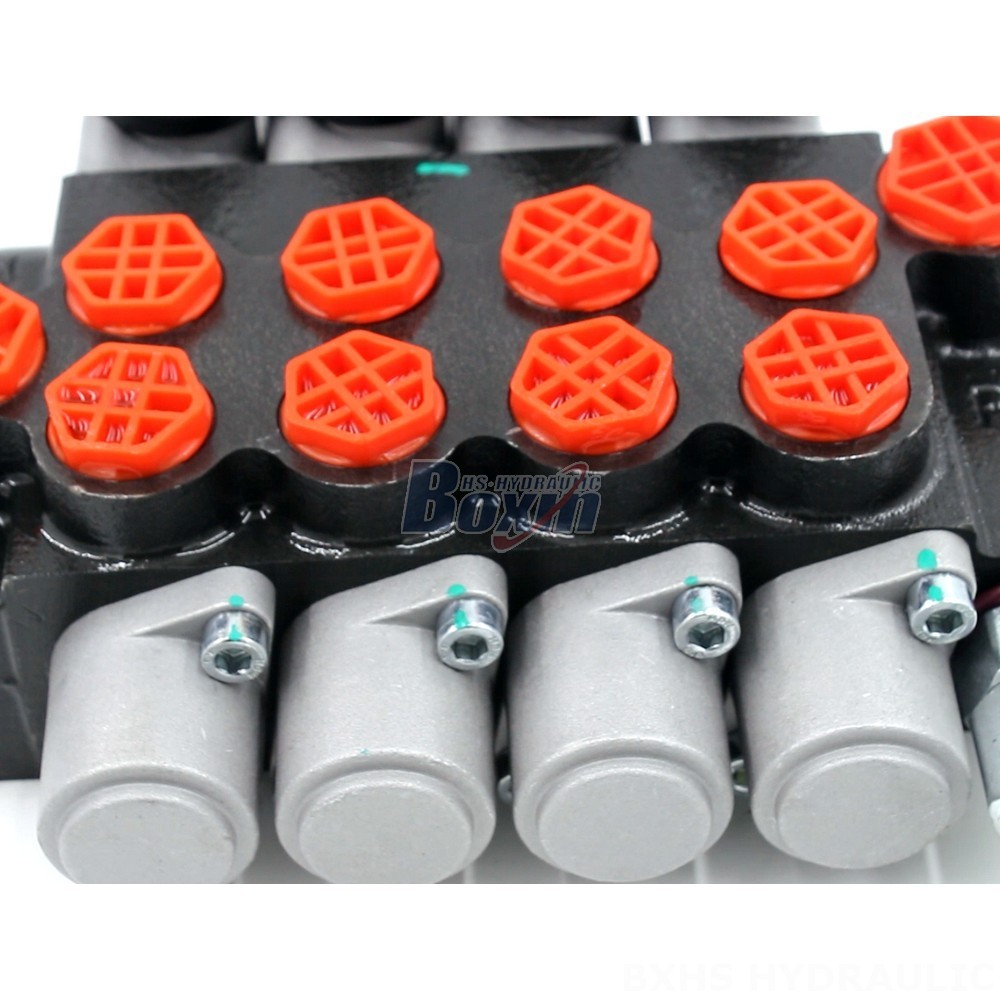

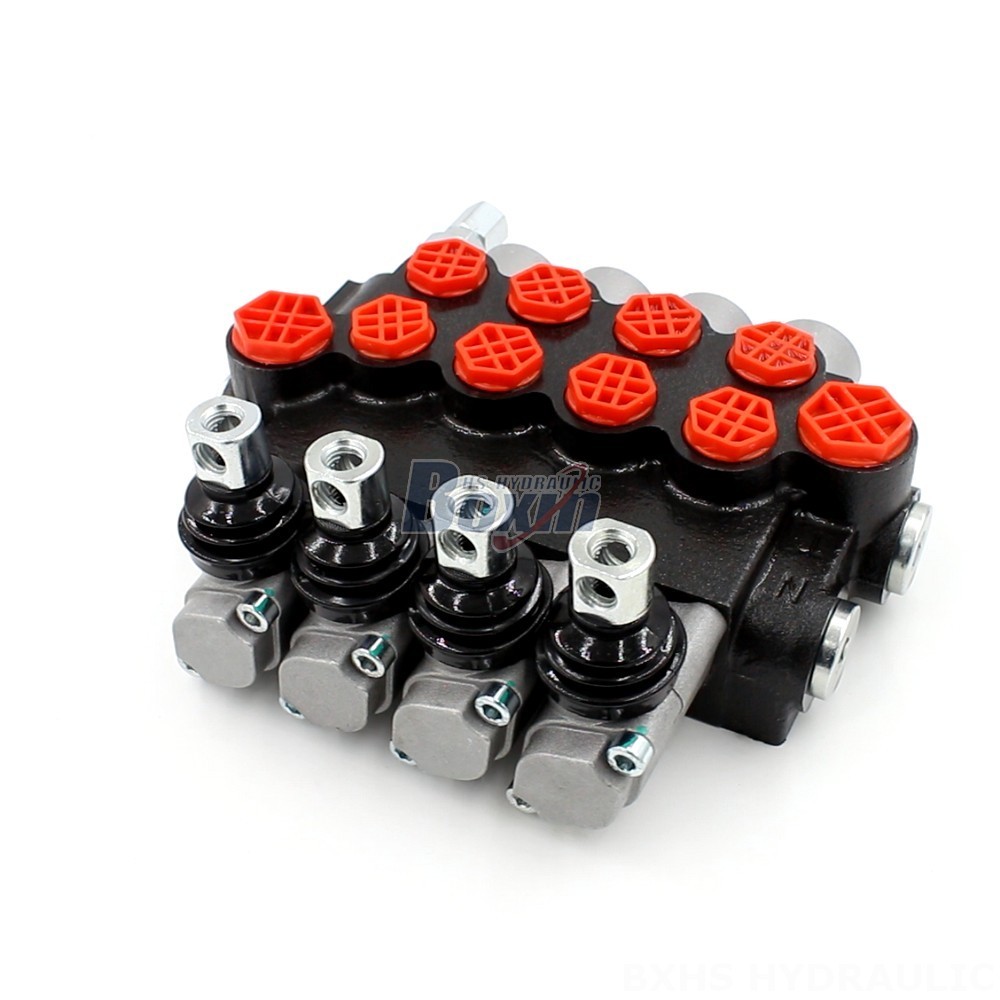

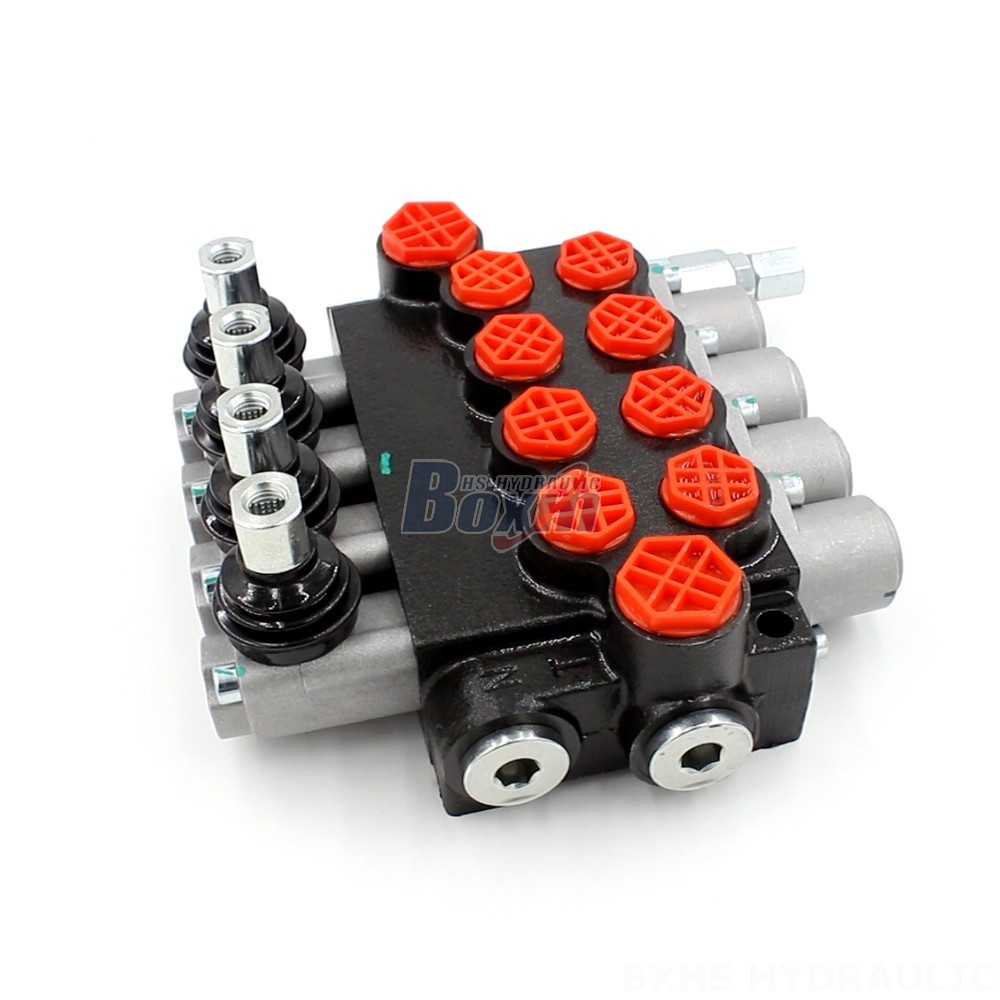

The P40-G12-G38-OT Directional Control Valve is a 4 section, 4 spool, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is manually controlled and has an operating viscosity range of 15 - 75 mm²/s. The valve is suitable for use in a variety of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
* 4 section, 4 spool, monoblock valve
* Rated flow of 40 L/min (10.5 US gpm)
* Maximum pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* Manual control
* Suitable for use in a variety of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles
**Applications:**
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
