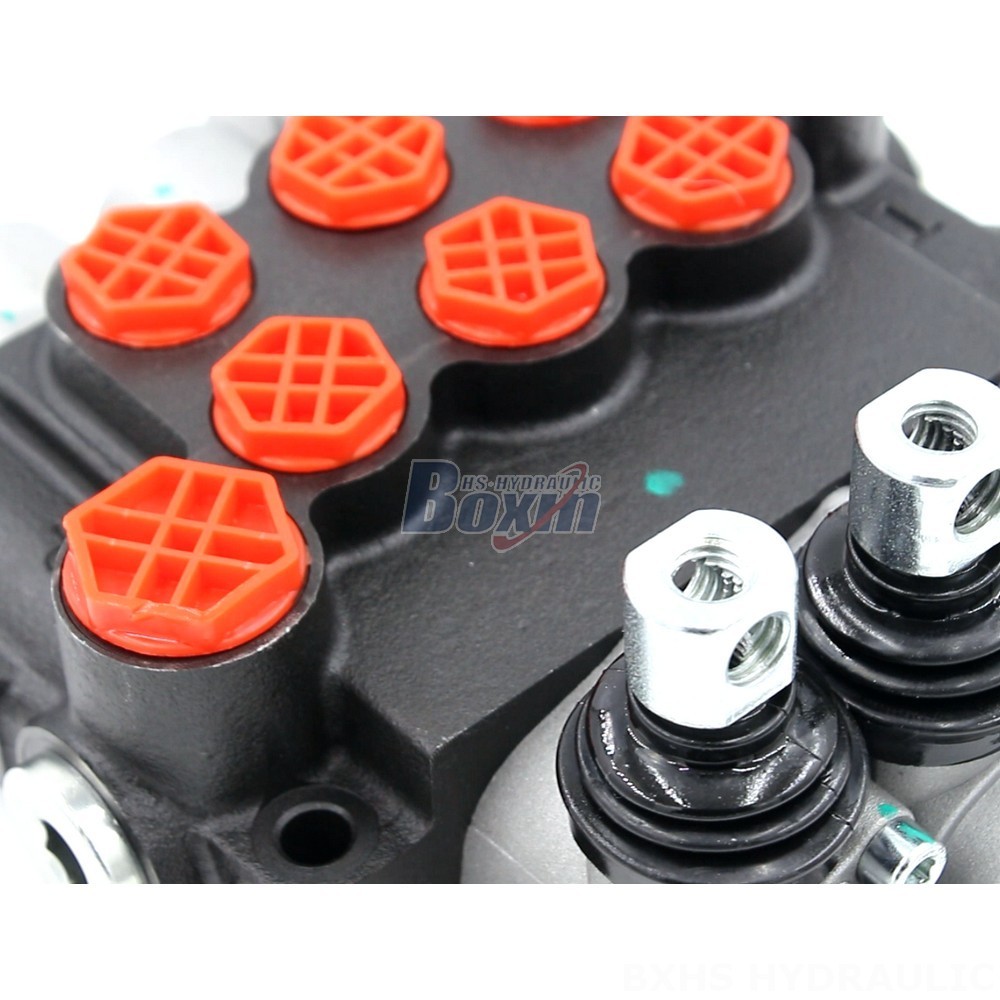

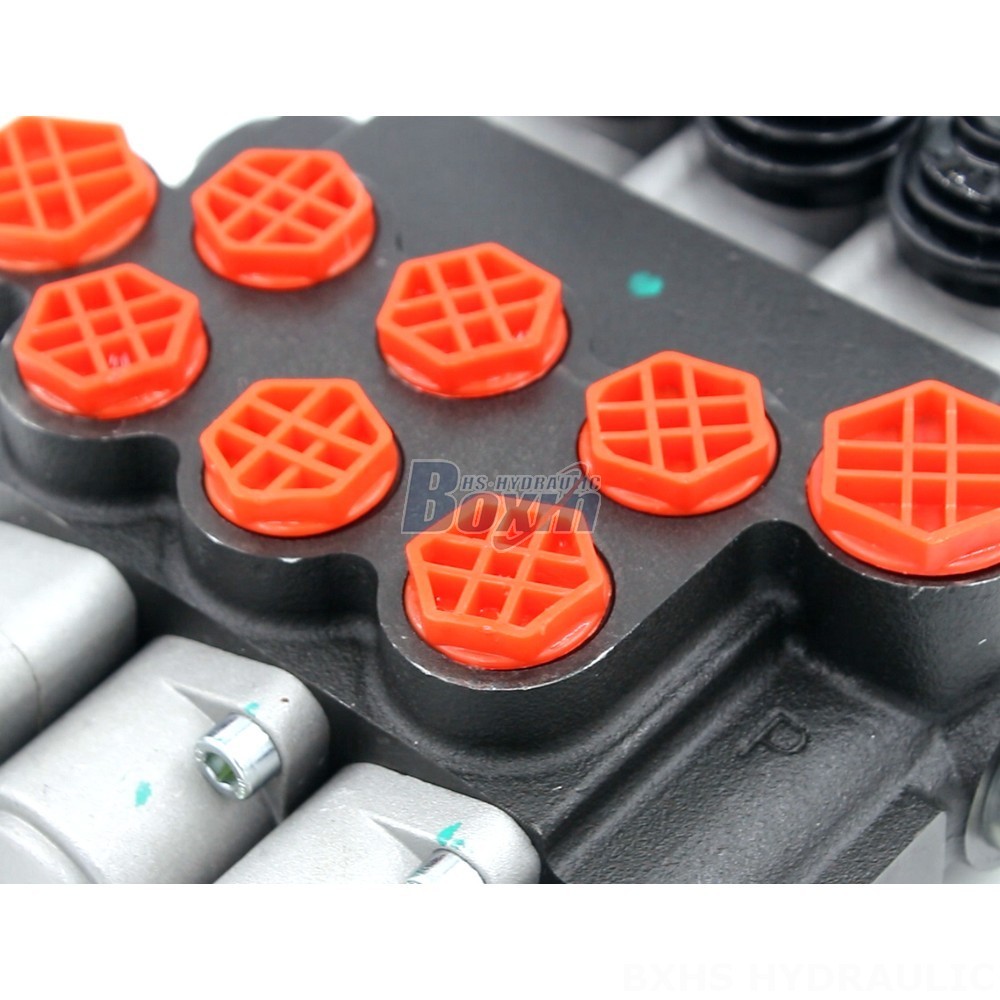

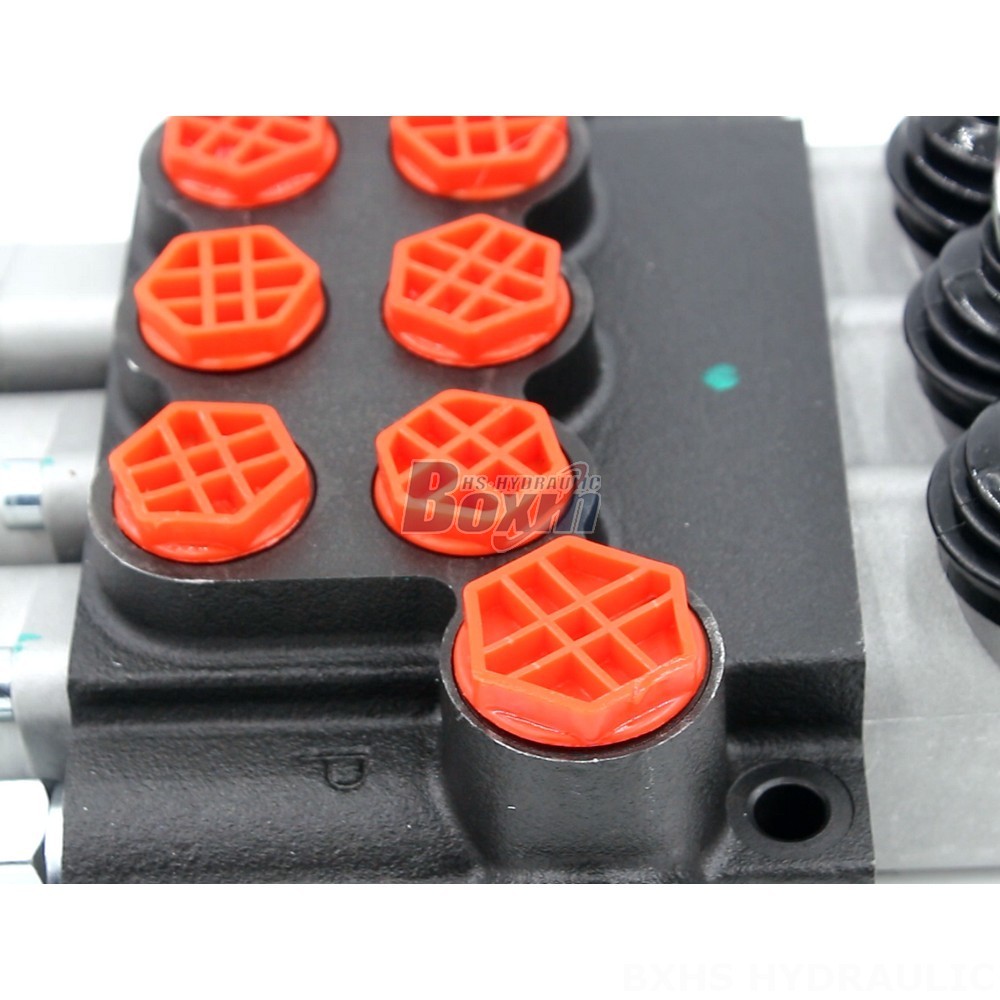

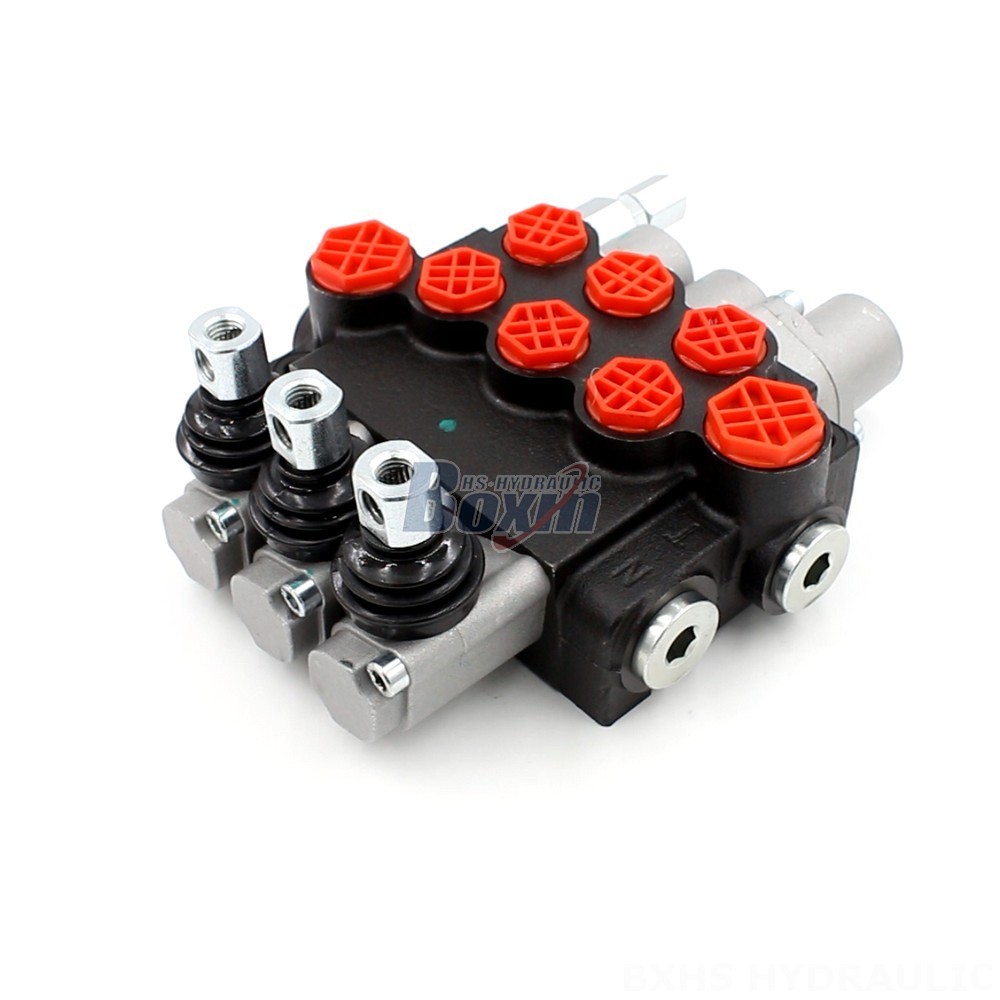

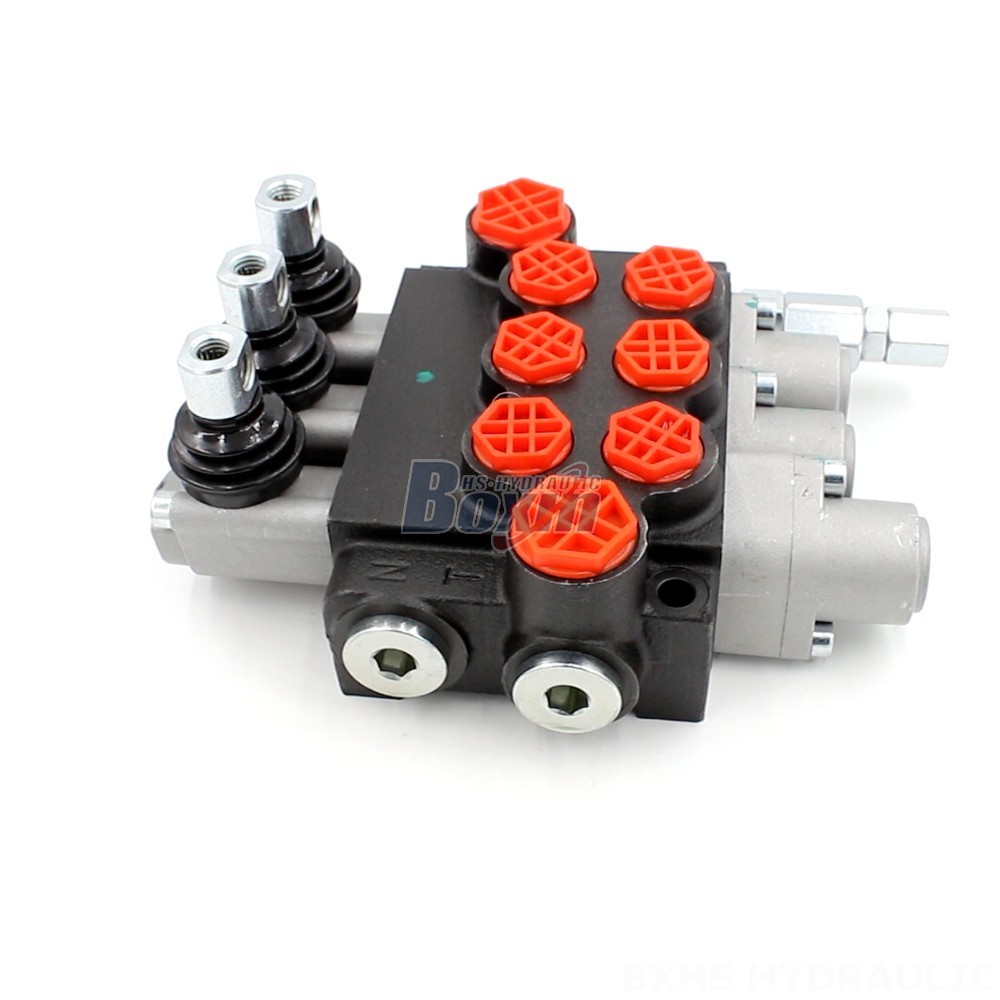

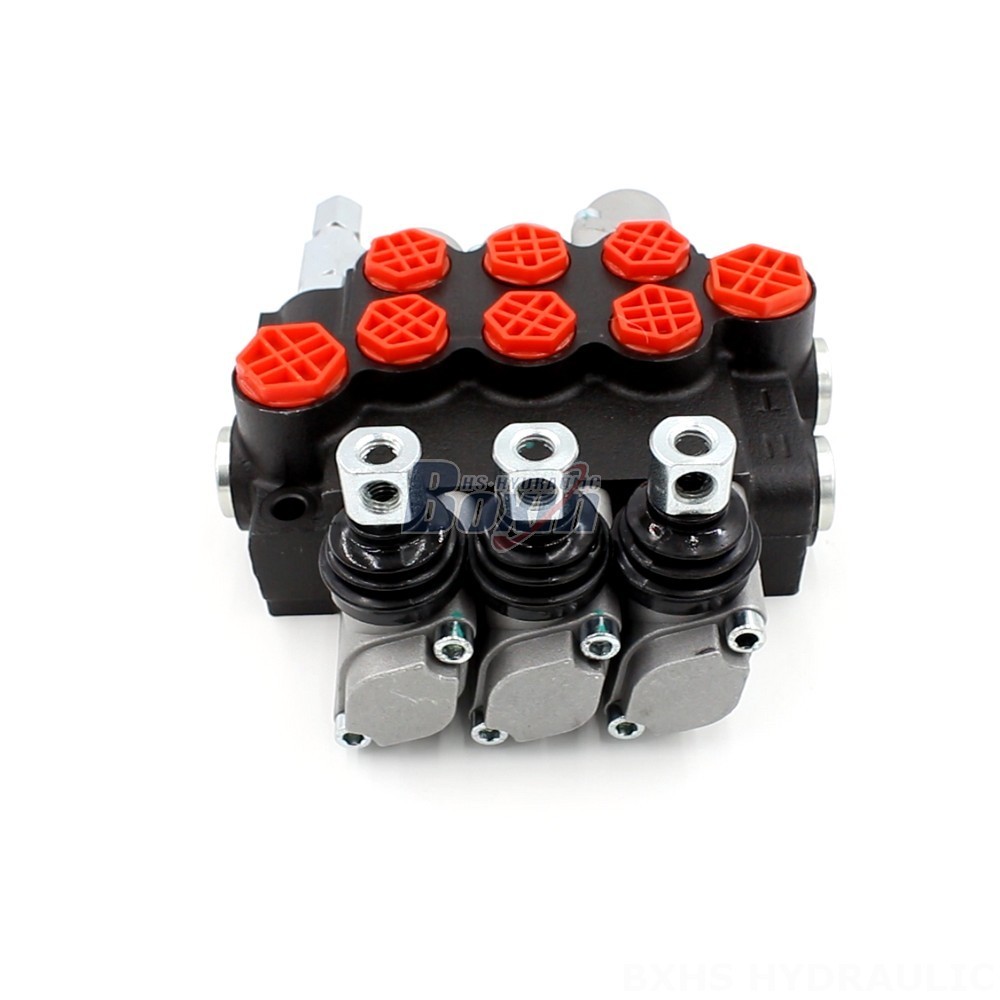

The P40-G12-G38-OT-OT-OT Hydraulic Monoblock Valve is a high-performance directional control valve designed for use in construction, agriculture and material handling applications. This 3-section manual control valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a variety of mobile equipment.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series hydraulic monoblock valve is a reliable and durable solution for controlling hydraulic systems in various applications. It features a 3-section design with a manual control method and is rated for a flow of 40 L/min at a maximum pressure of 250 bar. This valve is suitable for use in a wide range of temperatures, from -40°C to +80°C, and can handle operating viscosities from 15 to 75 mm²/s. The P40-G12-G38-OT-OT-OT is commonly used in construction equipment such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and tractors. It is also widely used in agriculture equipment and material handling applications.
