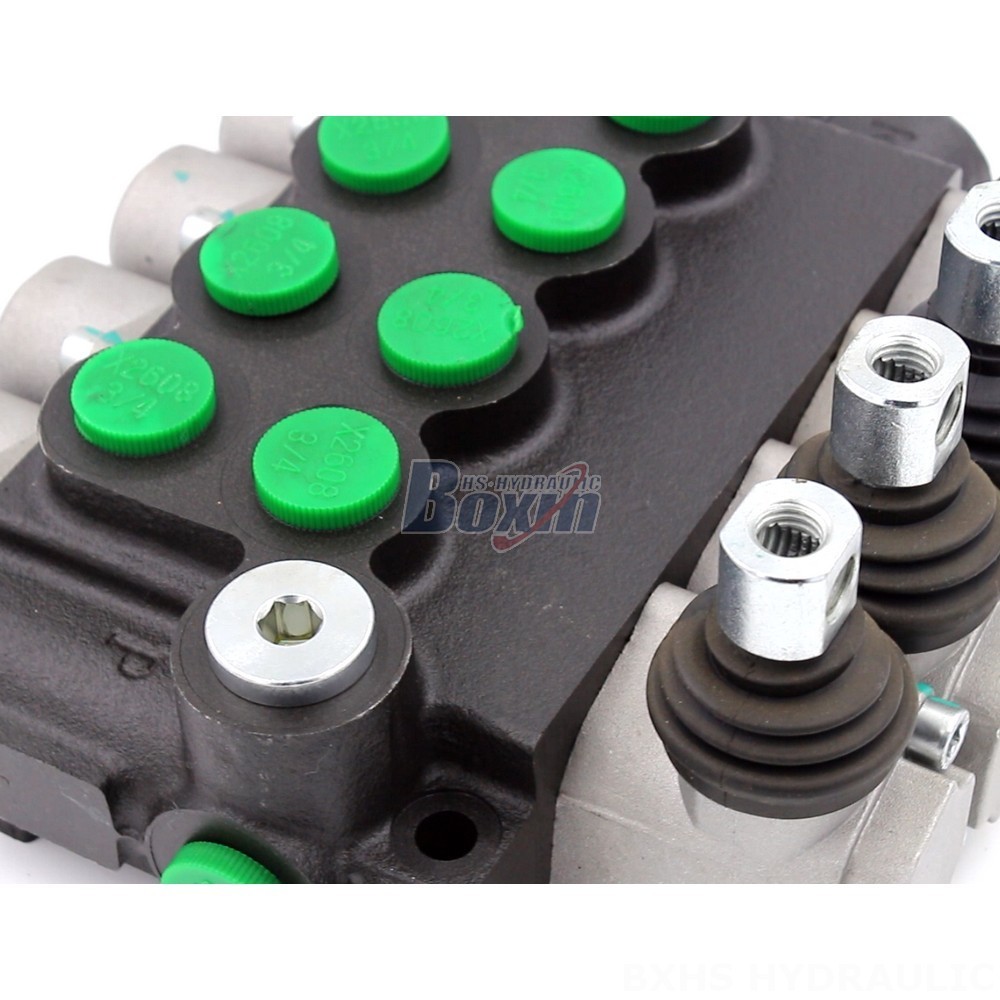

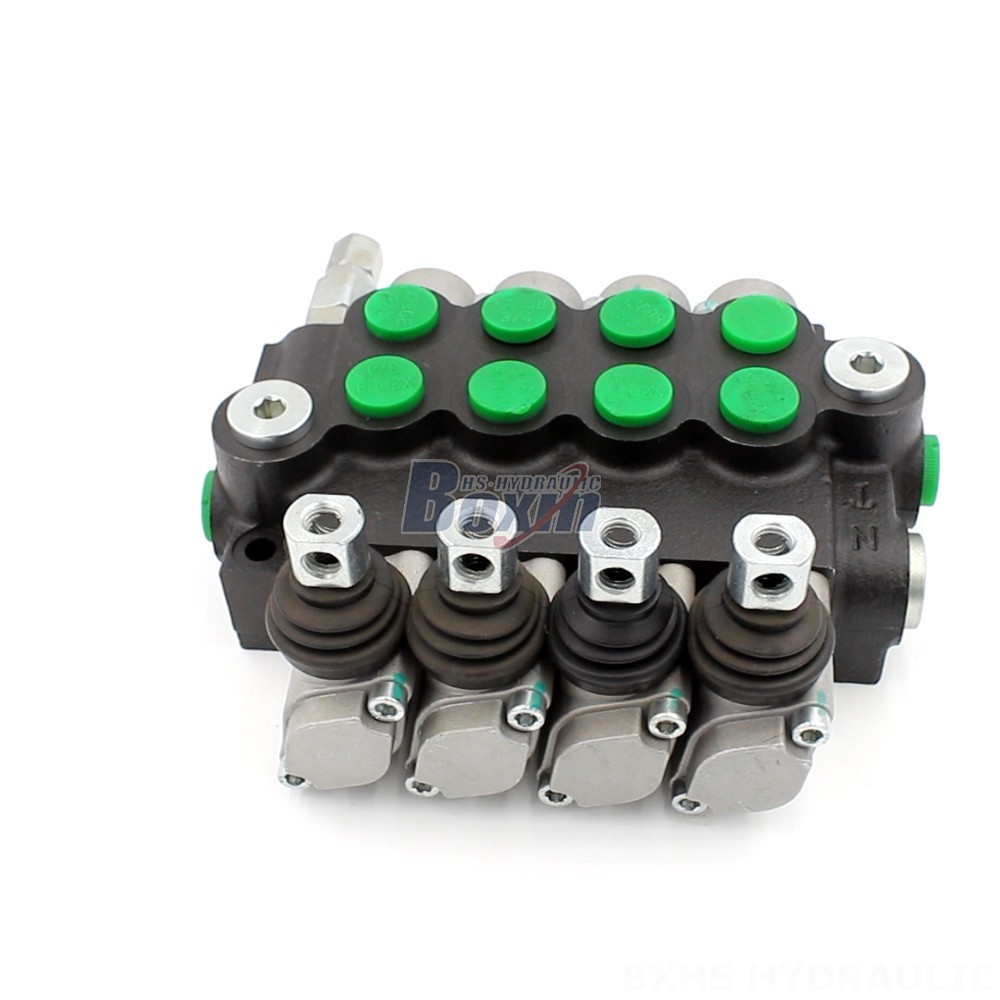

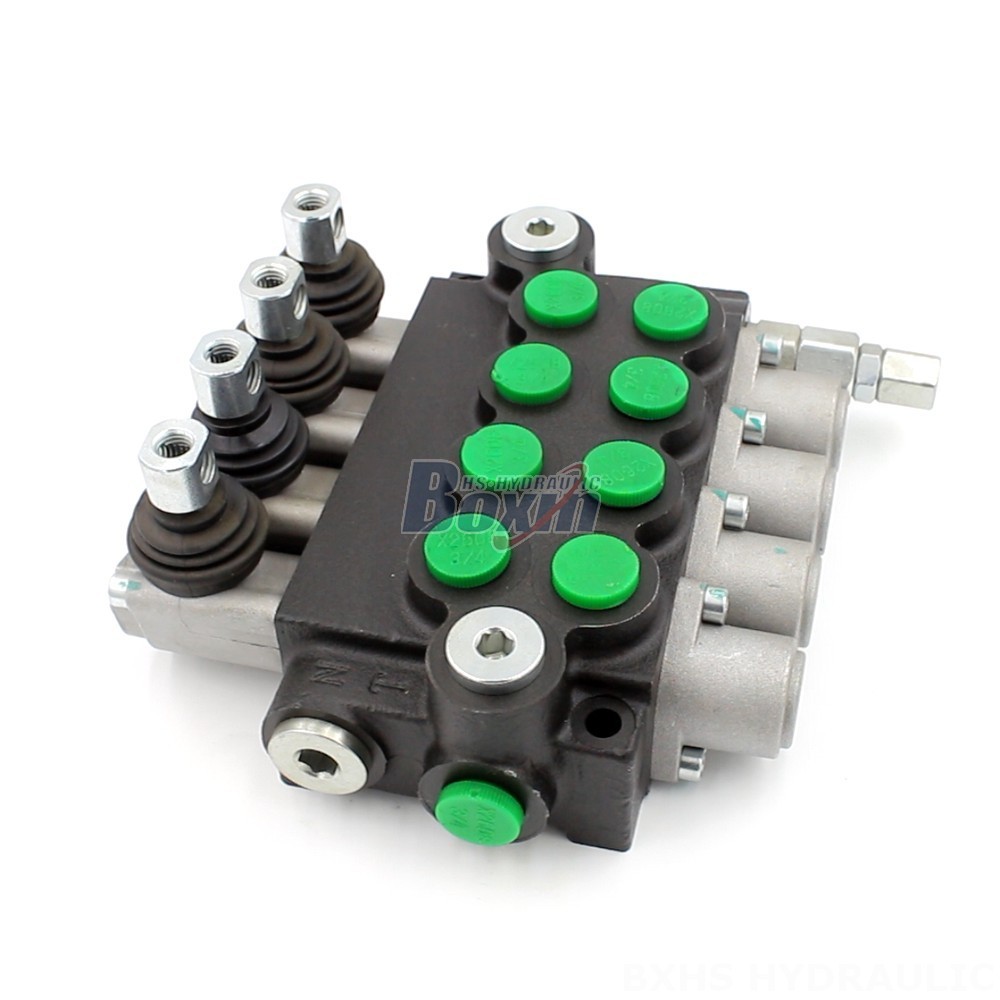

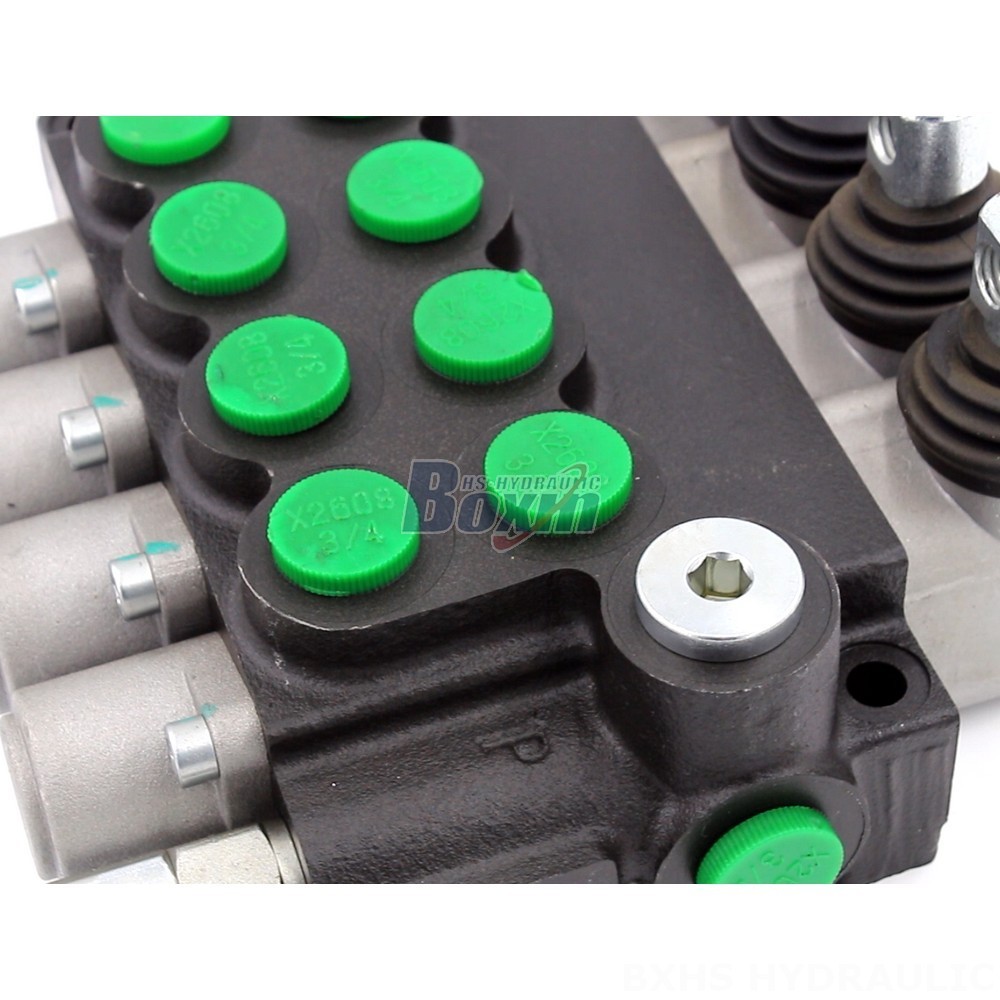

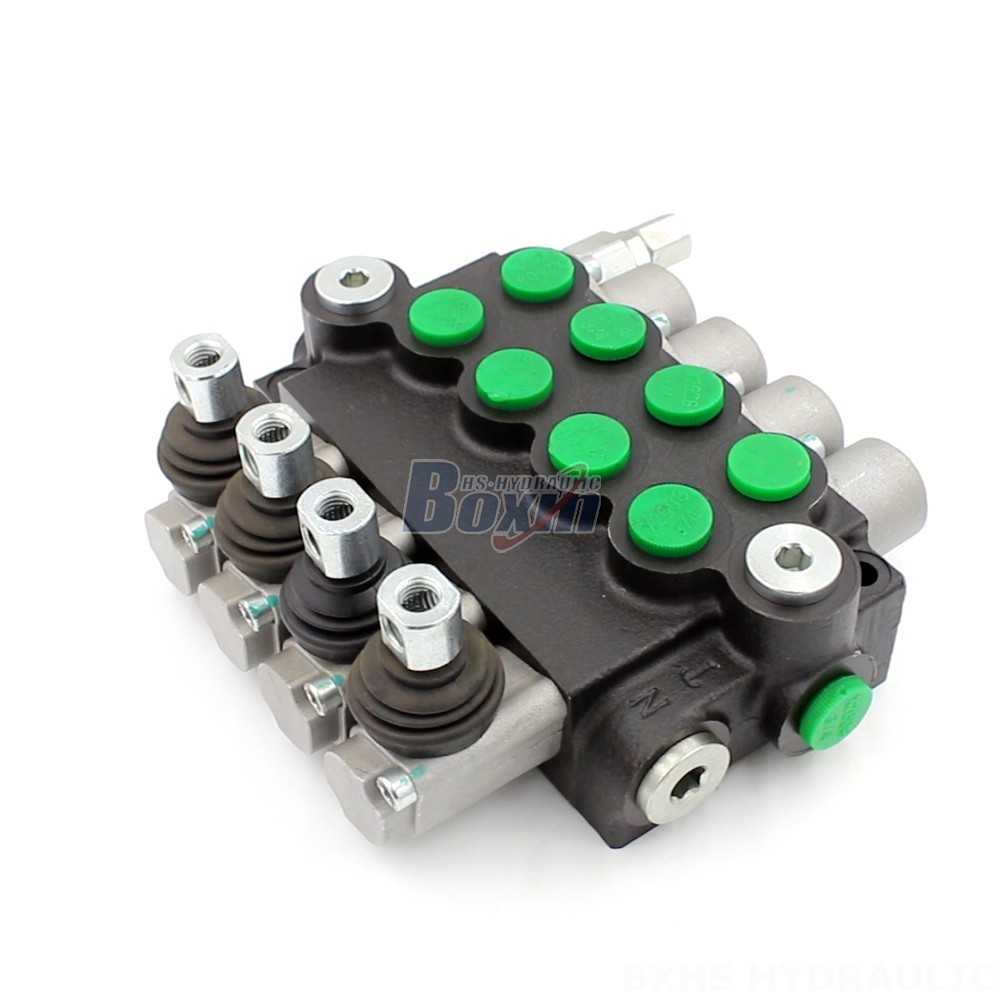

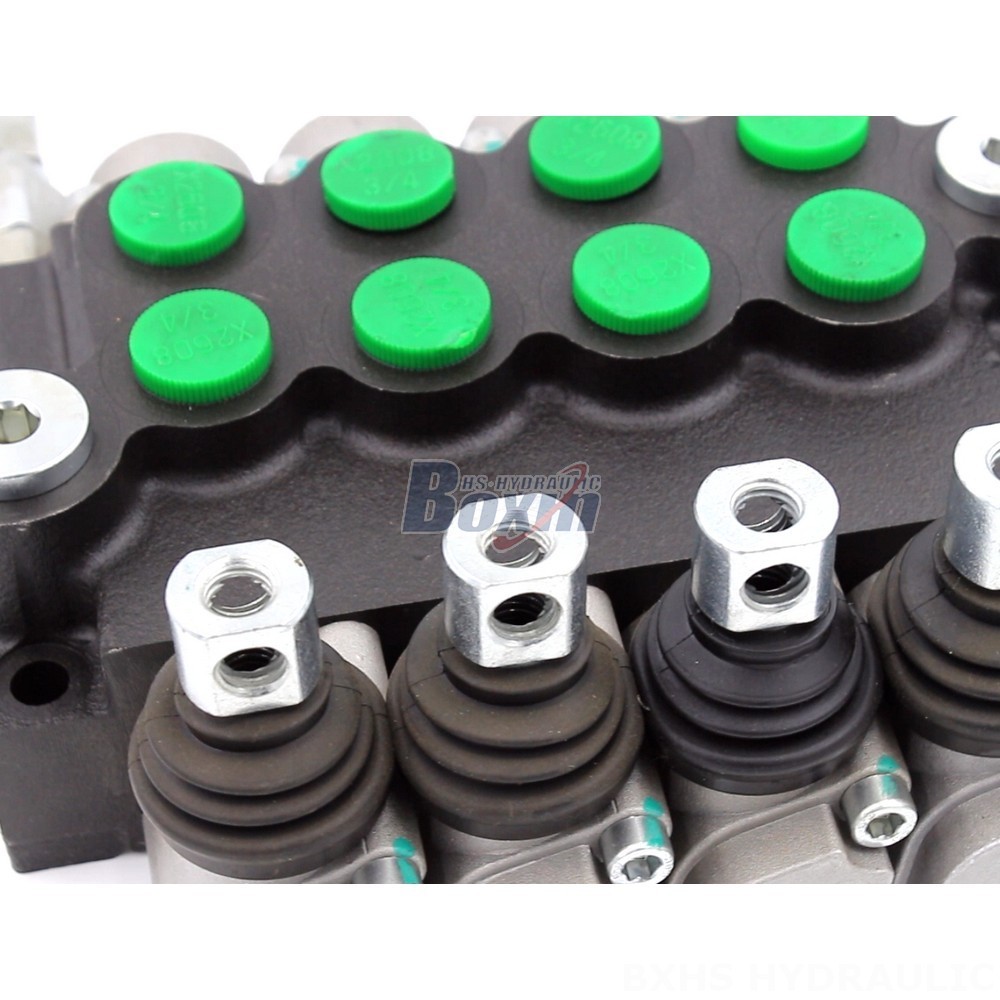

The P40-U34 is a 4-way, 4-section, monoblock directional control valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This robust valve features a maximum pressure rating of 250 bar and a rated flow of 40 L/min, making it suitable for demanding hydraulic systems.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34 is a high-performance 4-way directional control valve designed for use in hydraulic systems. It features a 4-section monoblock design, manual control, and a rated flow of 40 L/min. This valve is suitable for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. Key features include:
* **Rated Flow:** 40 L/min (10.5 US gpm)
* **Max Pressure:** 250 bar (3600 psi)
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Spool:** 4 Spool
* **Series:** P40 Series
* **Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* **Applicable Model:** TELEHANDLER,FORKLIFT,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,SKID STEER LOADER,WHEEL LOADER,TRACTOR AND FRONT-END LOADER,HARVESTER
