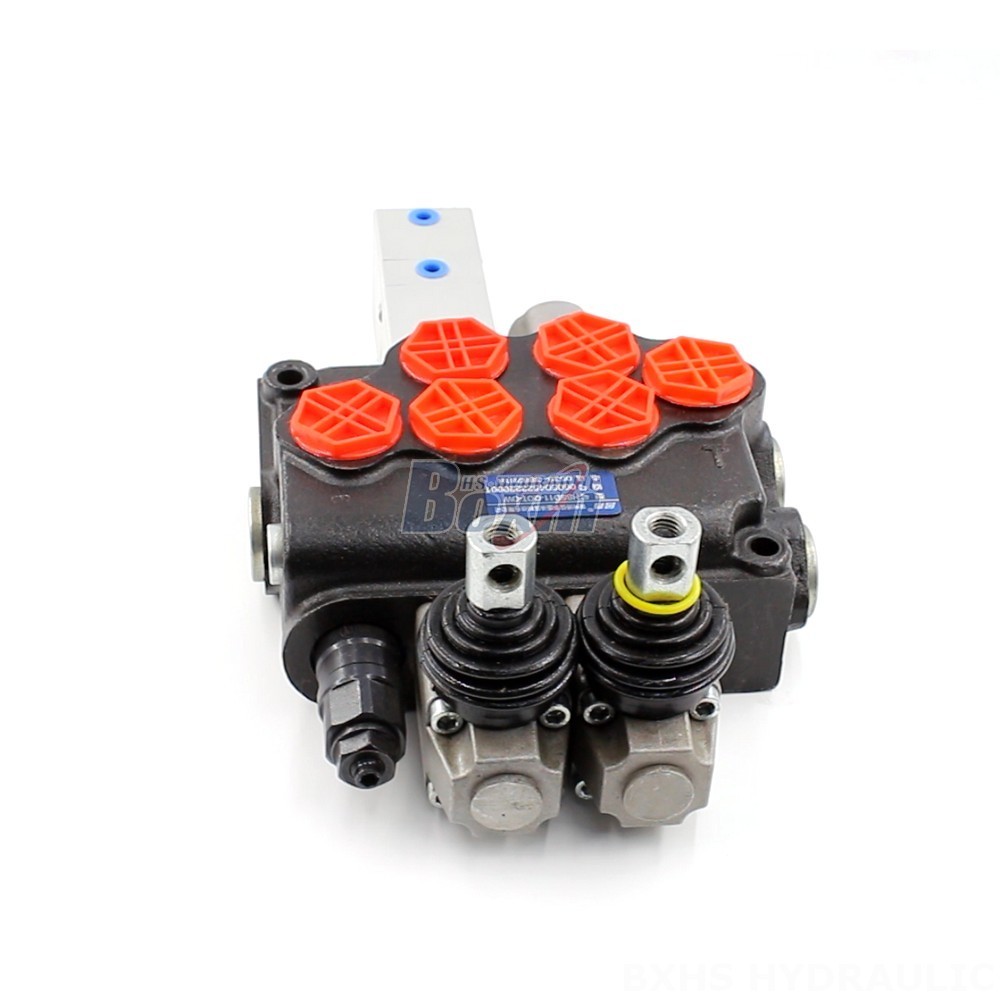

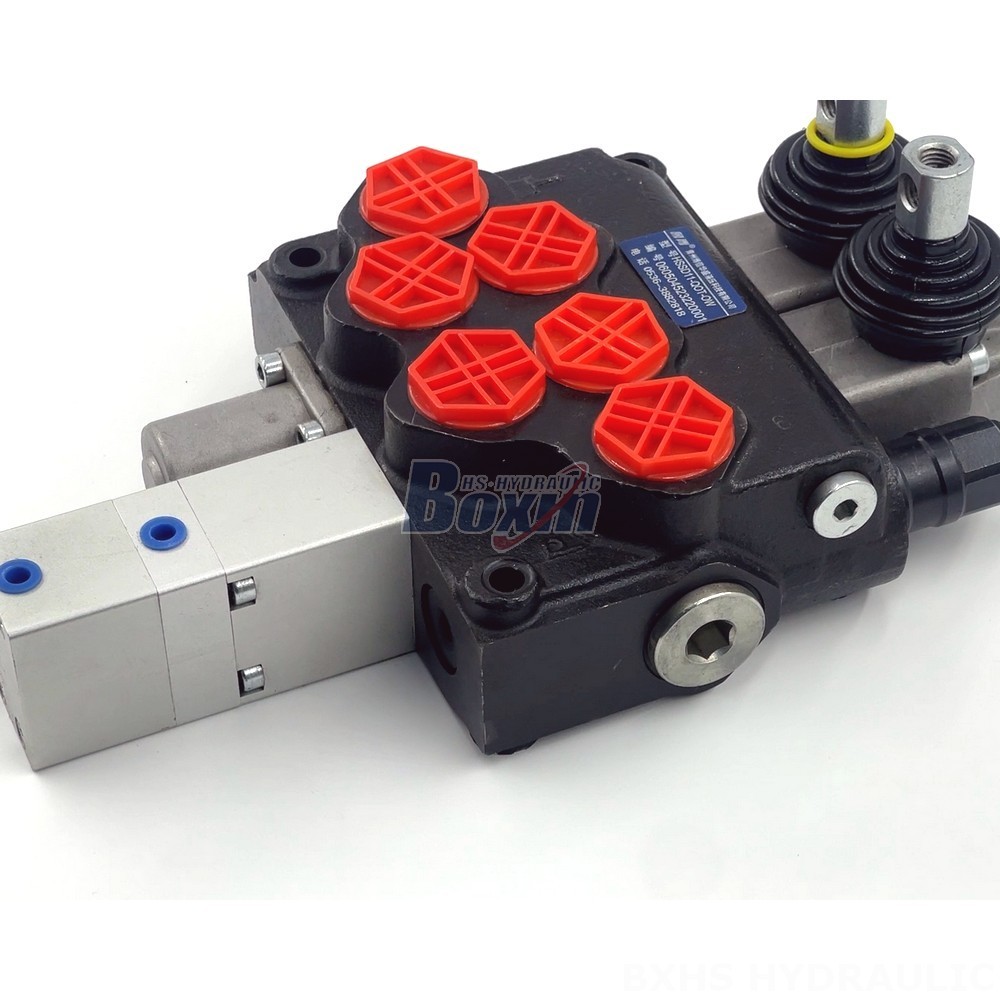

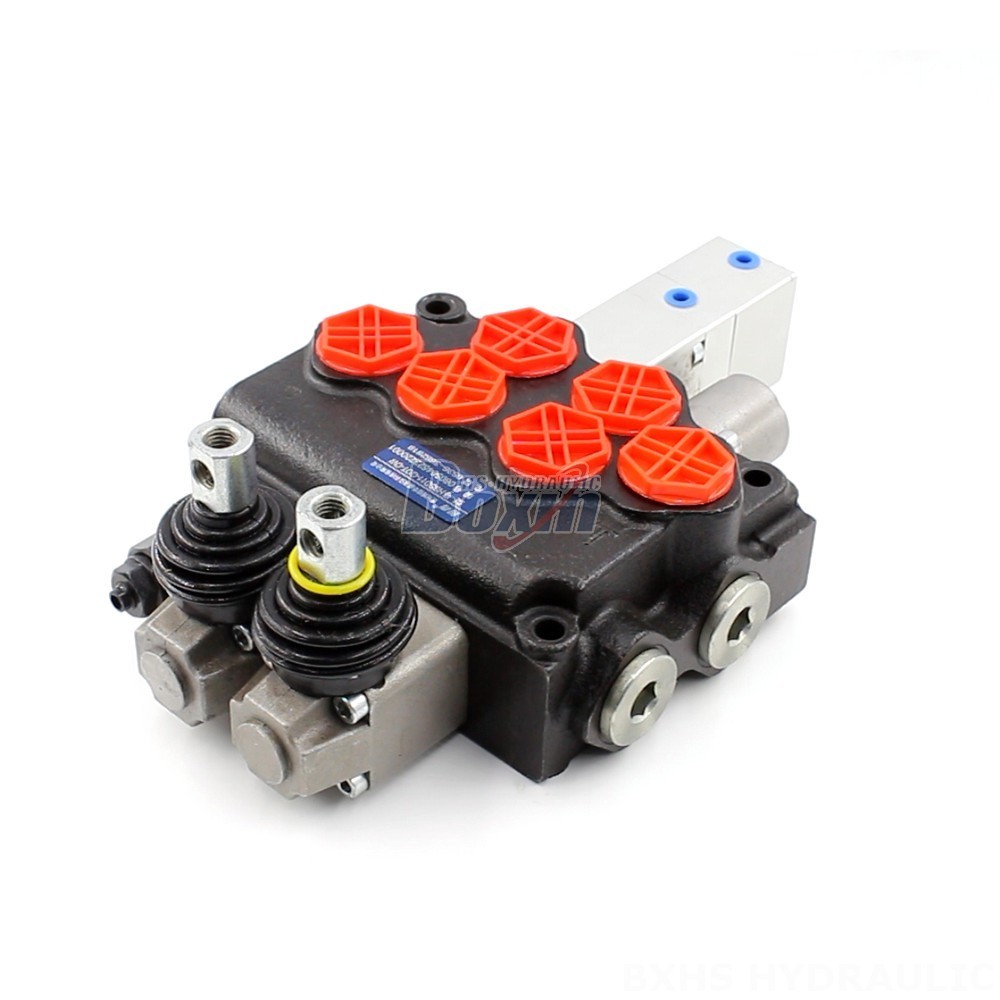

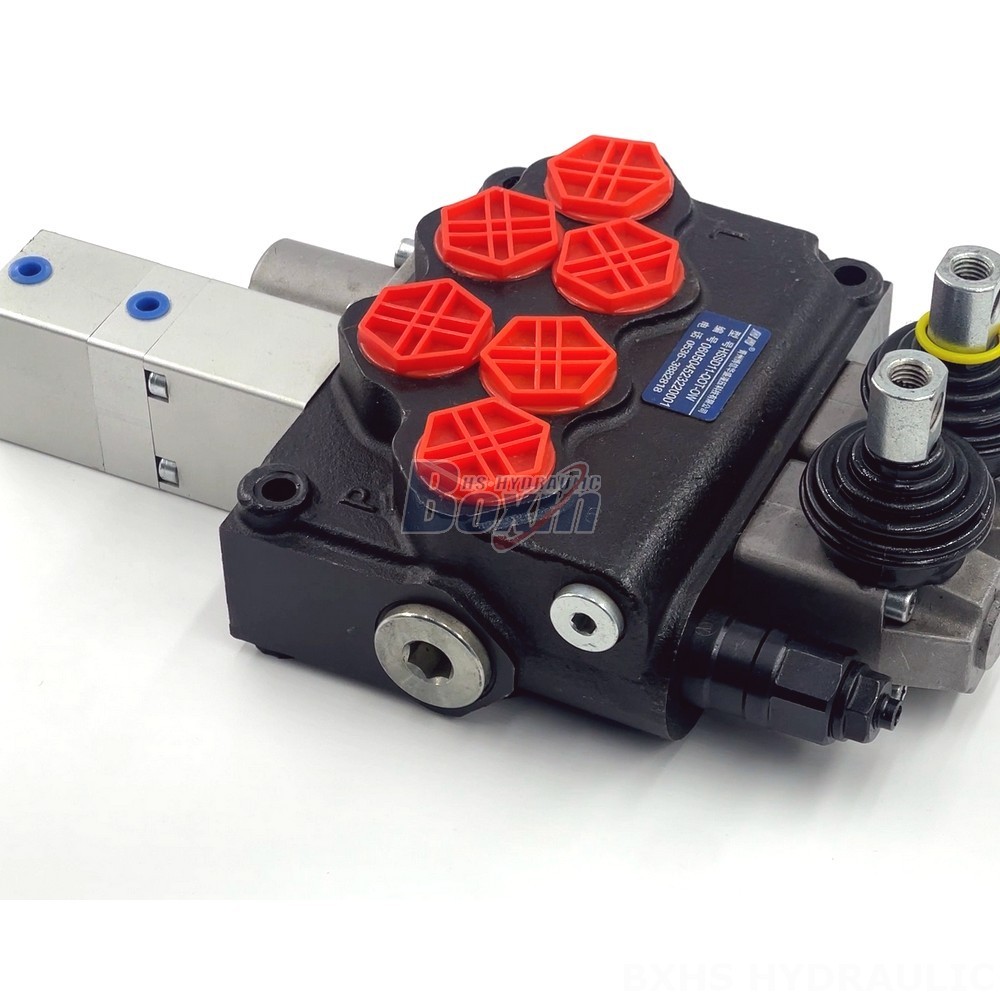

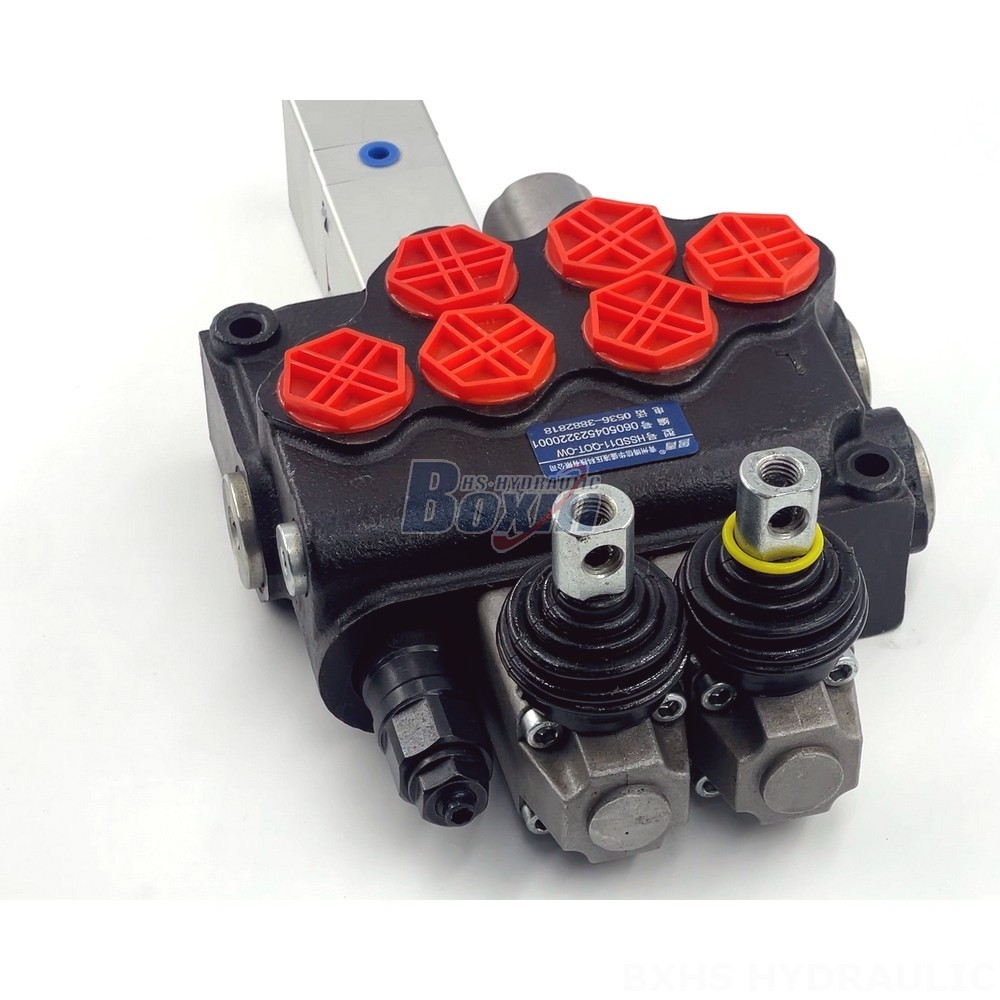

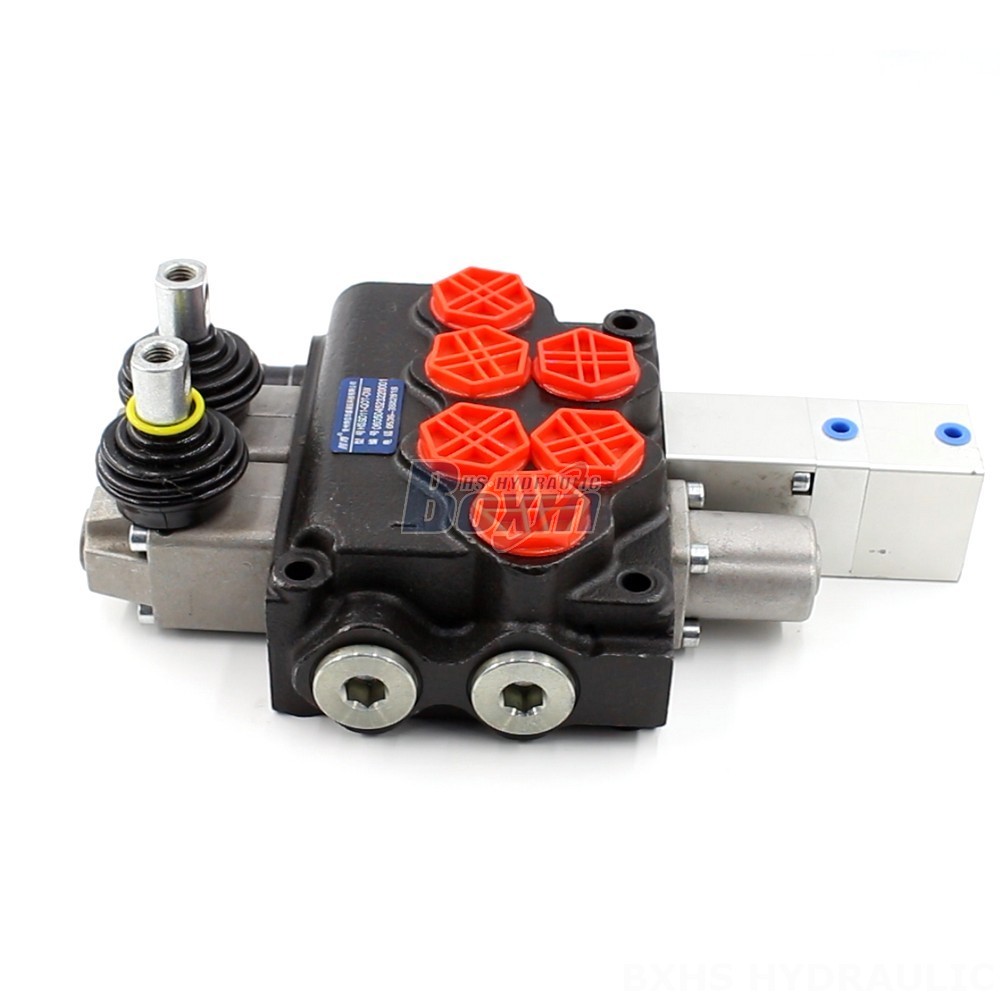

The SD11 Directional Valve is a high-performance hydraulic valve designed for demanding applications in the construction, agriculture, and industrial sectors. With a rated flow of 70 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable fluid control in various hydraulic systems.
| SD11-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Elektrisk, Pneumatisk och manuell |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 70 l/min (18,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi), 315 bar (4600 psi) |
| Inloppsport | G3/4, SAE 12 |
| Utloppsport | G3/4, SAE 12 |
| Portstorlek | G3/4, SAE 12 |
**SD11 Directional Valve: Efficiency and Performance**
**Key Features:**
- Manual control method
- Monoblock valve structure for compact design and durability
- High flow capacity of 70 L/min (18.5 US gpm)
- Maximum pressure rating of 250 bar (3600 psi)
- Wide operating viscosity range from 15 to 75 mm²/s (15 cSt to 75 cSt)
- Versatile 1-spool configuration
- Suitable for a wide range of applications including material handling, construction, agriculture, and industrial vehicles
**Benefits:**
- Enhanced system efficiency and performance
- Precise fluid control for improved machine operation
- Robust construction for demanding applications
- Easy integration into hydraulic systems
