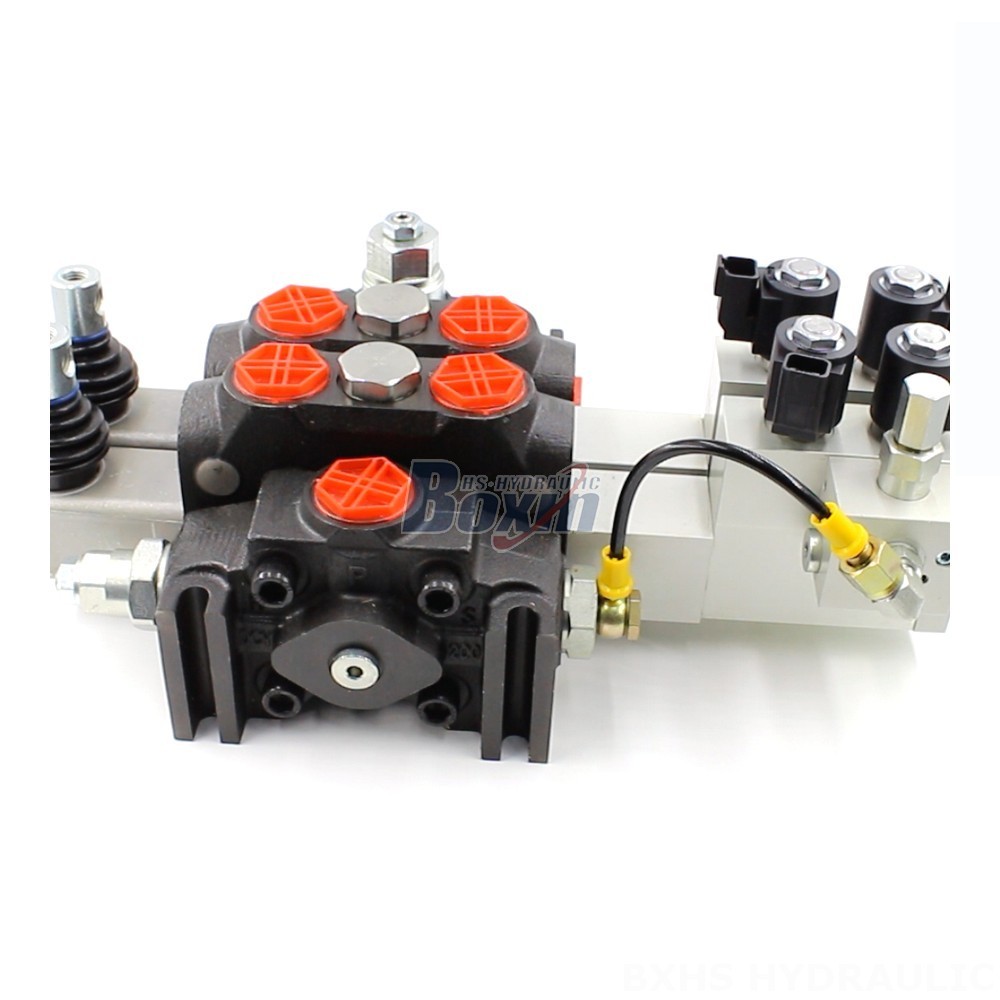

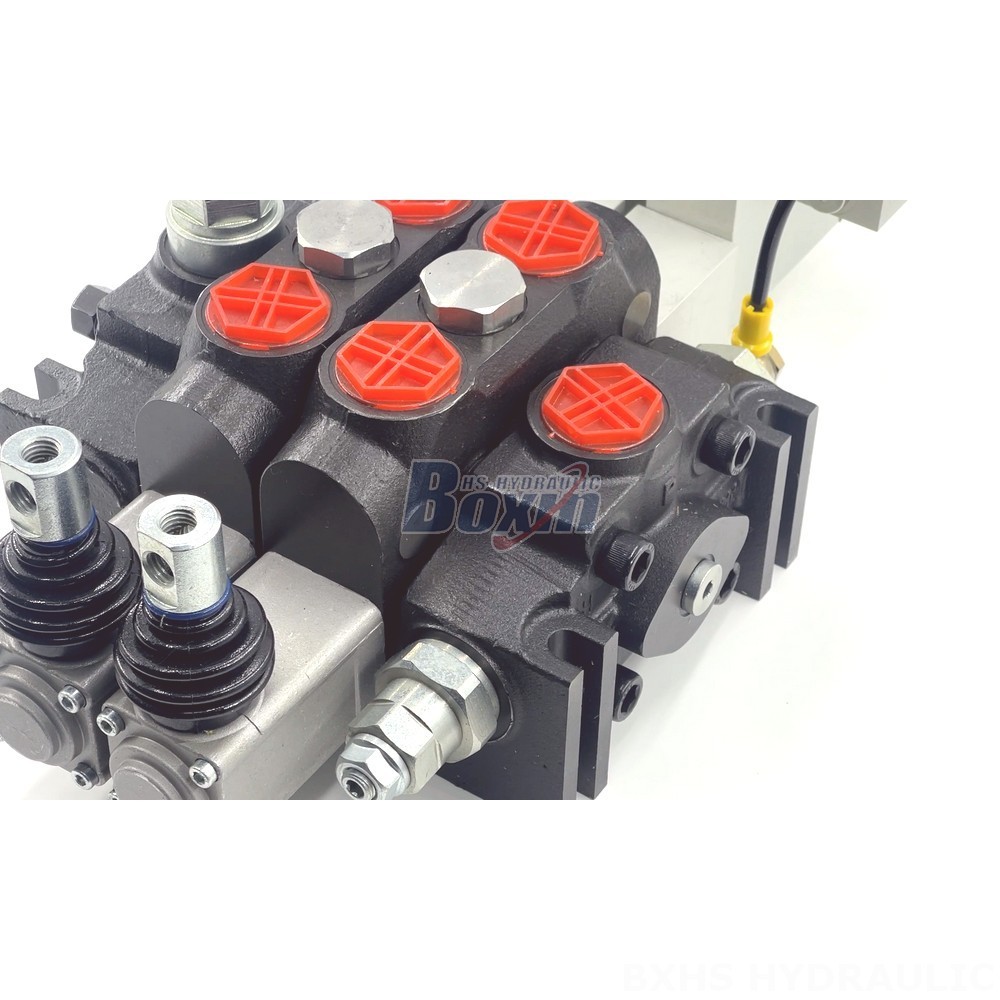

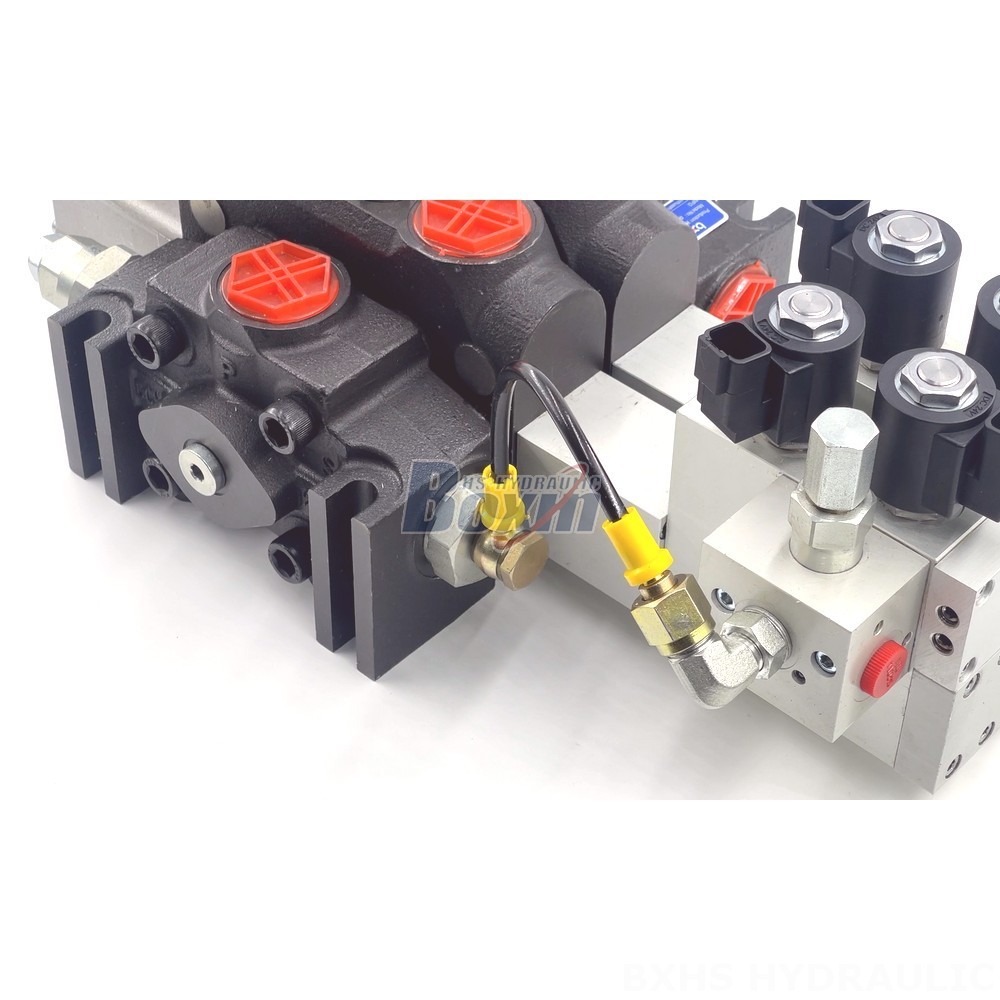

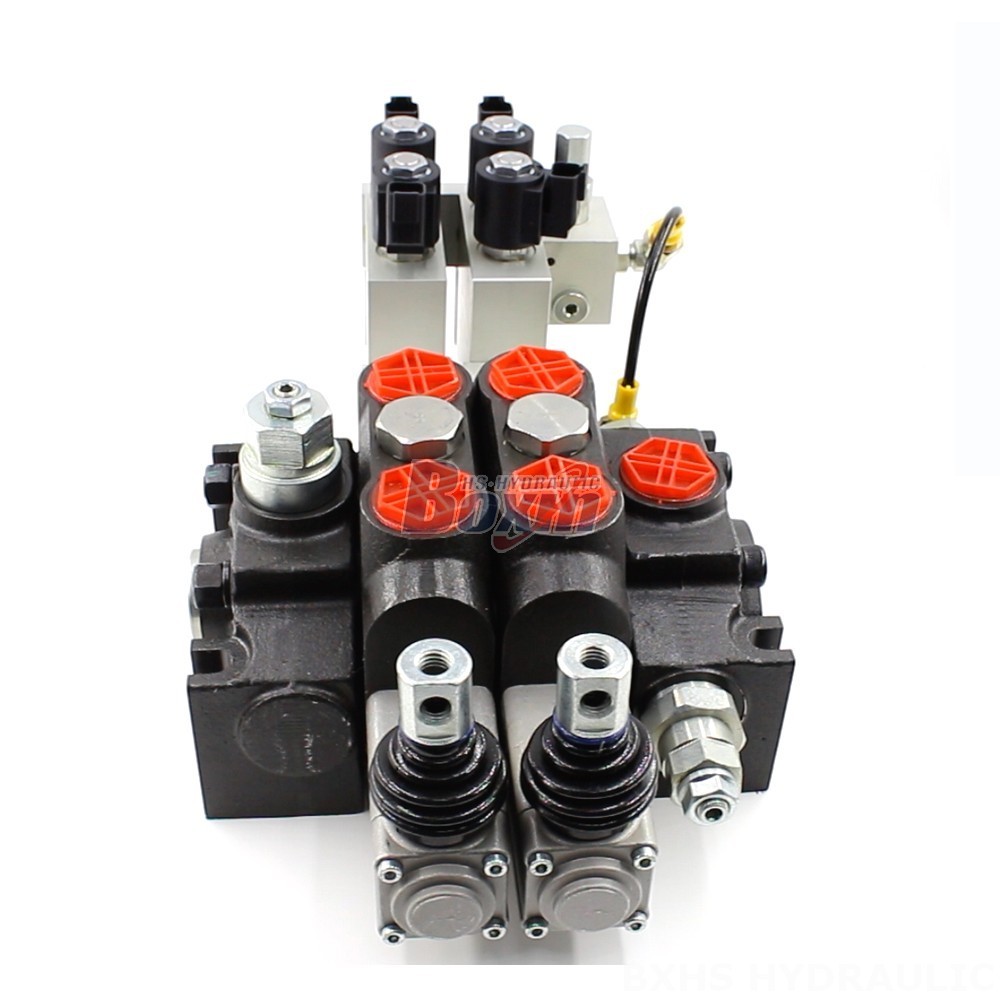

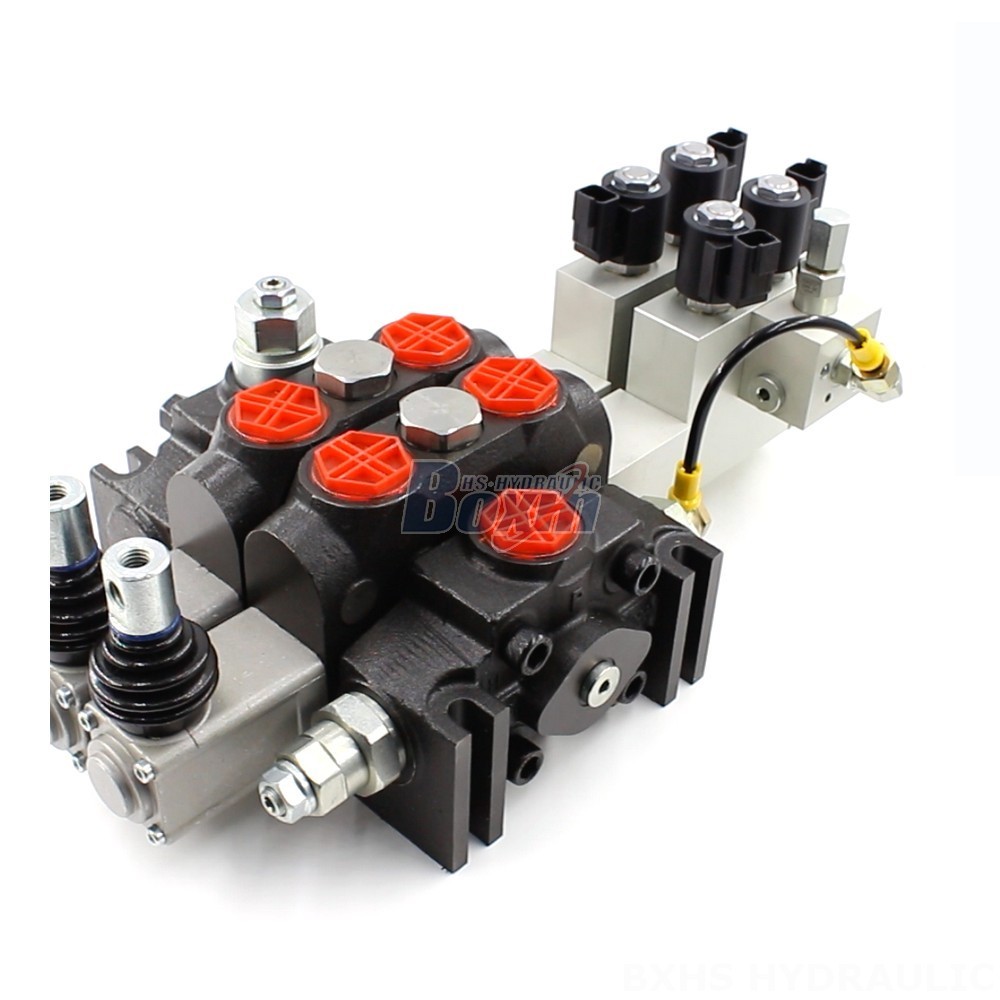

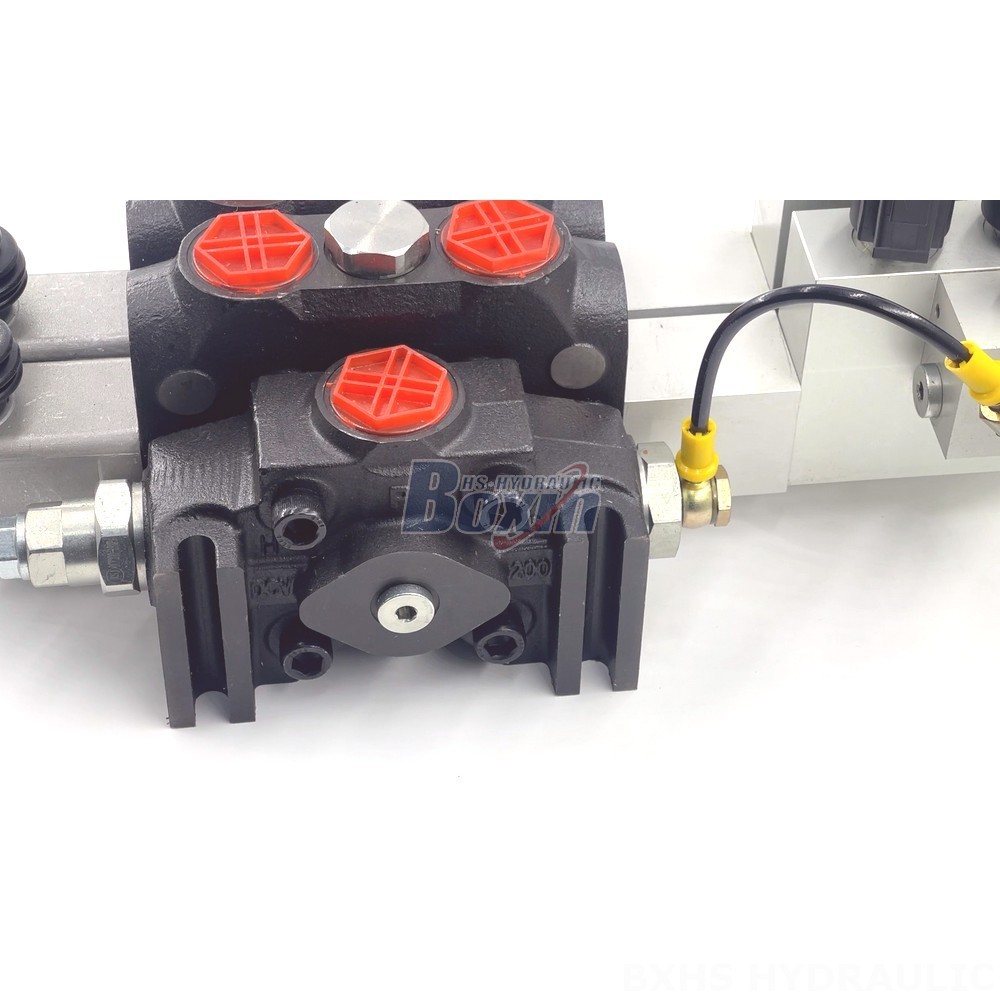

The Electro-hydraulic Monoblock Directional Valve - DCV200 Series is a high-performance valve designed for use in a wide range of industrial applications. It is engineered to provide precise control of fluid flow in hydraulic systems.
| DCV200-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick, Manuell och elektrohydraulisk, Elmotor |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 200 L/min (52 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
| Utloppsport | G1, M33×2.0, SAE 16, 1 NPT |
| Portstorlek | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
**Electro-hydraulic Monoblock Directional Valve - DCV200 Series**
**Control Method:** Electro-hydraulic
**Section:** 2 Section
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** DCV200 Series
The DCV200 Series valve is constructed from high-quality materials and is designed to withstand the harsh conditions of industrial environments. It is also backed by our commitment to quality and customer satisfaction.
**Applications:**
The DCV200 Series valve is ideal for use in a variety of industrial applications, including:
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Specific applications include:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MINI-EXCAVATOR
* SKID STEER LOADER
