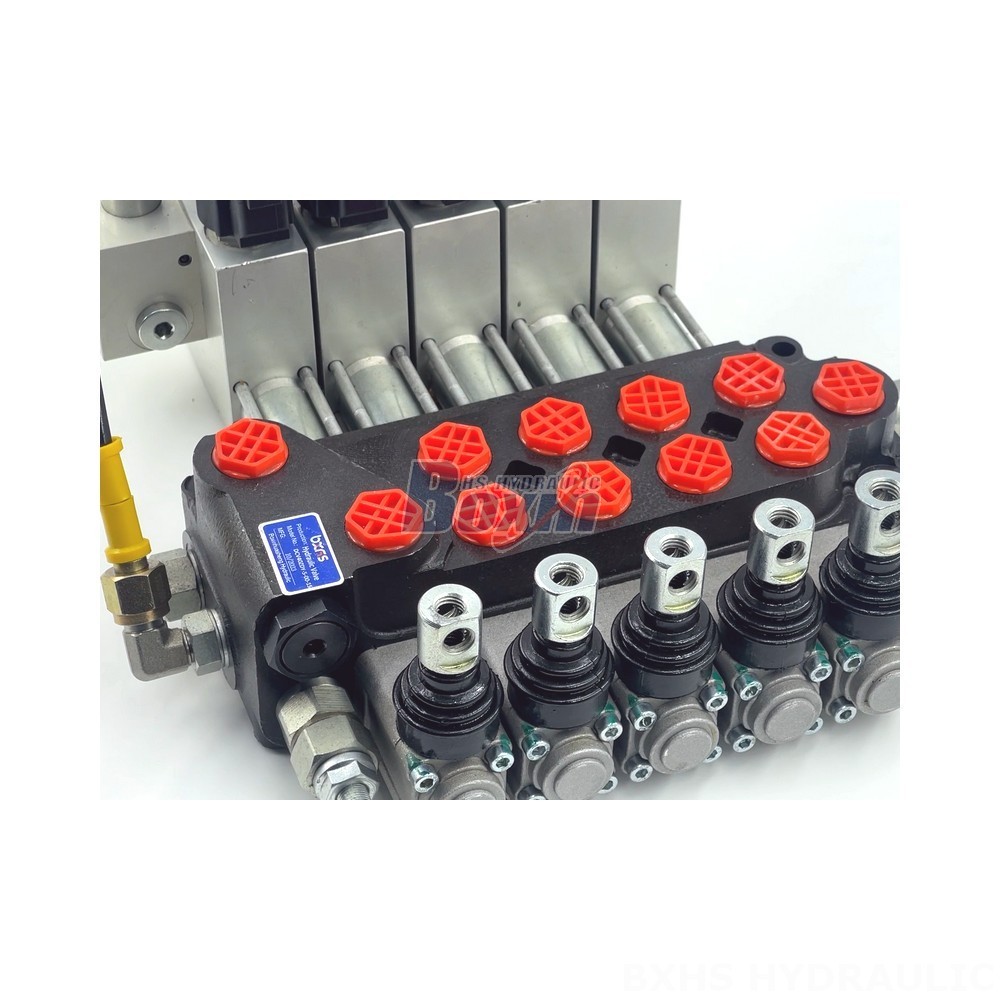

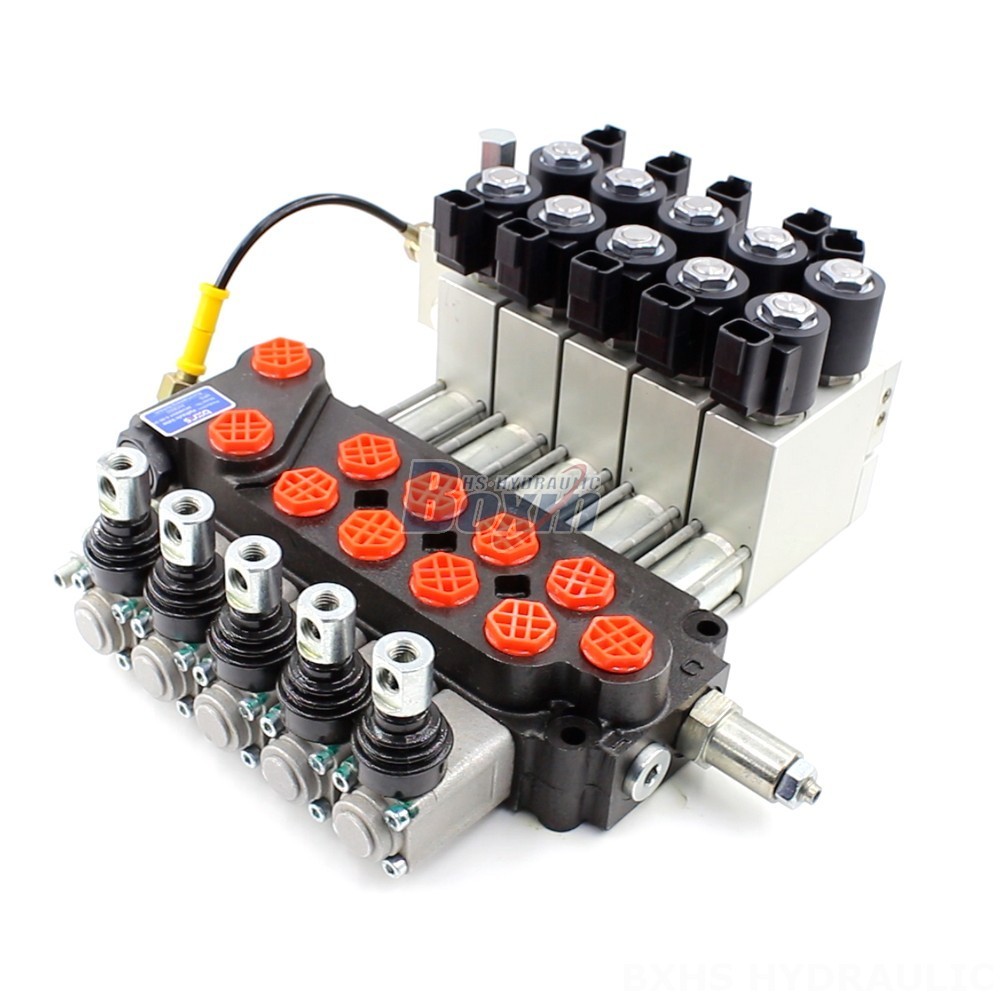

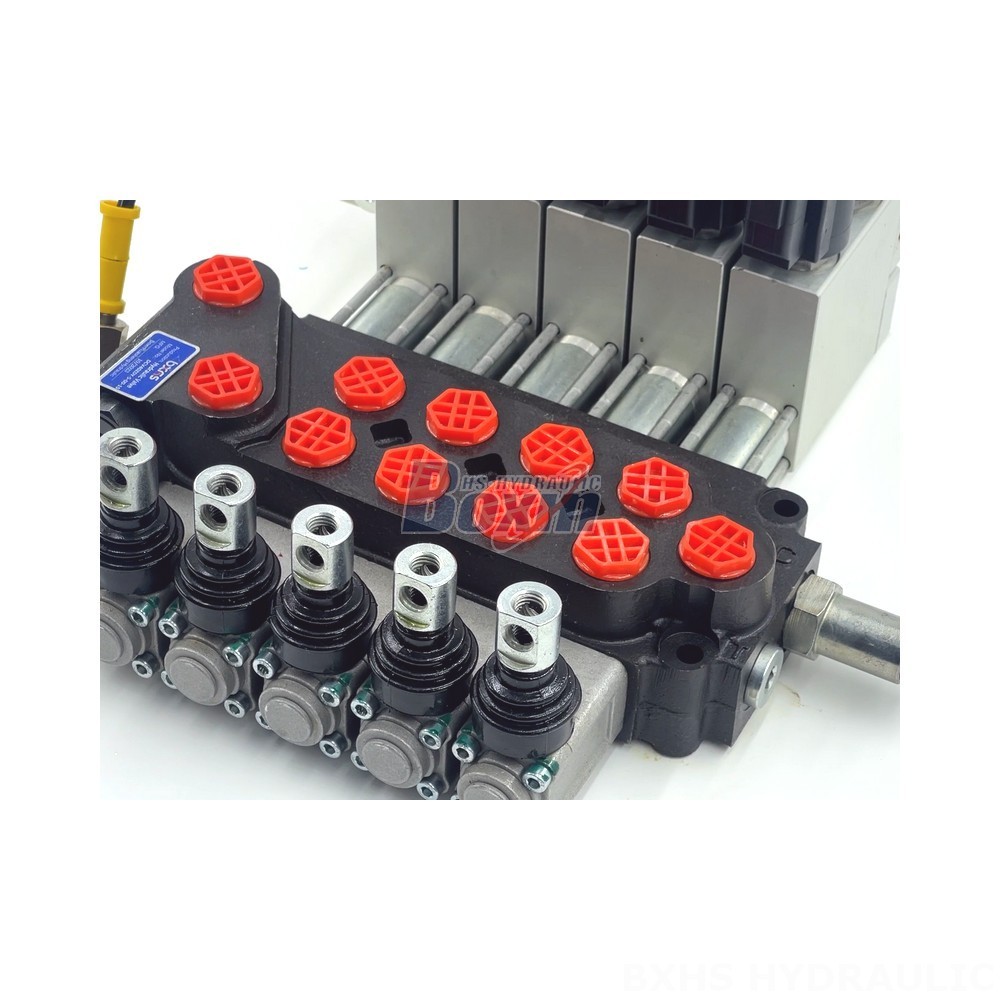

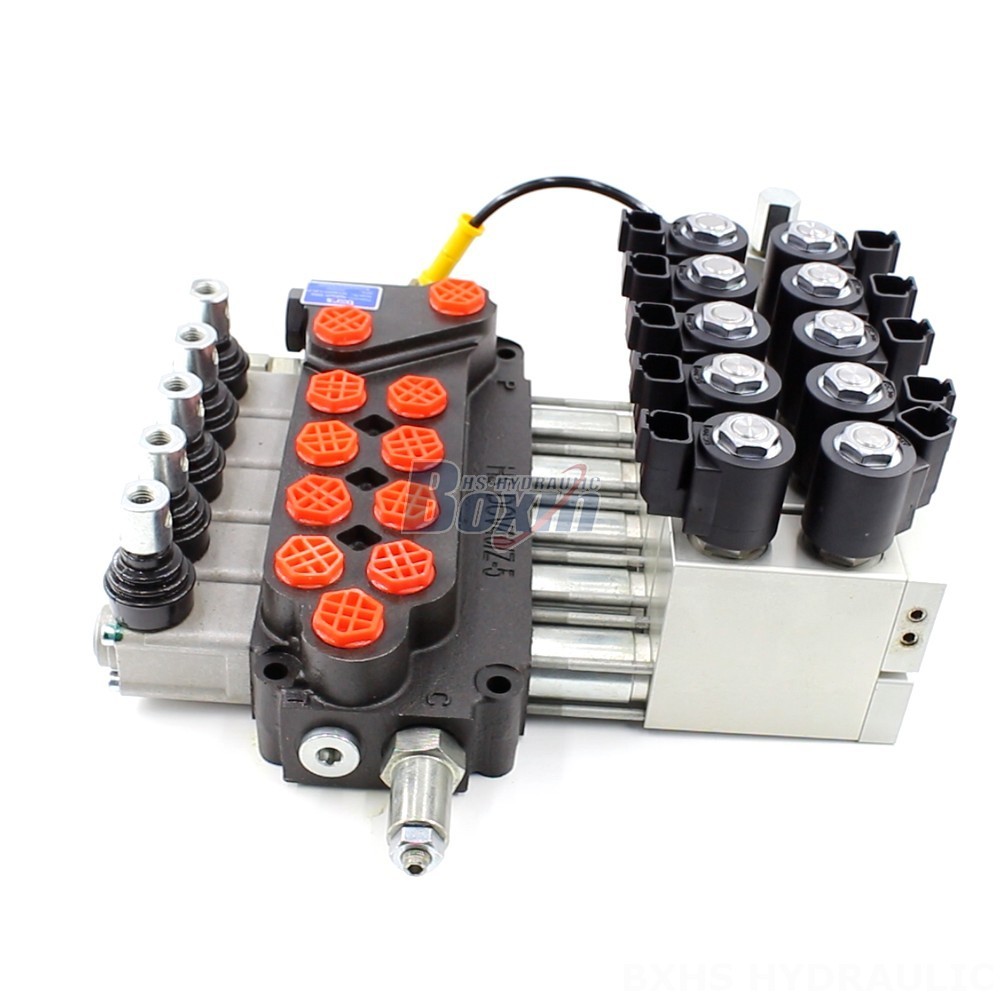

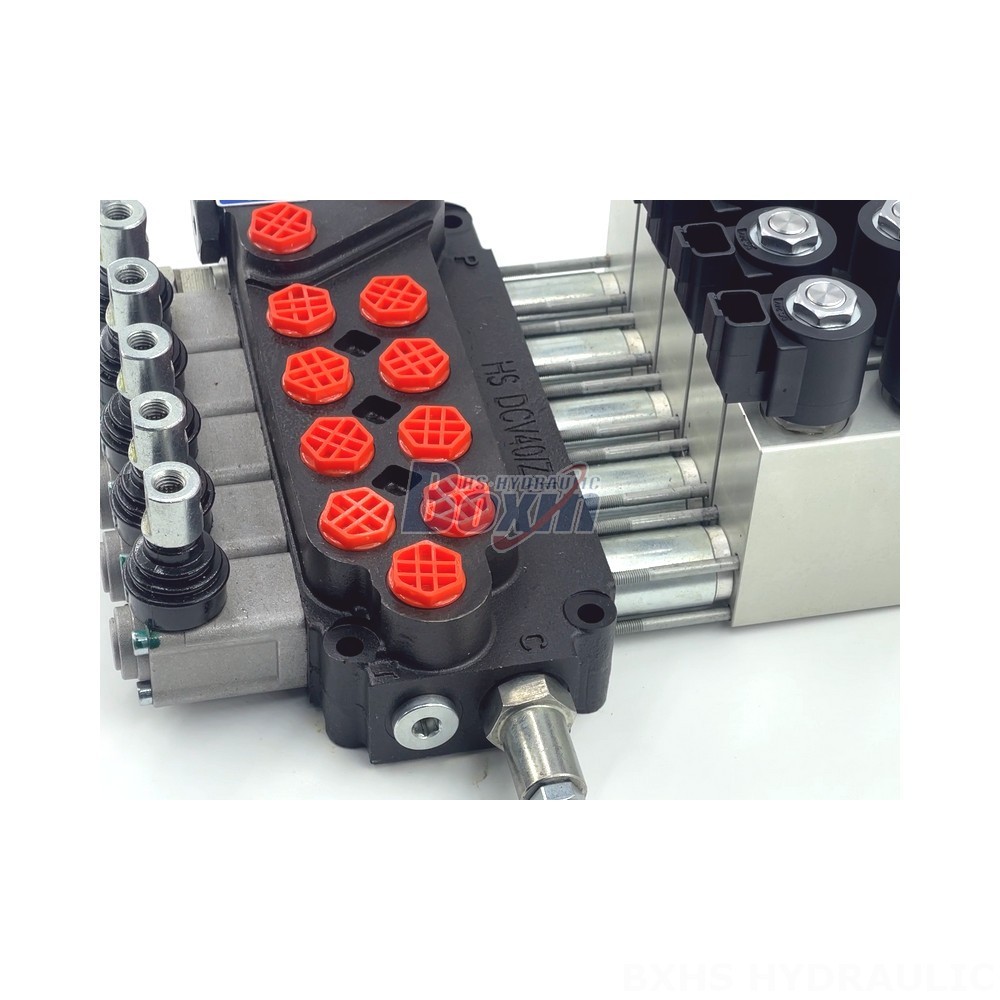

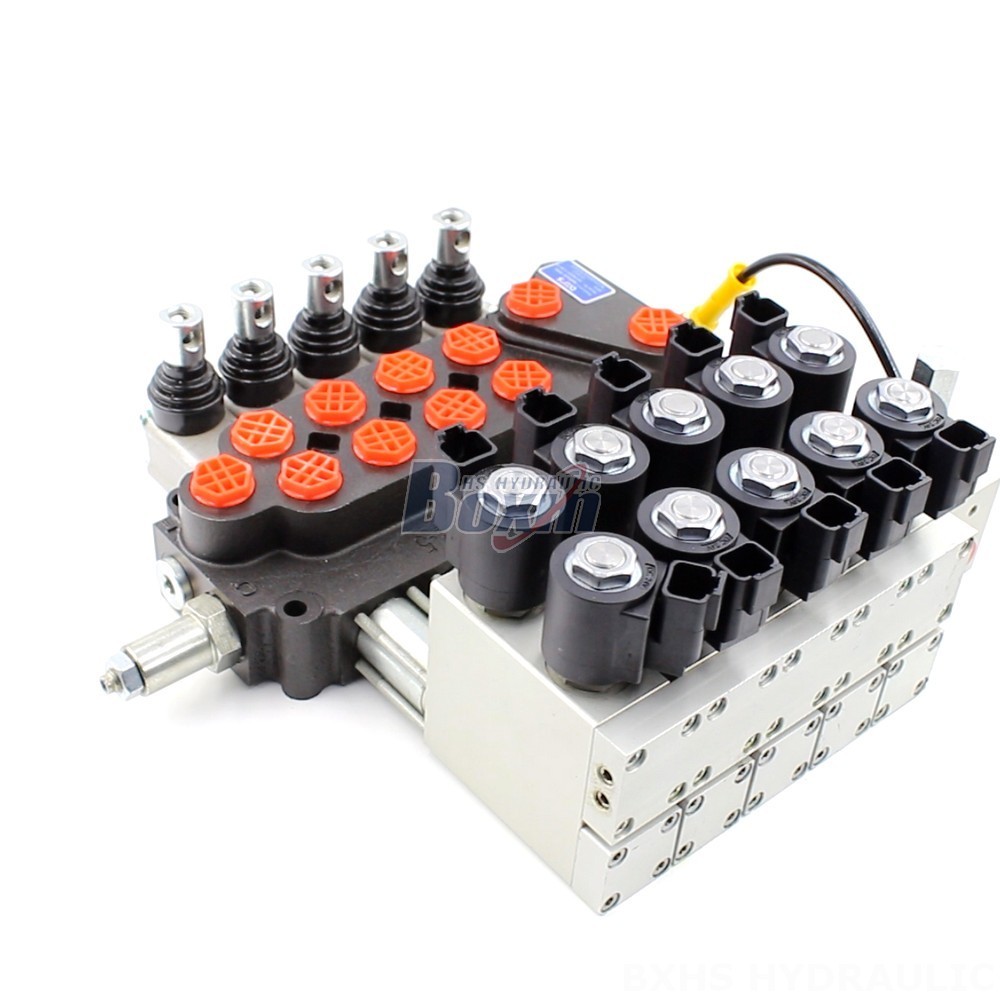

The Zt 12 Hydraulic Valve DCV40Z is a 5-section monoblock electro-hydraulic valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles.
| DCV40Z-serien Stödbensventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Elektrohydraulisk, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 350 bar (5100 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The Zt 12 Hydraulic Valve DCV40Z is a robust and reliable electro-hydraulic valve designed for demanding applications. This 5-section monoblock valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 350 bar (5100 psi). Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The DCV40Z series is suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. It is customizable to meet specific requirements, making it an ideal choice for manufacturers and OEMs.
