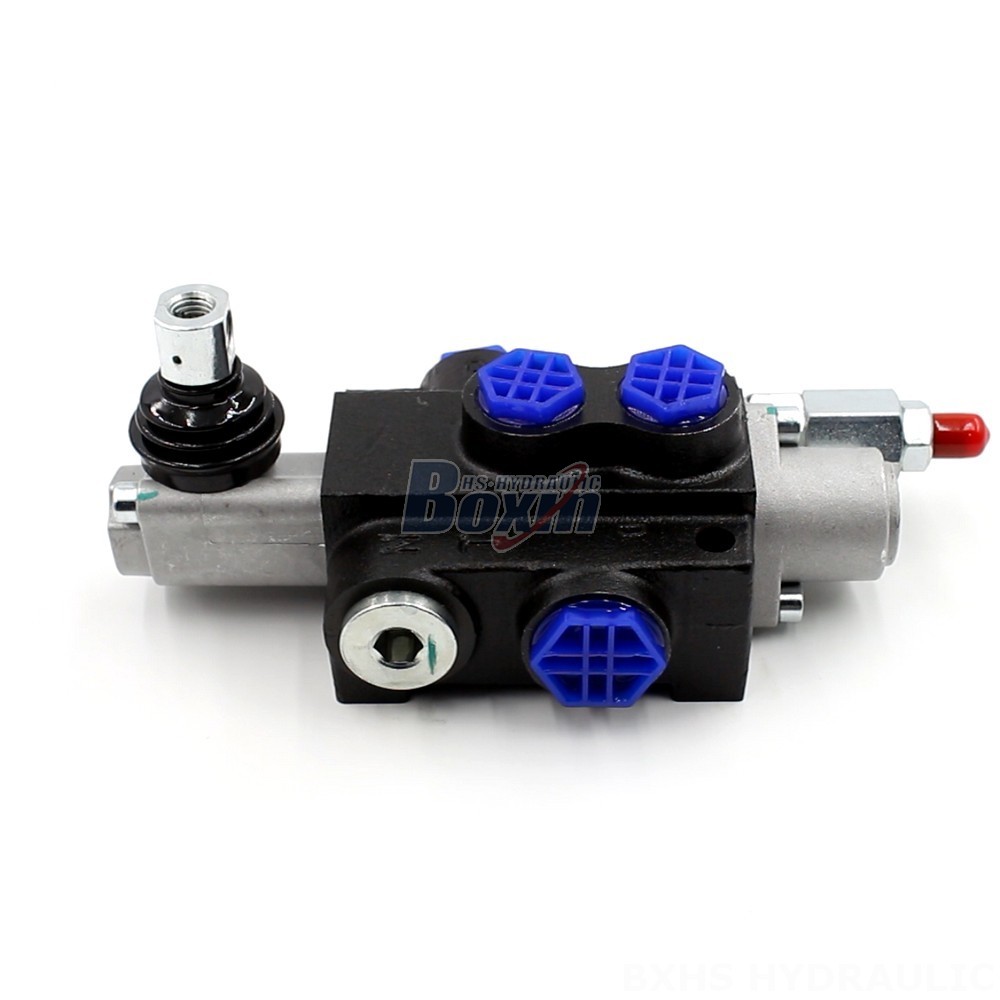

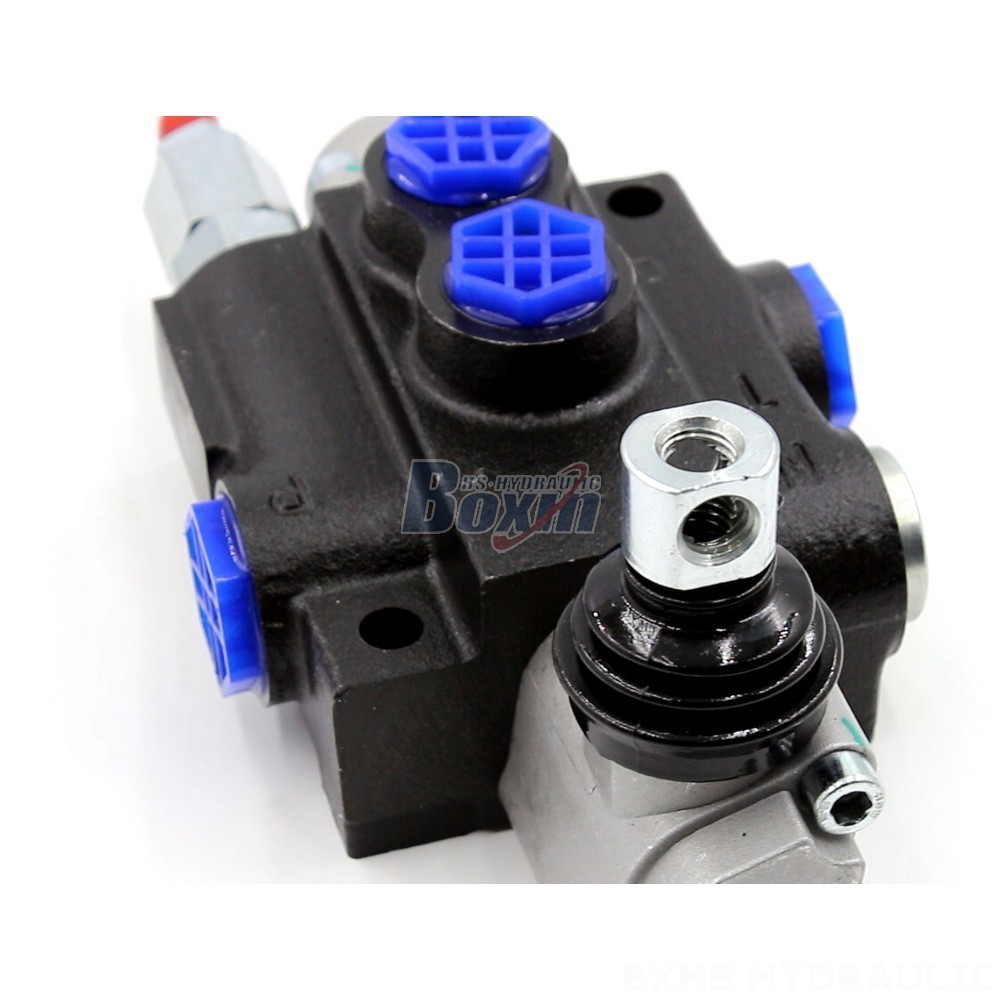

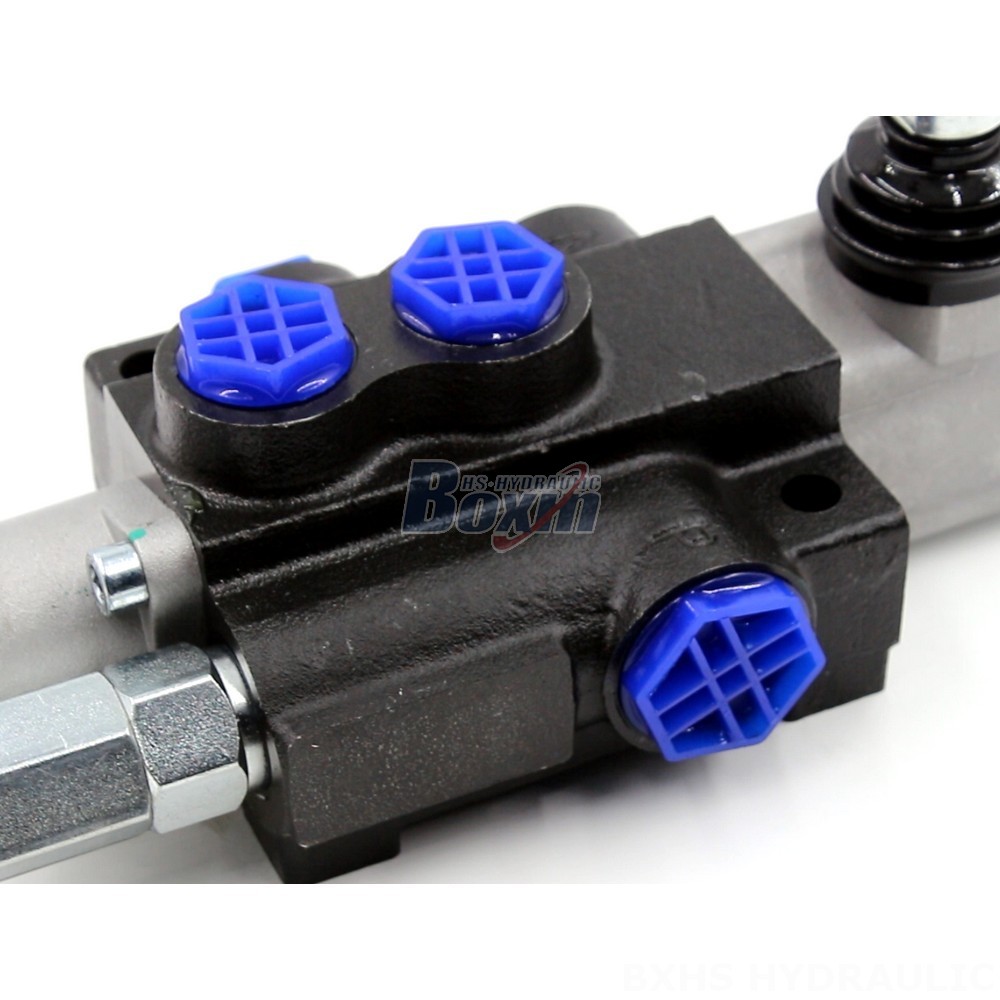

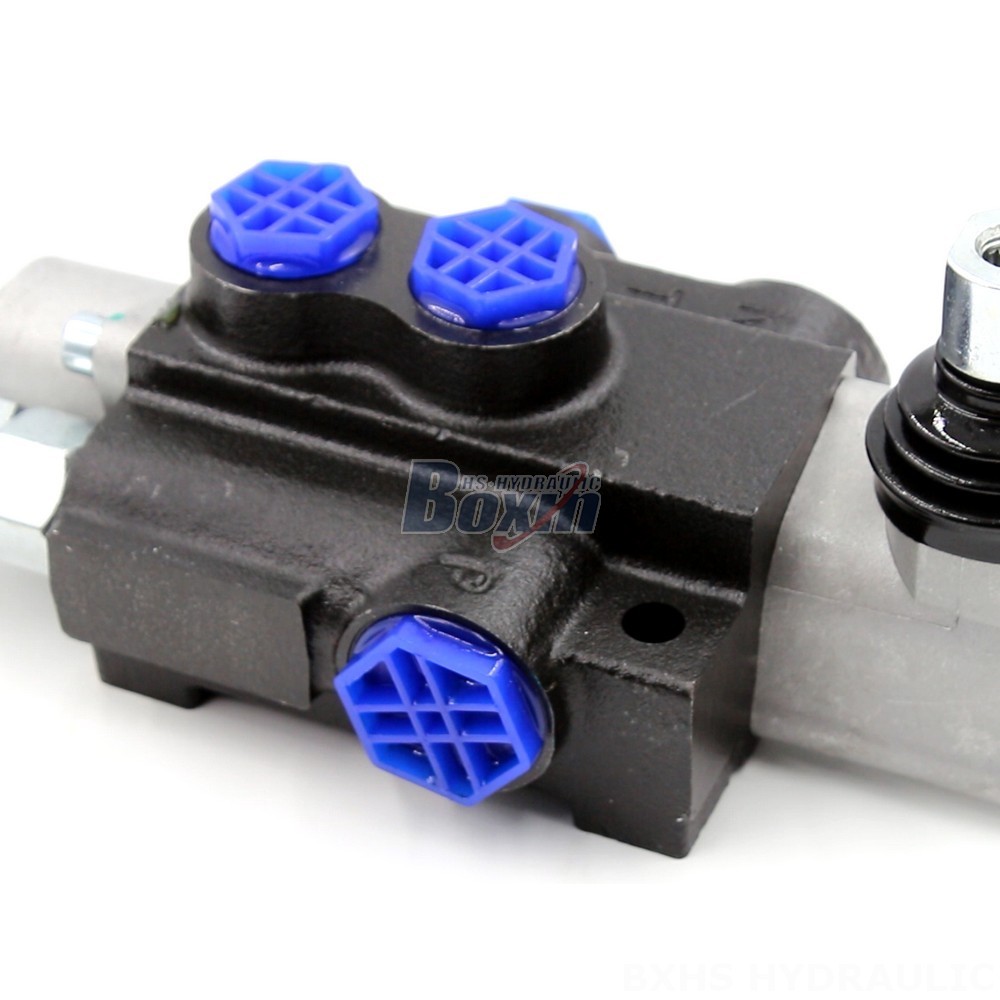

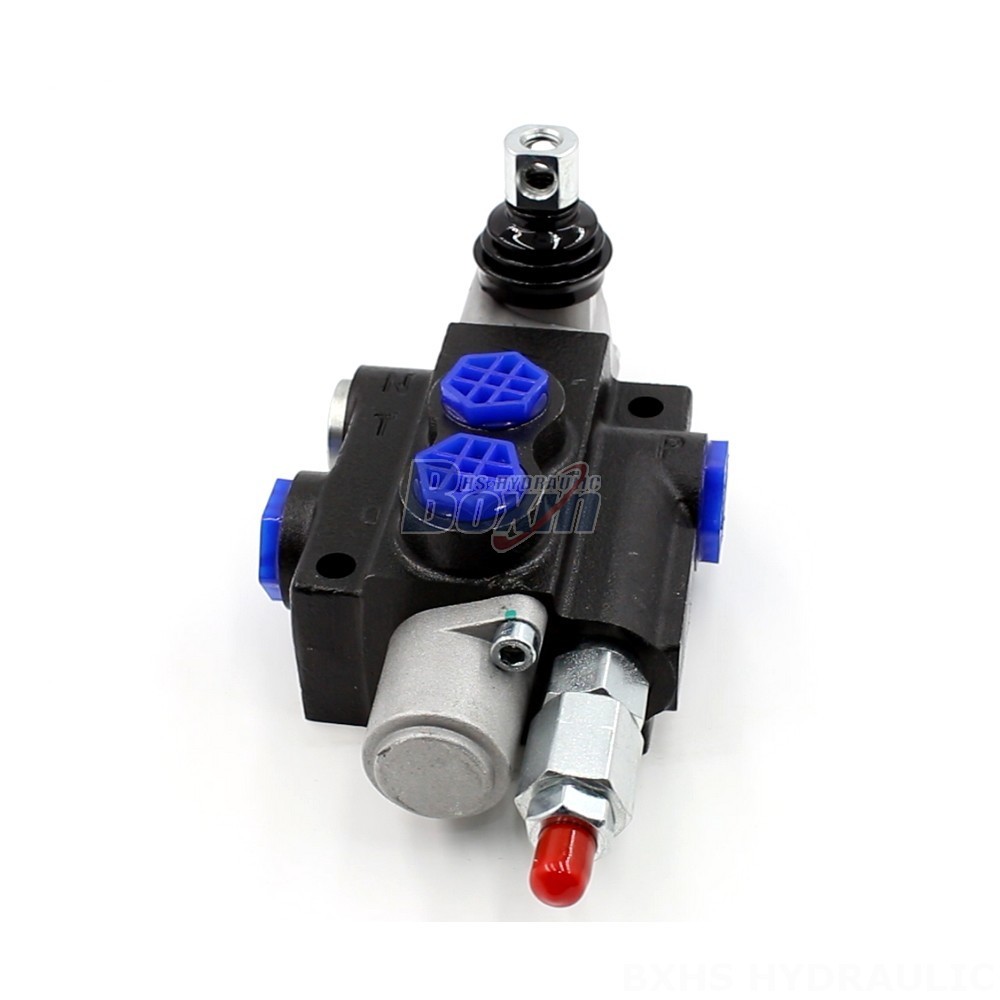

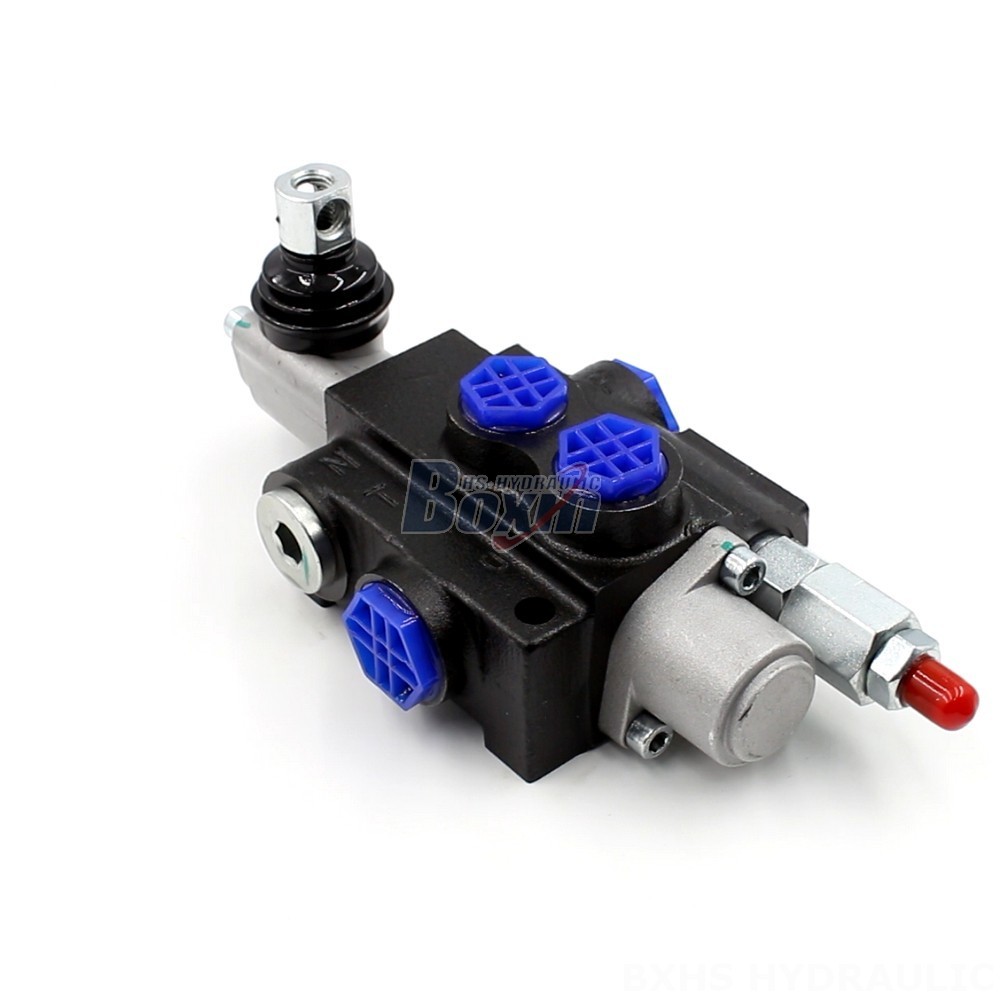

The P40-G12 Diverter Valve is a high-performance hydraulic valve designed for efficient control in construction, material handling, and industrial applications. This manual, monoblock valve boasts a rated flow of 40 L/min and a max pressure of 250 bar, making it ideal for a wide range of machinery.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12 Diverter Valve is a robust and reliable solution for controlling hydraulic flow in demanding applications. Its monoblock structure ensures durability, while the manual control allows for easy operation. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve is suitable for heavy-duty machinery like telehandlers, forklifts, cranes, and excavators. The valve is engineered to withstand extreme operating conditions with a temperature range of -40°C to +80°C and a viscosity range of 15-75 mm²/s. Its compact design and efficient performance make it a valuable asset for any hydraulic system requiring precise fluid direction and control.
