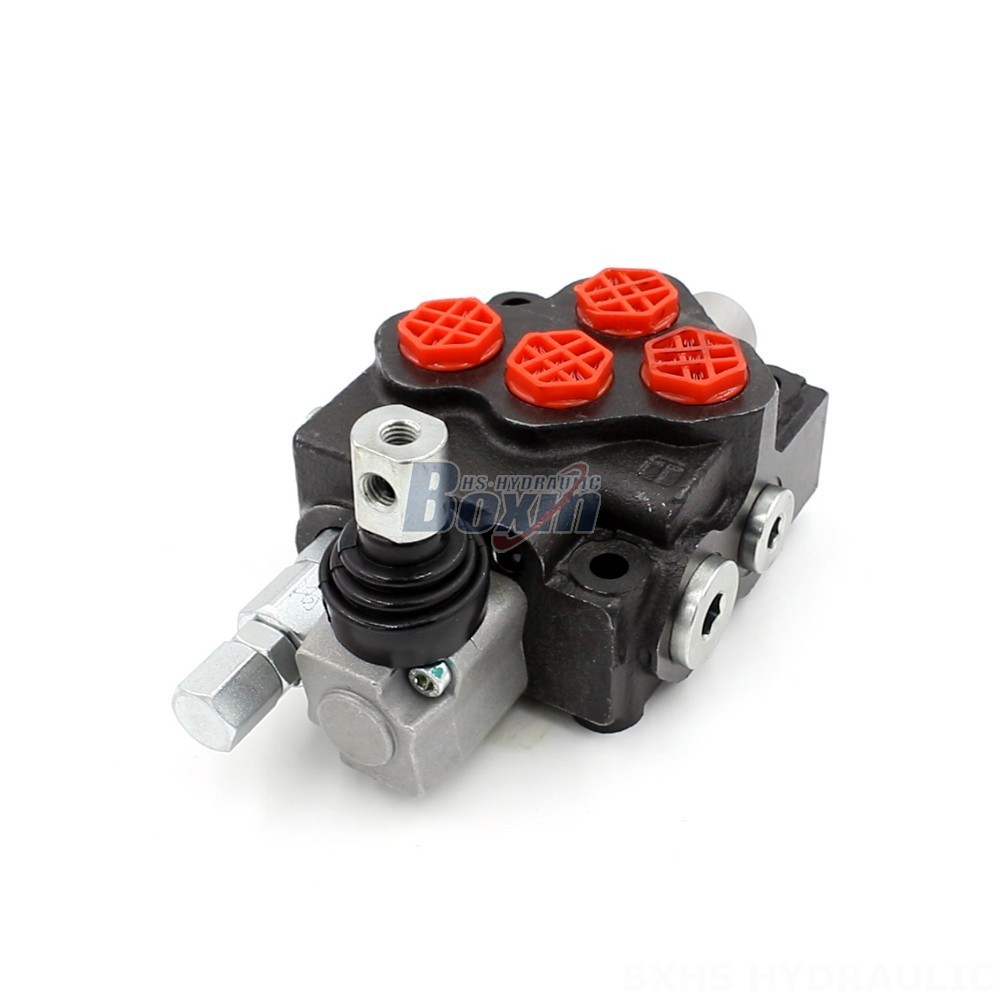

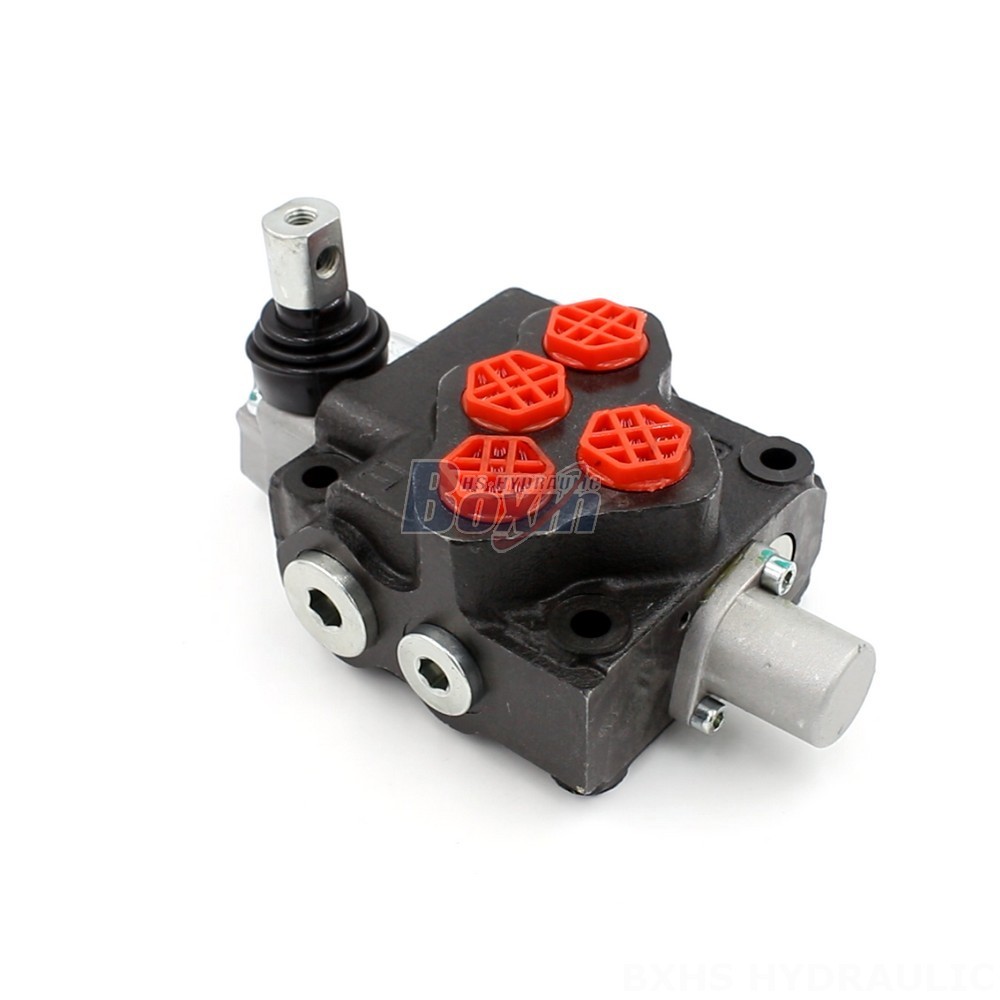

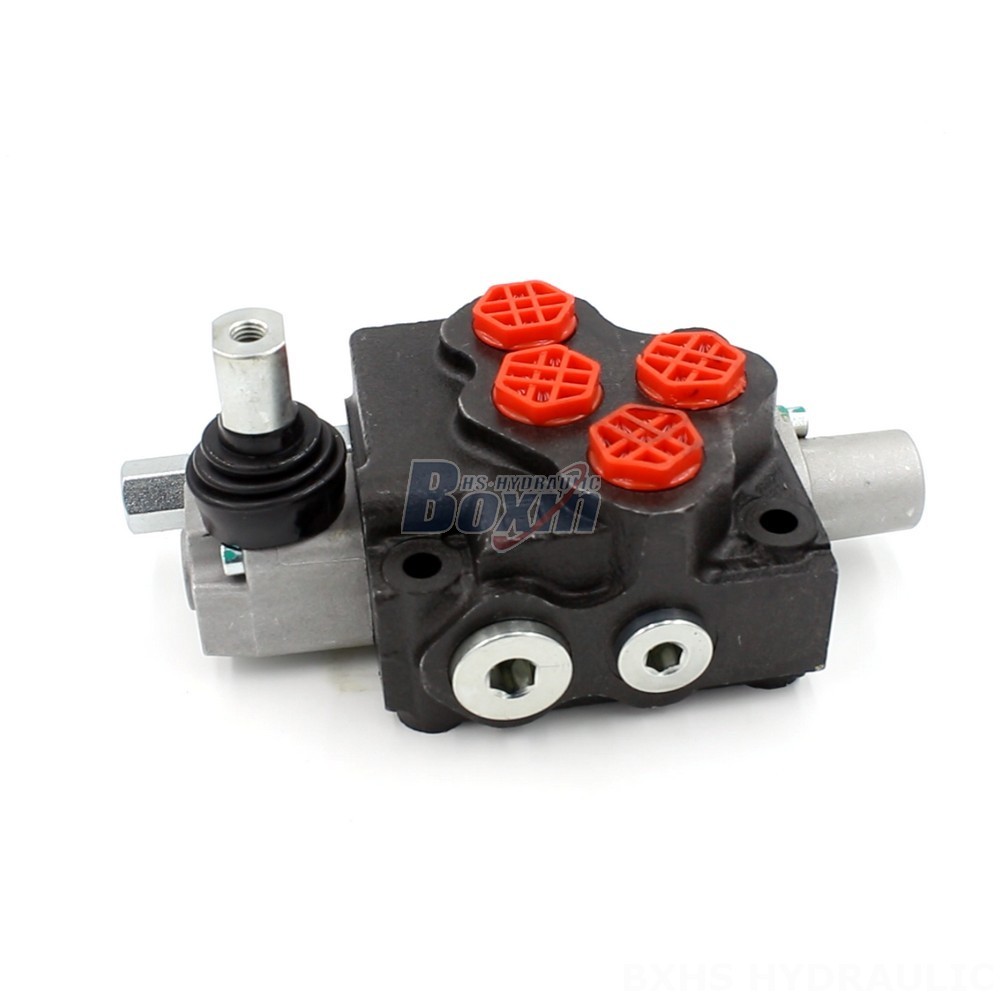

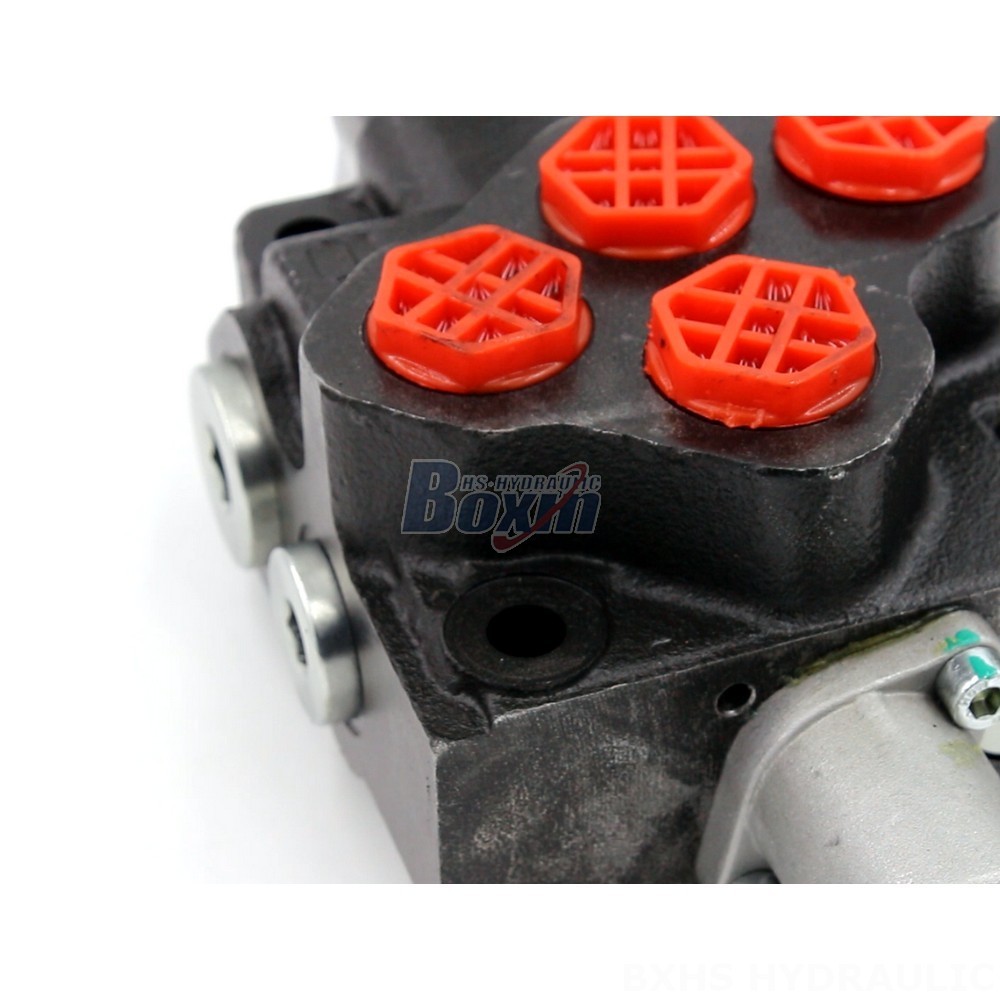

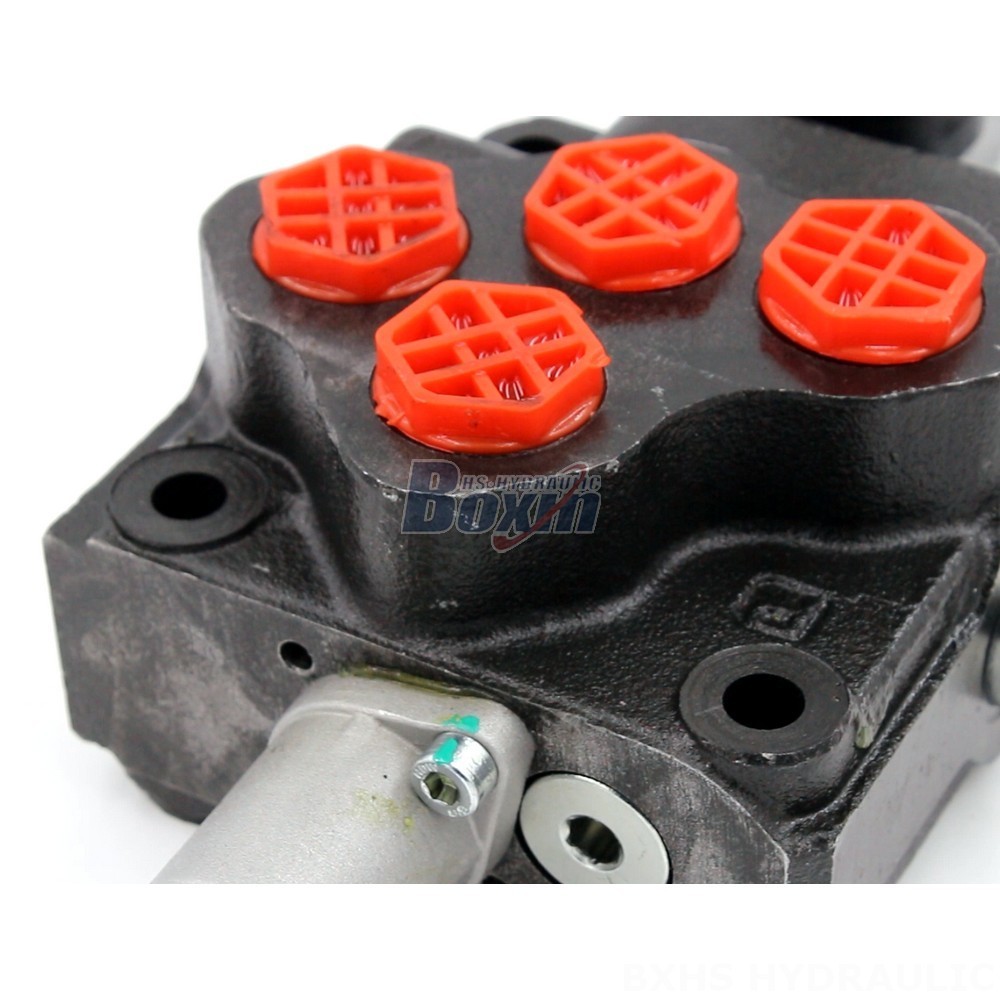

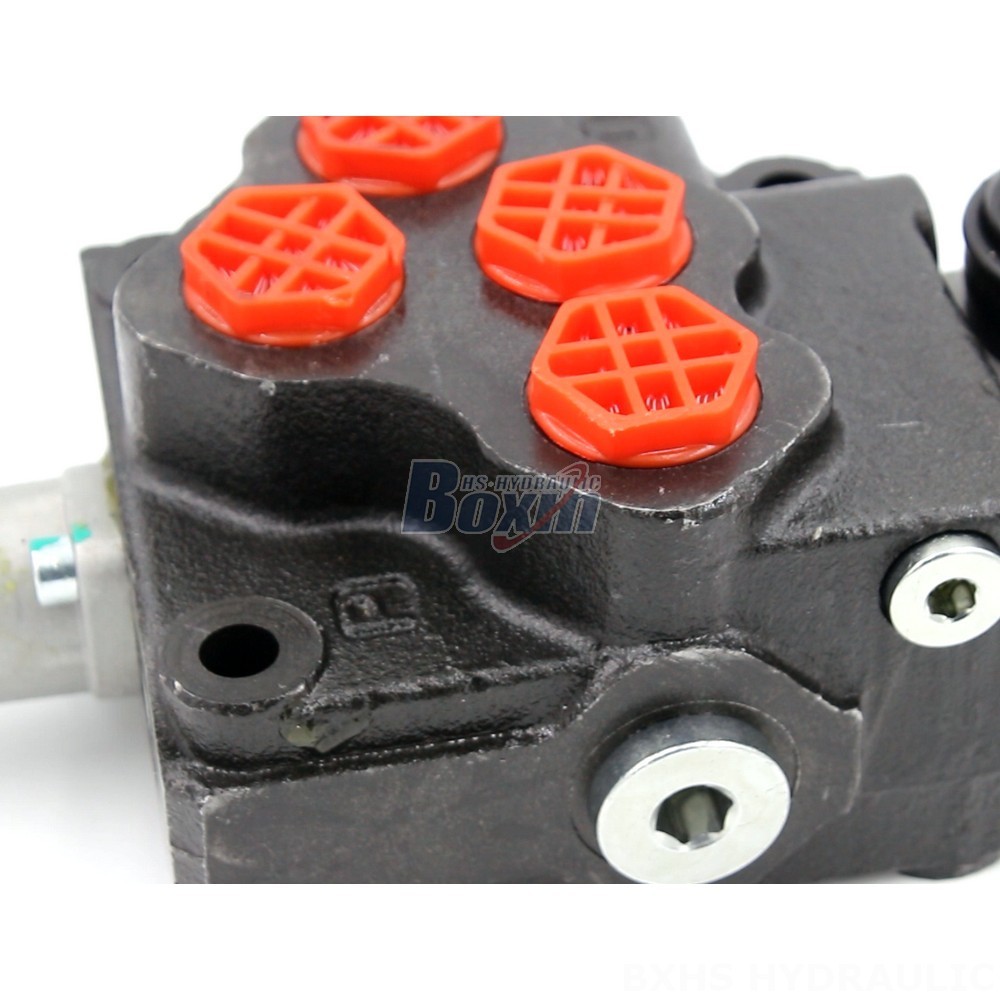

The SD5-G38 Manual Valve is a robust and reliable remote control hydraulic valve block designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve features a 40 L/min flow rate and 305 bar maximum pressure, making it ideal for demanding operations.
| SD5-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Utloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Portstorlek | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5-G38 Manual Valve is a single-section monoblock valve with a 1 spool design. It offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve is designed for operating viscosity ranges from 15 to 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F). The SD5-G38 is suitable for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, bale wrappers, backhoes, and seeding machines.
