Produktion & Leverans
15-30 dagars produktionsledtid
Innovation driver utvecklingen Tekniken formar framtiden
907 Vyer letar efter den här produkten

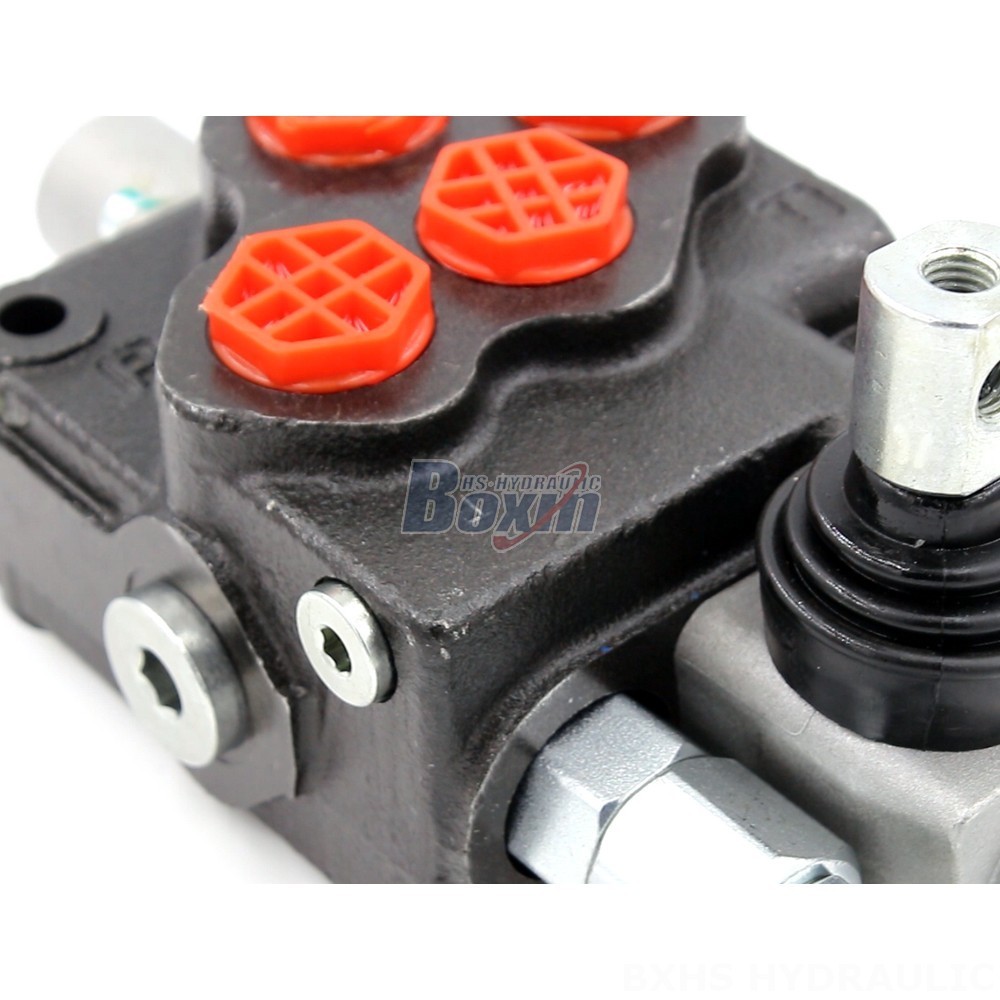

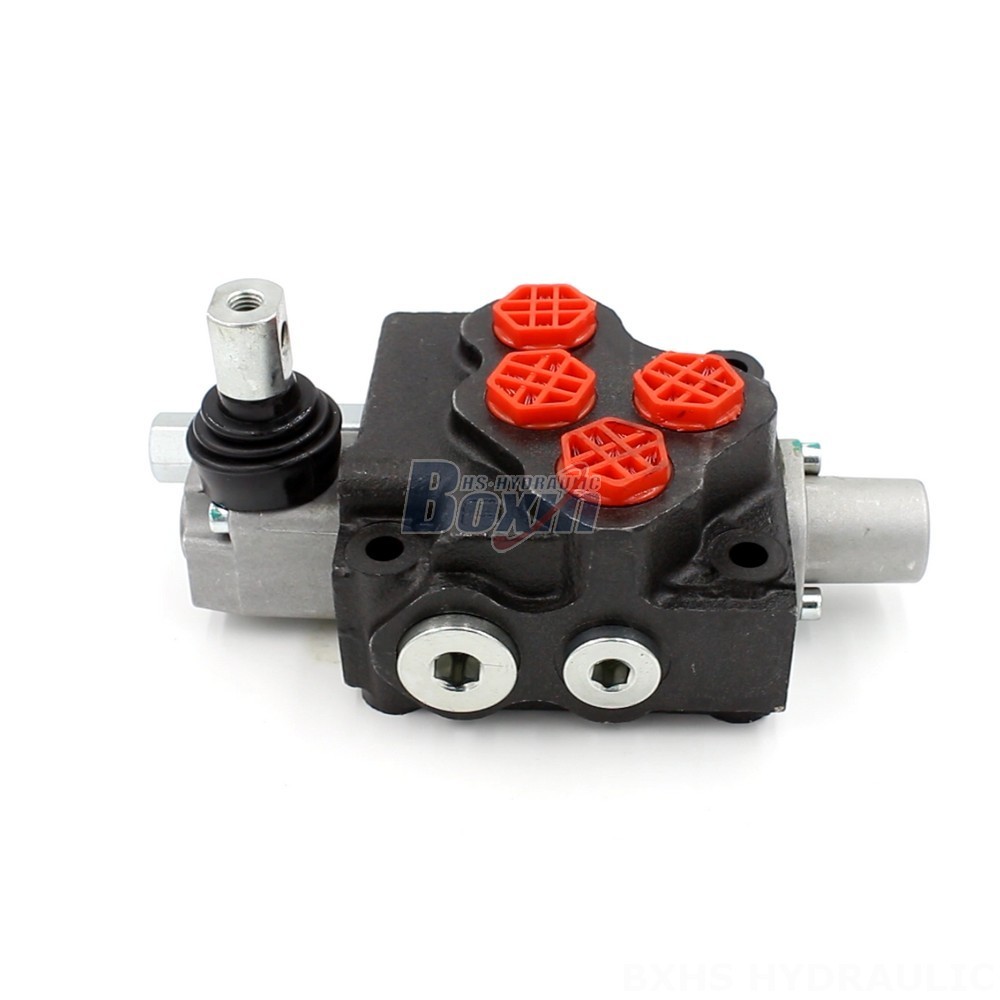

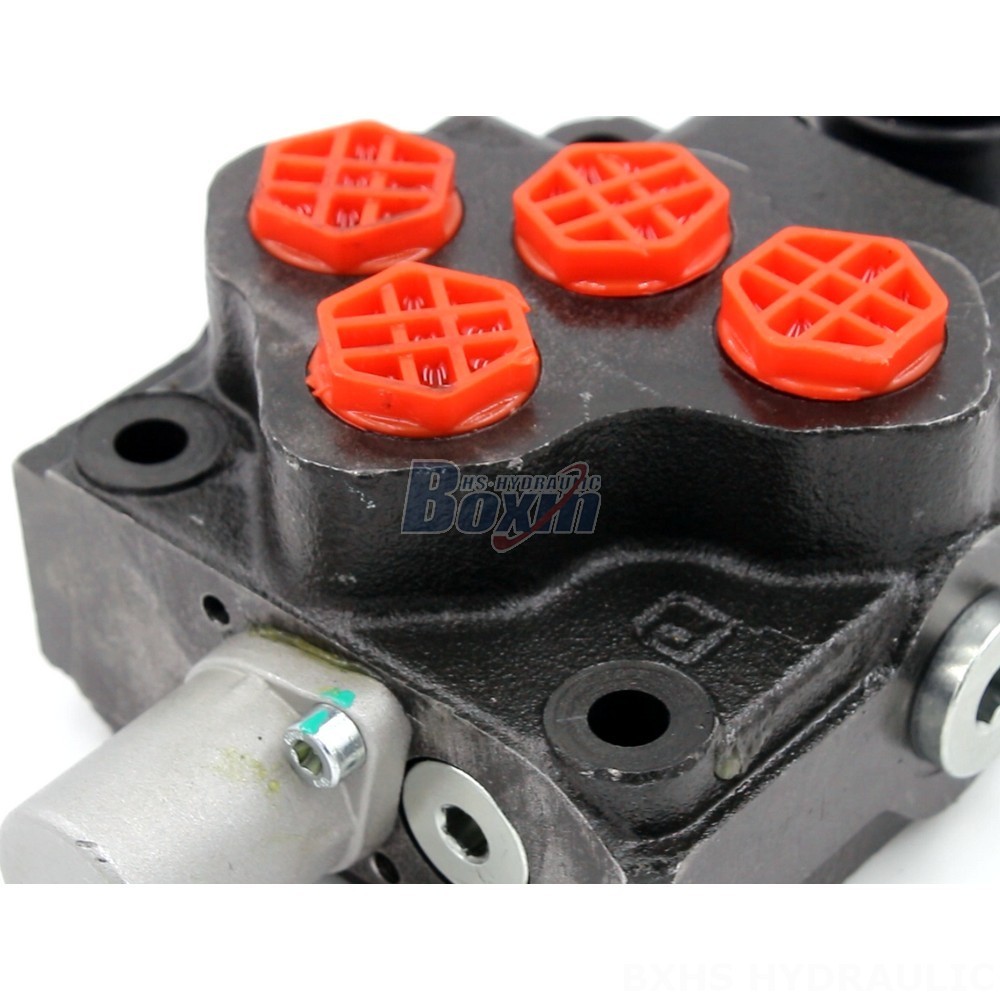

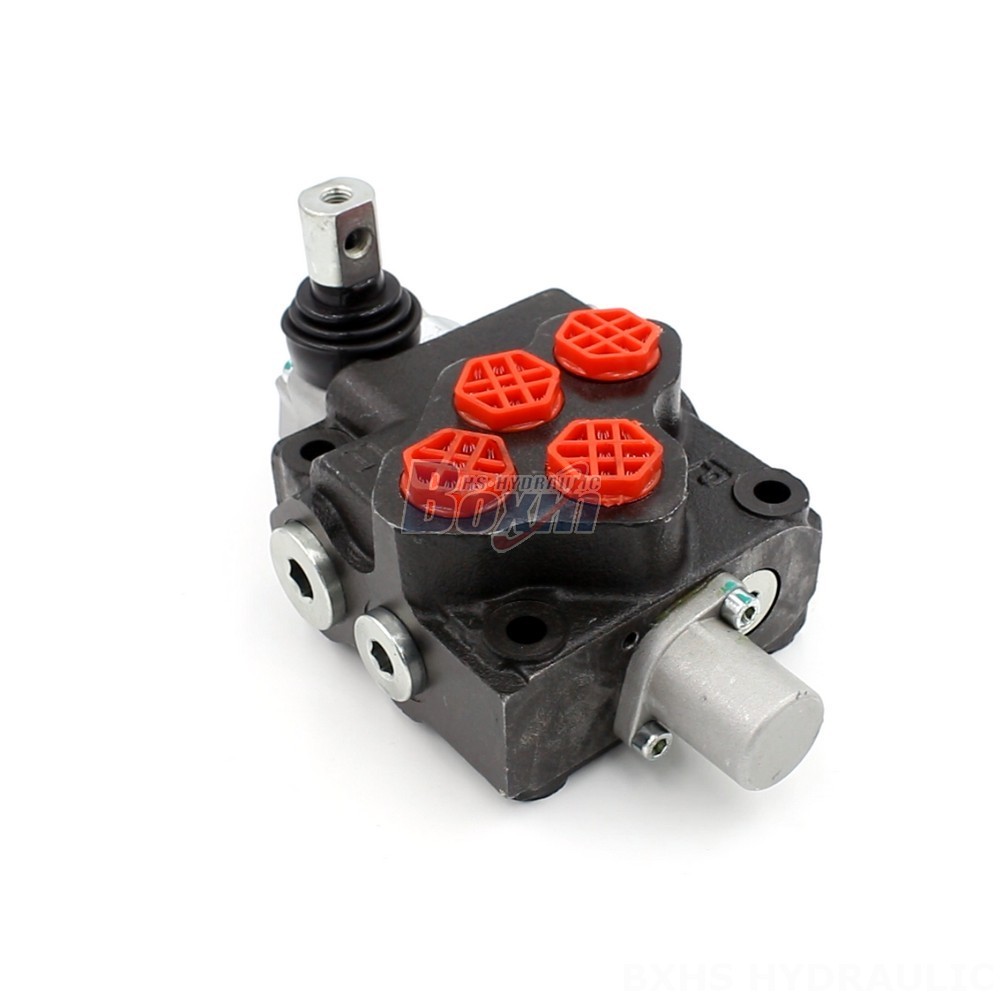

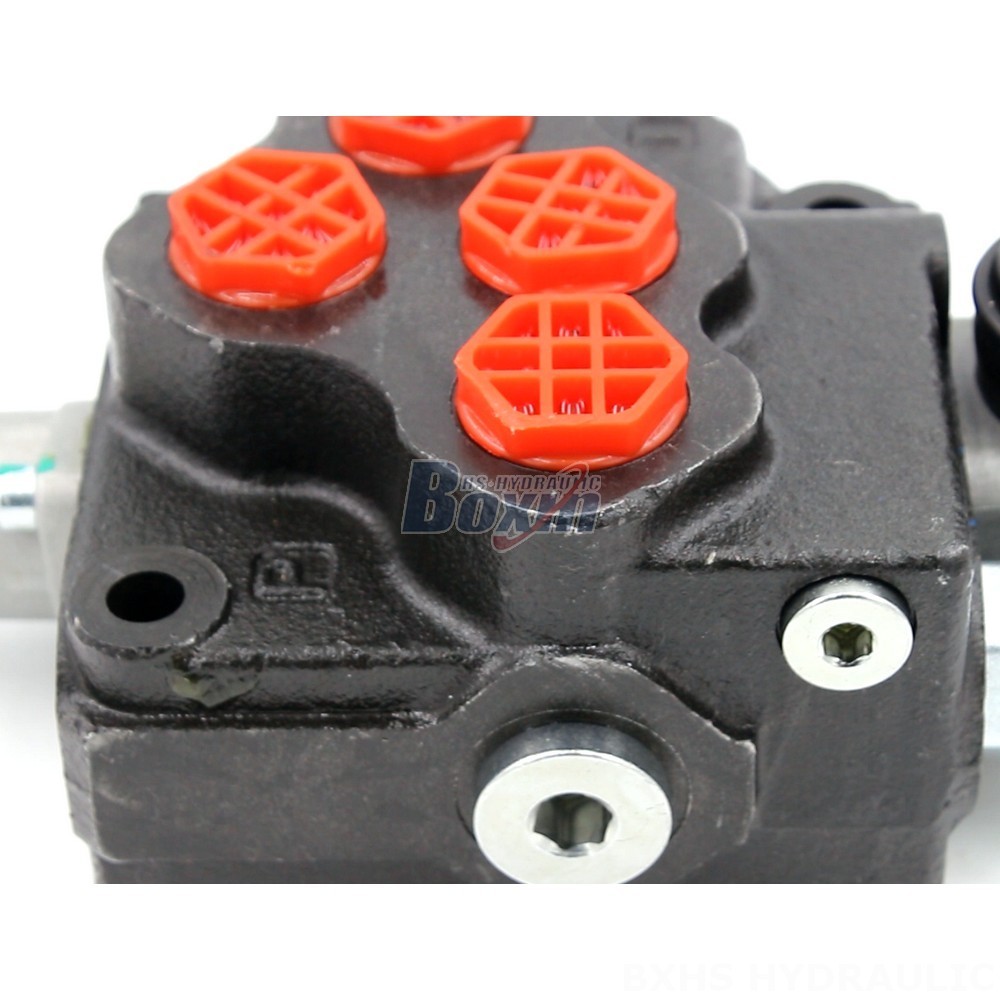

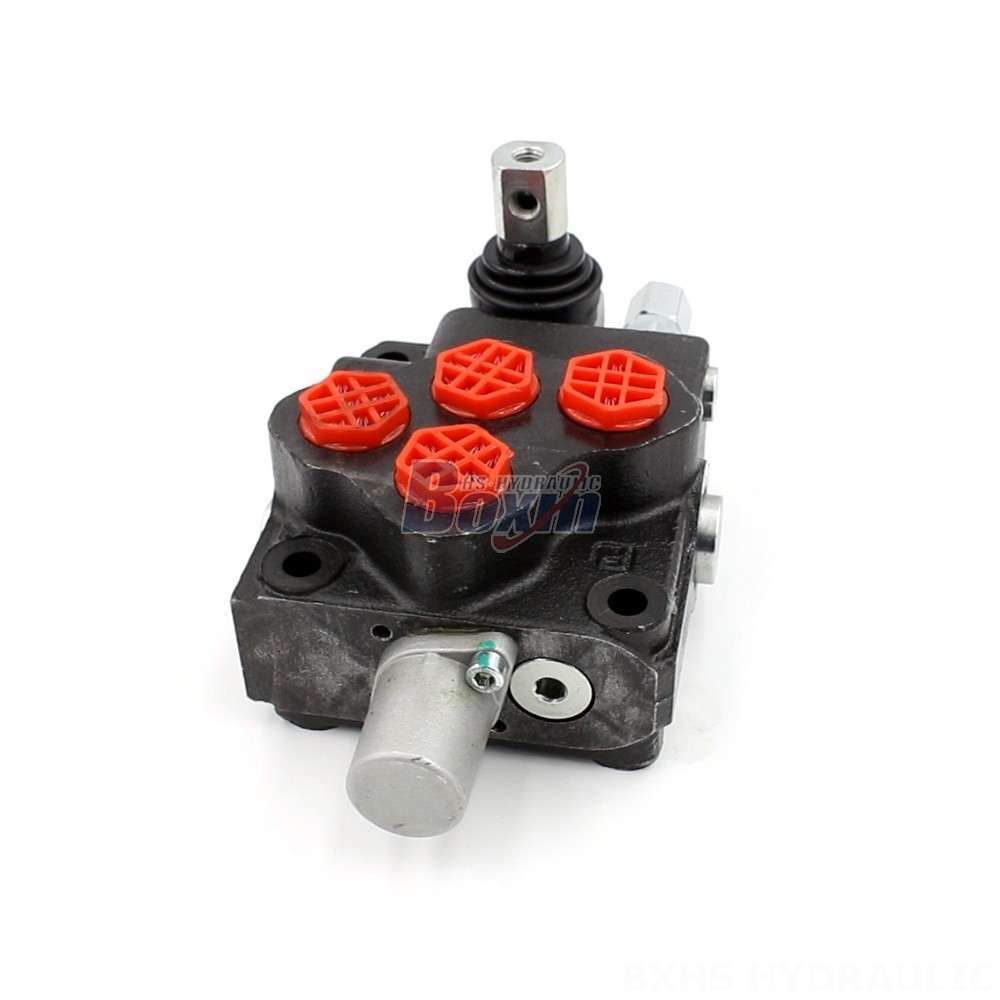

Introducing the Factory-Direct Distribution: SD5-G38 Monoblock Valve! Our state-of-the-art valve offers exceptional performance with a rated flow capacity of 40 L/min and a maximum pressure of 305 bar. Designed to meet the demands of various industries, including material handling, construction, agriculture, and industrial vehicles.
| SD5-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Utloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Portstorlek | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
Experience the benefits of direct factory distribution:
**Cut Out the Middleman:** Get your hands on high-quality products straight from the source, eliminating unnecessary markups and ensuring competitive pricing.
**Unmatched Quality:** As the manufacturer, we maintain strict quality control standards, ensuring the reliability and longevity of our valves.
**Customization Options:** Whether you need OEM, ODM, or custom solutions, we have the expertise and capabilities to meet your specific requirements.
**Excellent Customer Support:** Our dedicated team is here to provide technical assistance, product support, and personalized service throughout the partnership.
**Global Reach:** We cater to customers worldwide, ensuring timely and efficient order fulfillment regardless of your location.
The SD5-G38 Monoblock Valve is ideal for a wide range of applications, including:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
* Backhoe loaders
* Tractors and front-end loaders
* Harvesters
* Bale wrappers
* Backhoes
* Seeding machines
Choose Factory-Direct Distribution and elevate your business with the superior quality, cost-effectiveness, and personalized service we offer.
