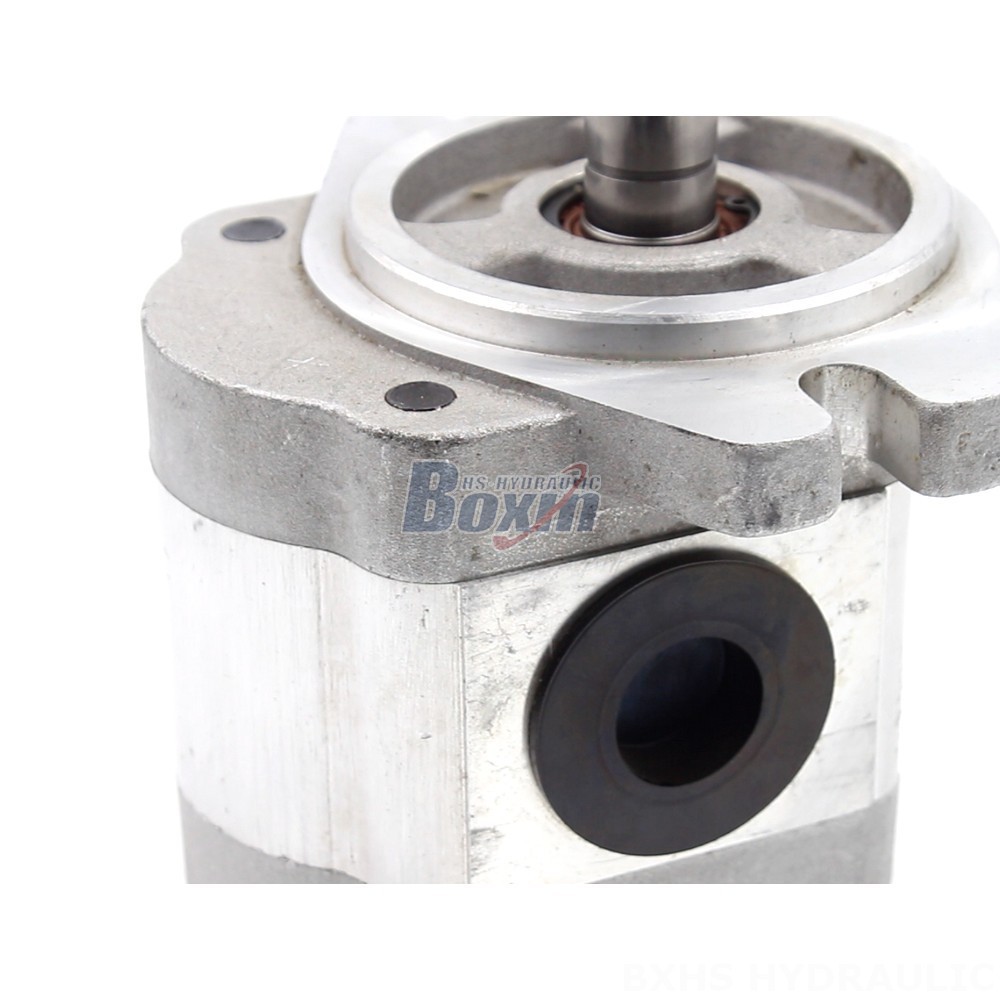

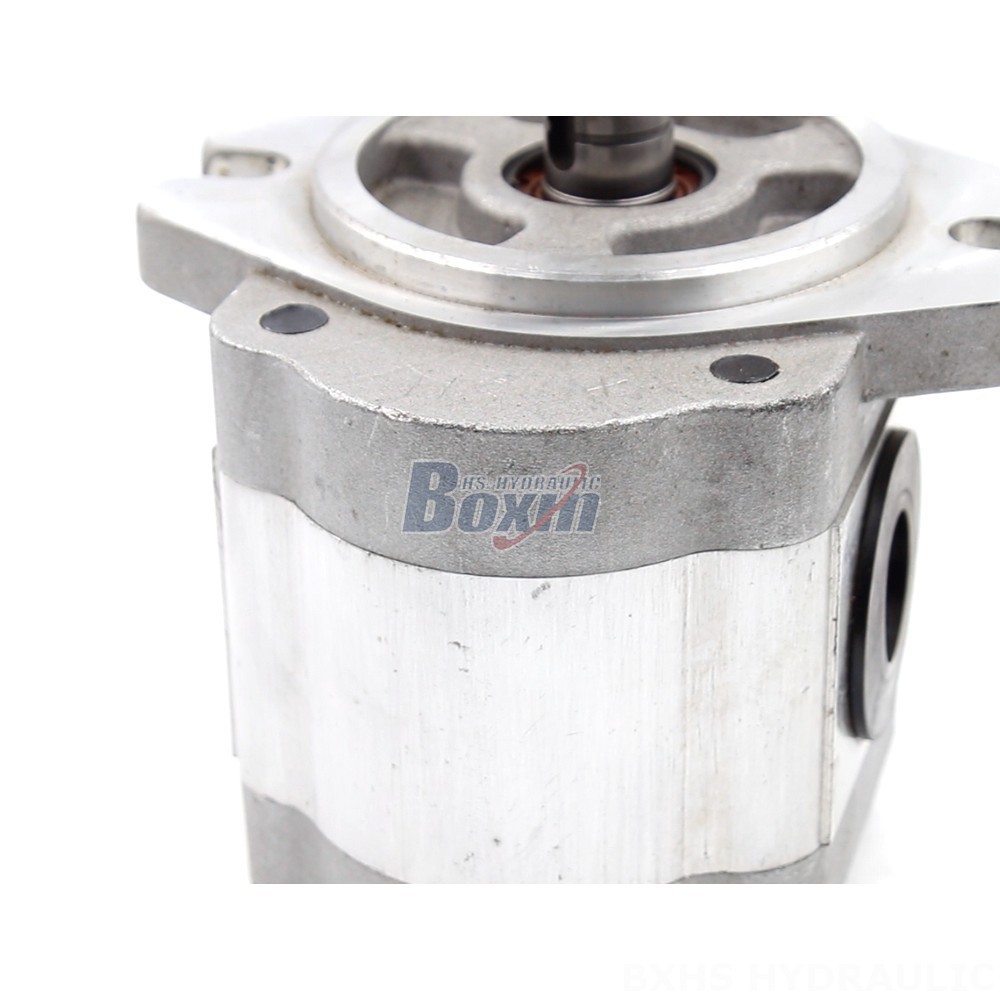

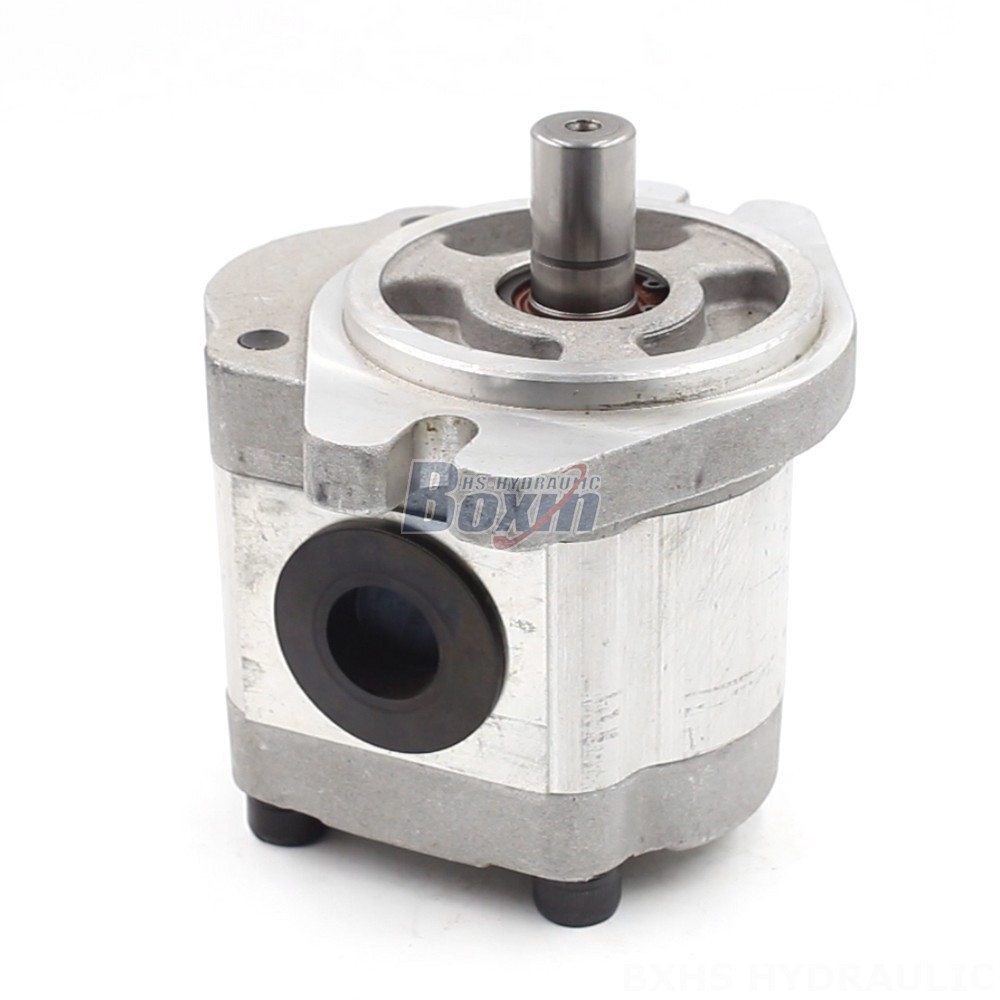

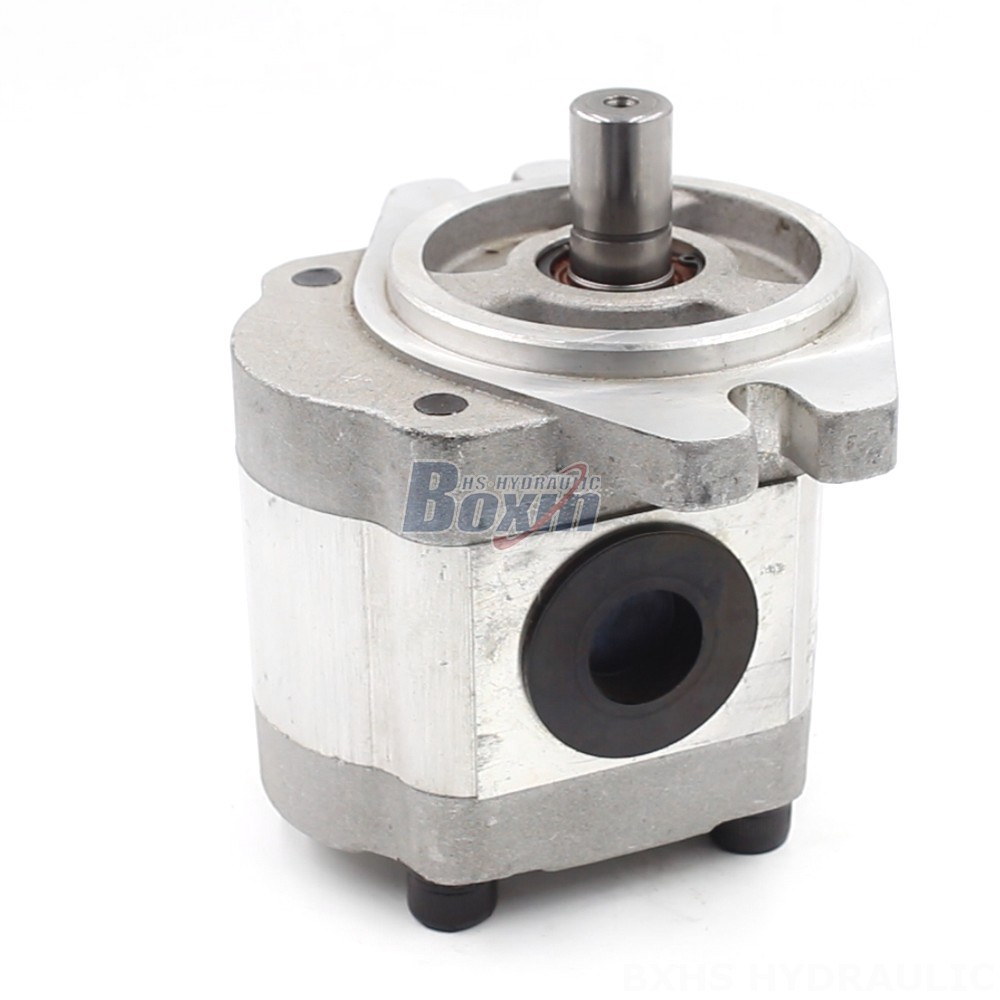

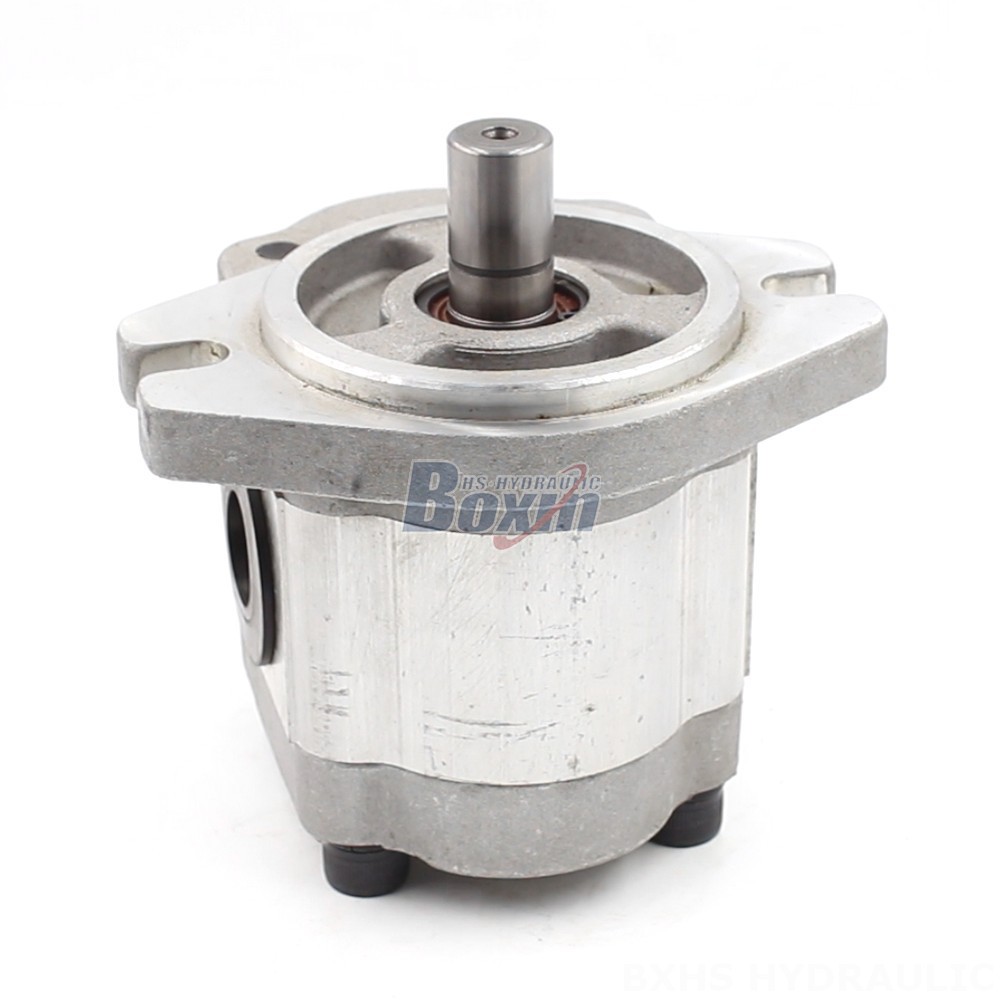

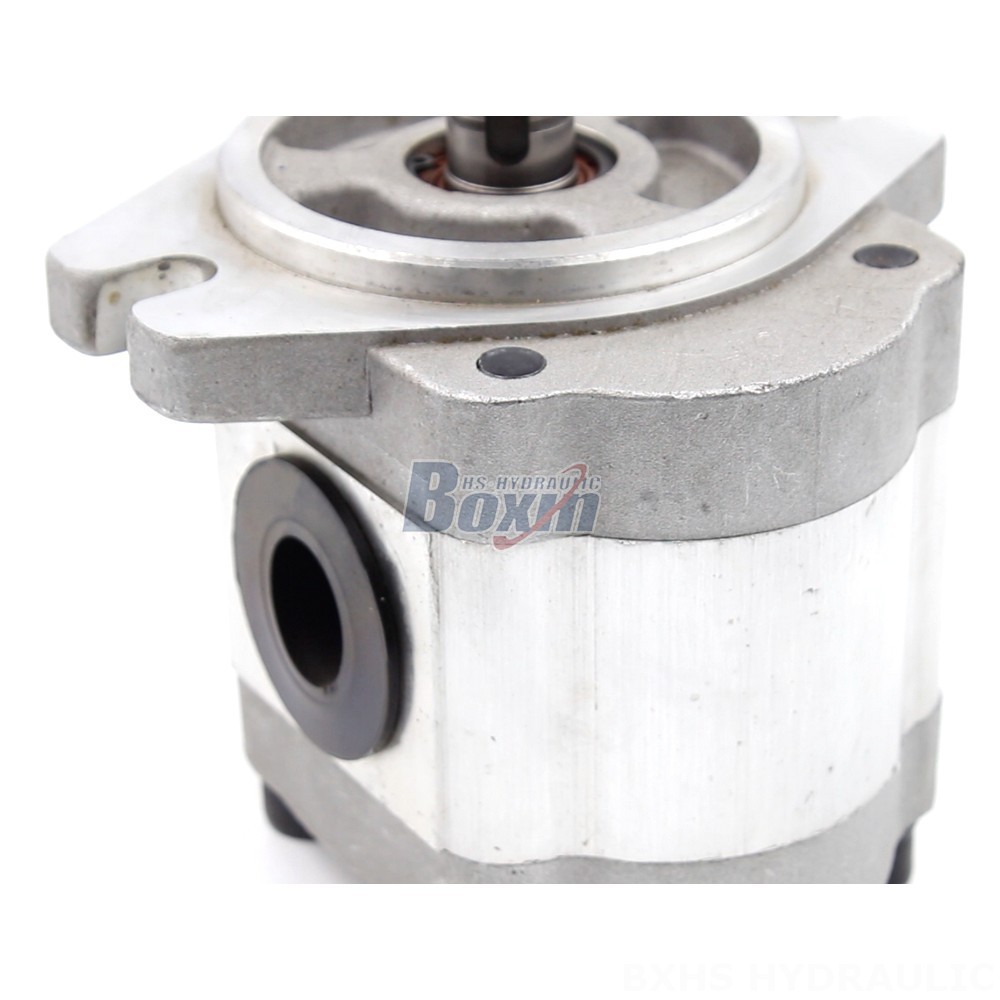

This heavy-duty 6 cc/rev hydraulic gear pump, manufactured in China, is designed for high-performance applications in construction, agriculture, and industrial vehicles. With a displacement of 10 cc/rev, 20 MPa rated pressure, and 2000 r/min rated speed, it delivers reliable power and efficiency.
| CBHS-FL3-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 10 cc/varv, 4 cc/varv, 20 cc/varv, 16 cc/varv, 14 cc/varv, 6 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 3000 varv/min |
| Rotationsriktning | Vänster (motsols), Höger (medsols) |
| Material | Aluminium |
| Struktur | Externt kugghjulspump |
| Flanschversion | A-Oval fläns |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel |
The CBHS-FL3 Series hydraulic gear pump features a robust internal gear design and is constructed from durable aluminum. It offers a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is available with left or right rotation options and comes with an A-oval flange and plain key shaft. Its versatility makes it suitable for a wide range of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and sprayers.
