The P40-G12 High-Performance Hydraulic Directional Valve is designed for demanding applications in various industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. This valve features manual control, a monoblock construction, and a rated flow of 40 L/min. With a maximum pressure of 250 bar and an operating viscosity range of 15 - 75 mm²/s, it can withstand challenging operating conditions. The P40-G12 is suitable for use in applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and excavators.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

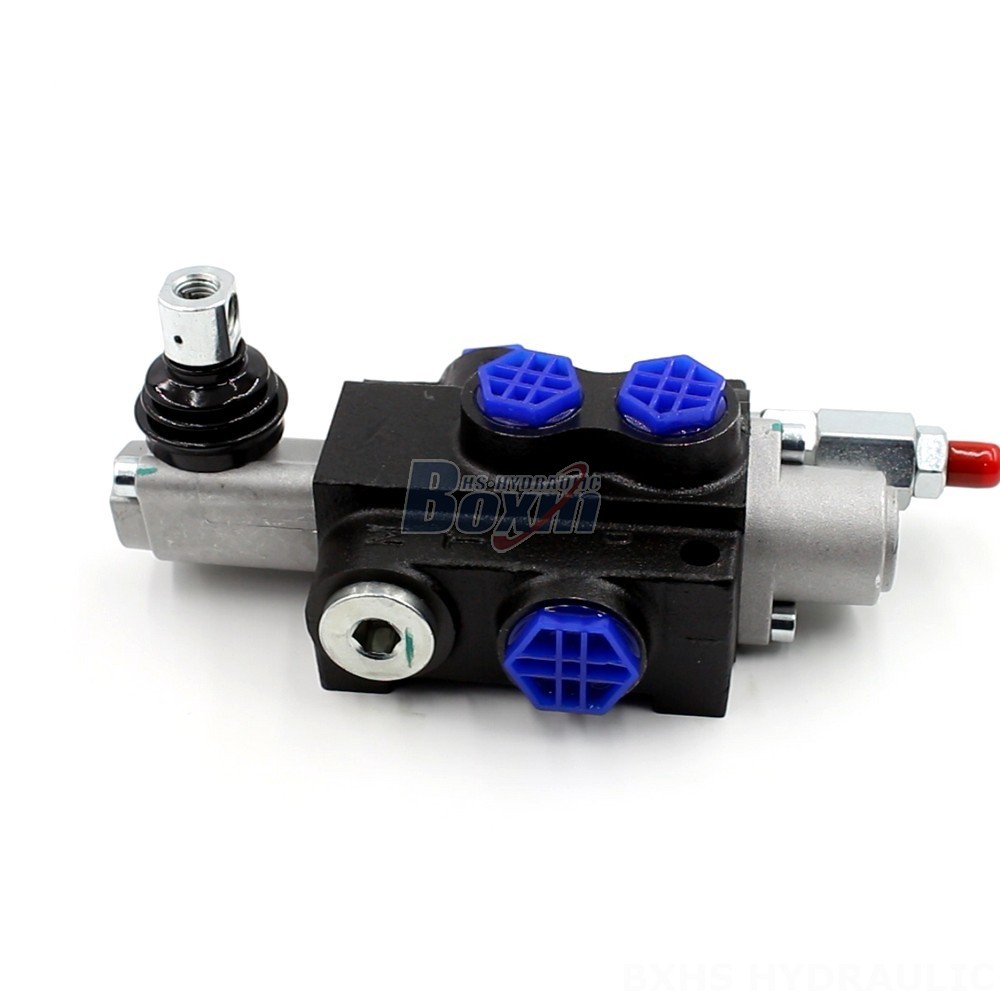

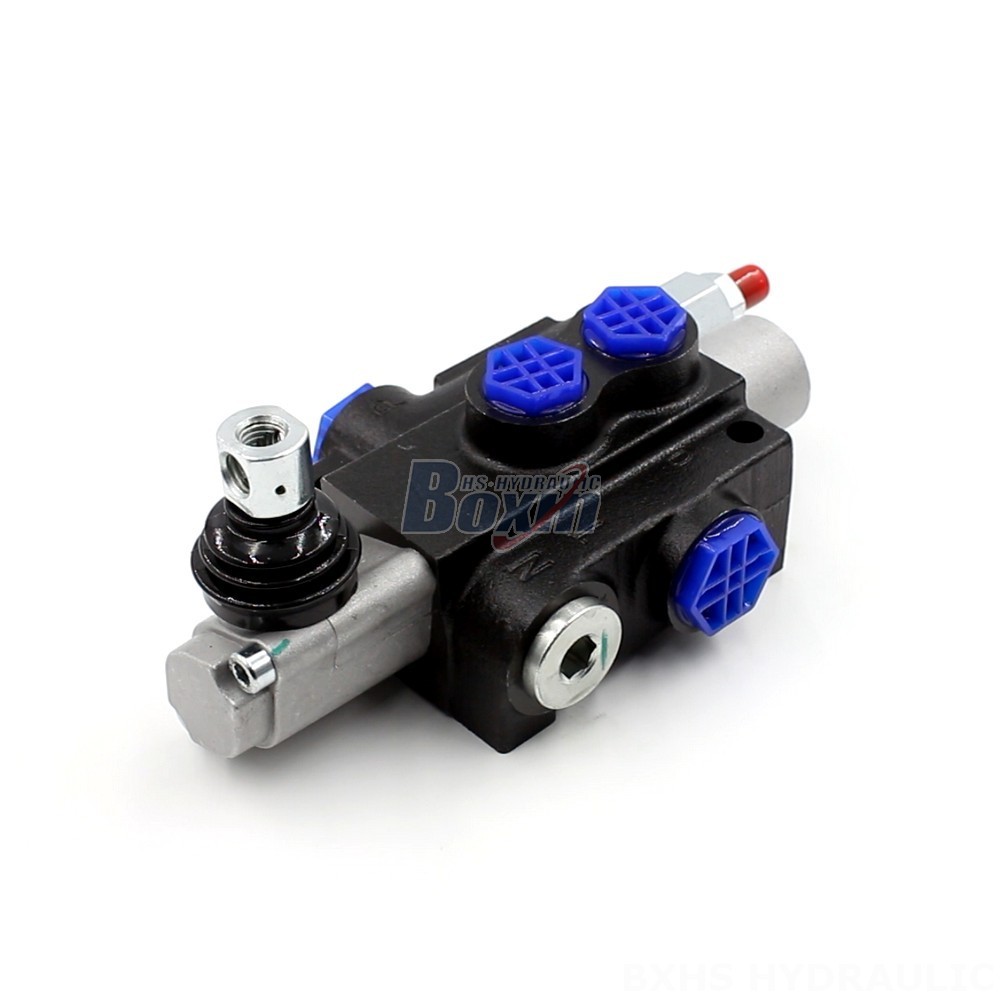

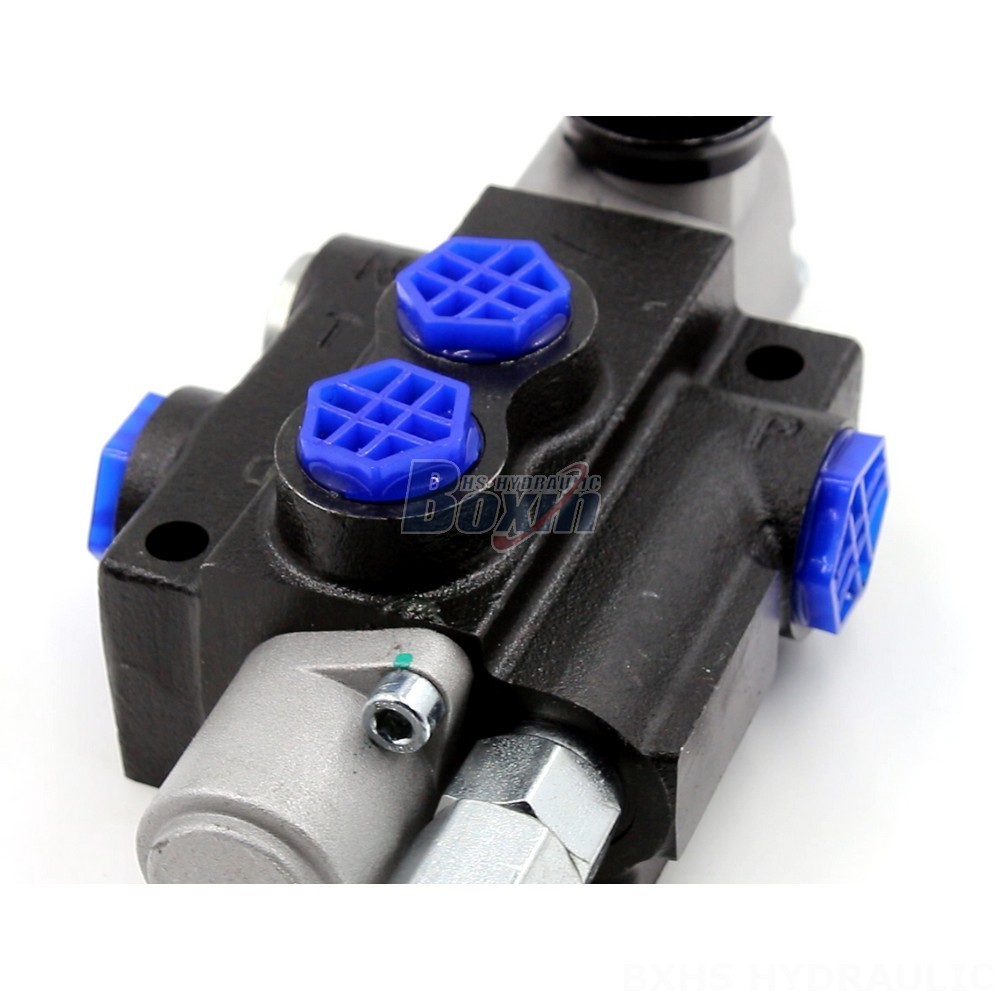

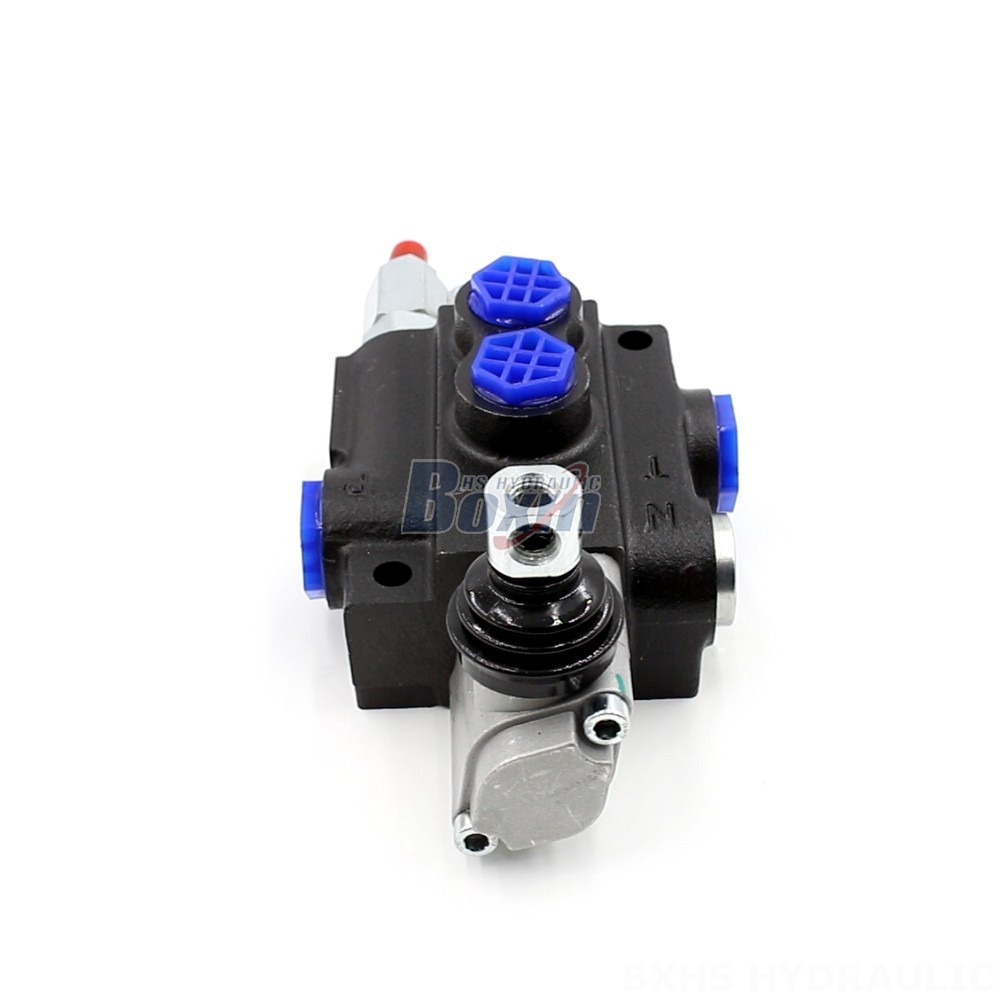

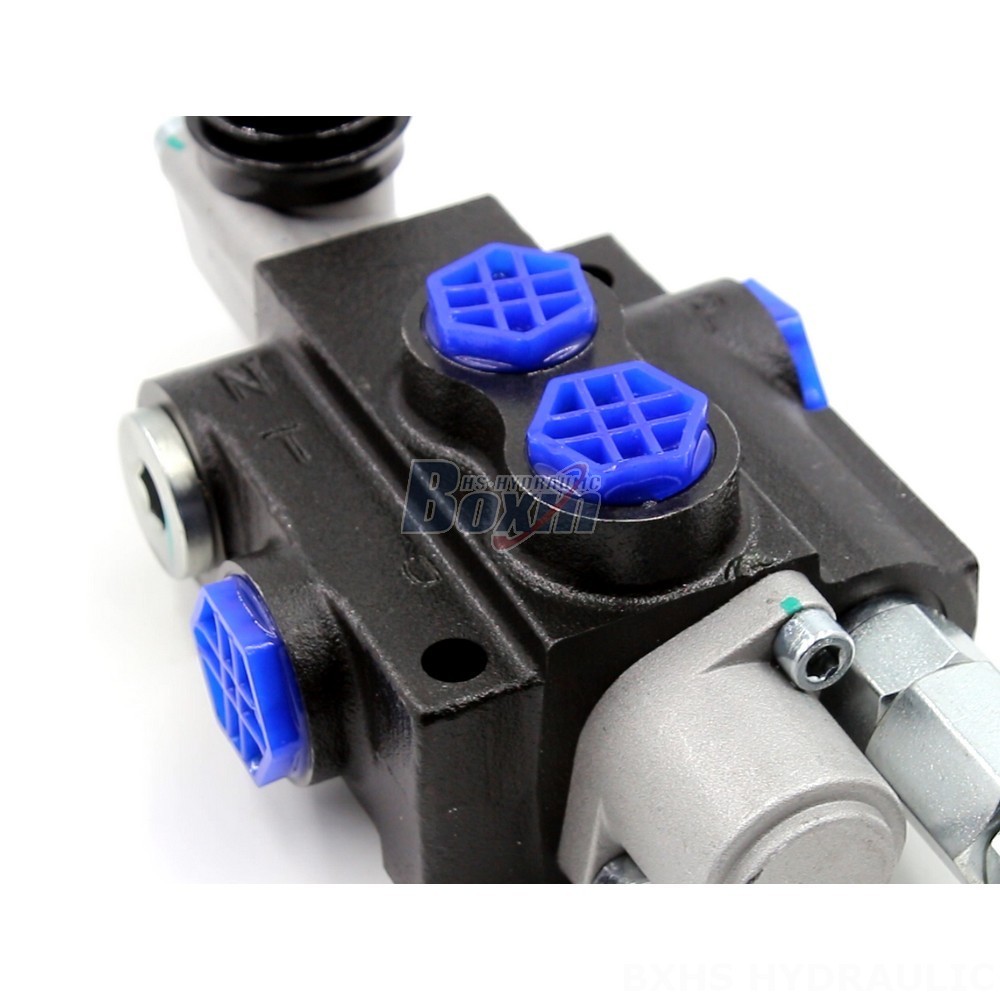

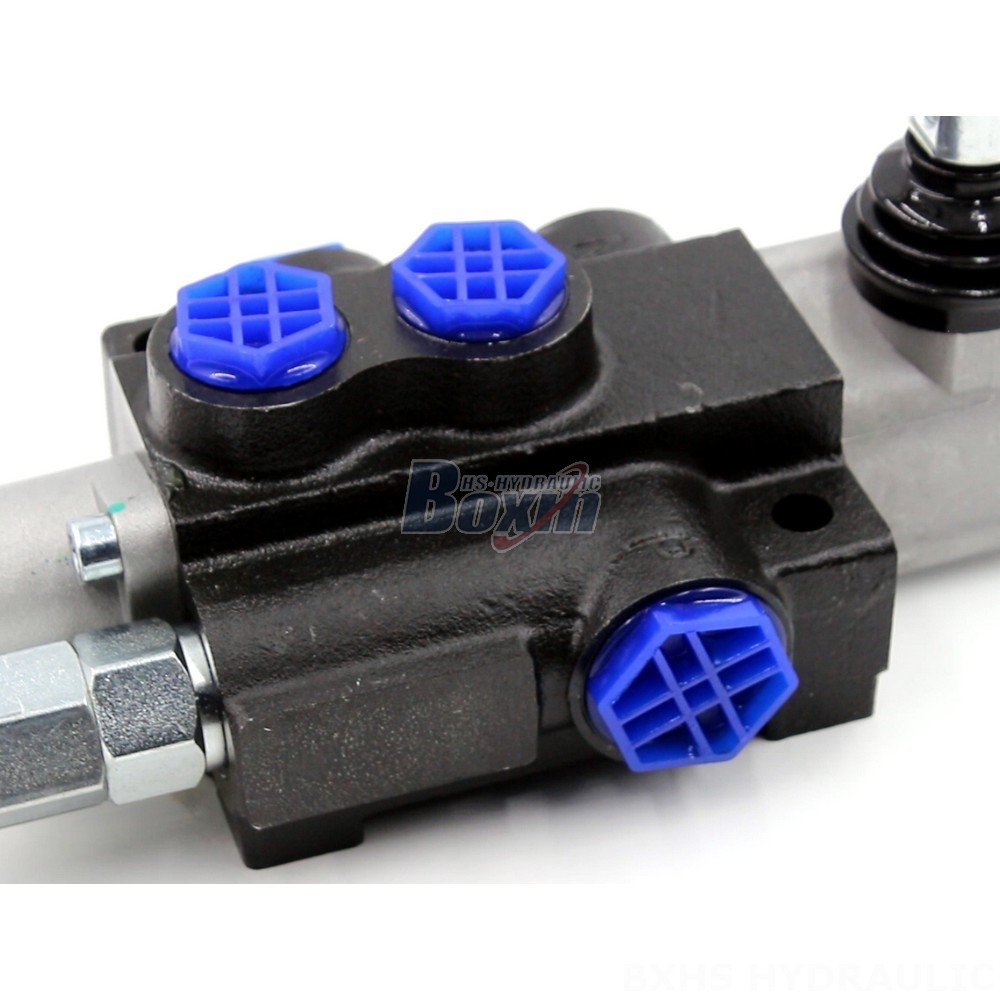

**P40-G12 High-Performance Hydraulic Directional Valve**
**Key Features:**
- Manual control for precise operation
- Monoblock construction for durability and reliability
- Rated flow of 40 L/min for efficient performance
- Maximum pressure of 250 bar for demanding applications
- Operating viscosity range of 15 - 75 mm²/s for versatility
- Ambient temperature range of -40°C to +80°C for use in various environments
- 1 spool for simple and effective flow control
**Applications:**
- MATERIAL HANDLING: Telehandlers, forklifts, stackers
- CONSTRUCTION AND EARTH MOVING: All-terrain cranes, motor graders, excavators
- AGRICULTURE: Tractors, harvesters
- INDUSTRIAL VEHICLES: Aerial platforms, skid steer loaders, compact wheel loaders
