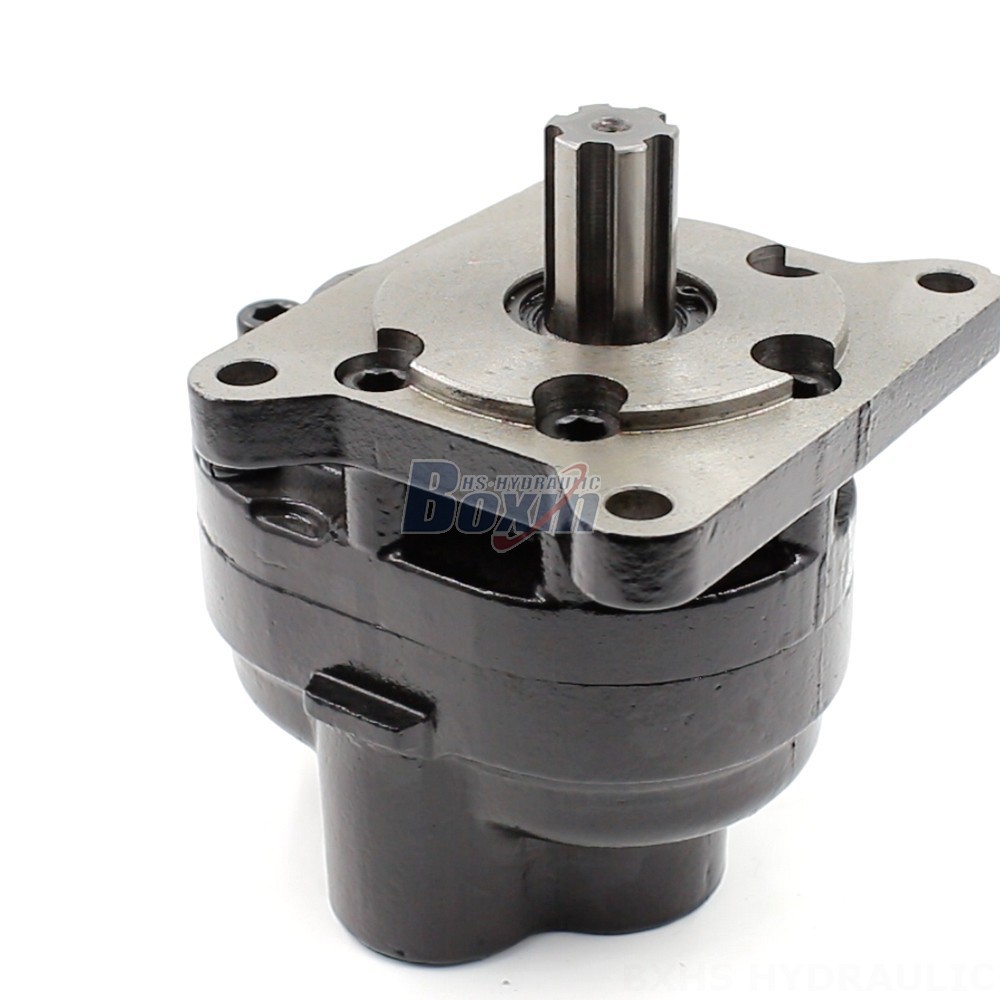

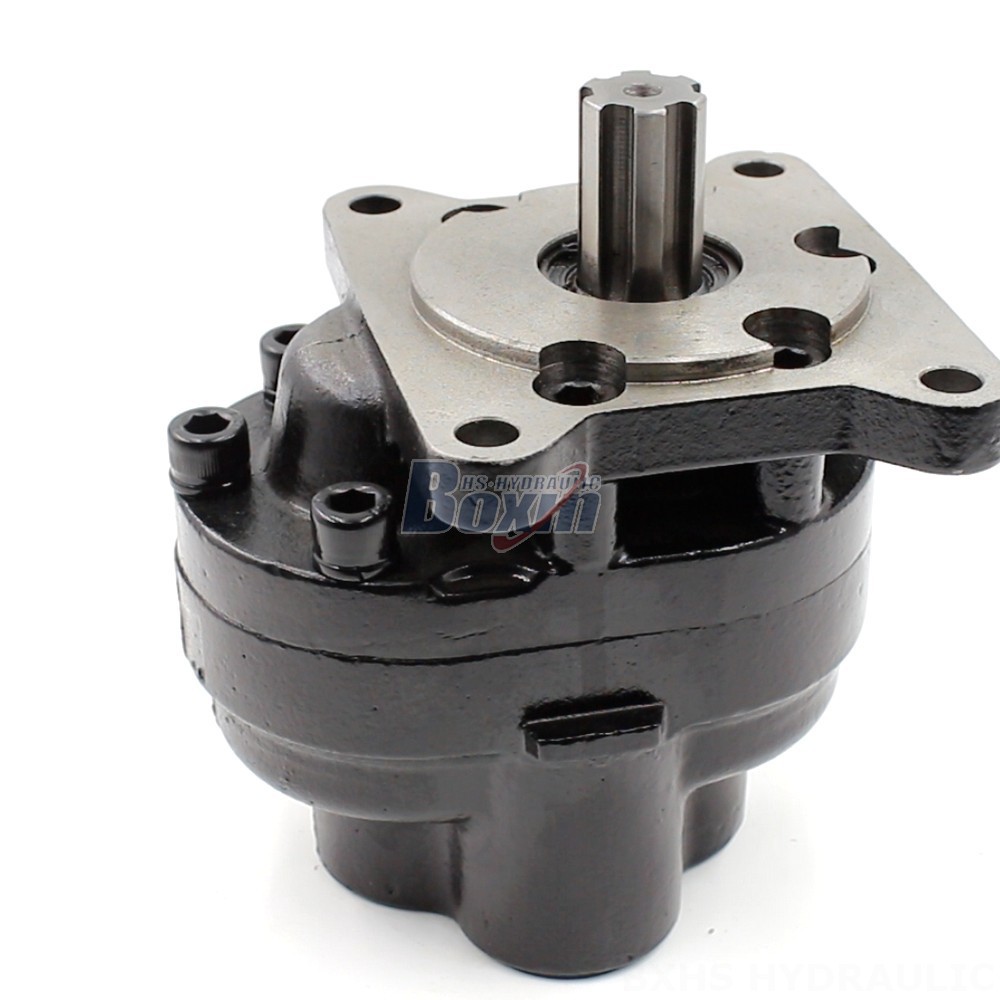

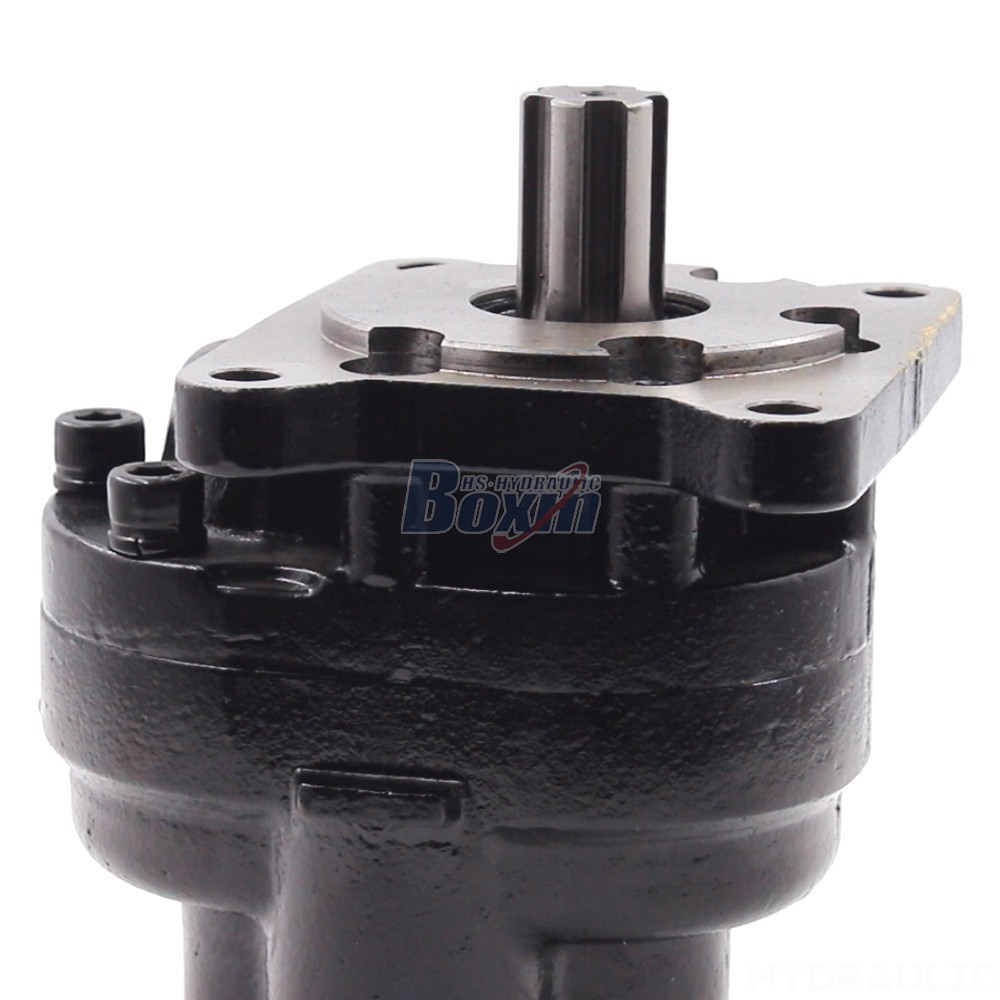

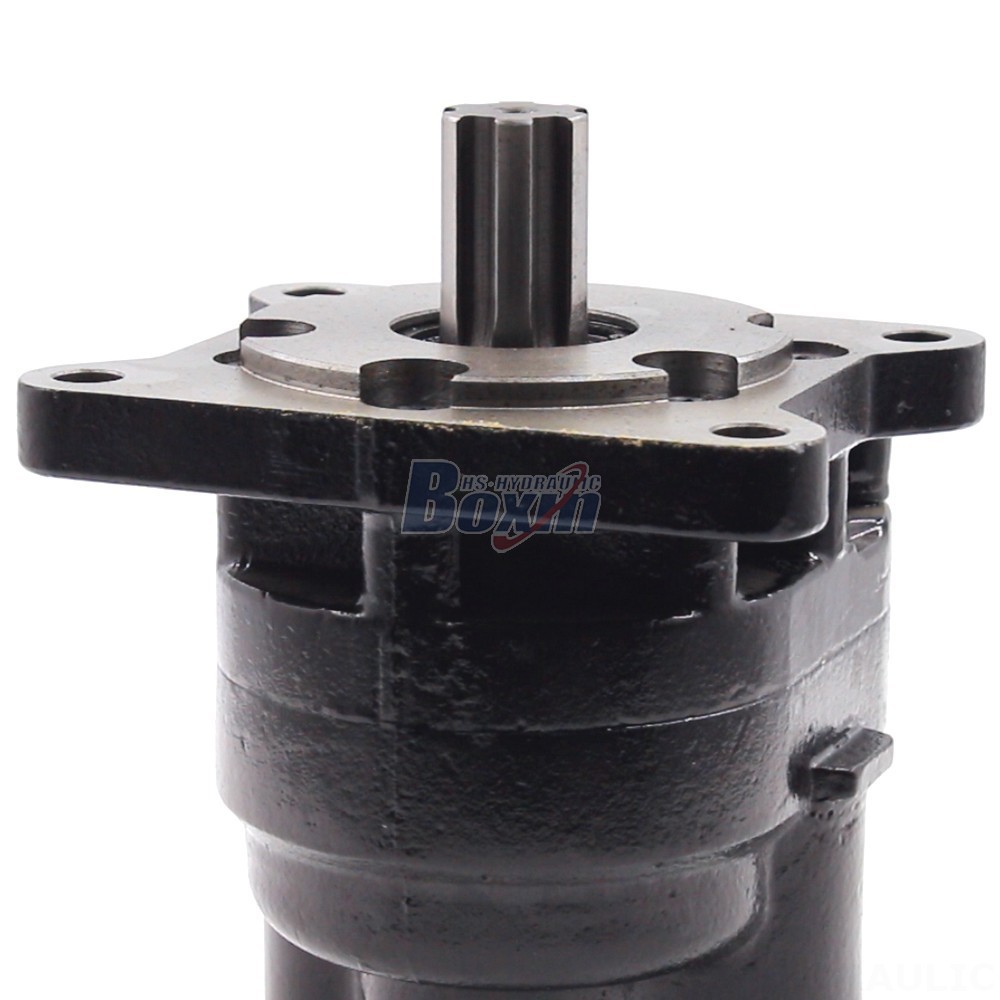

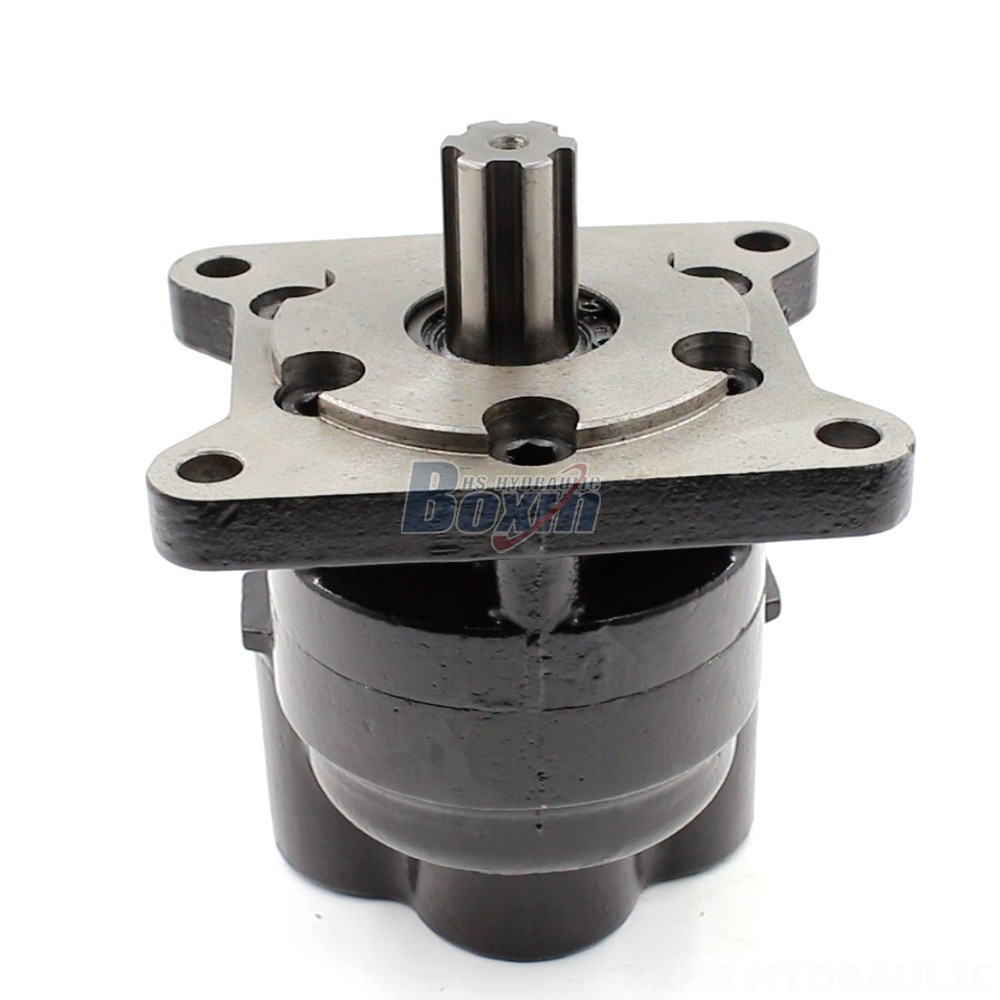

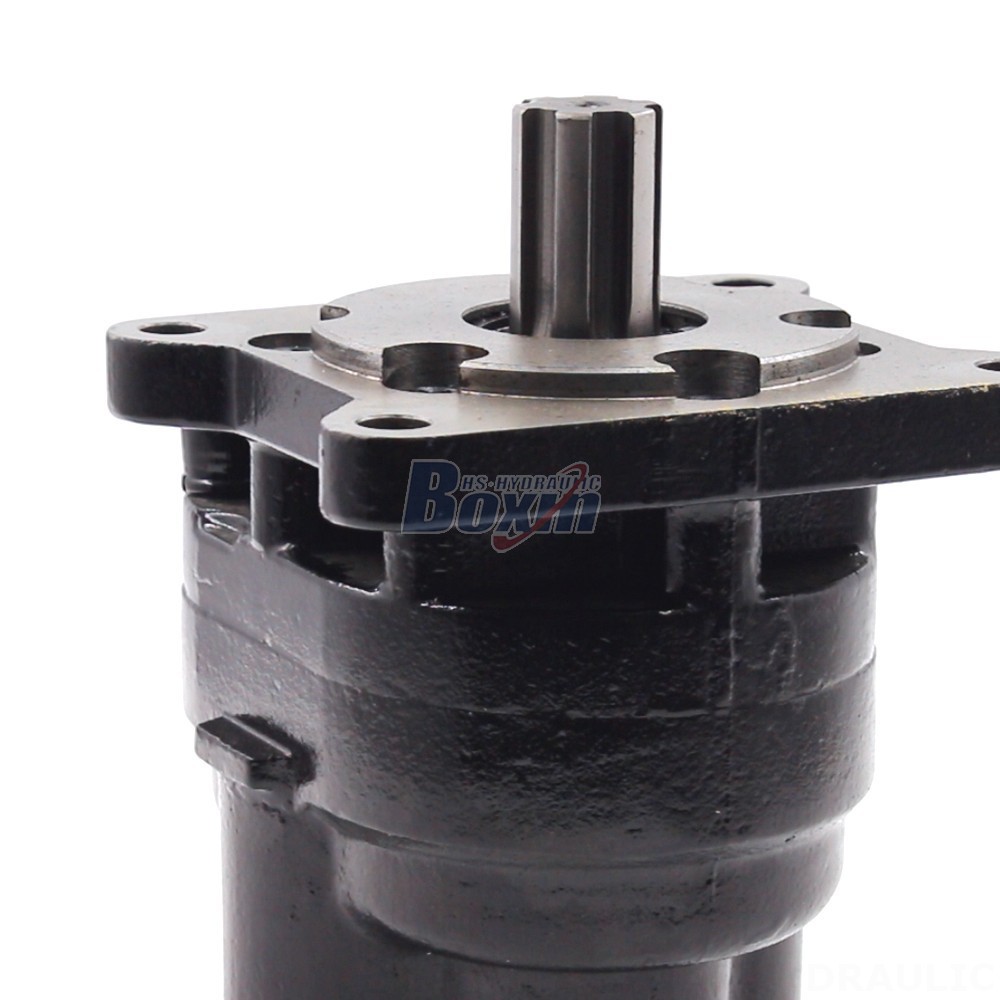

Our High-Performance Hydraulic Gear Pump is designed for various applications such as material handling, construction, agriculture, and industrial vehicles. It features a displacement of 32 cc/rev, 50 cc/rev, or 63 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min with a maximum speed of 2200 r/min. The pump has a cast iron construction and is available with different flange versions, shaft types, and rotation directions.
| CBHS-F5-serien Hydraulisk kugghjulspump Parametrar | |
|---|---|
| Deplacement | 32 cc/varv, 50 cc/varv, 63 cc/varv, 20 cc/varv |
| Nominellt tryck | 20 MPa (2900 psi) |
| Maximalt tryck | 25 MPa (3625 psi) |
| Nominell hastighet | 2000 varv/min |
| Maximal hastighet | 2500 varv/min |
| Rotationsriktning | Vänster (motsols), Höger (medsols) |
| Material | Gjutjärn |
| Struktur | Externt kugghjulspump |
| Flanschversion | B-Kvadratisk fläns |
| Axeltyp | H: Rektangulär splines, X: Evolventsplines, P: Enkel nyckel |
**High-Performance Hydraulic Gear Pump: Specifications**
**Displacement:**
- 32 cc/rev
- 50 cc/rev
- 63 cc/rev
**Rated Pressure:** 20 MPa (2900 psi)
**Rated Speed:** 2000 r/min
**Max Speed:** 2200 r/min
**Rotation:**
- L: Left (counter-clockwise)
- R: Right (clockwise)
**Structure:** Internal Gear Pump
**Material:** Cast Iron
**Flange Version:** B-Square Flange
**Shaft Type:**
- P: Plain Key
- H: Rectangle Spline
- X: Involute Spline
**Series:** CBHS-F5 Series
**Application Area:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Model:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER
