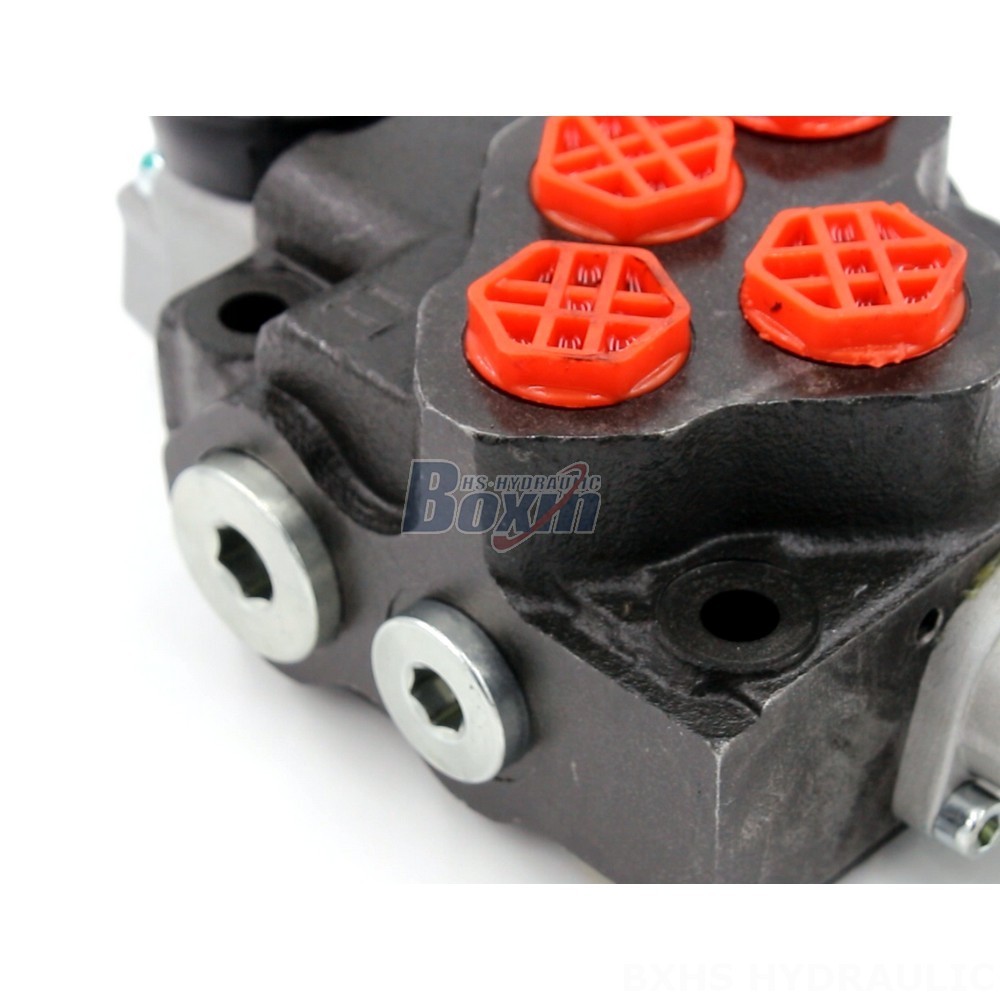

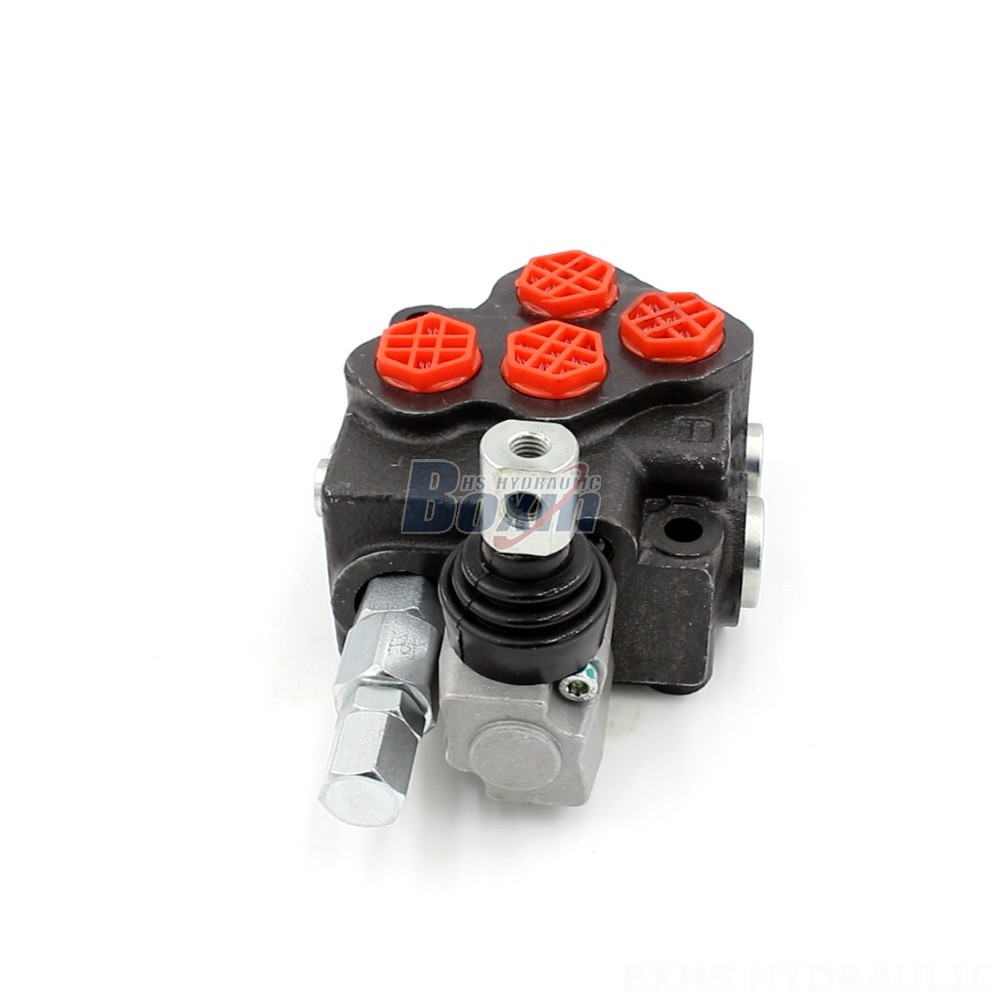

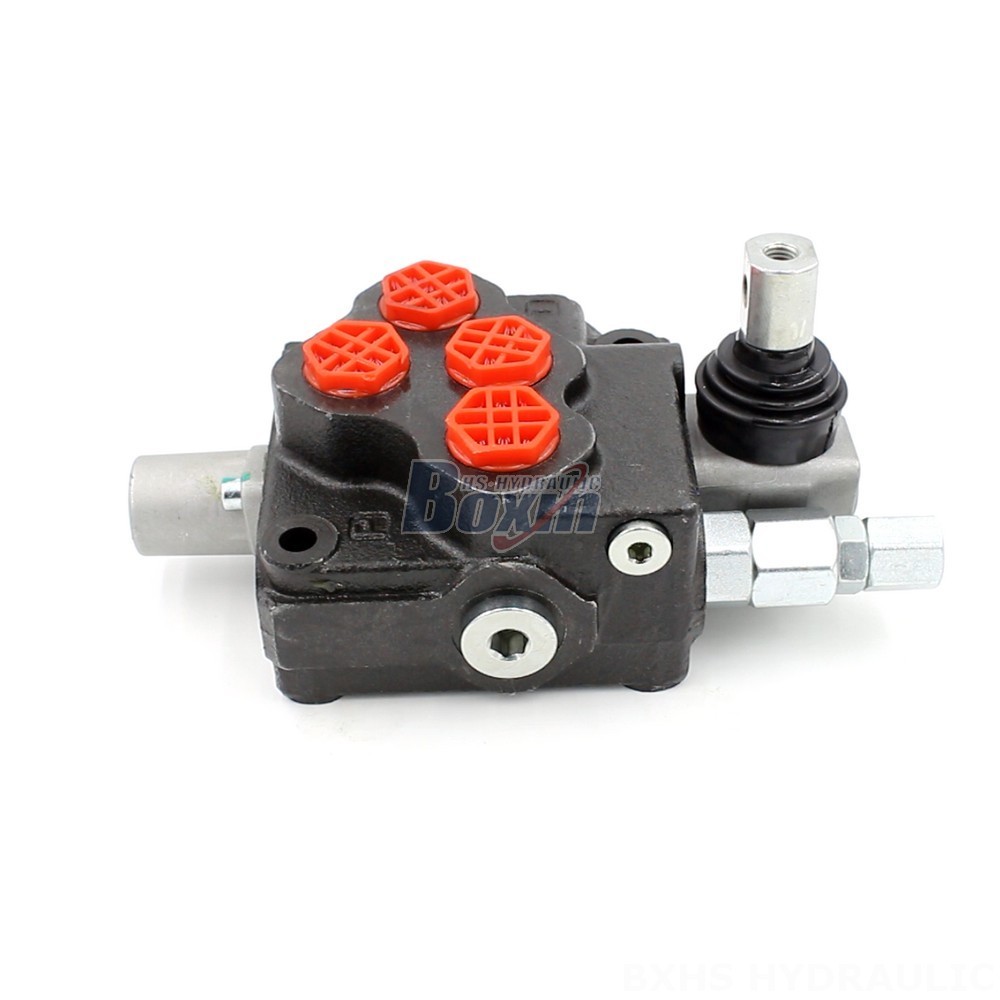

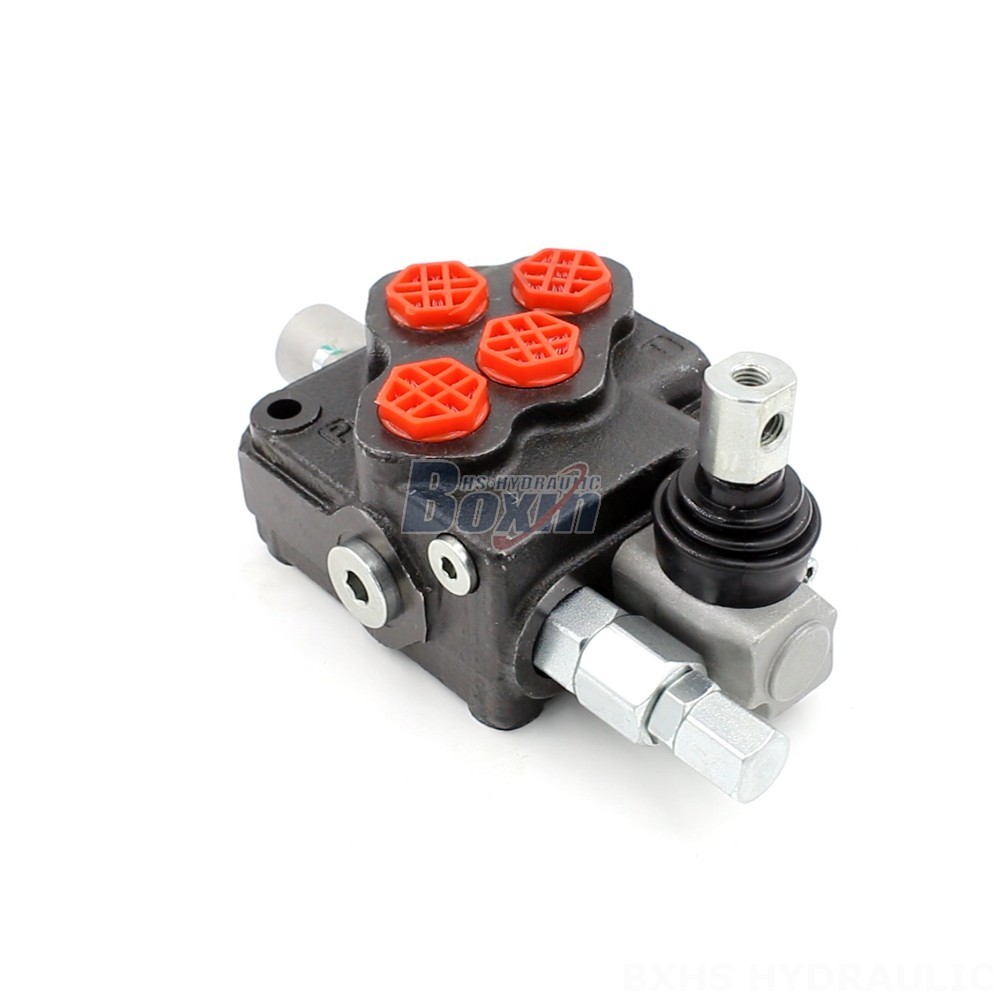

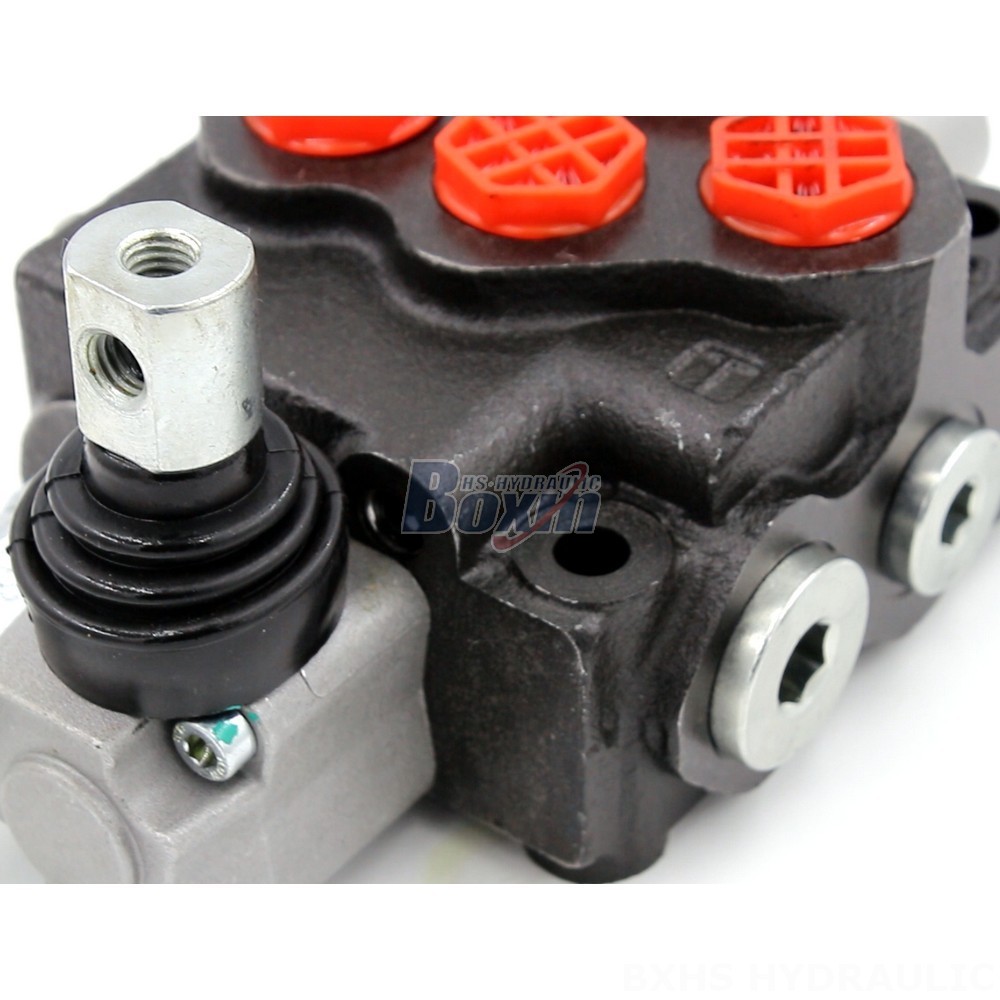

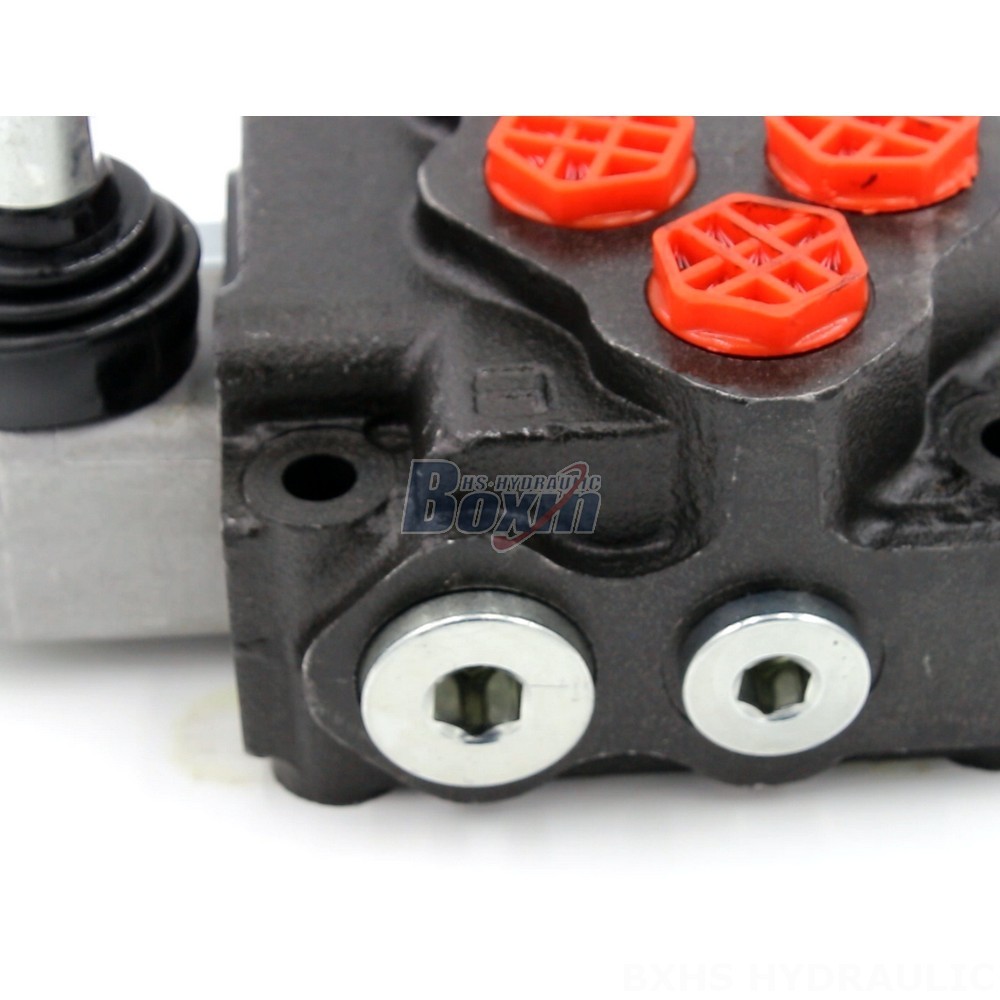

The SD5-G38 is a manual, 1-section, monoblock hydraulic directional control valve designed for various applications including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a max pressure of 305 bar, it is a reliable and durable solution for controlling hydraulic systems in diverse equipment like telehandlers, forklifts, mini-excavators, and more.
| SD5-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Utloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Portstorlek | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This manual, 1-section, monoblock valve, part of the SD5 series, offers reliable directional control for a wide range of applications. It features a single spool with a rated flow of 40 L/min and a maximum pressure rating of 305 bar, ensuring smooth and efficient operation. The valve is designed to handle a viscosity range of 15 - 75 mm²/s, operating effectively in temperatures ranging from -40°C to +60°C. Its compact and durable design makes it ideal for use in material handling equipment, construction machinery, agricultural implements, and industrial vehicles like telehandlers, forklifts, mini-excavators, skid steer loaders, and various other applications.
