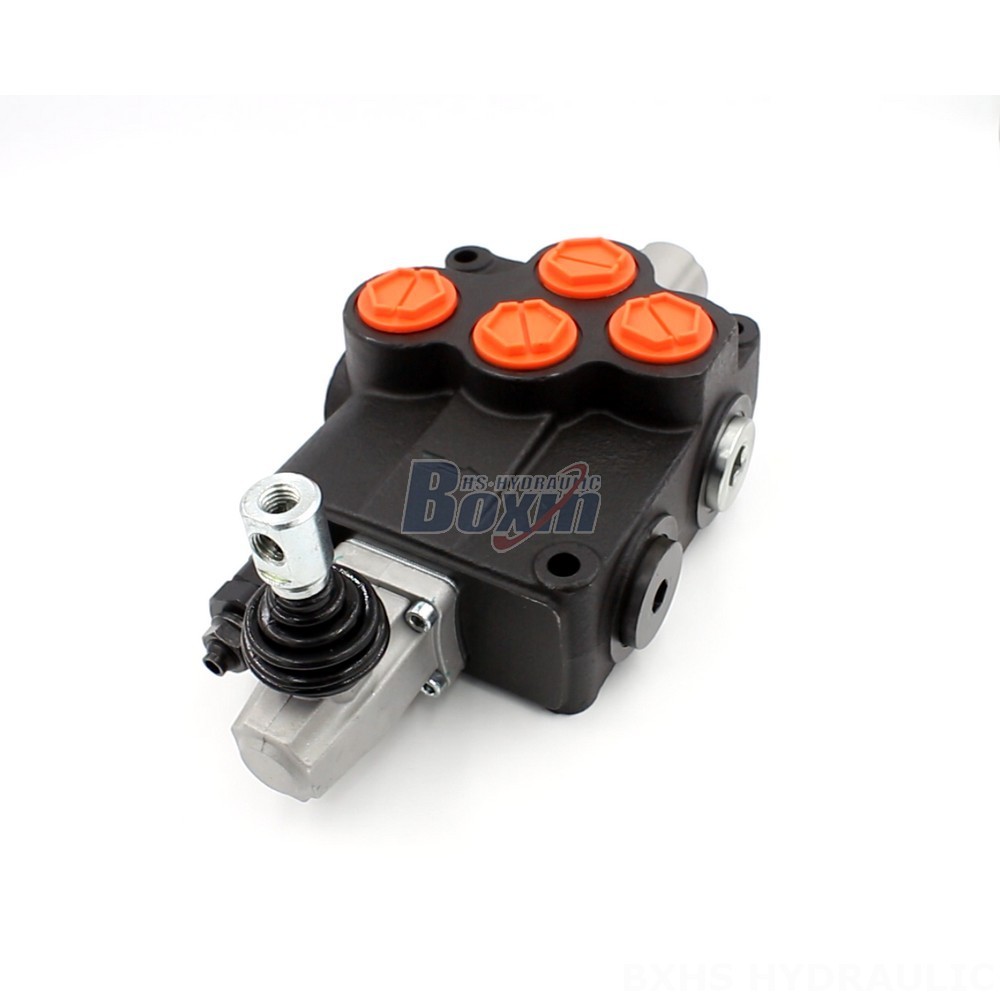

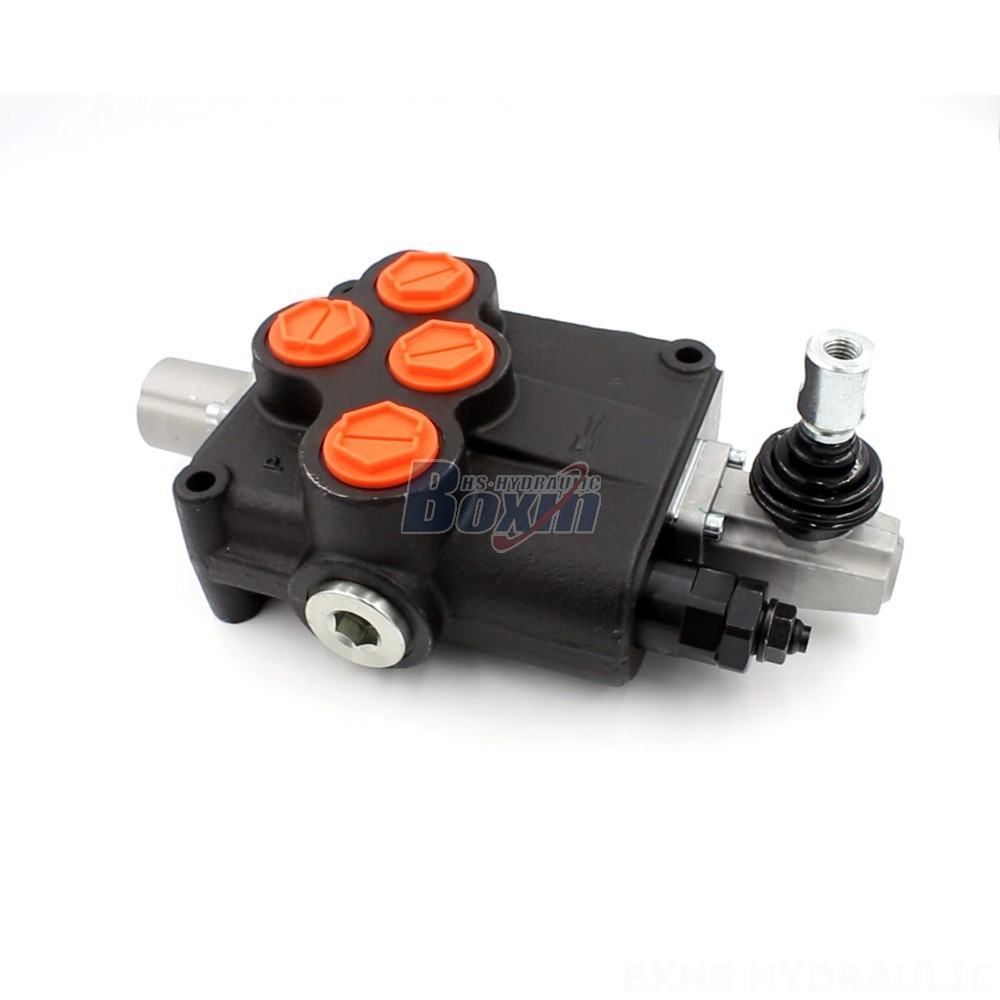

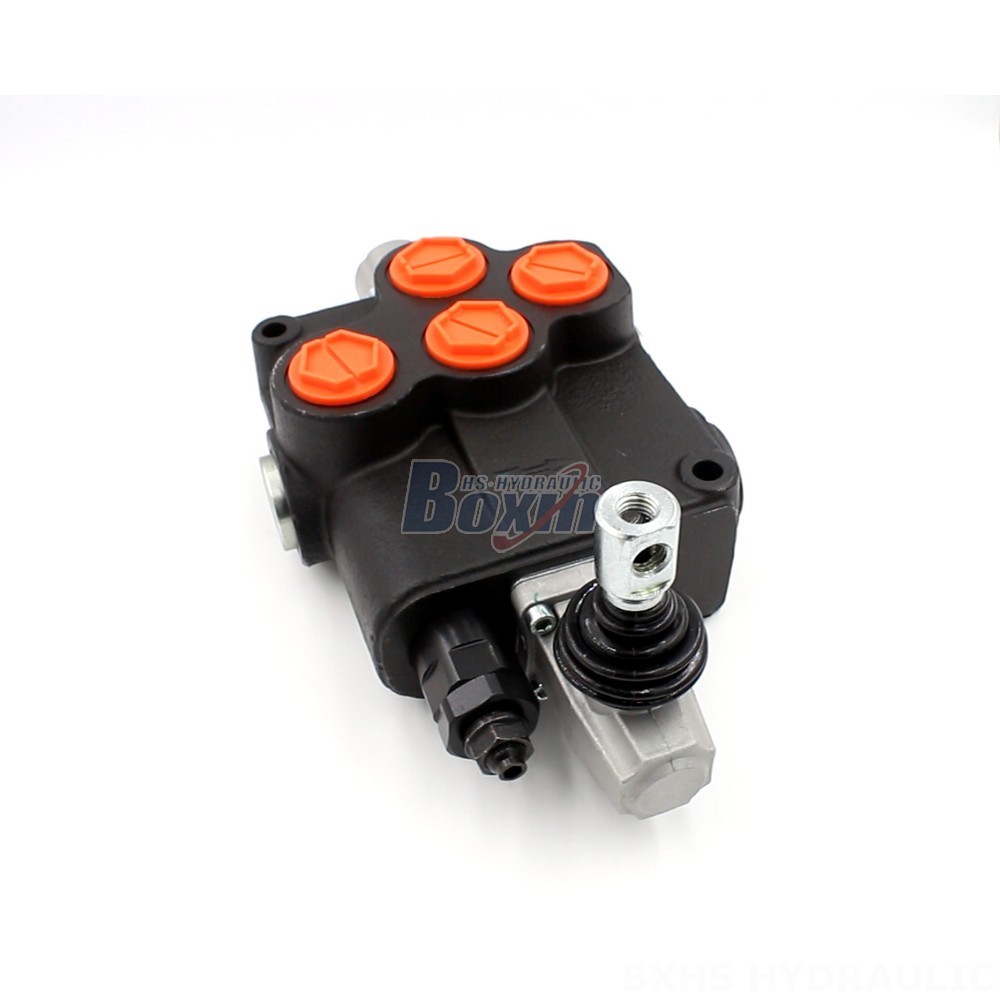

The P120-G1-OT Series Hydraulic Directional Control Valve is a high-quality valve designed for use in various applications including material handling, construction and earth moving, agriculture, and industrial vehicles. It offers exceptional performance with a rated flow of 120 L/min and a maximum pressure of 250 bar.
| P120-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner |
| Nominellt flöde | 120 l/min (31.7 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Utloppsport | G1, SAE 16, 1 NPT, M36×2 |
| Portstorlek | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner |
| Strukturtyp | Monoblockventil |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
**Product Name:** Hydraulic Directional Control Valve - P120-G1-OT Series
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P120 Series
**Application Area:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Model:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MINI-EXCAVATOR
* SKID STEER LOADER
* WHEEL LOADER
* HARVESTER
* BALE WRAPPER
* SEEDING MACHINE
