Produktion & Leverans
15-30 dagars produktionsledtid
Innovation driver utvecklingen Tekniken formar framtiden
840 Vyer letar efter den här produkten
The Hydraulic Directional Control Valve: P40-G12-G38-OW is a high-quality valve designed for use in a variety of applications. It features manual control, a 3-section design, and a monoblock valve structure. The valve has a rated flow of 40 L/min and a maximum pressure of 250 bar. It can be used in a wide range of operating viscosities and ambient temperatures. The valve is also available in a variety of spool configurations to meet the specific needs of your application.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

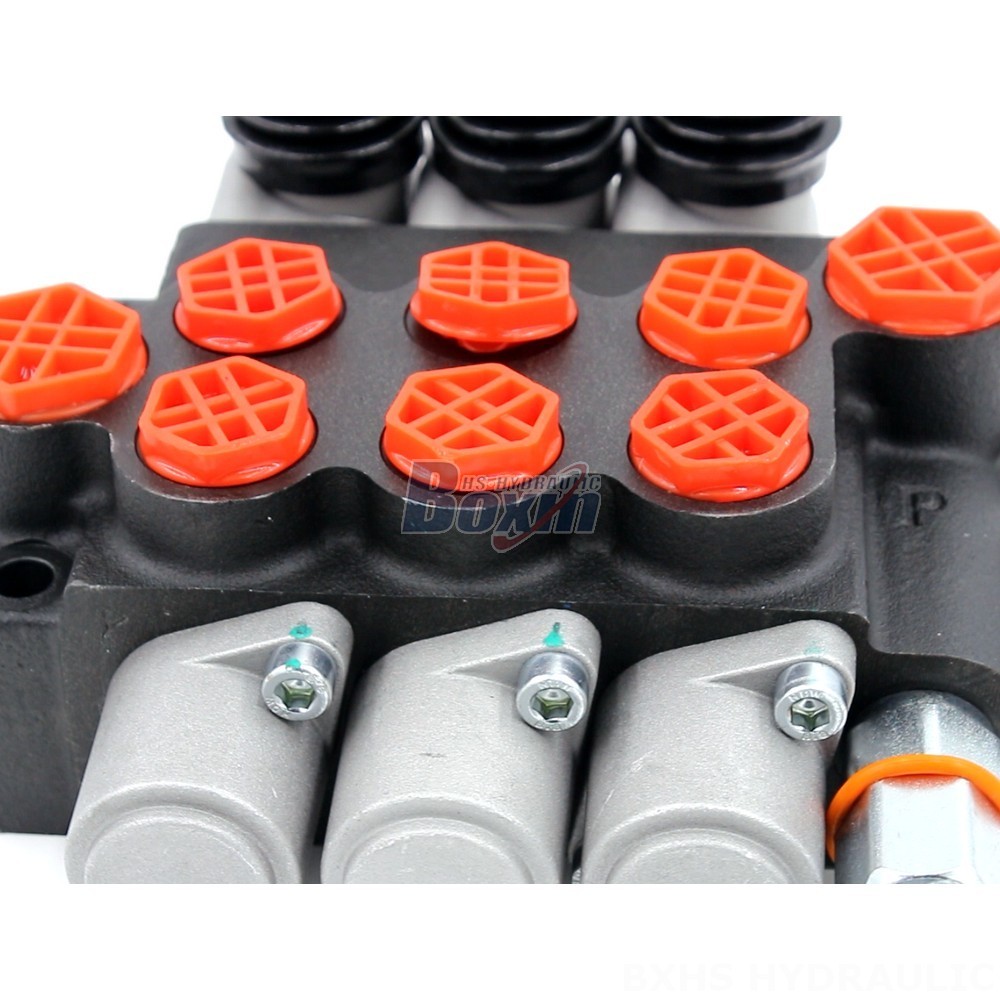

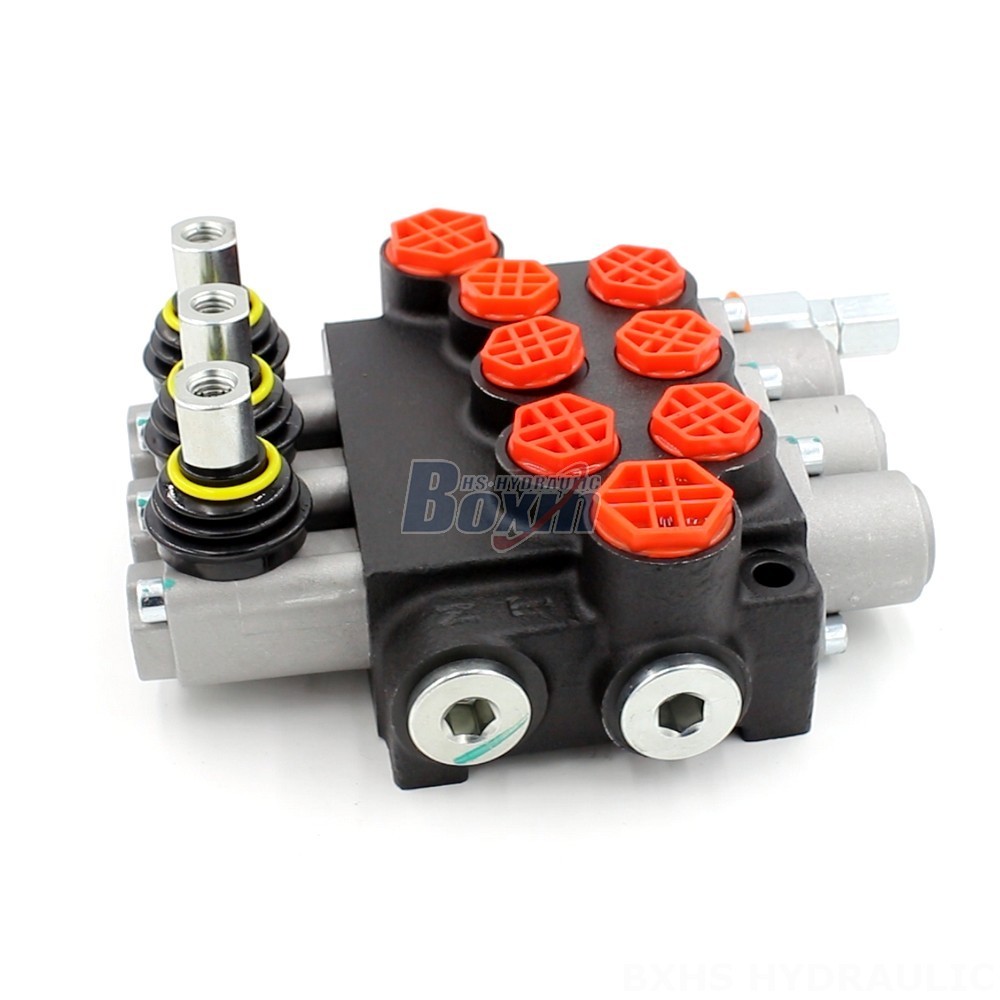

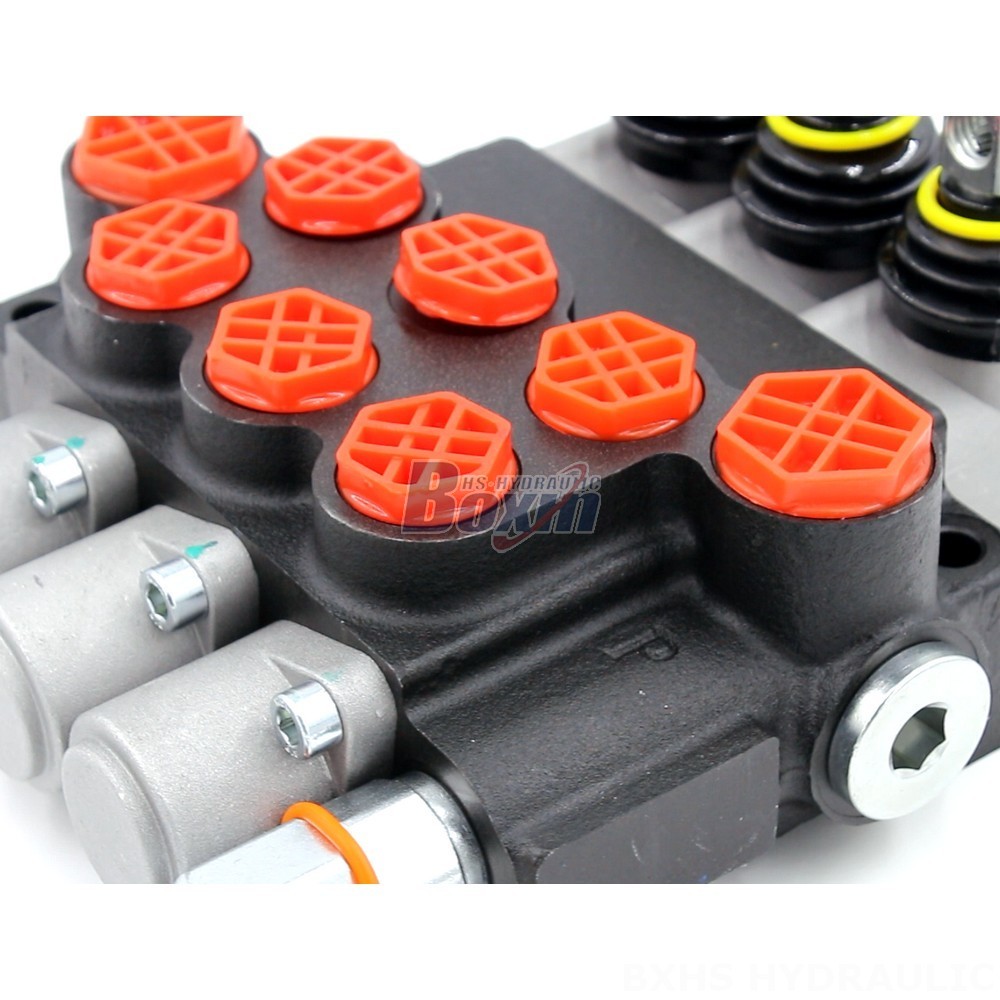

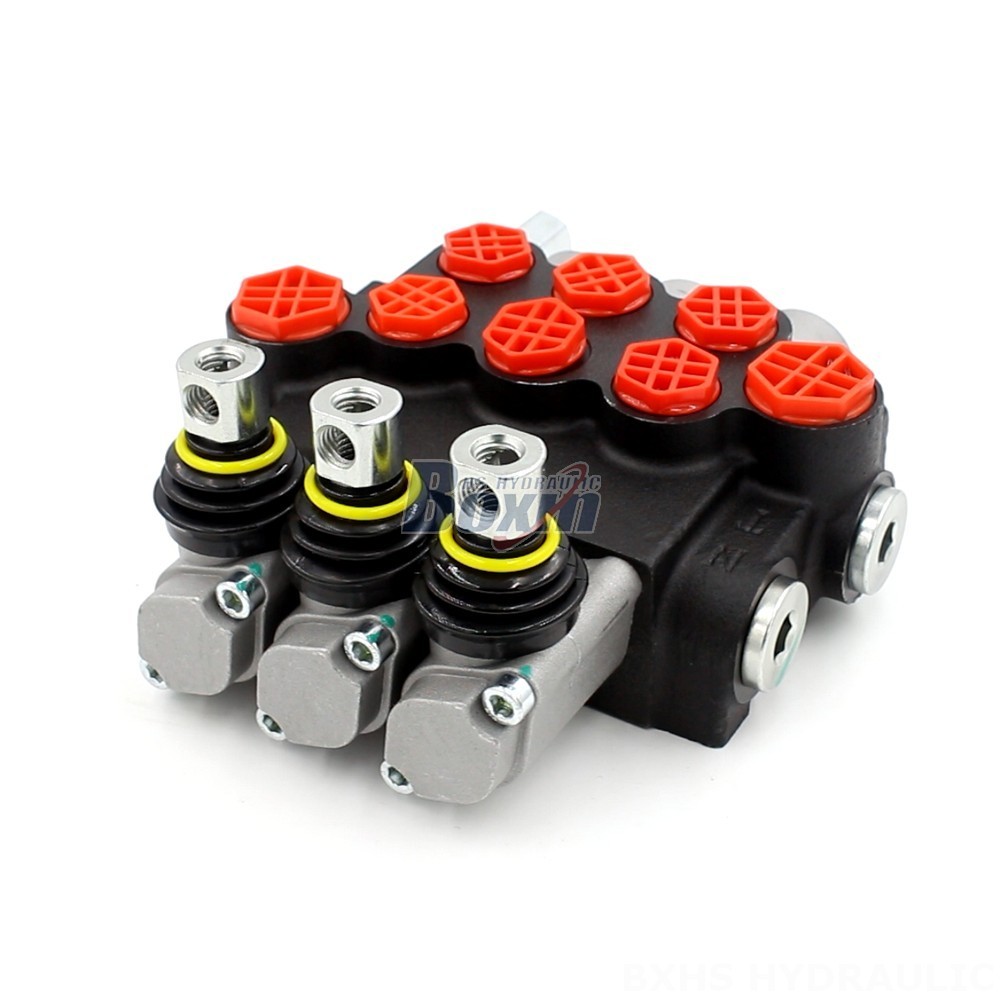

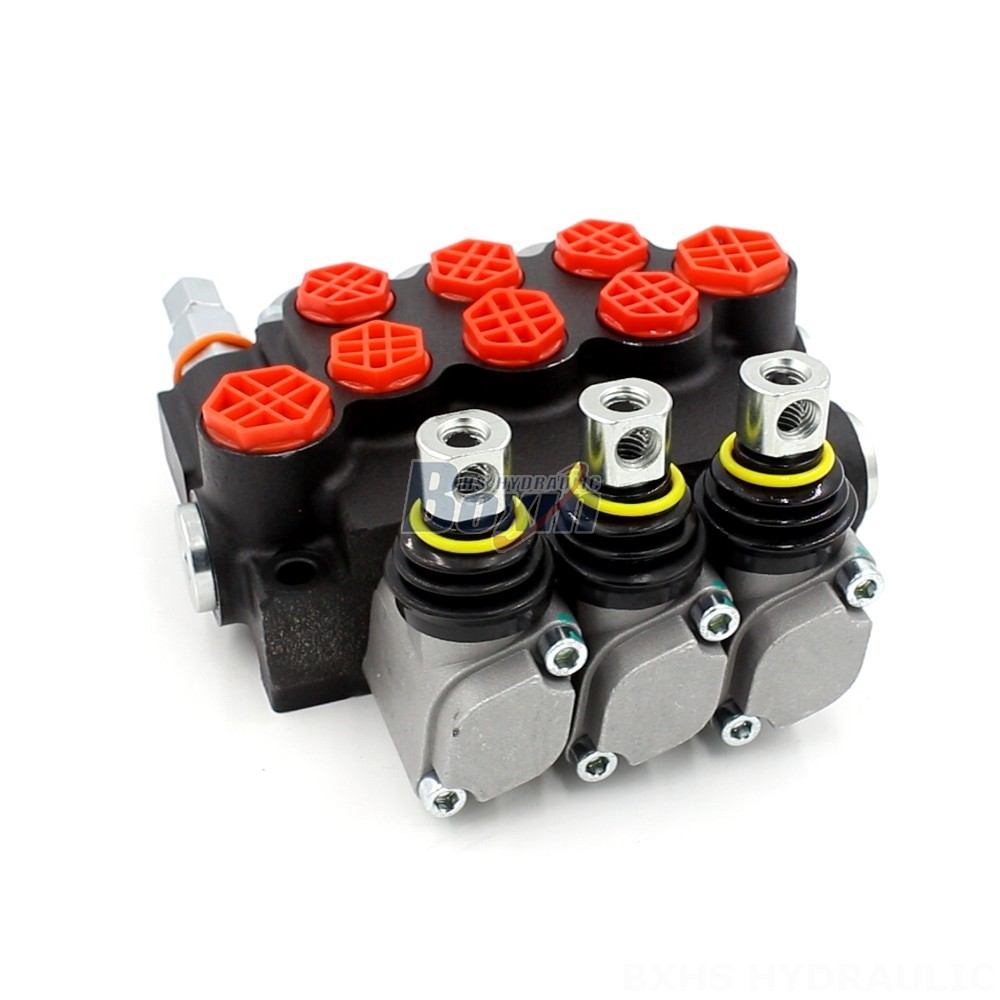

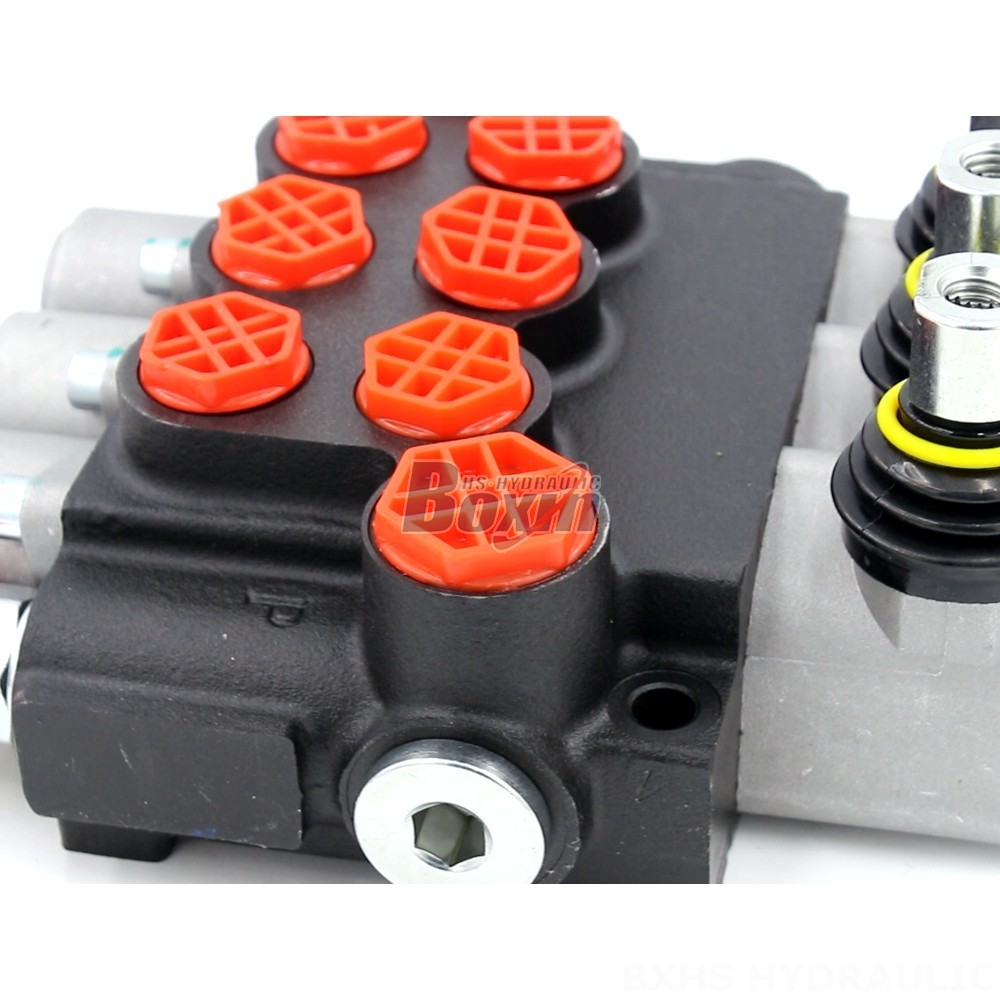

**Hydraulic Directional Control Valve: P40-G12-G38-OW**
The Hydraulic Directional Control Valve: P40-G12-G38-OW is a high-performance valve designed for use in a wide range of applications. It features:
* **Manual control** for precise operation
* **3-section design** for versatility
* **Monoblock valve structure** for durability
* **Rated flow of 40 L/min** for high efficiency
* **Maximum pressure of 250 bar** for demanding applications
* **Operating viscosity range of 15 - 75 mm²/s** for compatibility with a variety of fluids
* **Ambient temperature range of -40°C to +80°C** for use in extreme environments
* **3 spool configurations** to meet the specific needs of your application
The Hydraulic Directional Control Valve: P40-G12-G38-OW is the perfect choice for a variety of applications, including:
* **Material handling**
* **Construction and earth moving**
* **Agriculture**
* **Industrial vehicles**
If you are looking for a high-quality, reliable hydraulic directional control valve, the P40-G12-G38-OW is the perfect choice.
