Produktion & Leverans
15-30 dagars produktionsledtid

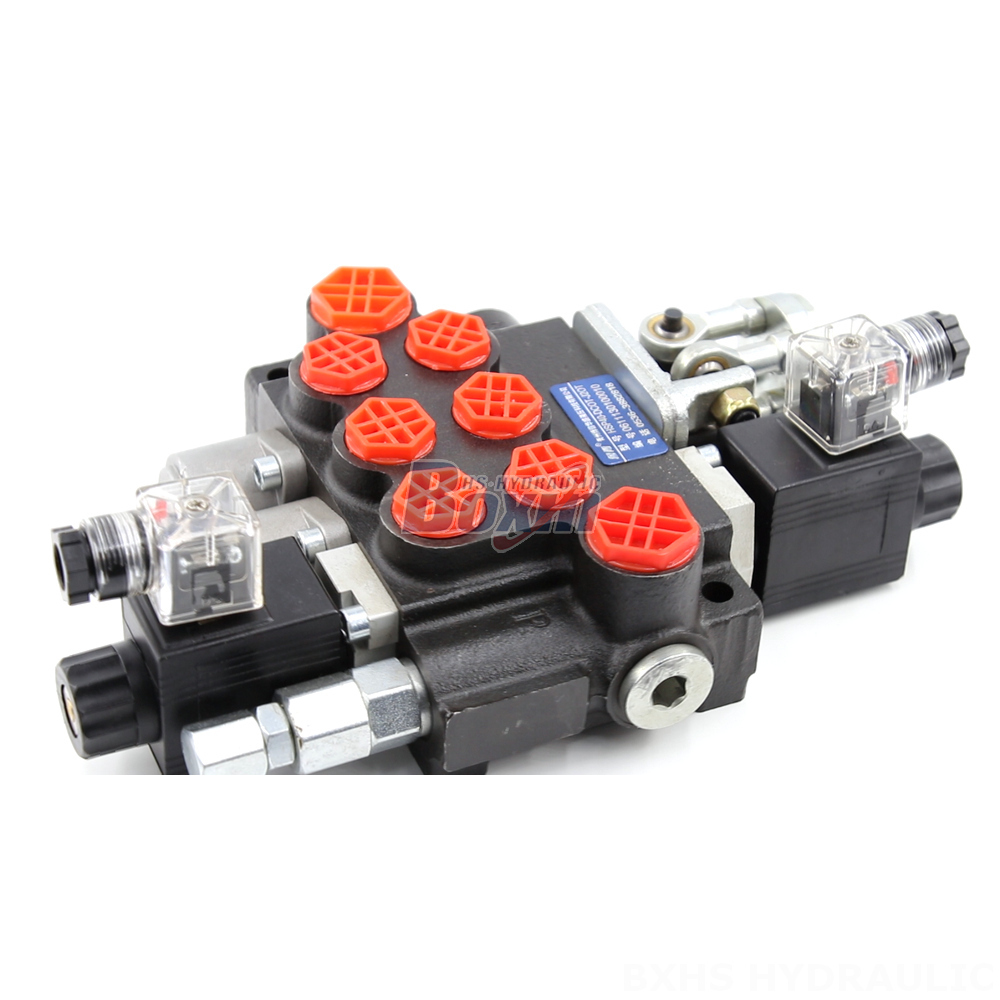

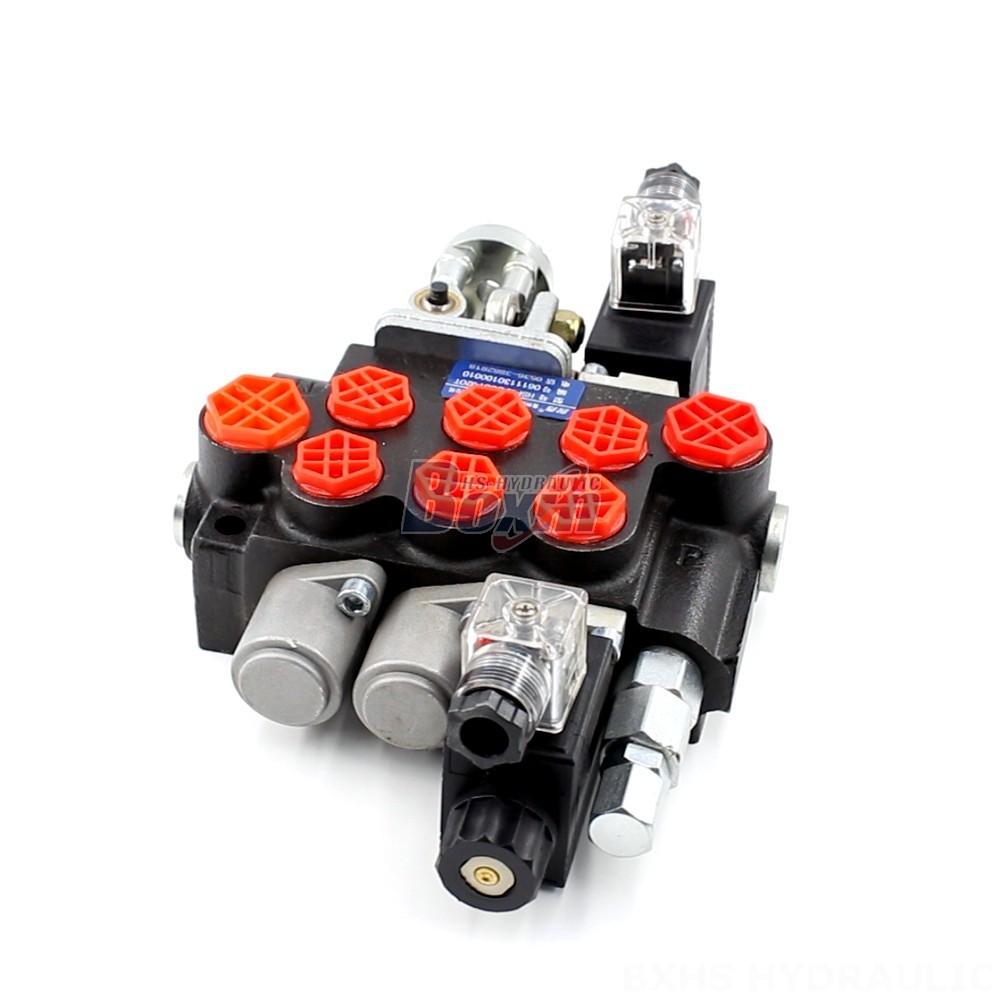

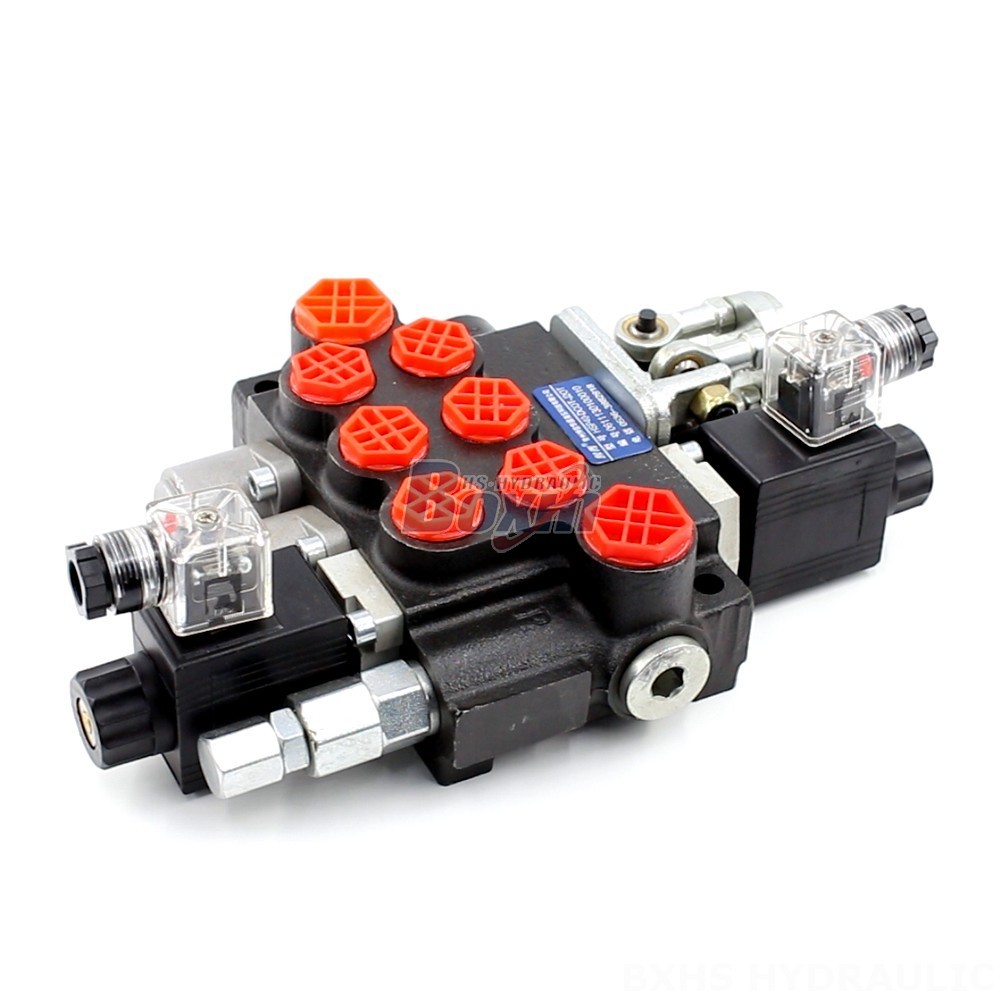

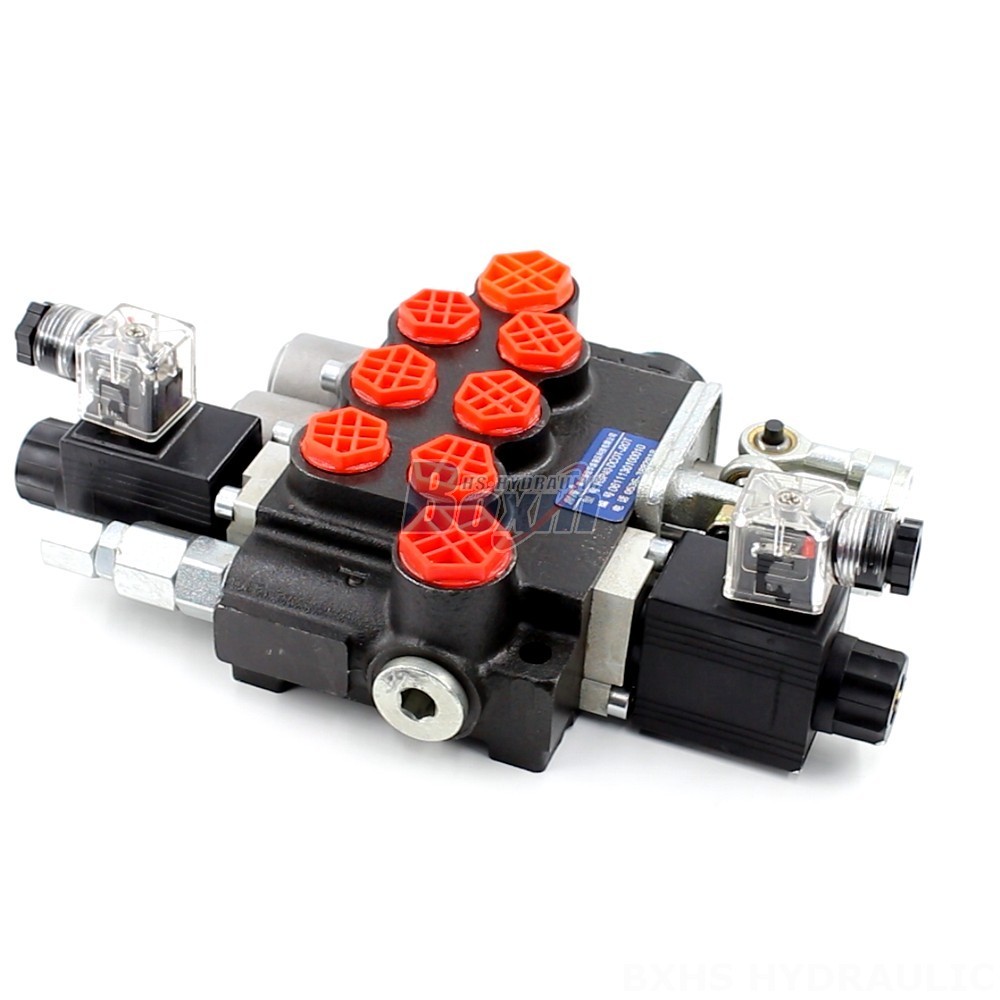

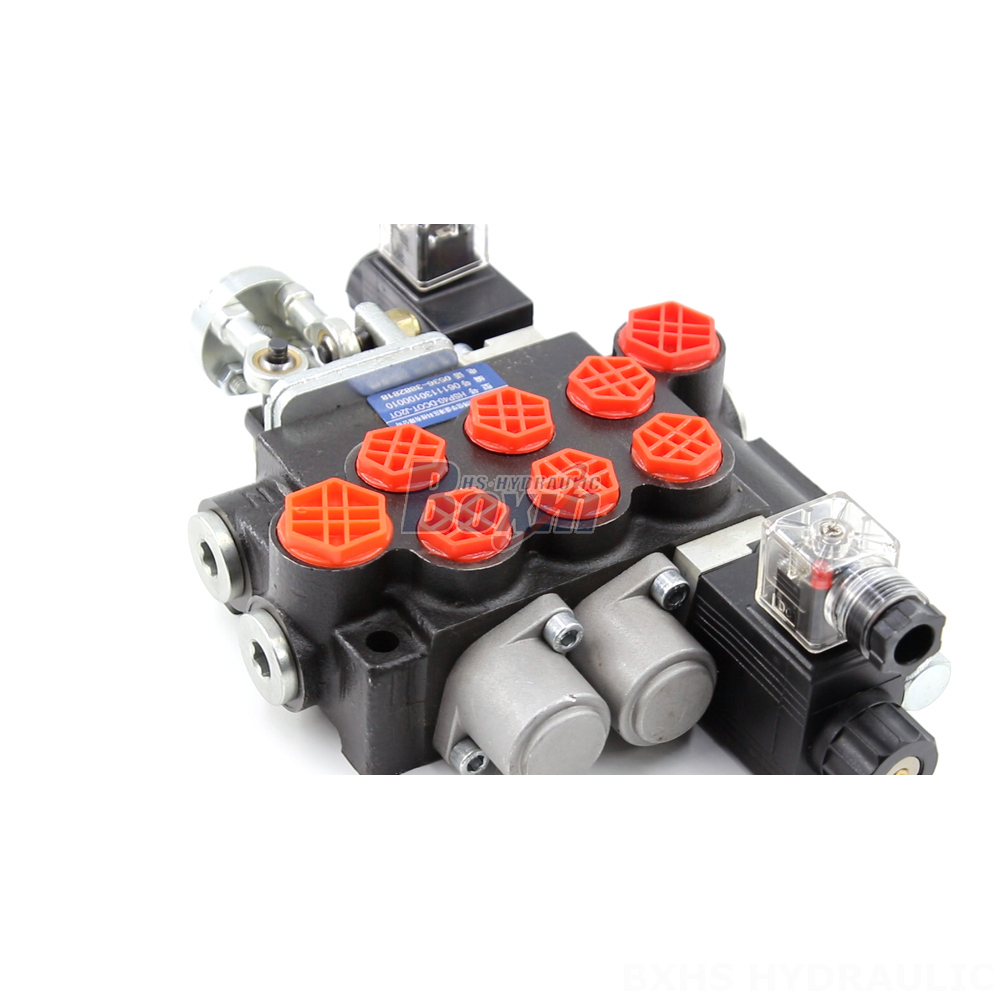

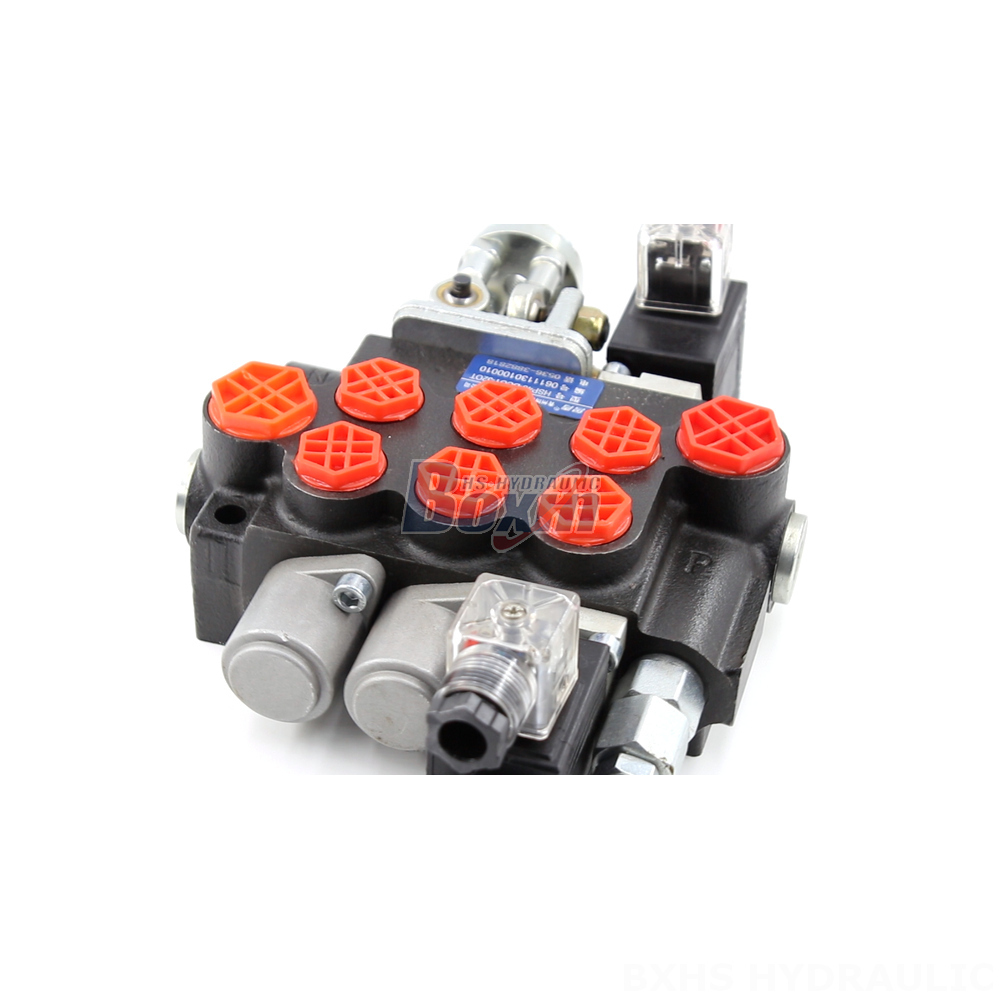

The P40 Series Hydraulic Directional Control Valve is a robust and reliable monoblock valve designed for heavy-duty applications in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. This 3-spool valve offers both solenoid and joystick control options, delivering precise and responsive hydraulic control for a wide range of equipment.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series Hydraulic Directional Control Valve is a high-performance monoblock valve featuring a compact and robust design for reliable operation in demanding environments. It is equipped with 3 spools, offering versatile control options for hydraulic systems. The valve can be controlled via solenoid actuators or a joystick, providing flexibility and user-friendly operation. It is capable of handling high flow rates up to 40 L/min (10.5 US gpm) and withstands high pressures up to 250 bar (3600 psi). With a wide operating viscosity range and ambient temperature tolerance, this valve ensures optimal performance in various operating conditions. Its versatile design and robust construction make it suitable for a variety of applications in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. The valve is also designed for various equipment, such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. We offer a range of services, including manufacturing, OEM, ODM, and customization options to meet specific customer requirements.
