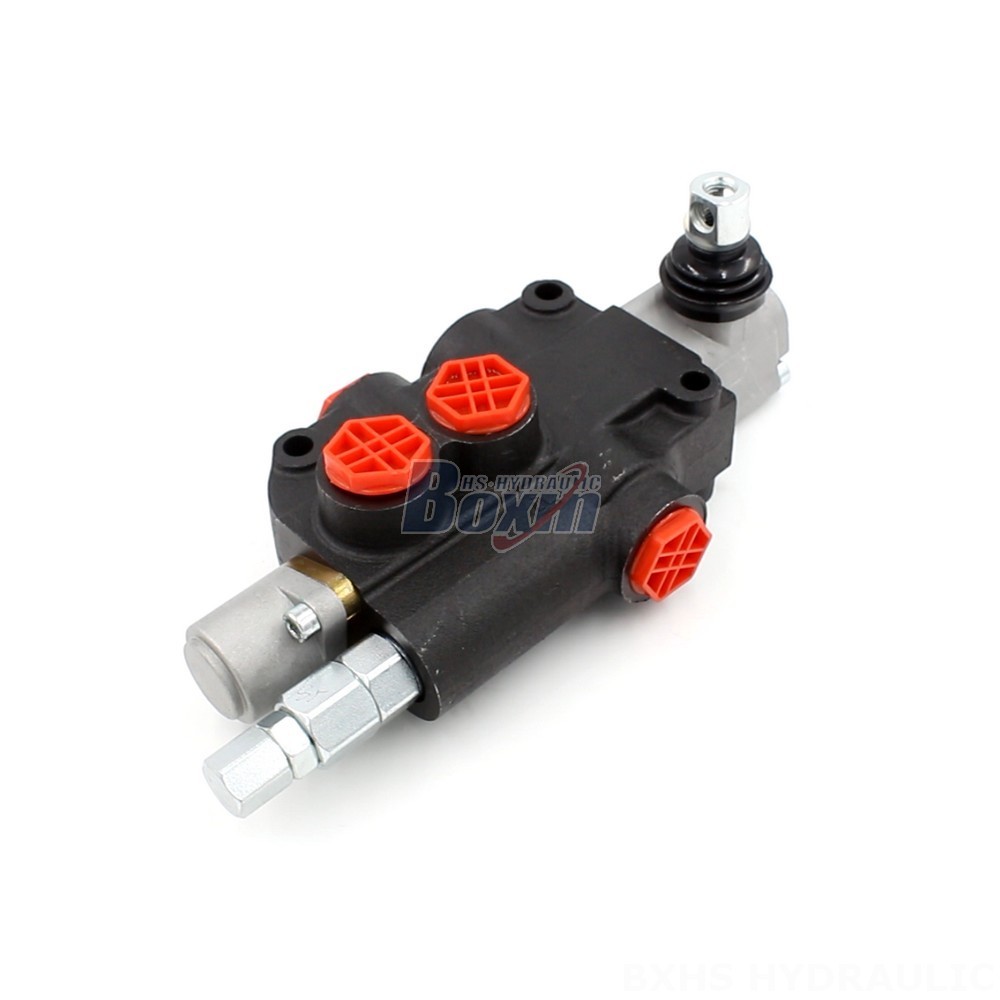

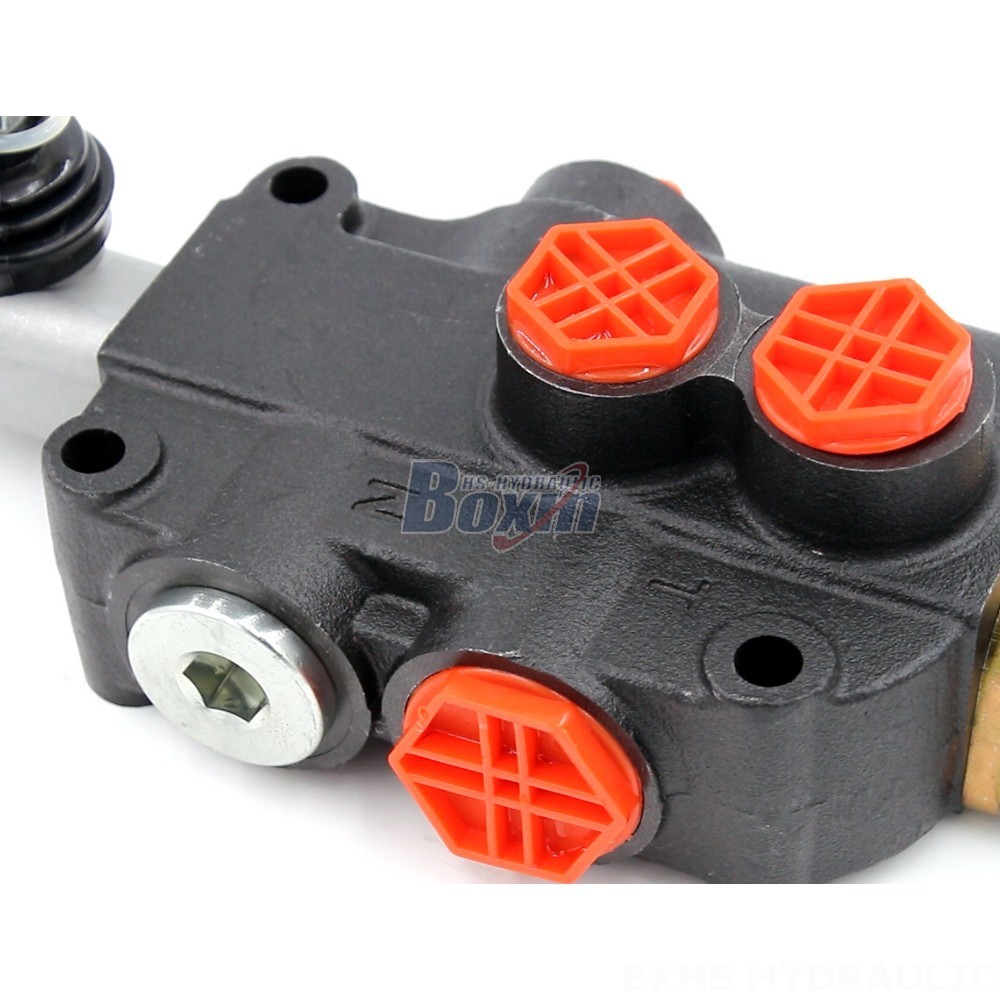

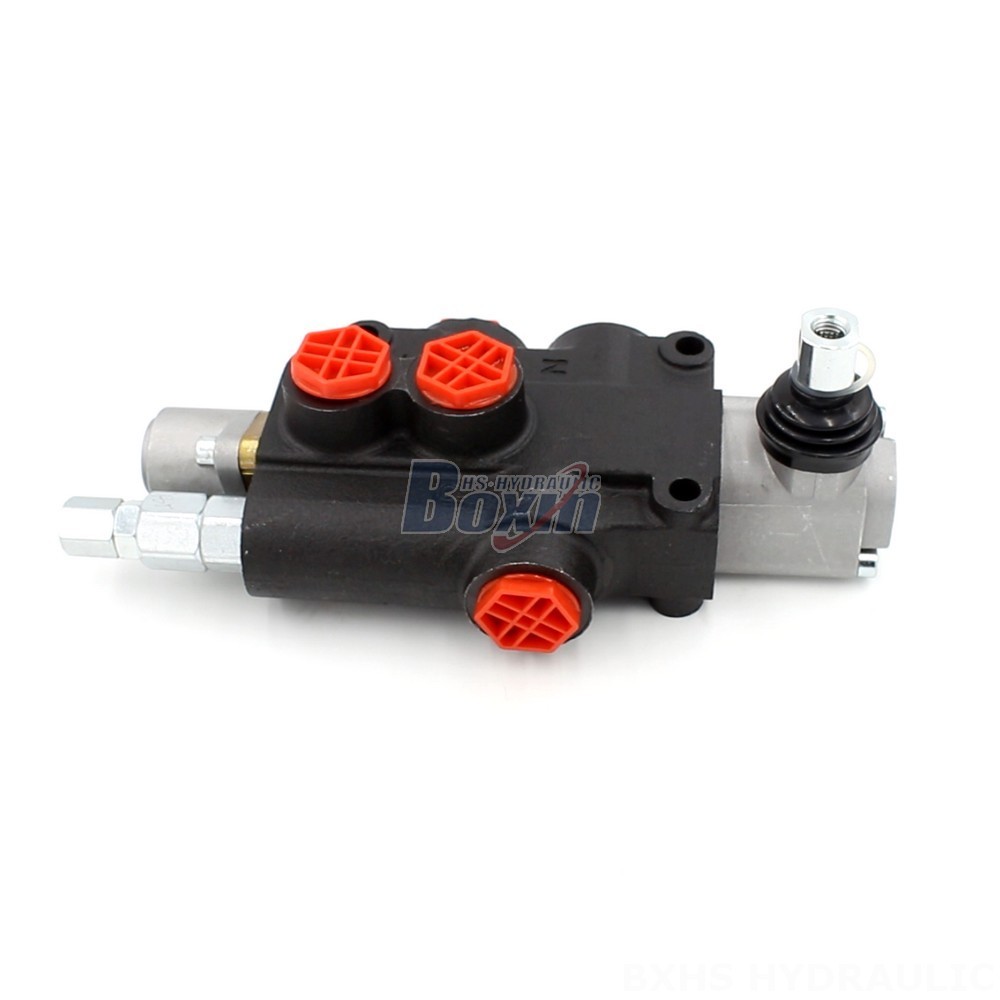

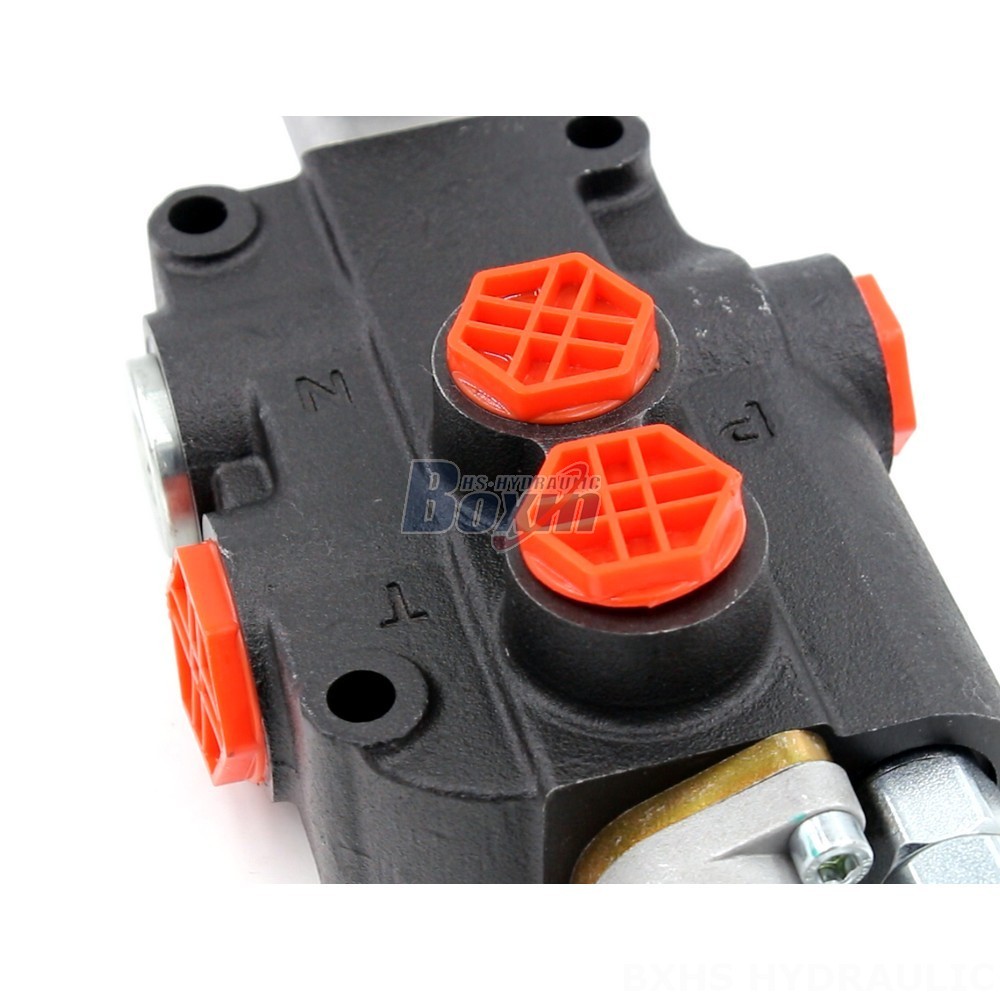

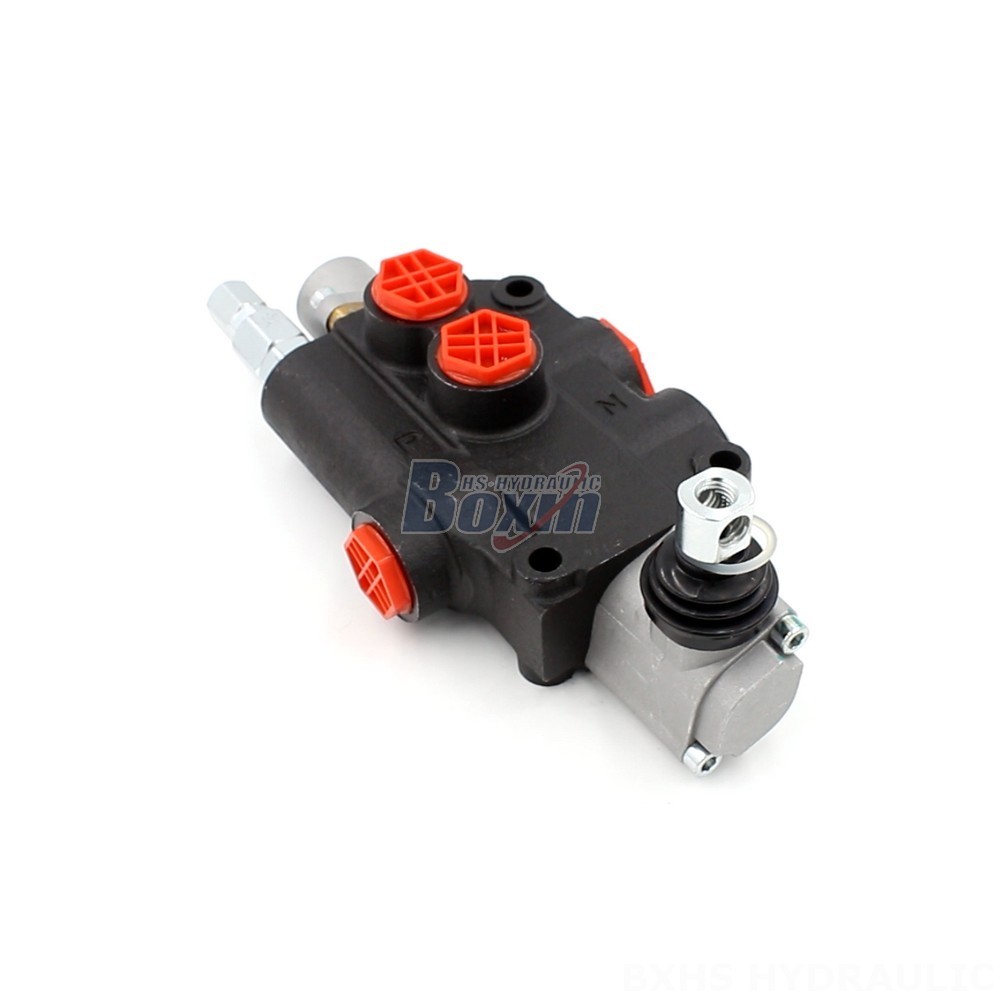

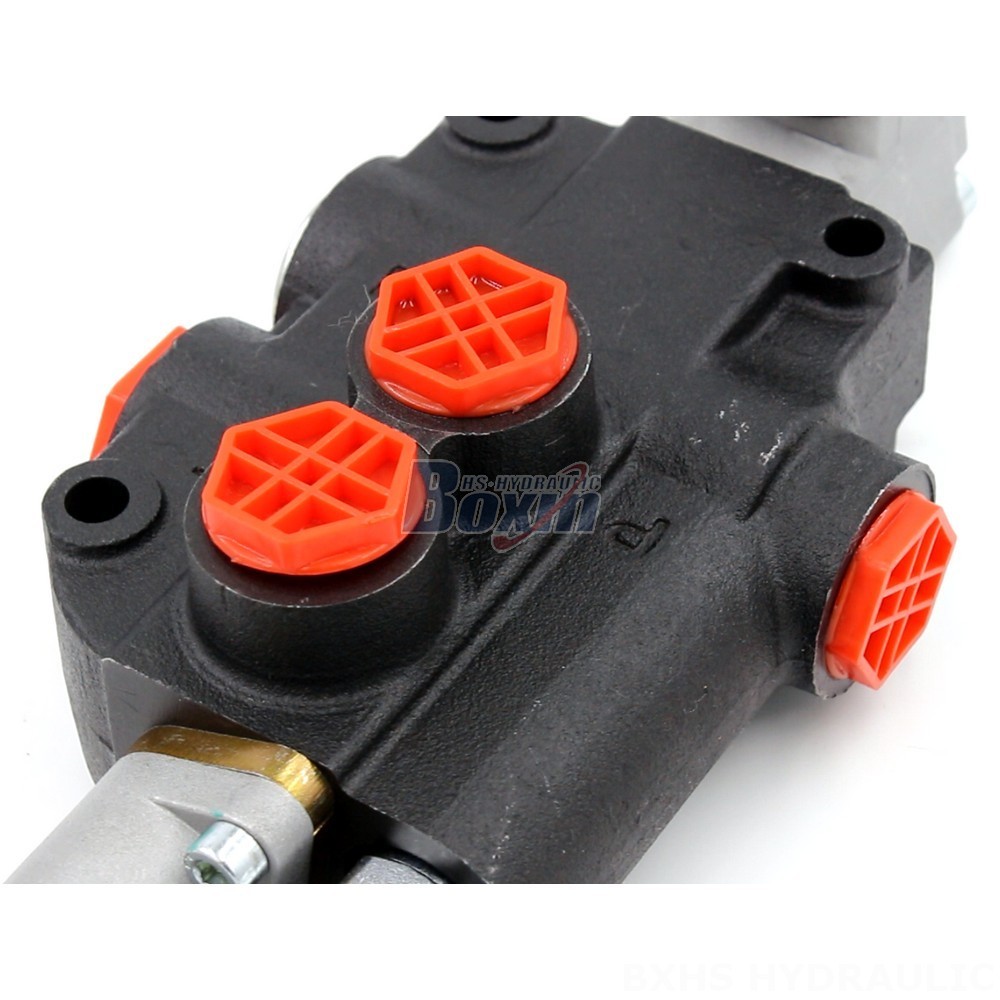

The P80-G34-G12-1OT Series Hydraulic Directional Control Valve is a manually controlled monoblock valve designed for use in various industries, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve offers reliable performance and durability in demanding applications.
| P80-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 80 l/min (21,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
* Manual control for precise operation
* Monoblock valve construction for increased durability and reduced leakage
* Rated flow of 80 L/min for efficient fluid handling
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in harsh environments
* Available with 1 spool for versatile control
**Applications:**
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
