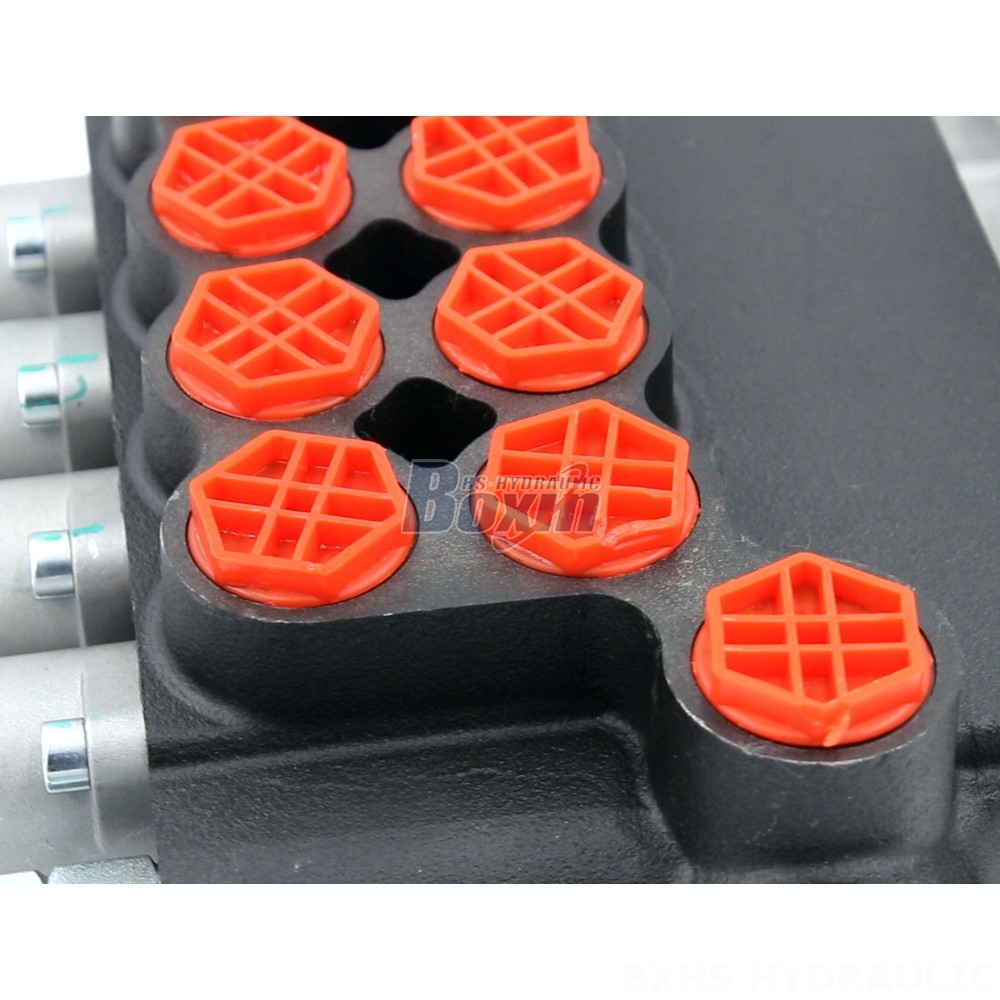

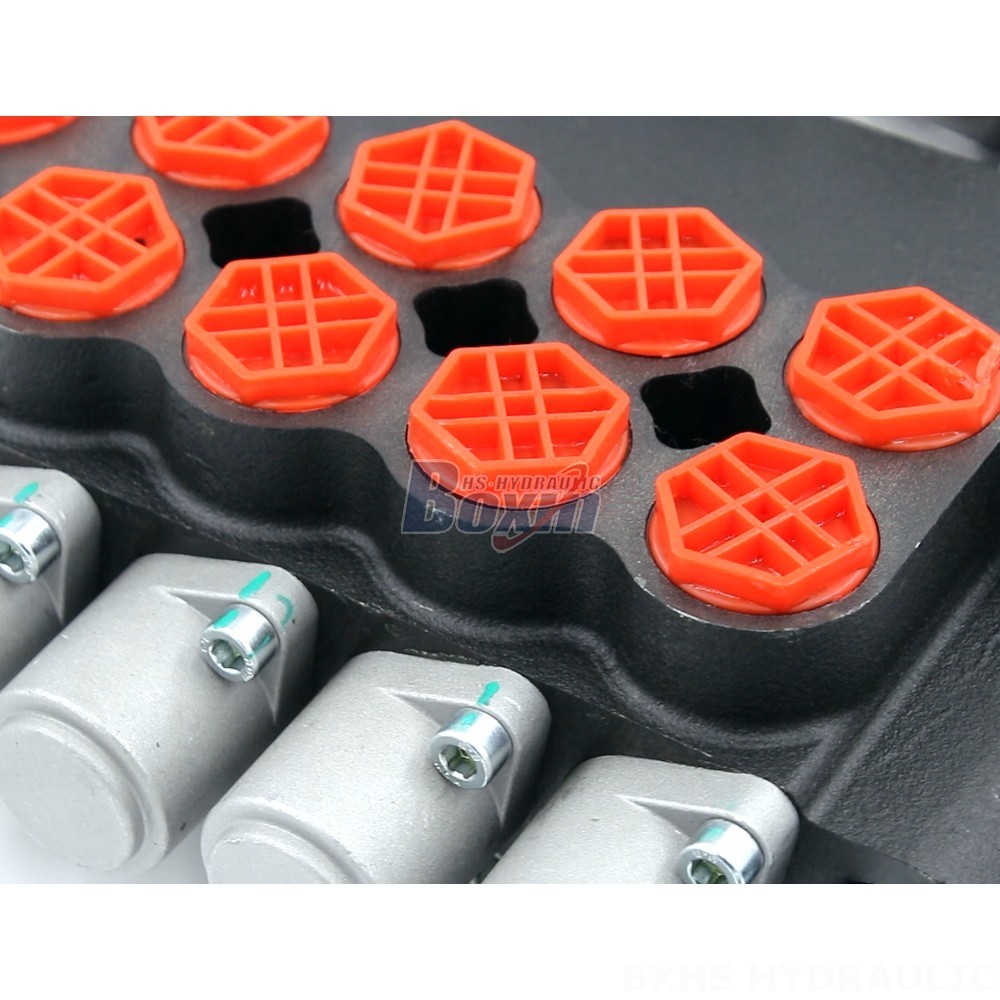

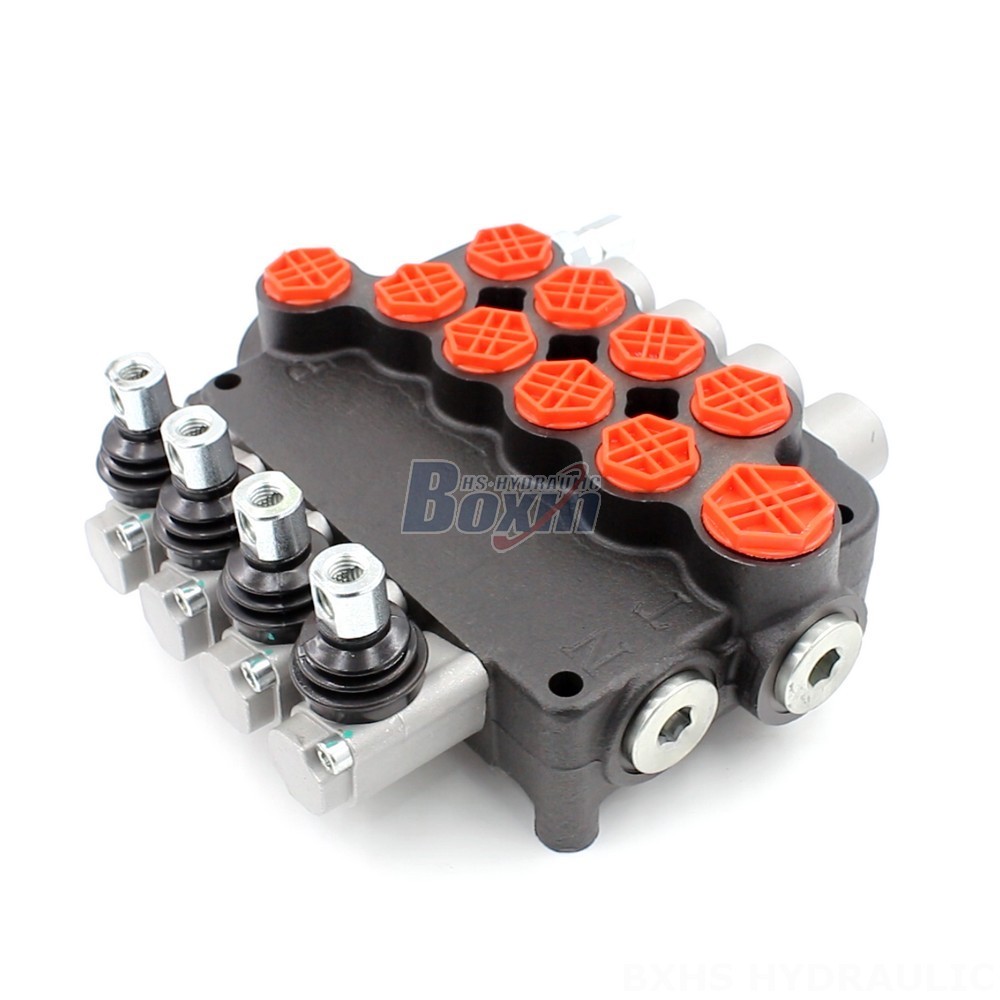

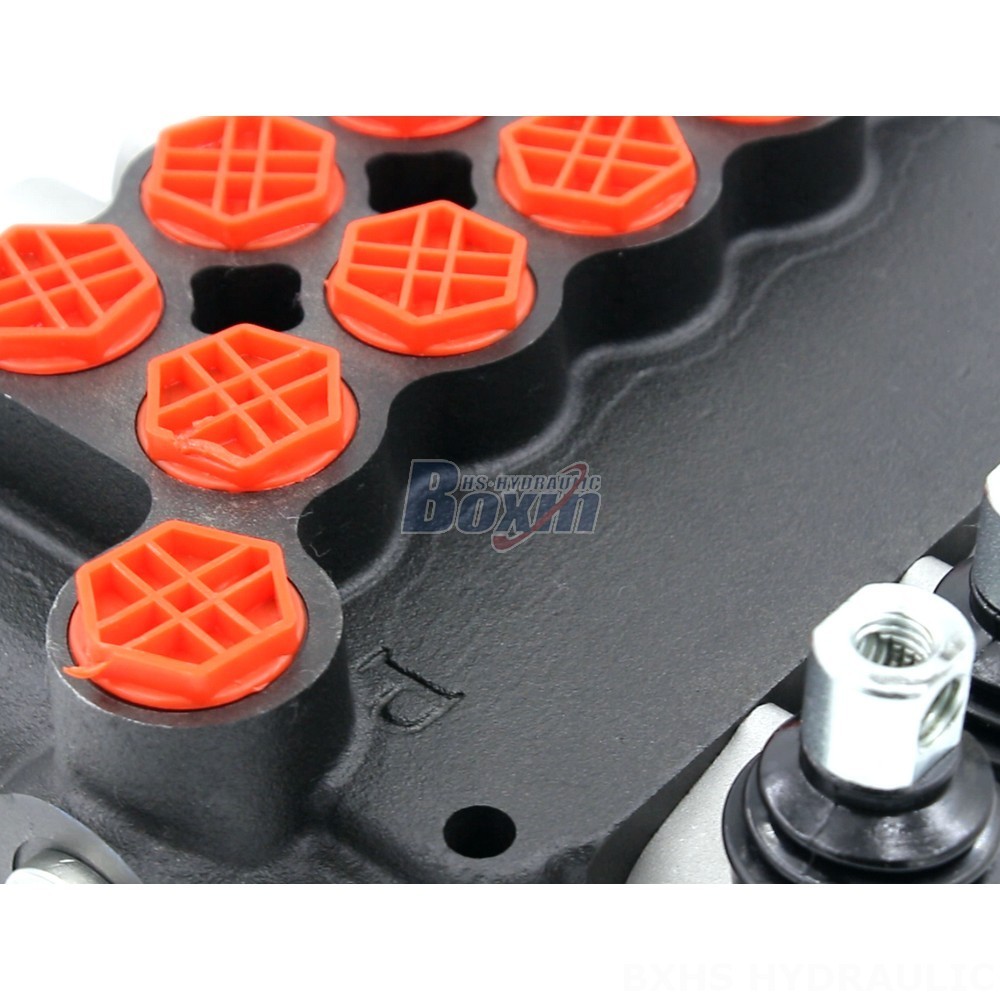

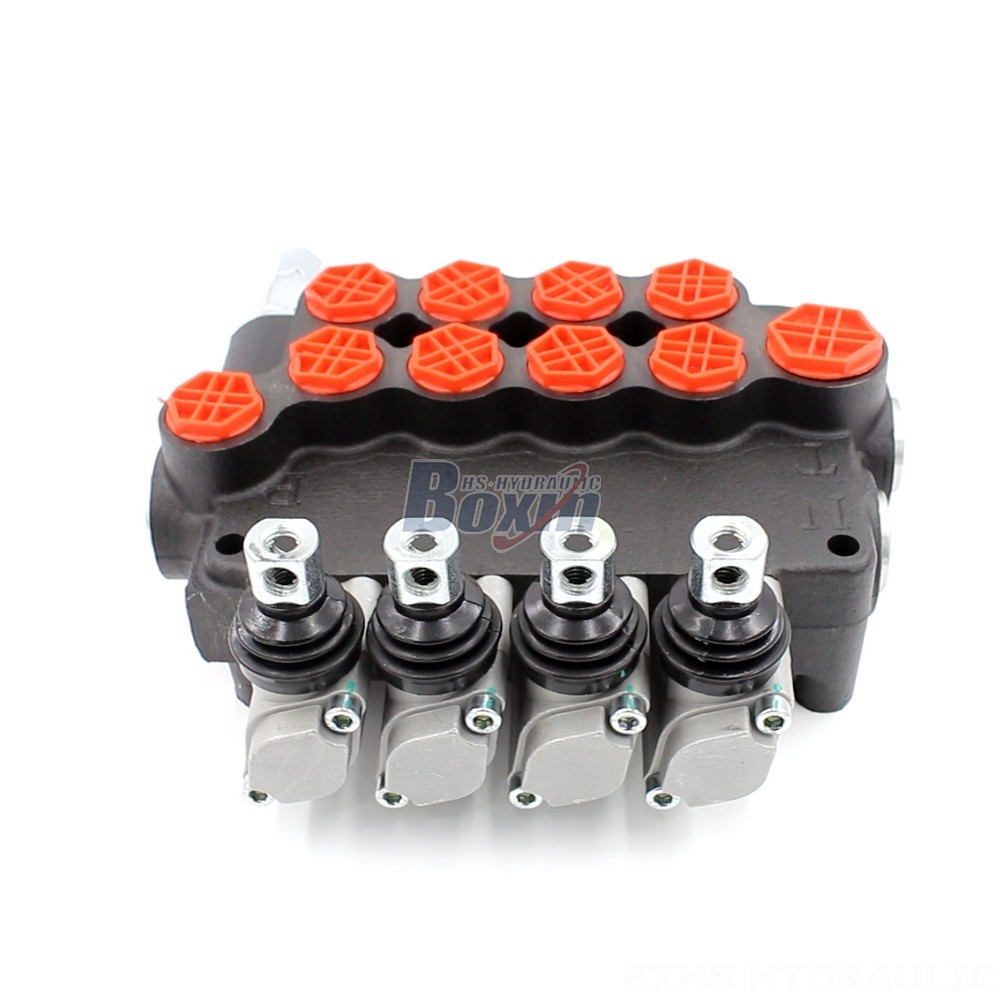

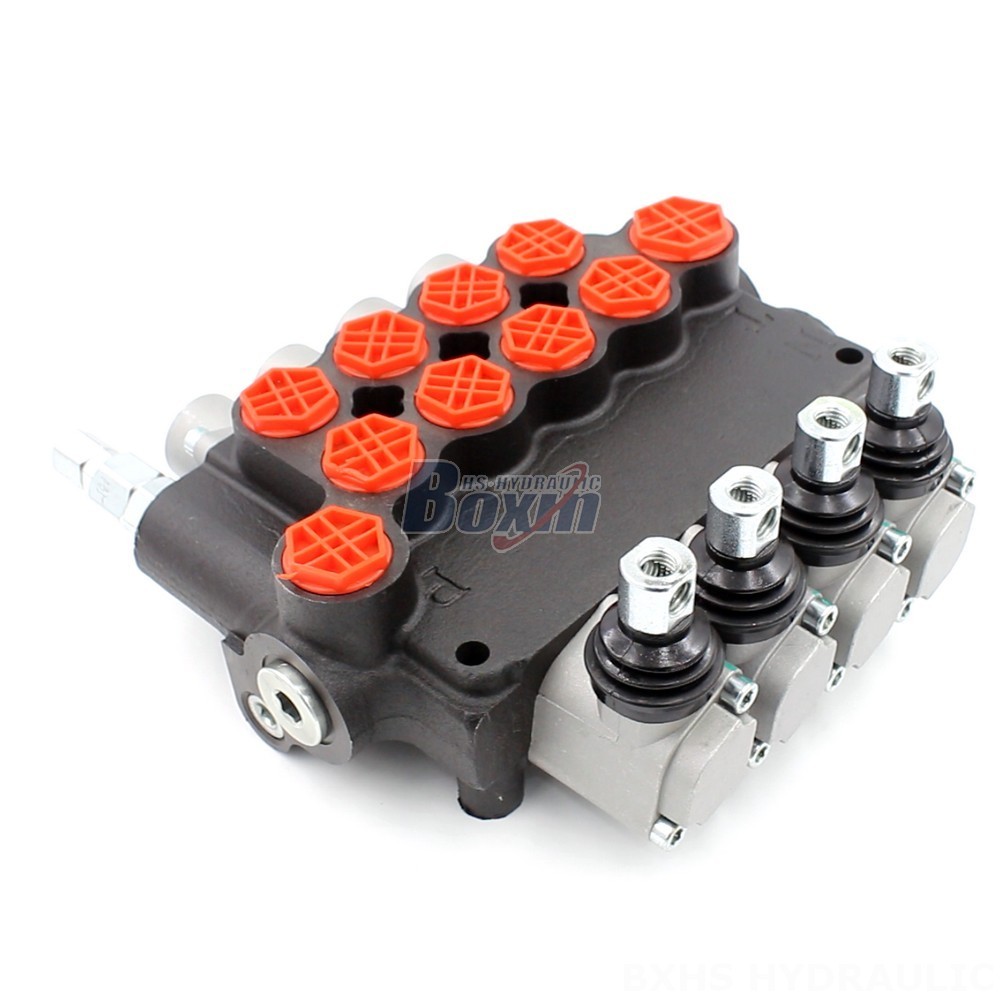

This P80-G34-G12-4OT hydraulic directional control valve is designed for heavy duty applications in construction, material handling and industrial vehicles. It features a robust monoblock construction with 4 sections and a rated flow of 80 L/min. This valve is ideal for tipper dump trucks, telehandlers, forklifts, excavators, and other heavy equipment.
| P80-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 80 l/min (21,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G34-G12-4OT is a 4 section, manual control hydraulic directional control valve designed for demanding applications in construction, material handling, and industrial vehicles. This robust monoblock valve boasts a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for operating tipper dump trucks, telehandlers, forklifts, excavators, loaders, and other heavy duty equipment. It is specifically engineered for reliable performance in demanding environments, featuring an operating viscosity range of 15-75 mm²/s and an ambient temperature range of -40°C to +80°C.
