Produktion & Leverans
15-30 dagars produktionsledtid
Innovation driver utvecklingen Tekniken formar framtiden
1232 Vyer letar efter den här produkten

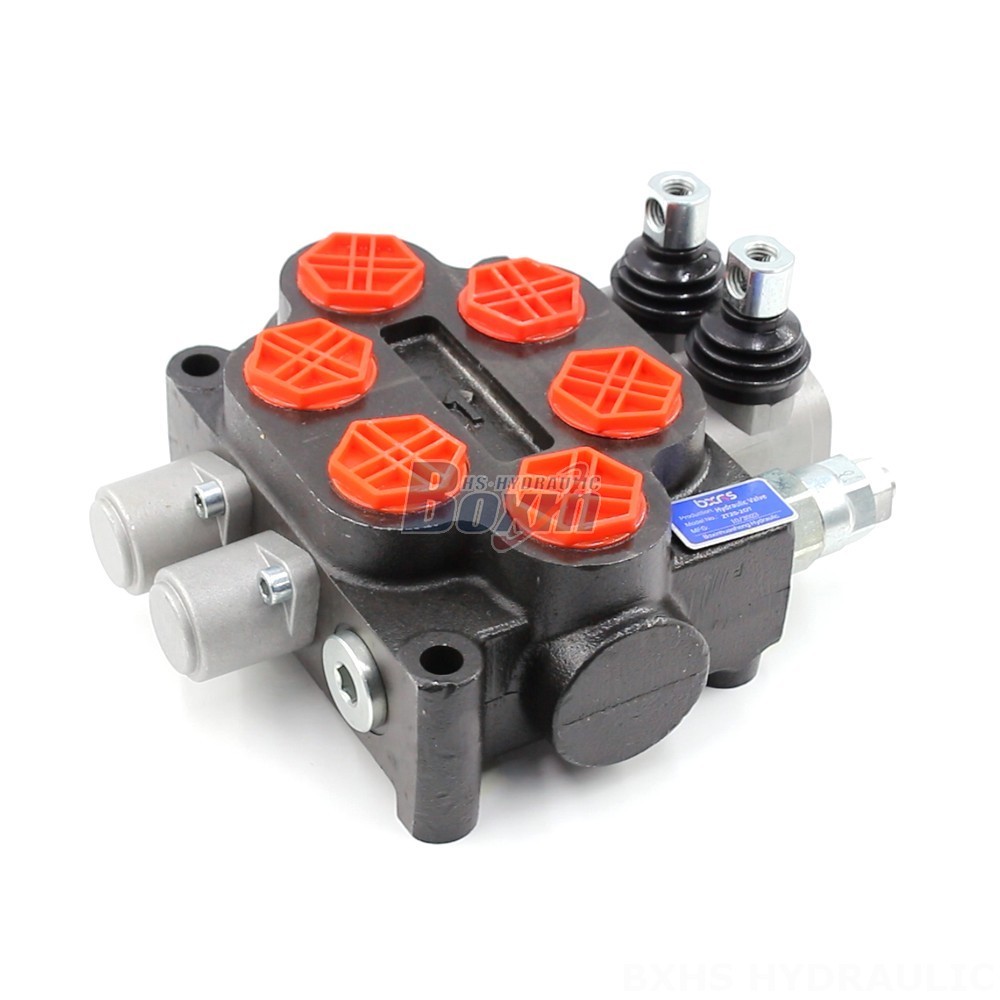

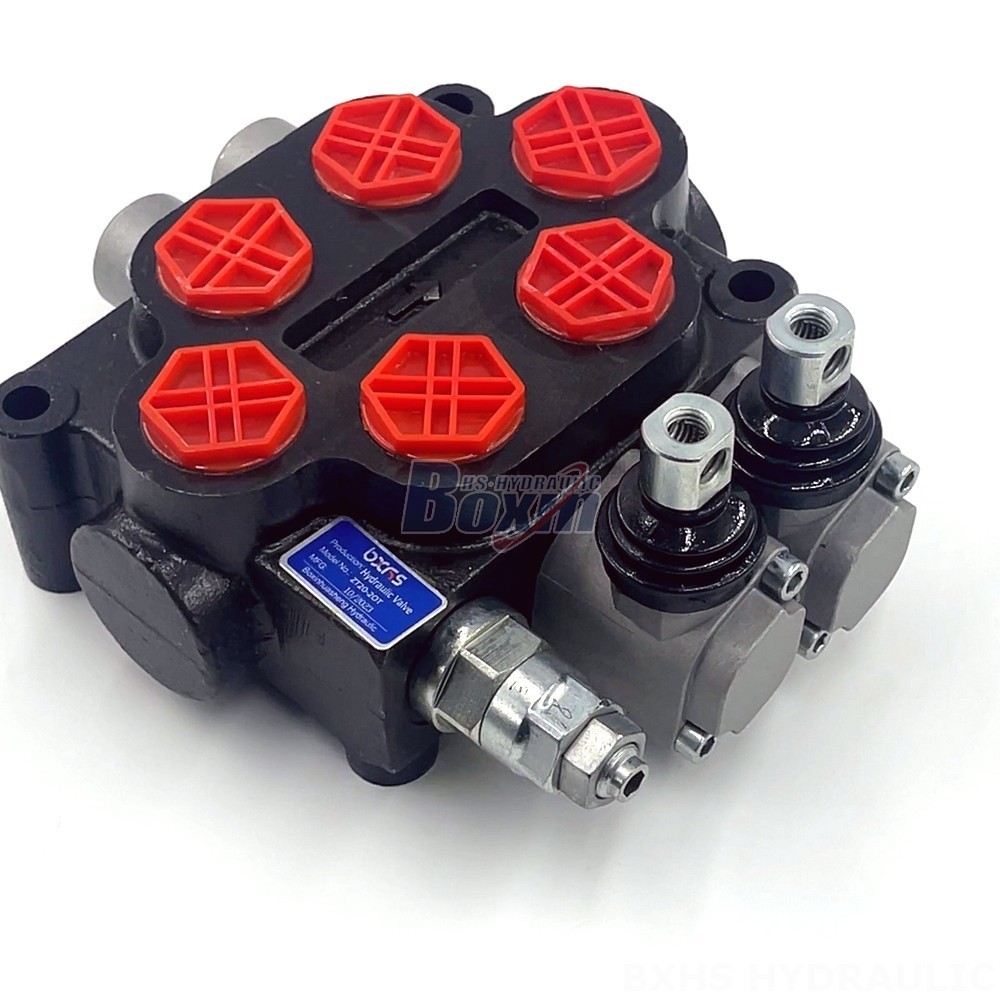

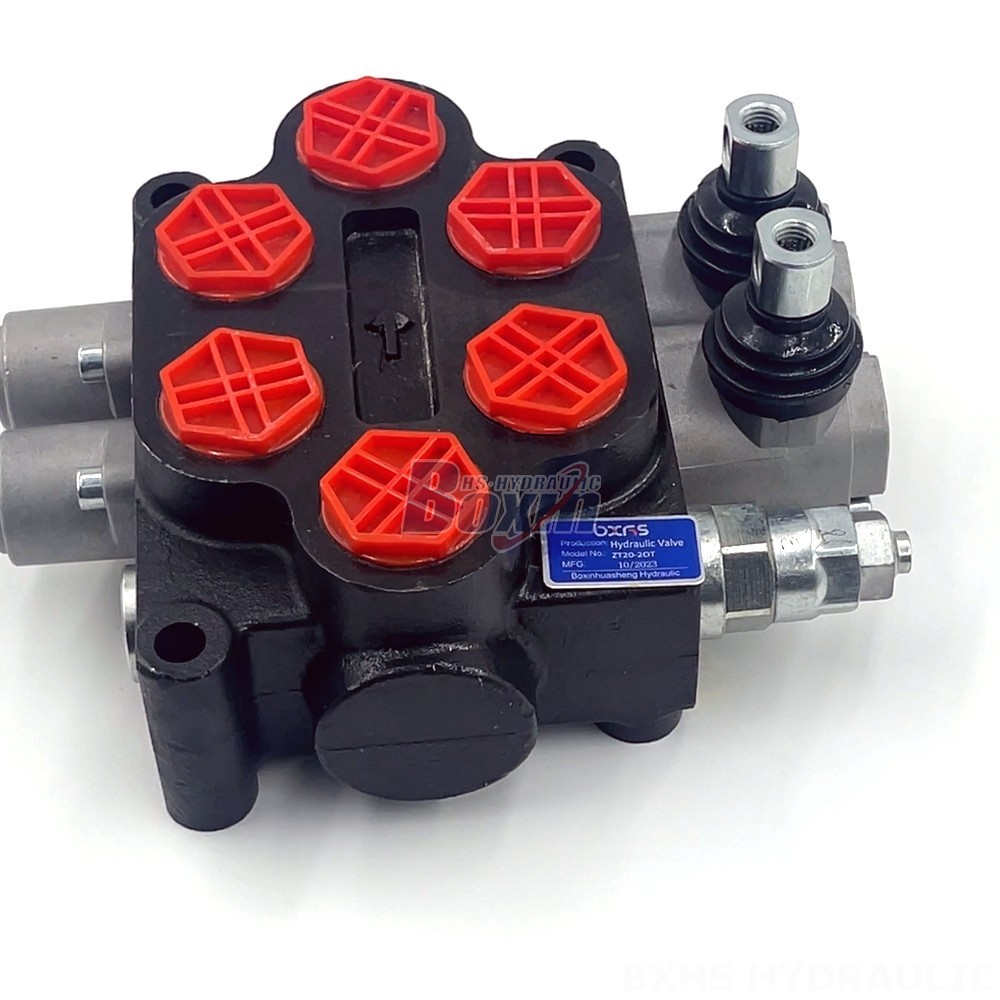

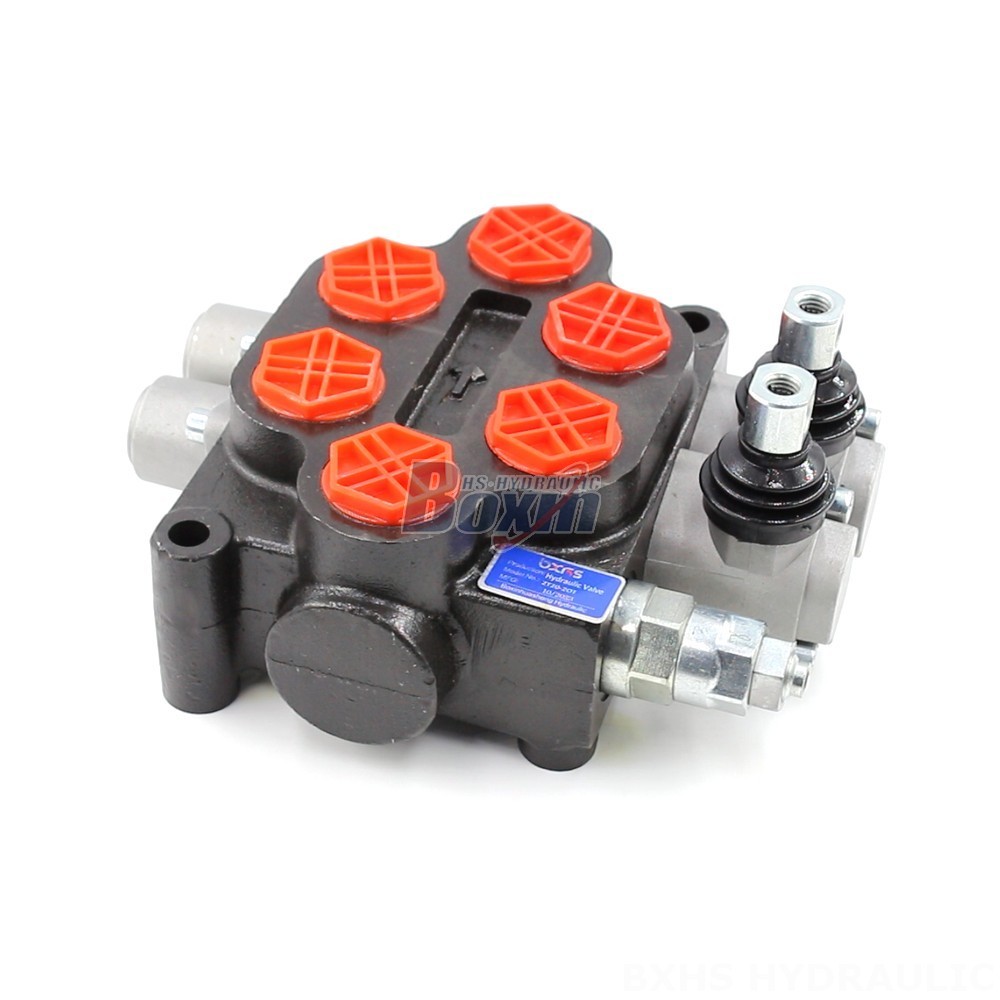

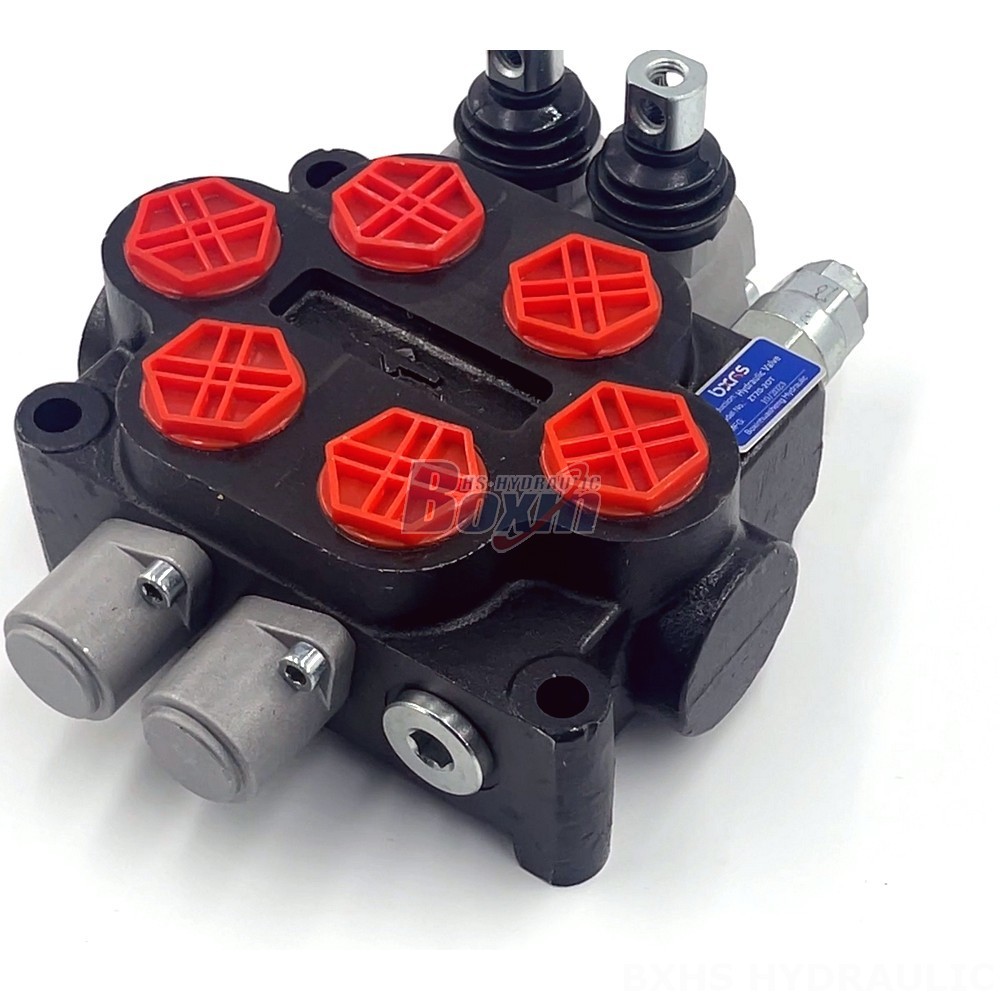

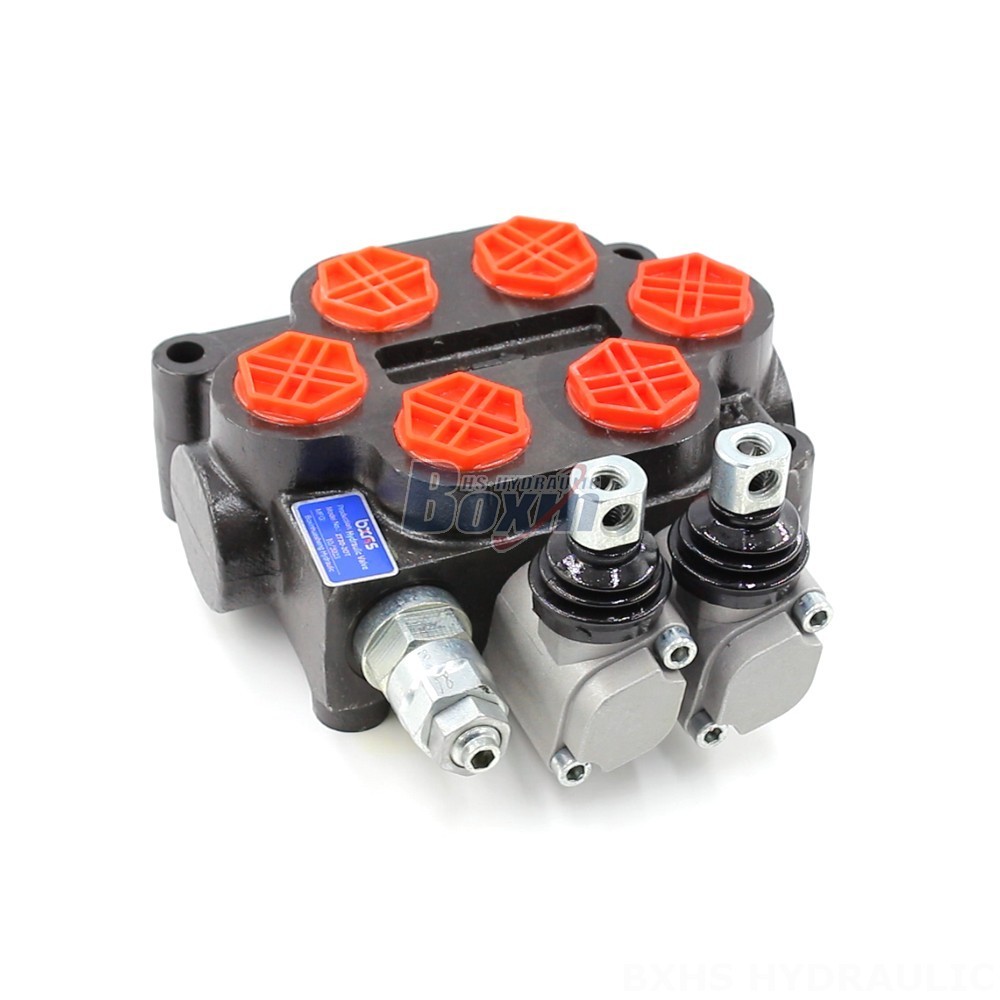

ZT20 Series Hydraulic Directional Control Valve is a high-performance valve designed for various applications in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles. With a rated flow of 100 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation. Its manual control and 2-section design provide precise flow control, while its monoblock structure ensures durability and compactness.
| ZT20-serien Hydraulisk styrventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Kabel, Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner |
| Nominellt flöde | 100 l/min (26,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Utloppsport | G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT |
| Portstorlek | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner |
| Strukturtyp | Monoblockventil |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
**ZT20 Series Hydraulic Directional Control Valve**
**Key Features:**
* Manual Control
* 2 Section
* Monoblock Valve
* Rated Flow: 100 L/min (26.5 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
**Applications:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
* COMPACT WHEEL LOADER
