Hydraulic Directional Control Valve

Kontrollmetod:Manuell

Spole:3 ventilsektioner

Nominellt flöde:80 l/min (21,2 US gpm)

Maximalt tryck:250 bar (3600 psi)

Inloppsport:G3/4

Utloppsport:G3/4

Portstorlek:G3/4

Märke:BXHS

Produkttyp:Monoblockriktningsventil

Produktserie:P80-serien Monoblockriktningsventil

Förpackningsstorlek:26*23*11

Bruttovikt:10.70 kg

Tillgänglighet: I lager

1096 Vyer letar efter den här produkten

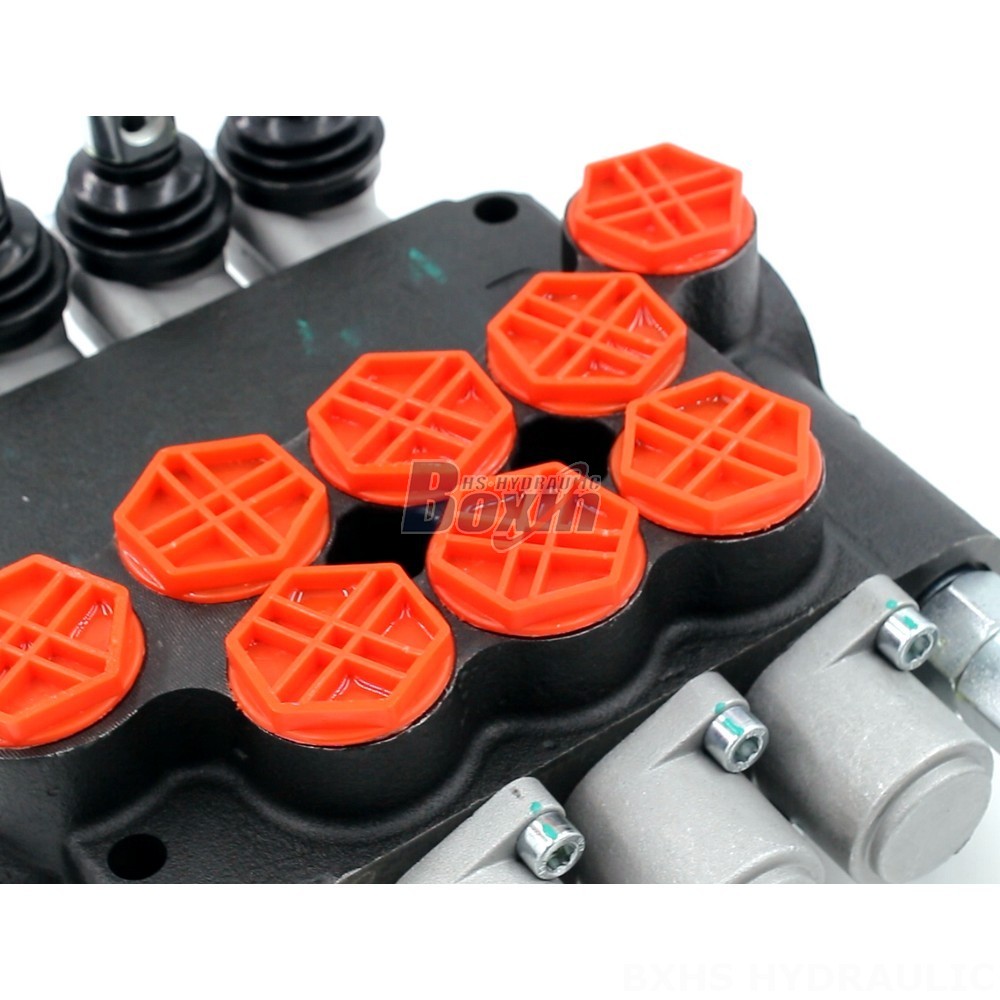

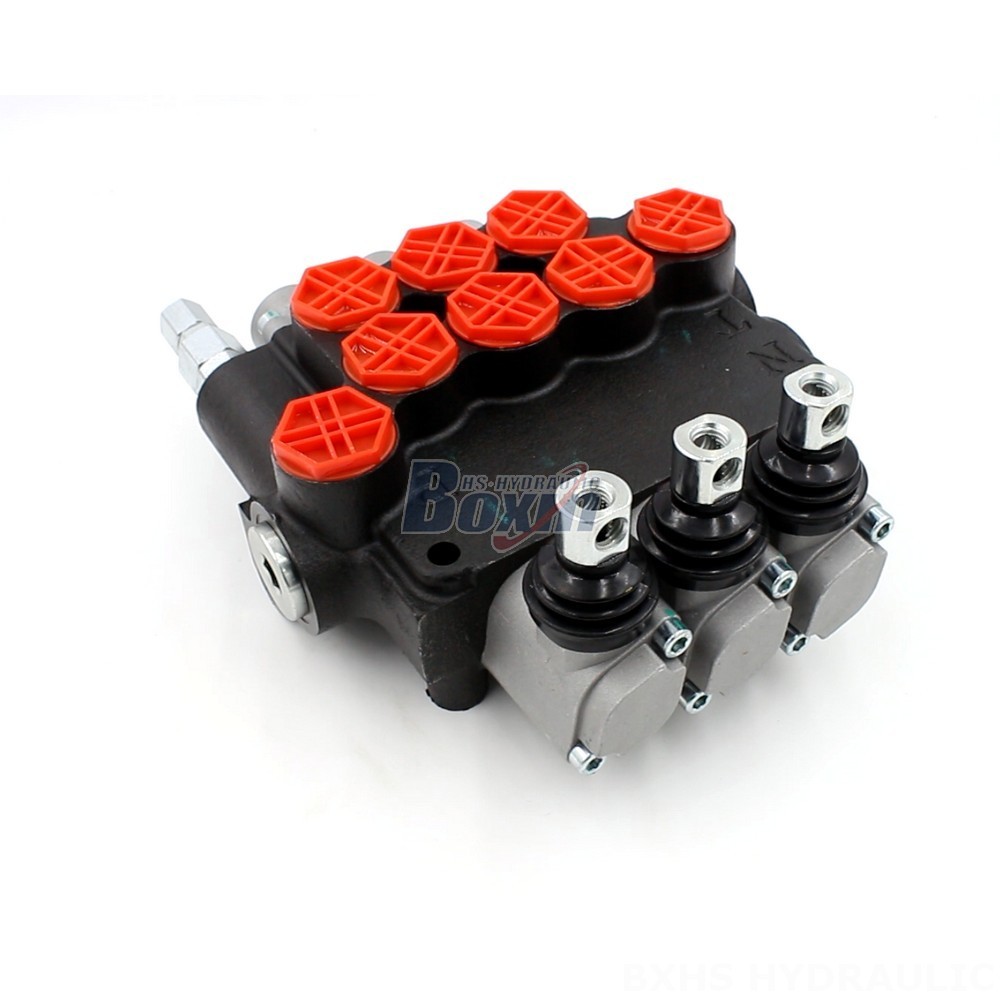

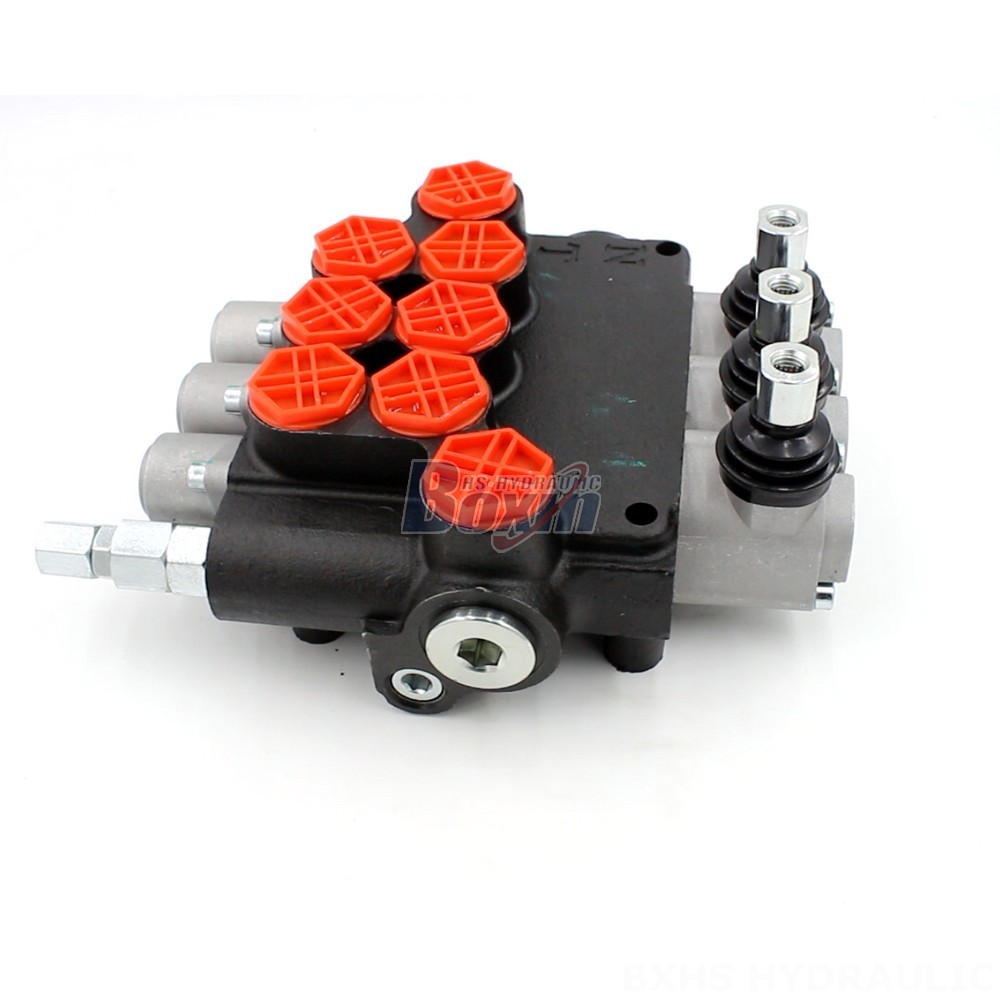

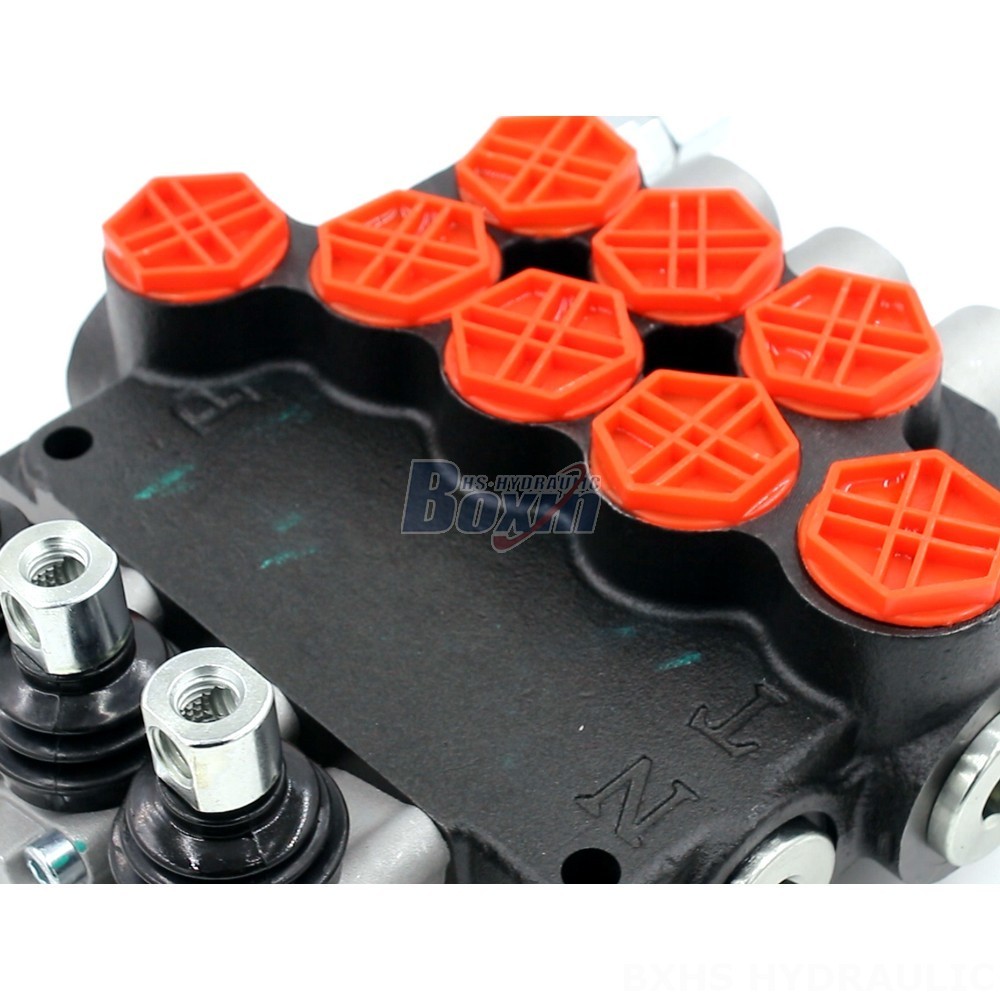

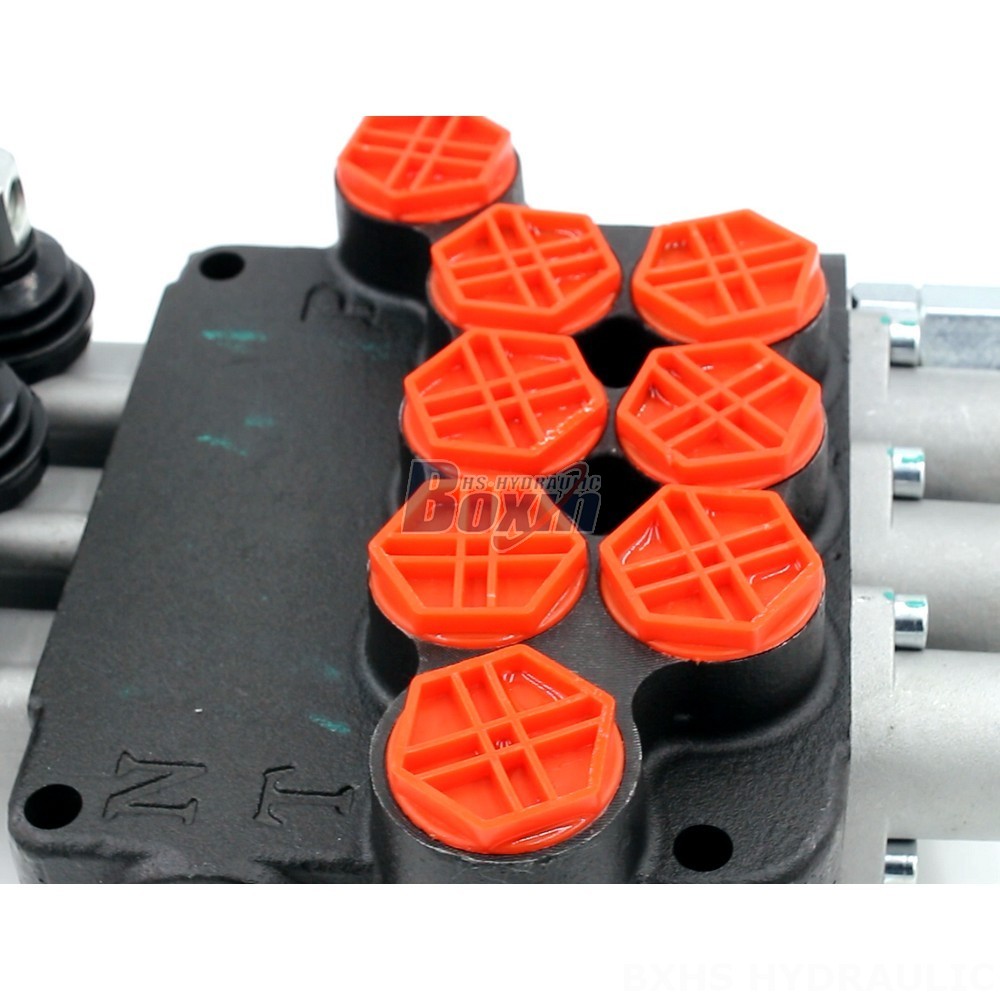

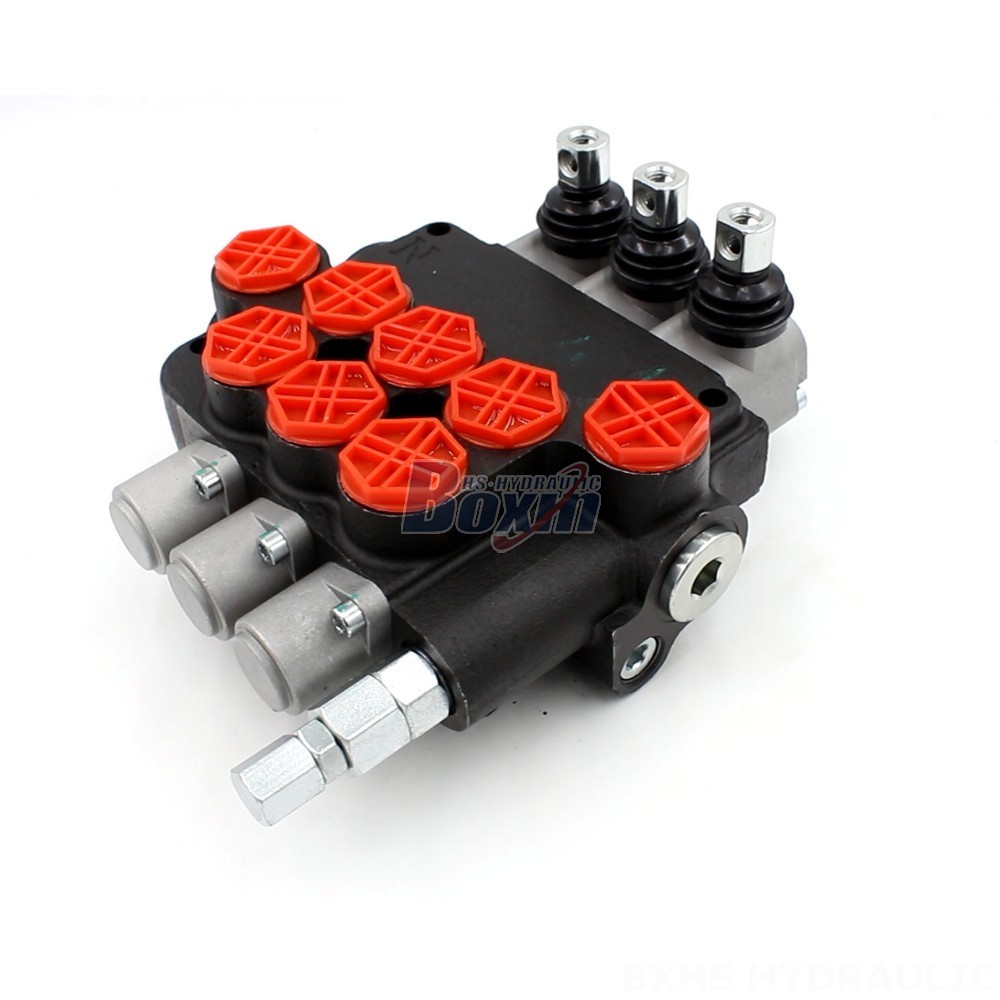

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve drawing image

This high-performance P80 Series Electro Pneumatic Directional Control Valve is a 3-section monoblock valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers reliable control for a wide range of equipment.

P80-serien Monoblockriktningsventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Manuell och Joystick
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Strukturtyp Monoblockventil
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner
Driftsviskositetsintervall 15 - 75 mm²/s (15 cSt till 75 cSt)
Nominellt flöde 80 l/min (21,2 US gpm)
Maximalt tryck 315 bar (4600 psi)
Inloppsport G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Utloppsport G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Portstorlek G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series Electro Pneumatic Directional Control Valve is a robust and efficient solution for demanding hydraulic applications. Its monoblock structure provides durability and reliability, while the manual control method allows for easy operation. This 3-section valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers. Its operating viscosity range of 15-75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse environments. The P80 Series valve is engineered for long-lasting performance and minimal maintenance requirements, providing a cost-effective and reliable hydraulic control solution.
