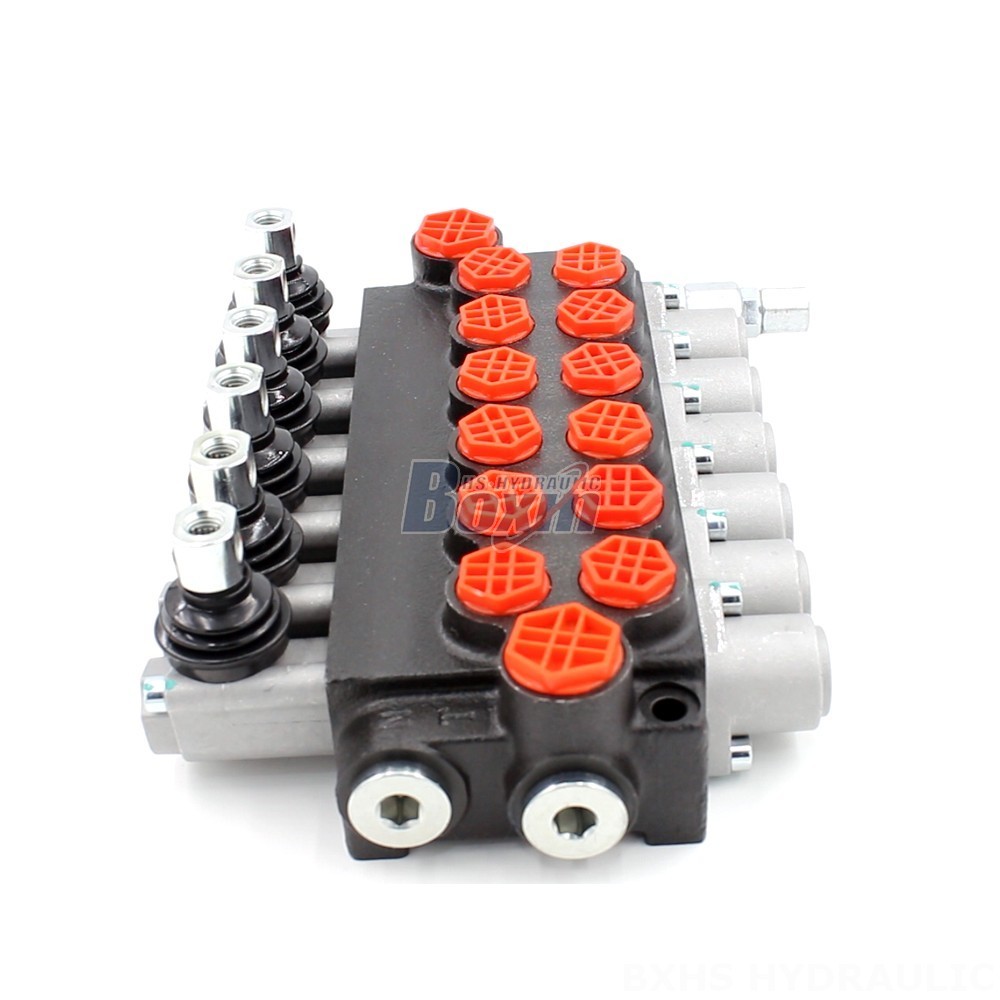

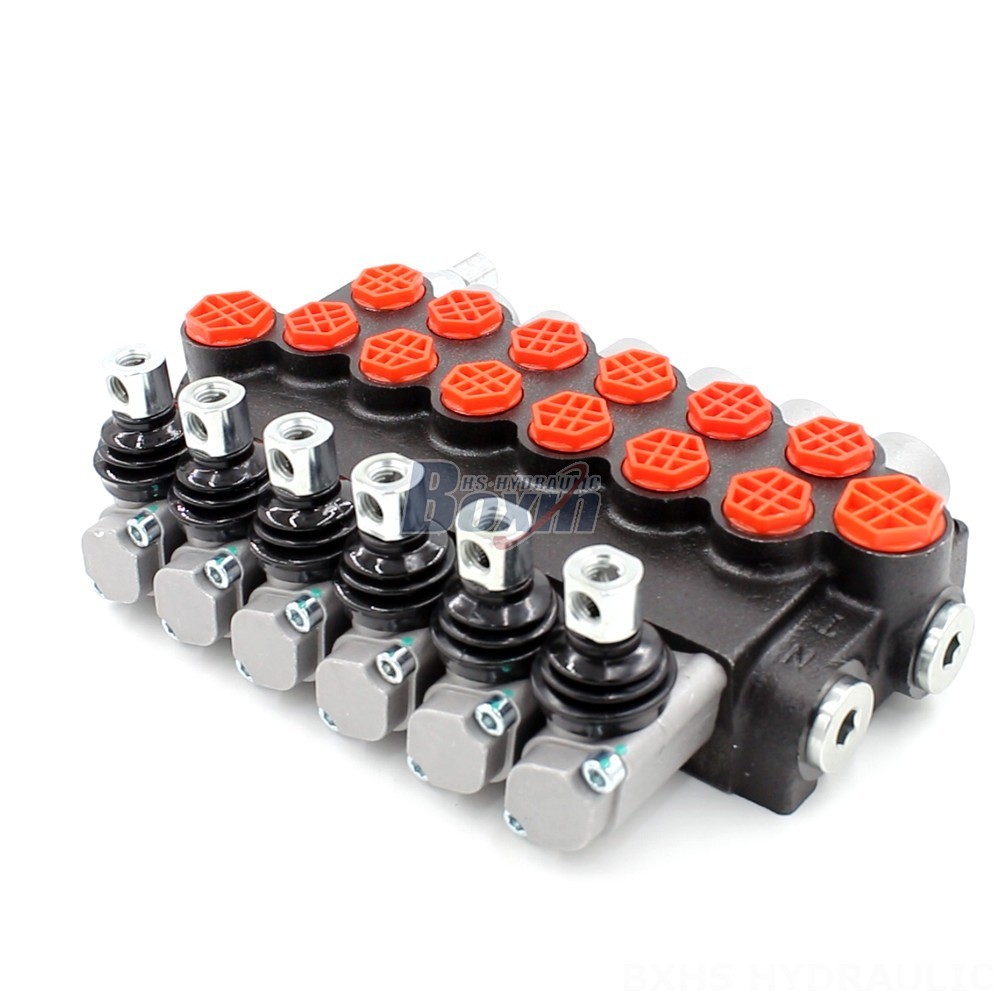

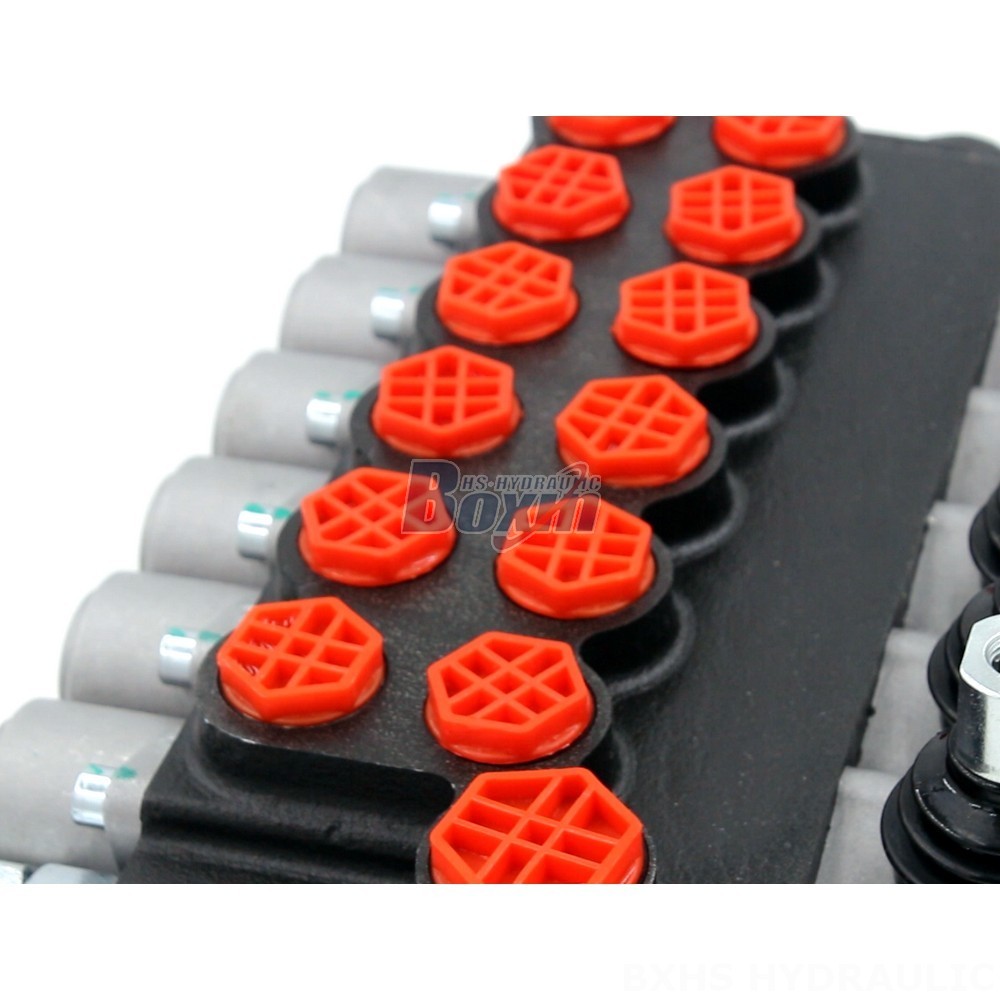

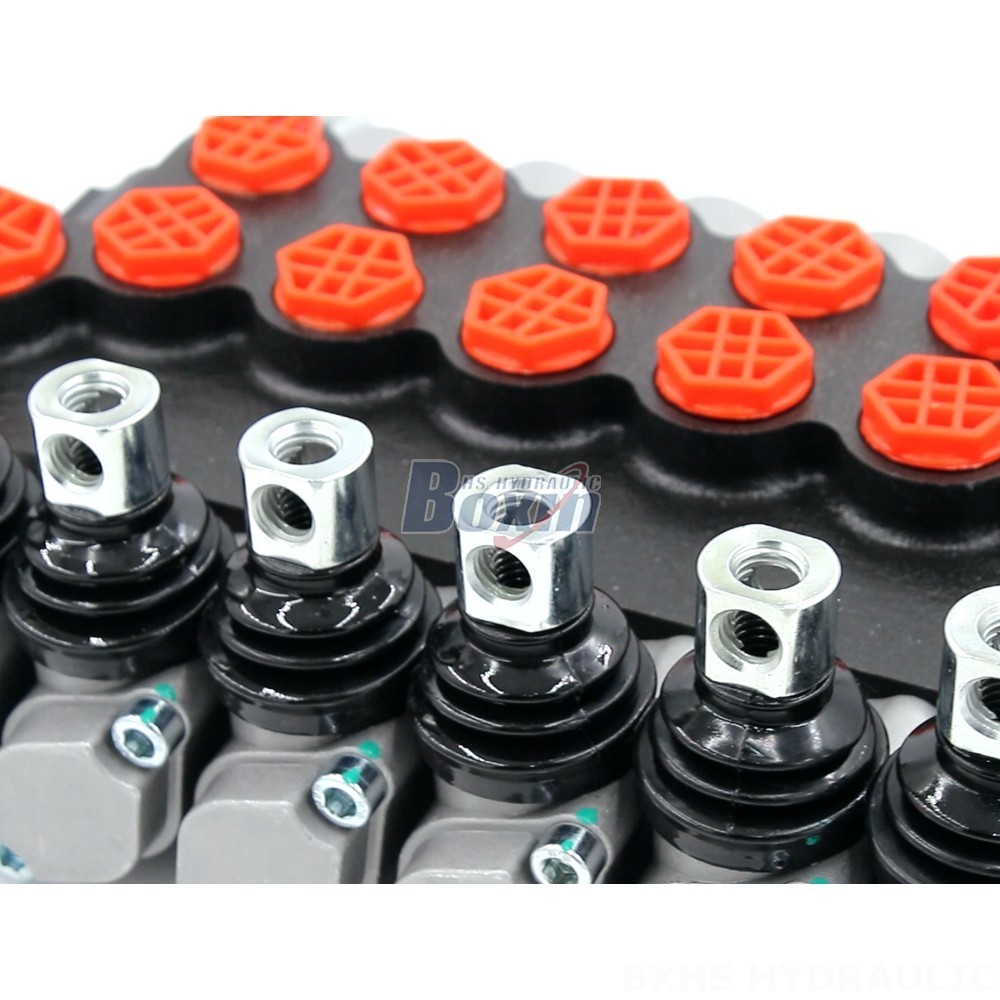

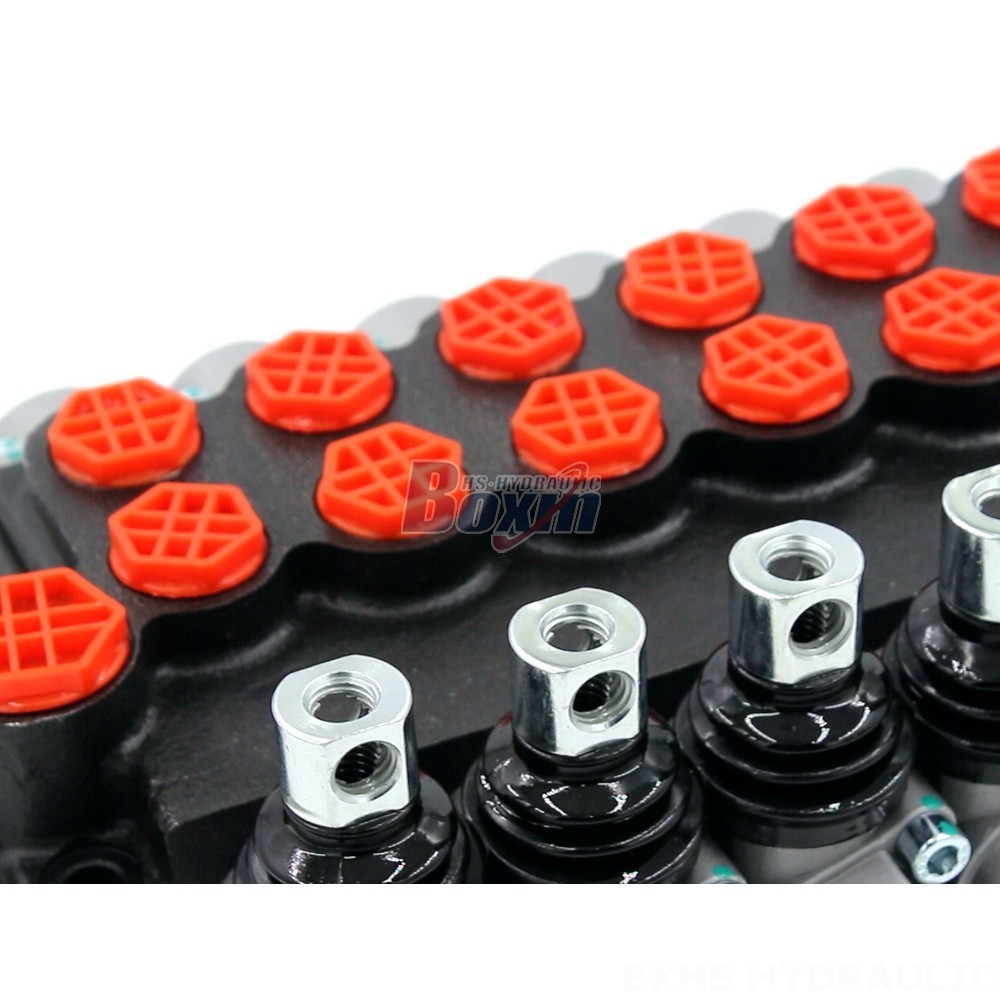

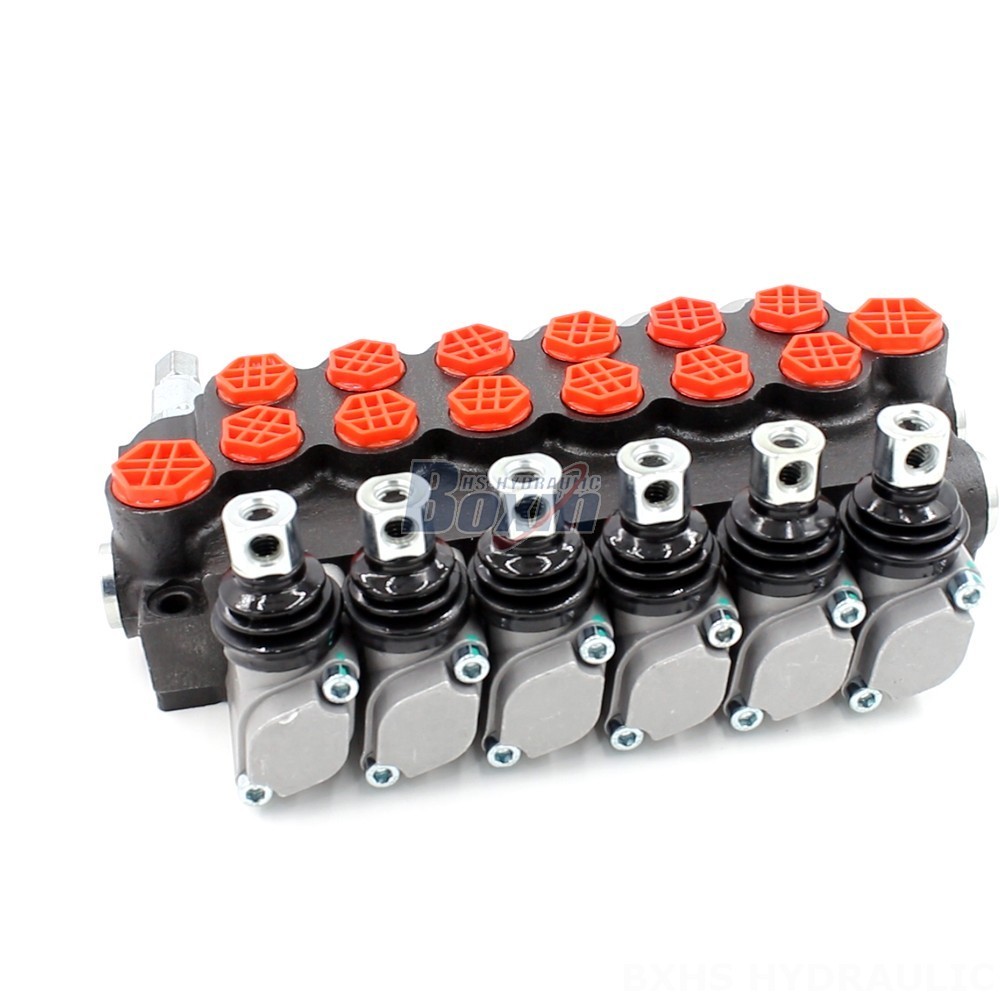

The P40-G12-G38 Monoblock Valve Series from our company offers a reliable and efficient solution for hydraulic system control in various applications. It features a manual control method, a 6-section structure, and a rated flow capacity of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi). Designed to operate within an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), this valve ensures optimal performance in demanding conditions.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Product Name:** P40-G12-G38 Monoblock Valve Series
**Control Method:** Manual
**Section:** 6 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 6 Spool
**Series:** P40 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER
