The SD5-G38 Series Hydraulic Directional Valve is a 4 section monoblock valve with manual control. It has a rated flow of 40 L/min, a maximum pressure of 305 bar, and an operating viscosity range of 15 - 75 mm²/s. The ambient temperature range is -40°C to +60°C. The valve has 4 spools and is suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications.
| SD5-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Utloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Portstorlek | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

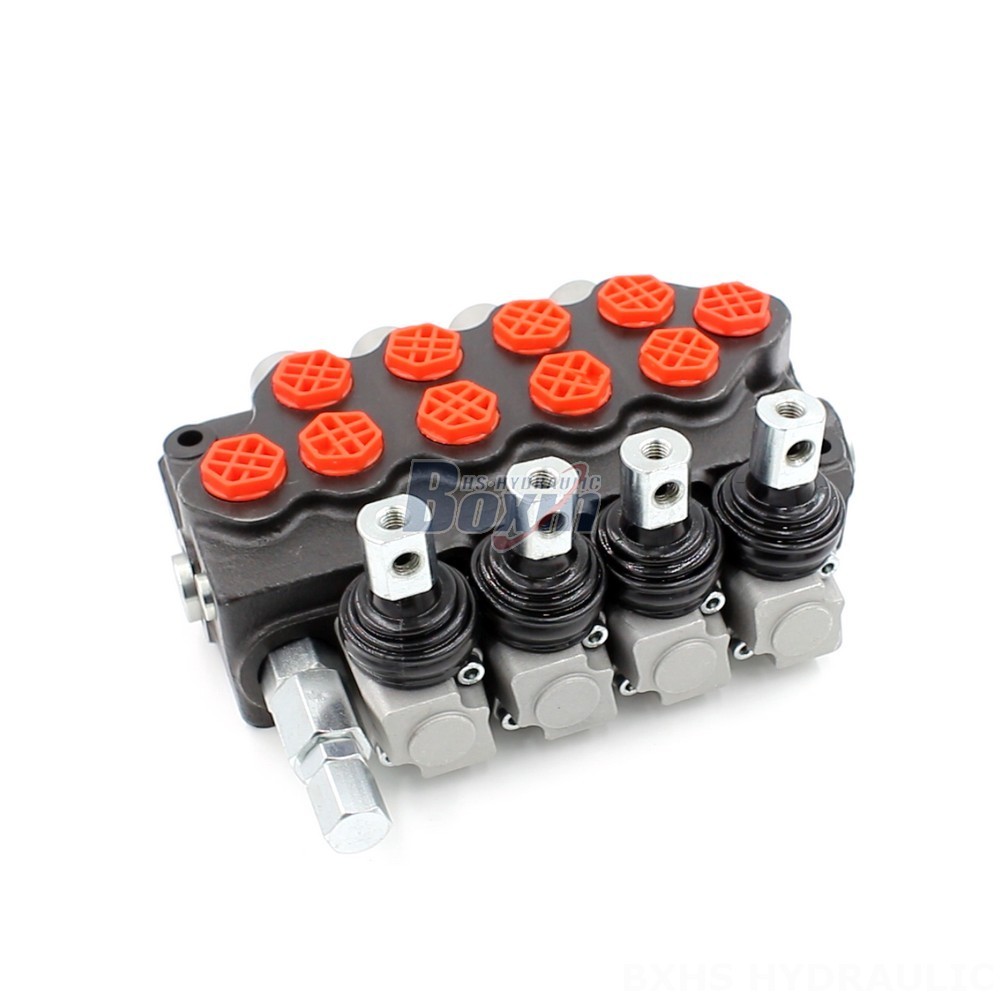

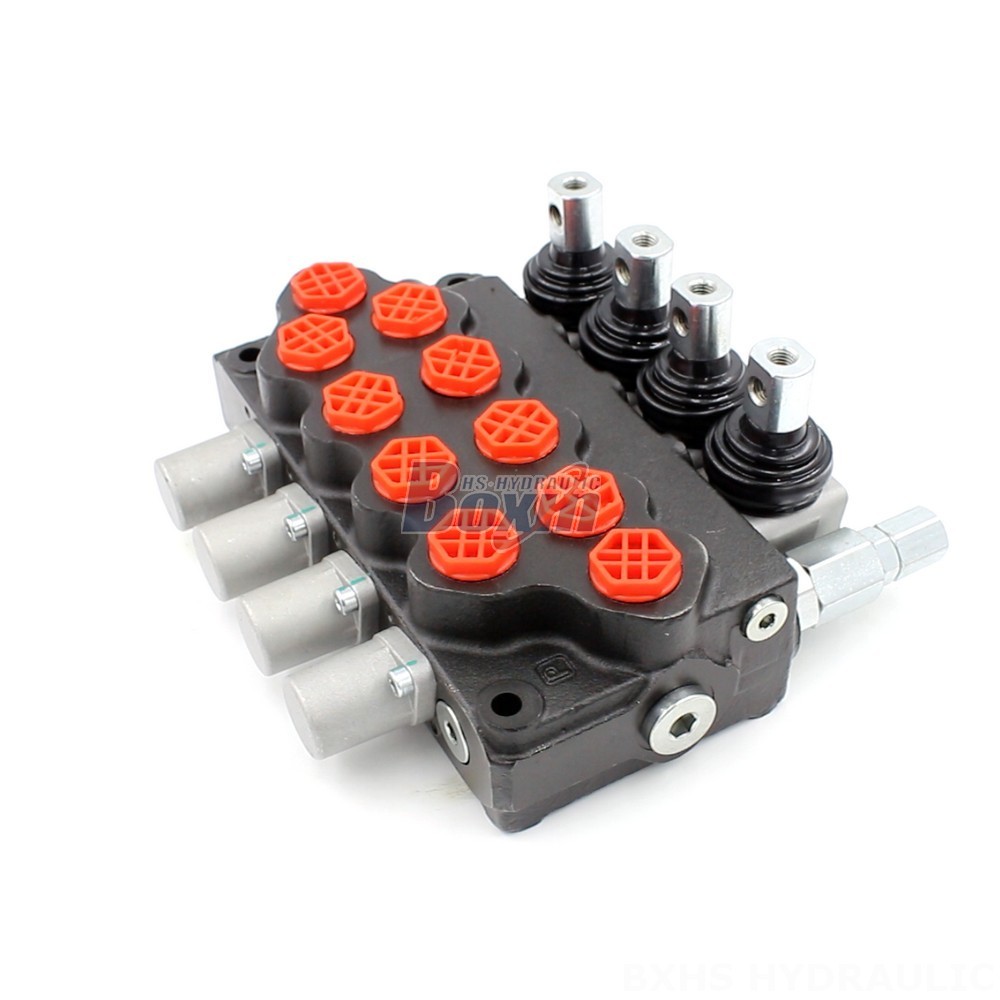

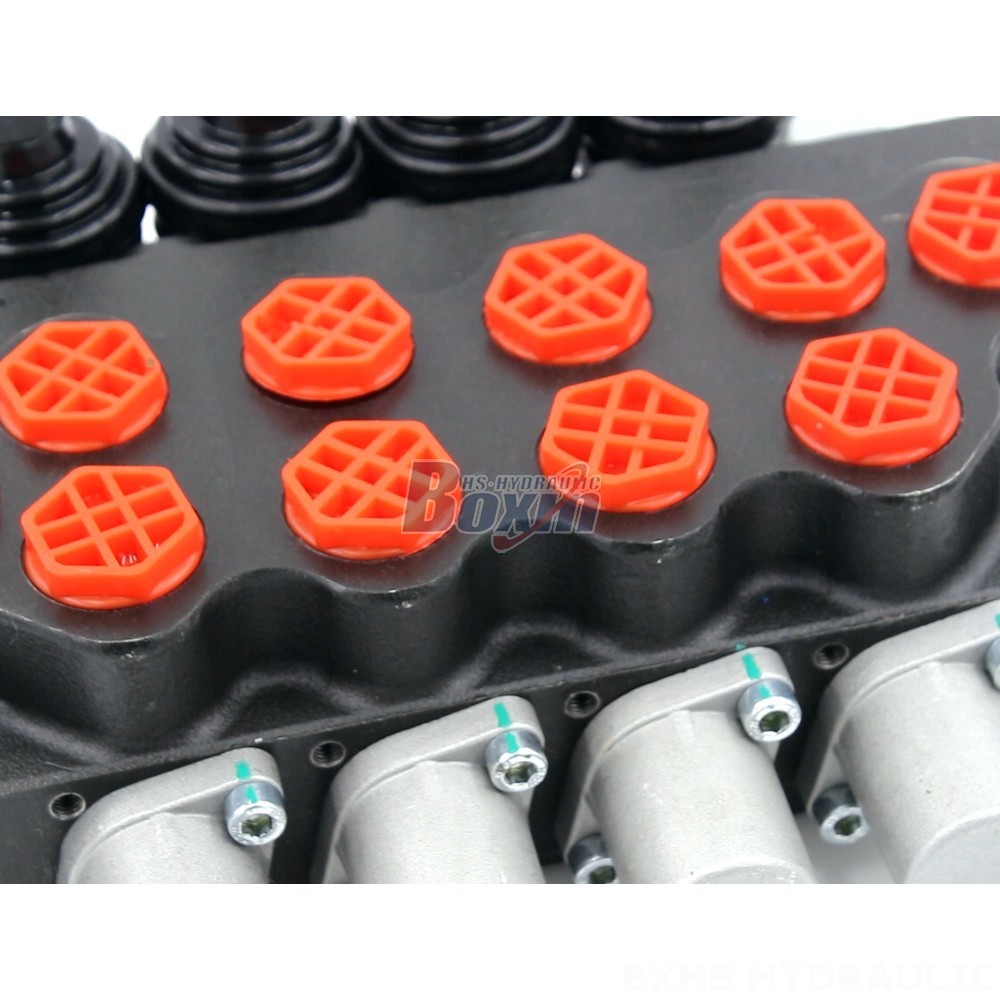

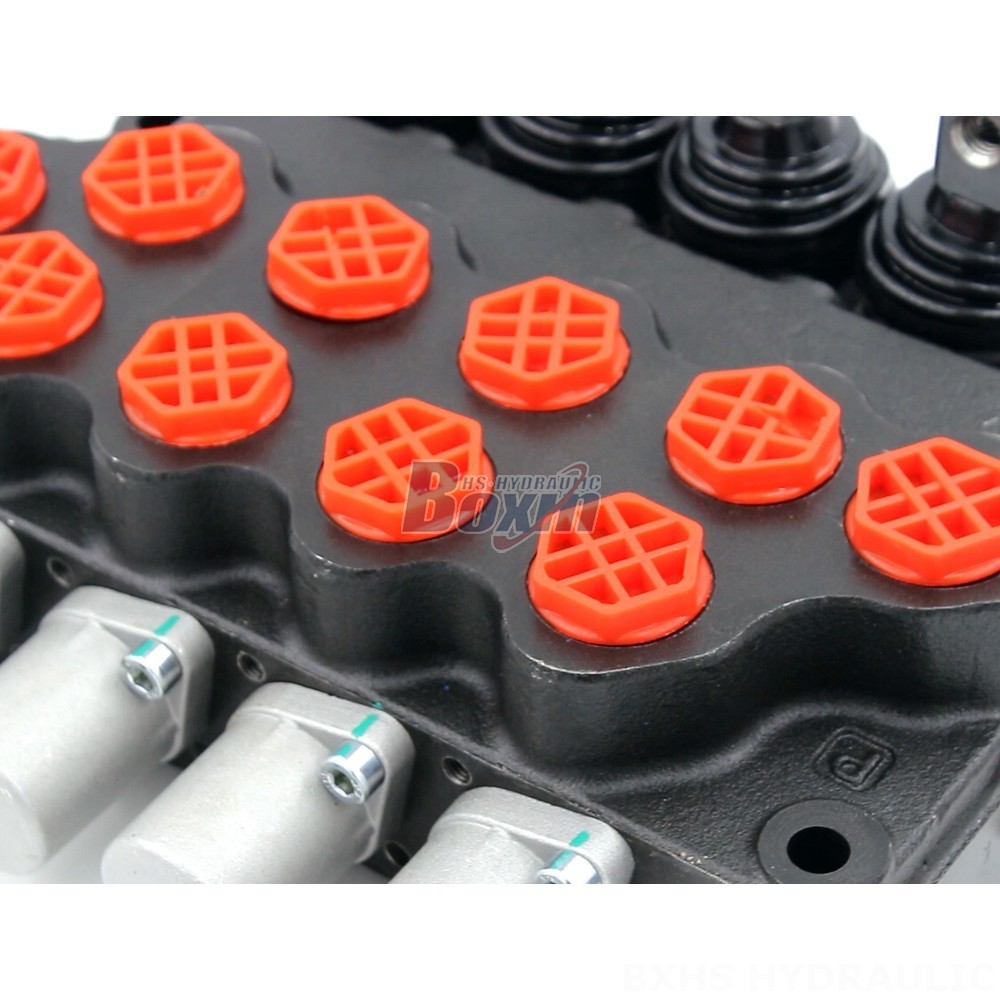

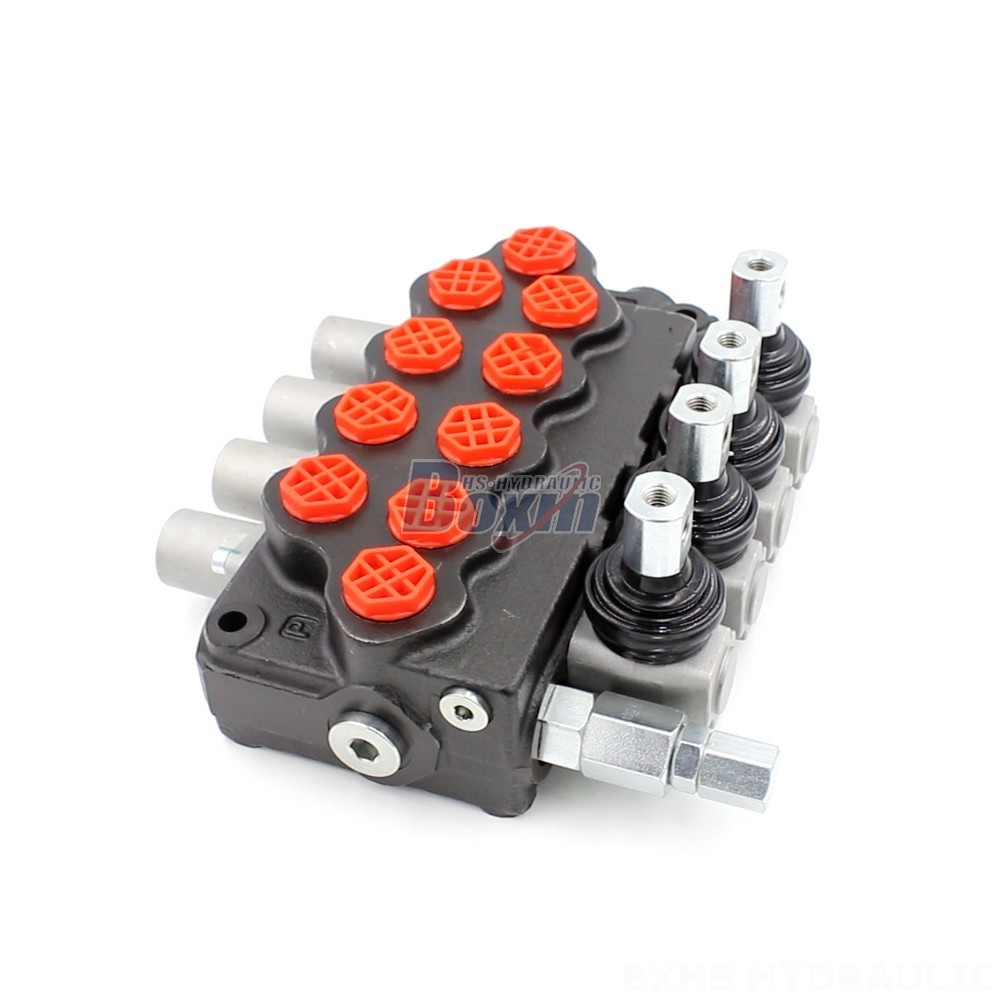

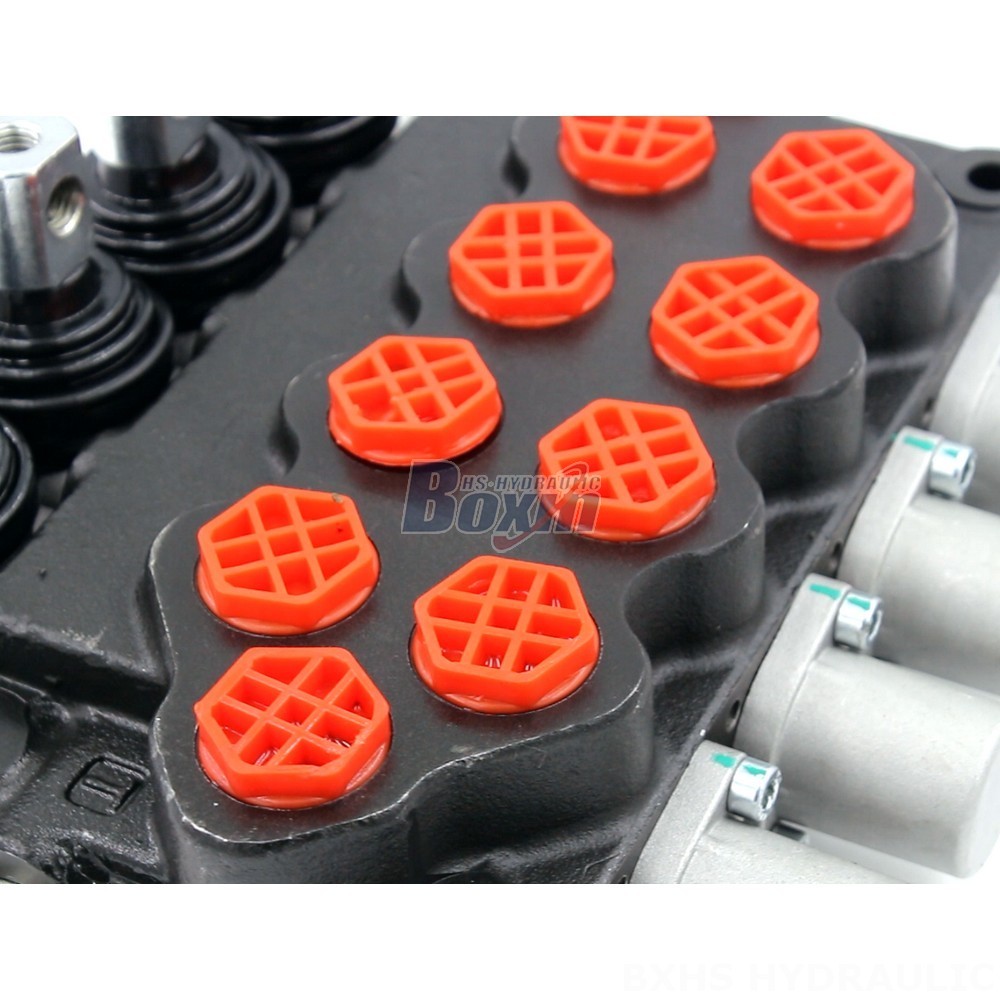

**SD5-G38 Series Hydraulic Directional Valve**
The SD5-G38 Series Hydraulic Directional Valve is a 4 section monoblock valve with manual control. It has a rated flow of 40 L/min, a maximum pressure of 305 bar, and an operating viscosity range of 15 - 75 mm²/s. The ambient temperature range is -40°C to +60°C. The valve has 4 spools and is suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications.
**Key Features:**
* 4 section monoblock valve
* Manual control
* Rated flow of 40 L/min
* Maximum pressure of 305 bar
* Operating viscosity range of 15 - 75 mm²/s
* Ambient temperature range of -40°C to +60°C
* 4 spools
* Suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications
